  • 36" Corner Build in Minnesota

    Welcome to my project. The plan is to begin this fall to complete the excavation and slab installation before the snow flies. Construction of the oven to occur in the spring and summer of 2021.

    I have been following and reviewing the forum for about a year and look forward to the process.

    Thanks
    Chris

    My Build - https://community.fornobravo.com/for...d-in-minnesota
    My Album - https://photos.app.goo.gl/KsnadqNYJqHMYxme7

  • #2
    I began planning the project during the fall of '20. My working sketches are included in the album






    Chris

    My Build - https://community.fornobravo.com/for...d-in-minnesota
    My Album - https://photos.app.goo.gl/KsnadqNYJqHMYxme7

    Comment


    • #3

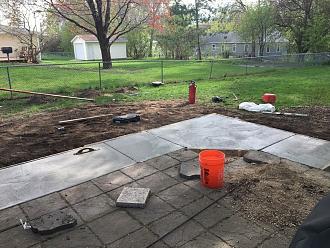

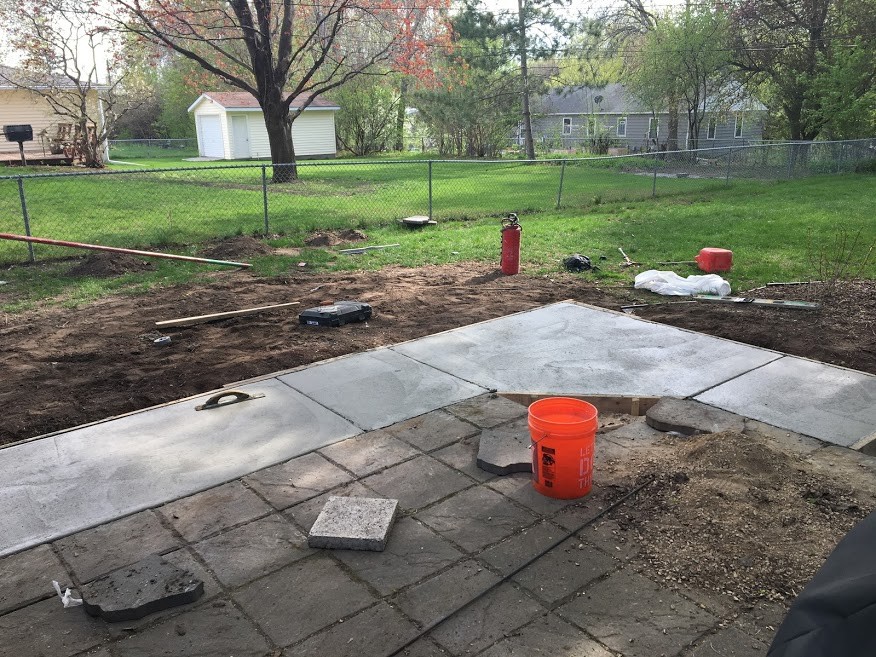

      I started the work this weekend. I made a full size cardboard template which was a technique I learned in the forum which was quite helpful. With that I was able to block out where the slab need to be place and began excavation. As some of you may be able to relate, the roots from a big elm that used to be in this are was the worst part.







      Chris

      My Build - https://community.fornobravo.com/for...d-in-minnesota
      My Album - https://photos.app.goo.gl/KsnadqNYJqHMYxme7

      Comment


      • #4
        I had a giant silver maple sitting 10' behind where my oven was built. That was one of the hardest parts of the buils was hacking out all the roots that were in the way. What kind of soil conditions do you have. Looks kind of sandy. That would be a good thing. My new house is all clay that is like concrete. I nearly wrecked a hydraulic auger trying to put in footings for my deck. I hope you don't have that kind of issue. I can't wait to see what you have in mind.

        Randy

        Comment


        • #5
          Congratulations on taking the leap into building - I lurked the forum for quite a while before jumping in too! Great people here to help you through so much - ask often and share your journey - as you learn - others after you will benefit as well. I remember hitting roots far down too - spade-stoppers! Keep the dream going - you're going to really enjoy this!
          Barry
          You are welcome to visit my build HERE

          Comment


          • #6
            I'll be following your build as I'm planning something very similar. I built the kitchen portion this summer and plan a 36" WFO corner extension next year. So many have gone before us and have shared a wealth of information but each new build seems to bring new thoughts or obstacles of interest.
            Click image for larger version

Name:	kitchen 1.jpg
Views:	1832
Size:	754.7 KB
ID:	430828
            Last edited by GFI; 09-26-2020, 07:35 AM. Reason: added picture

            Comment


            • #7
              Alright, so I haven't posted since September but winter came early to Minnesota last fall which threw a wrench into my plans to progress on my project. But, I have got things moving again.

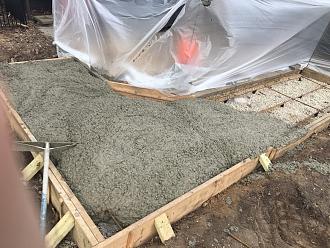

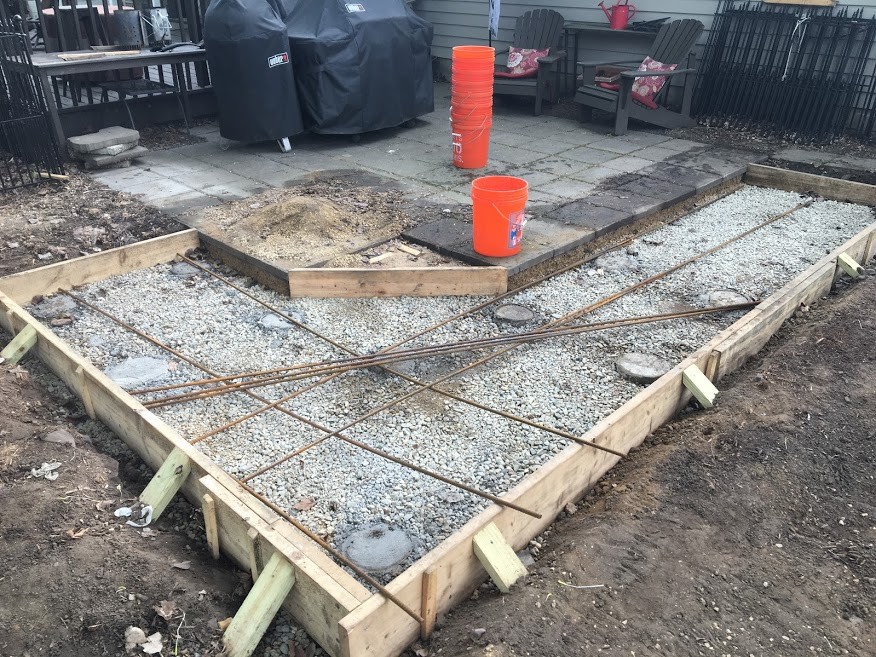

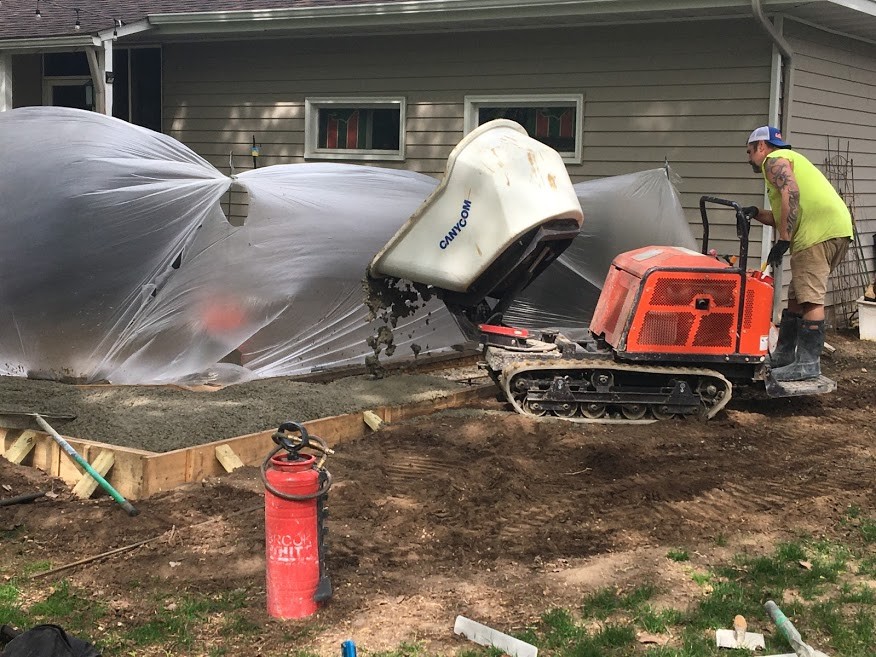

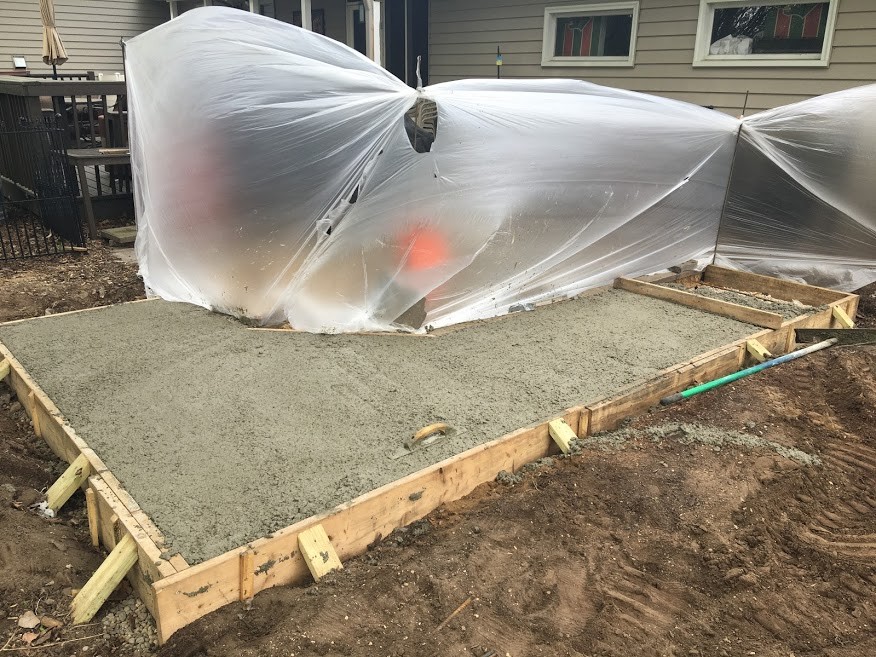

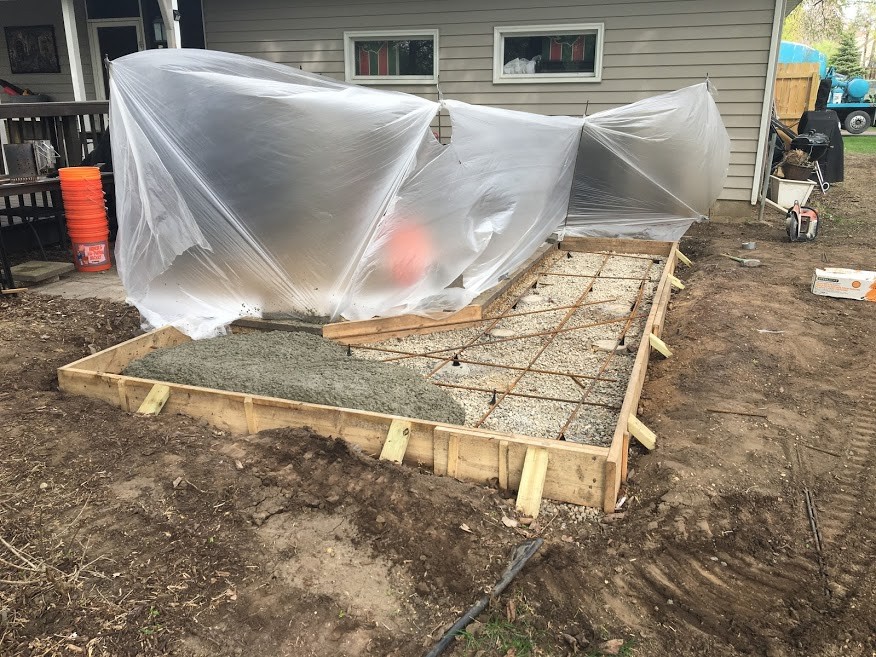

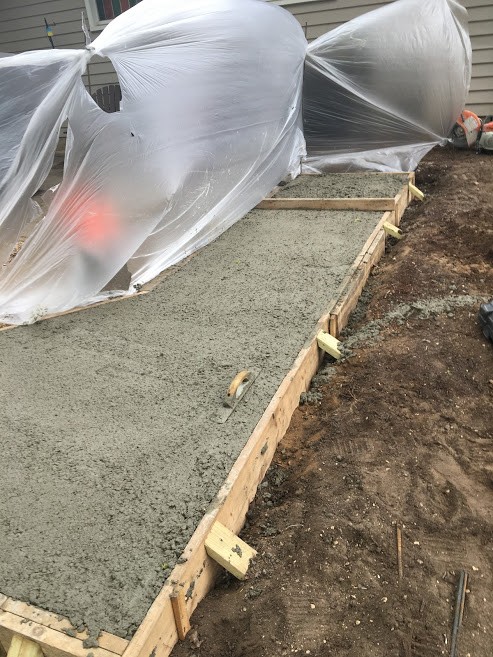

              During the first week of May, I had the slab for the hearth and counters poured. Decided to hire this part out to make sure it was done right and finished well.

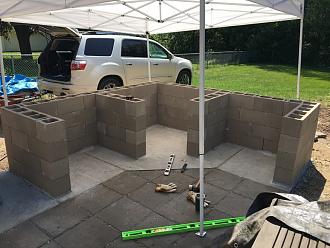

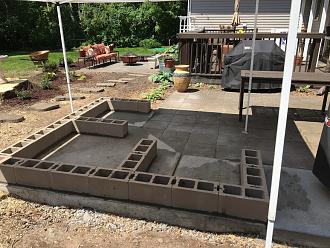

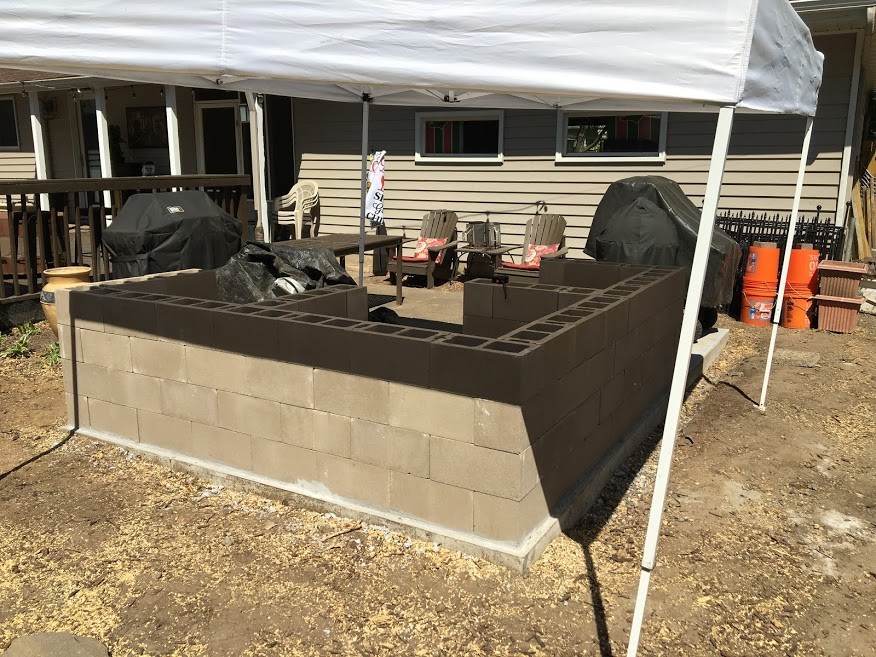

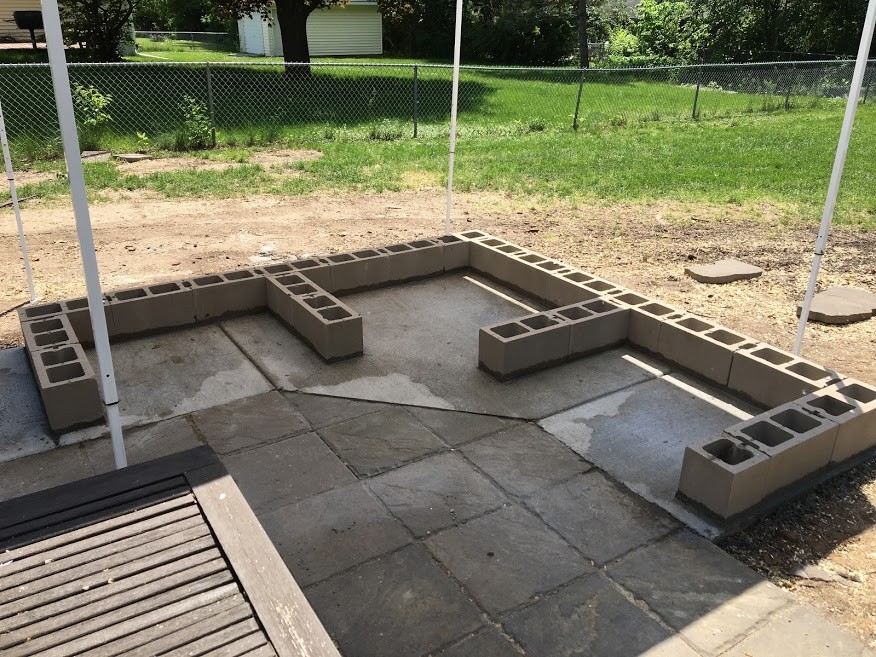

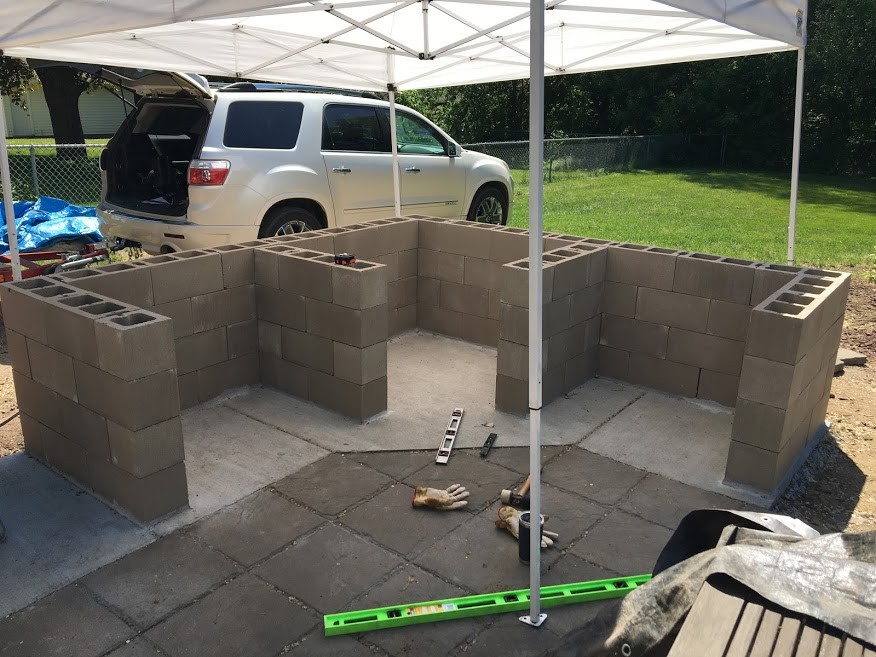

              Since that time I was able to get the first course of blocks down and mortared into place. Yesterday, I was able to dry stack the remaining levels. I was happy to maintain the level/plumb through all courses.

              Next on the docket will be the pouring the cores and applying the SBC to ensure the stability and then on the the hearth.

              I will attached some progress photos for context.

              Happy building!
              Chris

              My Build - https://community.fornobravo.com/for...d-in-minnesota
              My Album - https://photos.app.goo.gl/KsnadqNYJqHMYxme7

              Comment


              • #8
                Click image for larger version

Name:	ACtC-3c0Ae7c_tKft7b2baEkMON1AK3CaR-FetYEyewFnLI5X5McrhsiDdTidyk12WBgEk8fPPMQXVTfvznmTHtfQASoWk5N3A5bE52dpXATxBr3BUFexJydJsJemwERCKKIzC-pGawaox7zJOdbtvW33ZsU=w876-h657-no?authuser=0.jpg
Views:	1768
Size:	267.2 KB
ID:	438826 Click image for larger version

Name:	ACtC-3dIKr0YfJ4th8XXca_c01Zj_WtjKxFmHNjxo_-vNNrDmi4oOowucqlhdw3NIcd6B_baWUedQ1MpYumOIqIVAQGEeHzprfQoPoP1FLVeZvh11NuASIr6FvxLk0I73JRrIkij7rXFOKvEC49cSYyHhmni=w876-h657-no?authuser=0.jpg
Views:	1690
Size:	236.2 KB
ID:	438827 Click image for larger version

Name:	ACtC-3erW897pWhx2yb8C88qYdgwDVNu3n_dxOxPP8SuPZ-Al-DL4_Iv5fgvp3eMw0Xmr-XPuauDWjePiclkduiWJnJhggJsdzK5Cm13fF6CqbX3PGo4HU3hNfwqvBCeckPiBB3JhHFta4dAw8X2LL2XeiTw=w876-h657-no?authuser=0.jpg
Views:	1718
Size:	228.1 KB
ID:	438828 Click image for larger version

Name:	ACtC-3dX_Qp2UhAbG2dgyn370EahqDHgHp-qE1e7QqKG5pmo7QkZE0vl2GLwFX1qzv-daUIGO-IaqhWM5YeJNFIoi7iq7jLr9YoqYbPTbJ_VDYaXMQcaCMQmuGWObE1XO3Hgt_X2W9hDXlBYMfOK1bv0Pw5B=w876-h657-no?authuser=0.jpg
Views:	1768
Size:	198.3 KB
ID:	438829 Click image for larger version

Name:	ACtC-3ceBSeTrM9XTNvdmz5qaLeZqpYemcE-4lMSC3jJ9hjvSg3UgLwj9LzZZCFg5i8iug0m54svjh1rVJoLI9npl_8PQoAC5jidvtIaSu-pGbMV-iRLY544GHAzcdZStgXcATEYI_PPV9LdYu0sF32lX5BZ=w876-h657-no?authuser=0.jpg
Views:	1762
Size:	215.4 KB
ID:	438830 Click image for larger version

Name:	ACtC-3euvumUkgSzu38MFea9FvWdXiohxrokCkzsyb0kmVRq8lw609xpa6V0tiRT9ntFwxo0J3GTsWe6u1DEcpTZ16qtpaihuAs6IluT1UMKJMyPN08RO-CKg9Ywvhed5NTRbVc3tCkE7EZRCXsLHrnii0Jg=w493-h657-no?authuser=0.jpg
Views:	1809
Size:	129.0 KB
ID:	438831
                Chris

                My Build - https://community.fornobravo.com/for...d-in-minnesota
                My Album - https://photos.app.goo.gl/KsnadqNYJqHMYxme7

                Comment


                • #9
                  Click image for larger version

Name:	ACtC-3cct4_Xw4CZONnSjI4EA6VNXpoknlaTuUozR90_eP0LGcaFcf7qsxxHpia9jpGjSud-UFIwvyiTBaJDS_2nmYi6C9fNMHISUZc1X_QT8fSLCww4soxd3yMtoBNotuC4En1wukZOiscn9szcS9F7ZM-r=w876-h657-no?authuser=0.jpg
Views:	1727
Size:	248.0 KB
ID:	438833 Click image for larger version

Name:	ACtC-3fm_G-Z6CDfPfuAA3tltzesbeQjOpxt9u-14ZFy0VNz-AnjzL5NM-NOclEUS6CA0FiARwZX9tpbDdmlx-pLBPETzdw2hcdPFNEA30dEqgD7D5S4D7ko9PPsDGA4B5SJ0KnIwY41ACKWgl5RjxjcgdsW=w876-h657-no?authuser=0.jpg
Views:	1817
Size:	231.6 KB
ID:	438834 Click image for larger version

Name:	ACtC-3eaTwjcOePsHDqQgEFWlbcRwHzmWzdhUFZ2jeyoL9bK0SvCERFW982QzoJYV4P3i3VJ7CJO55utdzNoVx9yfz4KtvVdcoR98xZS-FzEet3sl3oil9sVuAH4Ui9EK3uRQxpo6-emzs_YO179ubtZu8L3=w876-h657-no?authuser=0.jpg
Views:	1947
Size:	215.2 KB
ID:	438835 Click image for larger version

Name:	ACtC-3d2QUHU1qYKp8ha4xcQSjEbV9aw9erxxxtAPh0NFm4jfvKRAI4UPFSp7hfNipK5fIm_5OvNeghrl6ZiQIYFAaY7m1U_B47ypX3t65T6QCZWHhzPYgfpHEyDD4l35vNd2IKrHvZPHW7ixvs-g7Nsg6E5=w876-h657-no?authuser=0.jpg
Views:	1818
Size:	157.7 KB
ID:	438836 Click image for larger version

Name:	ACtC-3drQm8FpcT2zrd4aiJsenvTopaWHInWHPhWj9_q9hWo1WSCU-BF-wJtAv5GKrC66x3wXipwMTFpIhlDM_V1B9evEN4gH43esReQwZOQXXNDvrrtyGKQ9SJkfZPEr5-b2PrB7otx7odt65WpZAGqYFS2=w876-h657-no?authuser=0.jpg
Views:	1815
Size:	209.8 KB
ID:	438837
                  Chris

                  My Build - https://community.fornobravo.com/for...d-in-minnesota
                  My Album - https://photos.app.goo.gl/KsnadqNYJqHMYxme7

                  Comment


                  • #10
                    Great restart. I did look at you oven mock-up from last year so when you finalize, post. Right now the placement of the inner arch need to be clarified. It appears to be too far out from the inside of the dome so post your final design so we can look closer at it. The placement of the inside of the inner arch relative to the inside of the dome is critical for mating the arch and dome and especially if you do a tapered inner arch.
                    Russell
                    Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]

                    Comment


                    • #11
                      Looking good. You have a nice start on the base.

                      Comment


                      • #12
                        UtahBeehiver - I appreciate the detailed question regarding the transition as I have read several posts about the trouble people have had on the topic. When doing the initial sketch I was mainly focused on the height of opening and where I thought it would intersect with the dome. I will work up a better sketch to provide this view. What other factors or ratio would you be concerned with? Thanks!
                        Chris

                        My Build - https://community.fornobravo.com/for...d-in-minnesota
                        My Album - https://photos.app.goo.gl/KsnadqNYJqHMYxme7

                        Comment


                        • #13
                          RandyJ - Thanks for checking back in. It’s starting to feel real. Based on your suggestion, I have reached out to Smith-Sharpe for the bricks, fiber board and blanket. Will go down and pickup when I get closer to that stage. Stay cool this week, gonna be some more scorching days ahead of us.

                          Chris

                          My Build - https://community.fornobravo.com/for...d-in-minnesota
                          My Album - https://photos.app.goo.gl/KsnadqNYJqHMYxme7

                          Comment


                          • #14

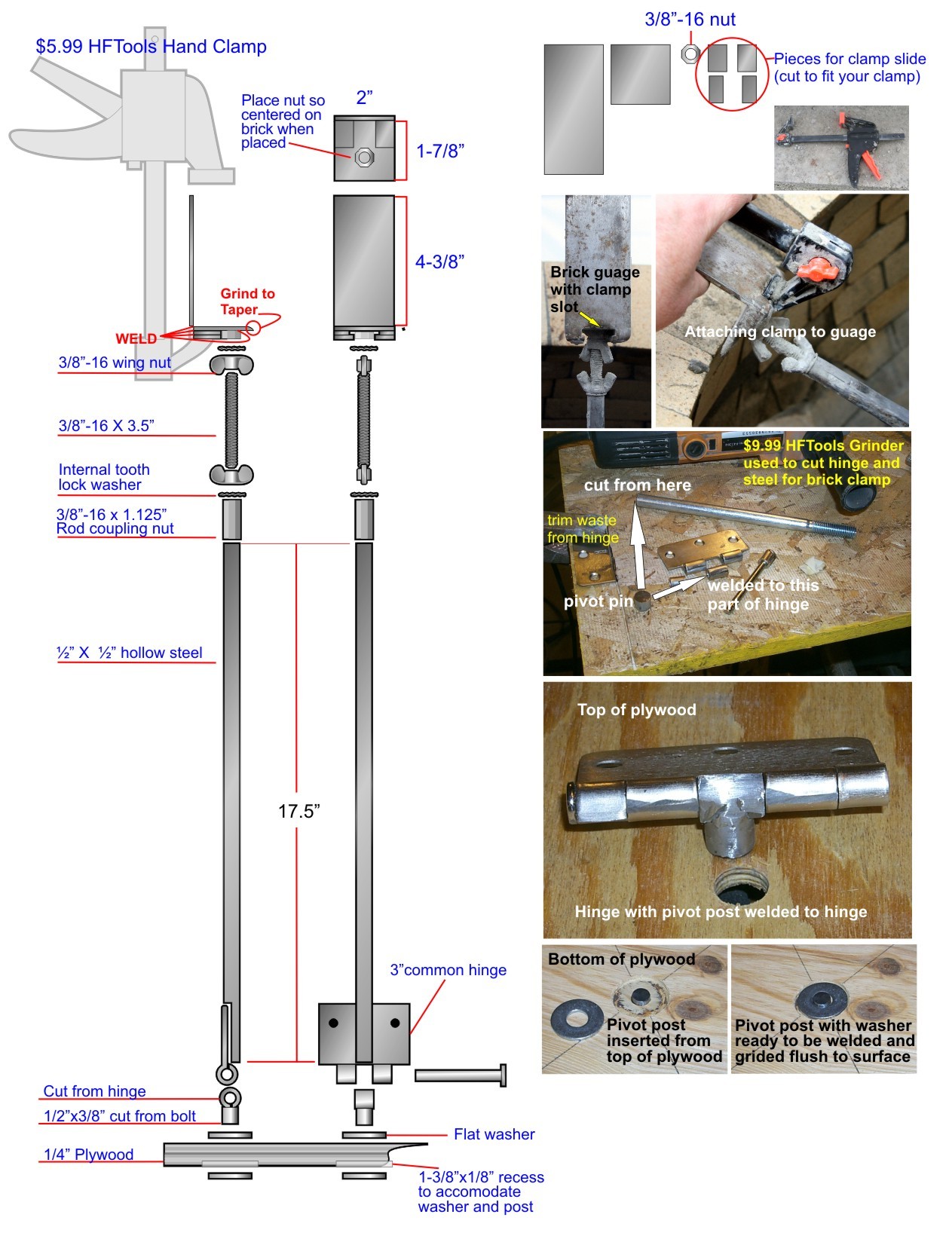

                            Same deal with your IT, it is really important that is is configured right, ie pivot point, adjustable, L bracket at end. I have seen both welded and non-welded version that work well you just have to poke around the forum but here is an older version of one that has most of the critical design factors in it. Note, I would use a wood block the size of the floor brick to insert pivot point.rather than mount into ply (see Gulf's build). The goal is to get the pivot point at floor elevation.

                            Click image for larger version  Name:	IT.jpg Views:	0 Size:	365.8 KB ID:	438860
                            Last edited by UtahBeehiver; 06-07-2021, 07:12 AM.
                            Russell
                            Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]

                            Comment


                            • #15
                              MnDuden't wait to see this come together. If you have any questions or want someone to stop by and check out what you have going on let me know. I would love to take a look at your oven. Once it is done i have a buddy that is a executive chef that loved to cook in my old oven and i am sure would be game for cooking up some good eats.

                              Comment
