  • #31
    Excellent point Joe when transitioning from an IT to a string.

    He's used the string to build the entire dome, so while his angles for each course should be consistent within each course, I do understand that each subsequent course can generate a slight bit of lippage on the interior face of the brick from the course below. As long as a builder keeps the elevation (height above the floor) of each course consistent, a builder should be able to avoid any issues when covering the arch. I see the lippage as more of an aesthetic issue, but dome droop or beaver tail, that can be a pain in the rear. lol
    Mongo

    My Build: https://community.fornobravo.com/for...-s-42-ct-build

    Comment


    • #32
      Work was pretty busy last week and rained a good bit so I didn't get at the oven much.

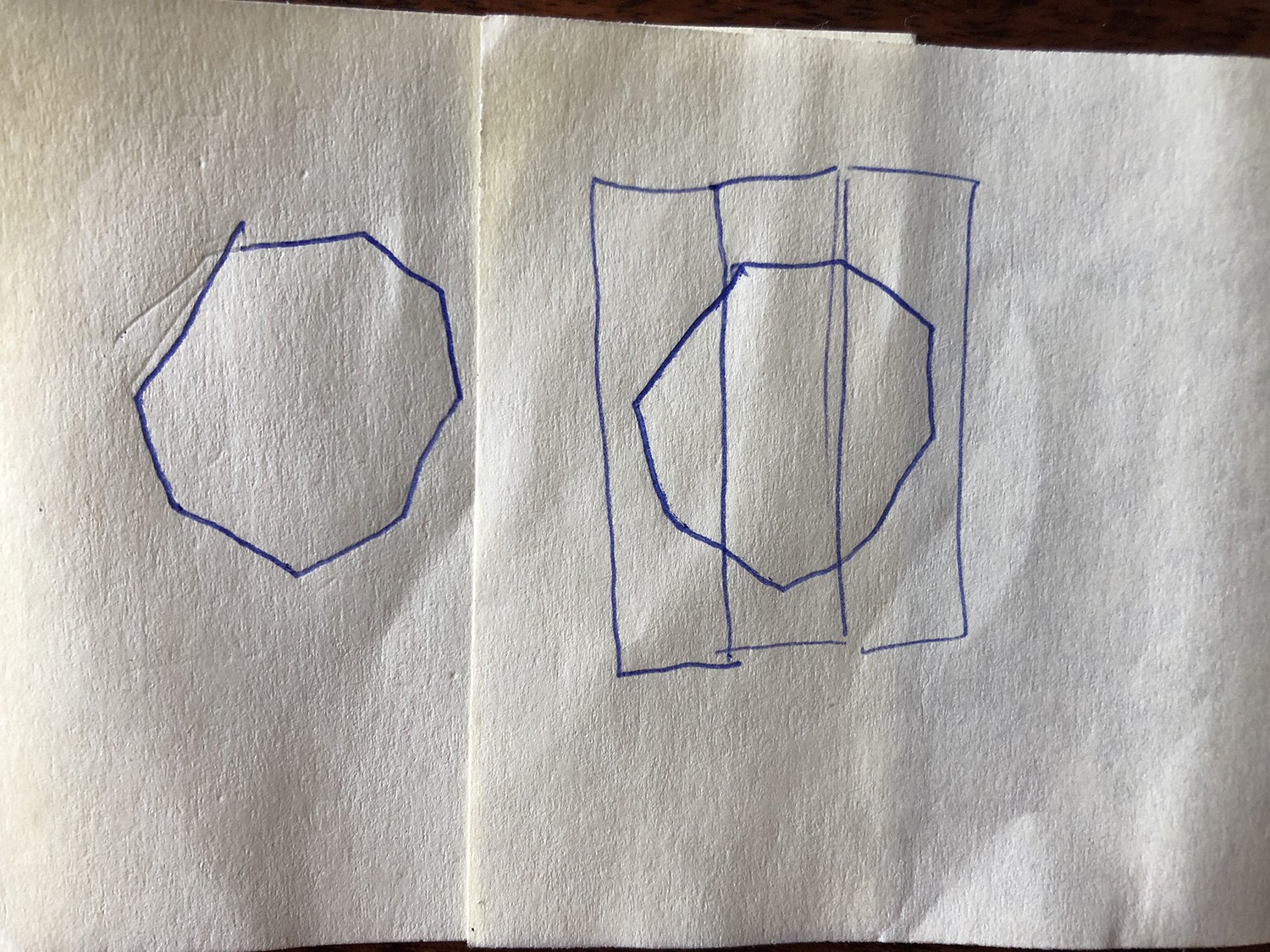

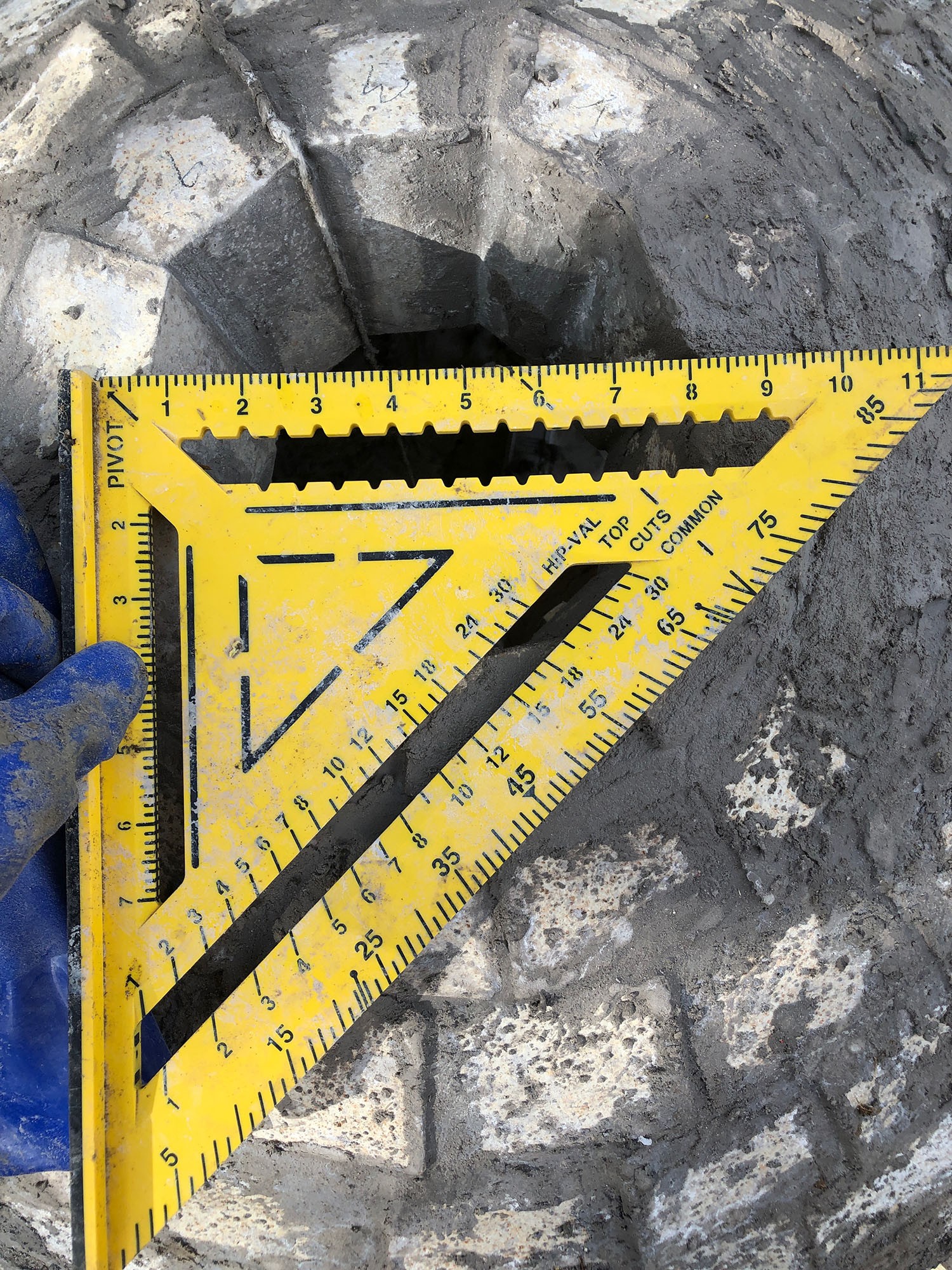

      But here I am after a few hours work today and hoping to put in the plug before it rains tomorrow. Is it possible to have a plug made of three bricks as shown in the sketch. I don't really care that much if it looks silly; it will be winter soon and all i want for Christmas is this oven.

      Mike
      Attached Files

      Comment


      • #33
        Yes it wil be just fine imo. 1 brick or three, you just have to complete it
        Joe Watson " A year from now, you will wish that you had started today" My Build Album / My Build

        Comment


        • #34
          Originally posted by Michael Thomas View Post
          Work was pretty busy last week and rained a good bit so I didn't get at the oven much.

          But here I am after a few hours work today and hoping to put in the plug before it rains tomorrow. Is it possible to have a plug made of three bricks as shown in the sketch. I don't really care that much if it looks silly; it will be winter soon and all i want for Christmas is this oven.

          Mike
          That will work just fine. I did almost exactly the same thing with mine.
          My 42" build: https://community.fornobravo.com/for...ld-new-zealand
          My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

          Comment


          • #35
            Originally posted by Gulf View Post
            Yes it wil be just fine imo. 1 brick or three, you just have to complete it
            Originally posted by MarkJerling View Post
            That will work just fine. I did almost exactly the same thing with mine.

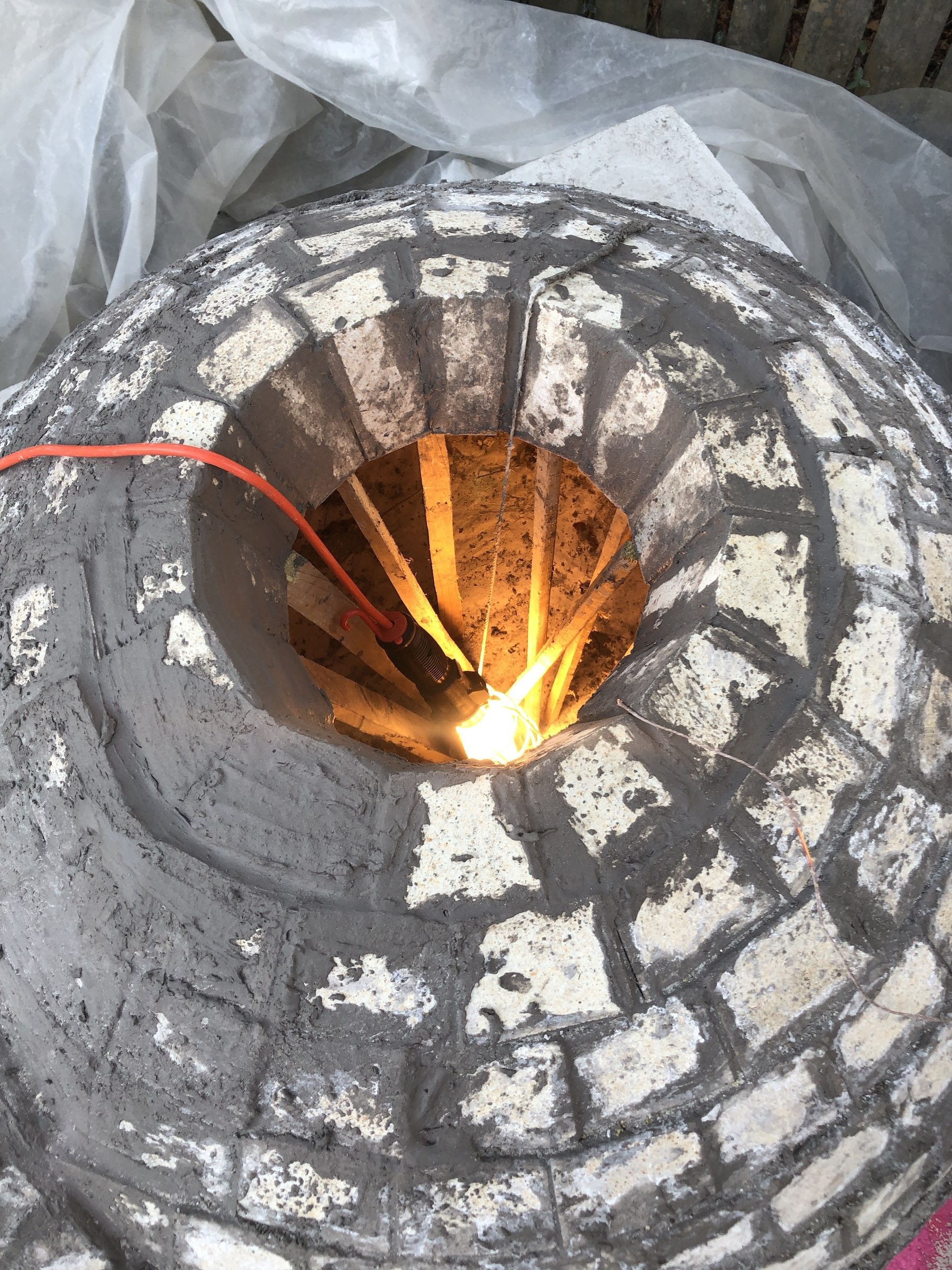

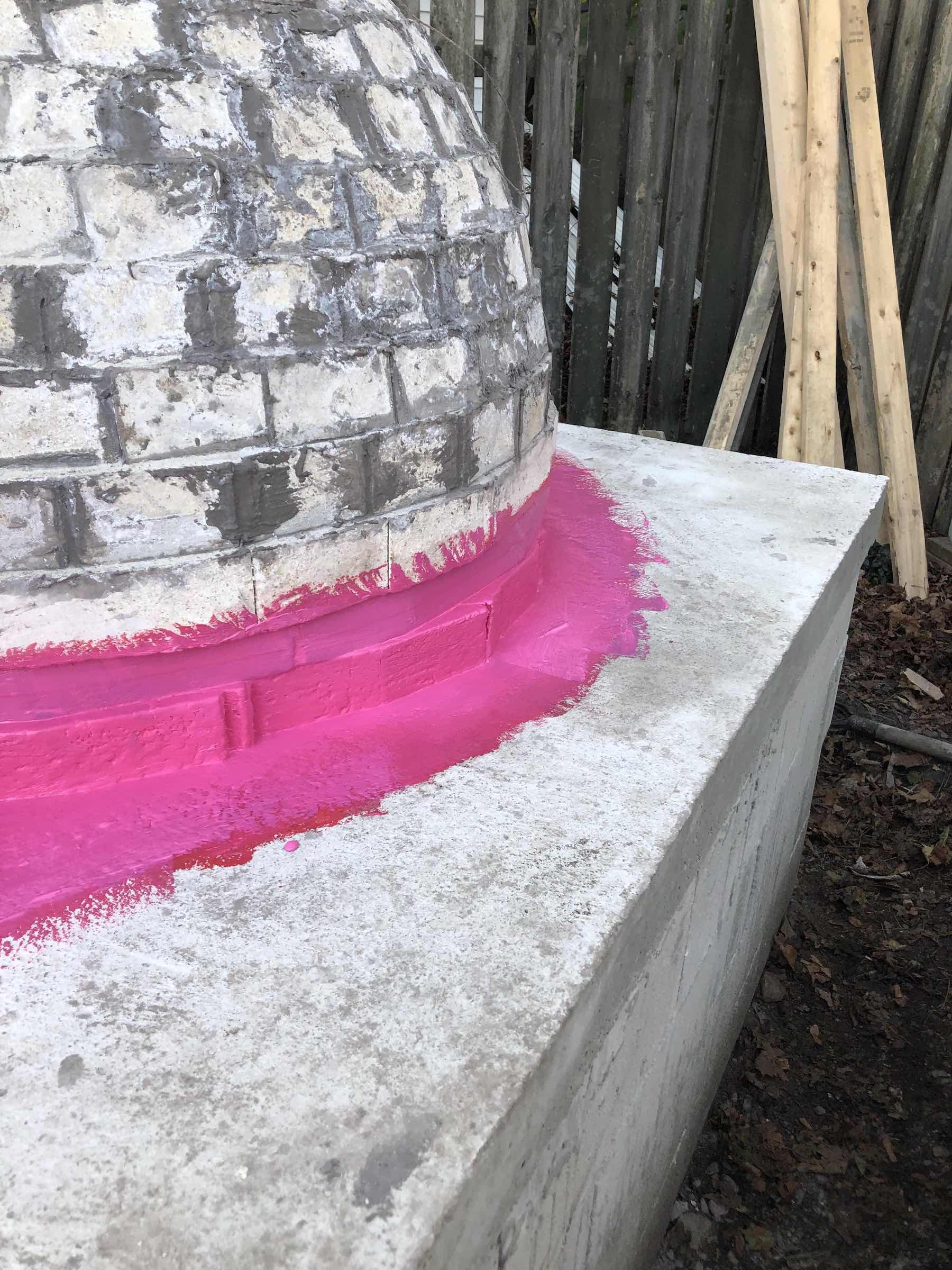

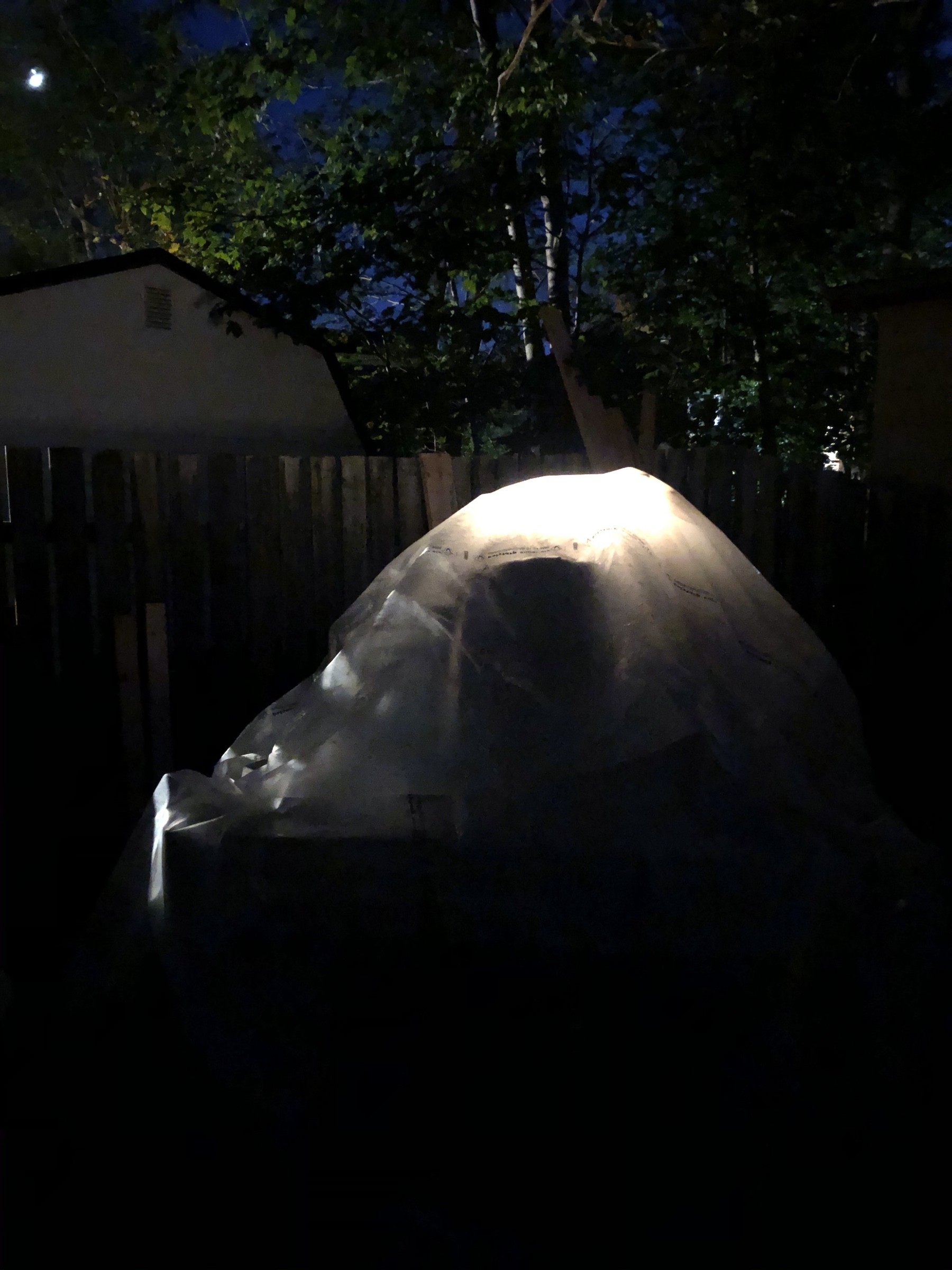

            Thanks guys! I'm nearly finished the front arch as well; bricks cut. I thought I'd post a shot of the red guard (edit: for waterproofing) I used to cover the insulating brick and the ceramic fiber board in case anyone was interested. Since its getting cold overnight, I've been putting a 100W bulb in the dome and covering with 2 layers of plastic and a blanket for the really cold nights (e.g. -1C)


            Click image for larger version  Name:	IMG_2859.jpg Views:	0 Size:	773.1 KB ID:	432473​​

            Click image for larger version  Name:	dome light.jpg Views:	0 Size:	1.15 MB ID:	432474
            Click image for larger version  Name:	night.jpg Views:	0 Size:	442.3 KB ID:	432475
            Last edited by Michael Thomas; 11-06-2020, 01:27 AM.

            Comment


            • #36
              Originally posted by Michael Thomas View Post




              Thanks guys! I'm nearly finished the front arch as well; bricks cut. I thought I'd post a shot of the red guard I used to cover the insulating brick and the ceramic fiber board in case anyone was interested. Since its getting cold overnight, I've been putting a 100W bulb in the dome and covering with 2 layers of plastic and a blanket for the really cold nights (e.g. -1C)


              Click image for larger version Name:	IMG_2859.jpg Views:	0 Size:	773.1 KB ID:	432473​​

              Click image for larger version Name:	dome light.jpg Views:	0 Size:	1.15 MB ID:	432474
              Click image for larger version

Name:	night.jpg
Views:	202
Size:	442.3 KB
ID:	432475
              Looking good. What's the "red guard" product?
              My 42" build: https://community.fornobravo.com/for...ld-new-zealand
              My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

              Comment


              • #37
                Originally posted by MarkJerling View Post

                Looking good. What's the "red guard" product?
                It's a elastomericsealant, acting as a flexible barrier to prevent water from soaking into the insulating brick (and ceramic board). There were a lot of weird edges and contours so I chose this over a stiff barrier.

                Additional details: It's almost a better-than-nothing solution as water is going to find its way in through the concrete hearth somehow. However, by putting this barrier here I will cover a large area that would otherwise have the potential to soak up water coming through the tiles/finishing stone, which is significant source of water I think.

                Product details:
                https://www.homedepot.ca/product/cus...lon/1000150306

                Comment


                • #38
                  Originally posted by Michael Thomas View Post

                  It's a elastomericsealant, acting as a flexible barrier to prevent water from soaking into the insulating brick (and ceramic board). There were a lot of weird edges and contours so I chose this over a stiff barrier.

                  Additional details: It's almost a better-than-nothing solution as water is going to find its way in through the concrete hearth somehow. However, by putting this barrier here I will cover a large area that would otherwise have the potential to soak up water coming through the tiles/finishing stone, which is significant source of water I think.

                  Product details:
                  https://www.homedepot.ca/product/cus...lon/1000150306
                  Aha, thanks! Looks like good stuff. Will it handle the heat?
                  My 42" build: https://community.fornobravo.com/for...ld-new-zealand
                  My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

                  Comment


                  • #39
                    Originally posted by MarkJerling View Post

                    Aha, thanks! Looks like good stuff. Will it handle the heat?
                    The FB book has a diagram on page 72 that says the insulation should reach 100F (37C) when the oven is fired so I think so?

                    Comment


                    • #40
                      mongota, Gulf, and david s

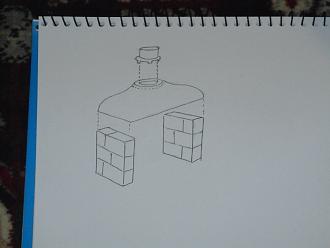

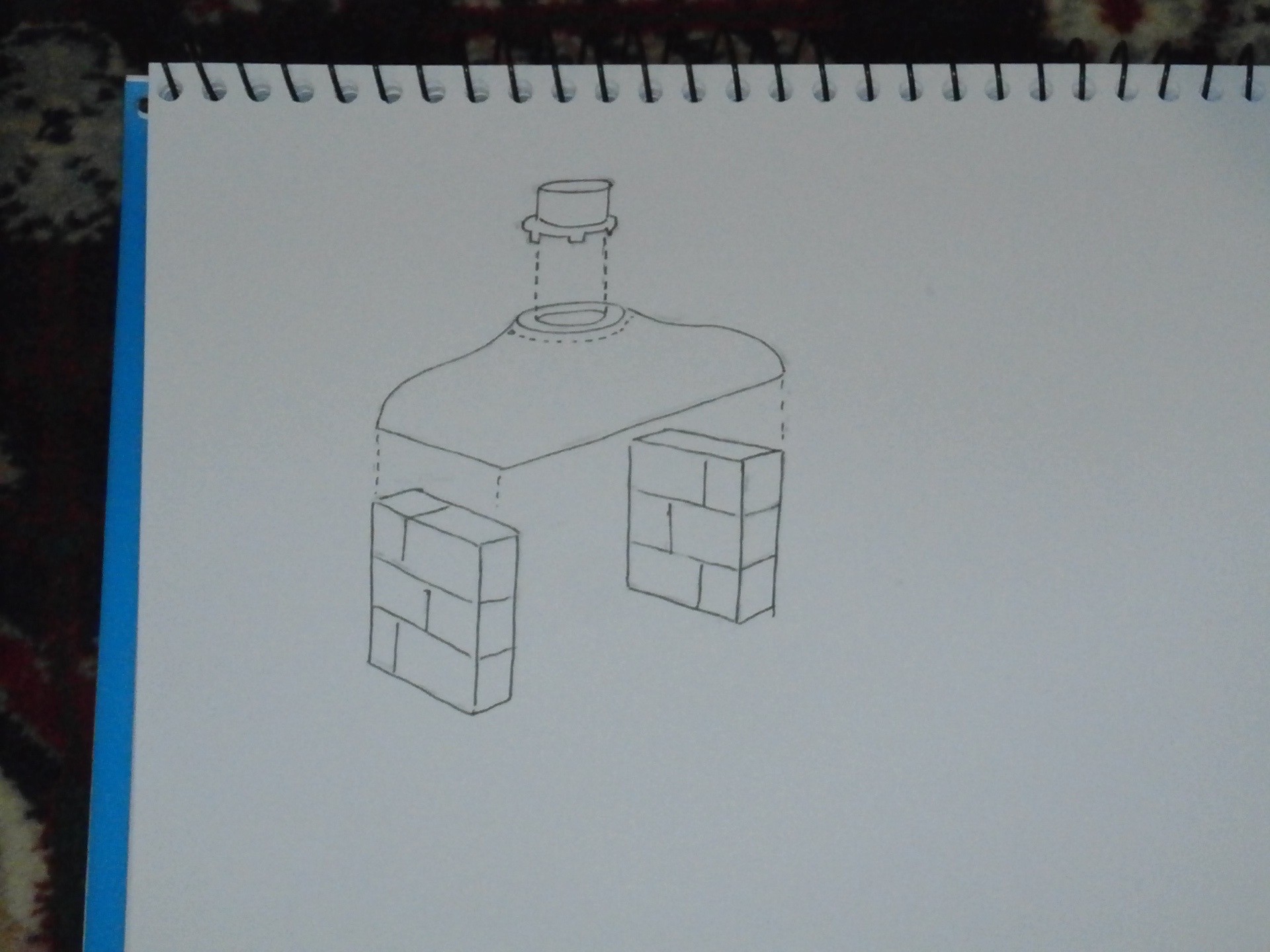

                      I've got three questions about the chimney. I am trying to recreate a flue gallery from the Melbourne Firebrick Company to shown below and in. I'm planning to use refractory cast and I am building my form. I would like the chimney anchor plate to be set into the refractory. I plan to have an expandable joint to allow for chimney expansion.
                      Click image for larger version  Name:	Screen Shot 2020-11-08 at 8.35.57 AM.png Views:	0 Size:	39.7 KB ID:	432542

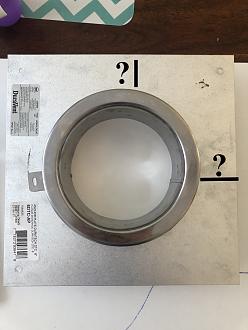

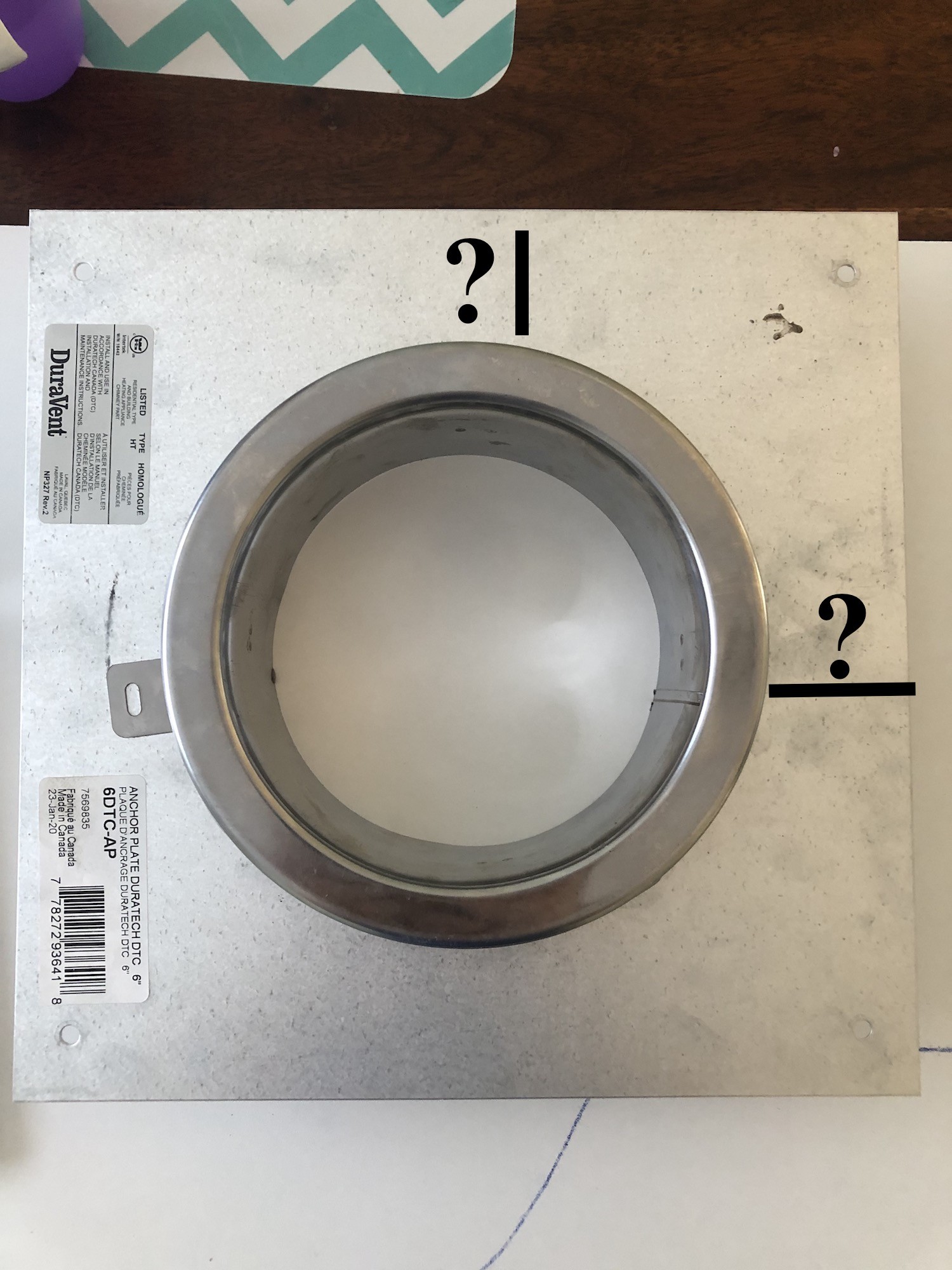

                      1) If the plate is set into the cast, how close can the metal anchor be to the edges of the concrete?

                      2) If the plate is set into the cast an inch below the surface, how much anchor do I need?
                      I'm wondering about (I'd like to cut the anchor plate to fit my design but don't want to remove too much anchor). Please see "? marks" indicated on photo for the distance


                      Click image for larger version  Name:	IMG_2903.jpg Views:	0 Size:	432.6 KB ID:	432543
                      Last edited by UtahBeehiver; 11-08-2020, 10:14 AM. Reason: Removed direct video link to commercial link

                      Comment


                      • #41

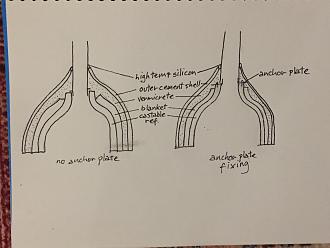

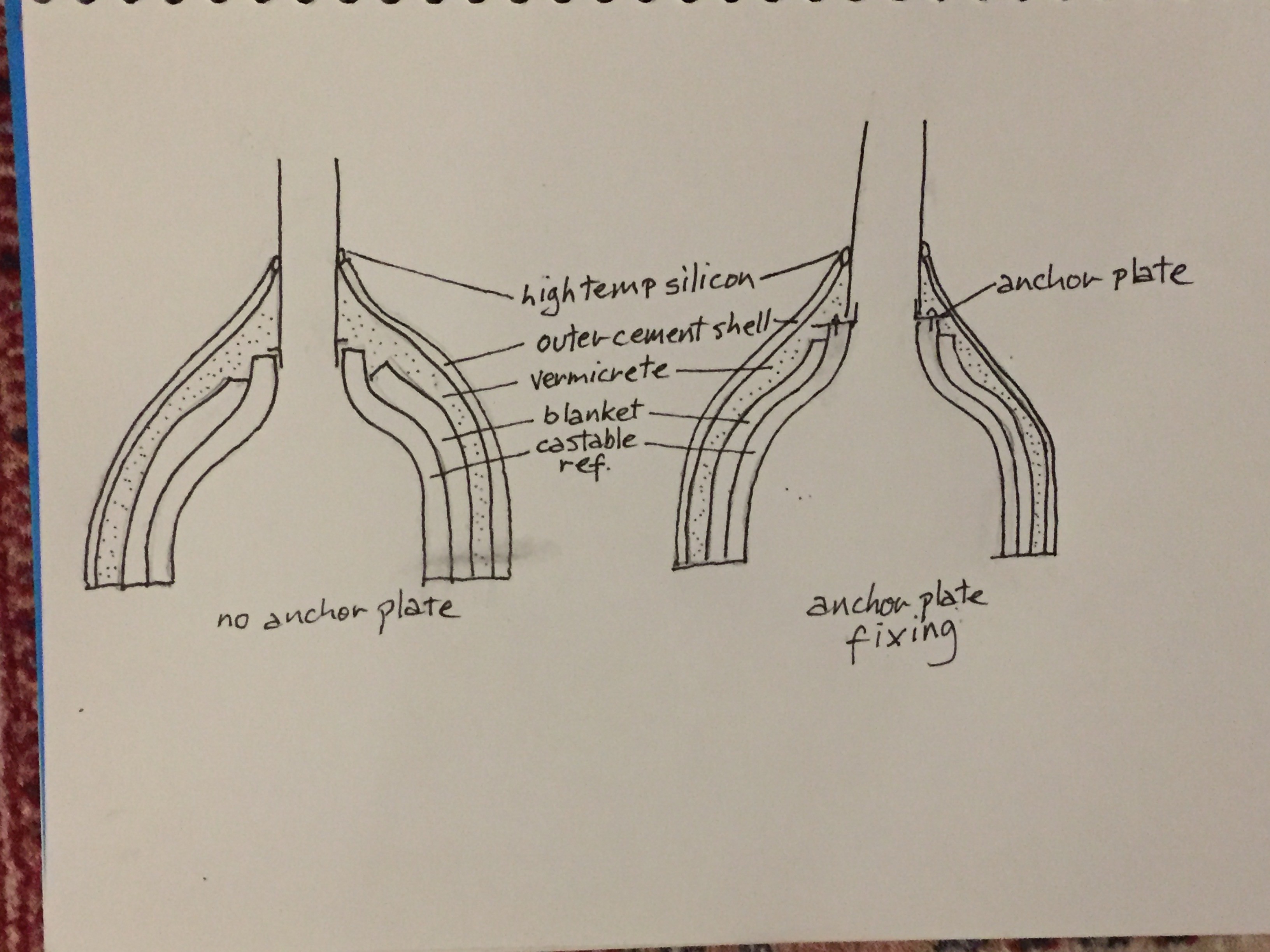

                        My view is that metal anchors close to the edge of the casting are likely to expand and crack the casting, so trimming the anchor plate down and setting it into the casting is probably a better option. This has come up before an I attach a drawing that explains a solution. If you insulate around the anchor plate and flue pipe with vermicrete then render over it the pipe will be supported higher up, but a flexible join using high temperature silicone is needed between the render and the pipe to prevent cracking and water entry. Click image for larger version

Name:	P6060733.jpeg
Views:	317
Size:	337.5 KB
ID:	432563 Click image for larger version

Name:	IMG_0490.jpeg
Views:	217
Size:	786.8 KB
ID:	432564
                        Kindled with zeal and fired with passion.

                        Comment


                        • #42
                          Originally posted by Michael Thomas View Post

                          The FB book has a diagram on page 72 that says the insulation should reach 100F (37C) when the oven is fired so I think so?
                          Sorry! I looked at your photo again and realise you're not really waterproofing much onto the bricks. At first I thought there was a lot more on the (hot) brick, hence my question.
                          My 42" build: https://community.fornobravo.com/for...ld-new-zealand
                          My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

                          Comment


                          • #43
                            Originally posted by david s View Post
                            My view is that metal anchors close to the edge of the casting are likely to expand and crack the casting, so trimming the anchor plate down and setting it into the casting is probably a better option. Click image for larger version

Name:	P6060733.jpeg
Views:	317
Size:	337.5 KB
ID:	432563 Click image for larger version

Name:	IMG_0490.jpeg
Views:	217
Size:	786.8 KB
ID:	432564
                            Thanks! In that case I can redesign my cast to be bigger so that I have an 1 inch on the left & right and 1.5 inches on front & back to avoid having to cut down.

                            With regards to expansion, is it possible to fit some firm material around the edge of the plate. This would let it set in the cast and give it a bit of room to expand and contract?

                            Originally posted by david s View Post
                            but a flexible join using high temperature silicone is needed between the render and the pipe to prevent cracking and water entry
                            Ok great suggestion thanks! I'll pick some up and do that.

                            Comment


                            • #44

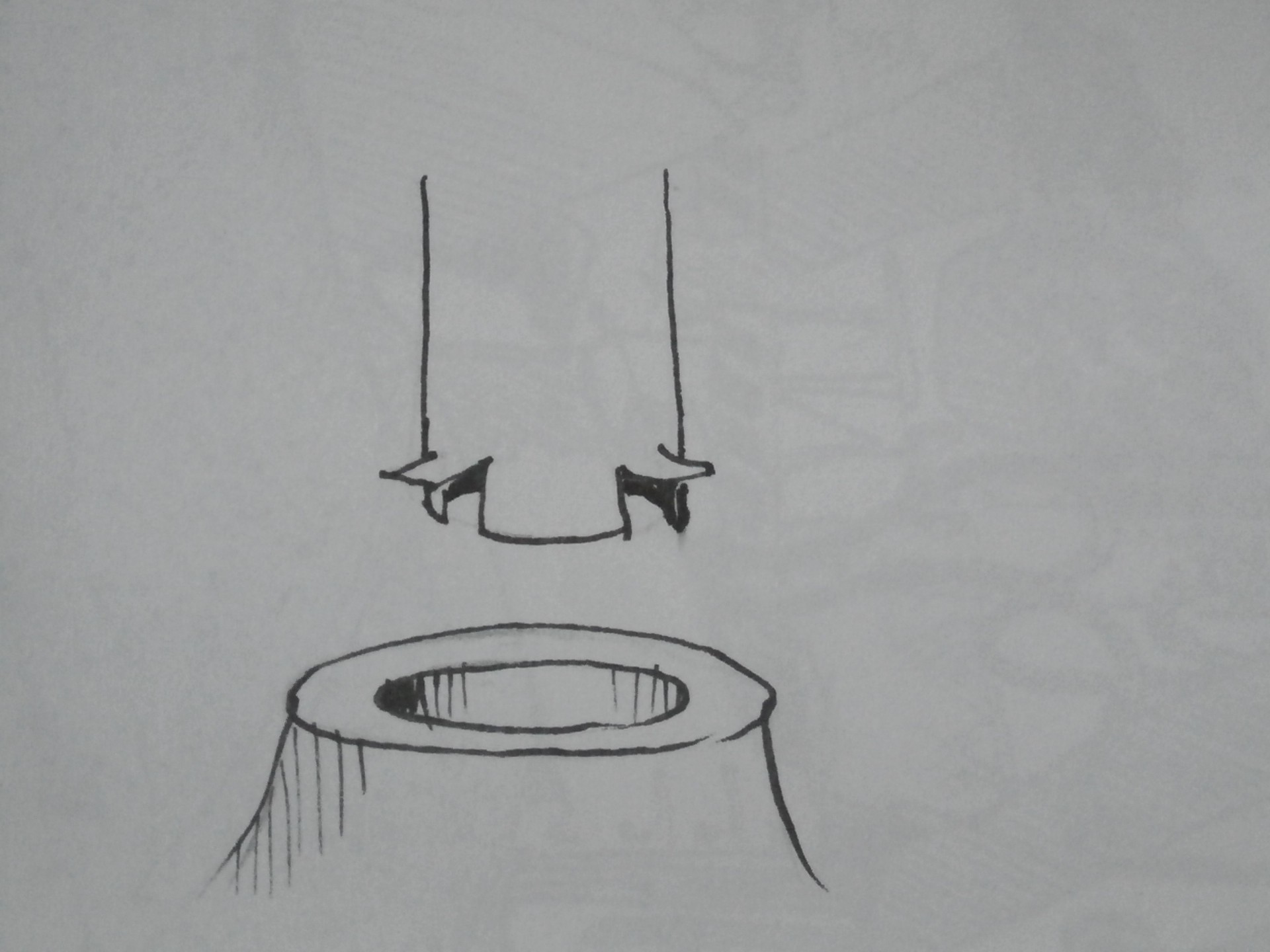

                              The high temperature silicon is ok (just) for where the outer shell meets the pipe, but lower down on the flue gallery it is too hot. For the expansion issue I don't use an anchor plate at all, but prefer a slightly loose fit. where the pipe seats into the casting. This does have the advantage of being able to make the cast much thinner and lighter.

                              Click image for larger version

Name:	P2160559.jpg
Views:	220
Size:	244.1 KB
ID:	432590

                              Attached Files
                              Kindled with zeal and fired with passion.
