    This devise will do nicely for your lower temp firings. I have found many uses for it. From drying out a new or damp oven, adding a little extra temp for an oven on the decline, to live fire cooking. I have plenty of pics of it in use for cooking. However, this pic is not of food. It is of the rapid drying of processed clay for the "home brew".

    The device is a stainless steel charcoal chimney starter. I use lump charcoal. Start it outside the oven, puts out plenty of heat, and no direct flame impingement on the dome.
    Joe Watson " A year from now, you will wish that you had started today" My Build Album / My Build

    Comment


    • #32
      Originally posted by david s View Post

      Bear in mind that this type of heater is not designed itself to withstand higher temperatures. Just the insulation on the wires and the lead are vulnerable.
      Just as there are safety problems with using a home gas burner, the reason we've agreed not to discuss them, so to an electric heater that's not designed for this purpose. Far safer and more instructive to use wood. BBQ fuel which doesn't produce flames like wood is also useful for reducing flame impingement on the dome.
      Here's the recommendation for the drying fires for my ovens, but bear in mind they smaller and are cast, not brick and therefore a lot thinner so the times and amount of fuel required will vary from oven to oven as well as the quantity of water that's required to be driven out.

      Driving off the moisture

      Day 1: 1 sheet newspaper and half a dozen small sticks, 1 h’ful of heat beads (about 5 mins of flame)

      Day 2: 1 sheet of newspaper and about 10 thicker sticks, 2 h’fuls of heat beads (about 10 mins of flame)

      Day 3: Bigger sticks, plus 3 h’fuls of h’beads (about 15 mins of flame)

      Day 4: More wood, plus 4 h’fuls of heat beads (30 mins of flame)

      Day 5: wood plus 5 hfuls of h’beads (45 mins of flame)

      Day 6: wood plus 6 h’fuls of h’beads (1 hr of flame)

      Day 7: wood plus 7 h’fuls of h’beads (1 hrs of flame)

      Clear, fully. I was thinking more of some sort of heat resistant heater, but the fire is also OK,

      Thanks!

      Comment


      • #33
        Huston, we are vertical!!!

        Click image for larger version

Name:	2022-07-17 19.40.11.jpg
Views:	216
Size:	226.1 KB
ID:	447963

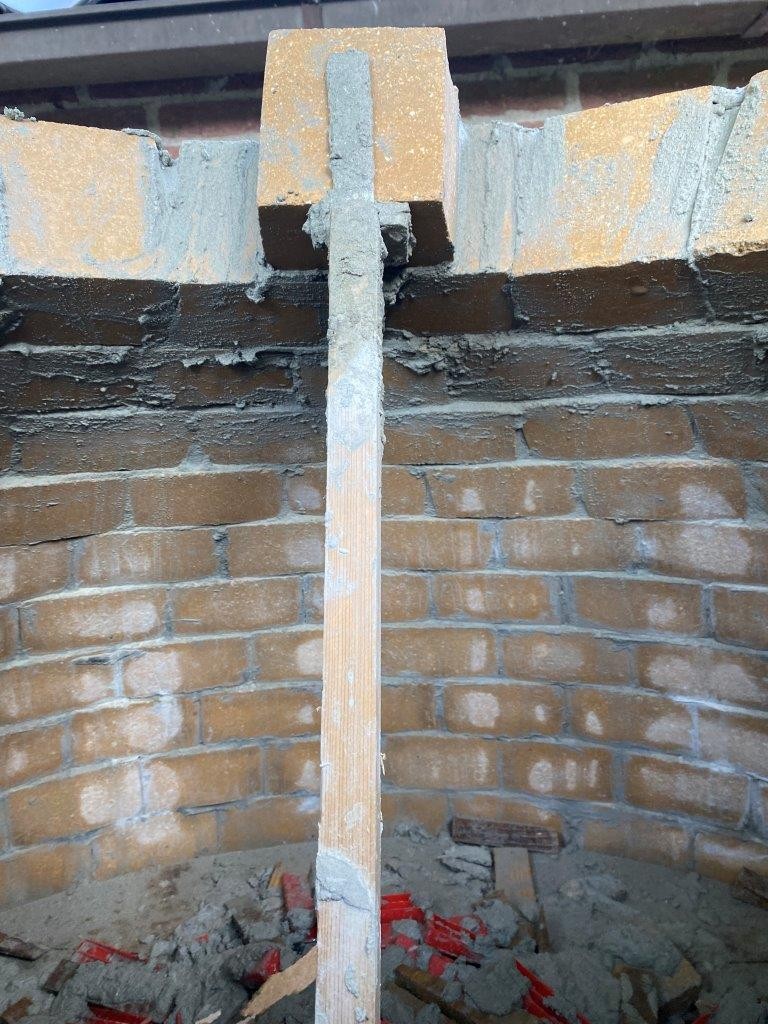

        The build is going great!. Yesterday was one of the most productive days.
        I used a wire wheel mounted on a drill to clean the inside walls, and managed to lay approx 2.5 rows (3 rows over the entrance arch, as there was a gap), plus 2 on the entire one

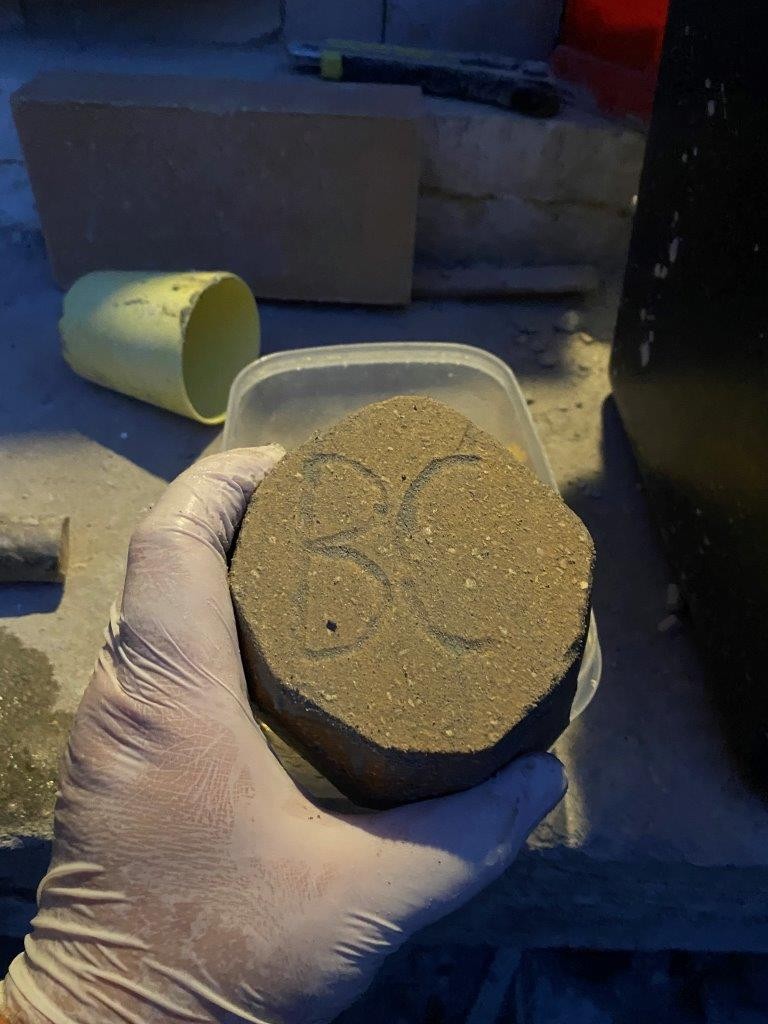

        Also started to taper the bricks, avoiding as much as possible the "wee" joints

        Click image for larger version

Name:	2022-07-17 19.39.02.jpg
Views:	215
Size:	283.7 KB
ID:	447966 Click image for larger version

Name:	2022-07-17 16.35.36.jpg
Views:	226
Size:	230.7 KB
ID:	447965

        My son adores working on it, looks quite adept as well!.

        So, for tapering and other compound curves, using a clamp

        Click image for larger version

Name:	2022-07-16 12.32.01.jpg
Views:	224
Size:	243.4 KB
ID:	447968




        Attached Files

        Comment


        • #34
          Looking good! And nice to see your son helping. My son dug the foundation for our oven, but he was 18 at the time so made short work of it!
          My 42" build: https://community.fornobravo.com/for...ld-new-zealand
          My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

          Comment


          • #35

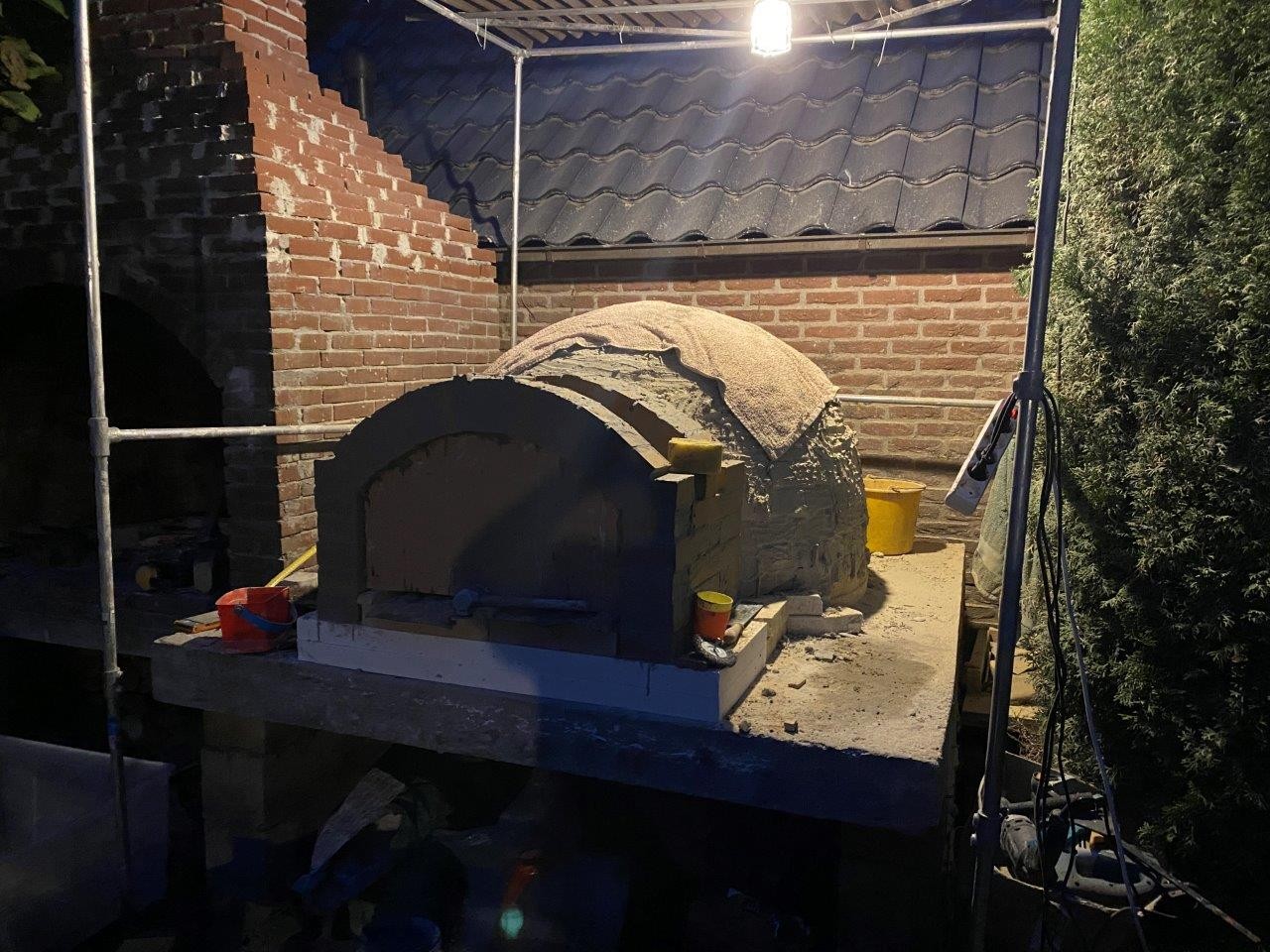

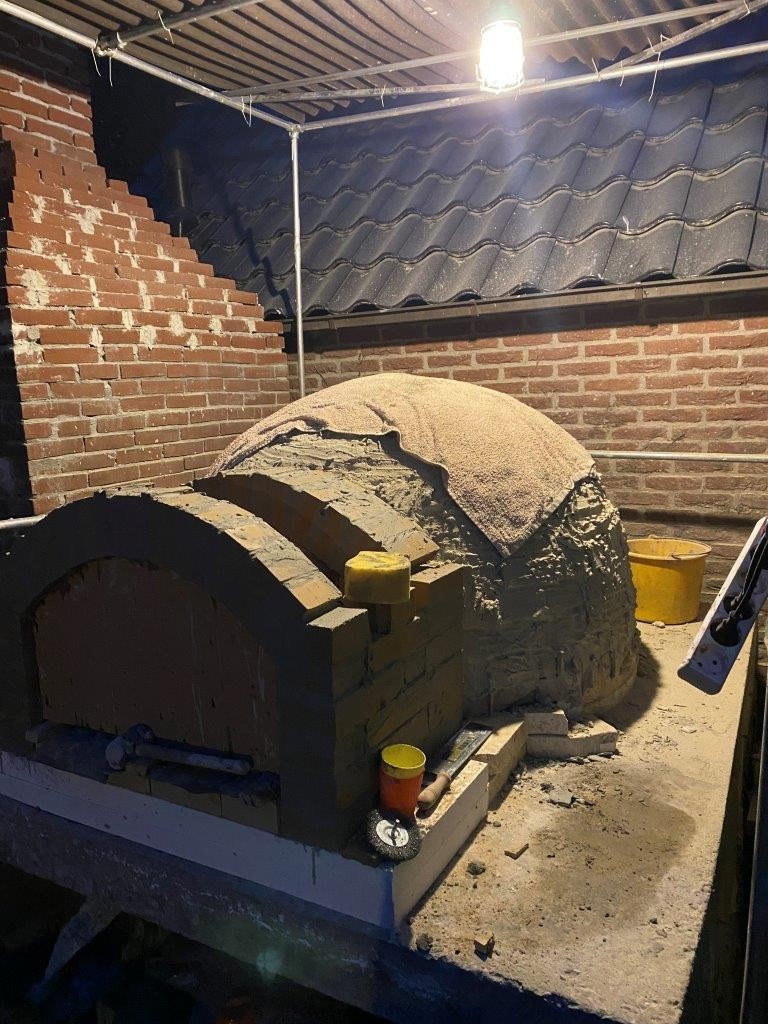

            So, finally some progress, Actually, I need to catch up with posting

            Click image for larger version

Name:	2022-07-25 22.07.51.jpg
Views:	117
Size:	207.3 KB
ID:	448802

            Click image for larger version

Name:	2022-07-25 22.07.45.jpg
Views:	115
Size:	307.9 KB
ID:	448801

            Everything was going good until the 2 before last rows. In that row, a couple of bricks "escaped" and ended sliding down some half a centimetre. Not a big problem, just looked crooked. After I cleaned it it did not look that bad, decided not to do anything on it.



            Attached Files

            Comment


            • #36

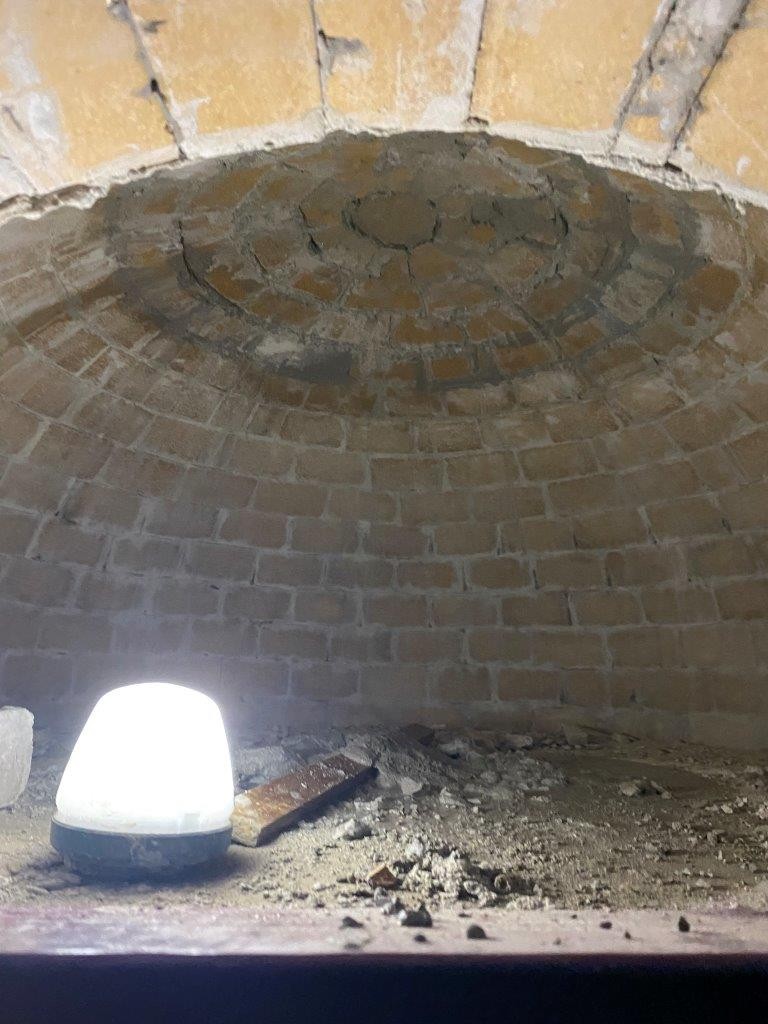

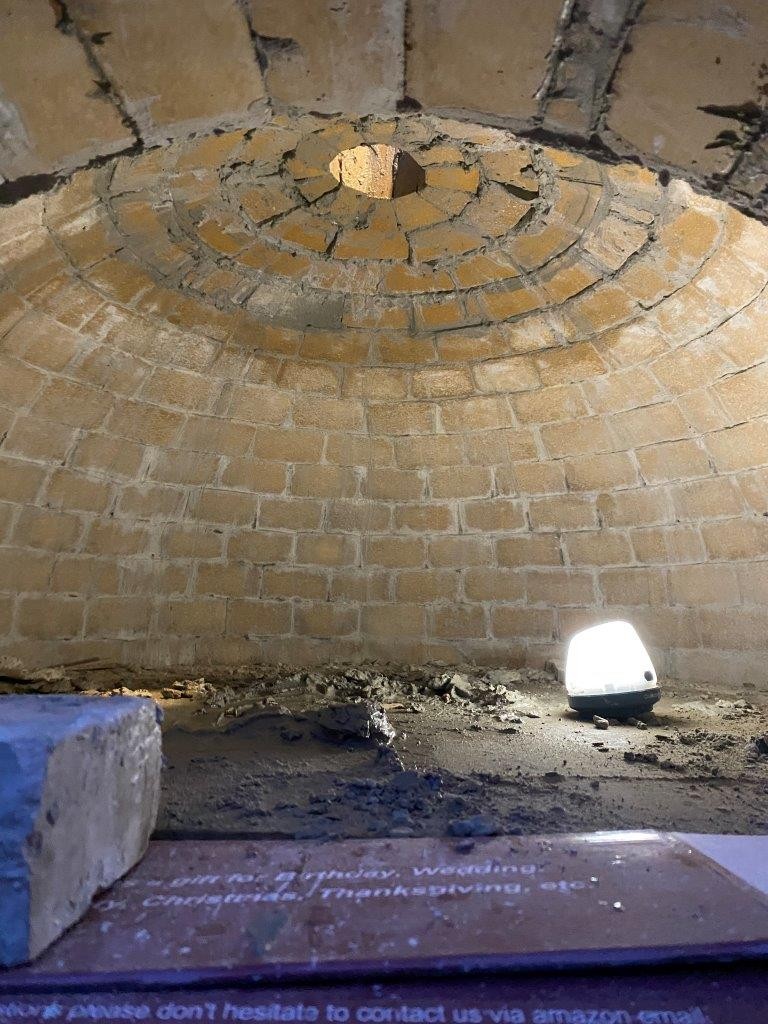

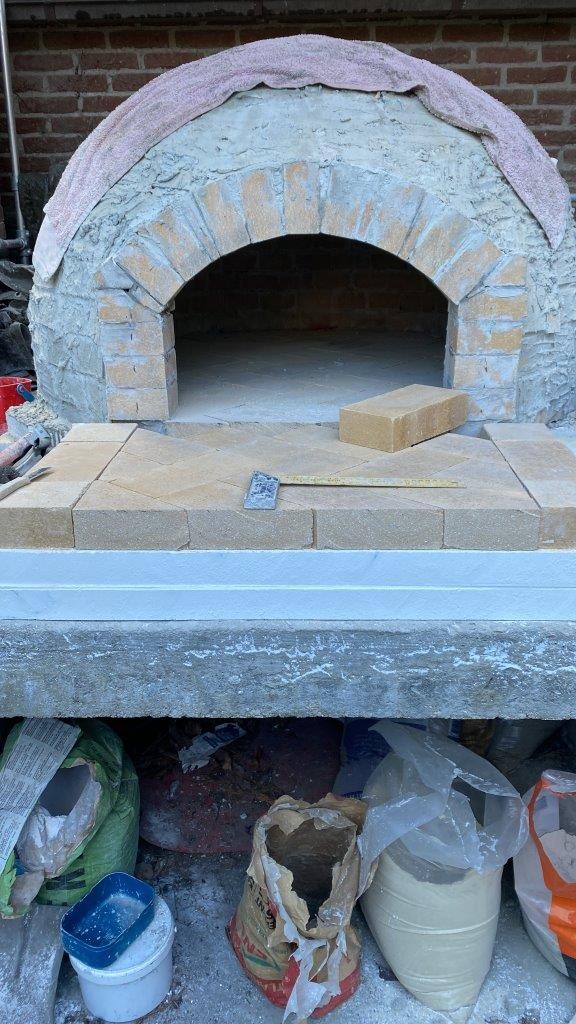

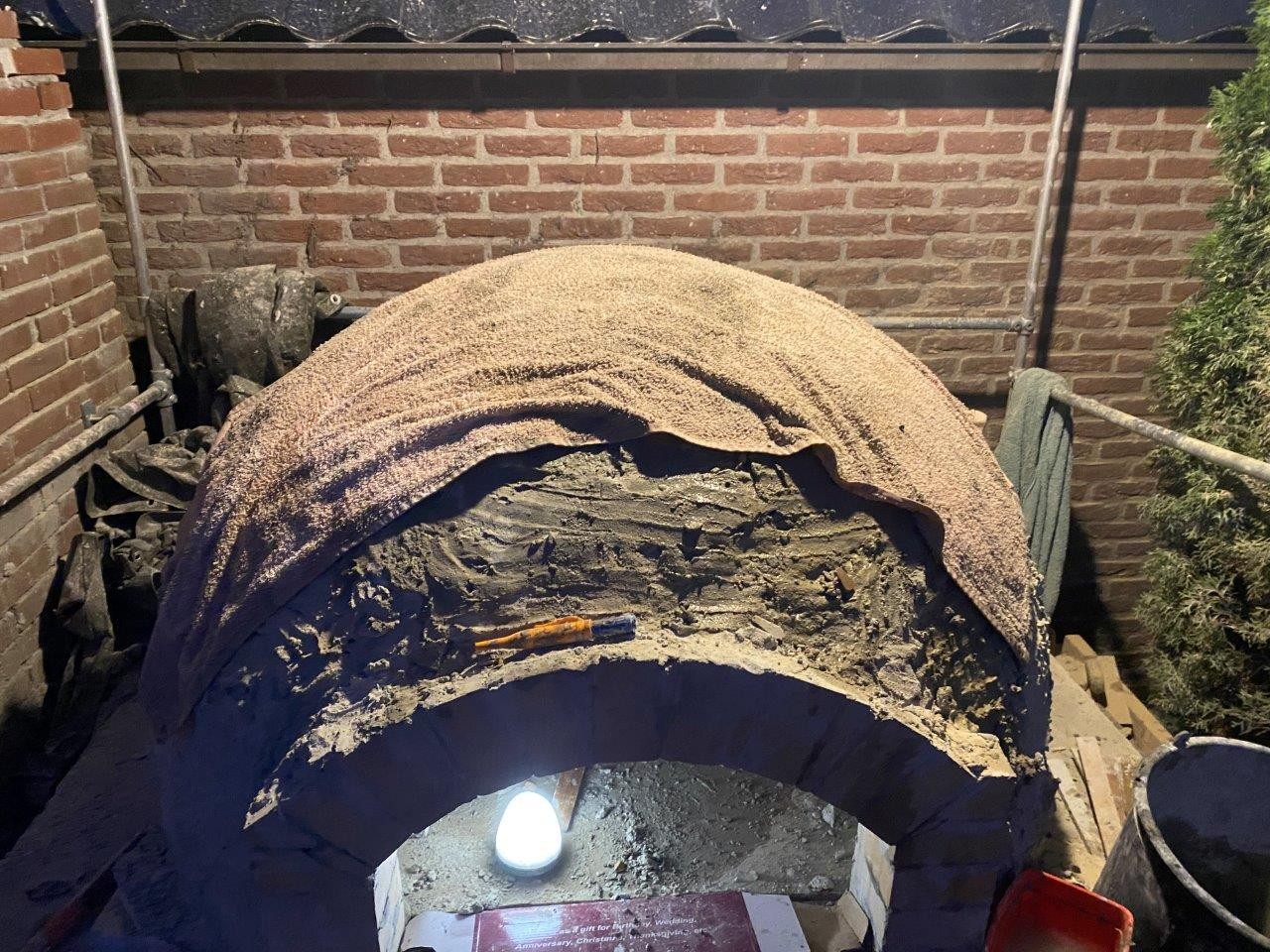

              And, then, there was the dome completed!!!

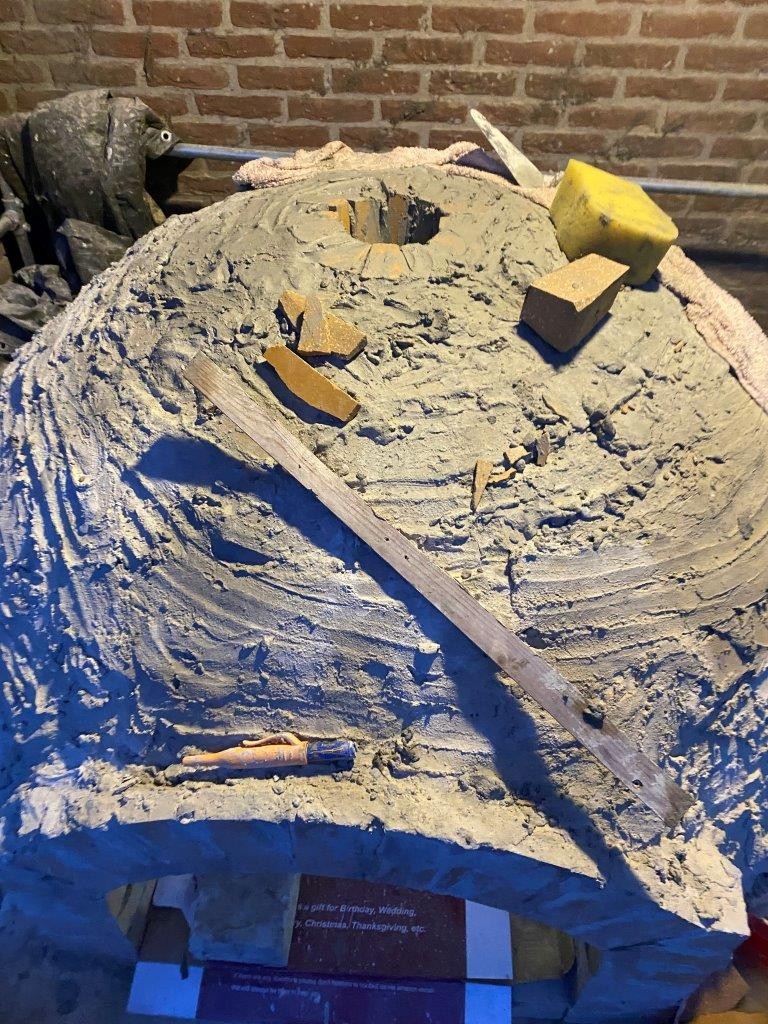

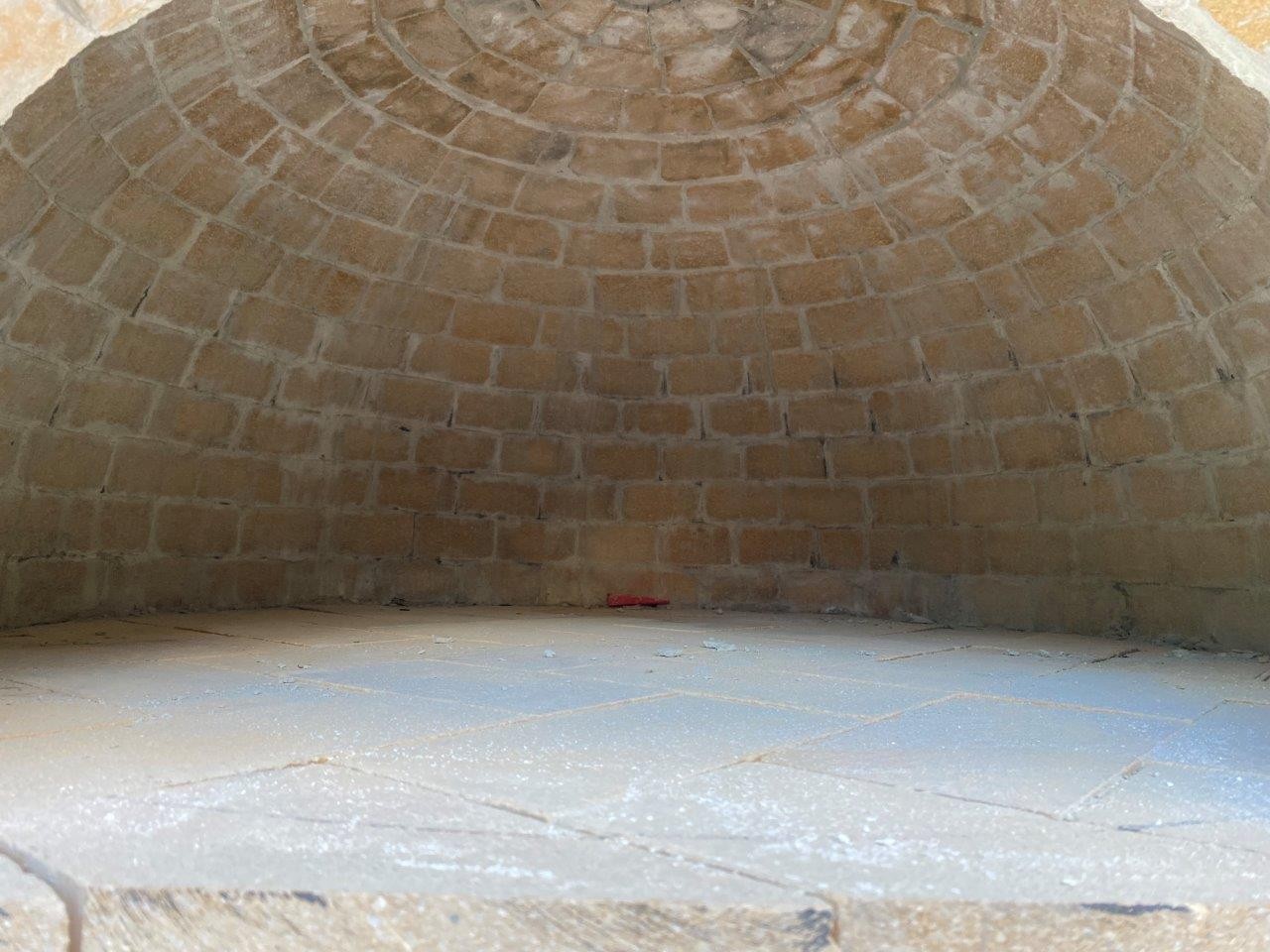

              Click image for larger version  Name:	2022-07-26 22.19.37.jpg Views:	0 Size:	149.8 KB ID:	448804

              Click image for larger version  Name:	2022-07-26 22.19.47.jpg Views:	0 Size:	310.8 KB ID:	448805

              Click image for larger version  Name:	2022-07-26 22.19.57.jpg Views:	0 Size:	405.3 KB ID:	448806

              It was a tough one to complete, but all good!

              Click image for larger version  Name:	2022-07-26 22.09.53.jpg Views:	0 Size:	134.8 KB ID:	448807

              The keystone had my wife's and my name

              Looks pretty ok, once cleaned up
              Click image for larger version

Name:	2022-07-30 09.42.51.jpg
Views:	110
Size:	144.6 KB
ID:	448812

              Click image for larger version

Name:	2022-07-30 09.42.57.jpg
Views:	115
Size:	225.6 KB
ID:	448813
              Last edited by Mr. Slowhand; 08-15-2022, 06:52 AM.

              Comment


              • #37

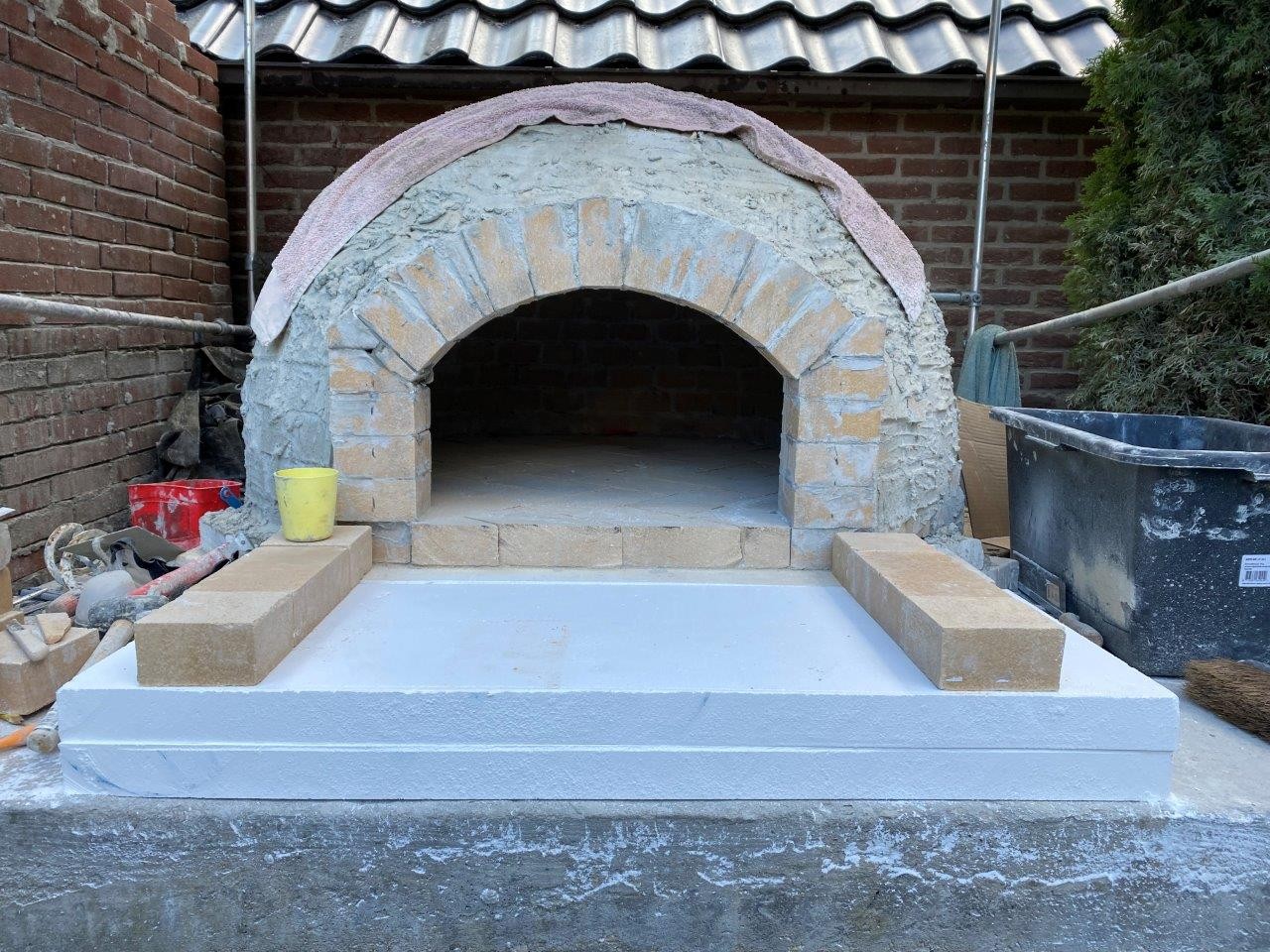

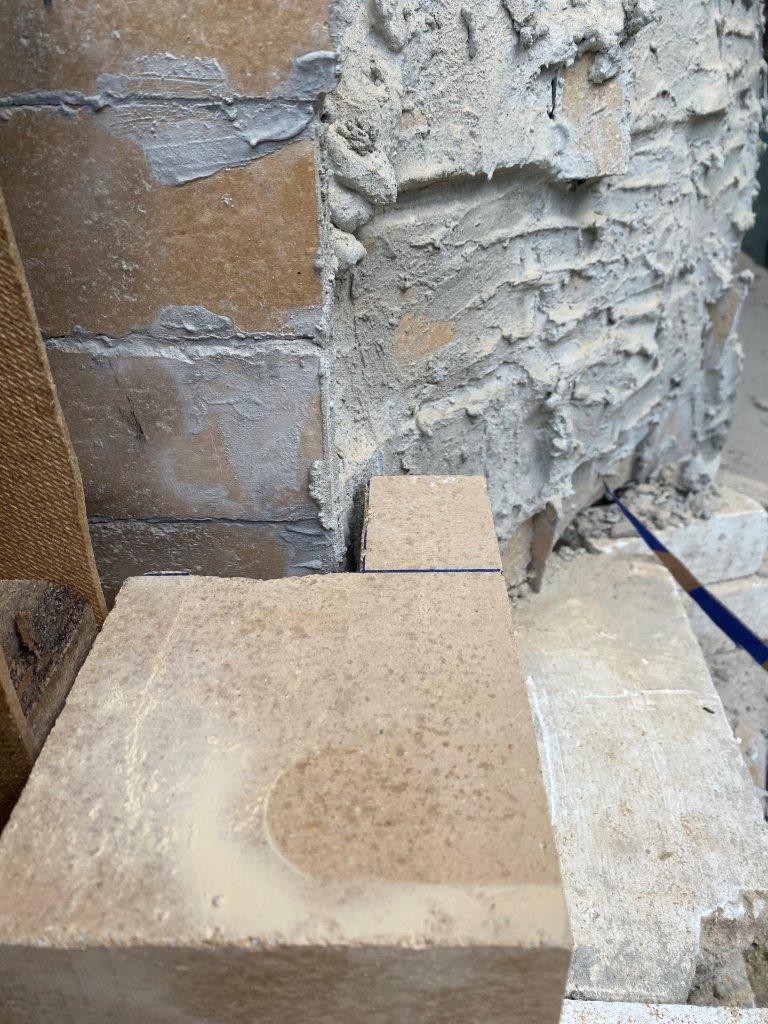

                I spent some time making the entry. After reading the comments, decided to make a big(ger) than usual entry, while still having the heat gap
                Click image for larger version

Name:	2022-07-30 10.18.47.jpg
Views:	128
Size:	184.7 KB
ID:	448809

                Click image for larger version

Name:	2022-07-30 09.43.01.jpg
Views:	111
Size:	379.6 KB
ID:	448810

                Click image for larger version

Name:	2022-07-30 13.37.56.jpg
Views:	116
Size:	224.2 KB
ID:	448811

                The heat gap is 2.5cm

                Comment


                • #38

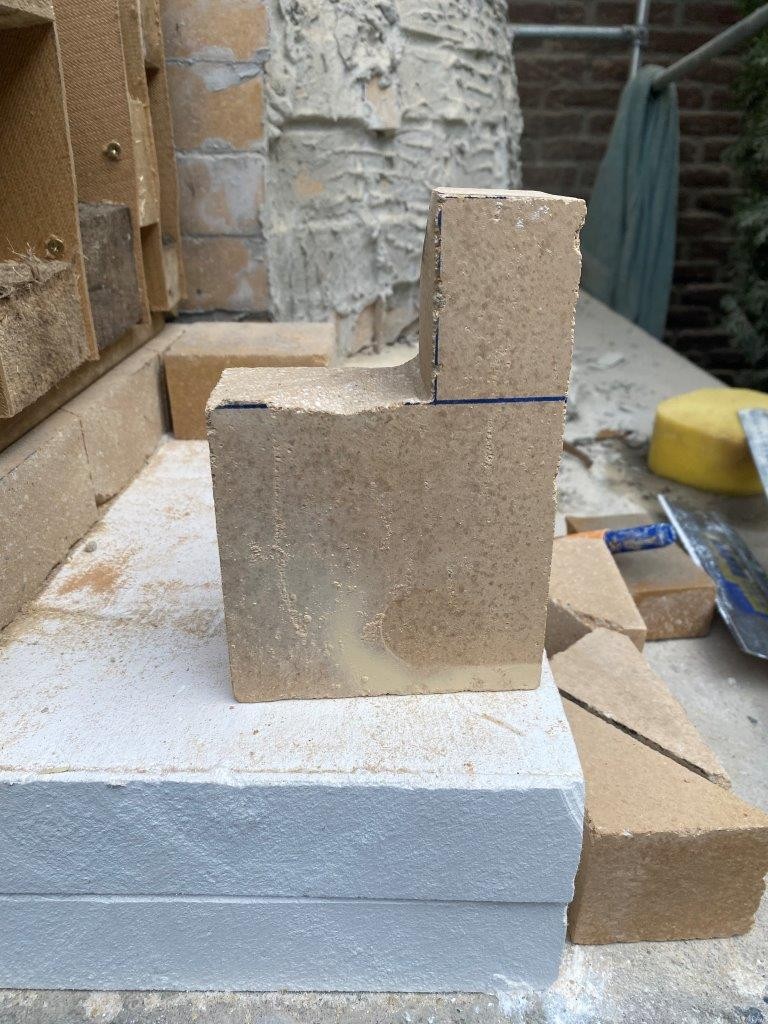

                  I finished, the entry, and made it with the bricks going over the ege of the entry arch


                  Click image for larger version

Name:	2022-07-30 17.31.08.jpg
Views:	110
Size:	211.8 KB
ID:	448816

                  Click image for larger version

Name:	2022-07-30 17.31.19.jpg
Views:	113
Size:	238.0 KB
ID:	448818

                  Click image for larger version

Name:	2022-07-30 22.15.42.jpg
Views:	112
Size:	315.8 KB
ID:	448819

                  Click image for larger version

Name:	2022-07-30 22.15.33.jpg
Views:	117
Size:	154.9 KB
ID:	448820


                  Attached Files

                  Comment


                  • #39
                    Nice work! Keep it up!
                    if it's worth doing, it's worth doing to the best of your ability!
                    Sixto - Minneapolis

                    Comment


                    • #40
                      so, as I understand, the idea is that the chimney opening in the entry arch is 2X of the surface area of the chimney. In my case the opening for the chimney is some 3X of the surface area of the chimney pipe. Should I decrease it, by adding some bricks to the middle opening?

                      Hope to start with the chimney work tonight!!

                      Comment


                      • #41
                        What you have is fine. A smooth flow of smoke from the gallery to the flue pipe helps enormously. This is already partly achieved by the arch of your gallery, but a reduction of area between the gallery and the flue pipe to create a smoother flow is better. This is not as easy to achieve using brick units as it is by casting. Also bear in mind that placing too much more weight on top of the gallery increases the sideways thrust on its arch. Let the pics tell the story.
                        Attached Files
                        Kindled with zeal and fired with passion.

                        Comment


                        • #42
                          Originally posted by david s View Post
                          What you have is fine. A smooth flow of smoke from the gallery to the flue pipe helps enormously. This is already partly achieved by the arch of your gallery, but a reduction of area between the gallery and the flue pipe to create a smoother flow is better. This is not as easy to achieve using brick units as it is by casting. Also bear in mind that placing too much more weight on top of the gallery increases the sideways thrust on its arch. Let the pics tell the story.
                          David,

                          Thanks. Cannot delve now into casting, so will have to resort to using firebricks, although, casting would be my preferred route. I thought, as the funnel does not need any thermal mass, I can save on the width, and lay the bricks as shiner, instead of stretcher. I think I would make max two/three rows of shiners above the top of the arch of the gallery, in order to make the base for the anchor plate.
                          Is there any reason I should not do shiners. I see a lot of flue constructions with normal stretchers.
                          As regards the outward pressure on the arch, I might double the walls, as sort of buttressing

                          Anyhow, hope to finish this soon, than we go to isolate. The morgan rockwool is delivered, and the vermeculite also, fun times ahead!!!

                          Marko
                          Last edited by Mr. Slowhand; 08-16-2022, 08:13 AM.

                          Comment


                          • #43
                            Nice build, just stopping in to say it’s enjoyable following your progress, thanks for documenting and sharing.

                            look forward to seeing it complete (if a project is ever truly complete)

                            Comment


                            • #44
                              Originally posted by Mr. Slowhand View Post
                              so, as I understand, the idea is that the chimney opening in the entry arch is 2X of the surface area of the chimney. In my case the opening for the chimney is some 3X of the surface area of the chimney pipe. Should I decrease it, by adding some bricks to the middle opening?

                              Hope to start with the chimney work tonight!!
                              Beautiful work! I don't think you need to reduce the size, it won't probably improve the draft. For me it the solution was a compromise between minimizing weight on top of my arch, have a big enough opening, and being able to span the opening with shaped bricks to make the flow as smooth as possible. My arch is quite different than most (taller, wider, deeper) but here is how I shaped the bricks spanning the 12' x 8" opening in the arch....I am trying to do something like David's Option 3. Took me two days to cut/grind 12 bricks, I'm just showing the inner 8 ....the outer 4 just have a simple arch cut out. Each brick bears 3" on the arch, plus I'm hoping that by mortaring these 8 into 4 pairs, the installation will be easier, since the outer half of 4 of the bricks are not totally cantilevered into the opening..

                              Photos added for reference, (Center photo is quite distorted due to the wide angle shot) and yes I need to fill some major gaps

                              Click image for larger version

Name:	Chimney bricks.jpg
Views:	164
Size:	571.9 KB
ID:	448879 Click image for larger version

Name:	Gallery flue opening from inside.jpg
Views:	122
Size:	389.7 KB
ID:	448880 Click image for larger version

Name:	Gallery Flue opening.jpg
Views:	119
Size:	464.8 KB
ID:	448881
                              if it's worth doing, it's worth doing to the best of your ability!
                              Sixto - Minneapolis

                              Comment


                              • #45
                                That looks like an excellent solution, although I’m not surprised it took you two days. Just to make you feel worse, it takes me 45 minutes to mix and lay up a flue gallery casting and because it’s one piece and fibre reinforced, is probably stronger than one made of individual bricks.
                                Last edited by david s; 08-17-2022, 12:15 AM.
                                Kindled with zeal and fired with passion.

                                Comment
