Bacterium's 2nd build

[brickie in oz]

Re: Bacterium's 2nd build

Mark the center line of the arch then 38mm from each side of the center line, this will give you the top (keystone brick, although they are all keystones) 10mm each side for a joint, 75 per brick each side etc, etc, etc.

Edit:- Looking at your pic you need to get rid of 40mm to make it all work.

[Bacterium]

Re: Bacterium's 2nd build

Ok so if I lose the 40mm (by trimming the arch form), that will bring them down and together.....then I don't need a cut down centre keystone.

Gee working the grey matter .....ok then I can dry lay again then sort the back cuts where it joins into the dome.

[stonecutter]

Re: Bacterium's 2nd build

I guess the inner arch is less visible and I probably fluked my first build.

Stonecutter I can tighten it up and do a key as you suggest. Would there still be too much mortar on the back edge (eg.10mm) or doesn't it matter once key it.
I'm thinking I'd still use wedge pieces hidden among the mortar to help......or is this not right?

I don't personally see an issue with doing this. Like you said, it's the inner arch..it is not highly visible once you build the vent walls and outer arch. That said, the arch should have a key in the center...to put it in layman's terms - it is what helps lock everything together.

My suggestion above was because you have already mortared in the springer and two voussoirs. If you don't mind breaking them out, then go the way brickie suggests....use centering for your key and voussoir layout. Otherwise, you should be able to use your form to mark out new shapes for the remaining arch brick to make room for a key.

[Bacterium]

Re: Bacterium's 2nd build

Ok, got my head down and tinkered with my arch template so managed to get them all to fit. Well ok I shaved a couple mm from the top 2. obviously didn't angle cut each one. I think I will try that in the outer arch

just doing row 8 of the dome now....lay one, wait a couple mins....lay another. Gravity is there.... I'm tempted to go #9 like this

[stonecutter]

Re: Bacterium's 2nd build

Looks nice! I dropped my arch form yesterday but I only did the soldier and springer course.

[cobblerdave]

Re: Bacterium's 2nd build

Gudday Damon
My first attempts at building my inner arch were to put it plainly 'a dogs breakfast' . I went for an oblong oven and outer entrance and it never looked right!, round dome, square entrance . Wasn't till later that I saw an entrance made of 50mm pavers. Wow the light bulb lite up the thinner brick meant the gapes on the outer edges were thinner due to the larger no of bricks instead of smaller no of bricks and larger gapes.
It was a little more complex as I had to make it curve to allow for a set amount of pavers and get the curve as near as the curve of the dome in the background.
Perhaps splitting your brick length ways would help on you outer arch

Regards dave

[oasiscdm]

Re: Bacterium's 2nd build

Damon 3 rows to go, yummmmmmmmmmmmm not far away.

[Bacterium]

Re: Bacterium's 2nd build

Colin....yeehaaa its motoring. Basically I've got one last cut to fit into course #10. Then I estimate 3 more including key stone. It's not the prettiest as you'll notice a few of my front faces have "turned" ....thats what you get when you do it mostly by eye. . I found while I was still single side cutting ( on 2 angles) that I'm now starting to cut the other side as well to bring it back.....tricky buggers

From here its outer arch and flue...... only prob is a few bills just came in, no more daylight savings which means build will slow due to time and $$$.....but hey I intend to fire it as soon as flue is connected up and out of my alfresco area.......couple weeks

o yeah and no form so far..... this Hi Temp mortar rocks for holding on!!

[BOOMERS WFO]

Re: Bacterium's 2nd build

Hi Damon,

As I did the last few courses it became increasingly more difficult to get the alignments right....did my head in getting the cut angles correct. In the end I knew that as they were all placed together well and mortared in that they weren't going anywhere and it was unlikely that anyone would want to crawl in to look up, -that it was more personal pride on doing the job to a standard that I wanted.
By the time you get to the upper courses you just want to get it finished. They actually get finished very quickly.

Good Luck. Great weather this weekend for oven building 29degrees and sunny

Cheers


Craig

[Bacterium]

Re: Bacterium's 2nd build

Thanks Boomer

weather was great but other things competed for my time. Albeit some will be part of the WFO experience. Went to the ABC gardeners market and got some oregano, rosemary and mint (my lad insisted on that one). Which I planted within a couple meters of the WFO.

So finally got to in on Sunday arvo and manged to finish the existing row and get another one in. Things were keeping even (round) but I stuffed it up a bit and got out of shape. The wife could hear me getting a bit frustrated and got up on the ladder for a look. She commented on the shape and quick thinking I said its like a love heart... just for you


I'm still not using a form so that was also making me nervous.....wife calls out "wine-o"clock" (aka Aussies normal call it "beer o'clock) so that was it, I pulled stumps!!

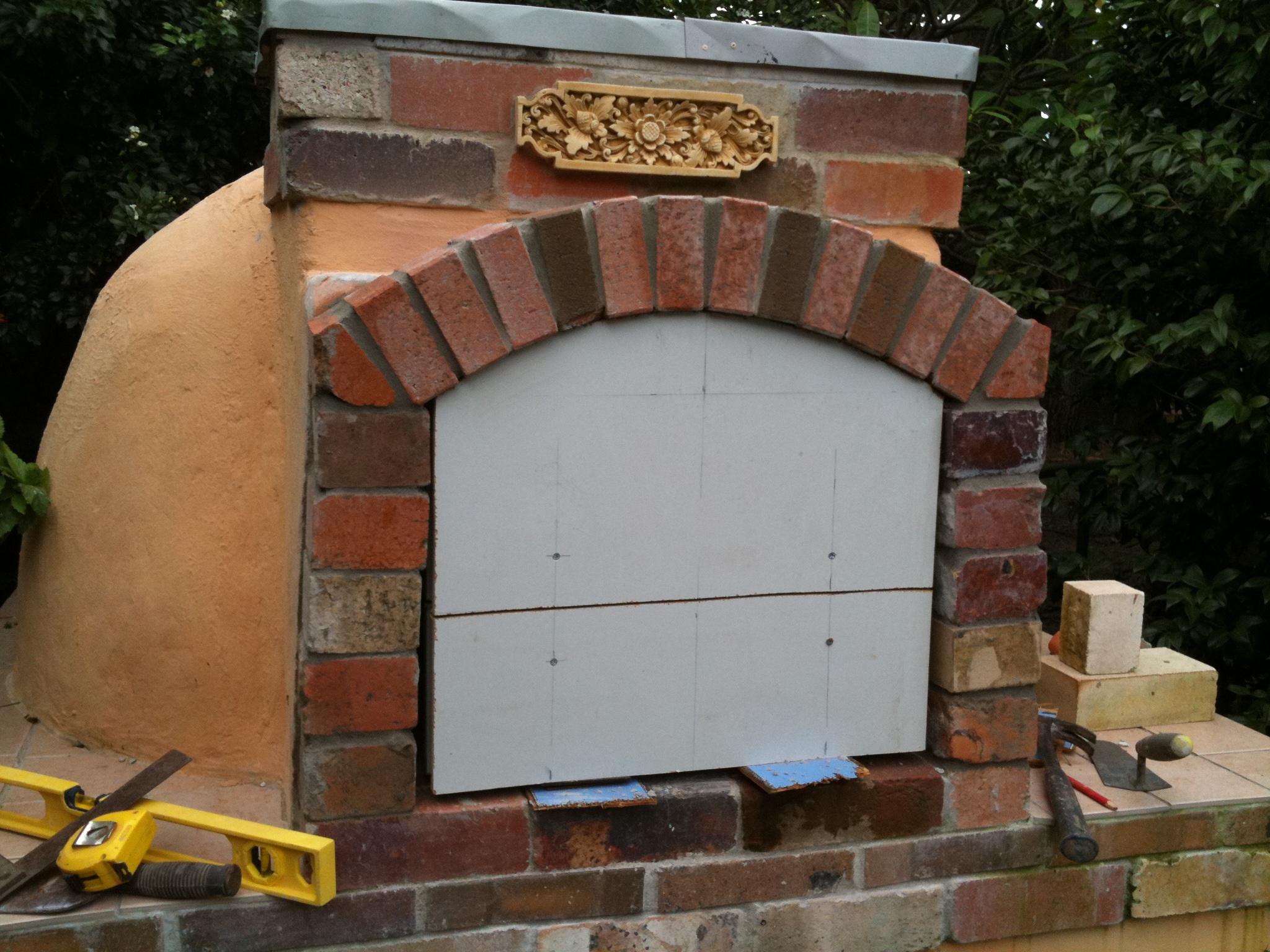

Photo here is a comparison of my 2 oven builds. Besides the "agricultural" look to my bricks (faces not lined up evenly) I've managed to reduce the mortar significantly. Current build is the yellow/cream bricks - the yellow in the middle of that photo is a container on top (to cover it from rain).

I was going to correct the shape but stuff it that's whats going to be unique about my build.....

[Bacterium]

Re: Bacterium's 2nd build

Had a few other things on my plate but yesterday I got the dome "closed up"....decided on a 3 piece plug. Just in time as the rain set in today
ahhh pizza is one more step closer

Like my "form" method? Basically I built the whole dome (except for last 3 pieces) without a form......lots of pauses between each brick tho.

Went to see the helpful fellas at Air Diffusion and ordered my flue. Just need them to make up a spigot plate (name for the square plate for the base of flue) then I can work how I will transition from the arch to that......and some form of buttressing (for the arch)....

tonight is a DeBortoli Merlot.......

[oasiscdm]

Re: Bacterium's 2nd build

Hi Damon

Not Long Now And Real Pizza.. Well Done.

Am interested - re buttressing that is now you and Dave that has referred to this.

Had not figured it into my Build. Should I?

[Bacterium]

Re: Bacterium's 2nd build

Colin,
basically the sides of the inner arch of our ovens are buttressed (held in place) by the oven dome rings.......because it sits inside them.
Refer to the blue arrows in my picture (this is just a pic of my inner arch)

Whereas if my outer arch is freestanding what stops it spreading sideways? So I've been thinking its probably as simple as some poured concrete (and fixings down into my base slab) sideways of the arch base bricks. Refer to the red squares/rectangles in my picture. I'm not sure if I need to continue this above the bottom bricks (eg. as high as 2nd or 3rd arch bricks)

Adding the concrete shouldn't be a problem for mine as the inner arch is sitting on 3in of CalSil. Whereas the outer arch will be in front off this and be sitting down on the concrete slab (and the outer base bricks are 50mm above this - so concrete will make up the difference)......it will also be thermally insulated from inner arch.

[brickie in oz]

Re: Bacterium's 2nd build

If you have a true or near true semi circle arch the forces are transferred to the base of the arch and buttressing is not required.

Buttressing is only required for flatter arches where the forces push side ways.

[Bacterium]

Re: Bacterium's 2nd build

Ok brickie clear as mud.

I had a week off went down naracoorte caves etc. .....also had some nice crayfish a mate caught....he lives near Robe and catches them for breakfast

Back to work......so with the oven - plan is to get the outer arch template setup and angle cut each brick this time. Wife managed to pick up my flue kit for me, so know I can work out exactly where it will come through my Alfresco roof/eave.

Flue is triple skinned with an 8inch stainless inner. I got the triple so that its ok for going through roof. One of my work mates (gas fitter/plumber) tells me it should work well as the triple skin actually retains heat in the flue which assists draw - compared to a single.....
