  • #16
    Click image for larger version

Name:	IMG_4090.jpeg
Views:	188
Size:	1.22 MB

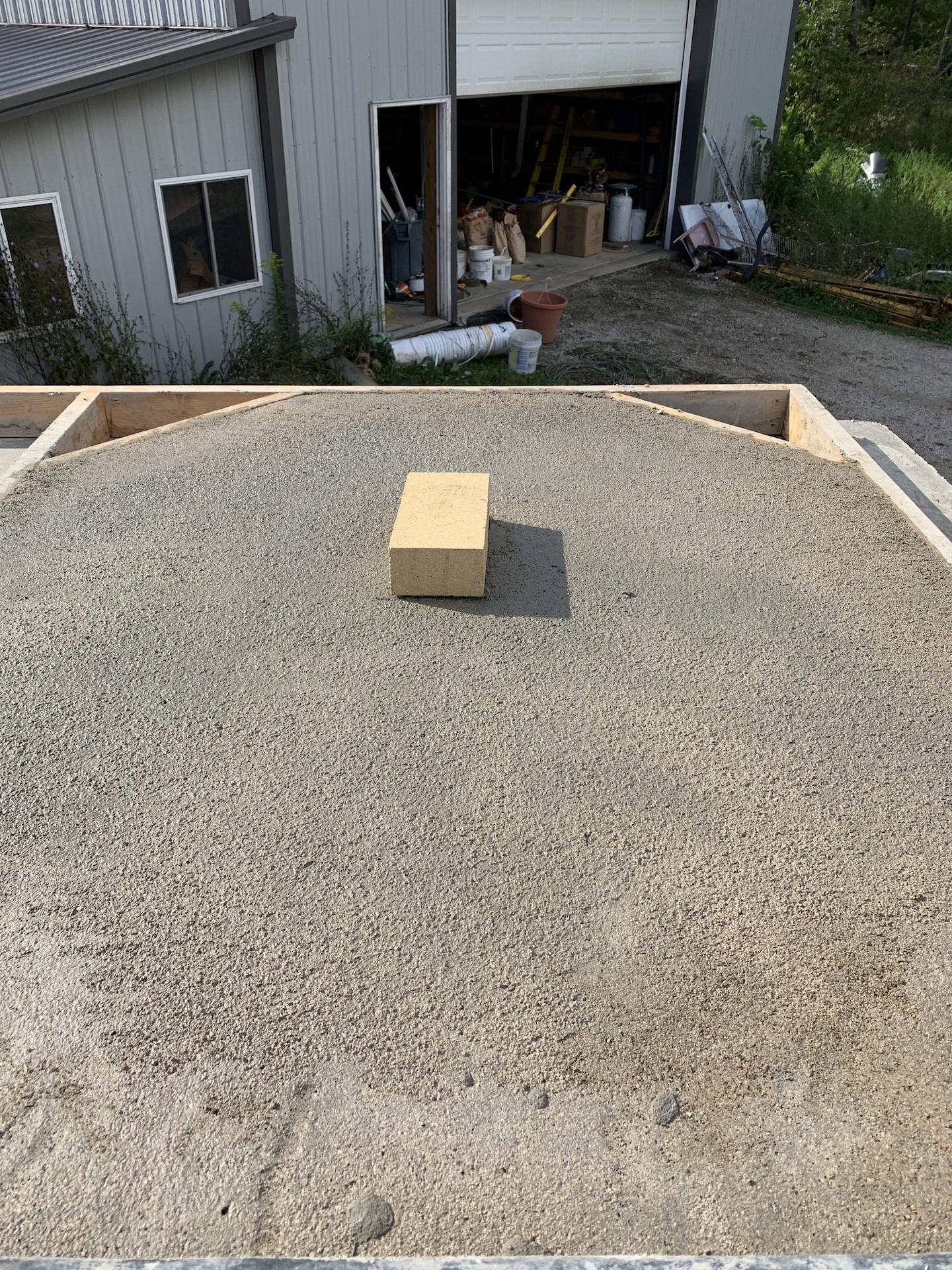

ID:	429801 Vermiculite concrete mix for insulation with center of igloo brick in place.
    Last edited by 4rjn; 09-08-2020, 07:32 AM.

    Comment


    • #17
      Click image for larger version

Name:	IMG_4091.jpeg
Views:	192
Size:	906.8 KB
ID:	429800 Firebrick 38 percent alumina laid out in the classic herringbone pattern
      Last edited by 4rjn; 09-08-2020, 07:31 AM.

      Comment


      • #18
        Click image for larger version

Name:	IMG_4092.jpeg
Views:	183

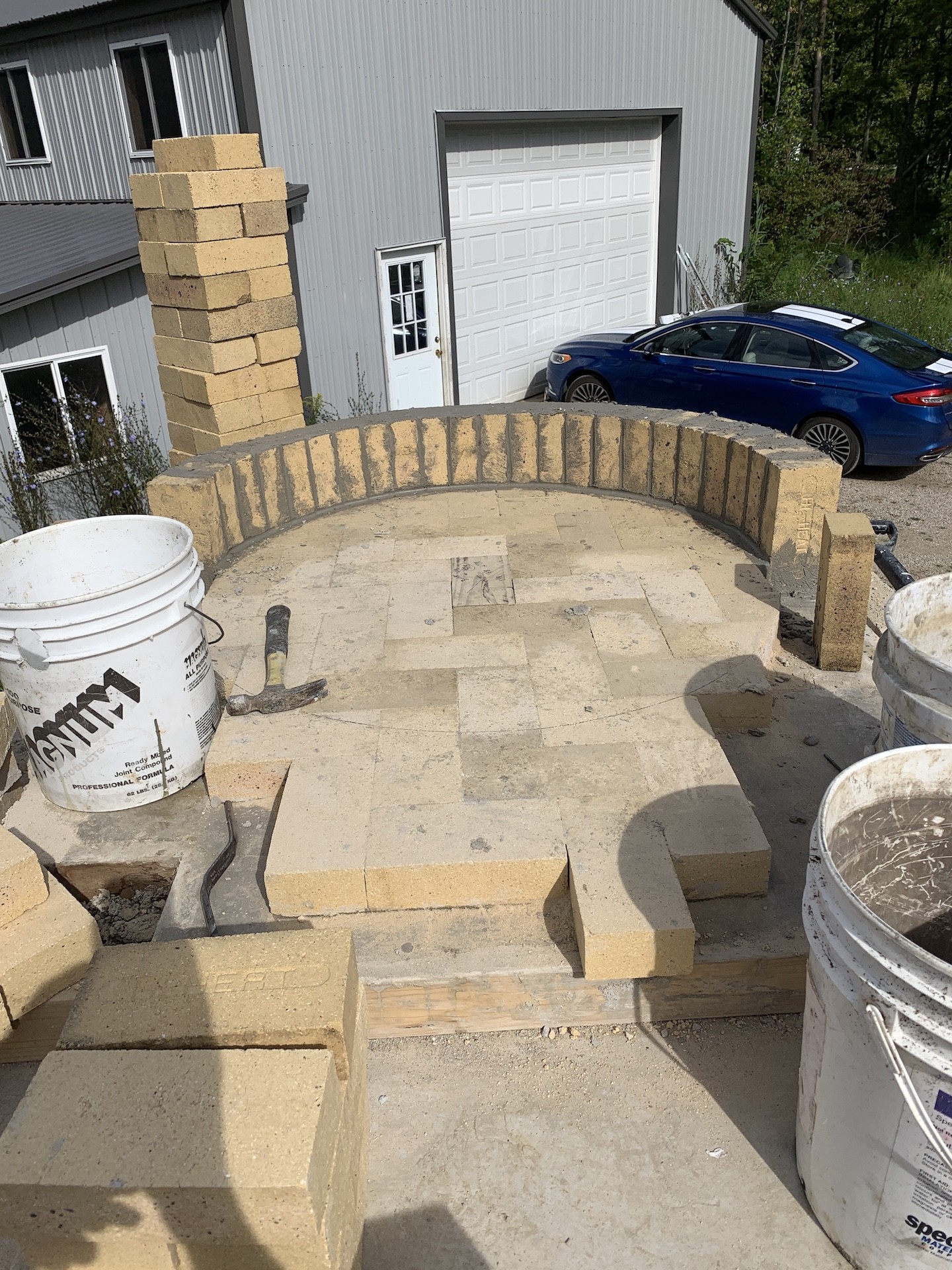

Size:	821.9 KB
ID:	429799 Floor marked and mostly cut to 42" diameter with the first course of wall brick started.
        Last edited by 4rjn; 09-08-2020, 07:30 AM.

        Comment


        • #19
          Click image for larger version

Name:	IMG_4093.jpeg
Views:	187
Size:	865.6 KB
ID:	429797 Click image for larger version

Name:	IMG_4094.jpeg
Views:	184

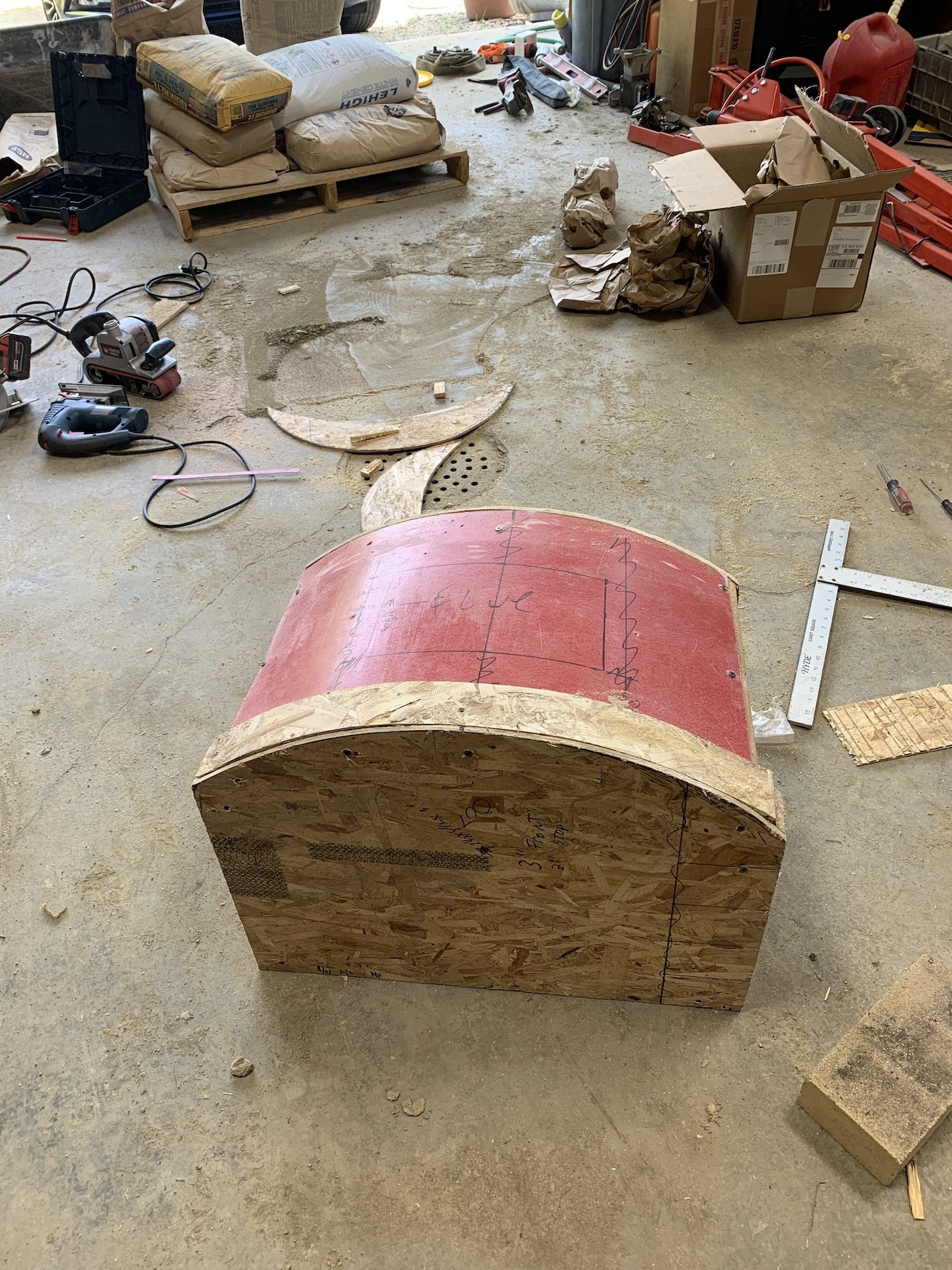

Size:	894.1 KB
ID:	429798 First attempt at frame for door opening. I didn't like it so second picture is the modified version that I ended up using!
          Last edited by 4rjn; 09-08-2020, 07:29 AM.

          Comment


          • #20
            Click image for larger version

Name:	IMG_4096.jpeg
Views:	185
Size:	916.4 KB

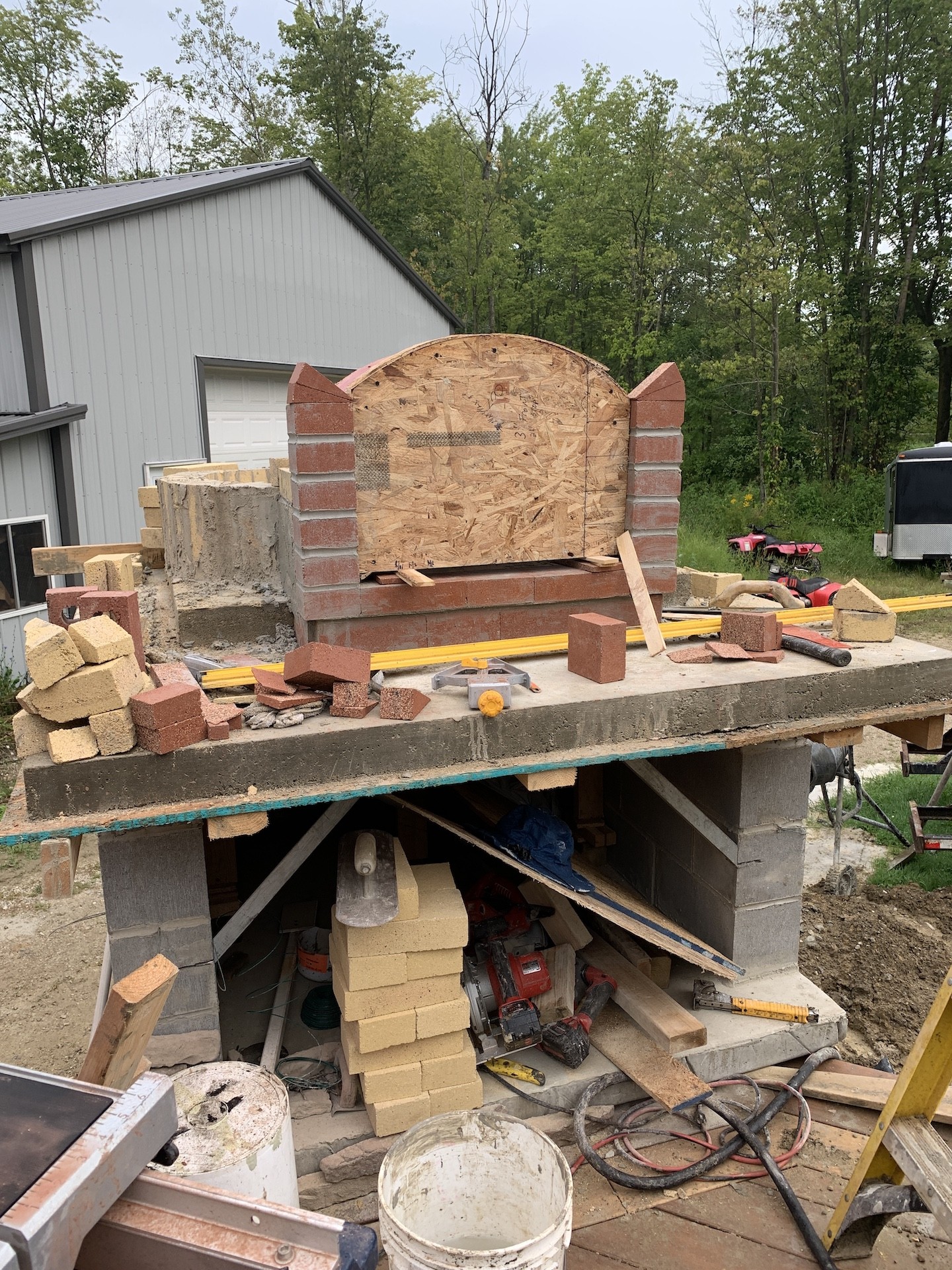

ID:	429796 Door support in place.
            Last edited by 4rjn; 09-08-2020, 07:25 AM.

            Comment

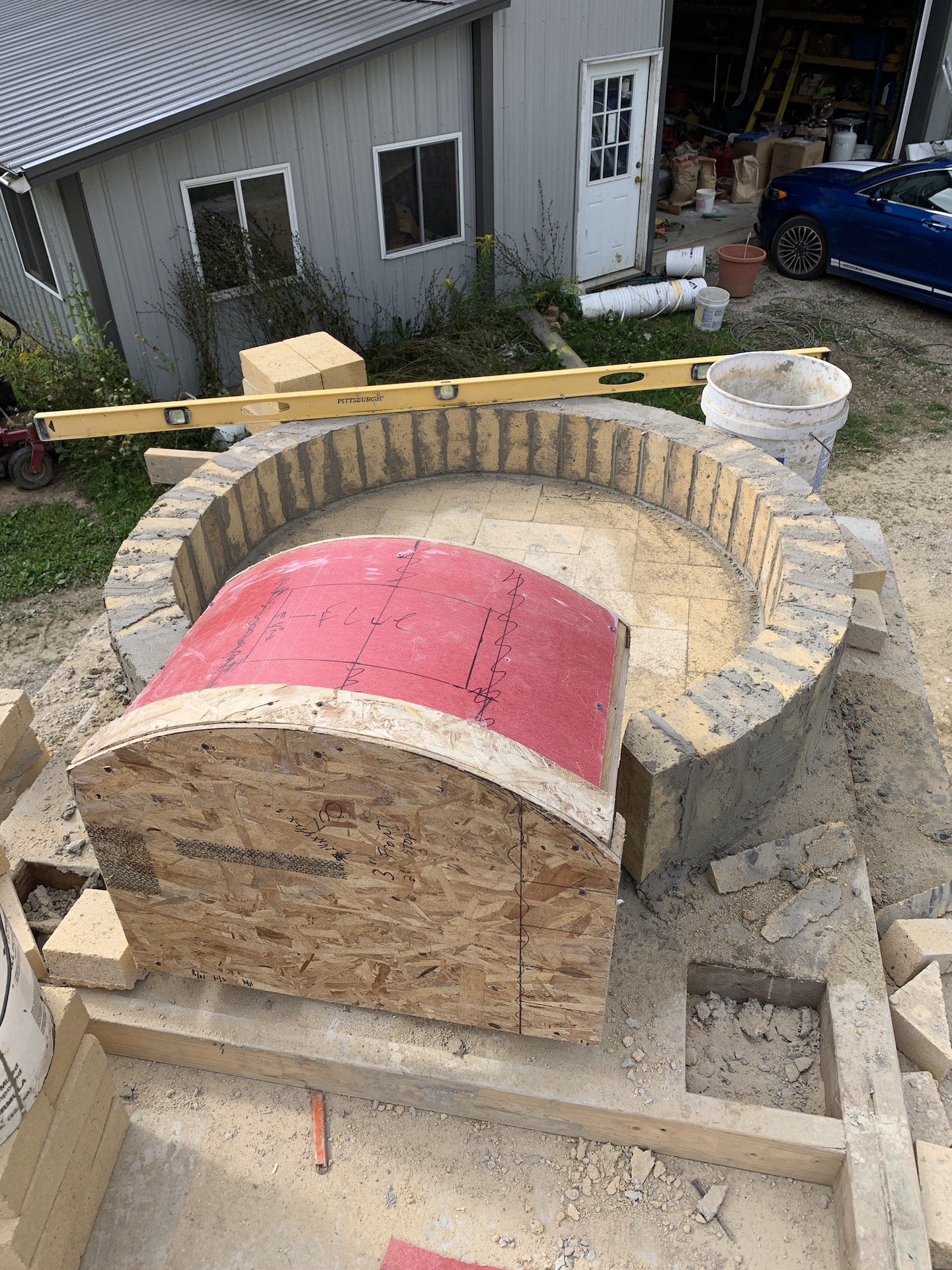

            • #21
              Click image for larger version

Name:	IMG_4097.jpeg
Views:	193
Size:	998.1 KB

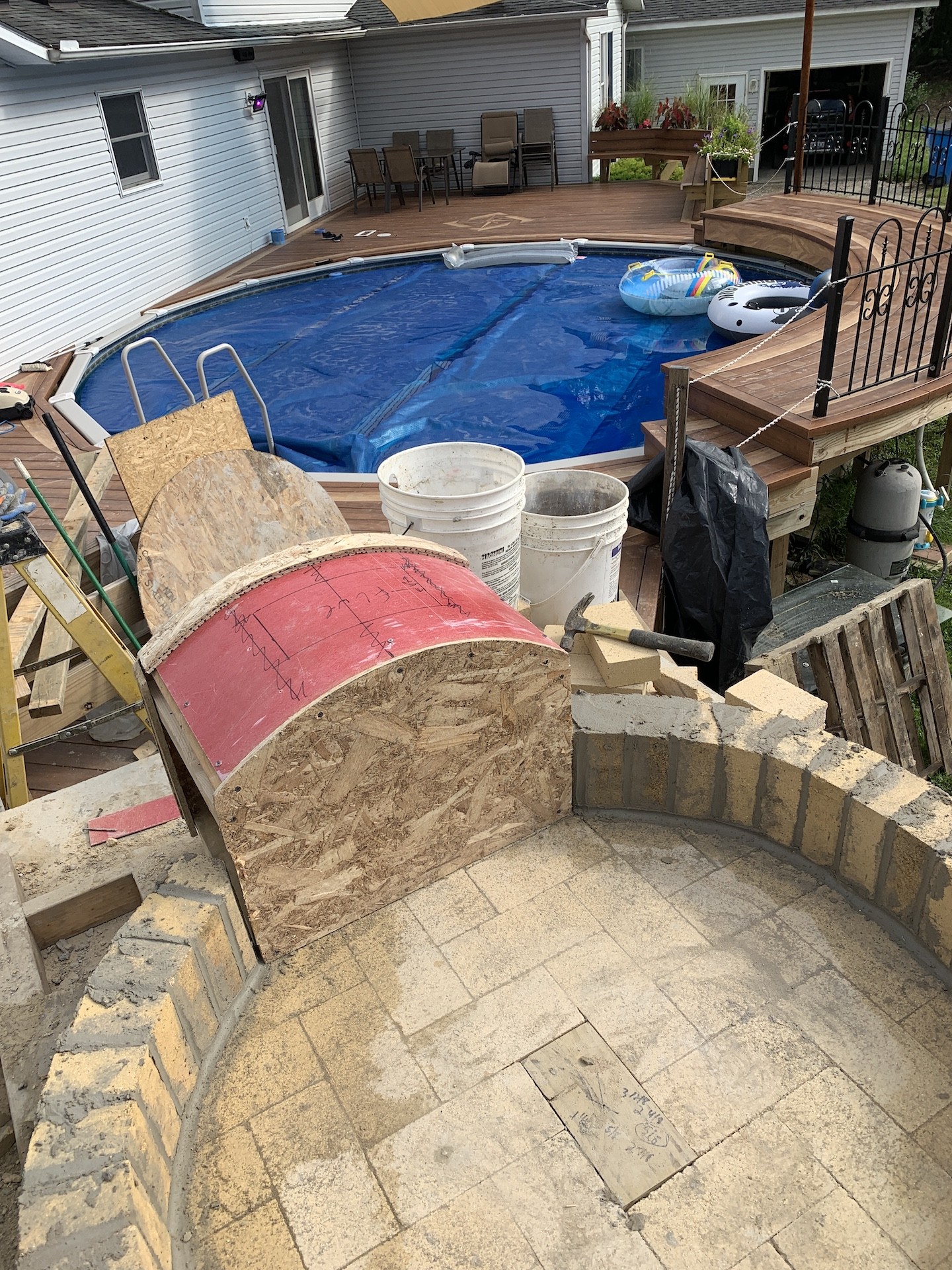

ID:	429795 Door support from opposite side. The red sheet is thin fiberglass I had laying around.
              Last edited by 4rjn; 09-08-2020, 07:24 AM.

              Comment


              • #22
                Click image for larger version

Name:	IMG_4098.jpeg
Views:	183
Size:	1,016.1 KB
ID:	429792 Door framing coming together. In hindsight I think I should have made it a bit smaller!
                Last edited by 4rjn; 09-08-2020, 07:20 AM.

                Comment


                • #23
                  Click image for larger version

Name:	IMG_4100.jpeg
Views:	186
Size:	976.2 KB
ID:	429793 Click image for larger version

Name:	IMG_4101.jpeg
Views:	188

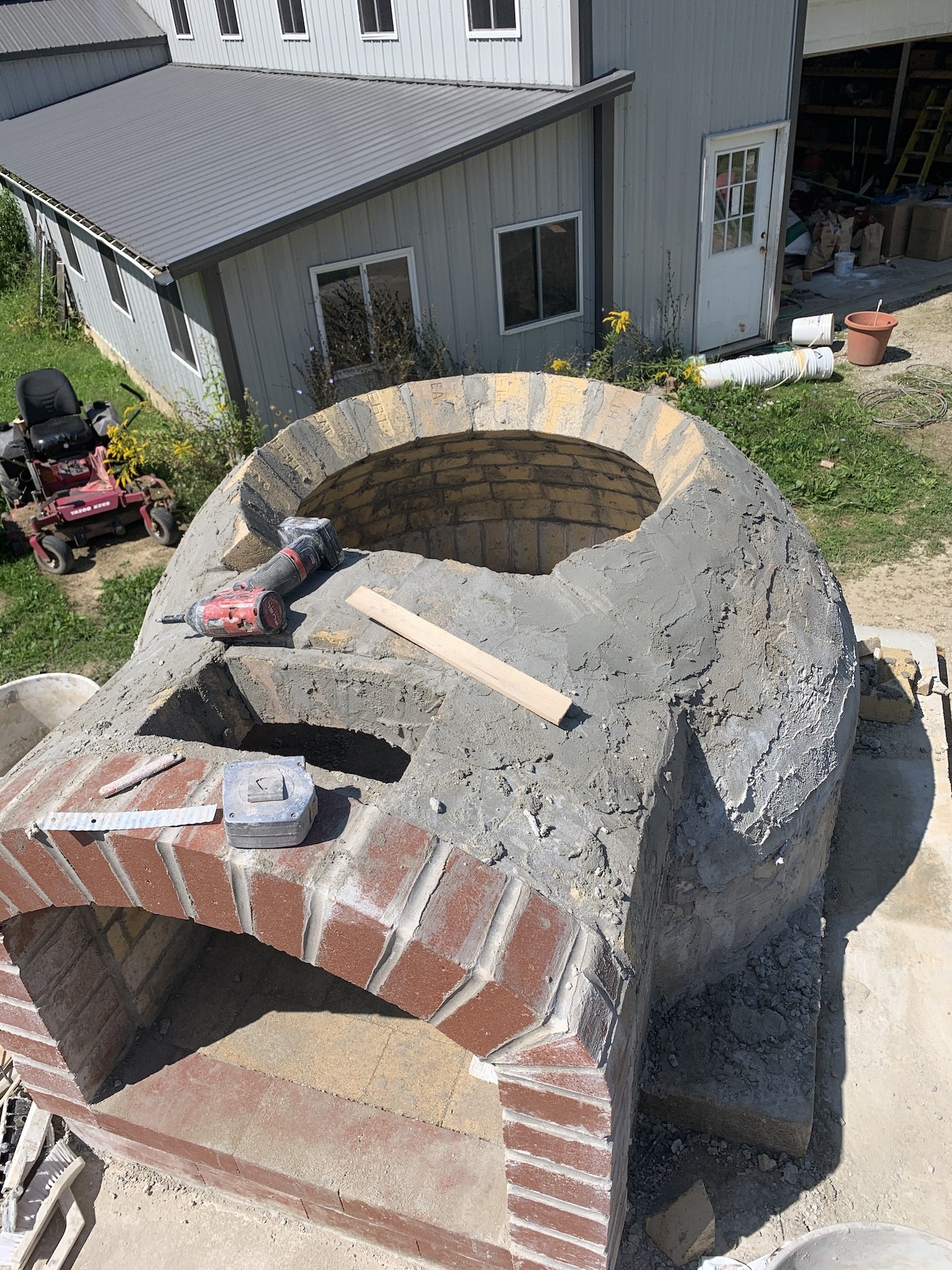

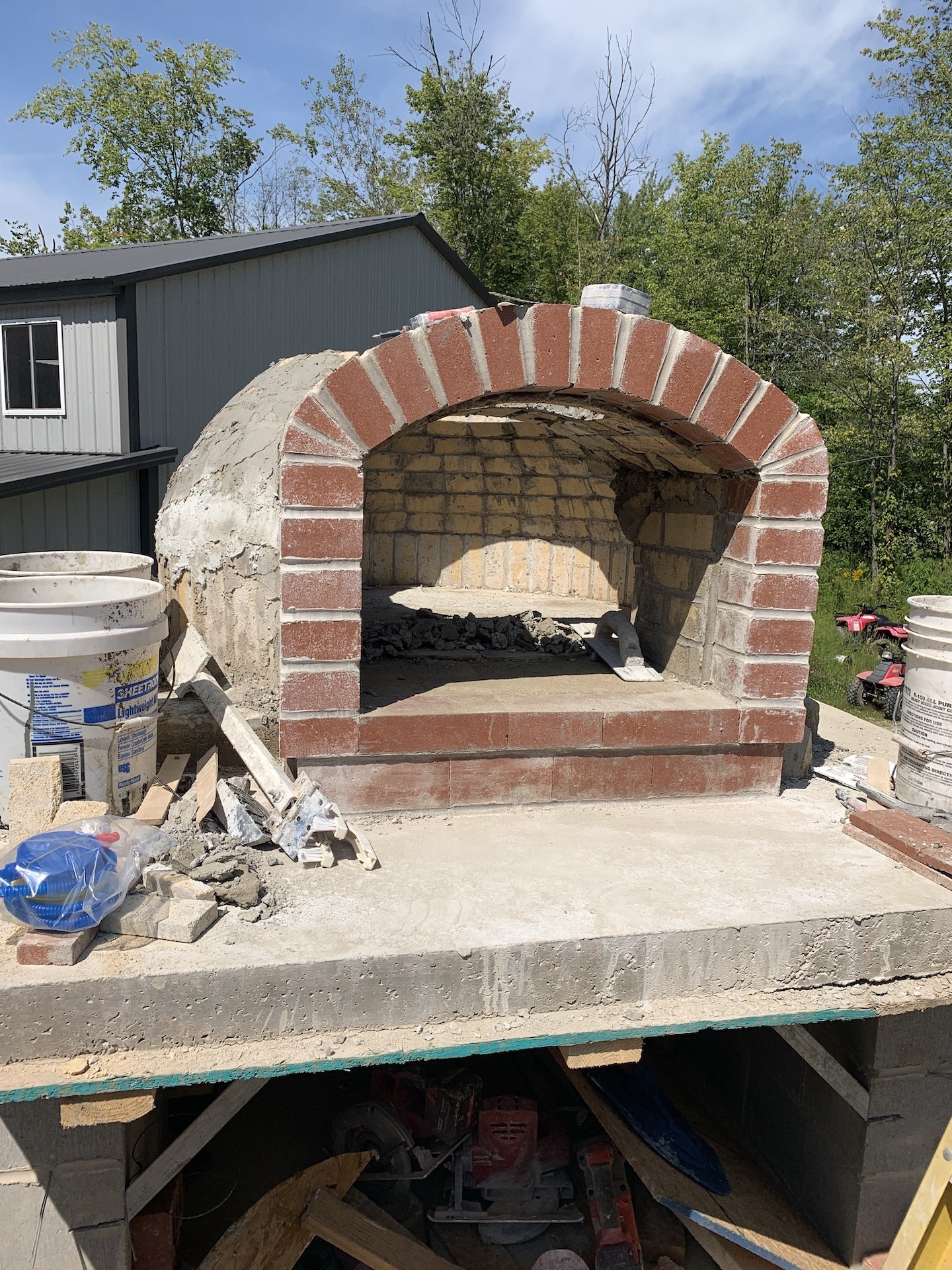

Size:	931.5 KB
ID:	429794 Dome with a few more chains done as well as the arch on the front completed.
                  Last edited by 4rjn; 09-08-2020, 07:23 AM.

                  Comment


                  • #24
                    Click image for larger version

Name:	IMG_4104.jpeg
Views:	193

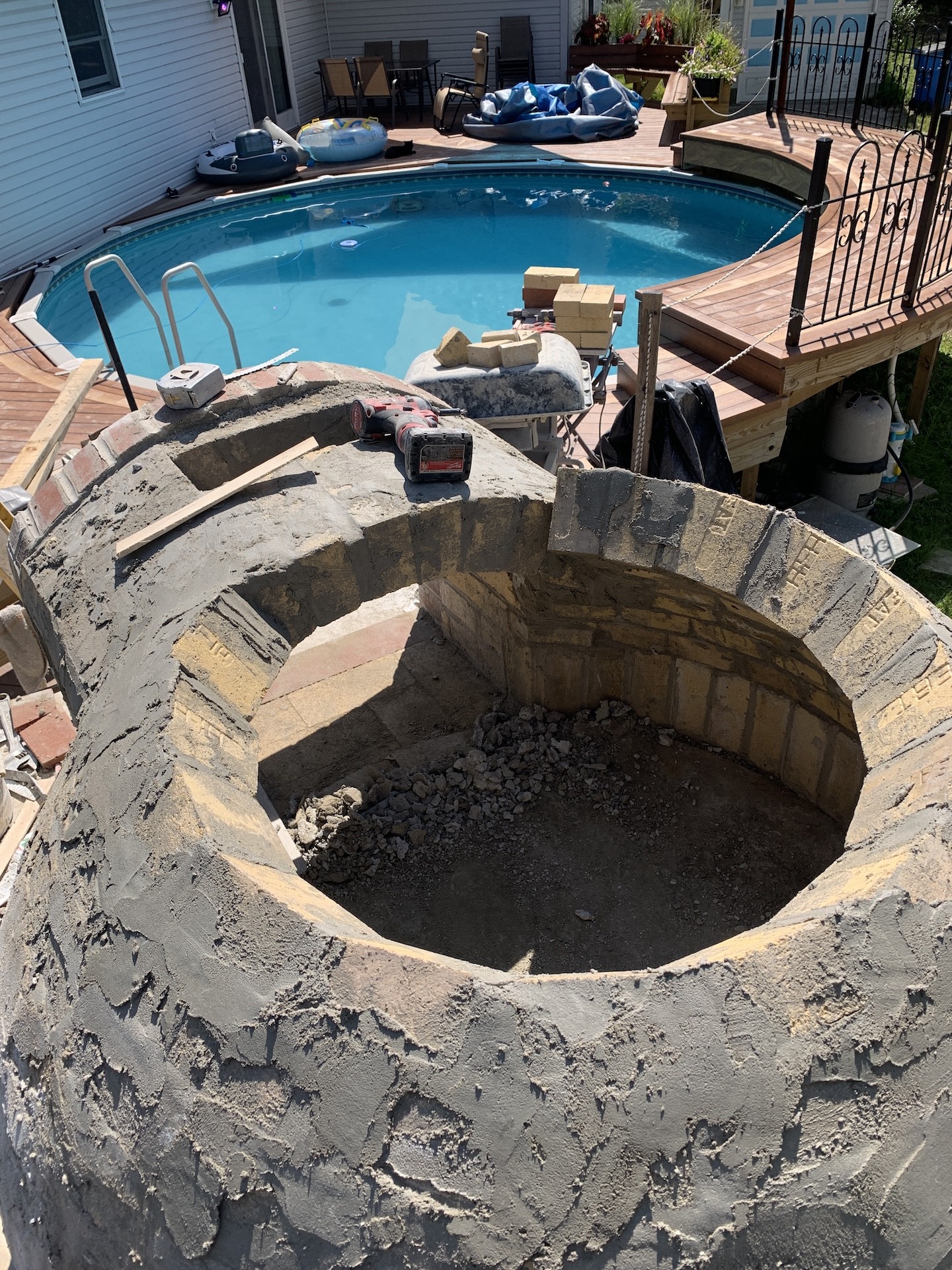

Size:	1.04 MB
ID:	429791 Last chain I was able to complete before gravity would not cooperate!
                    Last edited by 4rjn; 09-08-2020, 07:18 AM.

                    Comment


                    • #25
                      Click image for larger version

Name:	IMG_4105.jpeg
Views:	185

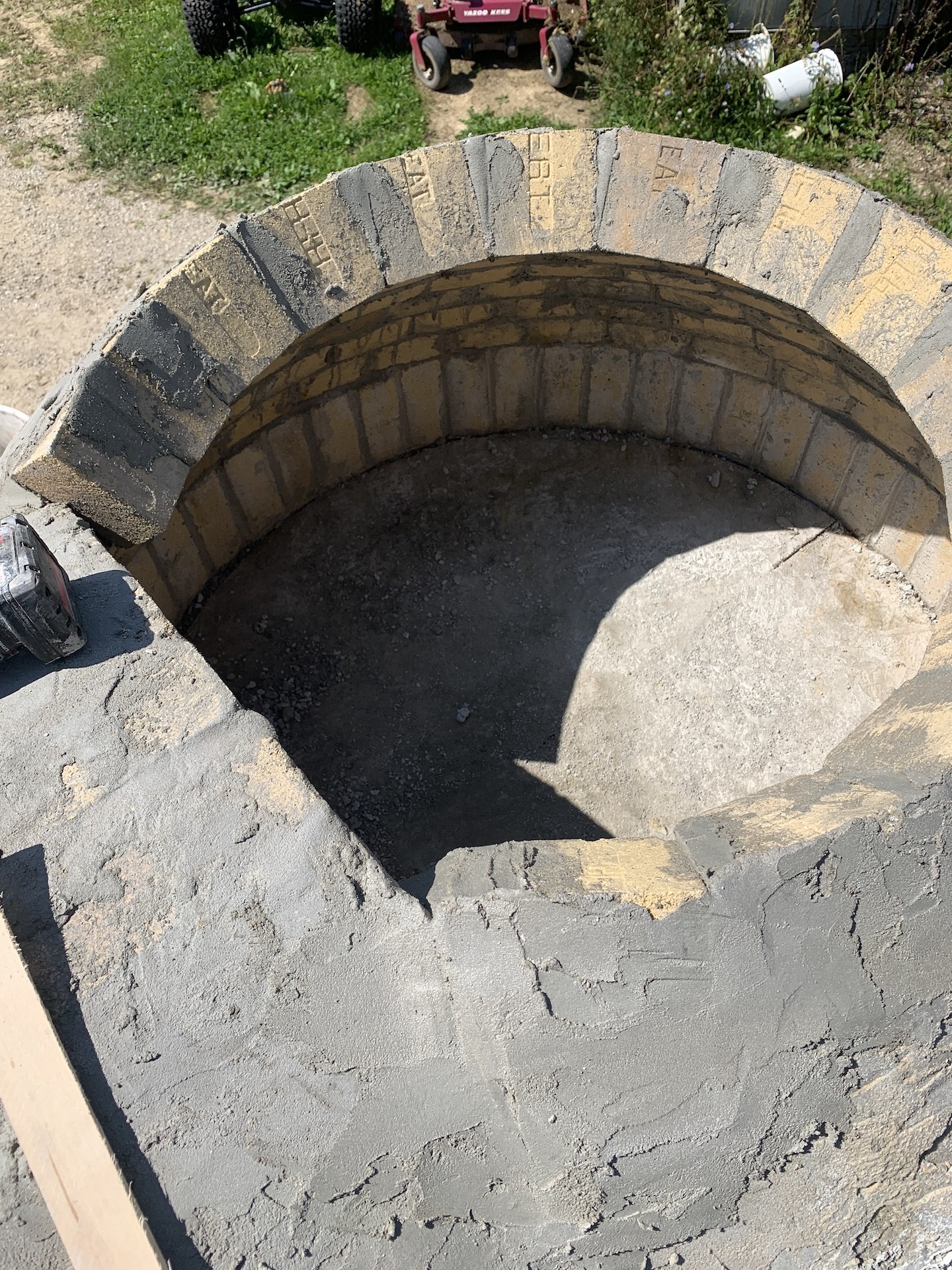

Size:	1.00 MB
ID:	429790 Backside view of last row before I had to support bricks.
                      Last edited by 4rjn; 09-08-2020, 07:17 AM.

                      Comment


                      • #26
                        4rjn, it would be very helpful if you made your pictures 800x600 pixels for upload to the forum. Currently they are showing as very small pics and it's difficult to see any detail. I'm assuming you are taking pictures and then reducing them for the posting upload...just don't reduce them this far please...my old eyes just can't see that well...
                        Last edited by SableSprings; 09-07-2020, 10:56 PM.
                        Mike Stansbury - The Traveling Loafer
                        Roseburg, Oregon

                        FB Forum: The Dragonfly Den build thread
                        Available only if you're logged in = FB Photo Albums-Select media tab on profile
                        Blog: http://thetravelingloafer.blogspot.com/

                        Comment


                        • #27
                          Sure thing I had no idea!

                          Comment


                          • #28
                            Looks great so far. When did you start construction?

                            Comment


                            • #29
                              Great progress, the arch looks huge or is it the angle of the picture?
                              I noticed you haven't done an offset outer arch to your inner, is there a reason for it?
                              My 32" oven, grill & smoker build https://community.fornobravo.com/for...oven-and-grill

                              Comment


                              • #30
                                I started August 10th. Yes I agree with the arch size. I am kicking myself at this point thinking its too big. I have that problem thinking "bigger is better" As for the offset I didn't really understand totally the location and size. I put a small 1/2" offset at the front (wrong place and too small) I am going to add a stop today and tie it with wall ties to the existing structure and hopefully that will work out. Its tough first time doing anything!!! I thought I had read and understood everything but not even close!!
