    Insulation between brick and concrete slab

    I have read and studied design and materials and decided on the size and type of pizza oven I will build, I understand the need for as insulated an oven as possible. My question is, the base of the oven will be insulated and the exterior of the dome but the bricks to form the dome cannot be laid on vermiculite as it is not load bearing, if the bricks are laid onto the concrete slab the heat will be lost. Is there a solution that I am not aware of?
  • Gulf
    Member Moderator
    • Sep 2011
    • 3883

    #2
    5 to1 vermicrete has enough compression strength to support an oven. It just needs to be supported from underneath.

    Edit: Corrected under floor vermicrete ratio
    Last edited by Gulf; 04-26-2021, 03:57 AM.
    Joe Watson " A year from now, you will wish that you had started today" My Build Album / My Build

    Comment

    • david s
      Il Pizzaiolo
      • Mar 2007
      • 9213

      #3


      A10:1 brew is about 1/4 the strength of a 5:1 brew. So, 5:1 for under floor insulation and as lean as 10:1 for over the dome insulation which is not load bearing.

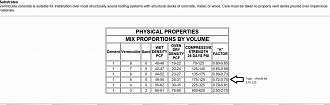

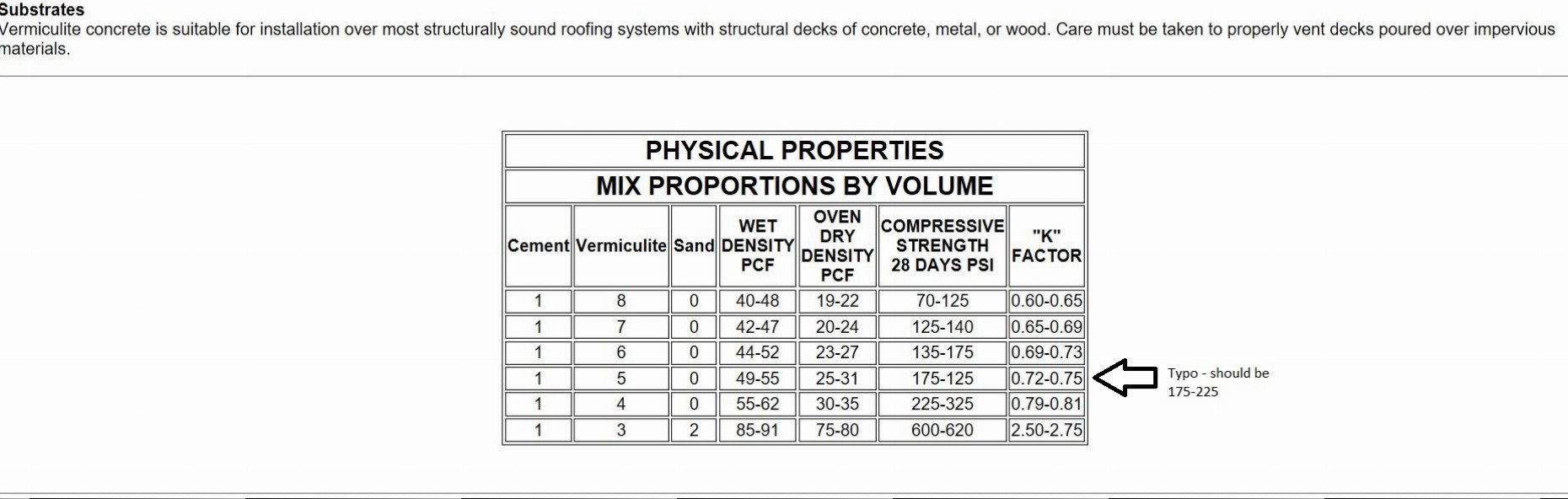

      Click image for larger version  Name:	image_83170 2.jpg Views:	0 Size:	146.2 KB ID:	437429
      Last edited by david s; 04-26-2021, 10:41 AM.
      Kindled with zeal and fired with passion.

      Comment

      • Gulf
        Member Moderator
        • Sep 2011
        • 3883

        #4
        Oops! You’re right David. Thanks, I will correct the post.
        Joe Watson " A year from now, you will wish that you had started today" My Build Album / My Build
