Insulation question regarding compression strength

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Insulation question regarding compression strength

    I'm soon pouring the base so I’m planning ahead and sourcing materials for the rest of the build. On the insulation below dome, I have a question about compression strength.

    I have found this calcium silicate board multipor: https://www.multipor.com/Multipor_mi...n_board_EN.pdf
    It has a compression strength (compressive resistance) ranging from 200 kPa to 350 kPa. I could compress the material with my fingers easily!
    From my calculations my dome’s footprint will be about 0.2 kg/cm2 (90 cm diameter) and 200 kPa equals 2 kg/cm2. So I should be on the safe side with a factor 10??

    What is the consensus on minimum strength required from insulation boards?

  • #2
    75 psi or about 517 kPa at 5% compression
    Russell
    Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]

    Comment


    • #3

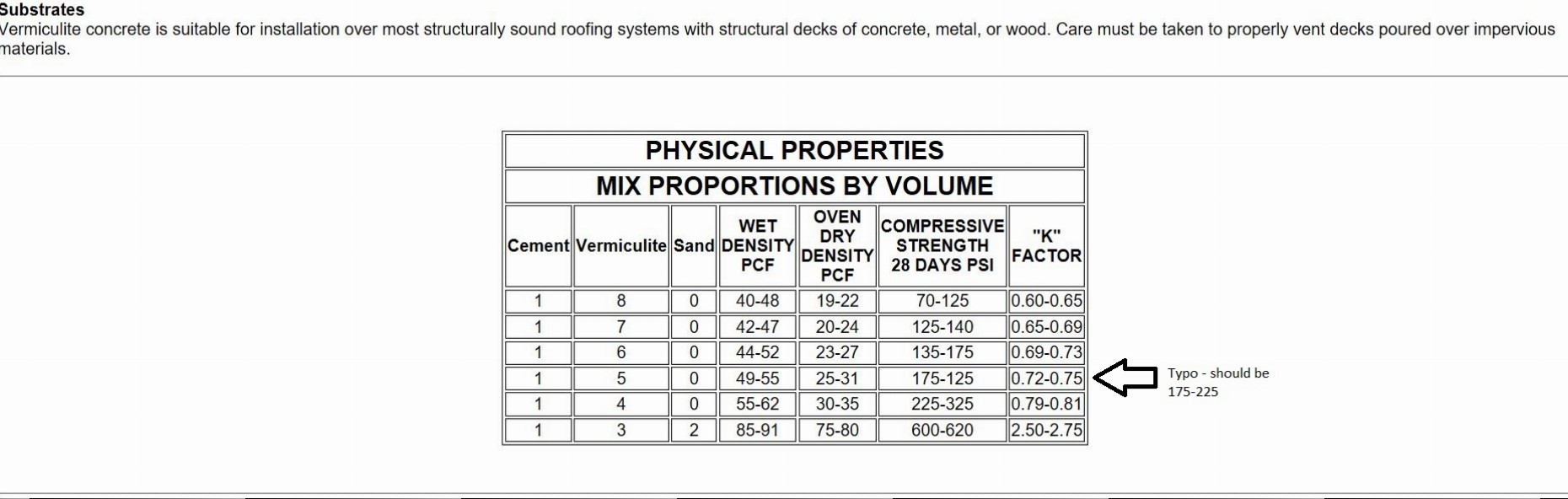

      Click image for larger version

Name:	image_83170.jpg
Views:	147
Size:	146.2 KB
ID:	421972 Given that a 10:1 vermicrete is considered inadequate and a 5:1 about right then the min would be around 150 psi.

      Last edited by david s; 05-02-2020, 04:35 PM.
      Kindled with zeal and fired with passion.

      Comment


      • #4
        I found another calcium silicate board, skamowall, with 2800 kPa, about 406 psi. It has similar insulating properties. That should be a better solution then.

        Here a picture of my progress so far. Getting ready to pour foundation today.
