  • My oven drawings

    If these are helpful to anyone, I can add notes and more dimensions. This is a drawing of my oven build.
    Attached Files
    Last edited by MarkJerling; 11-18-2020, 06:13 PM. Reason: Revised drawings.
    My 42" build: https://community.fornobravo.com/for...ld-new-zealand
    My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

  • #2
    Hey! Thank you for showing me these Drawings. Awesome they are. Is it O.K. for me to use these as a template of types to start mine ? & are the drawing numbers all in Millimeters / Centimeters, etc .. ??
    Chops..

    Comment


    • #3
      Originally posted by Chops View Post
      Hey! Thank you for showing me these Drawings. Awesome they are. Is it O.K. for me to use these as a template of types to start mine ? & are the drawing numbers all in Millimeters / Centimeters, etc .. ??
      Chops..
      Hi Chops

      Yes, of course, you're most welcome. Yes, all dimensions are in millimetres but it is, in essence, a 42" oven.

      Kind regards,
      Mark
      My 42" build: https://community.fornobravo.com/for...ld-new-zealand
      My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

      Comment


      • #4
        Thank You. You are a Gentleman & a Scholar..

        Comment


        • #5
          Originally posted by Chops View Post
          Thank You. You are a Gentleman & a Scholar..
          No worries. One thing though: My drawings do not show a thermal break between the door arch and the inner door arch / dome. I would reccomend adding a thermal break in the form of a fireplace rope seal at that point.
          My 42" build: https://community.fornobravo.com/for...ld-new-zealand
          My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

          Comment


          • #6
            Ok & Thanks..

            Comment


            • #7
              Here's the updated version.
              JERLING-PIZZA-DWGS-B.pdf
              My 42" build: https://community.fornobravo.com/for...ld-new-zealand
              My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

              Comment


              • #8
                Hello Mark, New to the forum, starting the process for pouring the base and looking for info on a 42" build. Could i use your drawings?
                I live in northeastern Pa a cold climate in the winter

                Comment


                • #9
                  Hi Cms 68

                  Of course, you're most welcome to use them.

                  Kind regards,
                  Mark
                  My 42" build: https://community.fornobravo.com/for...ld-new-zealand
                  My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

                  Comment


                  • #10
                    Mark I have been studying your drawings and they have been most helpful. Thank you.
                    If you don’t mind I do have a few questions I would like to ask.
                    1. Advantages of mitreing the bricks in the vault or using square edges and just filling the wide side with refractory mortar so the inside edges are tight?
                    2: How do you release the arch form?
                    3. At the thermal breaks you recommend, the grout fills the gap correct?
                    Well I am sure I will have more questions as I proceed but I must say what an awesome community of builders this site has. A lot of real positive energy in pursuit of a good time. Thank you again for you participation.
                    All the best, Michelle

                    Comment


                    • #11
                      I will pop in and answer you questions.

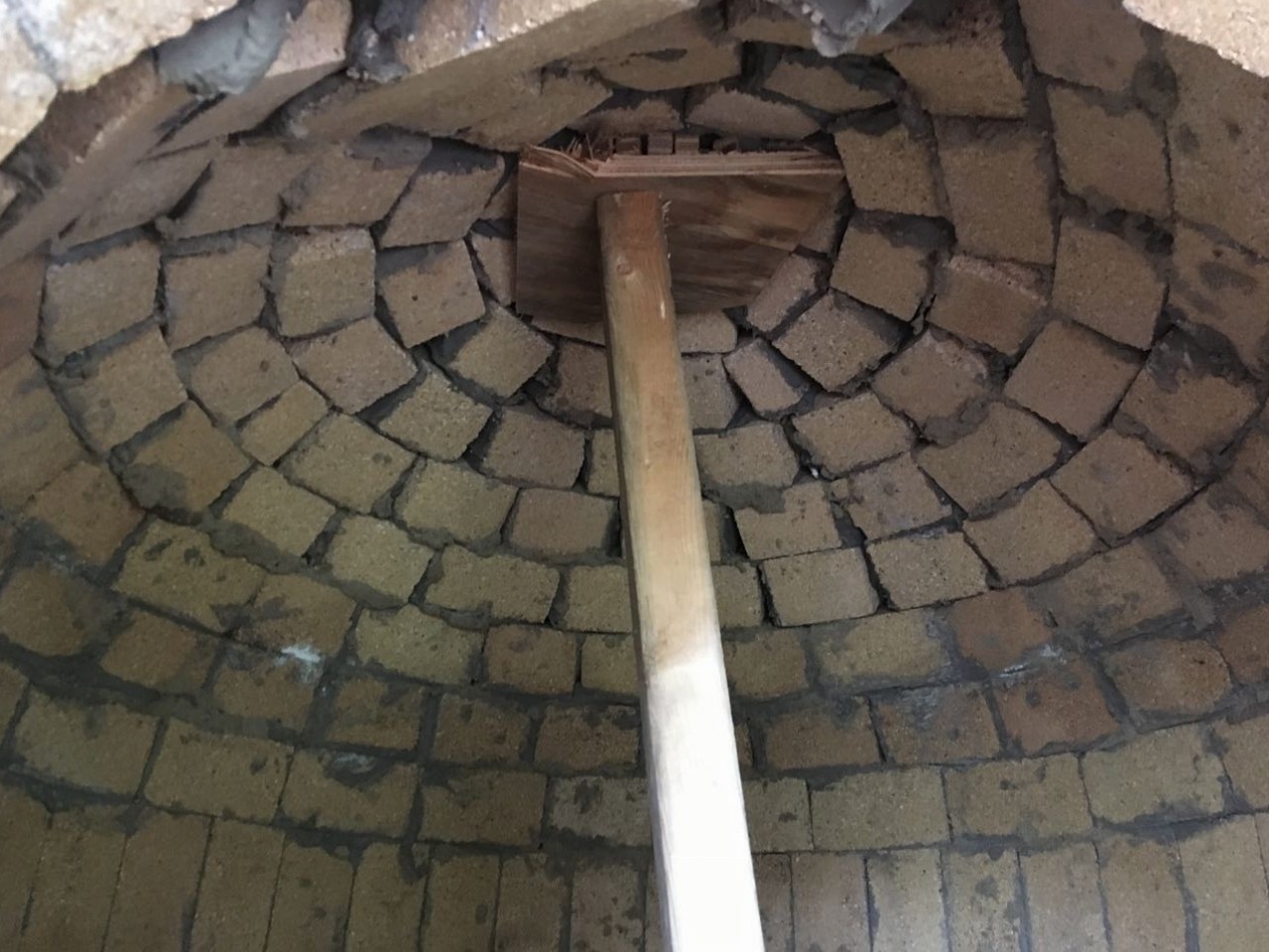

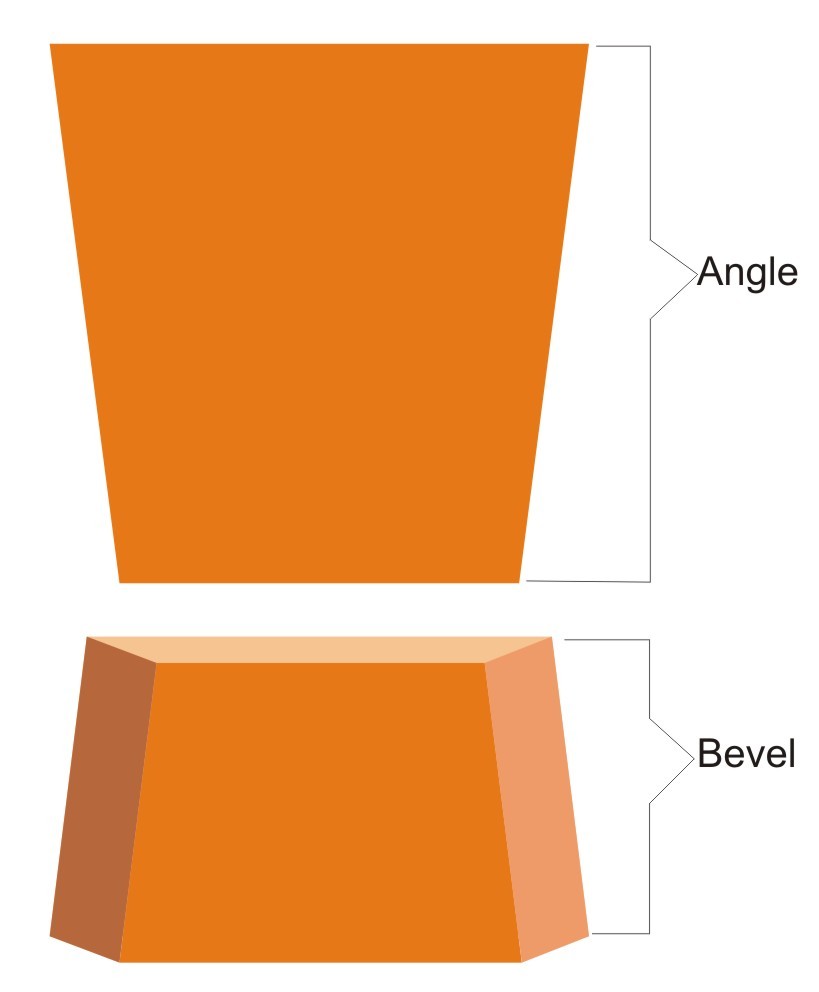

                      1. if you do not bevel the bricks you will see what we call an "inverted V" joint (see example pic) on the inside of the dome as you go up in courses. The bevels do not need to be the entire depth of the brick only the first inch or so where the two brick faces conflict and angles may not be needed as long as you bevel. See JR Pizza's thread. As far as the back side or outside of the dome, this is where the gaps will be the largest. just use mortar here. The goal is tight inner mortar joints.
                      2. place some shimming under the arch form, 1" or so. Then when you remove the shims the form will be able to be removed.
                      3. lot of versions of thermal breaks so builders choice, so a blog search and you will see dozens of options.

                      Click image for larger version

Name:	inverted v example.jpg
Views:	143
Size:	220.5 KB
ID:	442783 Click image for larger version

Name:	anglebevel.jpg
Views:	109
Size:	37.2 KB
ID:	442784

                      Russell
                      Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]

                      Comment


                      • #12
                        Russell thank you for the prompt reply. I like the idea of less than a full depth bevel.
                        I have spent some time studying your build as well and you sir are a master builder and an artist. I don’t think I will measure up but will post some pics of my progress.
                        Molte grazie e cent’anni,
                        Michele

                        Comment


                        • #13
                          Russell since I have your attention. What is the purpose of the stainless steel bar in the threshhold of your build?
                          Michele

                          Comment


                          • #14
                            That is my thermal break for the floor, there is insulation inside the channel. As I mentioned there are a ton of different ways to install thermal breaks. I do not have any scientific data to tell you how well the thermal break works. I had the materials, so why not.
                            Last edited by UtahBeehiver; 10-30-2021, 11:59 AM.
                            Russell
                            Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]

                            Comment


                            • #15
                              Now would be a good time to start your own build thread then we won't hijack any threads.
                              Russell
                              Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]
