My build, New Zealand.

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • My build, New Zealand.

    Hi all.

    Here's my build. 42" floor, 21" high dome. Started with a good hole in the ground and proper foundation as we live in earthquake prone country.

    Then, using some bricks I got from a friend about 15 years ago, I built up the base. On top of the base, a reinforced slab and, on top of that a 3" aerated autoclaved concrete layer which has good insulation properties and acts as a base isolation layer for the oven on the base.

    The whole oven including the oven floor is made from old night-store heater fire bricks. These are heavy, dense bricks that hold heat for a long time. For the base, I used large bricks / tiles from one large night-store heater, set on compacted sand. The oven dome itself is built from night-store heater bricks too, but these have been cut in half so as to provide a 5" thick dome. As a bonus, they have a little lip on one side so, by setting that to the outside it's been easy to build the curve of the dome. All mortar work has been done with refractory cement.

    For insulation I used aerated autoclaved concrete under the floor as mentioned above, vermiculite cement and empty wine bottles around the base, 1" furnace blanket with 8" fibreglass blanket over that and aluminium foil over that. Over the top of it all I have a chicken wire mesh and 3-layer waterproof plaster. I can't decide whether to paint the outside (when I paint the house) or whether to leave it cement coloured. Thoughts?

    The flue is an old secondhand 8" stainless steel flue. It draws quite well although I get some smoke out the door opening when I make a big fire. There's no smoke out the door with a normal fire.
    I look forward to hearing your comments. I'll have to do another post as it seems I can only add 6 photos per post. More to come...
    My 42" build: https://community.fornobravo.com/for...ld-new-zealand
    My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

  • #2
    My 42" build: https://community.fornobravo.com/for...ld-new-zealand
    My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

    Comment


    • #3
      My 42" build: https://community.fornobravo.com/for...ld-new-zealand
      My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

      Comment


      • #4
        Nice job Mark. Not sure what part of NZ you're in but I know much of it can be really wet. You can greatly assist water elimination by drilling a few 1/2" holes up through the concrete supporting slab into the underfloor insulation to provide a path for water vapour drainage. Water will move away from heat and steam pressure build up will assist in forcing water and steam down through the drain holes.Damp insulation does not work too well and once the underfloor insulation is perfectly dry the oven will perform far better.
        Kindled with zeal and fired with passion.

        Comment


        • #5
          Originally posted by david s View Post
          Nice job Mark. Not sure what part of NZ you're in but I know much of it can be really wet. You can greatly assist water elimination by drilling a few 1/2" holes up through the concrete supporting slab into the underfloor insulation to provide a path for water vapour drainage. Water will move away from heat and steam pressure build up will assist in forcing water and steam down through the drain holes.Damp insulation does not work too well and once the underfloor insulation is perfectly dry the oven will perform far better.
          Hi David. Thank you. I'll not try to drill the slab at this point as there's far too much steel in it to drill it successfully. However, the underfloor insulation was kept dry throughout construction so, apart from some spills that did occur, there should not be too much moisture down in the (sealed) autoclaved layer. I could drill in sideways through the brick mortar joins and check moisture content using a moisture meter but it should be reasonably dry in there. With it completely sealed off from any potential rain ingress, I would imagine that the slab moisture will gradually dissipate. What remains to be seen is how waterproof the 3-coat plaster system is going to be. If it proves to be not perfectly waterproof I may need to paint it or at the very least, add a clear penetrating sealer coat.

          One interesting thing is how long the oven holds it's heat. We made fire in it Sunday late afternoon and now, some 42 hours later, the oven still has a little warmth to the bricks.
          My 42" build: https://community.fornobravo.com/for...ld-new-zealand
          My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

          Comment


          • #6
            Well done. Great use of storage bricks, I bet it was very cheap to build.
            My 32" oven, grill & smoker build https://community.fornobravo.com/for...oven-and-grill

            Comment


            • #7
              Thank you Neil. All up, under $2,000 with most of the cost going to concrete, mortar, fire mortar and grinder blades.
              My 42" build: https://community.fornobravo.com/for...ld-new-zealand
              My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

              Comment


              • #8
                Tools made, so we're having pizza tonight!
                I still need to make an insulated door for the oven, then we can test it with bread etc. For now, it's pizza only.
                My 42" build: https://community.fornobravo.com/for...ld-new-zealand
                My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

                Comment


                • #9
                  My lower courses are tidy enough, but at the top where I worked over a former, I have quite untidy mortar. I've been working from the inside tidying that up, but, in doing so, I have noticed three cracks. Need I be concerned about these?

                  My 42" build: https://community.fornobravo.com/for...ld-new-zealand
                  My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

                  Comment


                  • #10
                    Pizzas have come out great, by the way!Click image for larger version

Name:	20201016_195822.jpg
Views:	3271
Size:	351.3 KB
ID:	431842
                    My 42" build: https://community.fornobravo.com/for...ld-new-zealand
                    My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

                    Comment


                    • #11
                      Hi Mark

                      A great build and I like the simplicity. I am far from an expert, but I don't reckon the cracks are much to worry about. Good heat retention by the sounds of it too. Impressive.
                      A few questions about the bricks used for oven floor:
                      1. 42mm or standard brick thick?
                      2. Cut with an angle grinder?
                      3. Pizza bottoms browning nicely?
                      Steve
                      Last edited by KISS4me; 10-27-2020, 12:33 AM.

                      Comment


                      • #12
                        Originally posted by KISS4me View Post
                        Hi Mark

                        A great build and I like the simplicity. I am far from an expert, but I don't reckon the cracks are much to worry about. Good heat retention by the sounds of it too. Impressive.
                        A few questions about the bricks used for oven floor:
                        1. 42mm or standard brick thick?
                        2. Cut with an angle grinder?
                        3. Pizza bottoms browning nicely?
                        Steve
                        Hi Steve

                        Thank you. Cracks have not got worse, so all good!
                        To answer your queries:
                        1. The floor bricks are all very large nightstore heater bricks, roughly 300x240mm (12x9.5") and 45mm (1.75") thick.
                        2. Cut with a diamond bladed angle grinder to fit in between the walls, yes.
                        3. Yes, floor temperature seems to be good.

                        Kind regards,
                        Mark
                        My 42" build: https://community.fornobravo.com/for...ld-new-zealand
                        My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

                        Comment


                        • #13

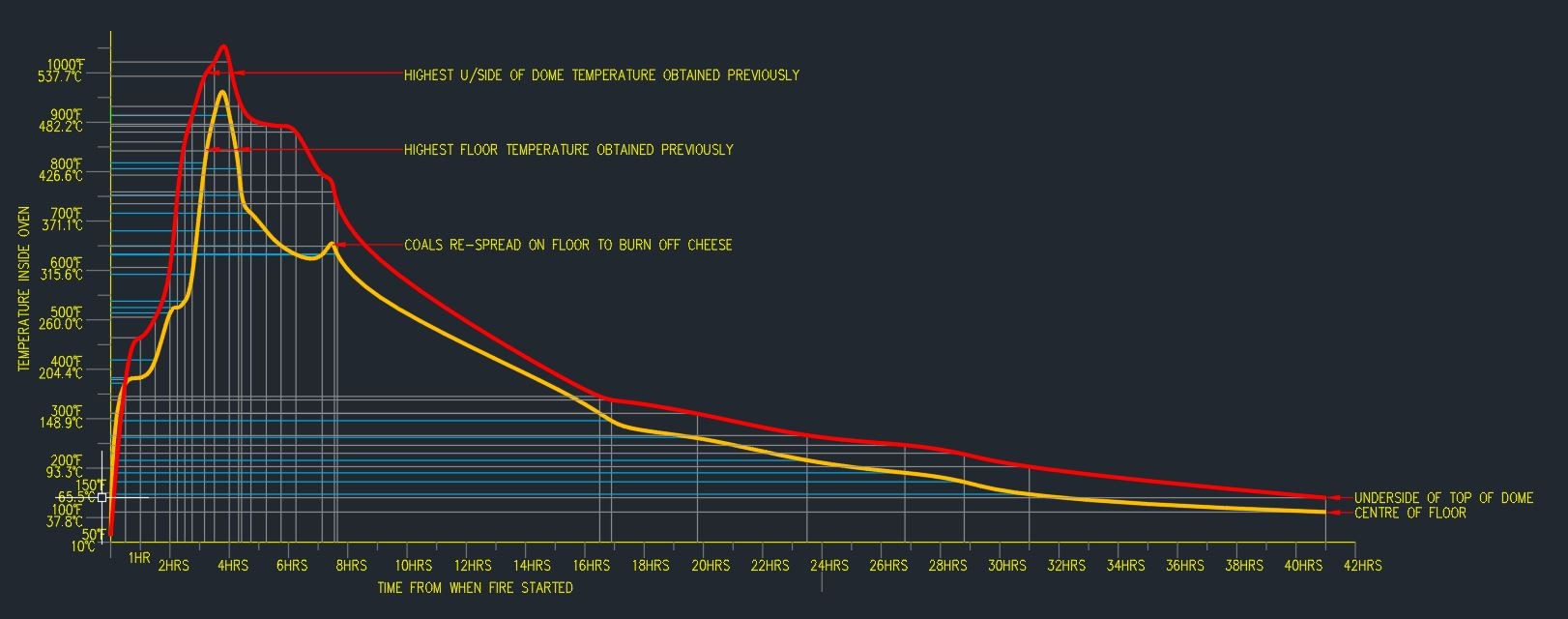

                          Here's the heat profile, also posted elsewhere:

                          Click image for larger version

Name:	heat-profile2.JPG
Views:	3258
Size:	135.1 KB
ID:	432222
                          My 42" build: https://community.fornobravo.com/for...ld-new-zealand
                          My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

                          Comment


                          • #14
                            Your correlation between floor and dome space temperature is excellent. Good stuff. I hope to emulate.

                            Comment


                            • #15
                              Originally posted by KISS4me View Post
                              Your correlation between floor and dome space temperature is excellent. Good stuff. I hope to emulate.
                              Thank you! Door made, I just need handles and then I can test how the temperature profile goes with a closed door. (After cooking pizza, of course)
                              My 42" build: https://community.fornobravo.com/for...ld-new-zealand
                              My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

                              Comment
