"Pompeii" corner WFBO project in Loei, Thailand

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #16
    These are pictures from my last day covering the pour.

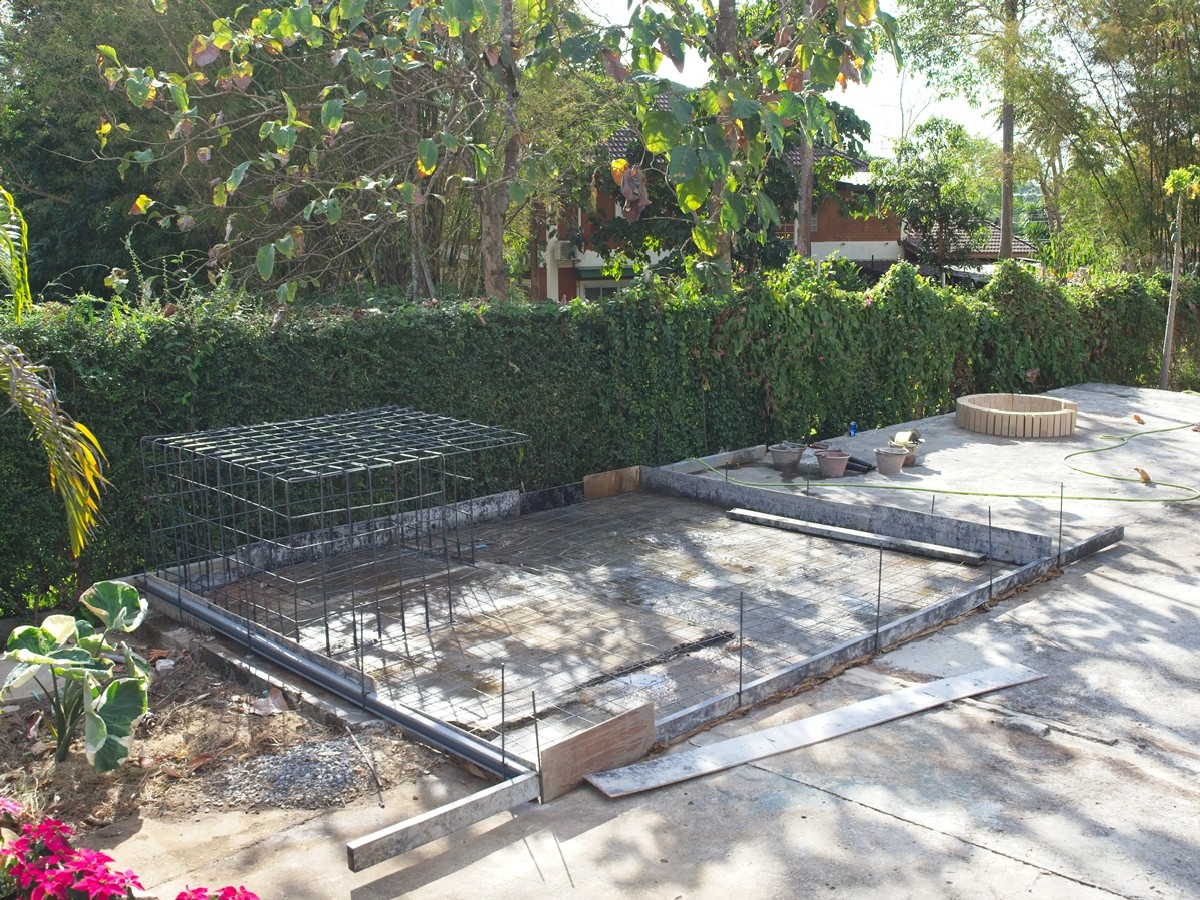

    Just before the pour:
    Click image for larger version

Name:	2019_Dec_FloorPour.jpg
Views:	354
Size:	465.0 KB
ID:	418383

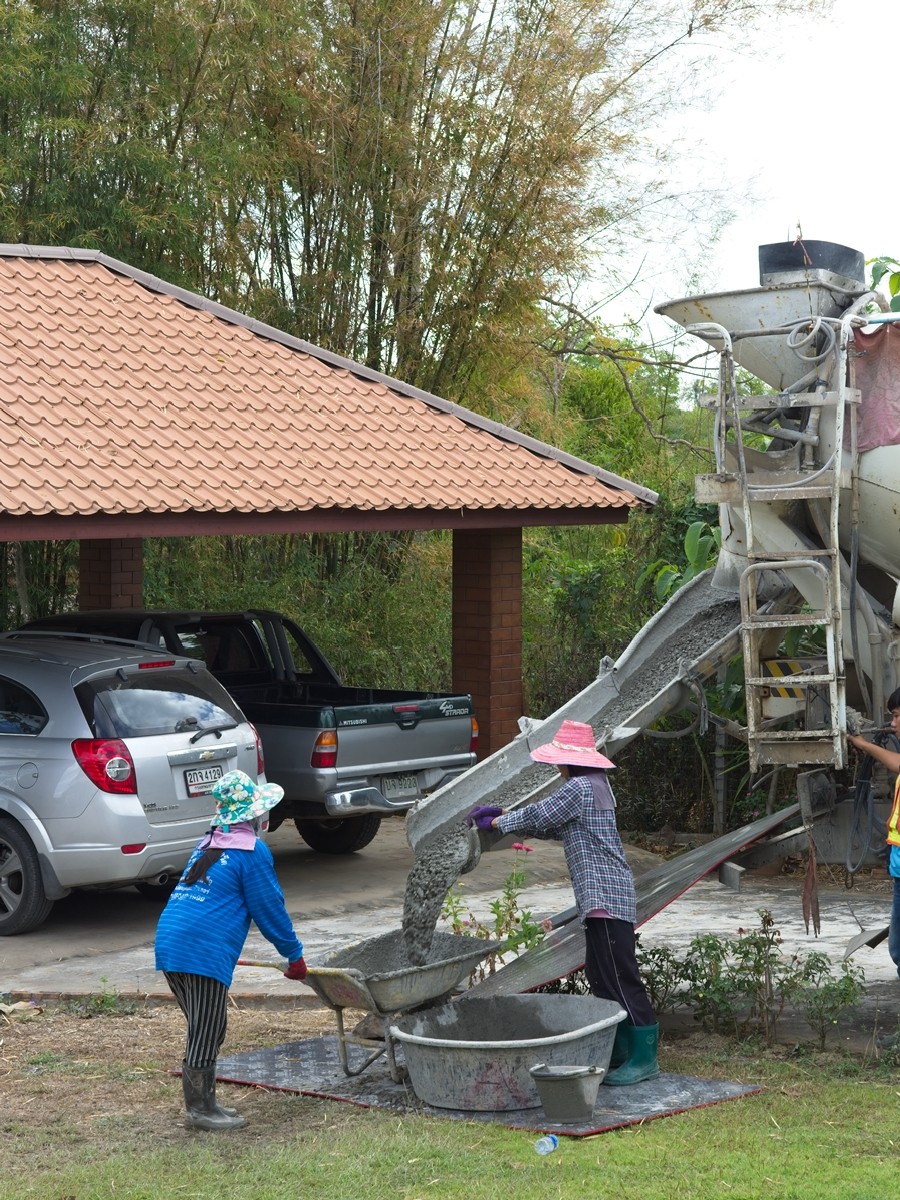

    The cement truck was in the driveway, and they poured cement into wheelbarrows:
    Click image for larger version

Name:	2019_Dec_FloorPour1.jpg
Views:	315
Size:	430.1 KB
ID:	418384

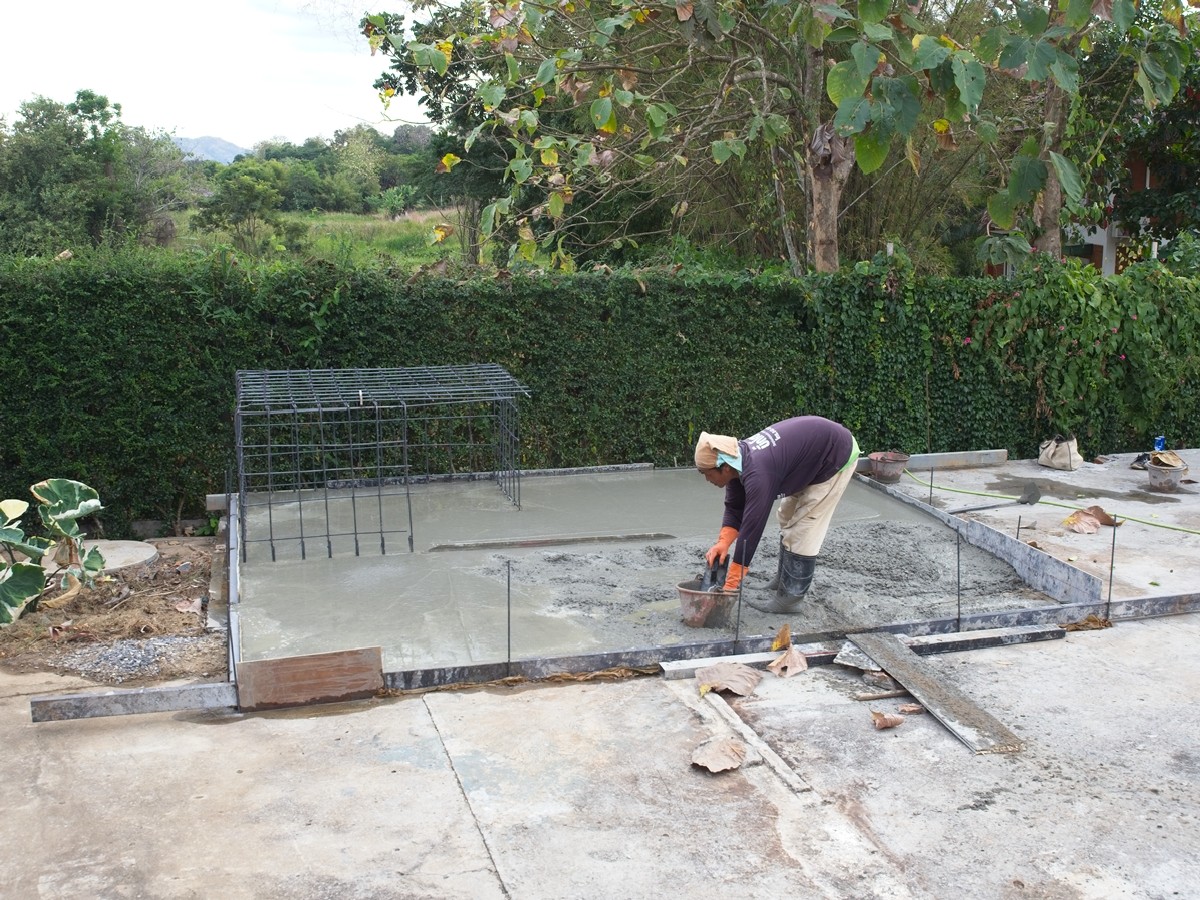

    Then they dumped it in the form:
    Click image for larger version

Name:	2019_Dec_FloorPour2.jpg
Views:	319
Size:	405.0 KB
ID:	418385

    ...and smoothed it out:
    Click image for larger version

Name:	2019_Dec_FloorPour3.jpg
Views:	316
Size:	404.5 KB
ID:	418386

    At first, I was quite worried about the irregular surface.
    Click image for larger version

Name:	2019_Dec_FloorPour4.jpg
Views:	346
Size:	424.3 KB
ID:	418387

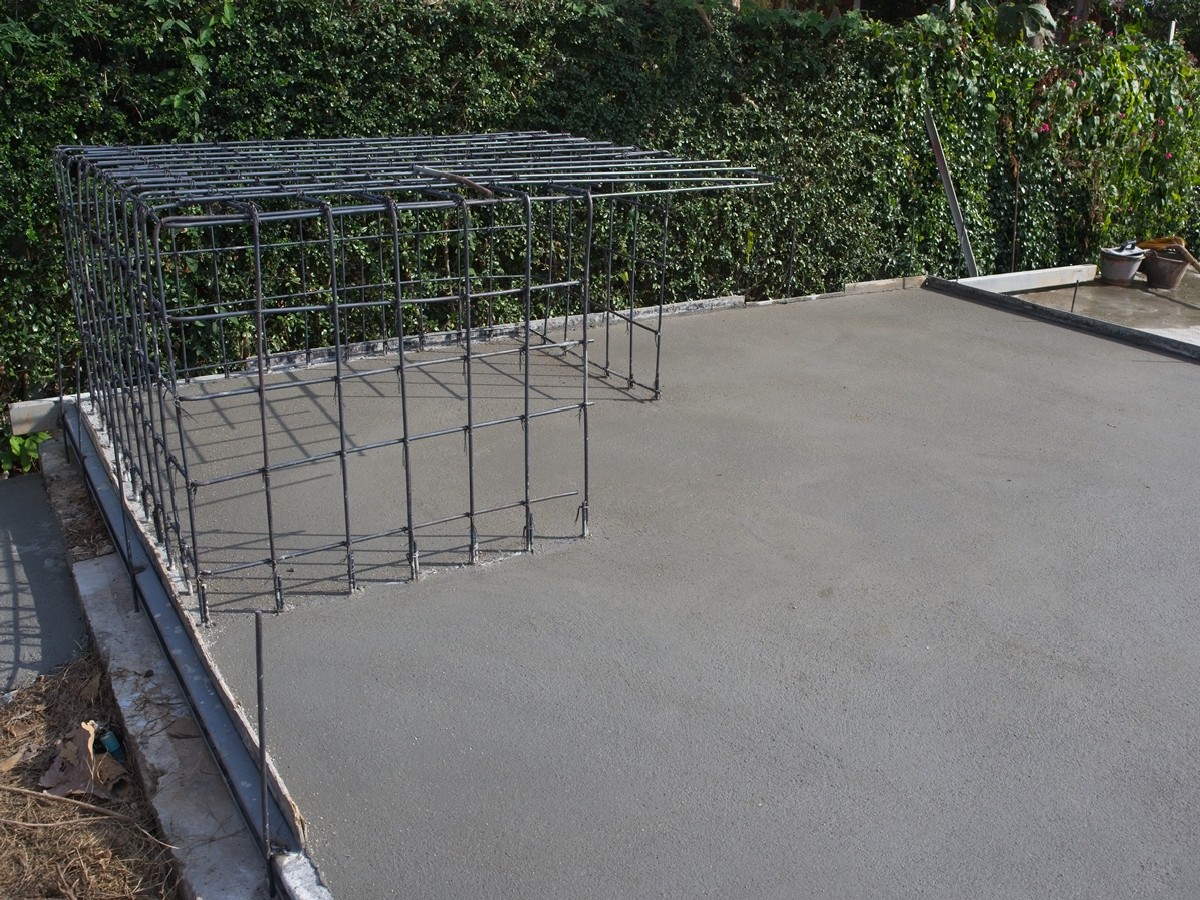

    However, as the slab cured, they kept returning and smoothing it out. In the end, I was very pleased with the rough/non-skid, but even/level surface:
    Click image for larger version

Name:	2019_Dec_FloorPour5.jpg
Views:	319
Size:	409.7 KB
ID:	418388
    Attached Files

    Comment


    • #17

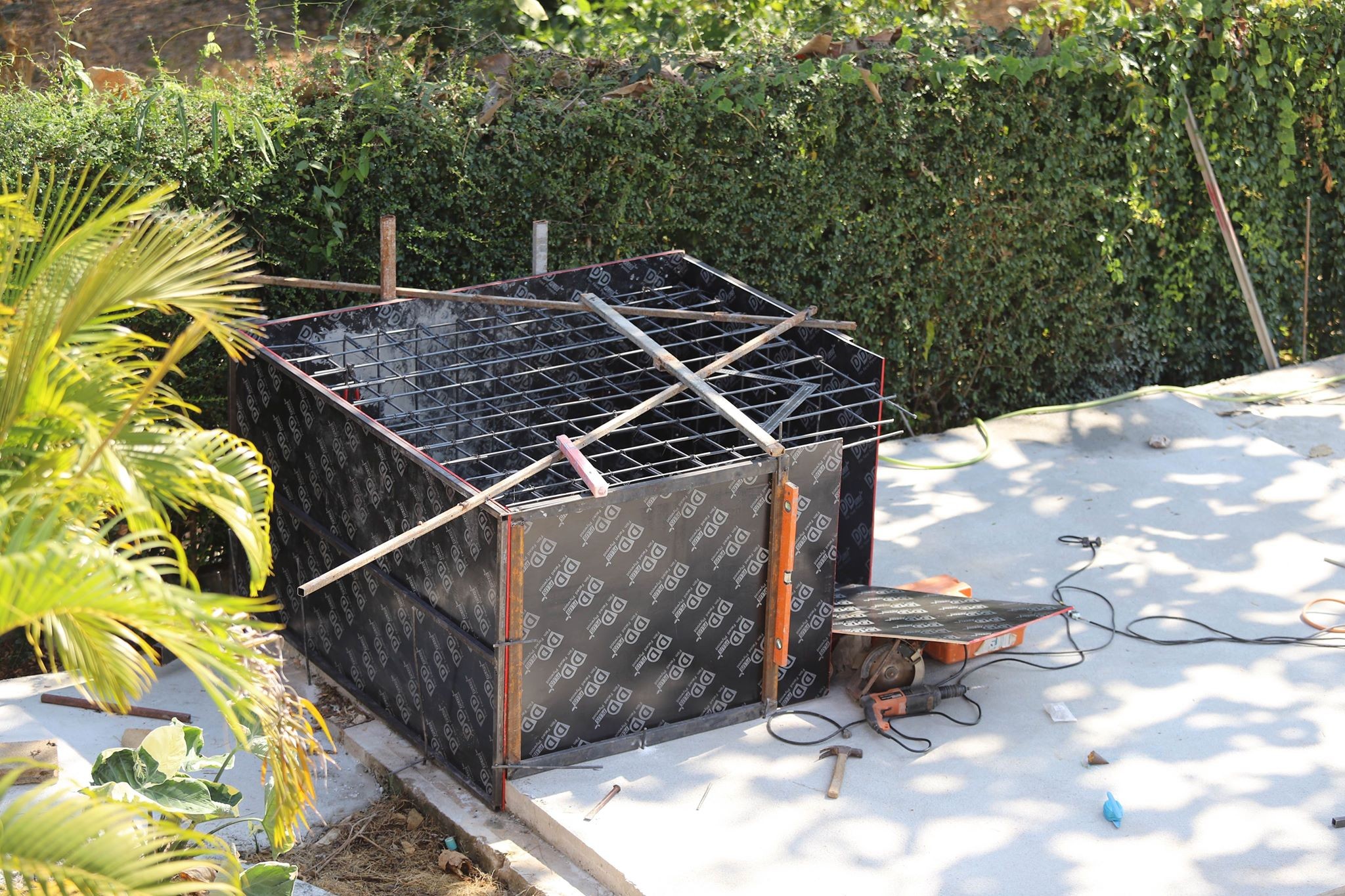

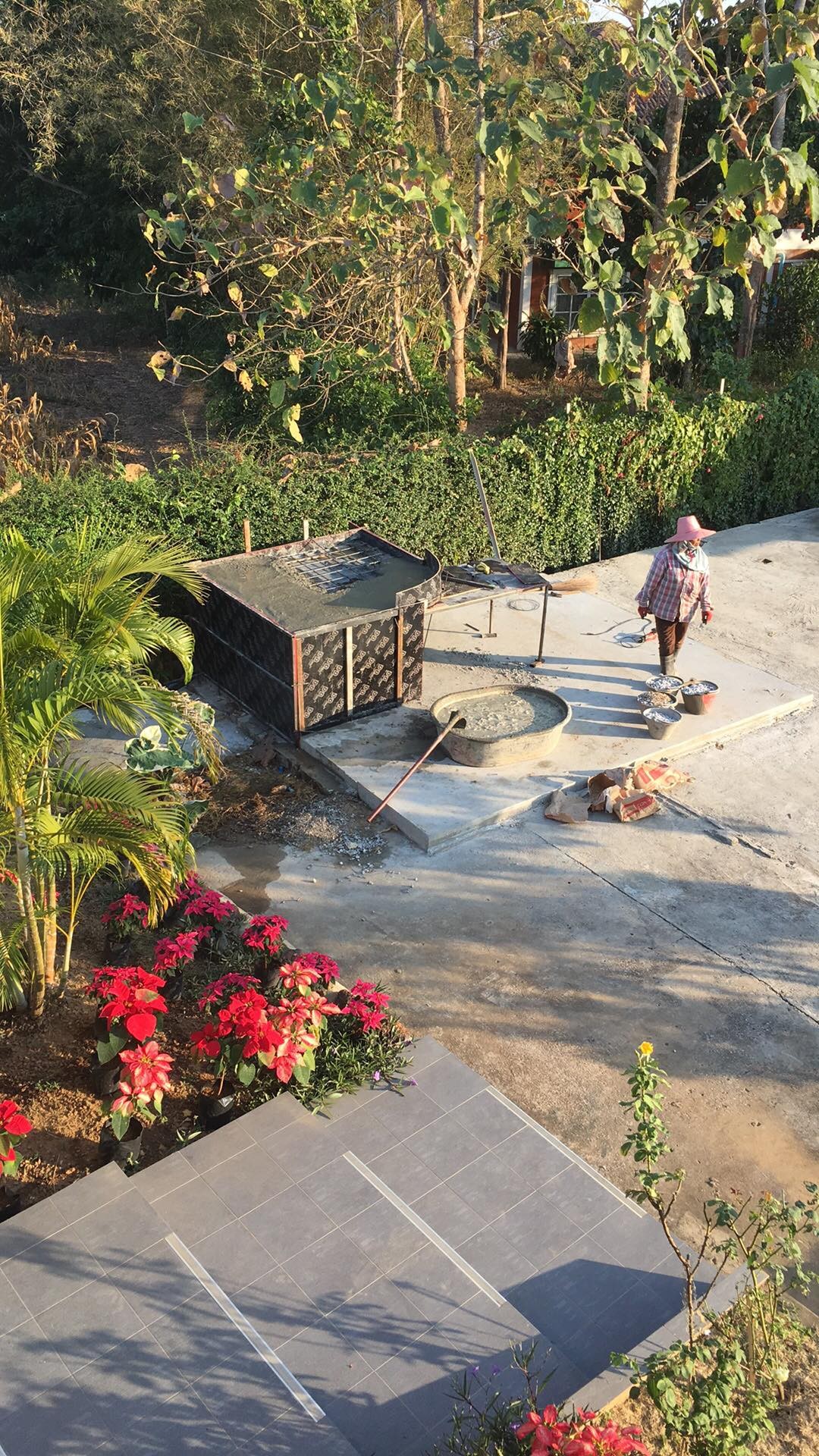

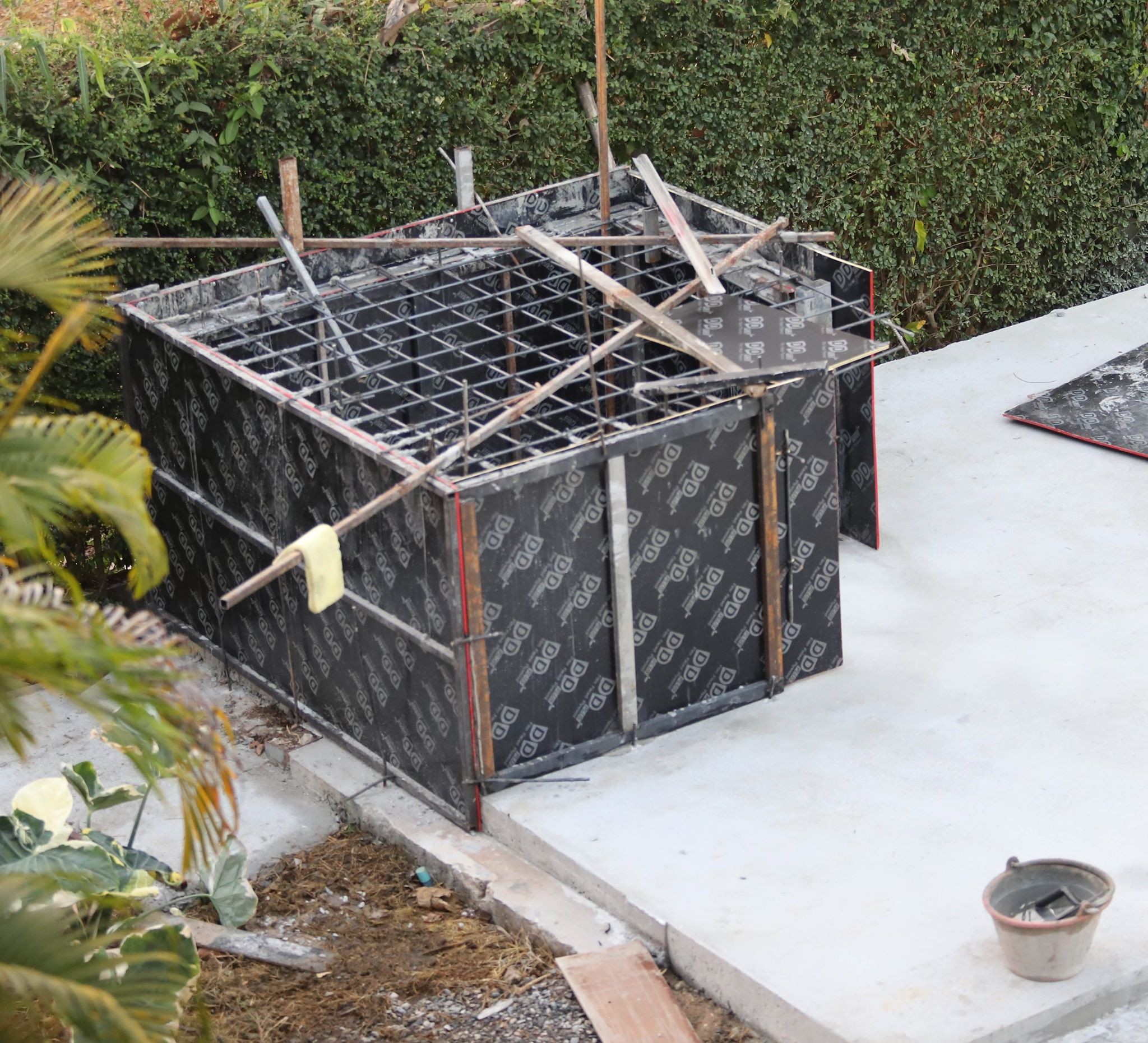

      While I've been away, they did pour the walls and top of the hearth. Here are the pics. Based on the pics, I think I did well and at a fraction of the price in the US.

      Click image for larger version

Name:	Hearth01.jpg
Views:	401
Size:	810.0 KB
ID:	418390

      Click image for larger version

Name:	Hearth02.jpg
Views:	313
Size:	829.7 KB
ID:	418391

      Click image for larger version

Name:	Hearth03.jpg
Views:	305
Size:	770.2 KB
ID:	418392

      Click image for larger version

Name:	Hearth04.jpg
Views:	309
Size:	620.2 KB
ID:	418393

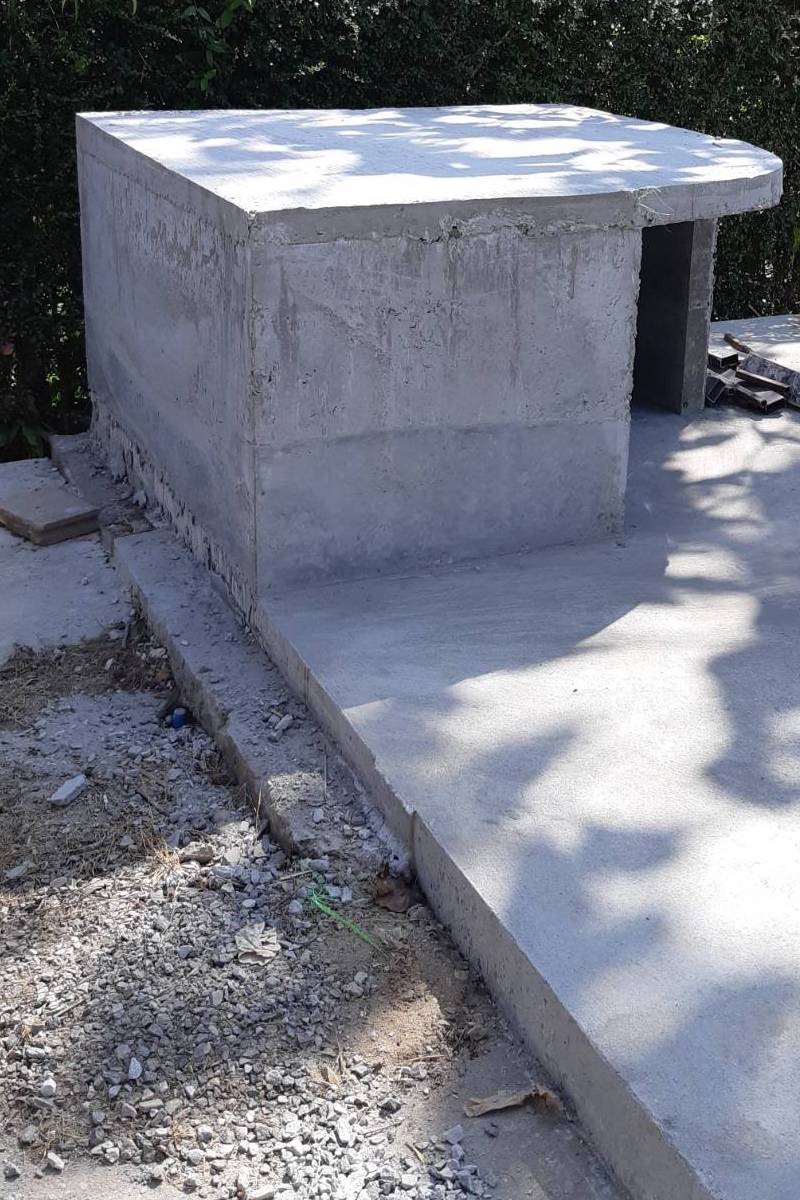

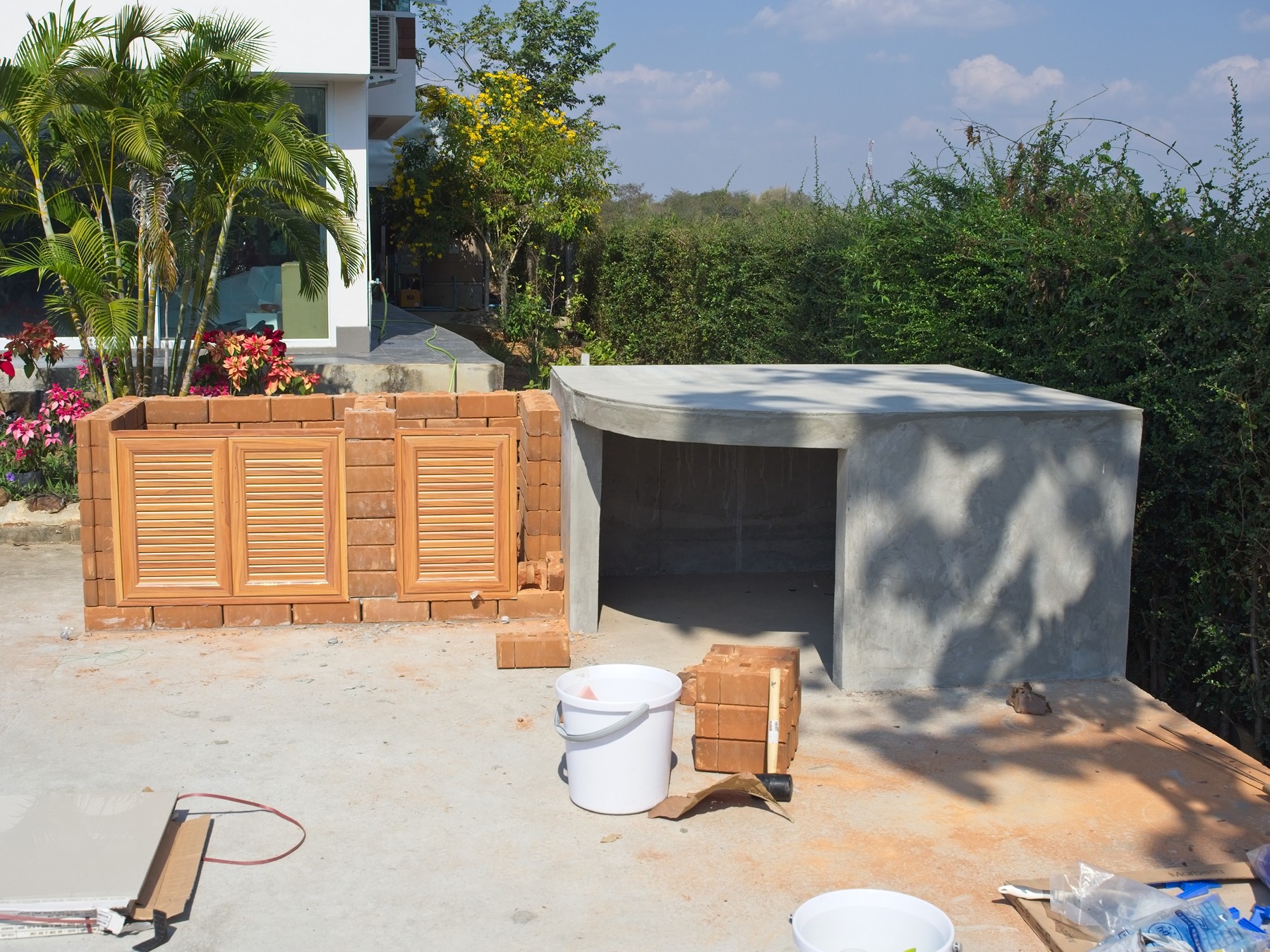

      The hearth after the pour looks a little rough, but very sturdy.
      Click image for larger version

Name:	Hearth05.jpg
Views:	314
Size:	240.4 KB
ID:	418394

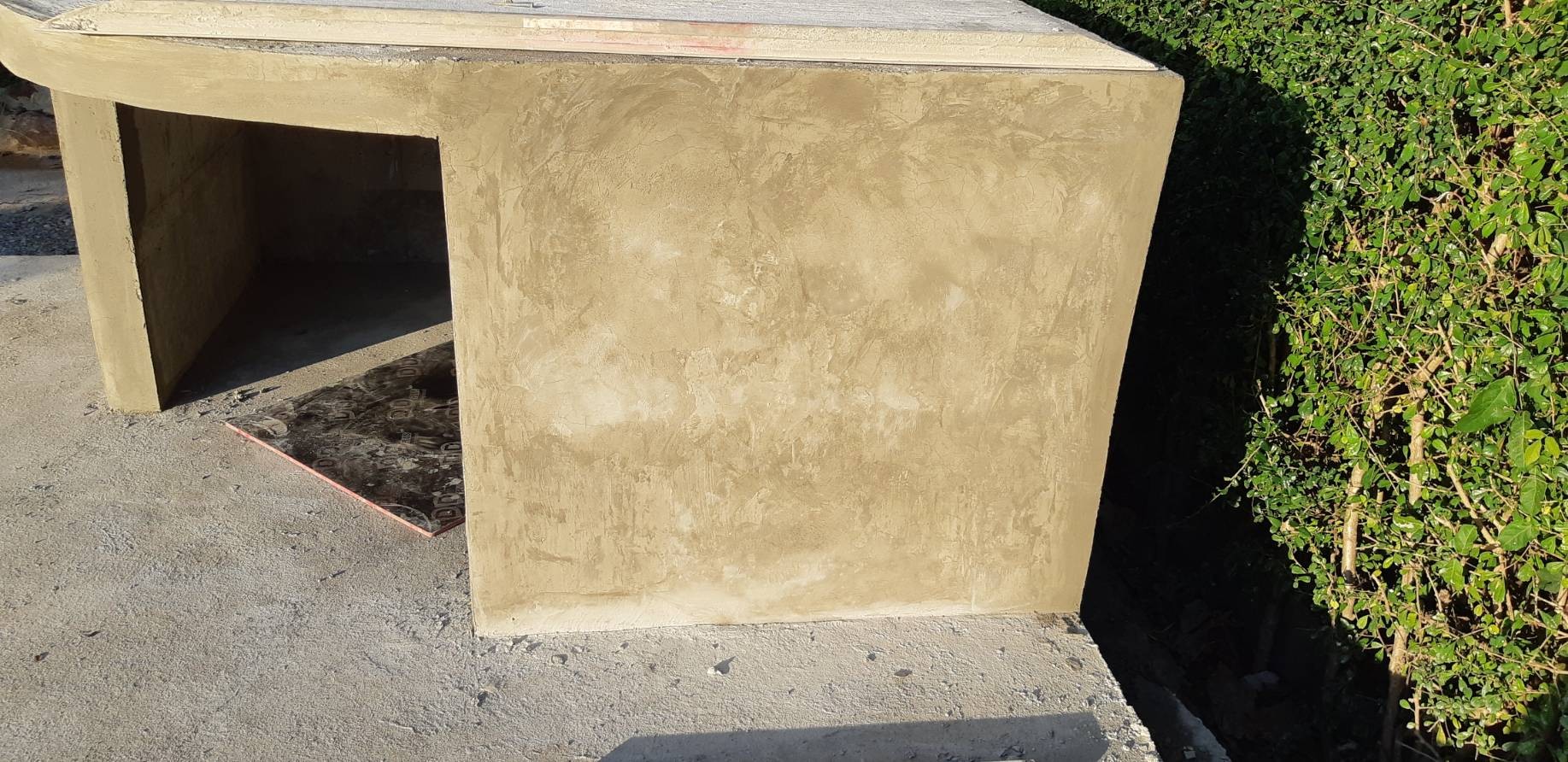

      The rendering here is still drying, but I think it will look kind of like stucco when done.
      Click image for larger version

Name:	Hearth06.jpg
Views:	308
Size:	469.6 KB
ID:	418395

      I am looking forward to returning so I can start laying tile and building the oven.

      Comment


      • #18
        While I am still in Texas, I am working with my dad on building the "indispensable tool" and working out some design/build questions. Since the bricks, hearth, etc. are all metric (23 x 11 x 7 cm), I am sticking with metric dimensions.

        My current plans call for:
        - internal radius of 55cm.
        - first course of bricks will be full-height soldier bricks
        - 180* arc of the dome will start about half-way up the bricks, at 11.5cm above the floor
        - opening will be 52cm wide by 40cm tall (again, the arch will be a 180* arc, but the arc will start being measured from 11.5cm above the floor
        - with 40cm tall opening on dome with 65.2cm internal height, the opening is 61.4% of dome height, close to 60-65% (63%) optimal size

        The reason for raising the base straight up 11.5 cm for measuring arcs is to provide some more vertical access.

        Currently, I am searching for various ideas on options for finishing flue and entrance.

        I'll post pictures and information on IT once we finish it. We're going with an adaptation of the design posted by JCG31:
        https://community.fornobravo.com/for...b-theme?t=2985

        Comment


        • #19
          You can use full soldiers, many have done for various reasons. You just have to be aware of the "potential" of needing to buttress the soldiers due to the outward force of the dome at the soldier and dome intersection. There was a recent post (last 2 weeks) showing the lateral and vertical forces of various arch configurations (it has been posted by Tscar originally.. Just something to consider. I used JCG31 IT design, so pay close attention to the center of the L bracket should be at 3.5 cm (7 cm divided by 2).
          Russell
          Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]

          Comment


          • #20
            Thank you for the feedback. I spent quite a while looking for the post. Perhaps I just don't understand the logic behind the search function in this forum software, but searching "buttress," "lateral forces," and "vertical forces" failed to generate any posts by Tscarborough. I even tried to search all of Tscarborough's posts, but the options ("date late updated" or "replies" failed to return any results newer than 2017 (and despite selecting descending and then ascending, the dates were not in order). I did try to find it. In any case, my dad (a mechanical engineer) thinks I will be fine. He is laying out each brick on his CAD application now.

            I found some other posts, mostly having to do with buttressing the chimney area.

            Thanks for the heads up of the center of the L bracket.

            Comment


            • #21

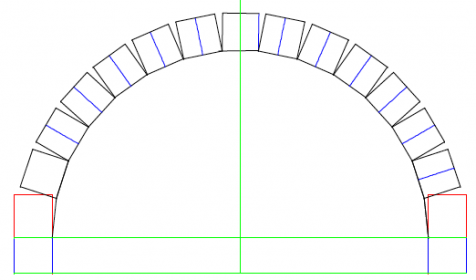

              Here are some drawings, sans dimensions, but setup for bricks 23x 11x 7cm. Soldiers for first course, then half-height.

              Click image for larger version

Name:	WFBO_FrontView.png
Views:	487
Size:	79.1 KB
ID:	418572

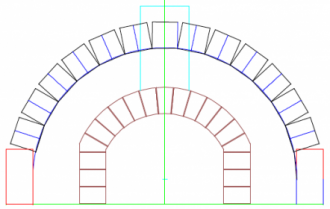

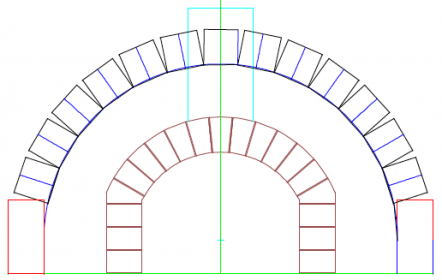

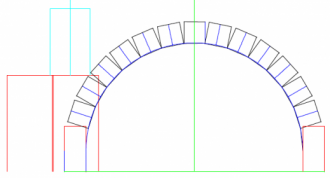

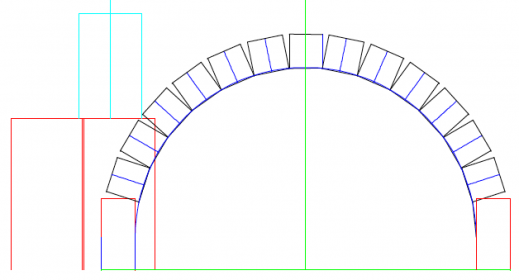

              Front view, brown is opening, red is soldier course, blue is flue.

              Click image for larger version

Name:	WFBO_RearView.png
Views:	302
Size:	66.7 KB
ID:	418573

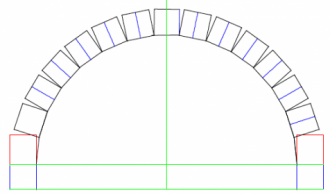

              Rear view. Arc starts 11.5cm above floor (lower green line).

              Click image for larger version

Name:	WFBO_SideView.png
Views:	298
Size:	75.7 KB
ID:	418574
              Side view, first two columns in red represent two brick arches/opening, bricks laid as headers, stacked three, then arching.

              Click image for larger version

Name:	WFBO_TopView.png
Views:	308
Size:	34.4 KB
ID:	418575
              Top view, blue bricks are soldiers, black bricks are first course of opening/archway. The lower bricks are intentionally offset toward the outside by 1cm for the door to rest against. The light blue is where the flue will go.

              For the flue, I bought an 8" anchor plate, 8" double insulated 24" long pipe, and a very cheap 8" rain cap.

              Comment


              • #22
                The reveal for the door being 1 cm is a little small 1" or 2.54 cm is recommended. Since you want to go with soldier, you can cut the top of the soldier to better match the interface of the dome half header dome bricks.
                Russell
                Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]

                Comment


                • #23
                  I purchased some 90x45cm ceramic tile which will fit nicely on the 180x180cm hearth as a moisture barrier. On top of that I will put ceramic fiber board, then the oven floor firebricks.

                  In reading other posts/other threads, and UtahBeehiver suggested earlier, they added weep holes. The references I found were for a single weep hole drilled through the hearth base in the center. Other posts recommended 2-3, 3/8" to 1/2" in diameter. If I have a moisture barrier, is that still recommended? Based on one post on another thread, I believe the answer is yes. Then the weep holes should also be through the ceramic tile?

                  -----------

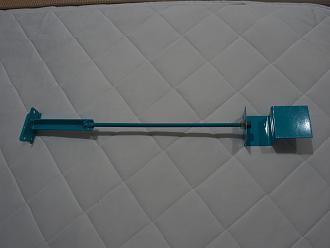

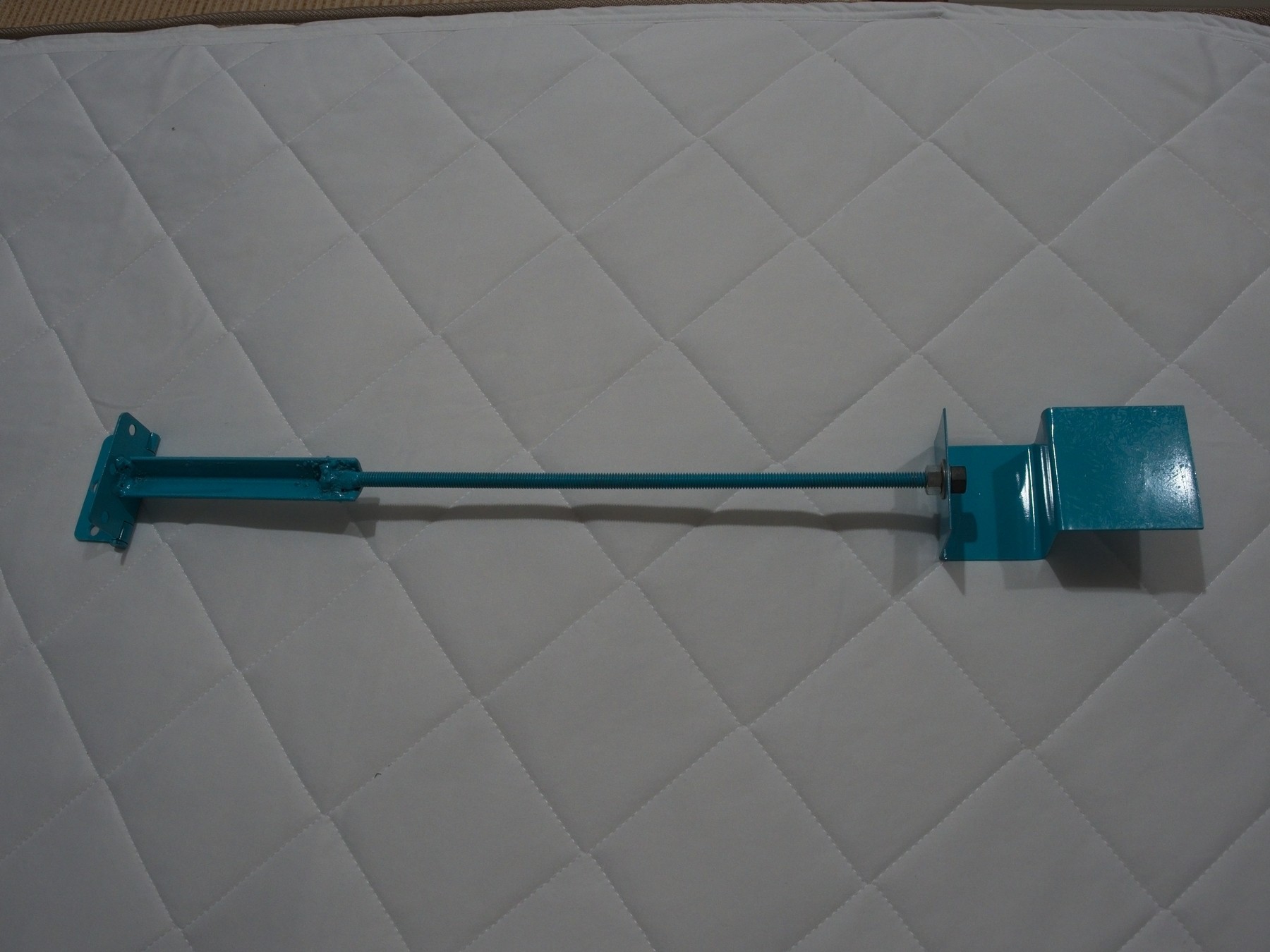

                  Here are some pics of the "indispensable tool" we made. It's kind of crude, but allows for adjustment.

                  Click image for larger version

Name:	2020Jan_IT_01 copy.jpg
Views:	590
Size:	295.1 KB
ID:	418793

                  The center of the threaded rod is offset 3.5cm (half the width of the brick) from the edge and back of the "hand."

                  Click image for larger version

Name:	2020Jan_IT_02 copy.jpg
Views:	269
Size:	372.0 KB
ID:	418794

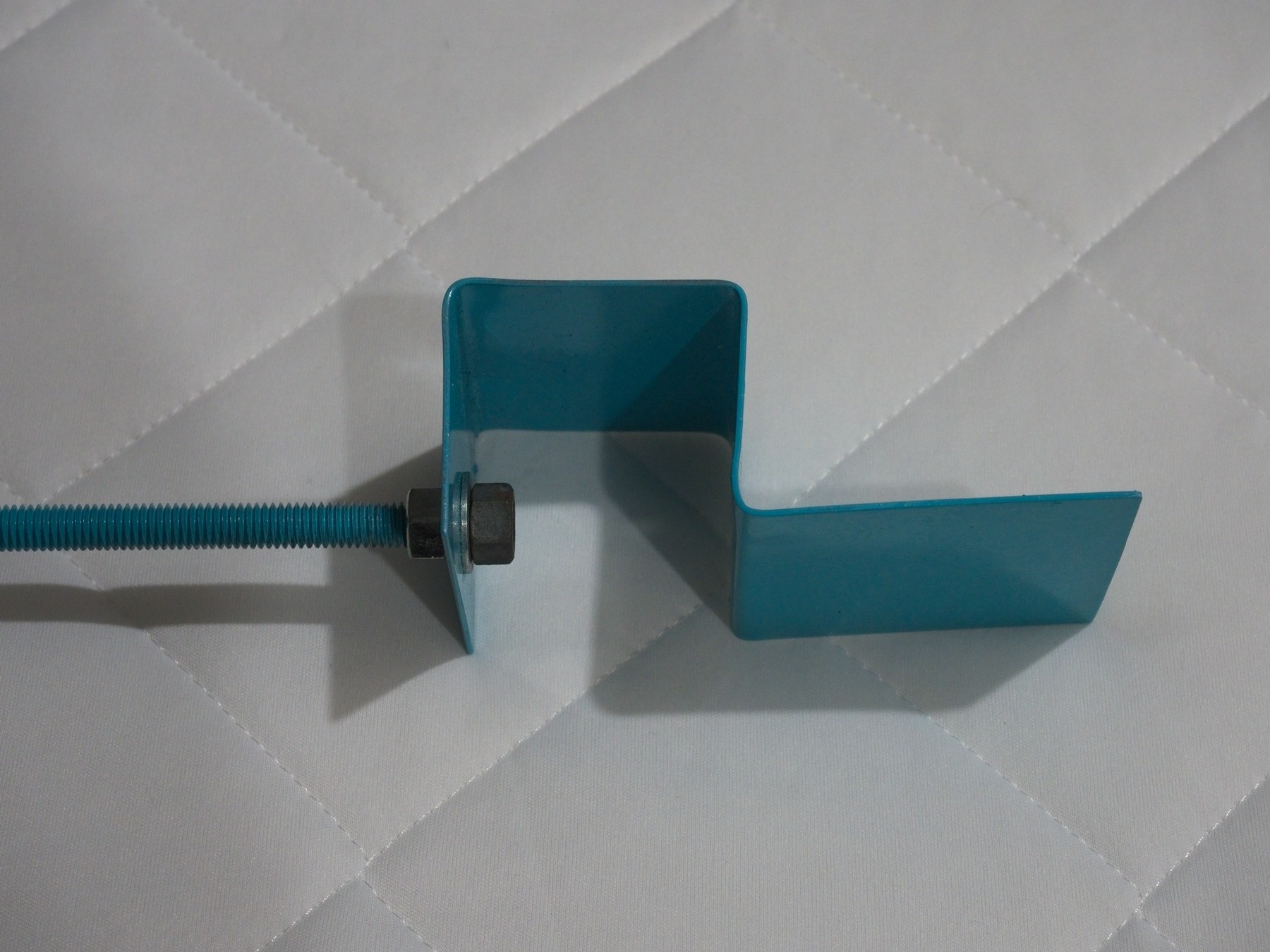

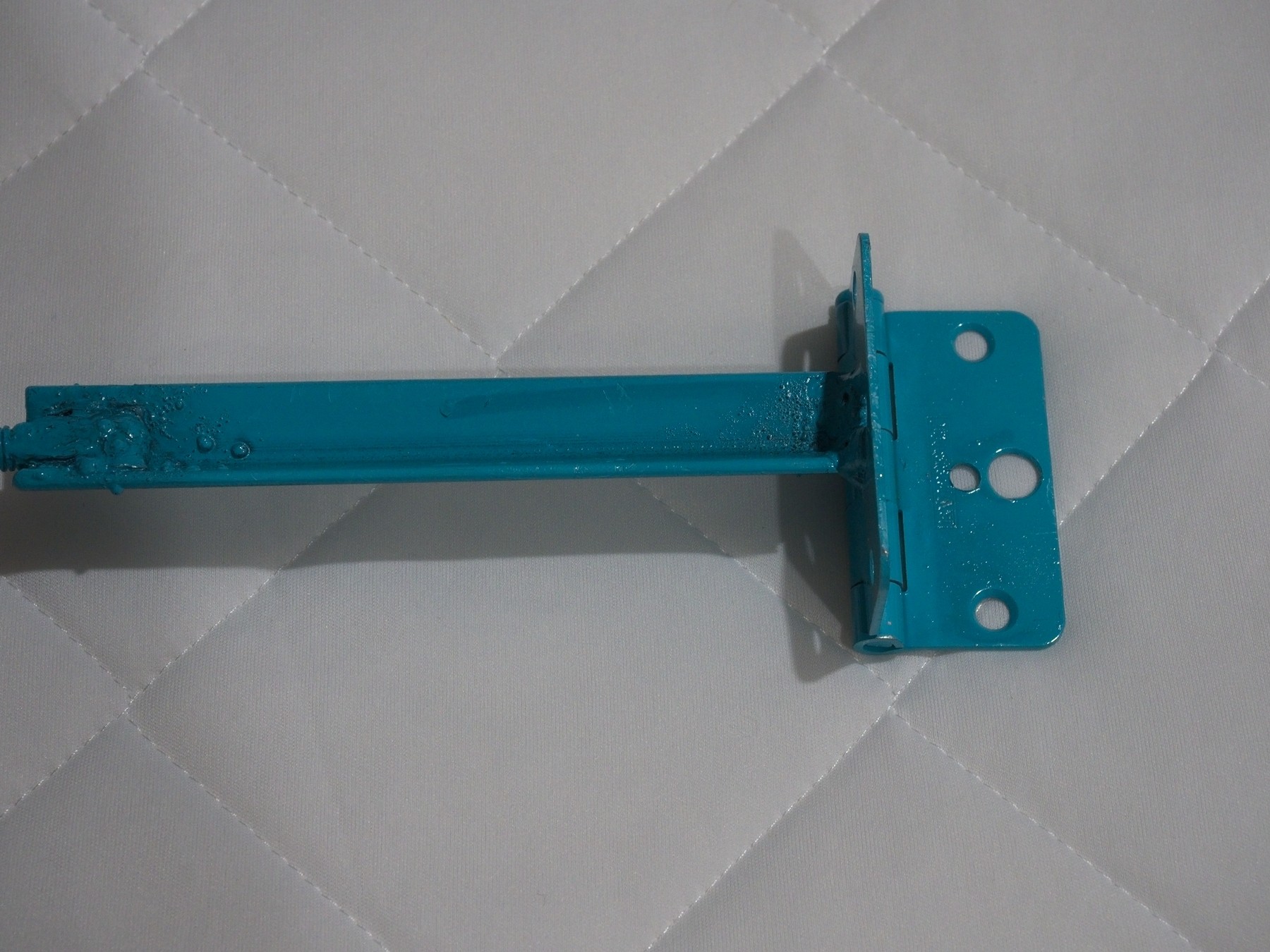

                  This is a better view of the "hand." The steel is 16 gauge and actually quite stout. We bent it in a press and I think it came out pretty good. Two nuts allow adjustment by about 5cm. With maximum extension, there is 55cm from the top hinge flap to the base of the hand. 55cm is the radius of the internal dimension for the oven. I meant for the IT to be longer (long story) with "ideal in the middle," but it should still work because...

                  Click image for larger version

Name:	2020Jan_IT_03 copy.jpg
Views:	265
Size:	437.9 KB
ID:	418795
                  ...the base hinge adds ~2cm when the arm is flat from the smaller hole, which is intended as the pivot point. The disadvantage of the version we made is the arm length will vary slightly depending on the angle of the IT arm. I figure I can work around this by adjusting the arm to compensate as the angle increases. In our defense, we were on a very short timeline and improvising with what we had available. I think this should work fine.

                  My apologies for the dark pics.

                  Comment


                  • #24

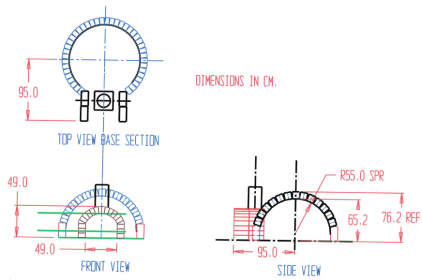

                    Here are some updated drawings with dimensions. Per UtahBeehiver 's recommendation, I will increase the offset of the bricks between the first and second set of entry bricks to 2cm on each side (and on top).

                    Click image for larger version

Name:	WFBO_Plan_Dimensions.png
Views:	551
Size:	83.5 KB
ID:	418859

                    Here are brick cuts for the gateway/arch entry:

                    Click image for larger version

Name:	WFBO_Plan_BrickDimensions.png
Views:	270
Size:	100.8 KB
ID:	418860


                    Also per UtahBeehiver 's recommendation, I will angle the top of the soldier bricks 18 degrees (outside edge 23cm, inside edge 21.25cm)...but then I will either need a mortar join line all the way through, or I need to reduce the angle cut to leave enough of an external gap for mortar. I might have to experiment with this a little.

                    I did realize today I grossly underestimated the amount of ceramic fiber board I will need. The base of the oven is 132cm x 161cm (dome plus entry). The ceramic fiber board here comes in boxes of 2 sheets, 90x60cm. So that won't cover it. I will have to figure out if I can get buy with another box or need two more boxes. This is 5cm thick.

                    Along those lines, I am thinking of shortening the entry by only using half bricks for the outer arch. Right now, per the plan, the entry is at least 46cm deep...that's pretty deep. If I use half bricks for the first arch, I can cut that back to 35cm -- still long, but it has to accommodate the 8" flue anyway. I built the inner arch form today. Tomorrow I will build the outer arch form to see how it will look.

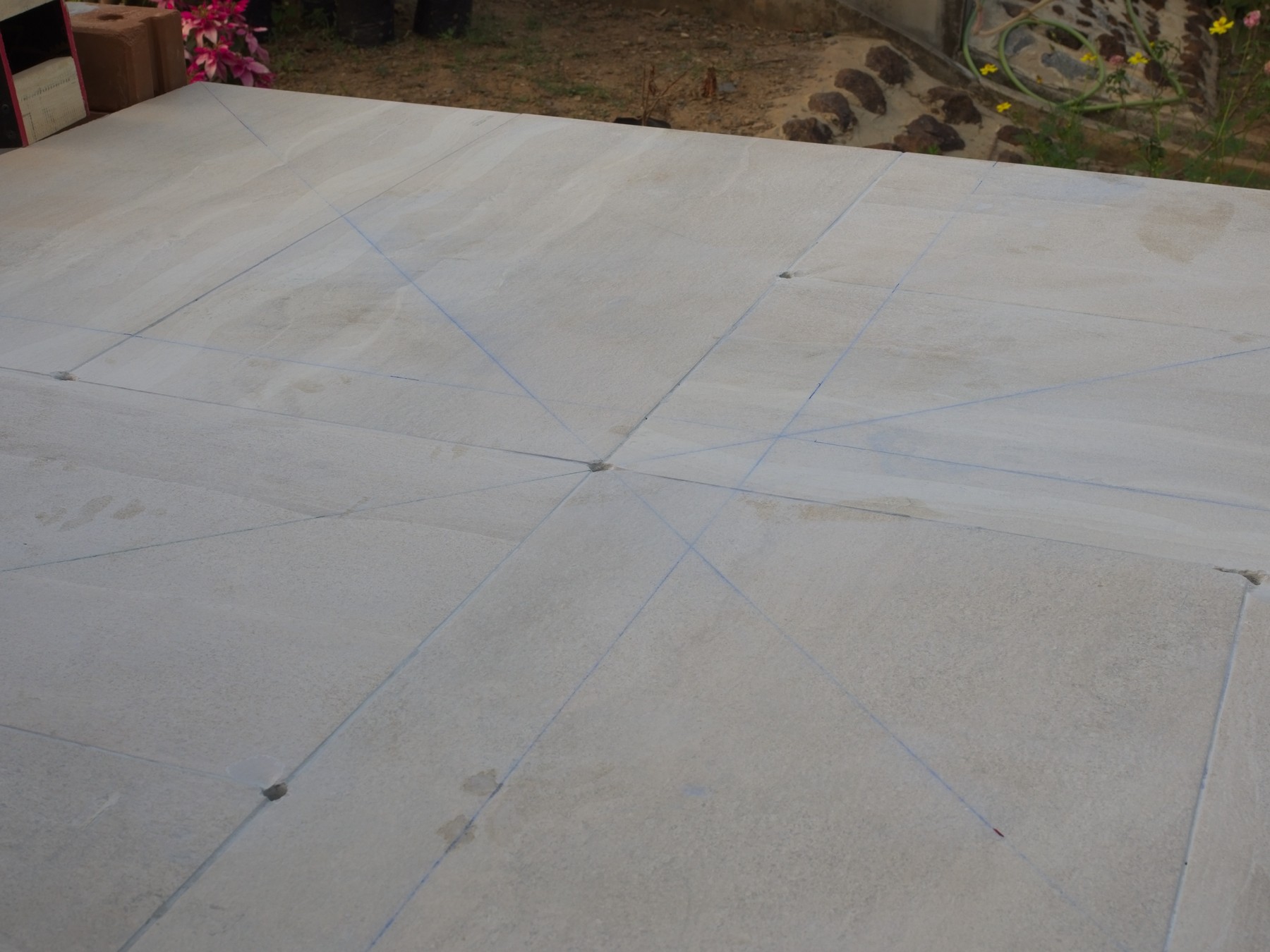

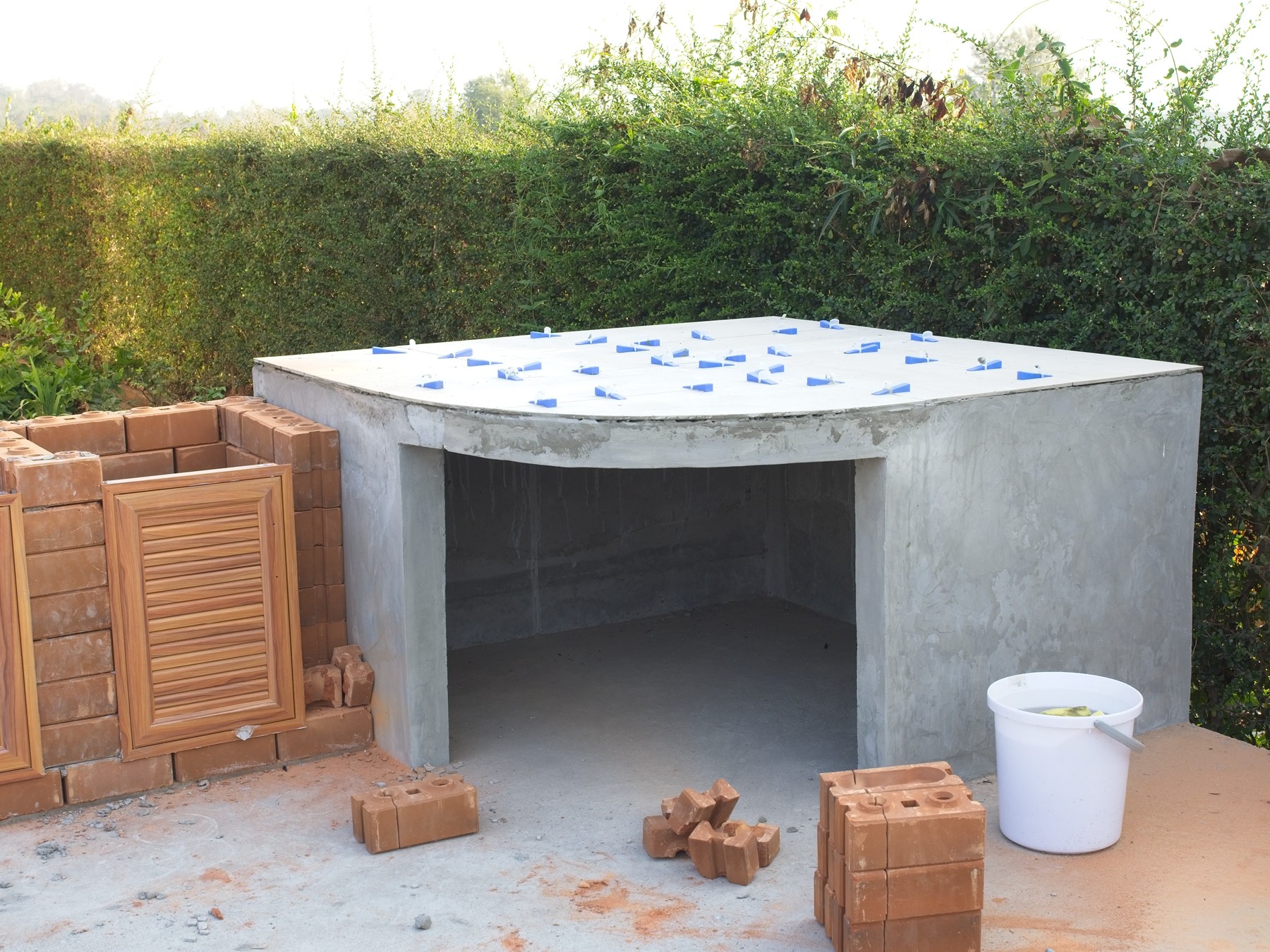

                    I put down ceramic tile as a moisture barrier:
                    Click image for larger version

Name:	2020Jan_Tile_01 copy.jpg
Views:	273
Size:	659.2 KB
ID:	418861

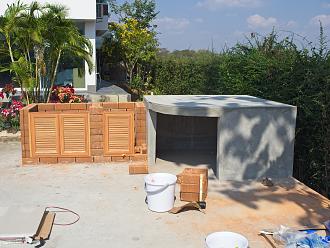

                    The red brick with the phony wood aluminum cabinet doors (ugh...not my choice), are a separate project. I contracted that out. This wing will have a sink and food prep area. We are holding on on the wing to right, where I plan to put a grill. We'll finish the oven first.

                    Click image for larger version

Name:	2020Jan_Tile_03 copy.jpg
Views:	269
Size:	668.4 KB
ID:	418862


                    Comment


                    • #25
                      While I am waiting on the ceramic fiber board, I worked on the arch forms based on the plans. I built the first form and then test fit it next to the brick. Turns out the brick is actually 23x 11.5x 6.4cm (not 23x 11x 7cm as I thought). Due to stacking, this becomes a big deal for all the plans. For starters, the arch frame is too high by ~1.5cm. So, we are now working on revising the arch plans to accommodate the actual measurements.

                      The silver lining is this motivated me to go back and look at pictures from previous builds. Looking at UtahBeehiver 's pictures, I reconsidered a few things:
                      - not building a plywood template
                      - having the flue inside the oven door
                      - the length/depth of the entry/opening

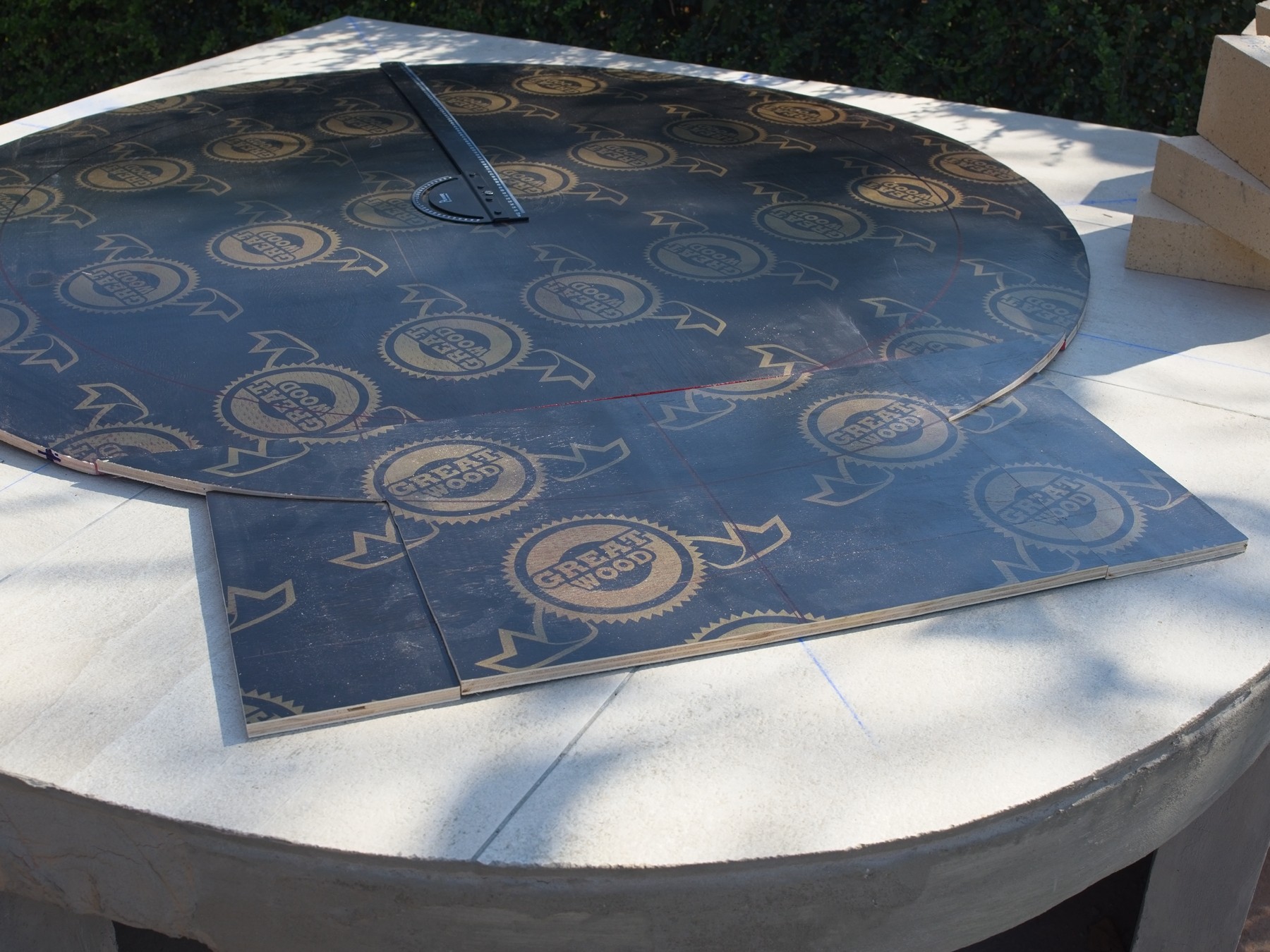

                      I hoped to avoid building a plywood template for the floor. That was a mistake and false economy. I built one and several issues were revealed and resolved. If I had started building based on what I already had, I would have wasted lots of time and materials.

                      Click image for larger version

Name:	2020Jan_Template_07 copy.jpg
Views:	704
Size:	527.3 KB
ID:	418912

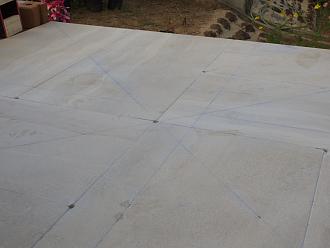

                      I used a protractor with set holes to draw a "perfect" circle. I used the interior radius of the oven (55cm), thickness of the brick (11.5cm), and then added 2.5cm for "mistakes." This will be dimension of the ceramic fiber board. Of course, the plywood is smaller than the exterior dimensions, so I had to piece it together.

                      The hearth is 180x180cm. The tile was 90x 45cm, so the lines of the tile are the centerline of the hearth. Because of the entry, I always planned on moving the center of the oven back about 10cm toward the corner opposite the curve. I used chalk lines to triangulate center of hearth from corners and to draw oven center (80x 80cm measured from corner opposite the curve).

                      First big mistake: if you look at the picture above, you'll see the entries and template are off the edge. Solution: move it back to the proper line. I mistakenly lined up the template on the hearth centerline instead of oven centerline. The good news marking the chalk lines and lines on the template made centering the template very easy.

                      Second mistake: interior vs. exterior measurements. You might notice the entry bricks are on on top of the template. When I cut the entry extension I mistakenly used the interior dimensions.


                      Click image for larger version

Name:	2020Jan_Template_08 copy.jpg
Views:	256
Size:	481.6 KB
ID:	418913

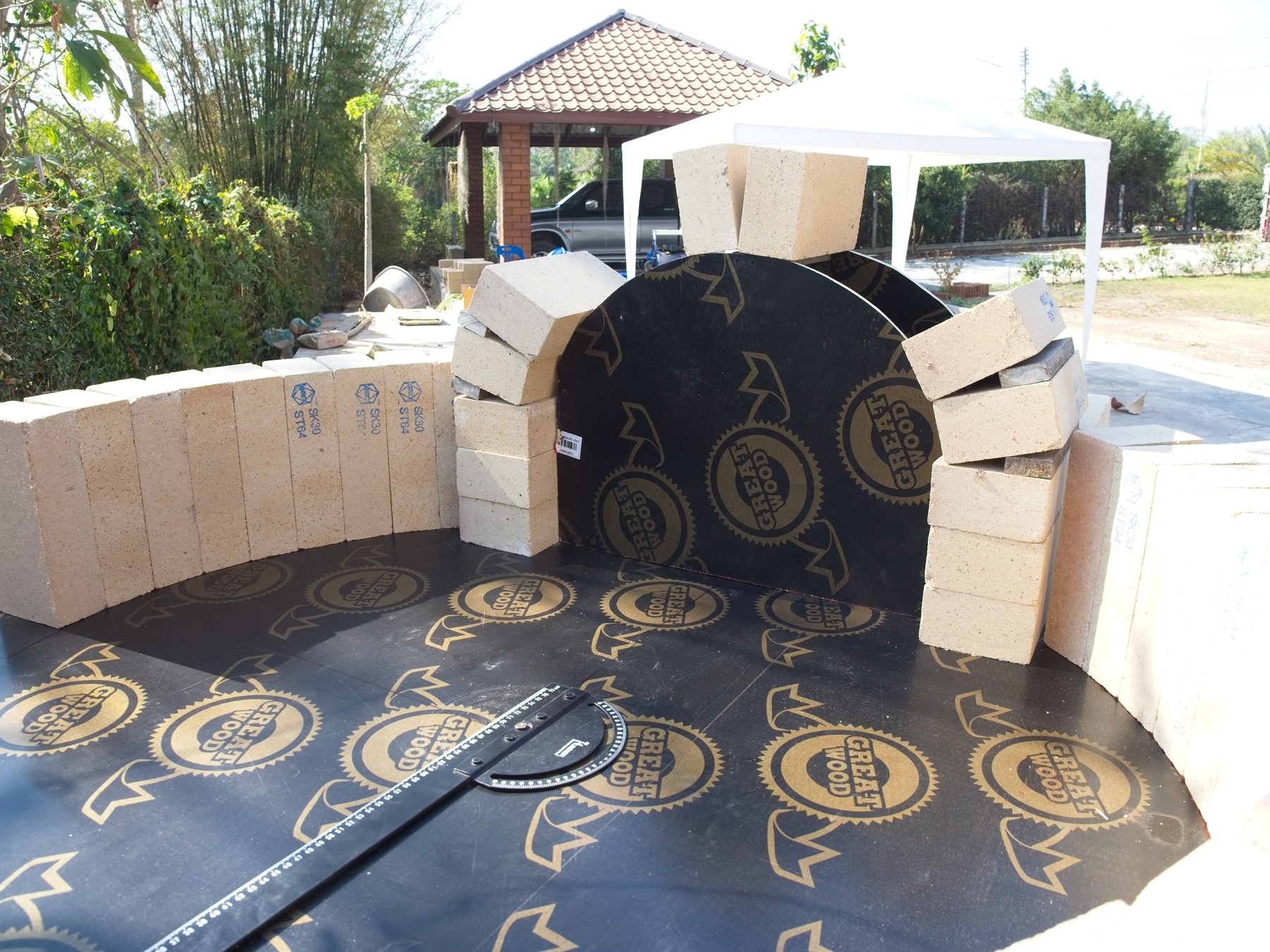

                      This pic shows the template moved back properly and the pieces added back to the entry to support the entry/arch bricks.

                      Click image for larger version

Name:	2020Jan_Template_09 copy.jpg
Views:	265
Size:	496.5 KB
ID:	418914

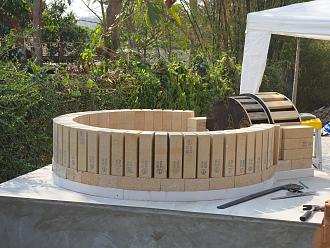

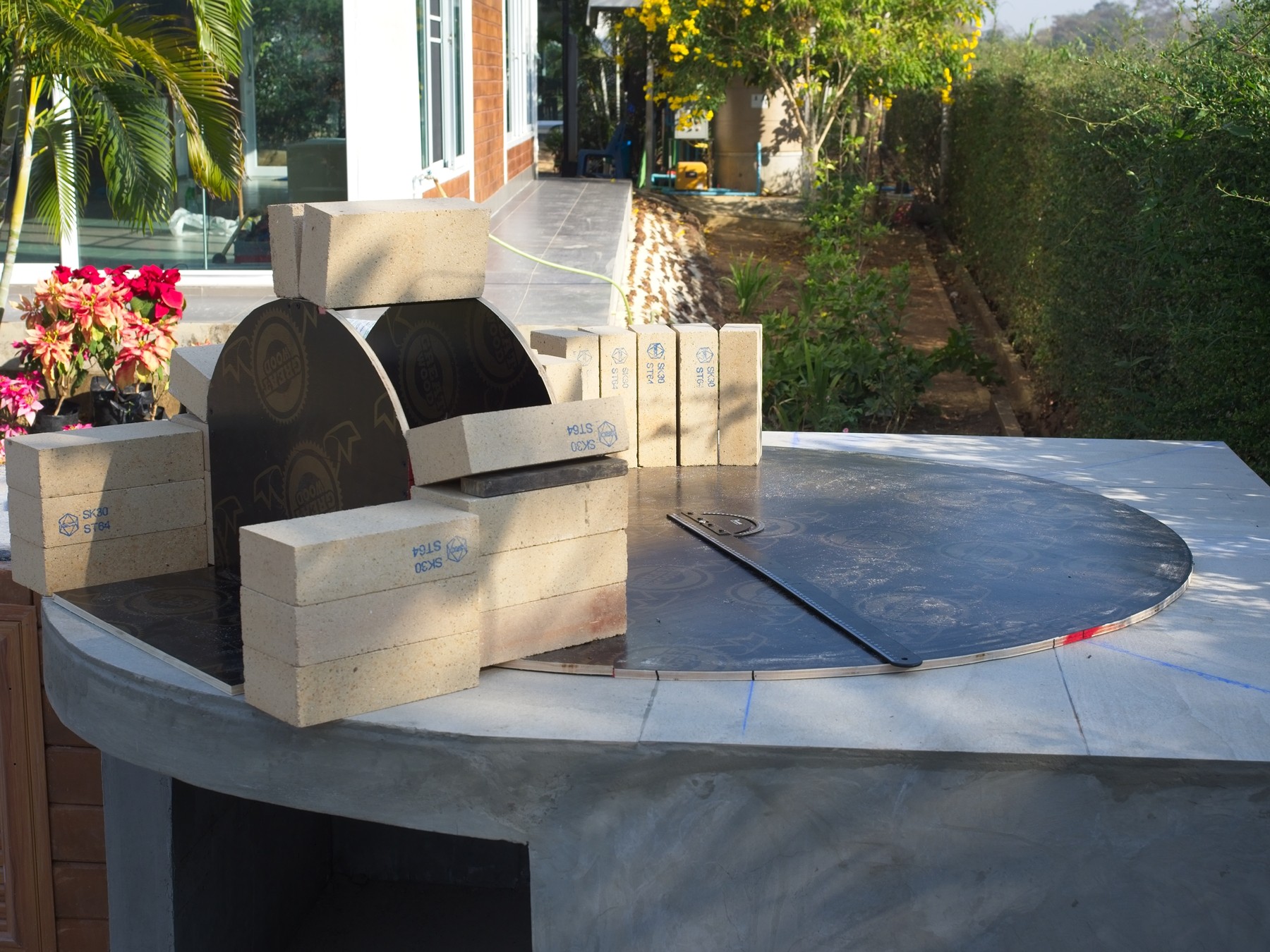

                      Here is more of the dry fit with the template. Here I pushed back the entry bricks (explained below). You can't see it well here, but there is a 2cm reveal where a door would stop.

                      After looking at @UtahBeehiver's pictures, I decided to much more closely follow what others did. I'll encounter fewer issues and the issues I do encounter will be ones others probably faced.


                      Click image for larger version

Name:	2020Jan_Template_12 copy.jpg
Views:	263
Size:	622.7 KB
ID:	418915

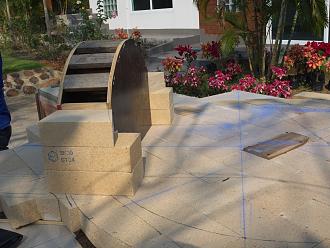

                      To reduce the depth/length of the entry, I will cut back the arch bricks 7cm (inside brick) and angle them to conform to oven circumference. So, I will have to redo this form. I will move the flue to the outside arch.


                      Click image for larger version

Name:	2020Jan_Template_15 copy.jpg
Views:	259
Size:	550.2 KB
ID:	418916

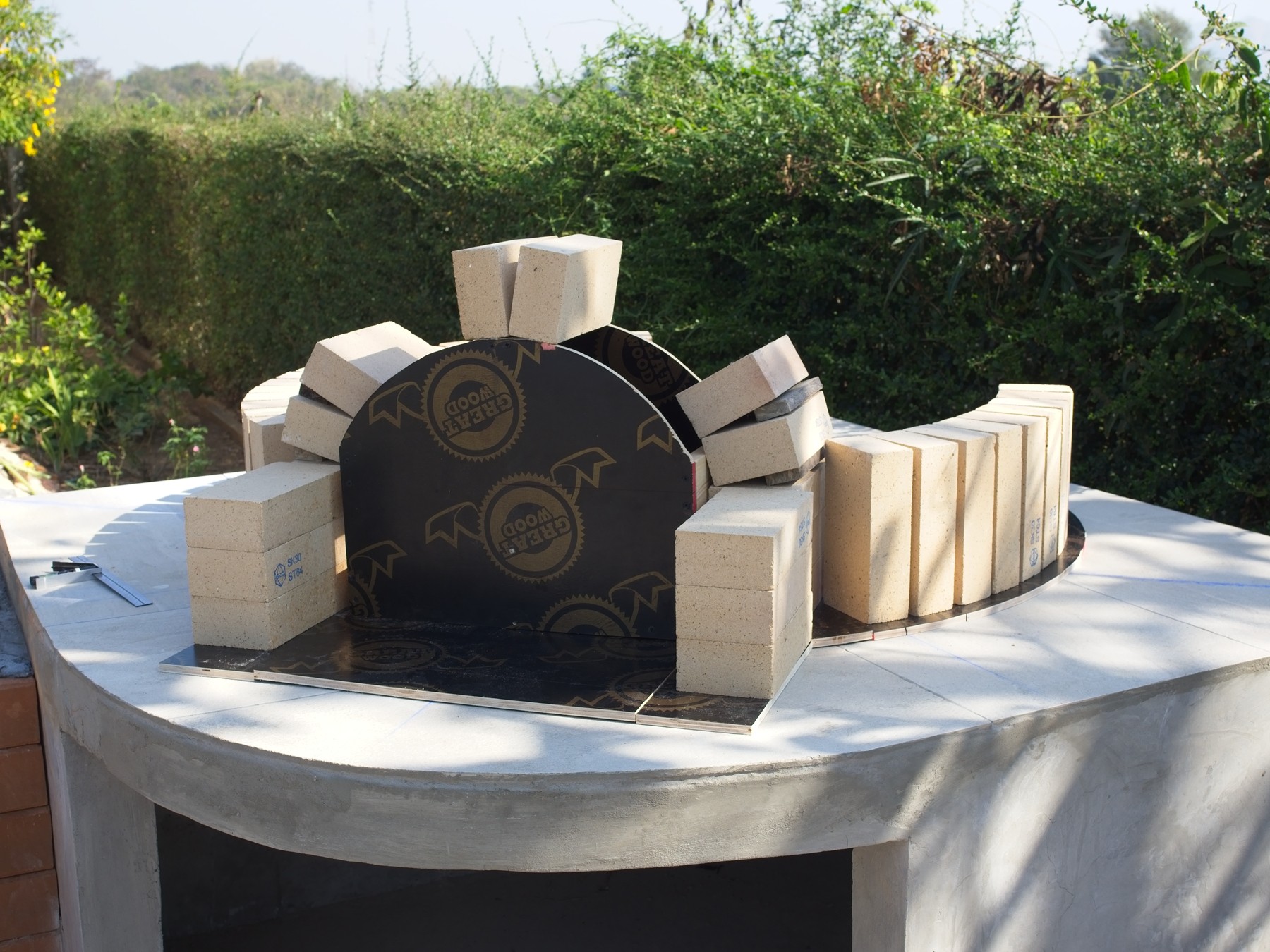

                      This shows the 2cm reveal. The arch bricks with be cut at angles to achieve mortar joins of even thickness.

                      Click image for larger version

Name:	2020Jan_Template_22 copy.jpg
Views:	257
Size:	618.8 KB
ID:	418917

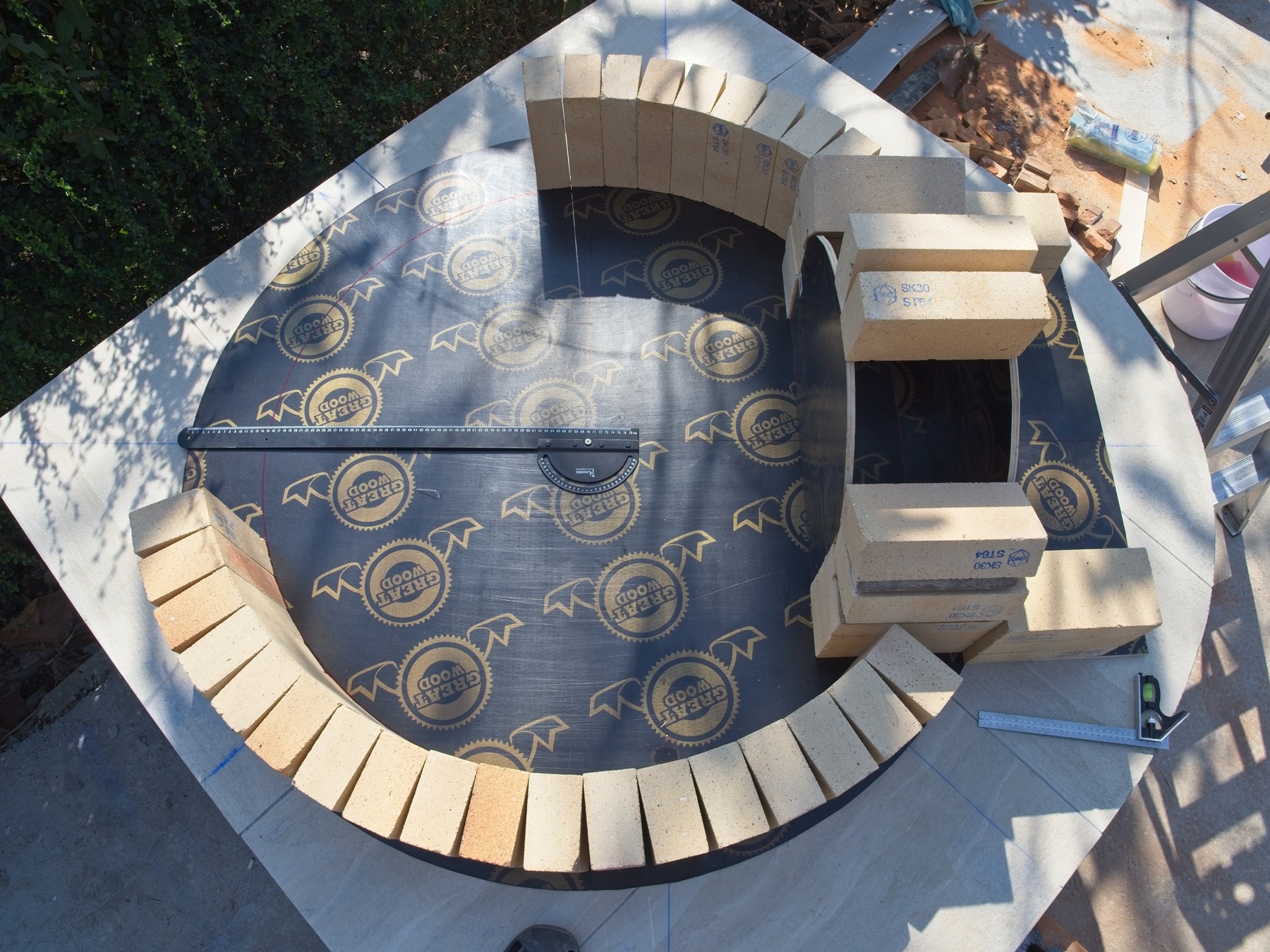

                      This top view just shows a different angle.

                      Dry fitting turned out to be very important and I am not done yet. I will do the same once I have the ceramic fiber board and brick floor roughed out, and again after I cut and level the brick floor. The next dry fit should include a new rear arch form and the completed front arch form. The fitting after that should include cut arch bricks.

                      Any comments and suggestions now are most welcome. They'll be more useful now than once I start mixing mortar.

                      Comment


                      • #26
                        Are you going to considered a tapered inner arch? If you are, then the arch form is too wide. Tapered inner arches take more time up front but saves a lot of time and fitting on the back end. Attached is a picture from Mr. Chipster showing how the IT helps you determine the angles and configurations of the arch bricks. This pic is similar to your arch but the concept is the same for full semi arches. It takes a full brick to work from, with the top center brick (top dead center aka TDC) being the longest dimension in the arch. Each brick is different so you cannot cut them all the same. You are halfway there by tapering the bricks for even mortar joints.
                        Click image for larger version

Name:	hemiarch.jpg
Views:	288
Size:	55.6 KB
ID:	418927
                        Russell
                        Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]

                        Comment


                        • #27
                          I saw this picture, but I wasn’t tracking how you made the angles. I will search for the appropriate thread and consider it.

                          Yes, the arch form is too wide (deep) and I plan to redo it.

                          thanks for feedback and suggestion.

                          Comment


                          • #28

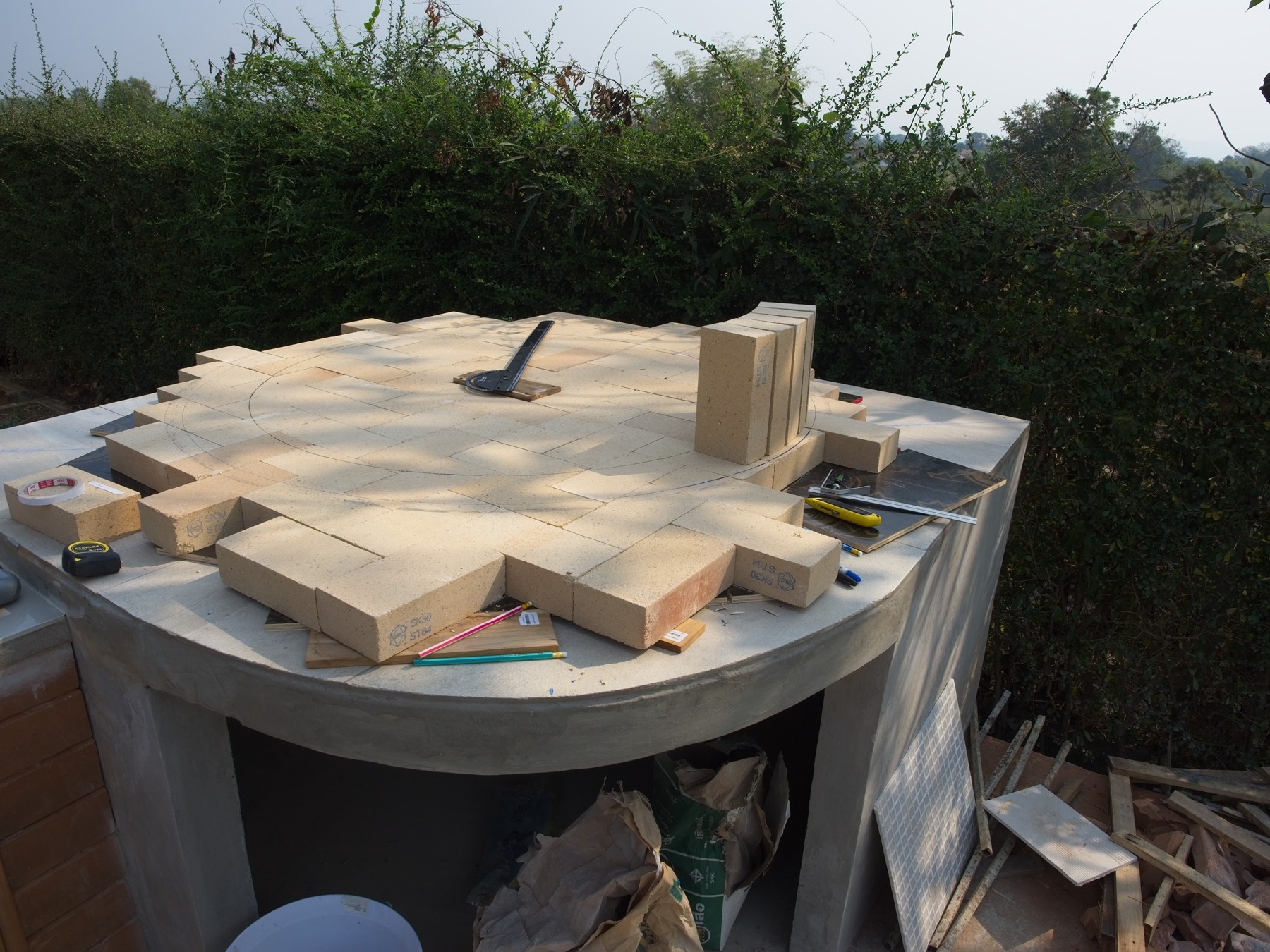

                            Time to lay out the floor and cut bricks. I built a wooden "brick" which I could accurately place in the center of where the oven should be. Instead of using the IT, for which I had no pen attachment, I bought an inexpensive metal protractor with a centimeter scale out to 77cm. Curiously enough, the center hole of the protractor was at 70cm. I then drilled holes at the radius I wanted and used a Sharpie to mark the circle on the bricks. Many Sharpies were sacrificed in the making of this oven.
                            Click image for larger version

Name:	2020Jan15_Floor_01 copy.jpg
Views:	521
Size:	572.7 KB
ID:	419092

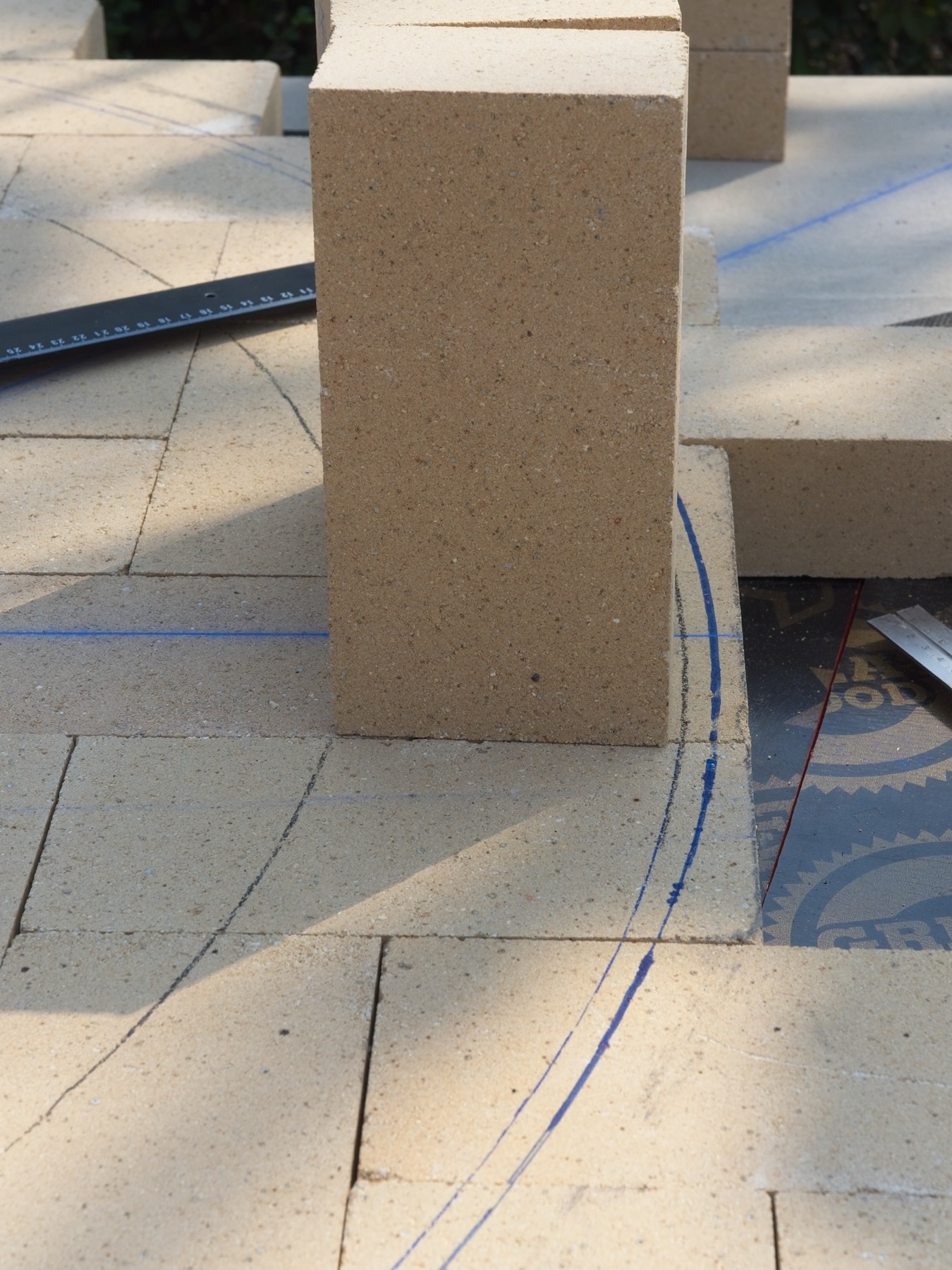

                            I first drew the interior dimensions of the oven, 55cm. I then drew a line for exterior cuts of the floor at 78cm (11.5cm for the brick, 1.5cm for the buffer). After lining up some bricks in a soldier configuration, I figured that was way too much buffer. I came back to 77cm.

                            Click image for larger version

Name:	2020Jan15_Floor_04 copy.jpg
Views:	220
Size:	509.5 KB
ID:	419093

                            I quickly discovered the limitations of my wet *tile* saw. The maximum depth cut of wet saw is 36mm (the brick is 75mm thick) is really not attainable because of the way the motor is mounted. My little 4" grinder helps in a few places and is easy to handle, but the depth of cut is really too shallow. The big 7" grinder is a massive, heavy beast I can't maneuver with any precision - again helpful in very limited situations. After trying the grinders, I decided the wet saw was by far the best tool available to me. I just have to make up to four cuts. Fortunately, it has a very precise laser and I can line it up on a previous cut. So, I started making cuts, which don't look elegant at all.

                            At some point, I started trying to use pencil to mark lines. The wet saw effectively erases chalk lines and pencil lines. Back to Sharpies. I went looking for other colors, expecting red to be good. Turned out red and green were almost useful. Pink however, turned out to be very usable.

                            Click image for larger version

Name:	2020Jan15_Floor_09 copy.jpg
Views:	218
Size:	562.9 KB
ID:	419094

                            Well, the curves will all be covered by mortar. The straight cuts look better.

                            Click image for larger version

Name:	2020Jan15_Floor_21 copy.jpg
Views:	218
Size:	574.4 KB
ID:	419095

                            I redid the inside arch form based on revised plans from my dad (thanks!!). It is now lower and less deep. The picture above shows how the inside of the bricks will be clipped to follow the oven internal radius. These are not the final bricks. I will reuse cut bricks where I can but some of these are too short. All the chalk lines are to keep center and proper orientation with the hearth.

                            Click image for larger version

Name:	2020Jan15_Floor_501 copy.jpg
Views:	223
Size:	535.7 KB
ID:	419096

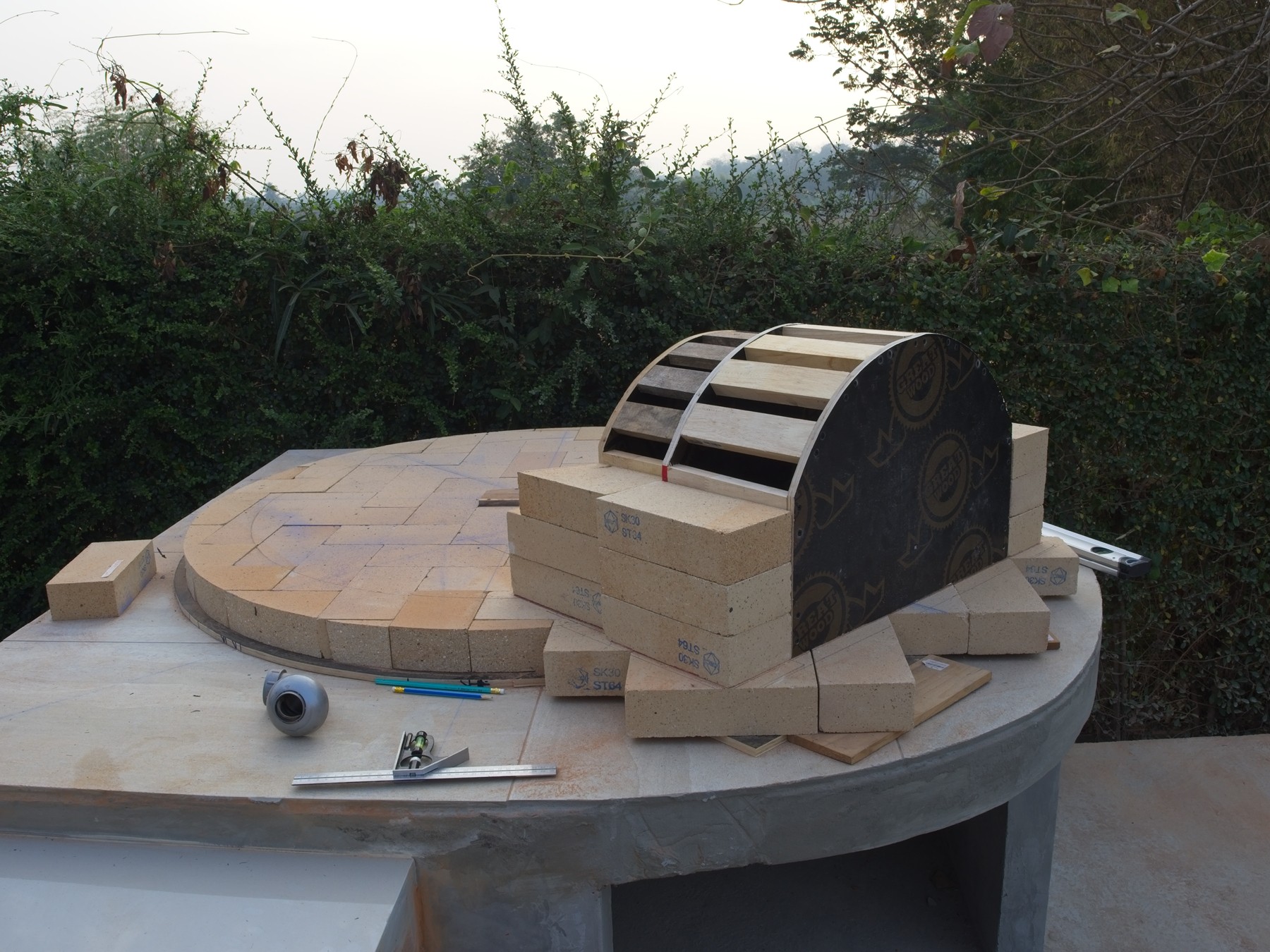

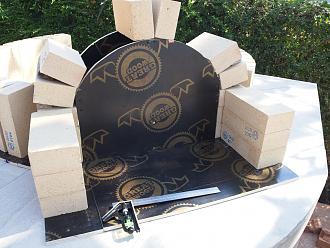

                            Now I made the outer arch form. Here I am dry fitting bricks for the gateway columns before I mark and cut the approach/entry bricks. The isolated brick on the left edge is the "core brick." I've made sure it will fit in place of the wood "brick," but the fit will be tight.

                            Click image for larger version

Name:	2020Jan15_Floor_507 copy.jpg
Views:	224
Size:	504.1 KB
ID:	419097
                            Oven floor cut. Now I need to put ceramic fiber board under it.


                            Comment


                            • #29

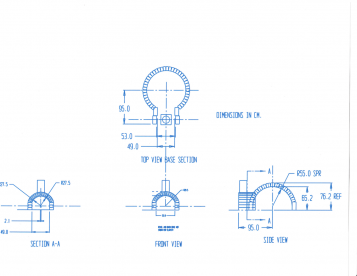

                              Here are the revised drawings. I'll do a jpg of the first and then try to attach the pdfs in case they are useful to anyone. The brick files give the dimensions and angles for the archway bricks for even mortar lines. I did 5mm mortar lines. Now that I've used this mortar, I wish I had asked for 2mm or 3mm. I will try it this way though.

                              Click image for larger version

Name:	OVEN - REVISED.png
Views:	214
Size:	52.2 KB
ID:	419099

                              BRICK 1.pdf
                              BRICK 2.pdf
                              OVEN - REVISED.pdf

                              Comment


                              • #30

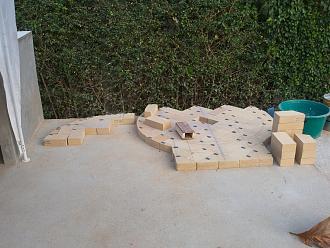

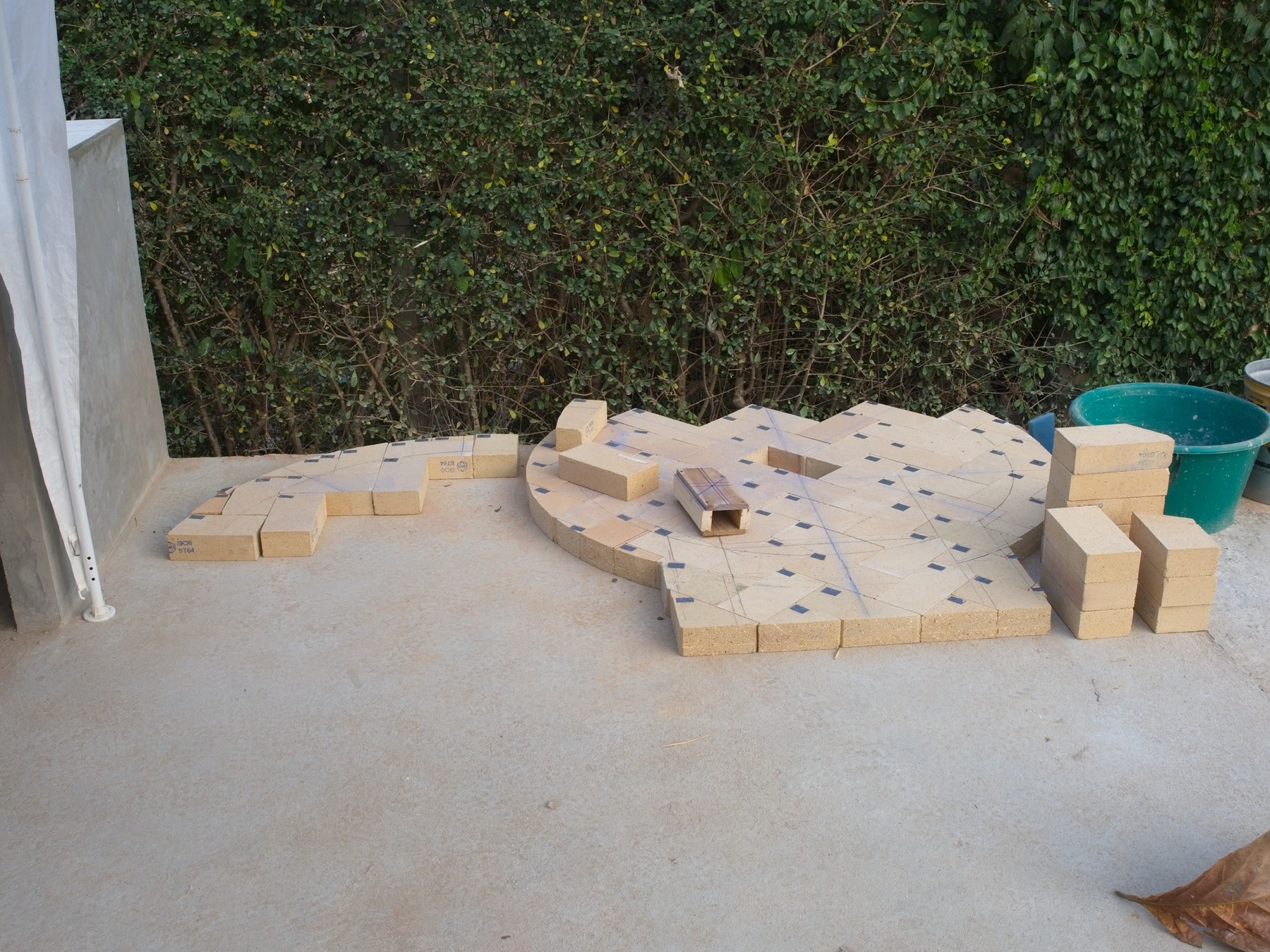

                                Labeled all the bricks (tape on top and written in Sharpie on side).
                                Click image for larger version

Name:	2020Jan16_Floor_09 copy.jpg
Views:	347
Size:	689.8 KB
ID:	419104

                                Drilled 1/2" weep holes. I expected this to be simple. I purchased the correct bits and had multiple drills. I drilled at the intersection of tiles to make starting easier. Five holes took 3-4 hours and I went through several bits. In the end, for three of the holes I had to knockout the final cm with a piece of rebar and a hammer.

                                My advice for others? Measure where you want them and put wooden dowels in the wet cement of the hearth.

                                Click image for larger version

Name:	2020Jan16_Floor_11 copy.jpg
Views:	214
Size:	348.0 KB
ID:	419105

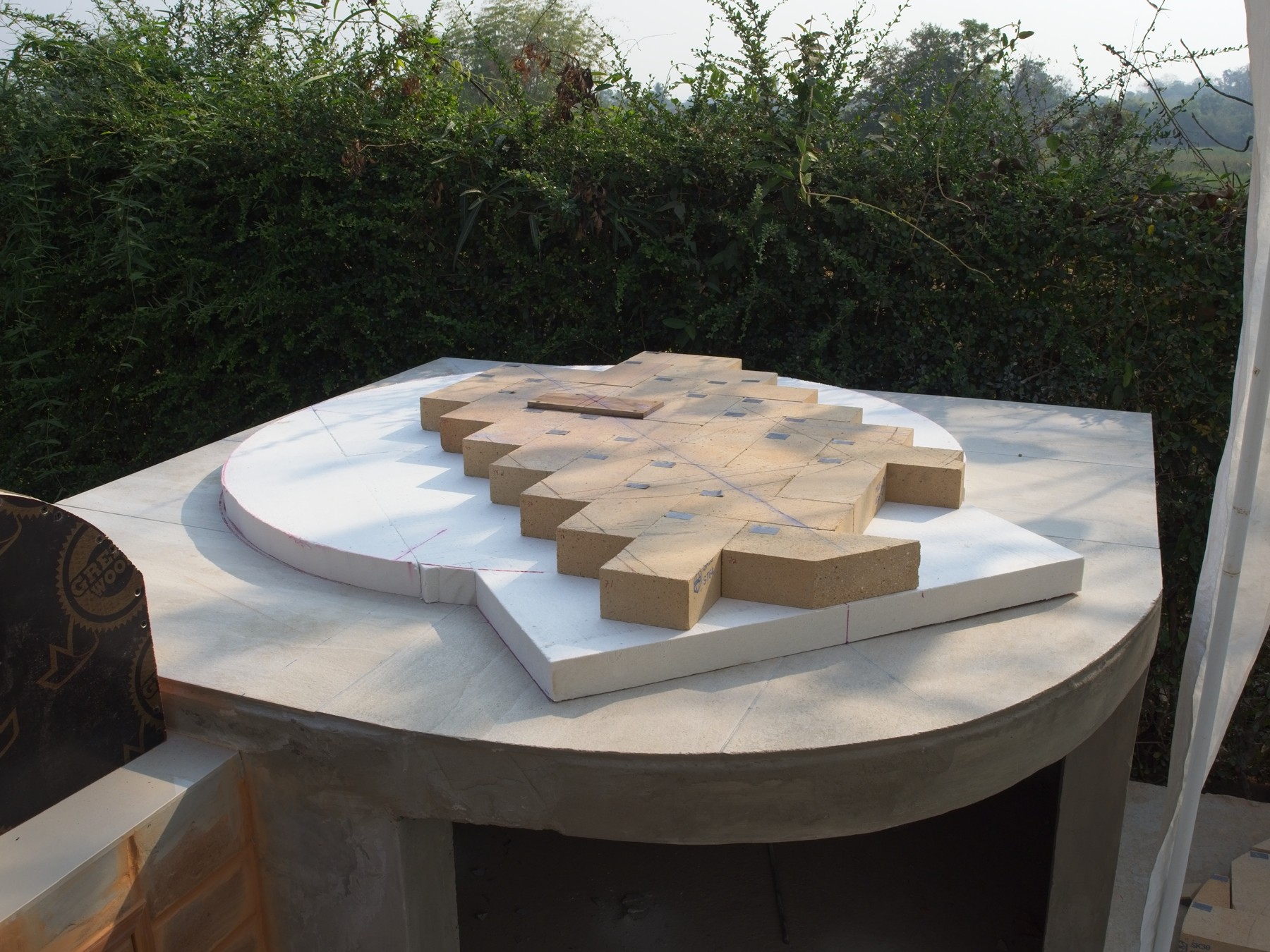

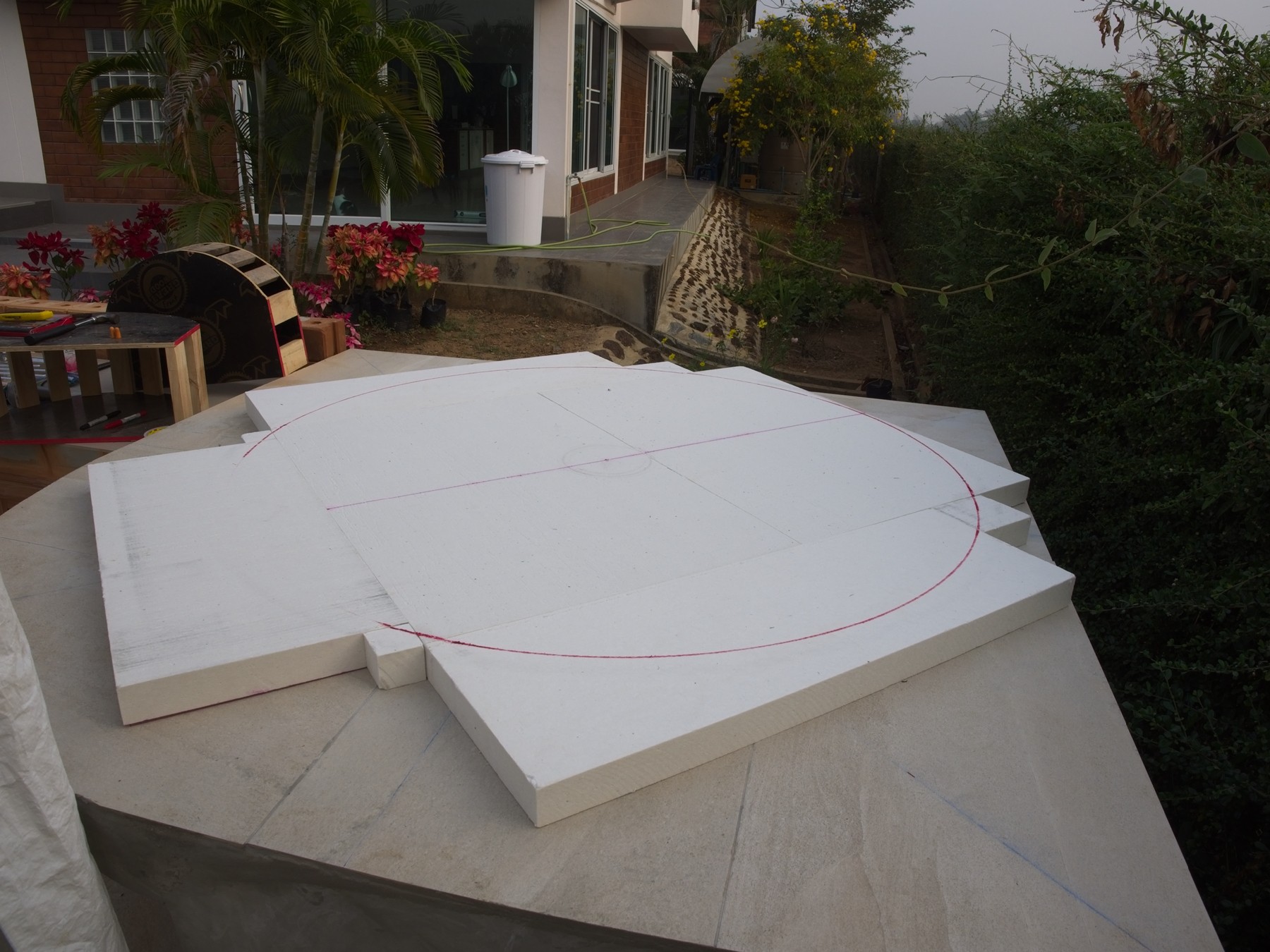

                                Here is the ceramic fiber board arranged, centered, and marked.
                                Click image for larger version

Name:	2020Jan16_Floor_13 copy.jpg
Views:	215
Size:	433.5 KB
ID:	419106

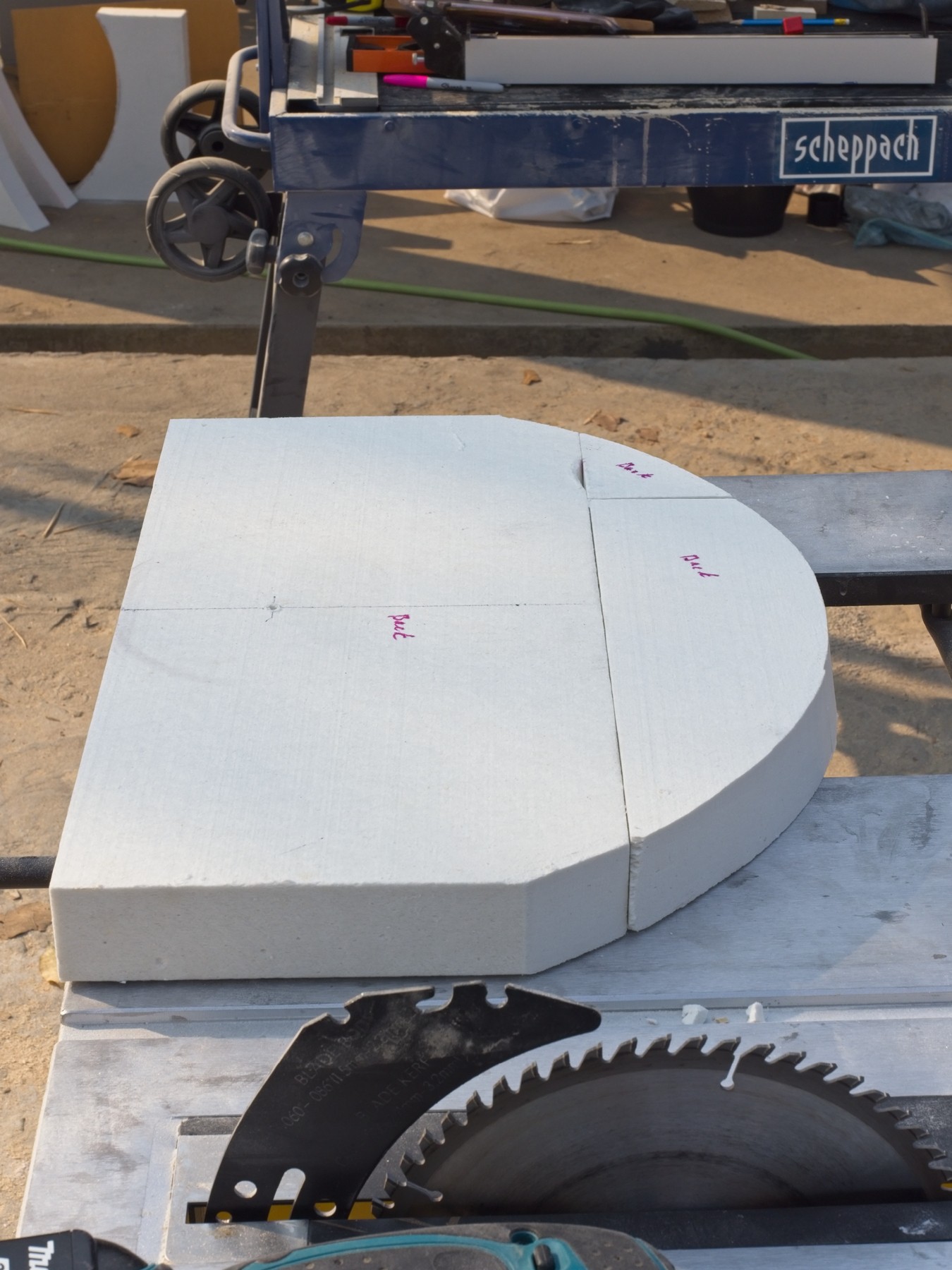

                                Cut fiber board with a table saw and sabre/jig saw. No issues. As simple as the drilling should have been.
                                Click image for larger version

Name:	2020Jan16_Floor_14 copy.jpg
Views:	213
Size:	538.3 KB
ID:	419107

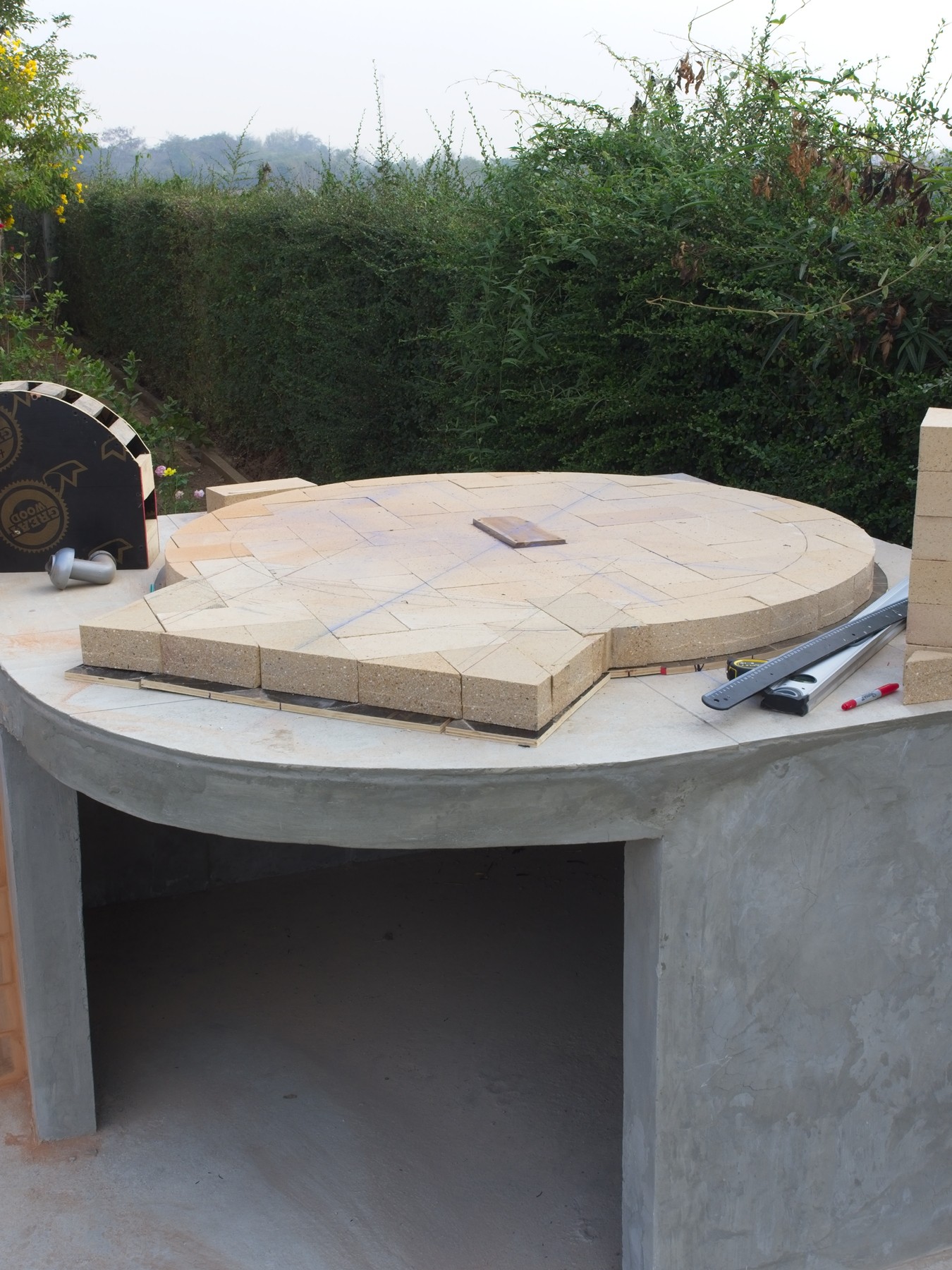

                                Then I started replacing the bricks, hoping everything would line up and still be centered. I was within 1cm, so I think a margin of less than 1% is acceptable here.

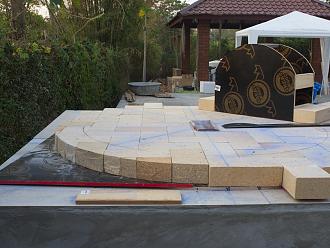

                                Final dry fitting:
                                Click image for larger version

Name:	2020Jan16_Floor_27 copy.jpg
Views:	213
Size:	701.3 KB
ID:	419108

                                With the extra fiber board, I cut what I hope will be a core for the door. I have no idea how I will encase it in something metal or durable, but if I find a way, I now have an insulated core.
                                Click image for larger version

Name:	2020Jan16_Floor_17 copy.jpg
Views:	214
Size:	365.1 KB
ID:	419109


                                More to come to catch up, but I will post tonight.
