    Re: 36" in Seattle

    Yes, the apron can be thinner.

    Looking at your plan, I would also put a tooled construction joint between the two sections of apron. Maybe at a 45 degree angle through the "thin" section of apron.

    Leave a comment:


  • papavino
    replied
    Re: 36" in Seattle

    That's a good deal, then. I wish they had been running the sale when I built mine. Buy! Buy! Buy! Buy more than you need. Because even though your calculations tell you you need X, you'll really need X+Y bags. And you can return any unopened bags.

    Leave a comment:


  • kebwi
    replied
    Re: 36" in Seattle

    Home Depot and Lowes both currently sell 60 lb bags for $1.98 ($.033/lb) and 80 lb bags $3.48 ($.0435/lb). I think the 60 lb bags were just recently marked down from $2.98 ($.0497/lb), so the discrepancy is recent and perhaps temporary.

    Therefore, I gotta stock-pile like mad!!!

    Leave a comment:


  • papavino
    replied
    Re: 36" in Seattle

    I would think it would be okay to raise the gravel and only pour a 3.5 or 4 inch slab for the chef's slab. It's not going to be supporting the weight of the oven, so unless you weigh 6000 lbs, I think you'll be alright. Why not buy 80 lb bags of concrete and save some dough? With the amount in a slab, that money adds up.

    Leave a comment:


  • kebwi
    replied
    Re: 36" in Seattle

    @Neil2: I warming up to the idea of doing the foundation myself over two days, using your suggestion of pouring the main foundation one day, framed off tightly around the building's footprint, then following up the second day with the extended chef's slab (in the diagram, both red and green are concrete). My calculations put the main foundation at 37 60lb bags if poured 5" and the extended slab at 16-22 60lb bags if poured somewhere between 3.5" and 5", which leads to this post's question...

    Do you think it would be okay to pour the main slab to 5" but raise the gravel in the "extra" slab an inch and only pour it to 3.5" to 4"? The rebar and mesh (mesh not shown) will actually connect the two slabs into a single piece even though the concrete won't be bonded along the seam.

    What do you think?
    Click image for larger version

Name:	image_14509.jpg
Views:	613
Size:	70.2 KB
ID:	384563
    Last edited by Gulf; 01-07-2016, 02:48 PM.

    Leave a comment:


  • kebwi
    replied
    Re: 36" in Seattle

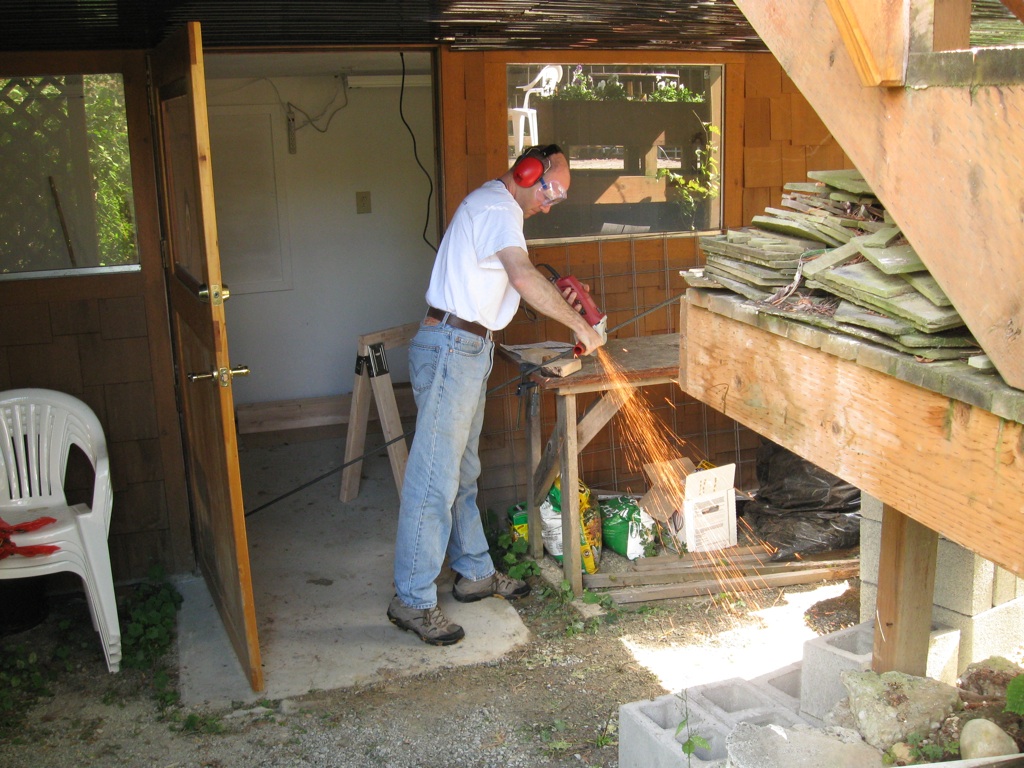

    Cut the straight boards for the foundation form today from 2x6s. There are two places where I will curve the form with masonite. Grinding rebar is ridiculous loads of fun btw. After all my worries about rebar, everything worked out. I pipe-bend the 1/2" 20' rebar (barely with my 160lbs) in the Home Depot parking lot to get it on my roof rack. Then at home I cut it up with the grinder, which is a cinch.

    On a side-note, do most people put the handle of an angle-grinder on their "handed" side or the other side? I've tried it both ways for this project (and also used angle grinders at a rock-climbing gym a few years ago), and still haven't decided on my preference. Thoughts?



    Click image for larger version

Name:	image_14475.jpg
Views:	556
Size:	363.4 KB
ID:	384564 Click image for larger version

Name:	image_14476.jpg
Views:	552
Size:	294.6 KB
ID:	384565
    Last edited by Gulf; 01-07-2016, 02:54 PM.

    Leave a comment:


  • Neil2
    replied
    Re: 36" in Seattle

    "I think you suggested pouring the second slab right up against the first slab. Is that correct?"

    Correct.

    This is the simplest way to ensure a construction joint. If you are going to do it in one pour, you can also use the edging tool and a 2x4 to tool in a double sided joint. This will create a stress line and should control the crack to that location. (Take a look at the sidewalk in front of your house - if you look closely you will see the crack in the tooled joint),

    It is just an aesthetic issue and will not affect the structural strength of your slab.
    Last edited by Neil2; 09-20-2009, 10:22 AM.

    Leave a comment:


  • kebwi
    replied
    Re: 36" in Seattle

    It sounds from your description like you don't think I need an actual gap along the joint, since I think you suggested pouring the second slab right up against the first slab. Is that correct?

    I certainly want to do this right, but the frustrating thing about breaking the pour into separate jobs is that I intended to do the foundation with ready-mix. There's no point in having then come out a second time for the smaller slab since that's smaller than the hearth which I'll be doing on my own anyway.

    The question then becomes, is there any point in using a ready-mix truck for the slab under the foundation or is it now small enough (with the separation you suggested) that I should just go ahead and do it myself. I just don't have many friends I can lean on for this type of work, and I only have one wife.

    That'll take some thought. I'll have to determine the best way to proceed.

    Thanks for the input. I'll take it under heavy consideration.

    Leave a comment:


  • Neil2
    replied
    Re: 36" in Seattle

    A construction joint can be one cut into the concrete or it can be simply the joint between two pours. Your slab will have two different loadings, one where you stand and the rest supporting the weight of the oven. This will cause stress which will almost certainly crack the concrete. The construction joint ensures it will crack at a particular line instead of irregularly.

    If your slab is 5 1/2 inches, you can build the entire form, place the rebar, and use a 2 x4 as a "bulkhead" to contain the first pour. The re bar can run under the bulkhead or you can notch the bottom part of the bulkhead to accommodate the rebar. The next day, remove the bulkhead and pour the other half.

    Get a concrete edger (see picture) and use it on the edge of your slab and each side of the joint
    Click image for larger version

Name:	image_14435.jpg
Views:	440
Size:	4.2 KB
ID:	384525
    Last edited by Gulf; 01-07-2016, 02:55 PM.

    Leave a comment:


  • kebwi
    replied
    Re: 36" in Seattle

    Yes, we want the pad to extend far enough in front of the oven to stand on while working. That's what you mean by apron? I'm not sure I fully understand the joint you are describing. Sometimes I see construction joints described merely as a shallow gap of about a quarter inch width that extends about a quarter of the depth into the concrete, not all the way to the bottom, as in two separate pours. Are you suggesting two separate pours with a gap that extends all the way down to the gravel?

    Some detail would help. I readily admit I don't know much about proper concrete foundations.

    Thanks.

    Leave a comment:


  • Neil2
    replied
    Re: 36" in Seattle

    Are you pouring the slab with an "apron" slab in front of the wall ? If so, do it in two pours with construction joint or it will crack in this vicinity.

    Leave a comment:


  • kebwi
    replied
    Re: 36" in Seattle

    The gravel is done, about three inches deep, a mix of "new" 5/8-minus and a leftover gravel pile in our yard from an earlier job (see album or earlier post for photos).

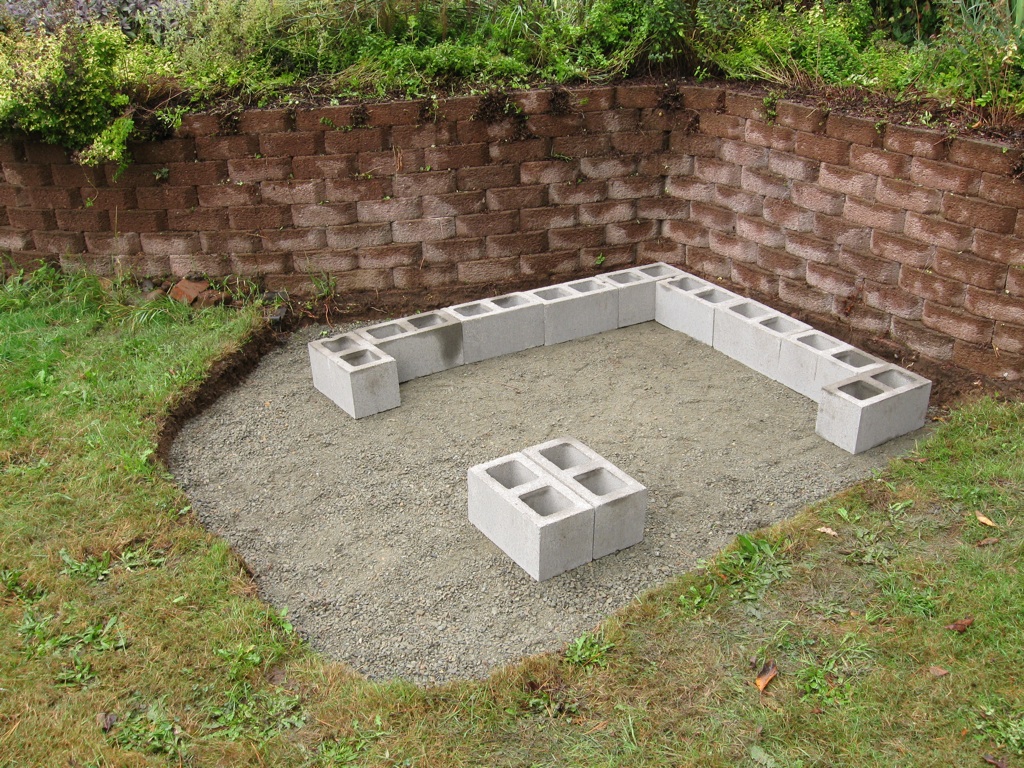

    The first photo shows how the building will work, a four block wide opening on the left side, a five block opening on the right, and a 2x2 super strong column in the weak corner. I went to all the trouble of laying down the first course like this to make sure the foundation will be big enough. Looks pretty.

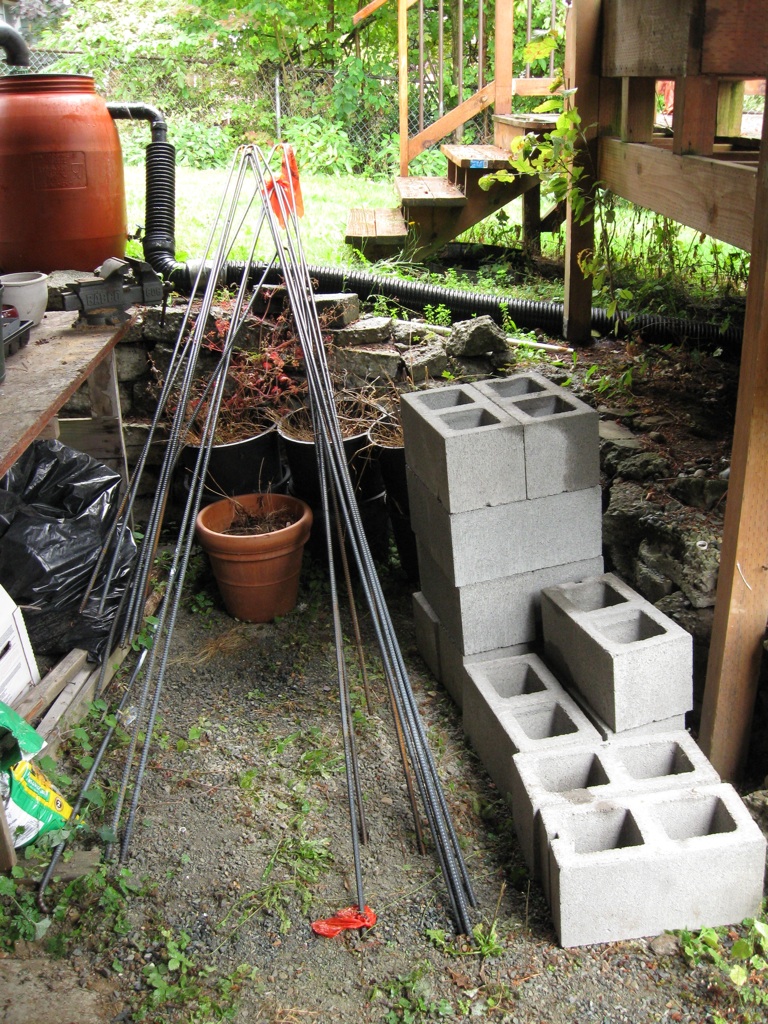

    The second photo shows my growing stockpile of materials. I have many more blocks than are shown because they are scattered around the yard for various purposes, e.g., the first photo and a few other tasks. I'm particularly proud of the (as yet incomplete) pile of 1/2" 20' rebars, which I only got home by pipe-bending them in the Home Depot parking lot to get them on top of my car. At 160 pounds I barely have the leverage to do it without vices or clamps or any other assistance (which would obviously make it cinch).




    Click image for larger version

Name:	image_14431.jpg
Views:	716
Size:	479.1 KB
ID:	384580 Click image for larger version

Name:	image_14432.jpg
Views:	707
Size:	436.2 KB
ID:	384581

    Last edited by Gulf; 01-07-2016, 03:31 PM.

    Leave a comment:


  • kebwi
    replied
    Re: 36" in Seattle

    Thanks Neil2. You're high degree of participation and information-rich feedback have been very helpful.

    Now, I just need to some pipe for bending rebar. Home Depot should have that for sure.

    Leave a comment:


  • Neil2
    replied
    Re: 36" in Seattle

    "I went to an 8" spacing (perhaps an alternating mix of 1/2" and 3/8"?)."

    Or if going all 3/8 in, just double up on every second one.

    Should do it. Just hook or bend (4 to 6 inches) the dead ends horizontally ( the way you show some of them then over the lintels) and your plan looks fine.
    Last edited by Neil2; 09-17-2009, 11:44 AM.

    Leave a comment:


  • kebwi
    replied
    Re: 36" in Seattle

    @redmen4: Hmmm...that's some honest advice you've got there.

    Truthfully, I'm neck deep in it. I'm just designing the later stages while simultaneously constructing the earlier stages. This week I destroyed a corner of our lawn, leveled the resulting pit, started dumping gravel in it, and have been buying tools and lumber like mad. By the time I have the foundation framed and ready to pour, I'm sure I'll have that rebar all sorted out. Likewise, by the time I dry stack the walls and construct the hearth form, I'm sure I'll have *that* rebar all sorted out too. :-)

    Thanks, though. I see your point.

    Cheers!
    Last edited by kebwi; 09-17-2009, 12:20 PM.

    Leave a comment:
