    Barrel Style oven layout question

    I am working on the layout of the oven.. On the walls do you usually lay the firebrick tight together or space then and lay with refractory mortar? I have attached a picture of the dry layout that i have came up with, just curious on the spacing of the walls.

    Any input would be appreciative..thanks
    Toby

    Columbus, NE
  • meco211
    Laborer
    • May 2010
    • 81

    #2
    Re: Barrel Style oven layout question

    Well i think that i am going to put a small joint of mortar in between and on the bottom, think that it will keep the sides and top more even
    Toby

    Columbus, NE

    Comment

    • Tscarborough
      Il Pizzaiolo
      • Oct 2009
      • 3341

      #3
      Re: Barrel Style oven layout question

      Is it a full barrel vault or a flattened one?

      Comment

      • meco211
        Laborer
        • May 2010
        • 81

        #4
        Re: Barrel Style oven layout question

        well it will have a rounded arch...kinda like the one in Alan Scott's Book. Pretty much the same layout as he uses for the oven 36 deep by 32 wide and a 16" door
        Toby

        Columbus, NE

        Comment

        • Archena
          Il Pizzaiolo
          • Apr 2007
          • 1214

          #5
          Re: Barrel Style oven layout question

          Um, why is the door on the end? I've never seen a barrel oven (brick) done that way.
          "He is no fool who gives what he cannot keep to gain what he cannot lose." - Jim Elliot

          "Success isn't permanent and failure isn't fatal." -Mike Ditka
          [/CENTER]

          Comment

          • meco211
            Laborer
            • May 2010
            • 81

            #6
            Re: Barrel Style oven layout question

            Arch

            guess i am not understanding what you mean, the opening is in the front.
            Toby

            Columbus, NE

            Comment

            • Archena
              Il Pizzaiolo
              • Apr 2007
              • 1214

              #7
              Re: Barrel Style oven layout question

              The ovens I've seen had the door along the long side.

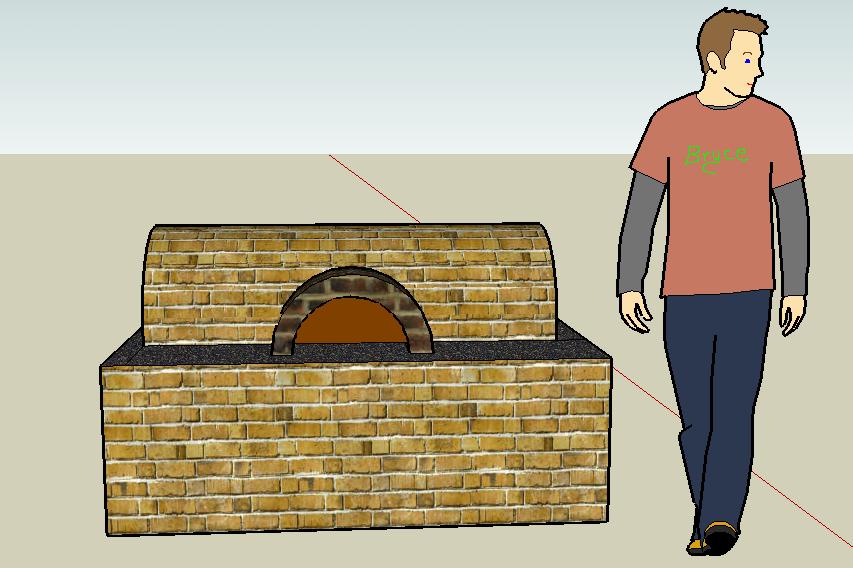

              Forgive my lack of Sketch Up skills, but the picture probably explains it better.


              Click image for larger version

Name:	barrel oven.JPG
Views:	1
Size:	65.1 KB
ID:	280797
              "He is no fool who gives what he cannot keep to gain what he cannot lose." - Jim Elliot

              "Success isn't permanent and failure isn't fatal." -Mike Ditka
              [/CENTER]

              Comment

              • meco211
                Laborer
                • May 2010
                • 81

                #8
                Re: Barrel Style oven layout question

                I see what u are meaning now..Maybe too i am using the wrong terminaligy. i will kinda look like that except the door is in the front. Just oblonged shaped with arched roof
                Toby

                Columbus, NE

                Comment

                • ThisOldGarageNJ
                  Il Pizzaiolo
                  • Mar 2009
                  • 1436

                  #9
                  Re: Barrel Style oven layout question

                  Meco,,
                  Far as I've ever seen the door is in the front like yours,,, Looks like your off to a good start..

                  Cheers Mark
                  Last edited by ThisOldGarageNJ; 08-16-2010, 04:43 PM.

                  Comment

                  • meco211
                    Laborer
                    • May 2010
                    • 81

                    #10
                    Re: Barrel Style oven layout question

                    That is a nice looking oven in the picture u posted!
                    Toby

                    Columbus, NE

                    Comment

                    • Tscarborough
                      Il Pizzaiolo
                      • Oct 2009
                      • 3341

                      #11
                      Re: Barrel Style oven layout question

                      If it is a standard barrel arch, there is no need to soldier the first course.

                      Comment

                      • ThisOldGarageNJ
                        Il Pizzaiolo
                        • Mar 2009
                        • 1436

                        #12
                        Re: Barrel Style oven layout question

                        Hey Meco,
                        Stand barrel arch or wheather you soldier the first course or not, (your choice)My point was just to show you that the entrance is commonly in the front... Its is a nice looking oven, Just a pic I found on the web...

                        Cheers
                        Mark

                        Comment

                        • DrakeRemoray
                          Il Pizzaiolo
                          • Mar 2006
                          • 1215

                          #13
                          Re: Barrel Style oven layout question

                          I see you have posted quite a bit so you probably already answered this, but why a barrel oven instead of a Pompeii?
                          My Oven Thread:
                          http://www.fornobravo.com/forum/f8/d...-oven-633.html

                          Comment

                          • meco211
                            Laborer
                            • May 2010
                            • 81

                            #14
                            Re: Barrel Style oven layout question

                            Guess i just like the look of the barrel better! not knocking the other just my preference
                            Toby

                            Columbus, NE

                            Comment

                            • Tscarborough
                              Il Pizzaiolo
                              • Oct 2009
                              • 3341

                              #15
                              Re: Barrel Style oven layout question

                              If you look at my link it shows all stages of a housed barrel oven being built.

                              Comment
