    After quite a bit of prep work I finally stepped into construction of the oven itself. Steps of Foundation and oven base can be found here :
    https://community.fornobravo.com/for...-really-enough

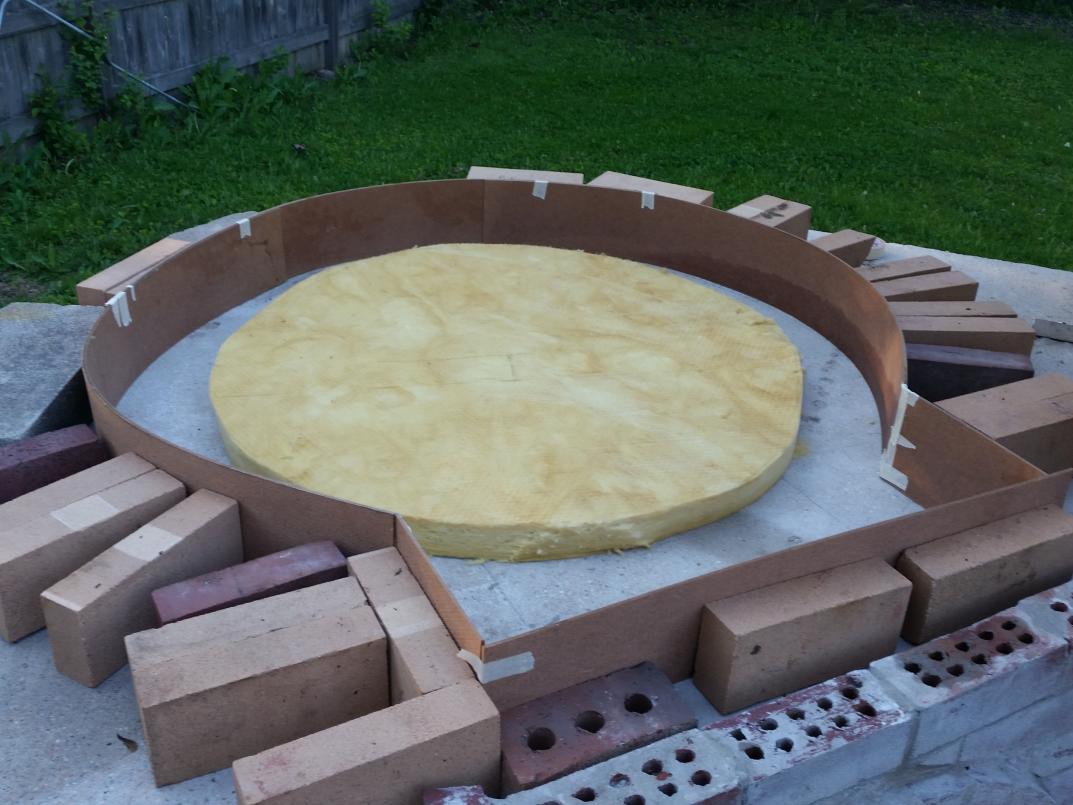

    vermiculate-concrete Hearth sits on top of 4" structural slab. It is 5" thick to match the height of front face bricks and oven floor. 2" of rockwool rigid insulation sheet is embeded under the brick floor.

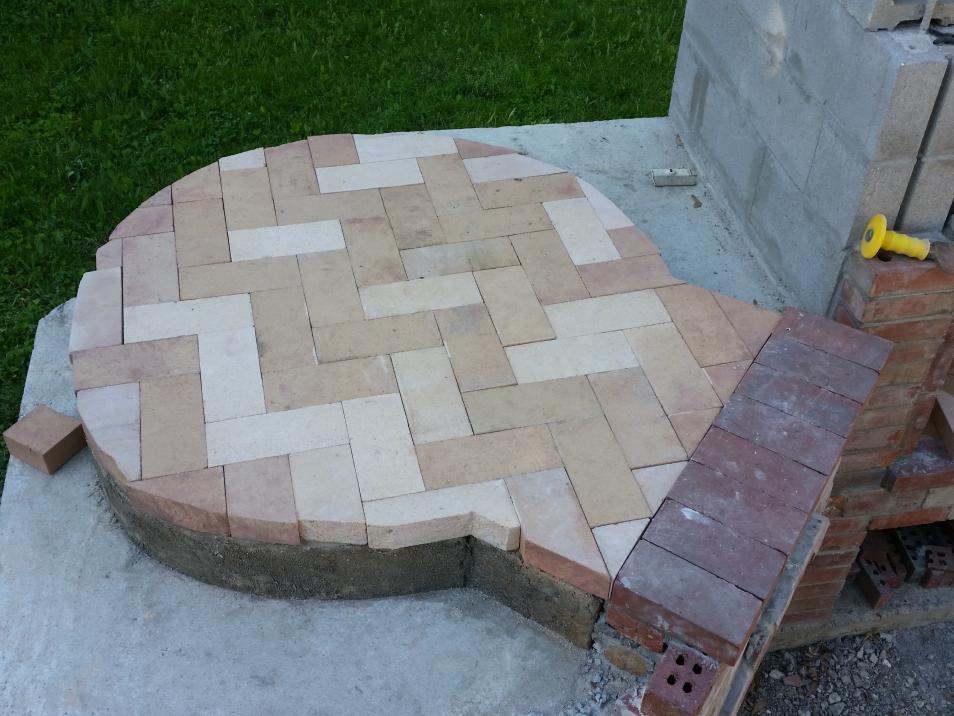

    Gave the hearth few days to harden and laid the floor bricks . 1:1 mixture of sand and fireclay is heaven to work with.

    my biggest effort of these 3days however was the Argentinian grill section that I'm building as part of the project. Started lining the walls firebrick (my brickwork improved substantially) and my pride and joy - entry Arch .

    Attached Files
    Anton.

    My 36" - https://community.fornobravo.com/for...t-bg-build-log

  • #2

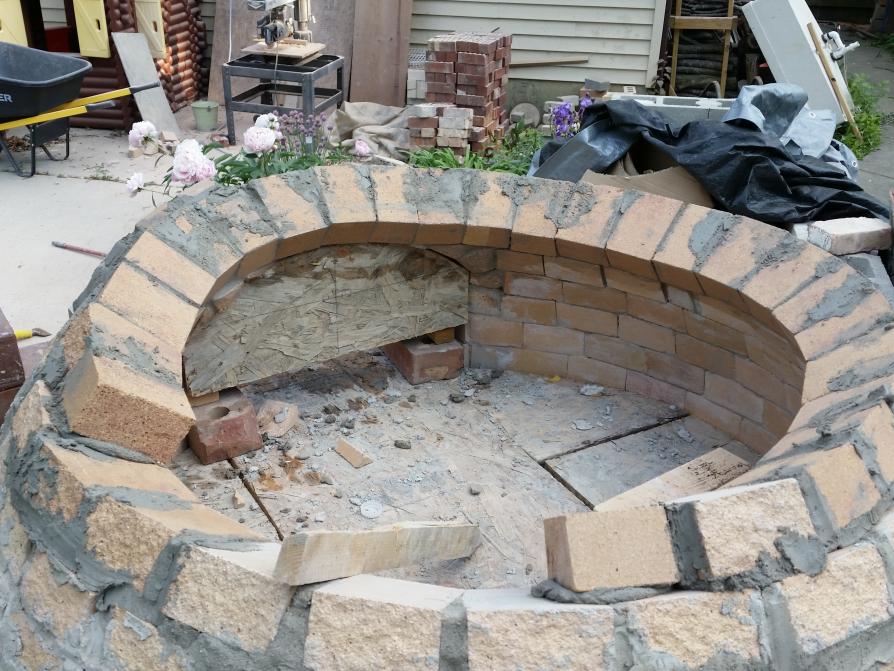

    4 rows complete. Playing with the arch Click image for larger version

Name:	20170604_170543.jpg
Views:	2
Size:	101.4 KB
ID:	398442
    Anton.

    My 36" - https://community.fornobravo.com/for...t-bg-build-log

    Comment


    • #3

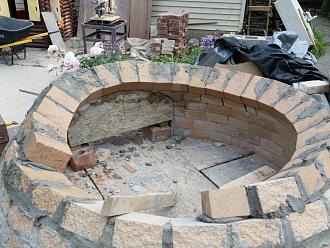

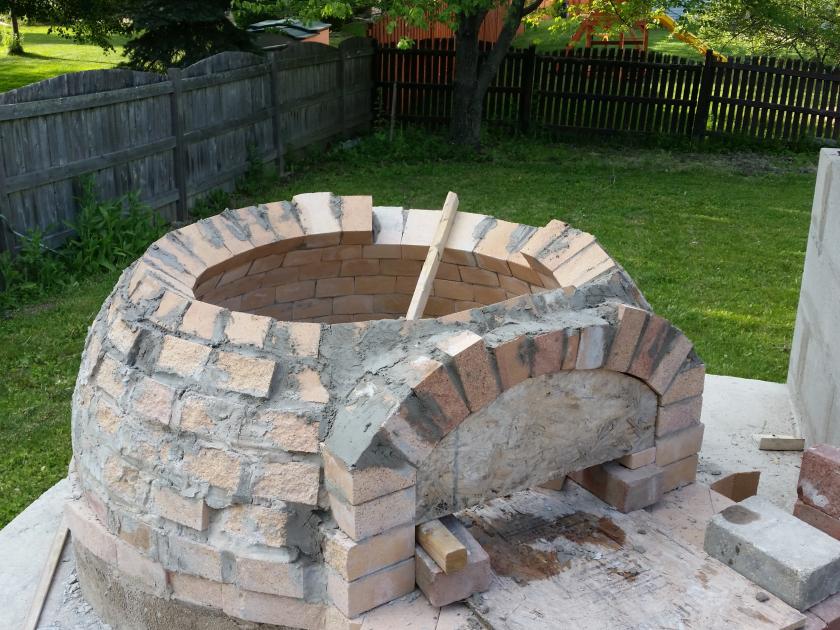

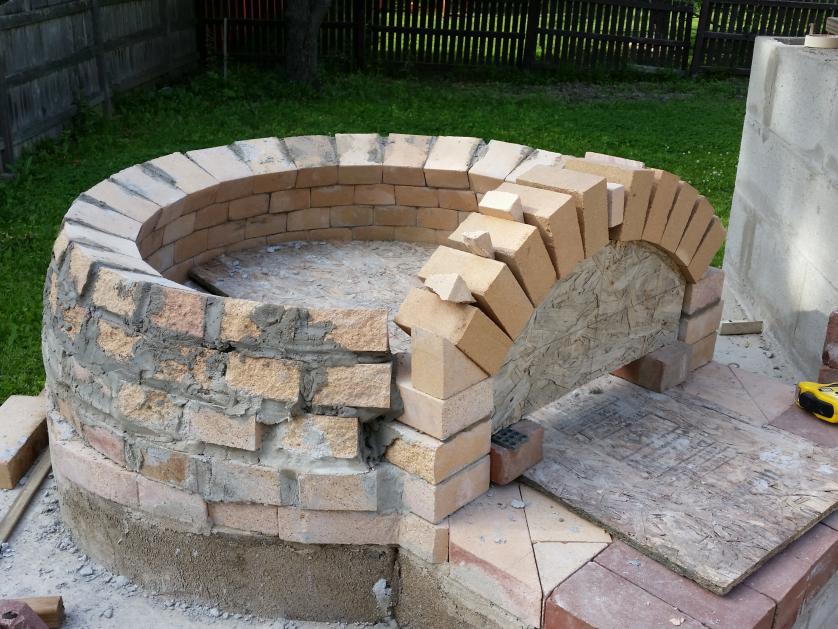

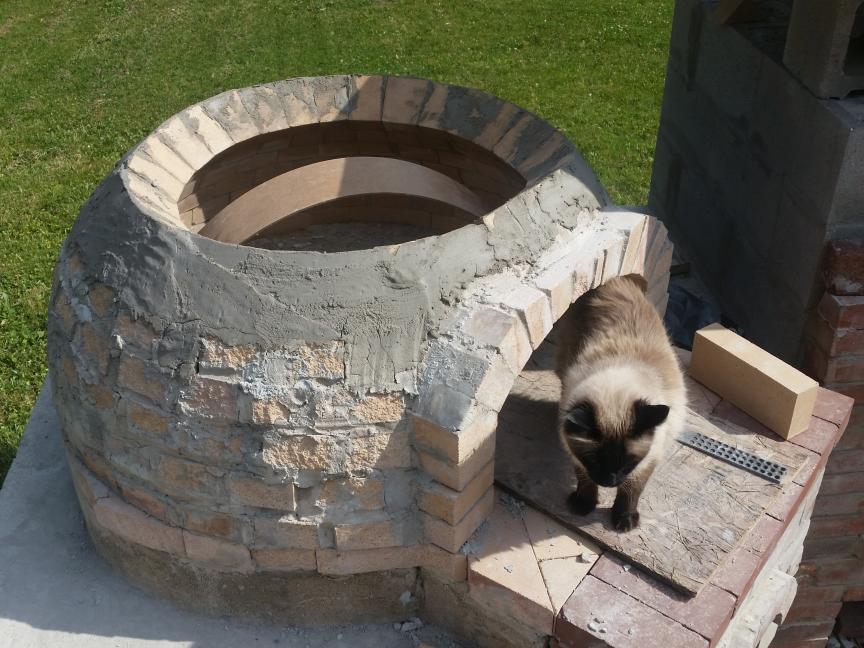

      Got over the arch . Not the best, but very usable. For row 6 each brick is cut into 3 pieces with bevel of 3.5 degrees. Bricks that sit above the opening created somewhat of a hump, will be grinding this down a bit.

      Click image for larger version

Name:	20170608_182428.jpg
Views:	1
Size:	115.9 KB
ID:	398561Click image for larger version

Name:	20170608_182335.jpg
Views:	1
Size:	104.1 KB
ID:	398560
      Anton.

      My 36" - https://community.fornobravo.com/for...t-bg-build-log

      Comment


      • #4
        Installed missing bricks in row 6 and completed row 7. Things getting more and more vertical.

        Click image for larger version

Name:	20170611_091403.jpg
Views:	1
Size:	94.4 KB
ID:	398631

        Anton.

        My 36" - https://community.fornobravo.com/for...t-bg-build-log

        Comment


        • #5

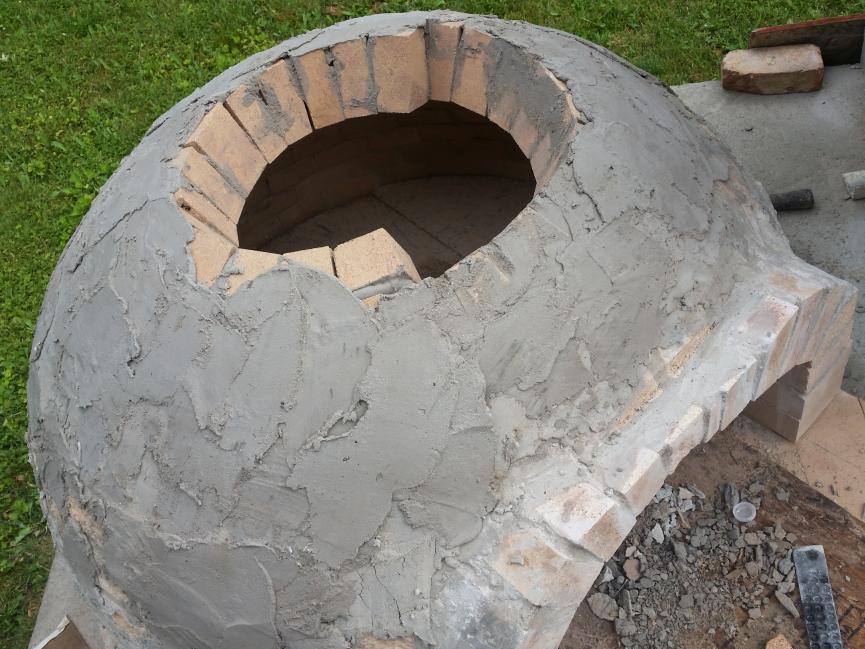

          Up to row 11. Almost there.

          Click image for larger version

Name:	20170617_091035.jpg
Views:	1
Size:	96.9 KB
ID:	398836
          Click image for larger version

Name:	20170617_130258.jpg
Views:	1
Size:	95.8 KB
ID:	398837
          Anton.

          My 36" - https://community.fornobravo.com/for...t-bg-build-log

          Comment


          • #6

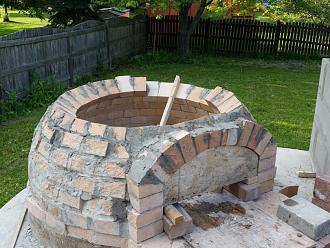

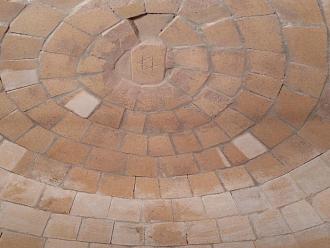

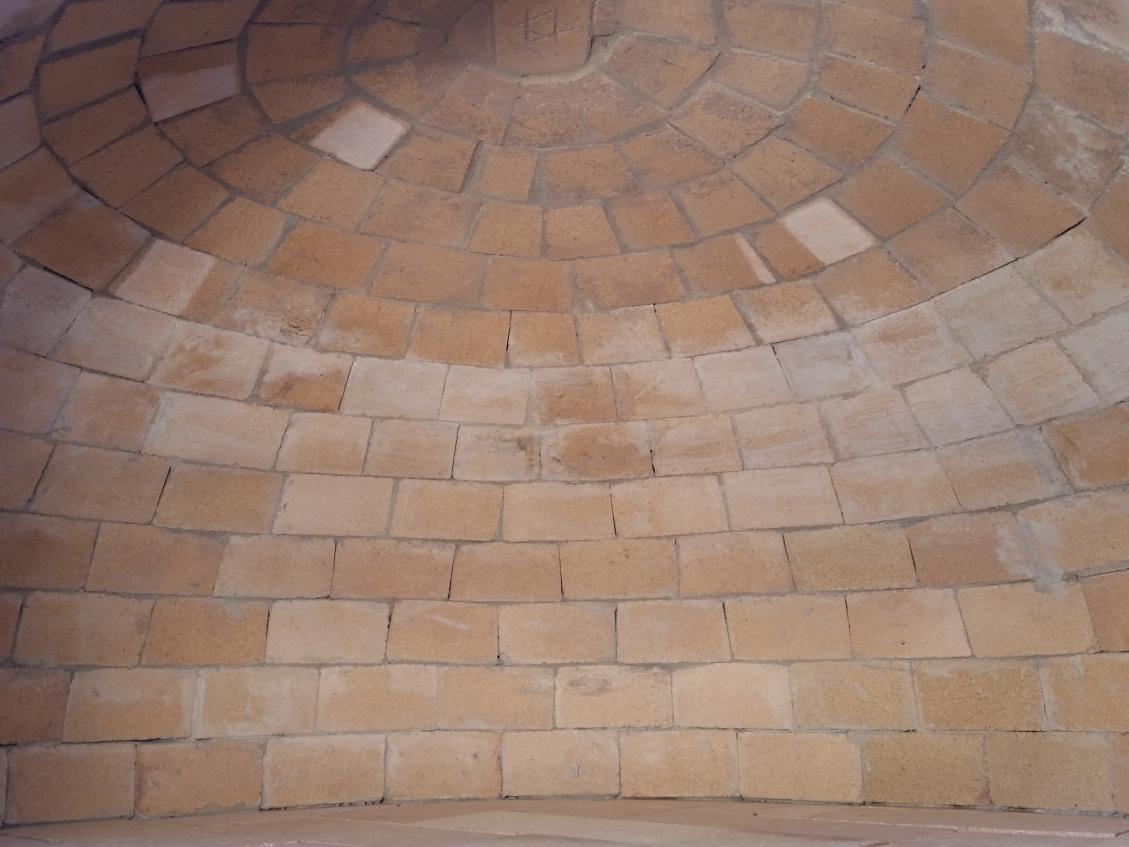

            And it finally happened - dome is closed.
            I find the results satisfactory for the most part. area of mortar seams is not to significant.
            Click image for larger version

Name:	20170618_180559.jpg
Views:	1
Size:	93.8 KB
ID:	398868

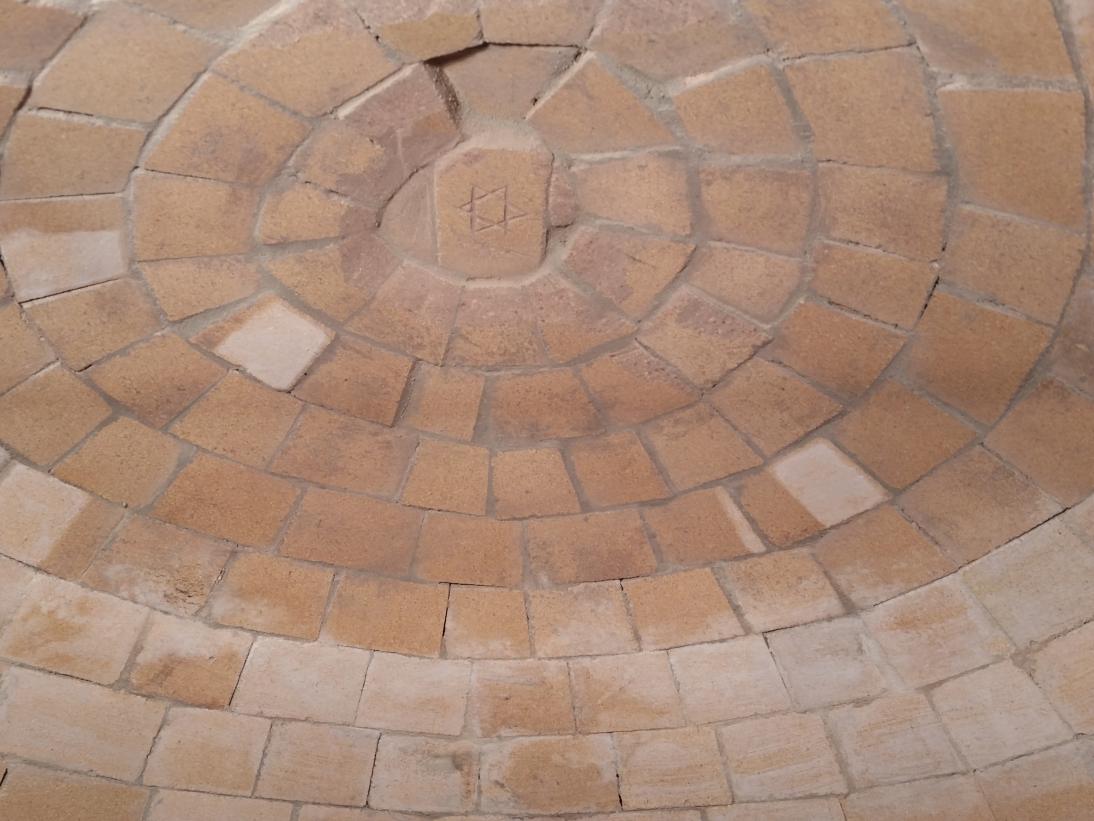

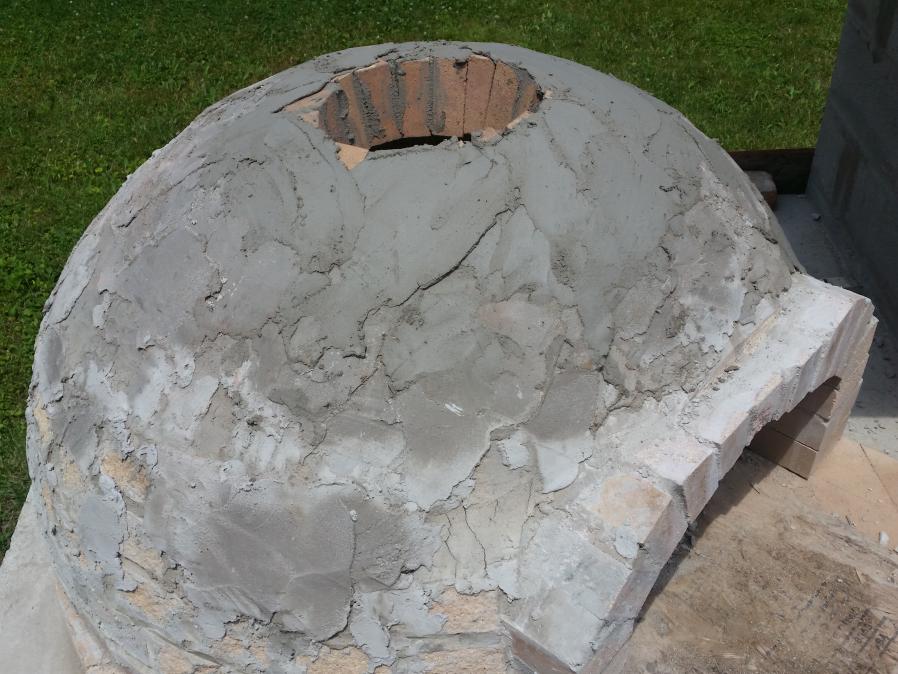

            it started raining as I was cutting the keystone of the last row before the plug. got into panic mode and ... I bet you can spot that brick. Well that's how it's going to be now (plug artifact of my oven is visible ):


            Click image for larger version

Name:	20170618_180612.jpg
Views:	1
Size:	100.8 KB
ID:	398869when I told my wife I'm going to climb inside to clean she didn't quite believe me and got out to see that for herself. Asked her to snap some pics while she's at it.

            Click image for larger version

Name:	download_20170618_212445.jpg
Views:	1
Size:	218.2 KB

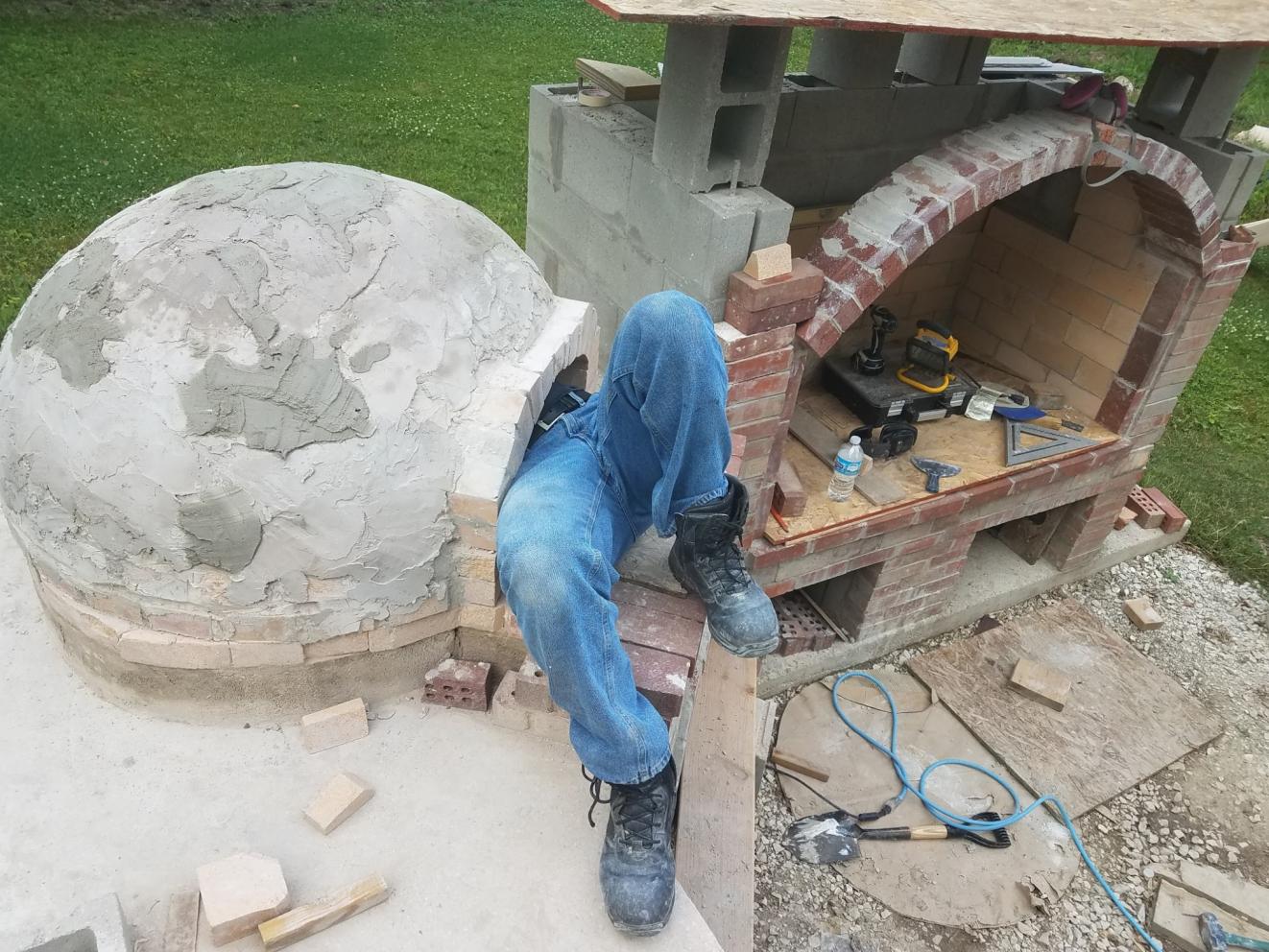

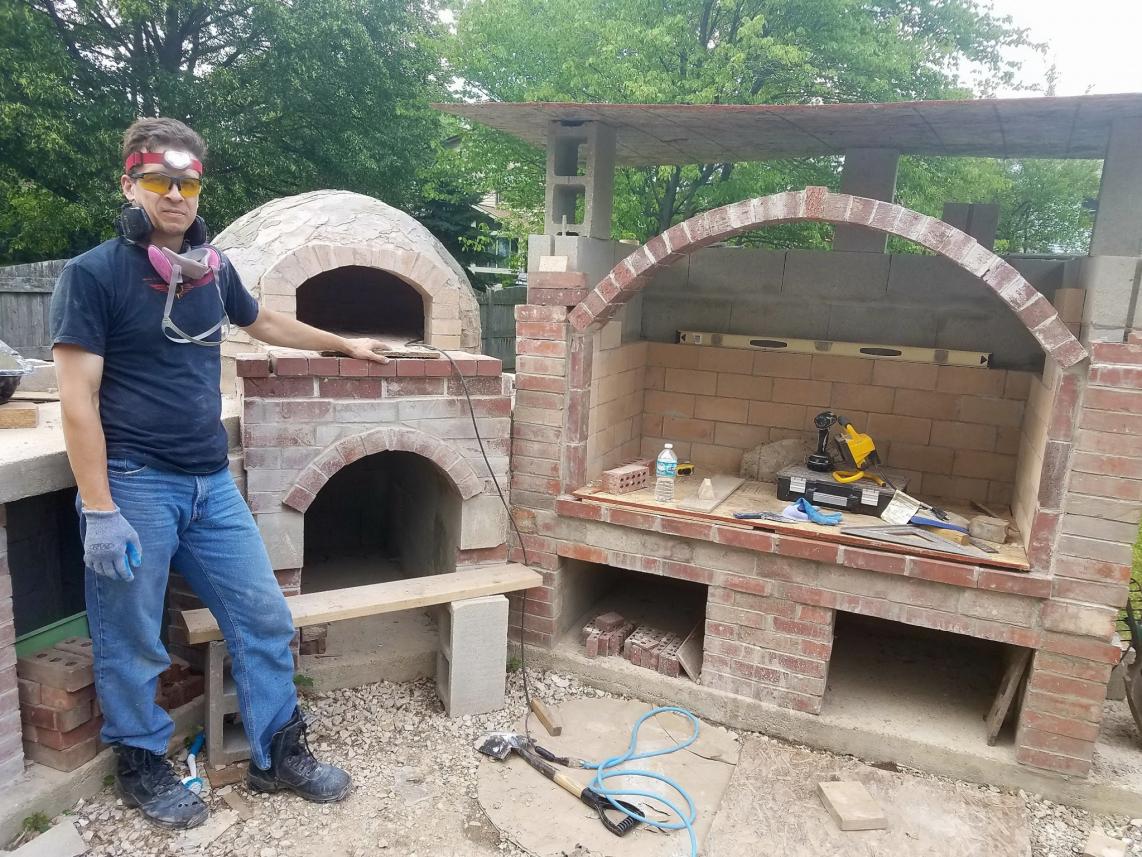

ID:	398870 yours truly and my crazy project:

            Click image for larger version

Name:	download_20170618_212432.jpg
Views:	1
Size:	197.2 KB
ID:	398871
            Anton.

            My 36" - https://community.fornobravo.com/for...t-bg-build-log

            Comment


            • #7

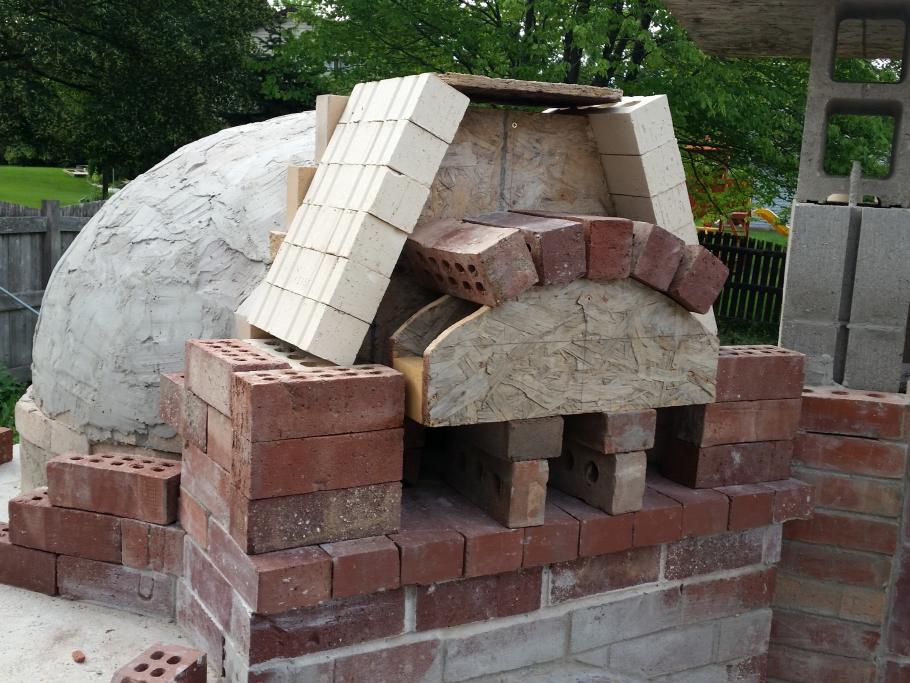

              Working on the vent and front.

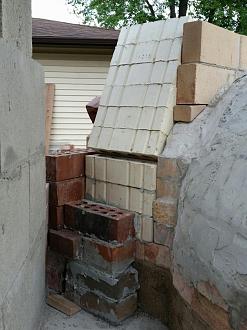

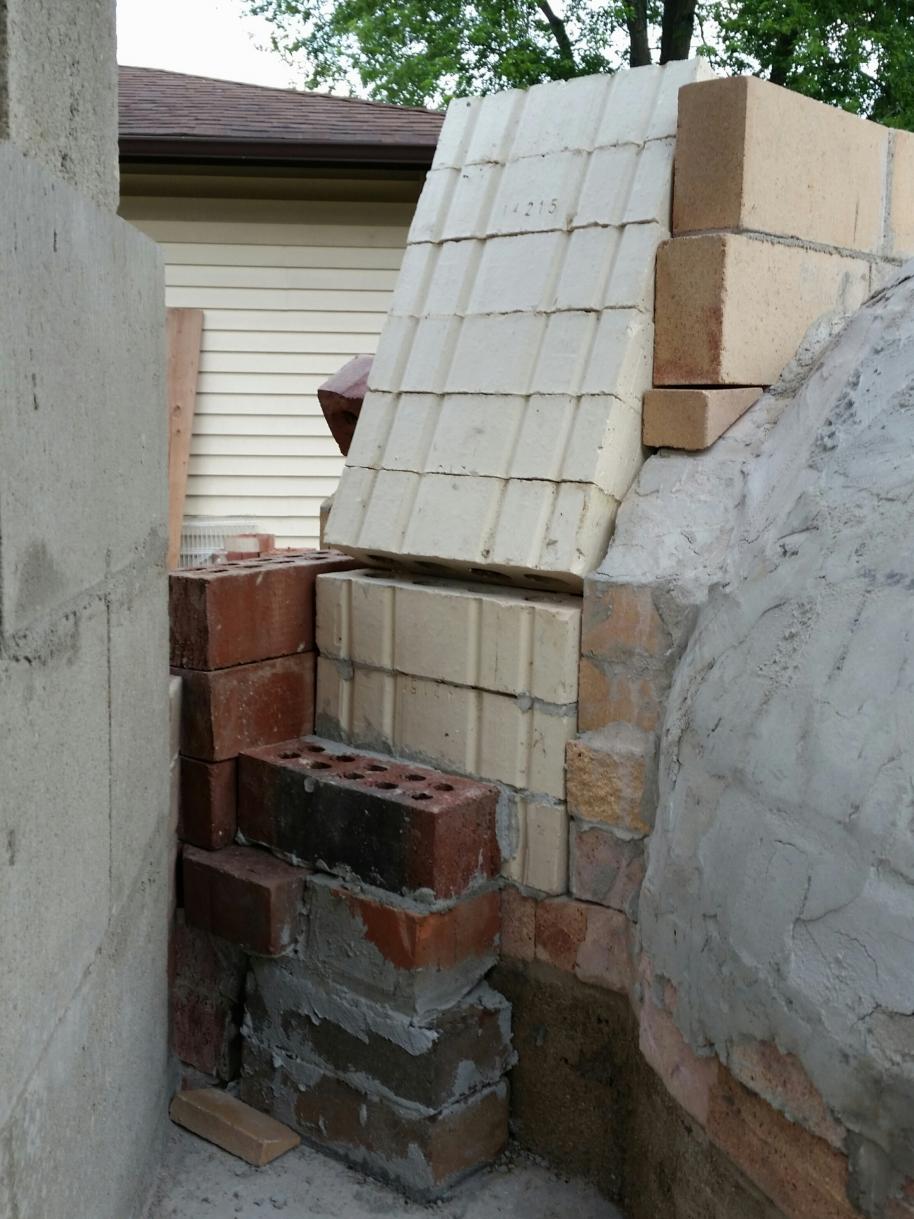

              i have a good pile of strangely sized white bricks that I intend to build a smoke " funnel". They are not firebrick, but I don't see why they can't be used there. Purchased 8x13 by 2 feet high flue block, it will be mortared on top of he "funnel". This will be a free-standing structure with about quarter inch thermal break from the dome (will need to get some CF rope to stuff in that slot)

              Click image for larger version

Name:	image_80557.jpg
Views:	1
Size:	137.5 KB
ID:	399020

              Click image for larger version

Name:	image_80556.jpg
Views:	2
Size:	108.8 KB
ID:	399021
              Last edited by agrasyuk; 06-23-2017, 10:10 PM.
              Anton.

              My 36" - https://community.fornobravo.com/for...t-bg-build-log

              Comment


              • #8

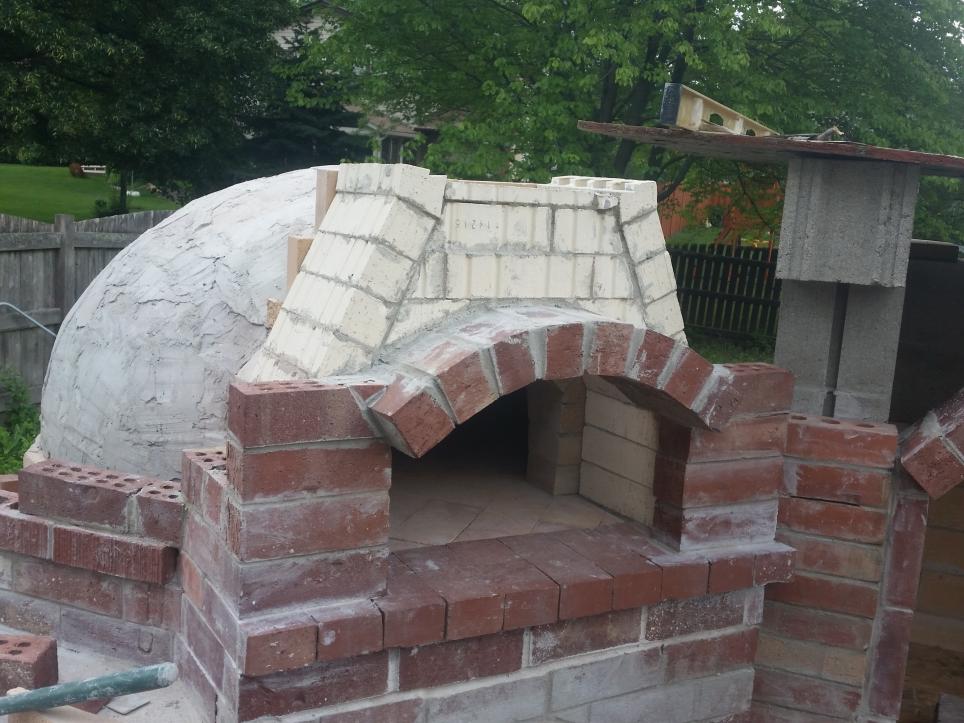

                Chimney "funnel" is complete, just need to mortar down the flue. Still lots of work on exterior.
                Click image for larger version

Name:	20170702_164753.jpg
Views:	2
Size:	101.6 KB
ID:	399284

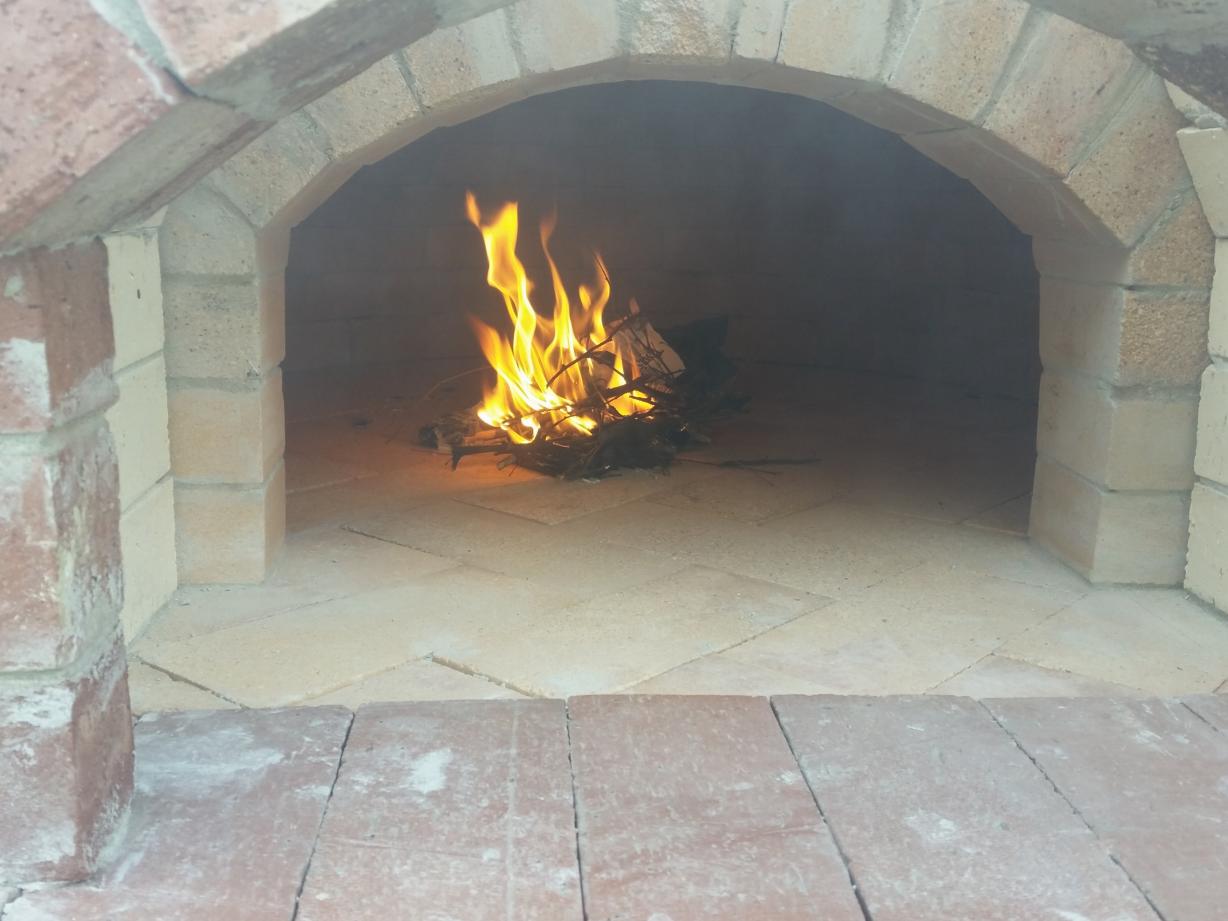

                Here is the picture i dreamt about for long long time. Starting my curing fires! Yes, i realize it is better to insulate first, I just couldn't bear the urge
                Surprisingly even without the chimney in place it draws quite well with that stubby . 0 smoke came out through front arch , but that might be because there wasn't that much smoke yet.

                Click image for larger version

Name:	20170702_163519.jpg
Views:	1
Size:	96.2 KB
ID:	399283
                Anton.

                My 36" - https://community.fornobravo.com/for...t-bg-build-log

                Comment


                • #9
                  Got through week of increasing fires and Then we got rained on hard. Oven was covered but countertop and base drew a lot of water in. The following week I did a series of very long burns and it is quite amazing to see how much water got pushed out. Water was dripping from "drain" hole on bottom of hearth (which got warm to touch), got pushed out from underneath insulating slab into structural slab.

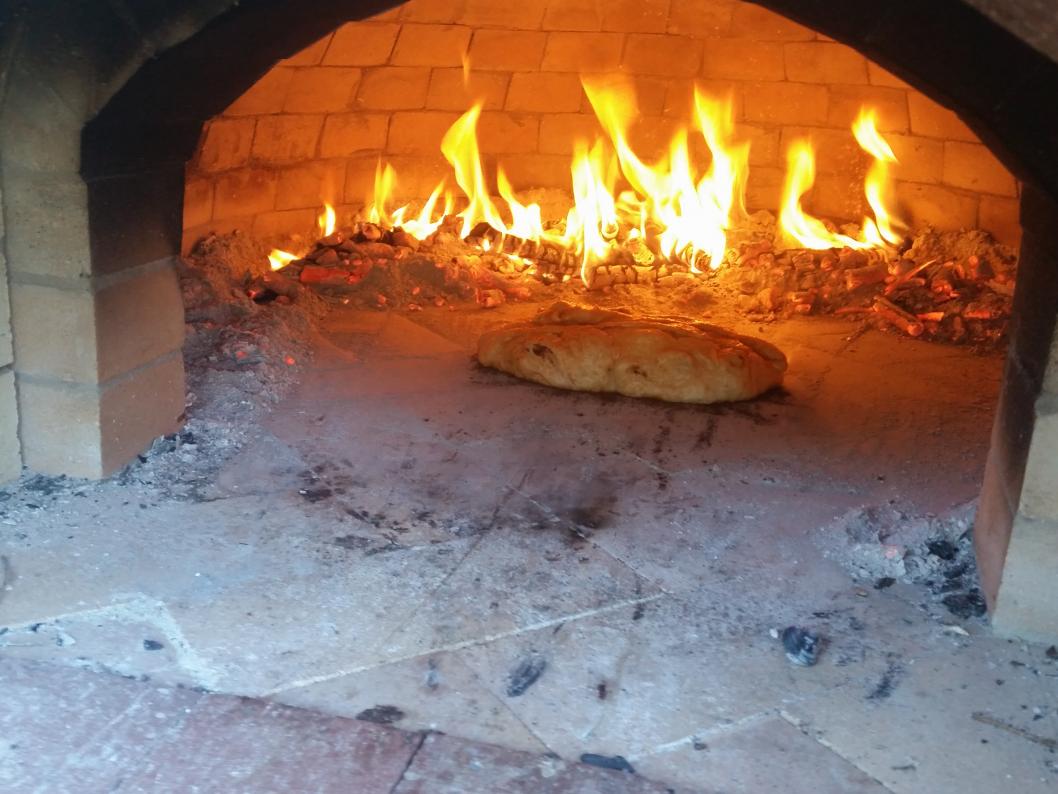

                  friday was my first pizza night as I was preparing for Sunday event. Came out delicious, but definitely cooked on longer side as uncovered oven cooled rapidly. This one was tasty but I feel could be much better:

                  Click image for larger version

Name:	20170714_212149.jpg
Views:	1
Size:	102.4 KB
ID:	399742

                  Put the blanket on for Sunday cook and it is amazing to see the difference! IR meter insisted the dome is in 800s , pizzas we're cooking fAst! What a difference. Run through 10 pizzas in no time, delicious. This pie picture probably came out best:

                  Click image for larger version

Name:	20170716_191234.jpg
Views:	1
Size:	100.4 KB
ID:	399741

                  Very important lesson learned on dough making - I though I screwed up on last batch and asked one of the guests to stop by grocery and get ready crust just in case. I'm very glad I was wrong and dough was great, the store bought stuff that we tried anyeays not so much. Must be made with low temp ovens in mind as it just burnt , and even those that weren't burnt didn't taste as good.
                  Anton.

                  My 36" - https://community.fornobravo.com/for...t-bg-build-log

                  Comment


                  • #10
                    It is finally spring in chicagoland. Or we rather skipped spring and went streight into summer this year. either way warm enough for masonry. Oven is insulated with blankets, managed to coat a layer of vermicrete on top of the blankets right before it started snowing last year.


                    EDIT: this is just horrible. No pictures in this post due to forum issues. Admin, did you guys try your website on mobile at all?
                    Last edited by agrasyuk; 05-17-2018, 09:49 AM.
                    Anton.

                    My 36" - https://community.fornobravo.com/for...t-bg-build-log

                    Comment


                    • #11
                      Nice work! Im Building one of these in the south burbs of Chicago.
                      My Build Pictures
                      https://onedrive.live.com/?authkey=%...18BD00F374765D

                      Comment


                      • #12
                        Your oven looks great. How did your oven stand up to winter & snow? I'm as I've got to finish my oven and exterior in advance and am looking at all info on "winterizing" an oven.

                        Also, I have been experiencing an issue with posting pictures, sometimes. (Both from mobile and desktop. Mobile is easier, if it works, as it is the device the pictures are taken on)

                        David
                        David in Calgary
                        My Build Thread

                        Comment


                        • #13
                          This a test from my iPhone
                          joe watson

                          "A year from now, you will wish that you had started today "

                          My Build
                          My Picasa Web Album

                          Comment


                          • #14
                            I rembember that there were some problems with the android phones not storing the image in a format compatible with vB5. But, I thought that was fixed with the forum's last uprade.
                            joe watson

                            "A year from now, you will wish that you had started today "

                            My Build
                            My Picasa Web Album

                            Comment


                            • #15
                              Hi Joe. my mobile is indeed Android. it was always a challenge to add pictures, but the other day i reached my frustration threshold and gave up. tonight a have a moment so please find screenshot attached. aside of the fact it has issues dealing with standard JPG files, notice misaligned controls (the "X") and some strange transparency. to upload the photo I ended up taking a screenshot of the picture, pasting into paint to save... not ideal.

                              grill area dome is complete, new sparkling stainless steel grates have arrived, need to cut and weld grate holder frame. Grill dome was a very interesting experience laying bricks on a slope without any support, almost defying gravity. last years experience doing oven dome definitely did help me prepare for this. at the very top mortared a ceramic lamp socket, should help with seeing the food being grilled during dark times of the day. some discoloration due to brick taking liquid from the very fresh vermicrete backing.
                              Aside of that I do have quite a progress on external brickwork, 4 electrical boxes will hold switches and 3 lighting fixtures. Currently working on both chimneys.

                              TY Chach. good luck on your project.

                              shanxk8, oven did not fall apart under snow weight and that already a plus since the vermicrete external dome is not watertight at all it did take a lot of moisture during the winter though, tarp that was covering it did get blown off a few times. for first few firings it took measurably longer to come to temp. i still have a summer ahead of me, hoping to build a roof as soon as possible
                              Last edited by agrasyuk; 06-03-2018, 08:29 PM.
                              Anton.

                              My 36" - https://community.fornobravo.com/for...t-bg-build-log

                              Comment
