  • #46
    Originally posted by Mr. Slowhand View Post
    Huston, we are vertical!!!

    Click image for larger version

Name:	2022-07-17 19.40.11.jpg
Views:	556
Size:	226.1 KB
ID:	447963

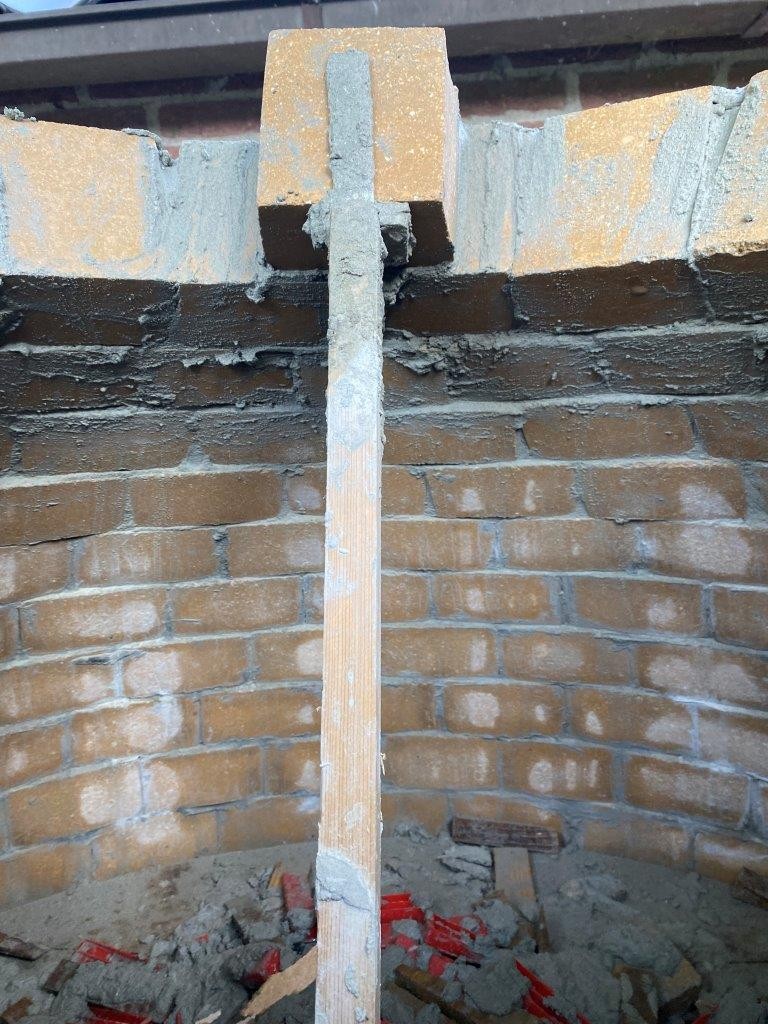

    The build is going great!. Yesterday was one of the most productive days.
    I used a wire wheel mounted on a drill to clean the inside walls, and managed to lay approx 2.5 rows (3 rows over the entrance arch, as there was a gap), plus 2 on the entire one

    Also started to taper the bricks, avoiding as much as possible the "wee" joints

    Click image for larger version

Name:	2022-07-17 19.39.02.jpg
Views:	551
Size:	283.7 KB
ID:	447966 Click image for larger version

Name:	2022-07-17 16.35.36.jpg
Views:	564
Size:	230.7 KB
ID:	447965

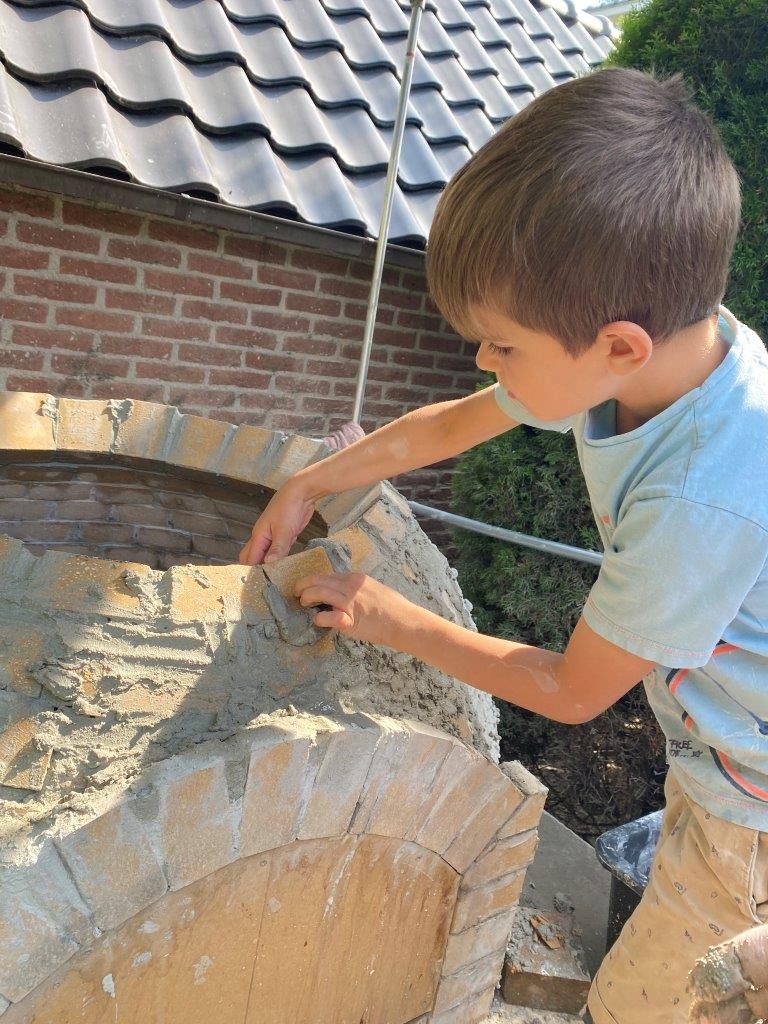

    My son adores working on it, looks quite adept as well!.

    So, for tapering and other compound curves, using a clamp

    Click image for larger version

Name:	2022-07-16 12.32.01.jpg
Views:	551
Size:	243.4 KB
ID:	447968



    Yikes! That saw looks like it has no water feed. If so the dust is very dangerous to inhale for the operator or anyone (including your neighbours) in the vicinity. Soaking the bricks before cutting only reduces the dust minimally. If so it's probably too late now because it looks like you've finished cutting all your bricks.

    https://www.vent-tech.co.uk/blog/sil...short%20period.
    Kindled with zeal and fired with passion.

    Comment


    • #47
      Originally posted by david s View Post

      Yikes! That saw looks like it has no water feed. If so the dust is very dangerous to inhale for the operator or anyone (including your neighbours) in the vicinity. Soaking the bricks before cutting only reduces the dust minimally. If so it's probably too late now because it looks like you've finished cutting all your bricks.

      https://www.vent-tech.co.uk/blog/sil...short%20period.

      Double yikes, did not know it is that serious. I was wearing, for at least 80% of the time the mask, and 100% of the time the eye protection. Plus the cutting station was located next to a box type wall, so most of it stayed there.
      Anyhow, thanks for the info. Is there any info on any of the amateur builders ever developing anything from this? As I have seen a lot of builds with just a miter saw type contraction, without a water source.
      Thanks for the info David, the cutting is thankfully done

      Comment


      • #48
        Sorry if I made this sound too dramatic. The guys cutting and installing stone countertops working every day are at a very high risk. You should be fine. I’m surprised your saw didn’t die. Both the switch and motor on angle grinders don’t last too long before a total dismantle and clean is required.
        Kindled with zeal and fired with passion.

        Comment


        • #49
          Originally posted by david s View Post
          Sorry if I made this sound too dramatic. The guys cutting and installing stone countertops working every day are at a very high risk. You should be fine. I’m surprised your saw didn’t die. Both the switch and motor on angle grinders don’t last too long before a total dismantle and clean is required.
          No, you are absolutely correct, and I should take notice of it. I am a seasoned motorcycle rider, having made a trip around the world also, and firm believer in ATGATT rule (all the gear, all the time). So, should have known this.
          But, the angle grinder was not expensive, still works OK. The disc was more expensive than the grinder, to be honest, it was around 100 EUR, the grinder was a in-store brand, at around 65 EUR. All work good.

          Now, you have me very intrigued with the casting possibility. You say it does not take you a lot to cast a flue. Can you point me to some of your posts where you describe how you cast, and what materials do you use. Thanks!

          Marko



          Comment


          • #50
            Ok, after a brief overview, definitely going to cast the flue gallery.
            The inner mould is done with sand, I understand that one. The outer mold, I presume you do with some sort of wood planks. Without it it would simple run down? Not understanding how that is done.
            I have a couple of questions, if anyone can assist:

            1. Refractory castable. I am in the Netherlands, cannot seem to find online anything offered. Does anyone have any advice. I have no preference weather to buy, or make some homebrew refractory castable. I cannot seem to find a recipe for one. I definitely see that the homebrew mortar is not a refractory castable material.

            2. The needles/fibres for the mix. Anybody now a similar name for what david s and the US builders use?

            Or if you can point me to the posts that detail this, thanks!!

            Thanks guys

            Marko

            Comment


            • #51
              BTW, I went a bit overboard, and see that I bought way more firebricks than I need.
              ..... well I gues I will be making that tandoori oven next......

              Comment


              • #52
                Originally posted by Mr. Slowhand View Post
                Ok, after a brief overview, definitely going to cast the flue gallery.
                The inner mould is done with sand, I understand that one. The outer mold, I presume you do with some sort of wood planks. Without it it would simple run down? Not understanding how that is done.
                I have a couple of questions, if anyone can assist:

                1. Refractory castable. I am in the Netherlands, cannot seem to find online anything offered. Does anyone have any advice. I have no preference weather to buy, or make some homebrew refractory castable. I cannot seem to find a recipe for one. I definitely see that the homebrew mortar is not a refractory castable material.

                2. The needles/fibres for the mix. Anybody now a similar name for what david s and the US builders use?

                Or if you can point me to the posts that detail this, thanks!!

                Thanks guys

                Marko
                Try this thread for starters.
                https://community.fornobravo.com/for...803#post413803

                The flue gallery does not really see direct flame impingement so the homebrew (3:1:1:1) as used for mortar is quite adequate. Using castable refractory which is expensive and less user friendly is probably not an ideal material for a first time home build. The fibre reinforcement is also not mandatory but does increase strength therefore allowing a thinner casting. The AR (alkaline resistant) fibreglass fibres as used by the concrete countertop builders work well for this application and are user friendly. The very fine polypropylene fibres as used in concrete help the safe elimination of moisture, reducing the possibility of steam spalling.

                Another thread that may help you on a similar problem is the rebuild of a front arch. I retained the three corses of the original arch as they were pretty solid.

                https://community.fornobravo.com/for...723#post435723
                Last edited by david s; 08-17-2022, 04:04 AM.
                Kindled with zeal and fired with passion.

                Comment


                • #53
                  Originally posted by david s View Post

                  Try this thread for starters.
                  https://community.fornobravo.com/for...803#post413803

                  The flue gallery does not really see direct flame impingement so the homebrew (3:1:1:1) as used for mortar is quite adequate. Using castable refractory which is expensive and less user friendly is probably not an ideal material for a first time home build. The fibre reinforcement is also not mandatory but does increase strength therefore allowing a thinner casting. The AR (alkaline resistant) fibreglass fibres as used by the concrete countertop builders work well for this application and are user friendly. The very fine polypropylene fibres as used in concrete help the safe elimination of moisture, reducing the possibility of steam spalling.

                  Another thread that may help you on a similar problem is the rebuild of a front arch. I retained the three corses of the original arch as they were pretty solid.

                  https://community.fornobravo.com/for...723#post435723

                  Excellent idea, just to be sure the 3/1/1/1 with the AR fiberglass and the PP fibres both? Is there any instructions on how much to use? Do you make any outside mold, or it just sticks?

                  marko

                  Comment


                  • #54
                    If you make the mix to the right consistency it will stand up vertically. Too wet and it will slump, to dry and you’ll get voids. The consistency is described as “ball up” ie throw a ball of the mix 2 feet (600mm) in the air and catch it. Either too wet or too dry won’t work. There are plenty of cast builds on the Other Ovens section that describe fibre additions, read as many as you can. Obtaining the ideal consistency and wriggling the mix against the mould should eliminate nearly all the air, although an outside mould and vibration is superior, it is far more complex to create the moulds as well as creating more difficulty in placing the mix.
                    Last edited by david s; 08-17-2022, 08:06 PM.
                    Kindled with zeal and fired with passion.

                    Comment


                    • #55

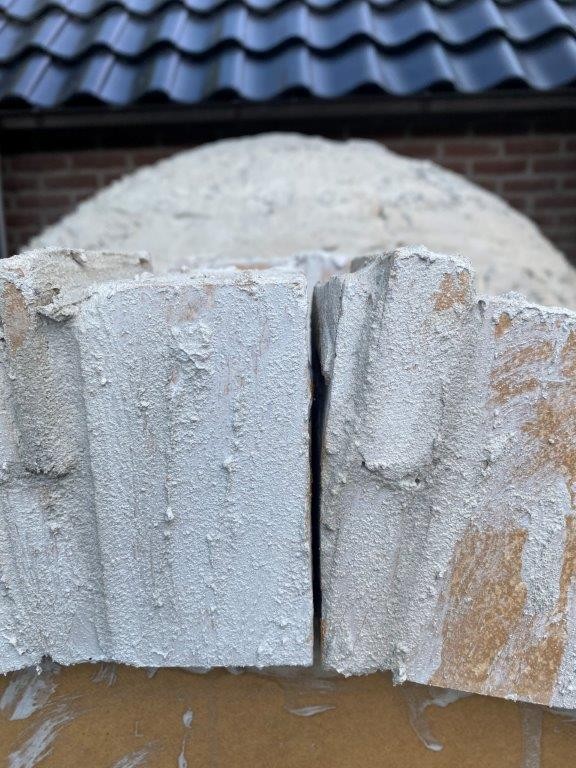

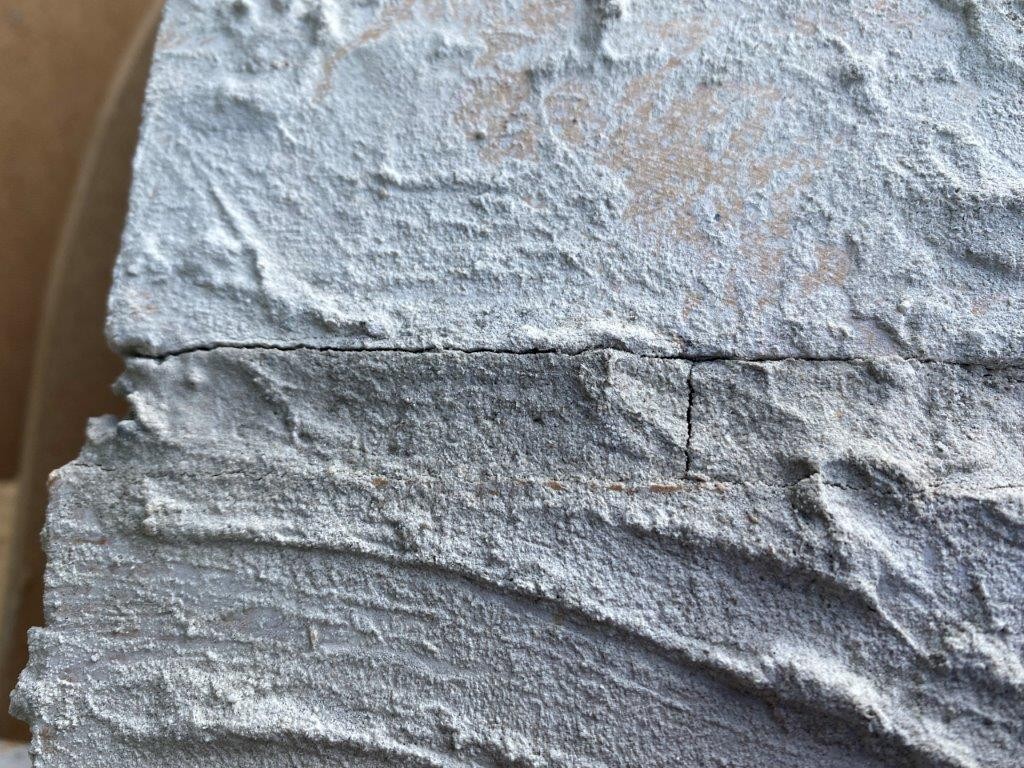

                      So, I noticed some cracks on the front arch. Let's just clean them a bit, so I can push some new mortar there.....

                      Click image for larger version

Name:	2022-08-18 19.20.24.jpg
Views:	404
Size:	141.0 KB
ID:	448954

                      Oh, there is another one somewhat towards the base..

                      Click image for larger version

Name:	2022-08-18 19.20.32.jpg
Views:	345
Size:	298.8 KB
ID:	448955


                      And before you know it:

                      Click image for larger version

Name:	2022-08-18 19.21.53.jpg
Views:	347
Size:	256.7 KB
ID:	448956

                      Click image for larger version

Name:	2022-08-18 19.21.59.jpg
Views:	351
Size:	218.9 KB
ID:	448957

                      One big chunk came off.
                      Nothing to it, I cleaned the mortar of the bricks, mixed some mortar and put it back together.
                      The issue is, I made the arch, and left for holidays. Maybe someone should have come and put some water over the arch.It did not fall apart when I removed the arch support. I just it is a bit loose, and could take it out with my hand. Even if I had not fixed it the fact that above it I would put mortar to cast the flue, it should have kept it in place. But, no sense in not repairing it now.

                      Anyhow, now it is fixed, tomorrow I am casting the flue. I could only find the bazalt AR fibres, not the normal AR fiberglass fibres. And got the normal PP fibres, so it will be an interesting experience.

                      Hope to finish it tomorrow!!!

                      Marko


                      Comment


                      • #56

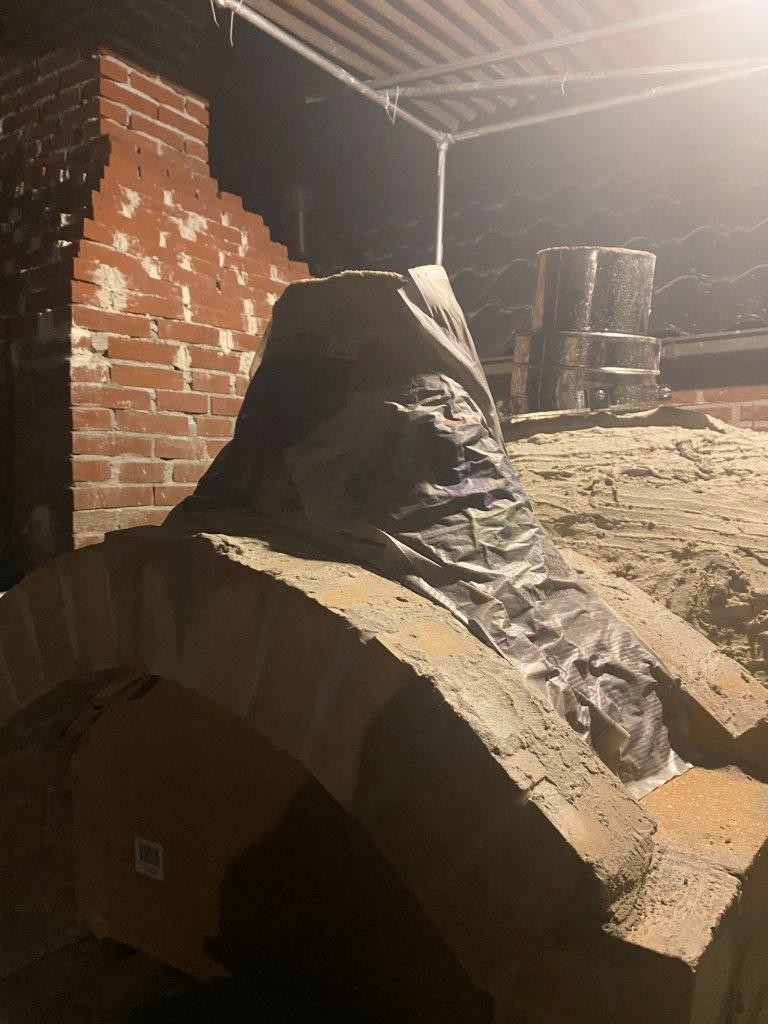

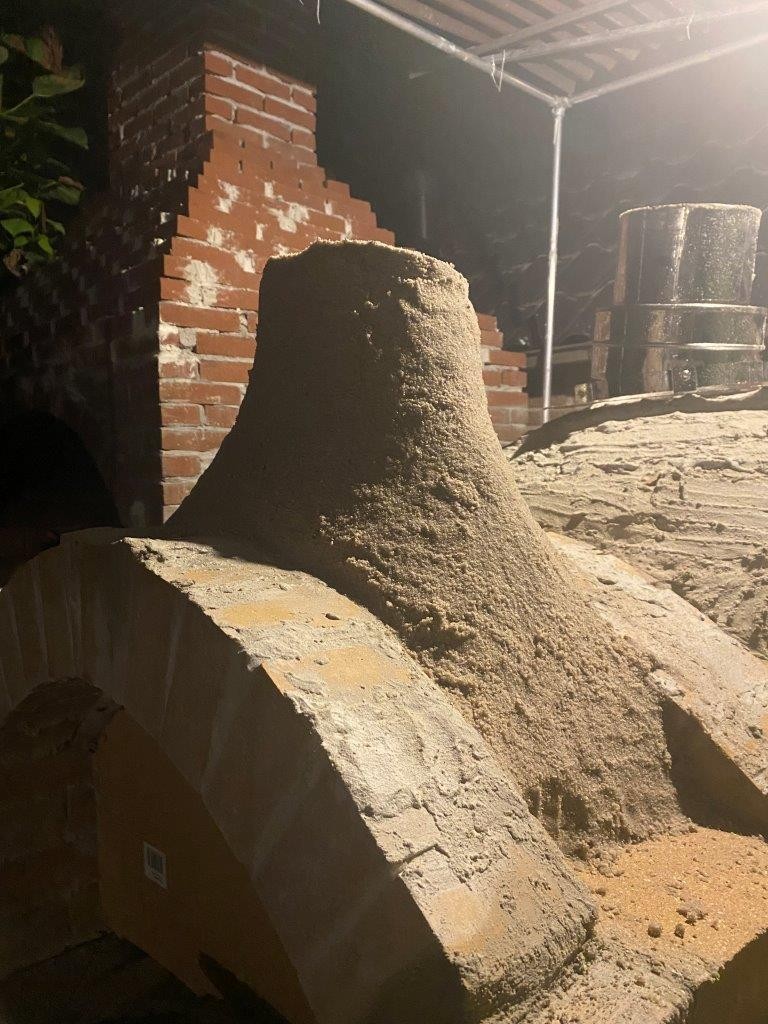

                        Was a bit busy with the removal of the arch form, cleaning the oven entry, and putting the arch for the flue mold. I than started building this form, out of sand. Never ever I did anything like this, so it took me a while to get the right consistency of the sand, so it can stay OK. I added a bit water (don't know if that is the route). Ended looking OK

                        Click image for larger version

Name:	2022-08-25 21.39.07.jpg
Views:	318
Size:	203.1 KB
ID:	449112




                        Click image for larger version

Name:	2022-08-25 22.11.58.jpg
Views:	329
Size:	152.7 KB
ID:	449111


                        Afterwards, covered it with wet newspaper. I see why this needs to be done. Otherwise, the concrete will embed a lot of the sand in the actual casted cement.

                        Click image for larger version

Name:	2022-08-26 07.22.49.jpg
Views:	334
Size:	197.7 KB
ID:	449109

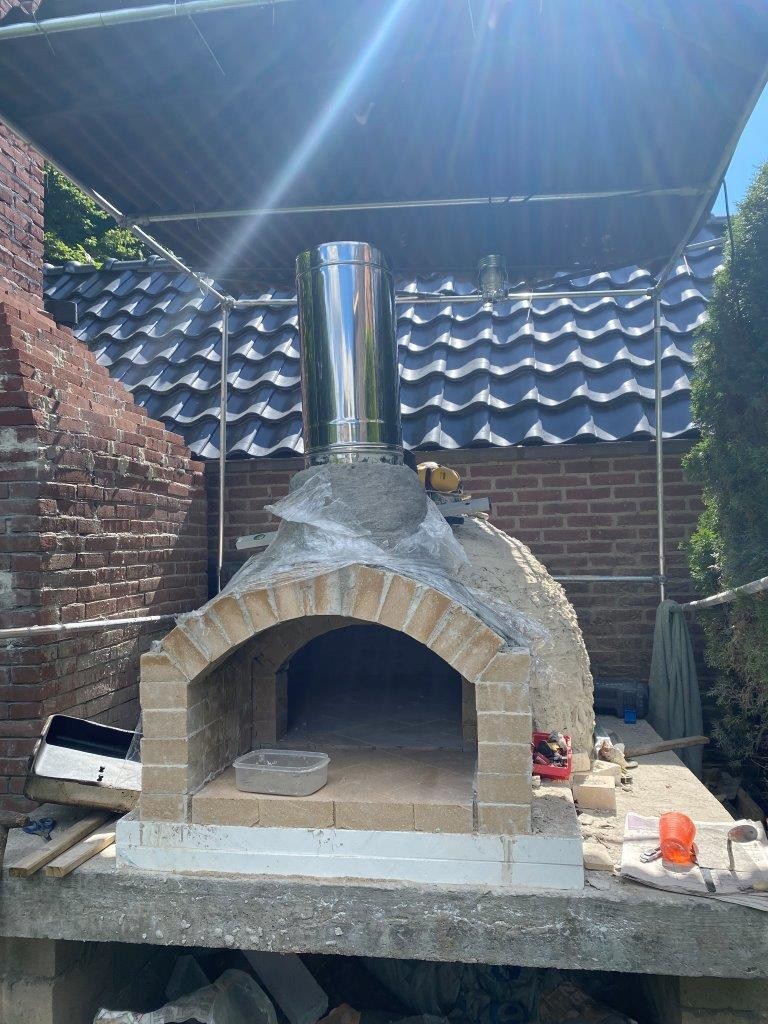

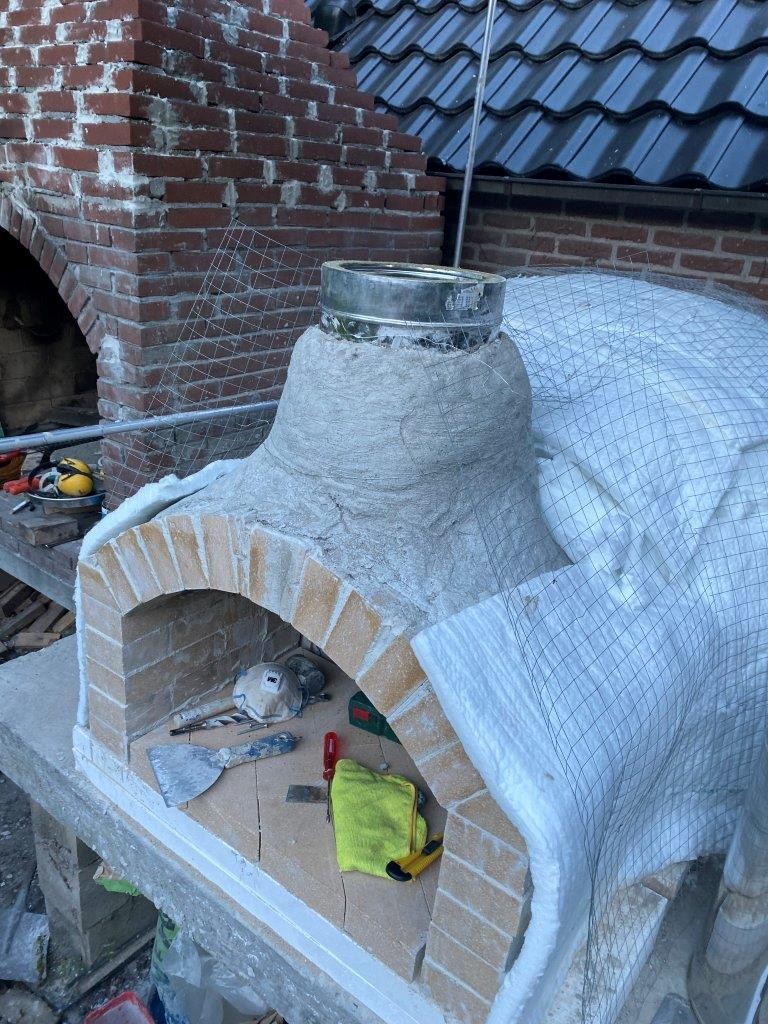

                        At the end I put a chimney in the concrete, and than built the enclosure around it. This is to be able to have the cimney "sit" in a concrete opening with the right size. After some 1hour, I wrapped the entire thing in cling film, that is a good idea.
                        I got some bazalt fibers. The characteristics state that they are good up until 1,200 degrees celsius. The ration was approx 3% of the mass. I tried to determine this as much as closely possible, so for this amount I had to use approx 800 grams of the fibres. In addition, I put some PP fibres for steam spalling. Tried to use the guidance of quantity on that one as well. Not a lot was needed. The amount of concrete was approx 2/3 full wheelbarrow. I think it was enough. If not, I will add another layer, we will see how that goes.
                        So, following the excellent guidance of David s, I tried to do this. If it does not go through, I can always remove it, and build one from bricks, hopefully does not go there.
                        All of the isolation has arrived, I might finish this soon as well. Hopefully putting the blankets and vermicrete on sunday!!!

                        Marko



                        Attached Files

                        Comment


                        • #57
                          Great job. I think you'll be happy with the solution. That form would have been nigh on impossible to build with brick units and taken 10x as long.
                          Kindled with zeal and fired with passion.

                          Comment


                          • #58
                            Originally posted by david s View Post
                            Great job. I think you'll be happy with the solution. That form would have been nigh on impossible to build with brick units and taken 10x as long.

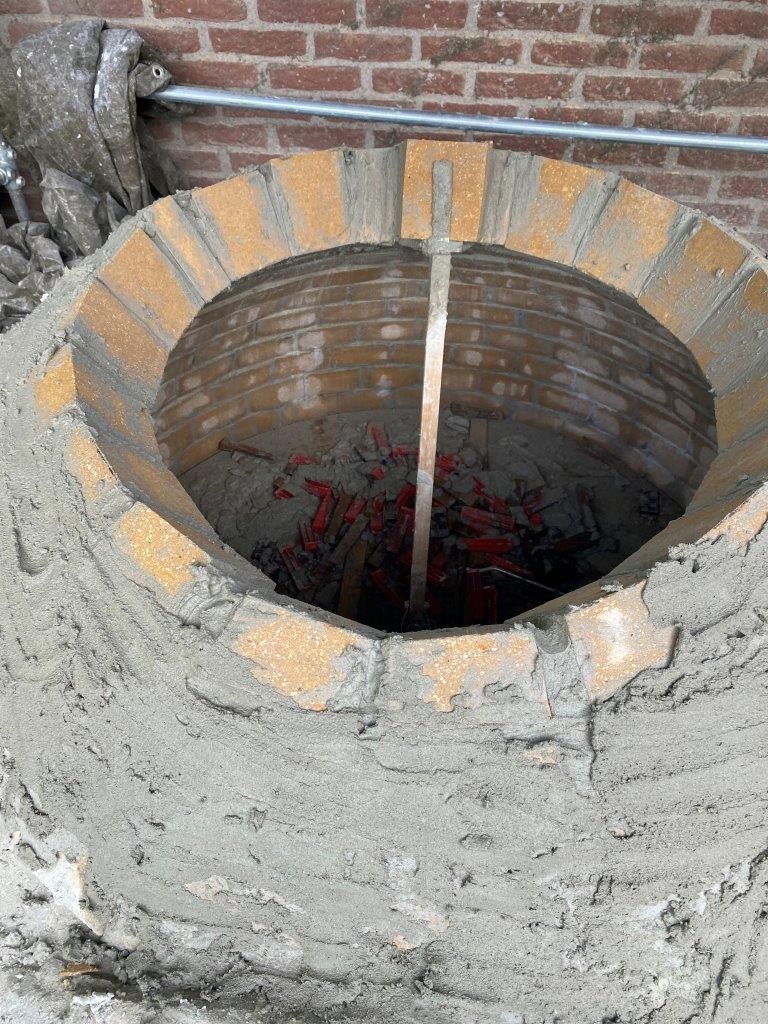

                            Absolutely right. Just yesterday, I removed the sand and newspaper from the inside of the oven. Looks pretty smooth. I had the misfortune of putting the chimney bit wrong way around. So had to remove it, it was stuck super tight. After removing it, rotating it, I could attach the rest of the chimney.

                            Click image for larger version

Name:	2022-08-28 12.47.02.jpg
Views:	288
Size:	215.7 KB
ID:	449179

                            It is a bit crooked on this picture, but that is because it is not fixed. I put it just to see that the fittings match.
                            Attached Files

                            Comment


                            • #59

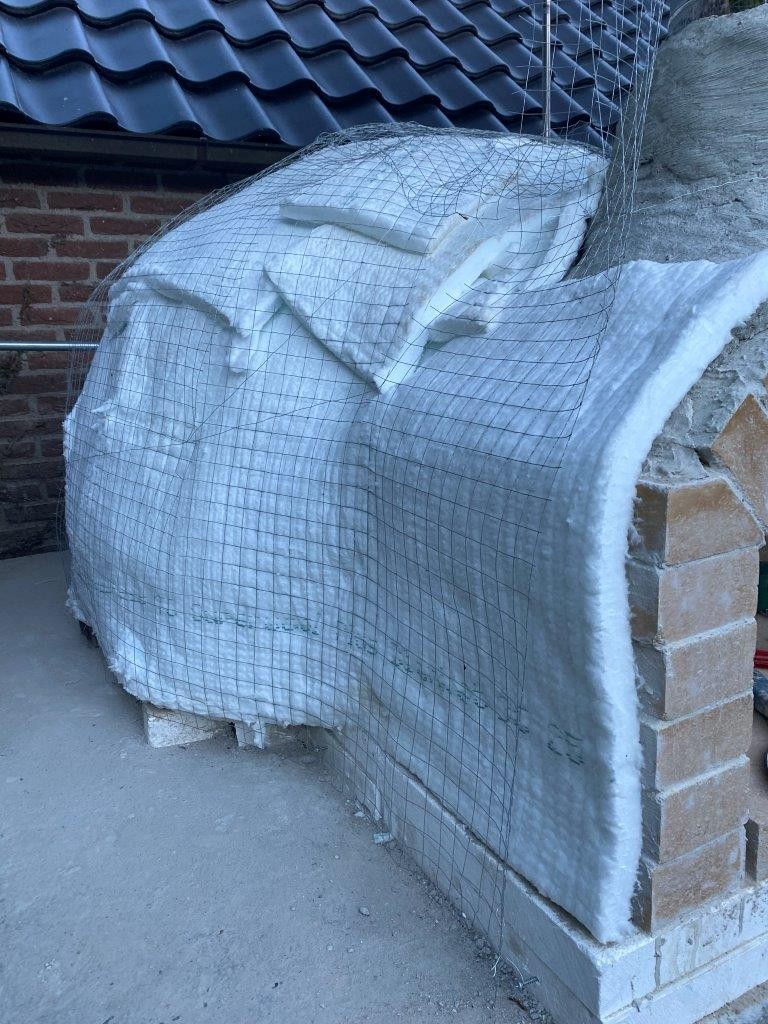

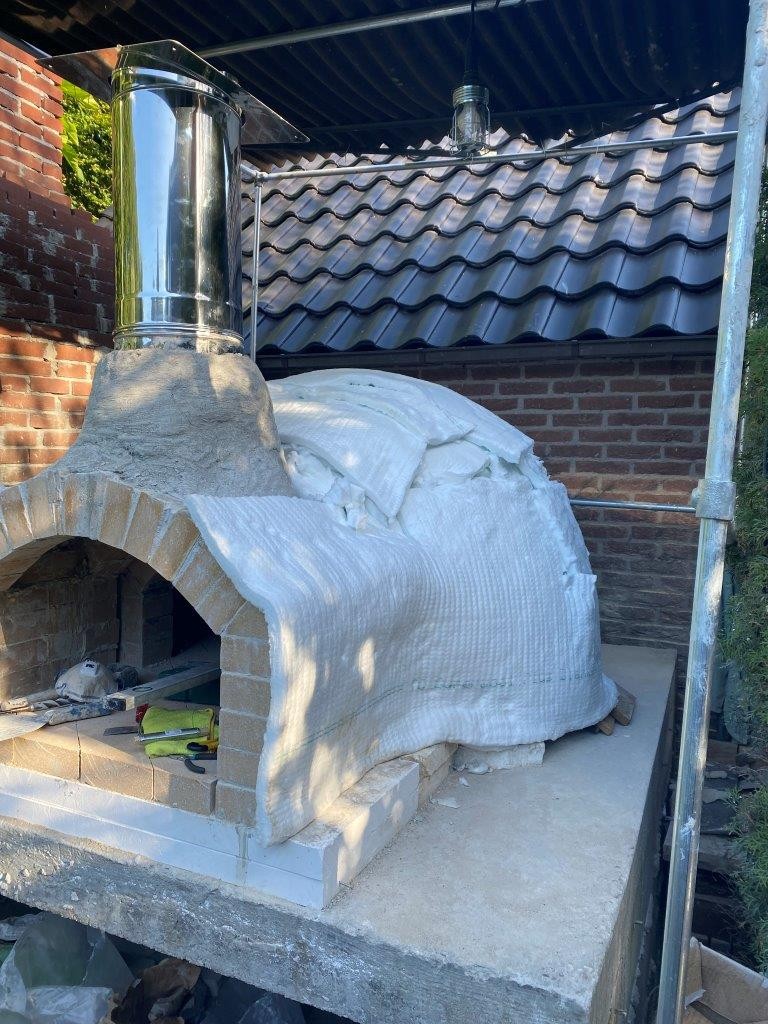

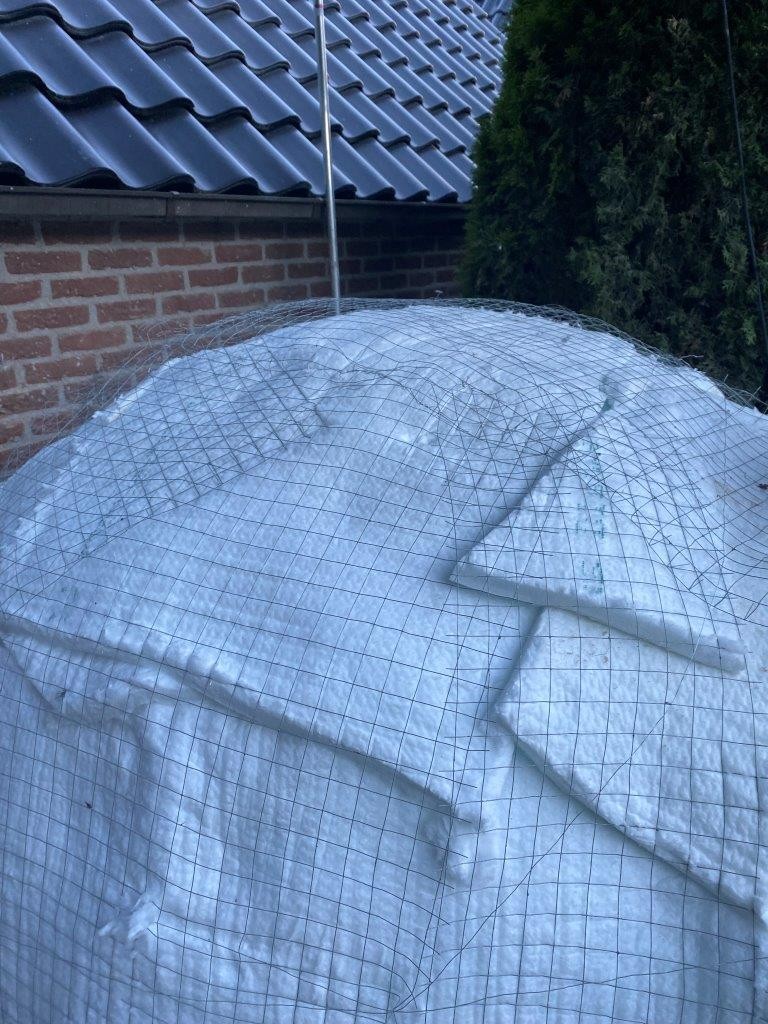

                              After this, the timing was to put the morgan superwool around the oven. I did 3 layers everywhere, plus fourth layer on the top, close to most of the dome.
                              Click image for larger version

Name:	2022-08-28 20.17.35.jpg
Views:	331
Size:	238.7 KB
ID:	449181 Click image for larger version

Name:	2022-08-28 20.17.16.jpg
Views:	293
Size:	262.0 KB
ID:	449182
                              Click image for larger version

Name:	2022-08-28 20.17.31.jpg
Views:	288
Size:	234.6 KB
ID:	449183


                              Around the entry is currently only one layer. This is due to the fact that I have mixed a bit more homebrew with the fibres, and reinforced from inside some places where the casted flue was not straight, and did another round of cement around the base of the chimney holder, to be more reinforced.

                              Click image for larger version

Name:	2022-08-28 18.15.57.jpg
Views:	267
Size:	234.5 KB
ID:	449184

                              So, starting with vermicrete later today, I hope. This one will last for some time, as I will do layer by layer.



                              Comment


                              • #60
                                A question for you guys:

                                1. The heat gap is quite large, somehow ended up being close to 3cm, and wide, just do to the size of my entry gallery. I wanted to do the following - stuff it with isolation blanket, than high heat rope, than some high temperature reparation kit. Does this sound ok?

                                2. I managed to drill approx 5 holes around the CalSil board, for water draining in the curing, and through later usage of the oven. Would it make sense to put a plastic mesh, like the one used in plasters, just above the hole, to stop any vermeculite going into the hole? I know this is below the oven, the temperature should not be that high, but would not like that the plastic melts, and than blocks the hole more than any vermeculite correls would block it.


                                Regards,

                                Marko

                                Comment
