    CMU Base Size

    I've been looking at the photos in the FB build manual and I'm confused as to the size of base required. For a 42" oven, it states that the base should be 65"x78" but in the photos, I'm seeing bases that are both 4.5 CMU blocks deep and 5.5CMU blocks deep. Which is correct?
  • MarkJerling
    Master Builder
    • Oct 2020
    • 813

    #2
    Originally posted by Blairt
    I've been looking at the photos in the FB build manual and I'm confused as to the size of base required. For a 42" oven, it states that the base should be 65"x78" but in the photos, I'm seeing bases that are both 4.5 CMU blocks deep and 5.5CMU blocks deep. Which is correct?
    65"x78" is a good size. I based my 42" oven on that and went fractionally larger at 2014mm x 1690mm. That has worked well and have provided me with enough size for my (very thick) insulation layers.
    My 42" build: https://community.fornobravo.com/for...ld-new-zealand
    My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

    Comment

    • Blairt
      Peasant
      • Dec 2017
      • 40

      #3
      Thanks Mark! That will make things much easier for me!

      Comment

      • UtahBeehiver
        Member Moderator
        • May 2012
        • 5262

        #4

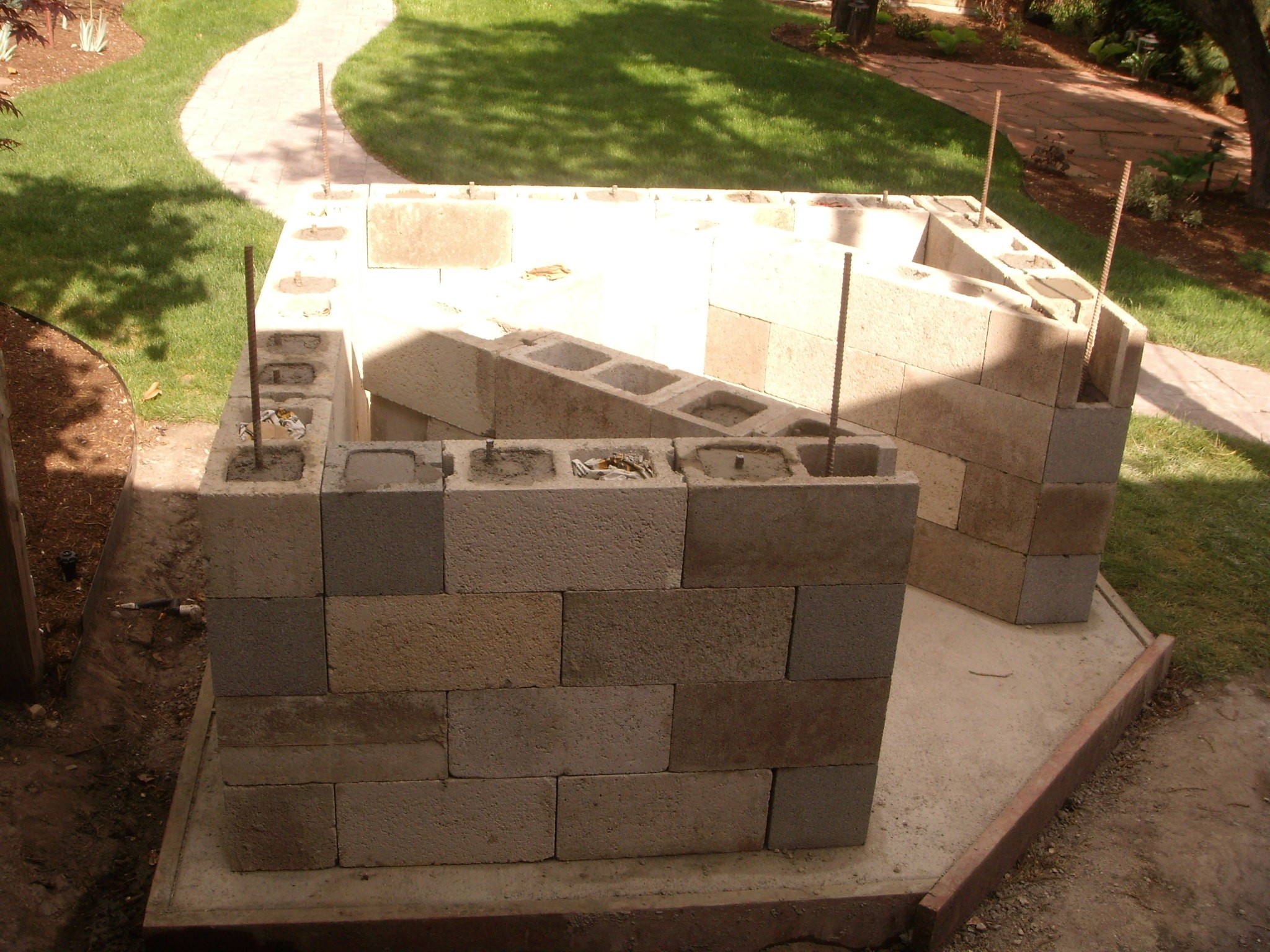

        The FB plans do have a few inconsistent dimensions that have been there from day one. It is best you sketch or in you are computer literate use Sketch-up to lay your project out. I did a 42" corner build and when completed the finished edge was at the edge of the hearth base. It is better to have more than less.

        Click image for larger version

Name:	20 Finished Base 5.3.12.JPG
Views:	615
Size:	674.8 KB
ID:	433567
        Russell
        https://photos.google.com/album/AF1Q...L9lr_UnUgJbF3Z

        Comment

        • Blairt
          Peasant
          • Dec 2017
          • 40

          #5
          Thanks Russell. Your photos are fantastic! I plan on using mortar on my CMUs rather than just dry stacking. I'll still fill with concrete but I feel that the mortar will just add more strength which can't be a bad thing - can it? I have room to be a full 5 blocks long but not 5.5 so with mortar I should have good space for the oven and a landing out front.

          Comment

          • UtahBeehiver
            Member Moderator
            • May 2012
            • 5262

            #6
            Look at Gulf's build, he has quite a tall chimney.
            Russell
            https://photos.google.com/album/AF1Q...L9lr_UnUgJbF3Z
