    I've recently rebuilt my mobile oven because it was full of cracks after nine years of service and abuse, although reluctantly because it still performed well and had become an old friend. A high priority for the original build was weight because it's designed to roll on and off the trailer and this ultimately led to some of the problems that later appeared.

    The supporting slab was made of Hebel Power Panel (4mm internally cast steel reinforcing) that cracked badly, although I'm still unsure whether it was from heat or road speed bumps and corrugations. I used this material in the belief that it would provide both sufficient strength and insulation whilst making a considerable contribution to weight reduction. Hebei or AAC is around 1/3 the weight of equivalent standard reinforced concrete and I believe around a third the strength. Consequently I wouldn't use it again in the rebuild.I also had a 1" layer of vermicrete between the Hebel and the one piece cast floor to take the sting out of the floor in an effort to protect the Hebel from higher temps. I also used a one piece cast dome and a one piece cast floor. I was concerned about multi pieces rattling to bits having read that brick mobile ovens tend to do that. The lesson here is that a one piece floor cracks. Because of the uneven heat and therefore uneven expansion, you can expect any large cast pieces to crack. Not that it really matters because it still works adequately, however I now cast the floors in two pieces with a tongue and groove join.
    Last edited by david s; 05-31-2017, 02:23 PM.
    Kindled with zeal and fired with passion.

  • #2

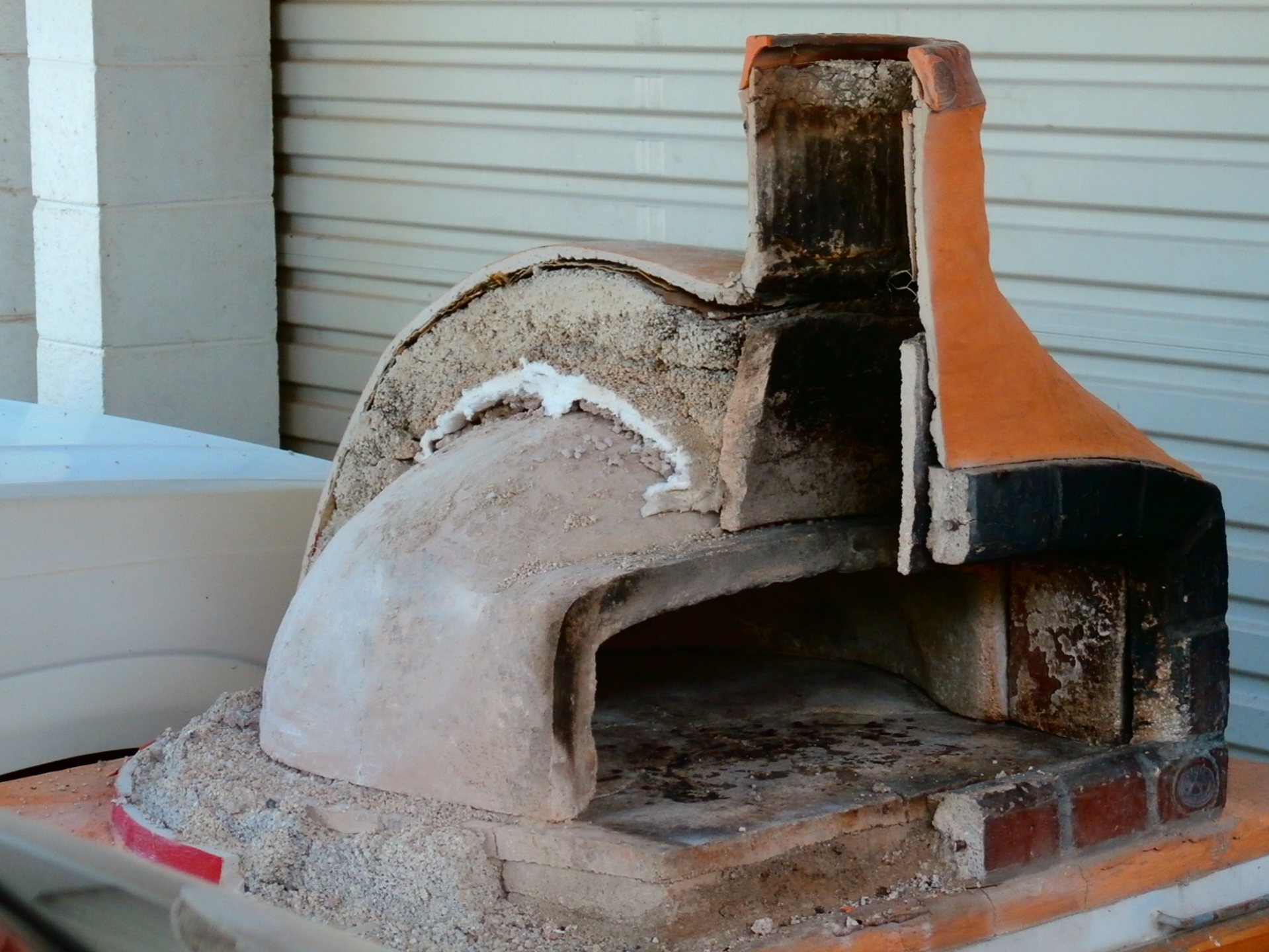

    During the deconstruction process I cut the outer oven in two to show construction. When I built this oven around 9 years ago the safer (exonerated as a carcinogen) blanket price was prohibitive, so I used not to use it preferring to only use vermicrete. The blanket shown is rather thin (old type) that I already had.The inner one piece casting has survived surprisingly well, with a few minor cracks. The outer shell also survived surprisingly well considering I made it as thin as I dared to save weight. It is only 10 mm thick with chicken wire reinforcing.

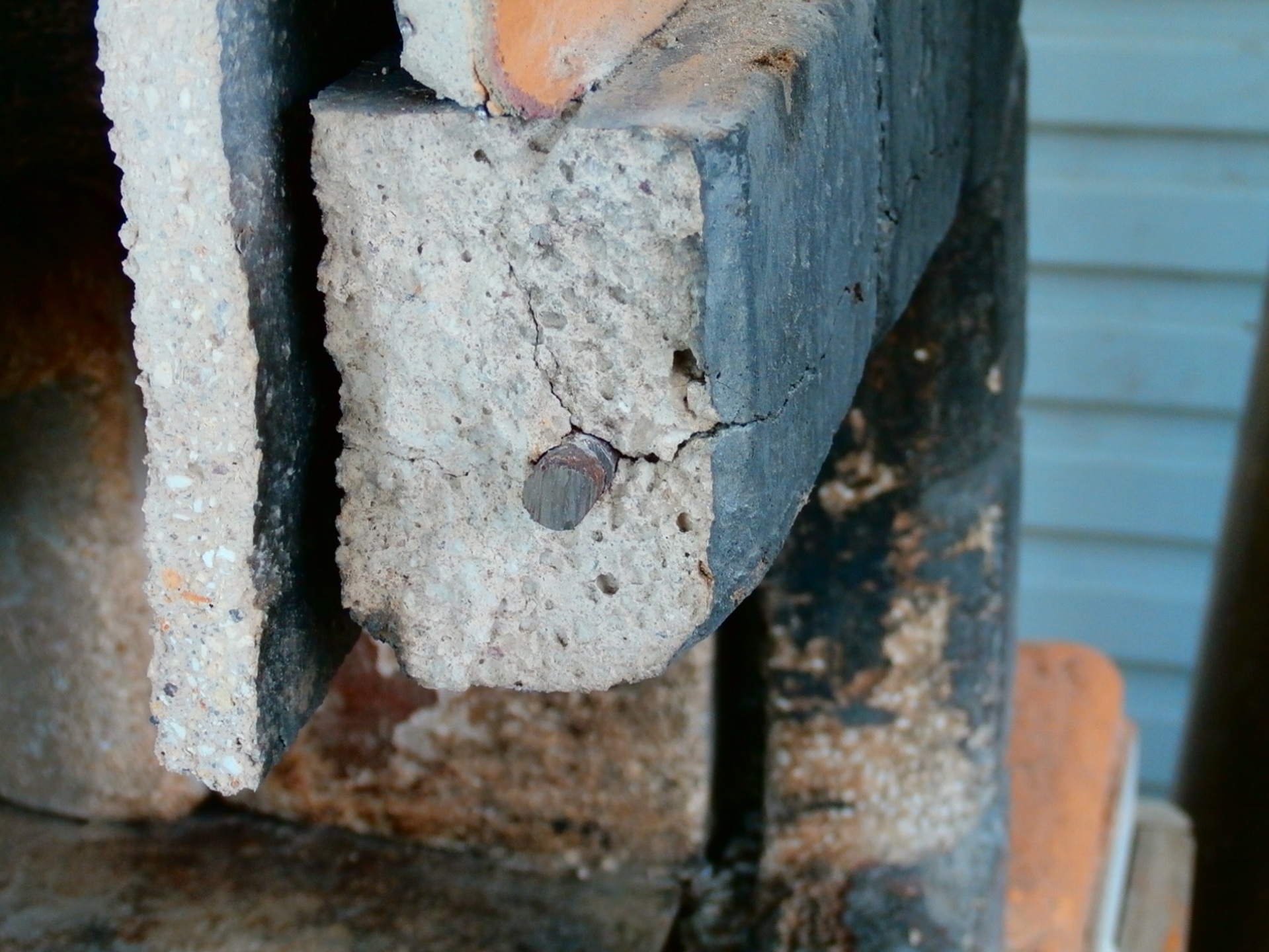

    The second pic shows the decorative arch with 8 mm rebar reinforcement. Notice that its expansion caused cracks in the surrounding concrete. This explains why heavy steel rebar is a poor choice in oven design and why the recommended reinforcing is stainless steel needles. In normal structural steel construction the change in temperature is so slow that the steel and concrete will be much the same temperature and therefore much the same expansion. With an oven the temperature ramps up so quickly the highly conductive steel expands faster than the less conductive surrounding refractory causing problems. There was no sign of significant rusting although temperature will accelerate corrosion so stainless is a preferred material. The tiny diameter of the needles creates much increased surface area allowing them to dissipate their heat to the surrounding refractory. Lesson learned, I no longer use heavy rebar as reinforcing. The mix I made for the cast decorative arch was not a strong one as I was pinching weight. I used vermiculite/perlite for around 2/3 of the aggregate in the mix resulting in a far lighter but weaker cast. This may also have some bearing on the resulting cracks although I feel the first reason is more likely the culprit.

    Click image for larger version  Name:	P3310420.jpg Views:	1 Size:	1.43 MB ID:	398424


    Click image for larger version  Name:	P3310421.jpg Views:	1 Size:	1.41 MB ID:	398423
    Kindled with zeal and fired with passion.

    Comment


    • #3
      Thanks for taking the time to show the members what worked and what didn't in the dismantling of your original oven. Lessons learned with help all those who are considering casting an oven.
      Russell
      Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]

      Comment


      • #4
        yes, thanks for doing that. Very impressive results for a mobile oven for sure. What is your castable mix?
        Texman Kitchen
        http://www.fornobravo.com/forum/f8/t...ild-17324.html

        Comment


        • #5
          Excellent picture. Thanks
          Anton.

          My 36" - https://community.fornobravo.com/for...t-bg-build-log

          Comment


          • #6

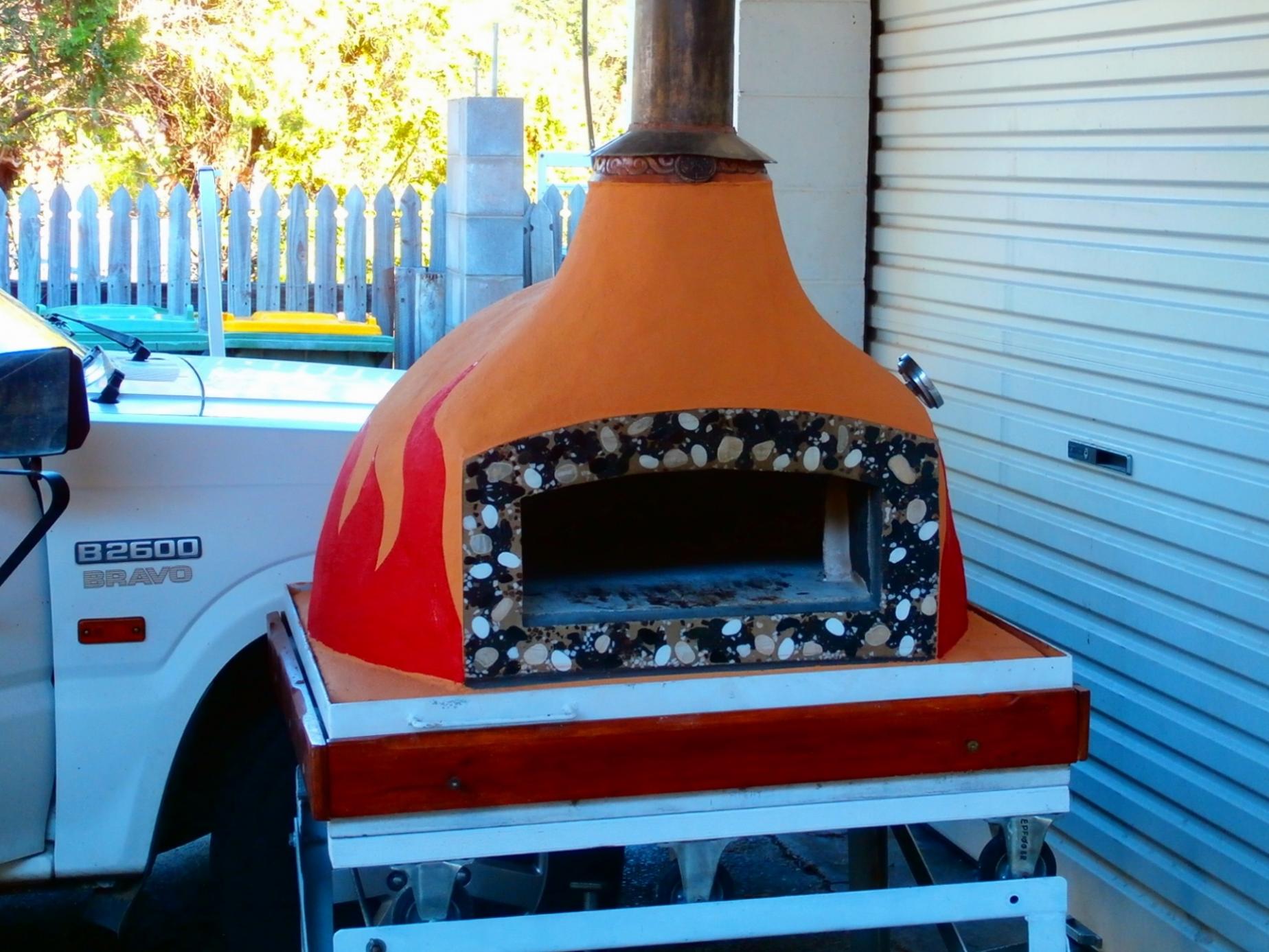

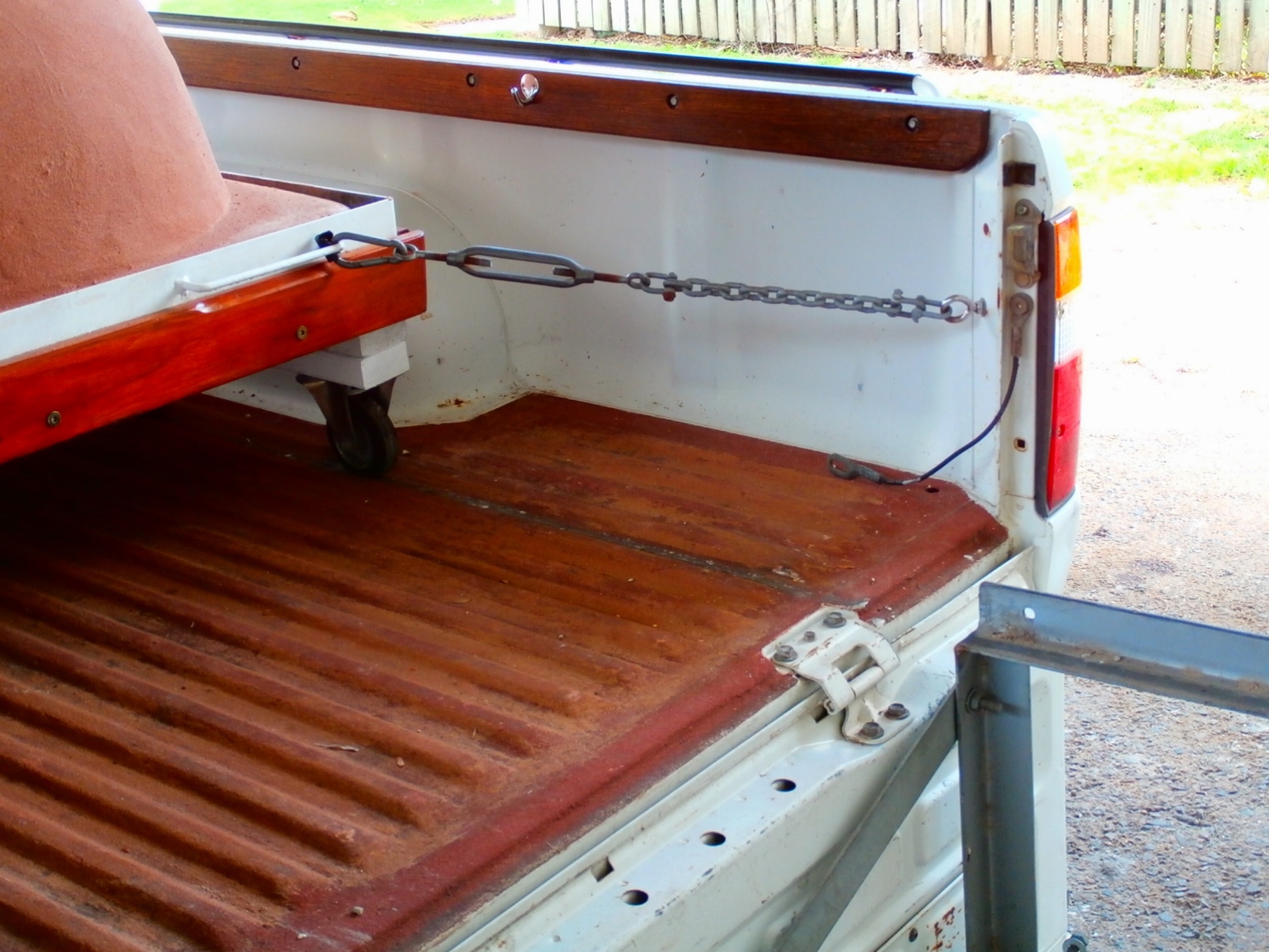

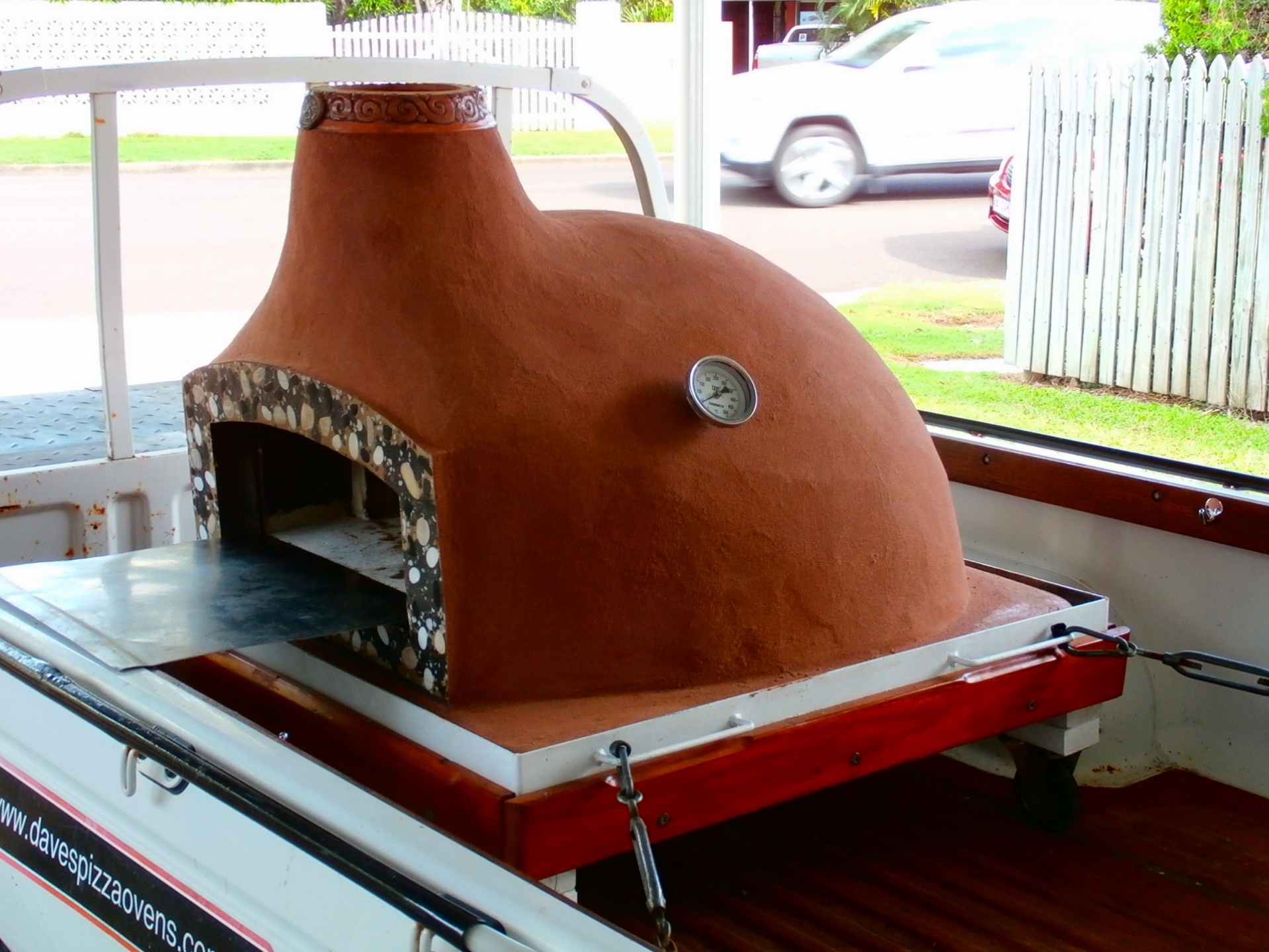

            Oven finished and ready for re-rental.I was sorry to see the old one go so will repaint it in the same style as the original. Click image for larger version  Name:	P6020450 (1).jpg Views:	1 Size:	1.42 MB ID:	398687Click image for larger version  Name:	P6020449.jpg Views:	1 Size:	1.37 MB ID:	398688
            Last edited by david s; 06-12-2017, 02:06 PM.
            Kindled with zeal and fired with passion.

            Comment


            • #7

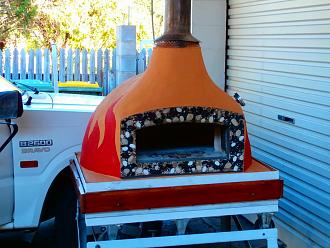

              Back to the original paint job, but this time with a polished concrete decorative arch.Click image for larger version  Name:	image_80461.jpg Views:	1 Size:	253.0 KB ID:	398786
              At the Palm Creek Music Festival.
              Click image for larger version  Name:	IMG_1360.jpg Views:	1 Size:	134.6 KB ID:	398787
              Last edited by david s; 06-14-2017, 05:12 PM.
              Kindled with zeal and fired with passion.

              Comment


              • #8
                Hi David, looks great, did you just drill a hole for the thermometer, is it just a standard thermometer?
                Is that you closest to the camera?

                Comment


                • #9
                  Liking your new oven. I guess it is your winter now, doing any skiing? We are still open at Snowbird on weekends only.
                  Russell
                  Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]

                  Comment


                  • #10
                    Originally posted by fox View Post
                    Hi David, looks great, did you just drill a hole for the thermometer, is it just a standard thermometer?
                    Is that you closest to the camera?
                    Yes I drilled a hole after completing the oven, through the outer shell, insulation and inner dome casting. I use some stainless steel pipe as a protective sheath for the thermometer probe. That's not me closest to the camera, that's my son in law. I'm the bloke guarding the beer.
                    Kindled with zeal and fired with passion.

                    Comment


                    • #11
                      Originally posted by UtahBeehiver View Post
                      Liking your new oven. I guess it is your winter now, doing any skiing? We are still open at Snowbird on weekends only.
                      Thanks Russell, Skiing in Australia is around 2000 km south, poor quality snow and very expensive. We prefer to go to Japan during our unpleasantly hot summer, much cheaper, fantastic snow and only a 7 hr flight north.
                      Kindled with zeal and fired with passion.

                      Comment


                      • #12
                        G'day Davids
                        New oven looks great and it's a shame the old oven had to go. But being a rental people expect them to go faster in every gear I suppose
                        regards dave
                        Last edited by cobblerdave; 06-25-2017, 01:24 AM.
                        Measure twice
                        Cut once
                        Fit in position with largest hammer

                        My Build
                        http://www.fornobravo.com/forum/f51/...ild-14444.html
                        My Door
                        http://www.fornobravo.com/forum/f28/...ock-17190.html

                        Comment


                        • #13
                          David - what is it you did with the front face of the entry of your new oven? Tile?

                          I am struggling with how to finish that part of my enclosure. I plan to stucco mostly, but I need to understand how exactly to bring the outer shell up to that front face. I'm thinking to bring the cement board flush with that face, and then render over it with stucco or tile. But that would seem to imply adding lath to the front face, meaning I have to drill holes into the casted piece of art!
                          Am I on or off track here?

                          Comment


                          • #14
                            His thread on the new oven says polished concrete.
                            Russell
                            Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]

                            Comment


                            • #15
                              Thanks Russell,

                              I missed that post. I went back to view it again. I'm betting those large rocks were pre-split with the flat faces to the form in an upside down pour. Irregardless how it was done, it's a great looking job .
                              Joe Watson " A year from now, you will wish that you had started today" My Build Album / My Build
