  • IT guy building a 39'' oven

    Before anything else, I would like to thank everybody that is contributing to this forum. It has proven an invaluable source of information and inspiration for my build. Thank you all!

    Now, about me... I am an software developer, 35 years old I live in Romania (so I am working in cm but will try to convert all to inches also), have a 7 months old son and a little dog.

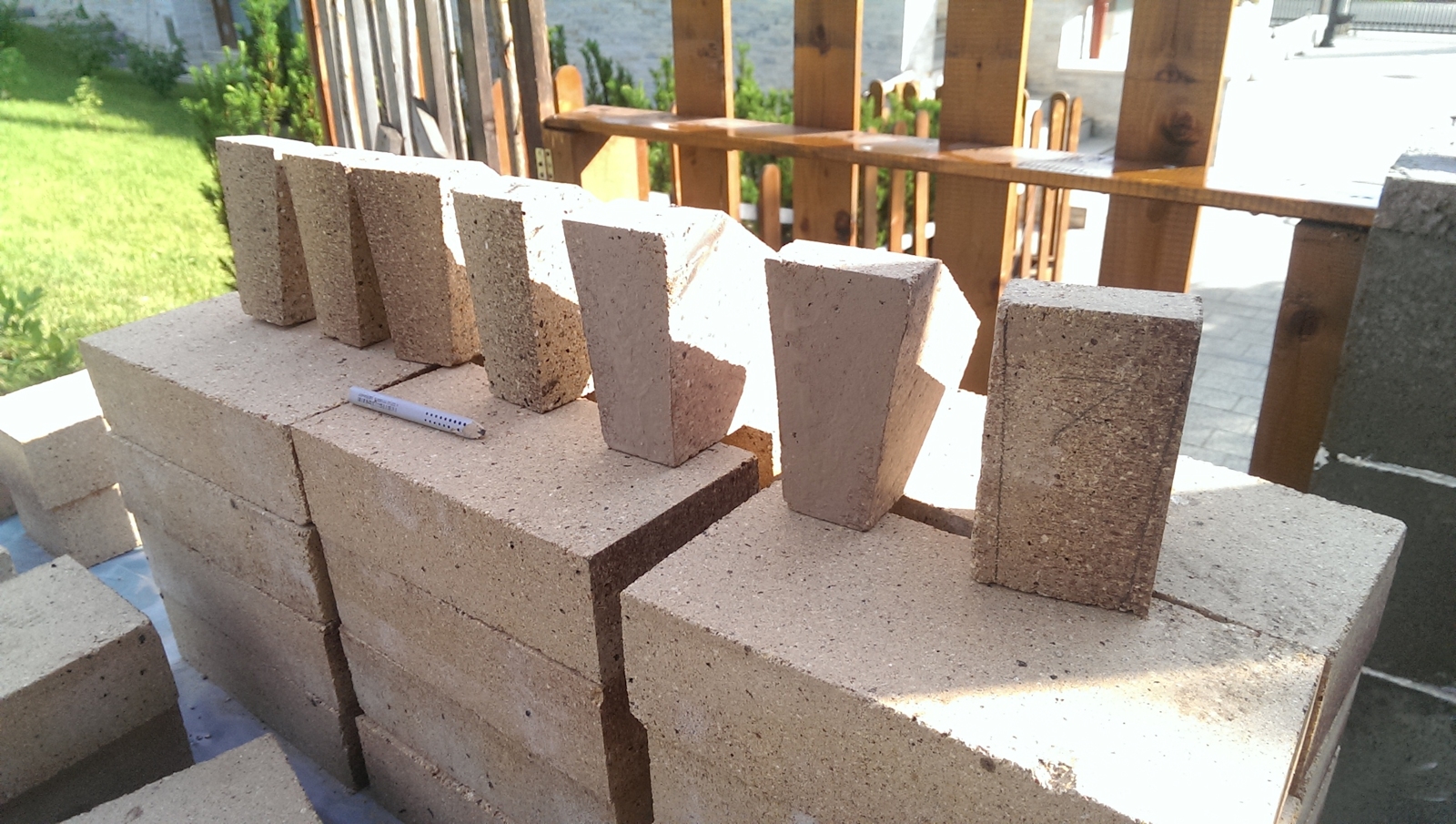

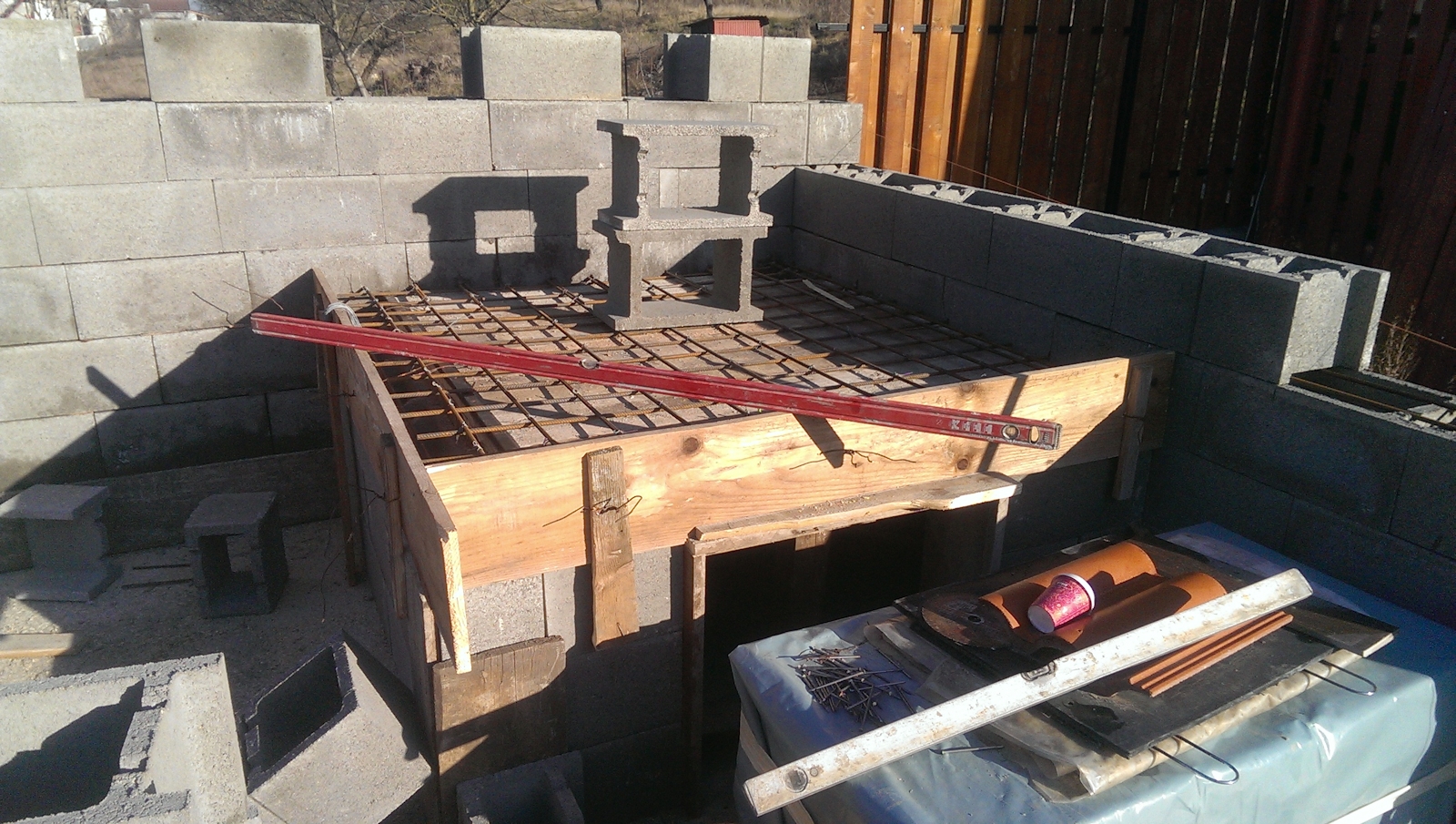

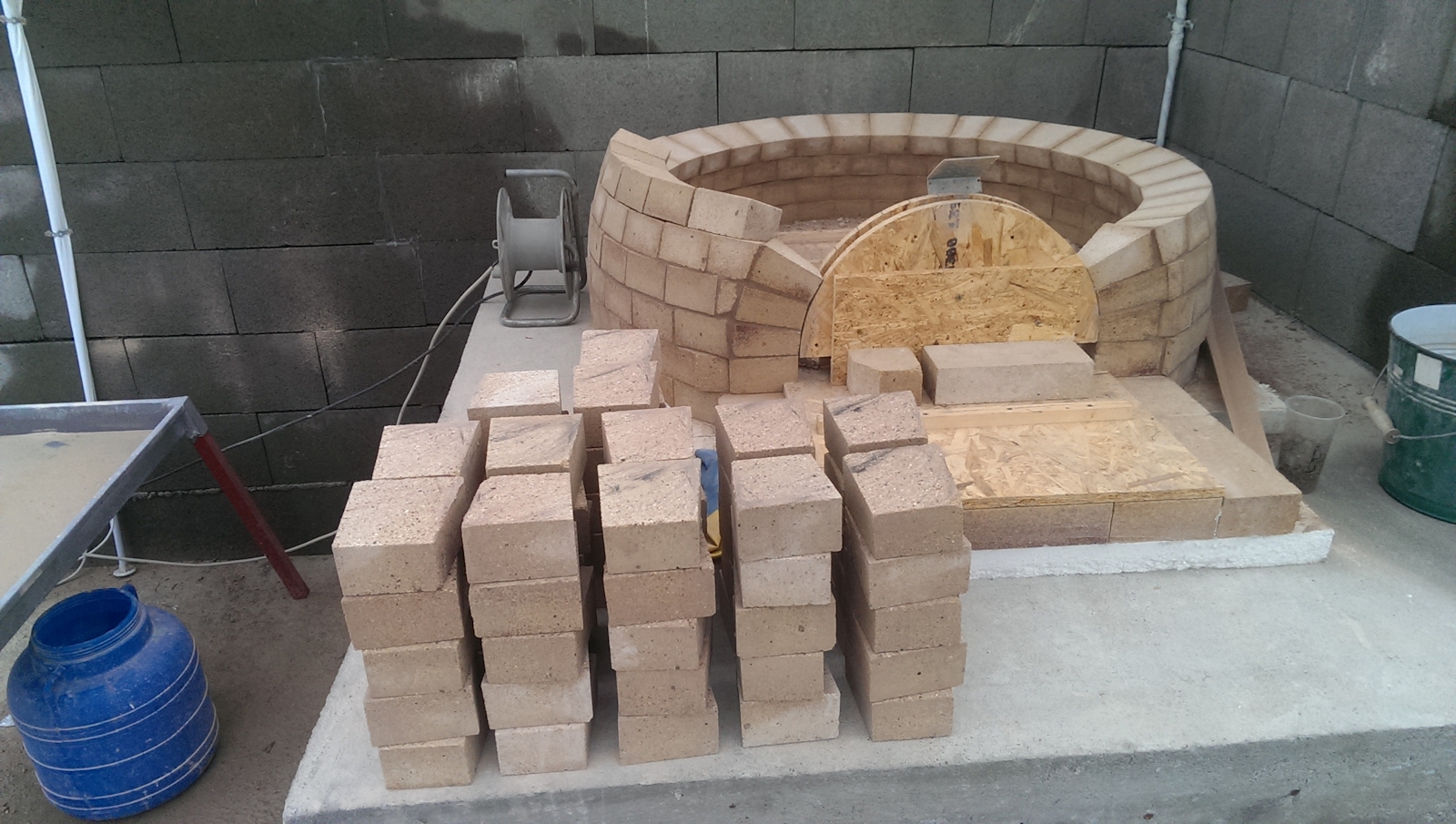

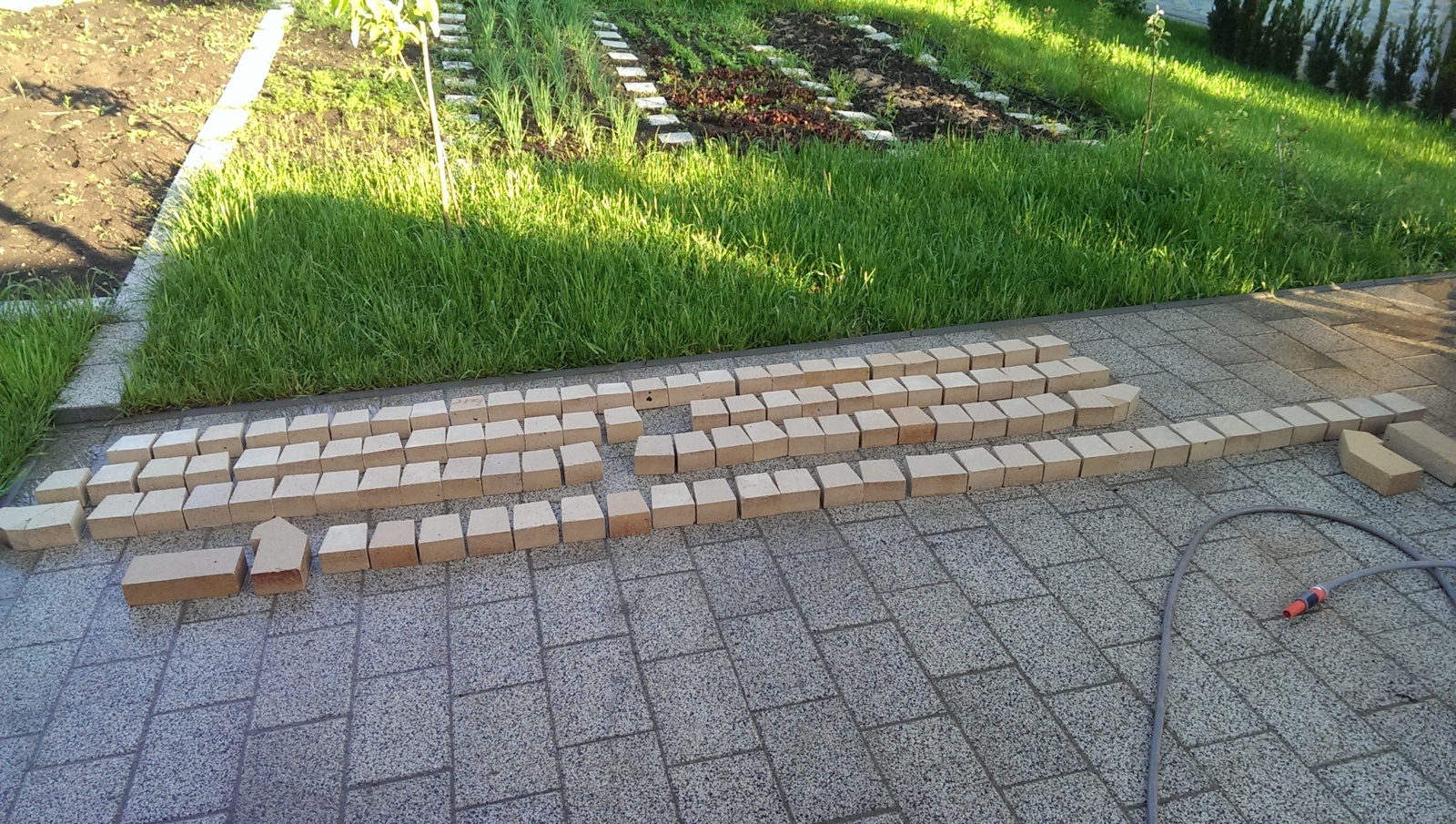

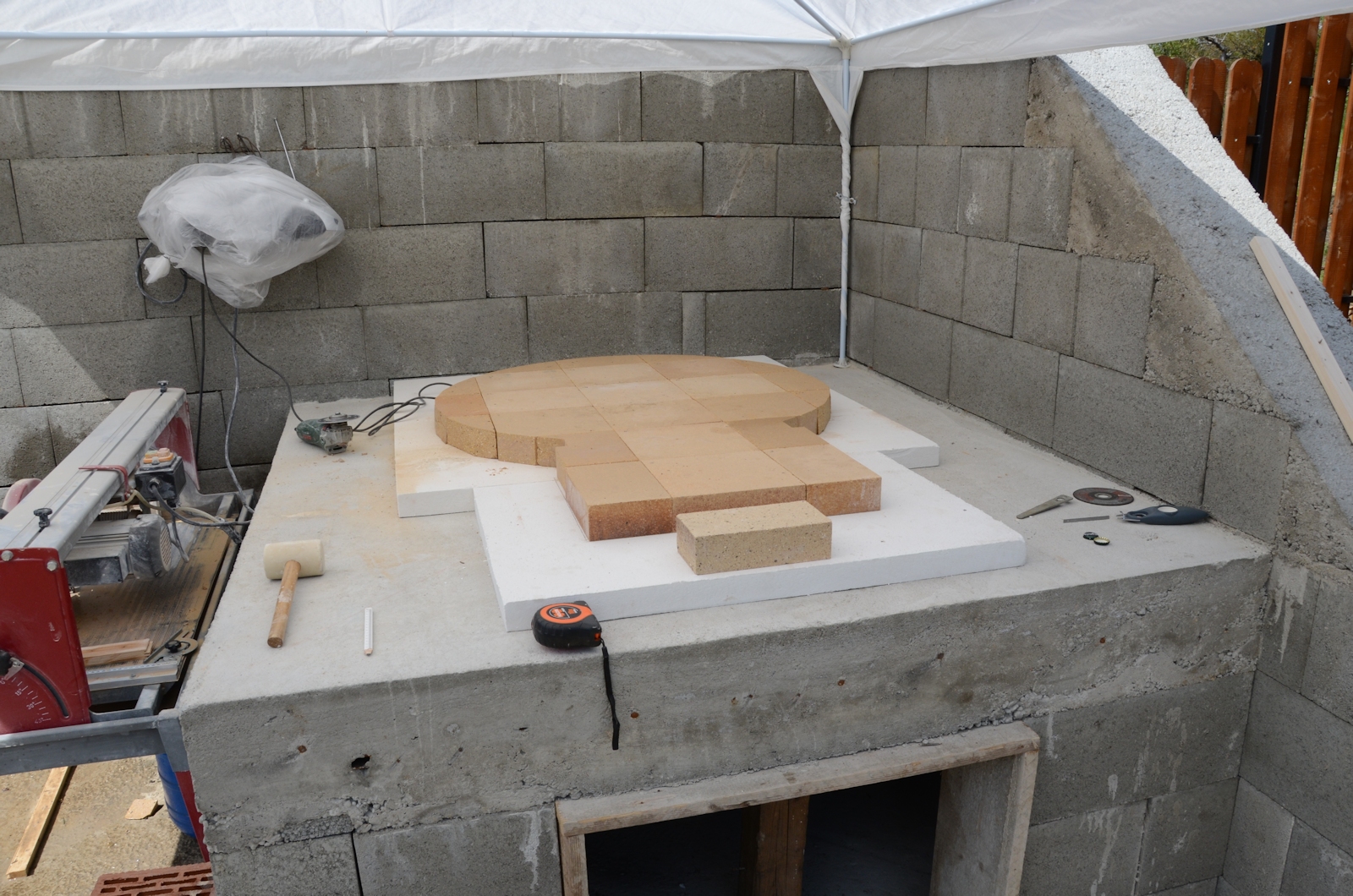

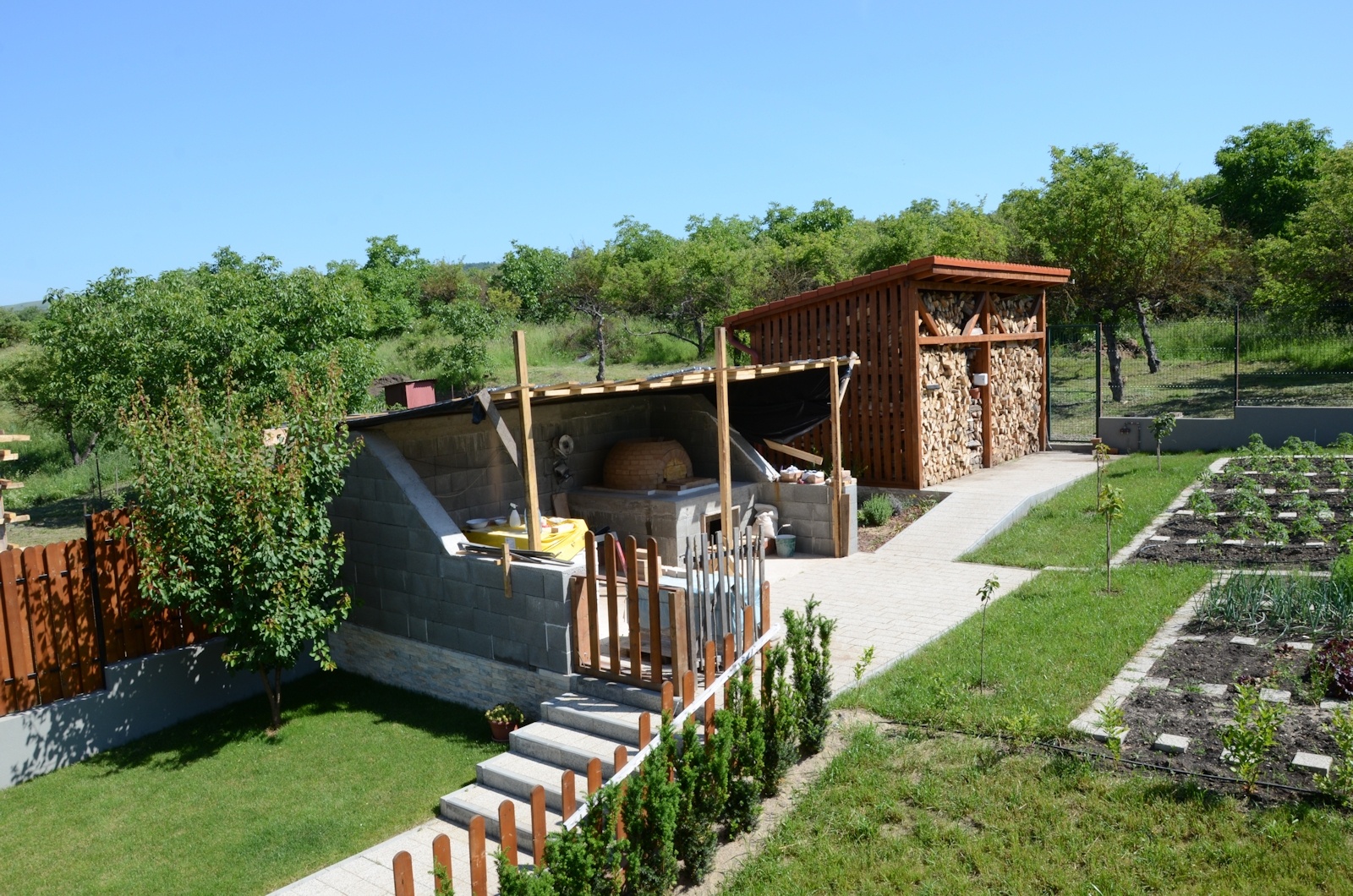

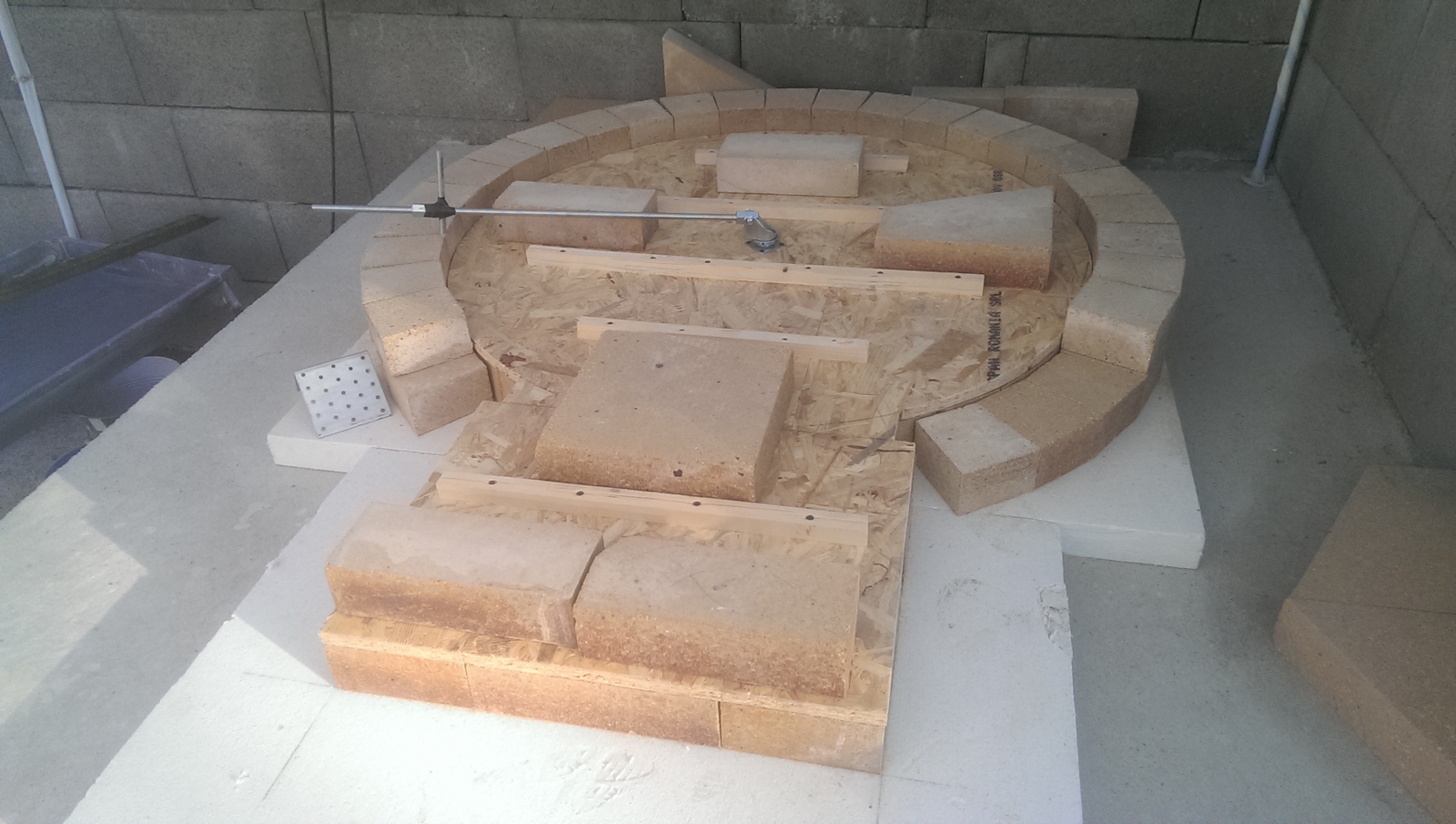

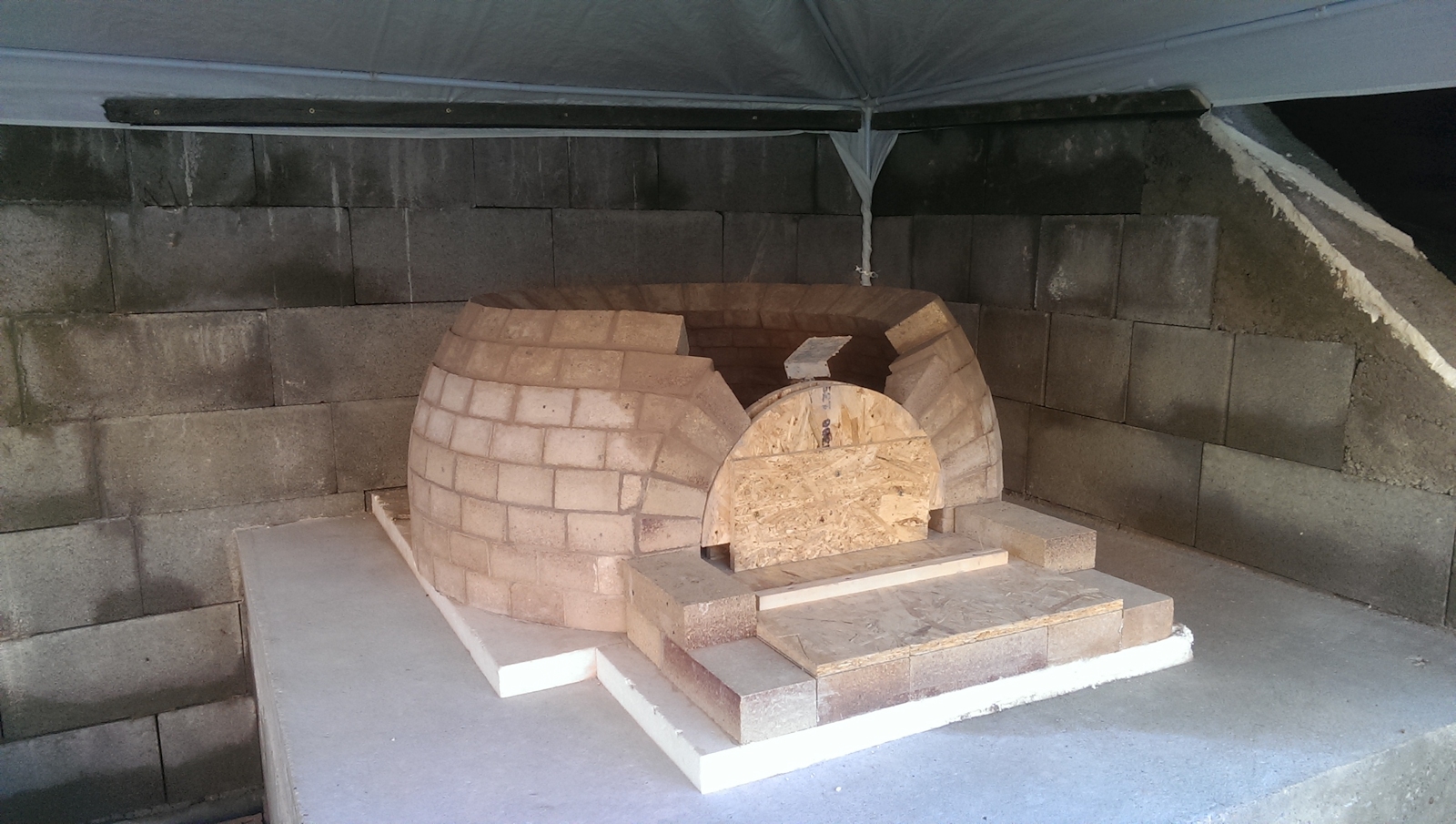

    My plan is to build a 39'' oven, with the entrance as a full arch. I have no idea yet on what finish to apply after the insulation. Will decide later. Ideally I want to turn what you see in photo 1 in what you see in photo 2.

    Click image for larger version

Name:	01.jpg
Views:	1
Size:	912.1 KB
ID:	321558

    Click image for larger version

Name:	02.jpg
Views:	1
Size:	100.2 KB
ID:	321559

    As a note, I actually started the work a month ago but due to my crazy schedule at work, baby and garden chores I found no time to post. I will post next also my progress until today.
    Alex

  • #2
    Re: IT guy building a 39'' oven

    More pictures now that my thread has been approved

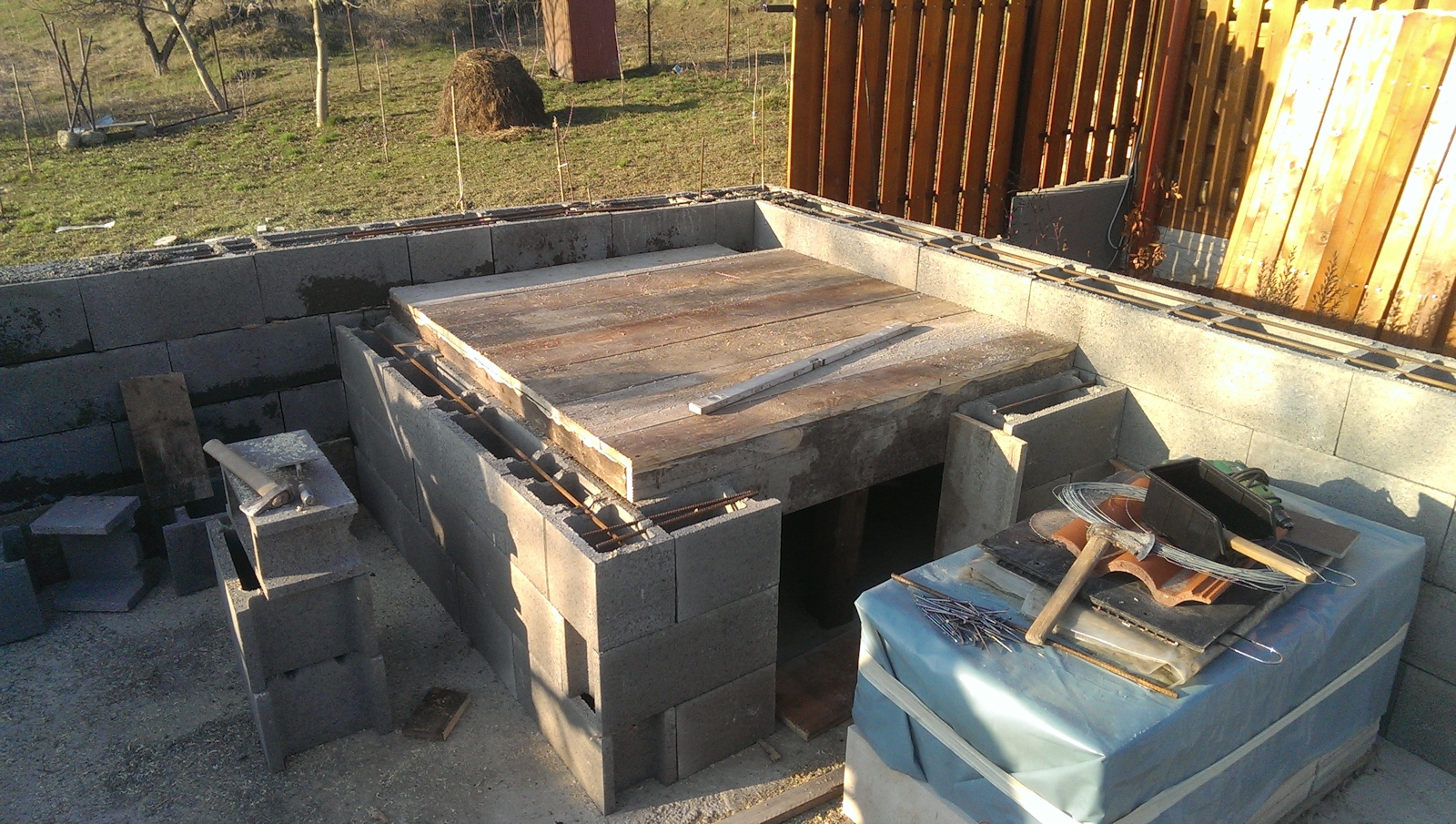

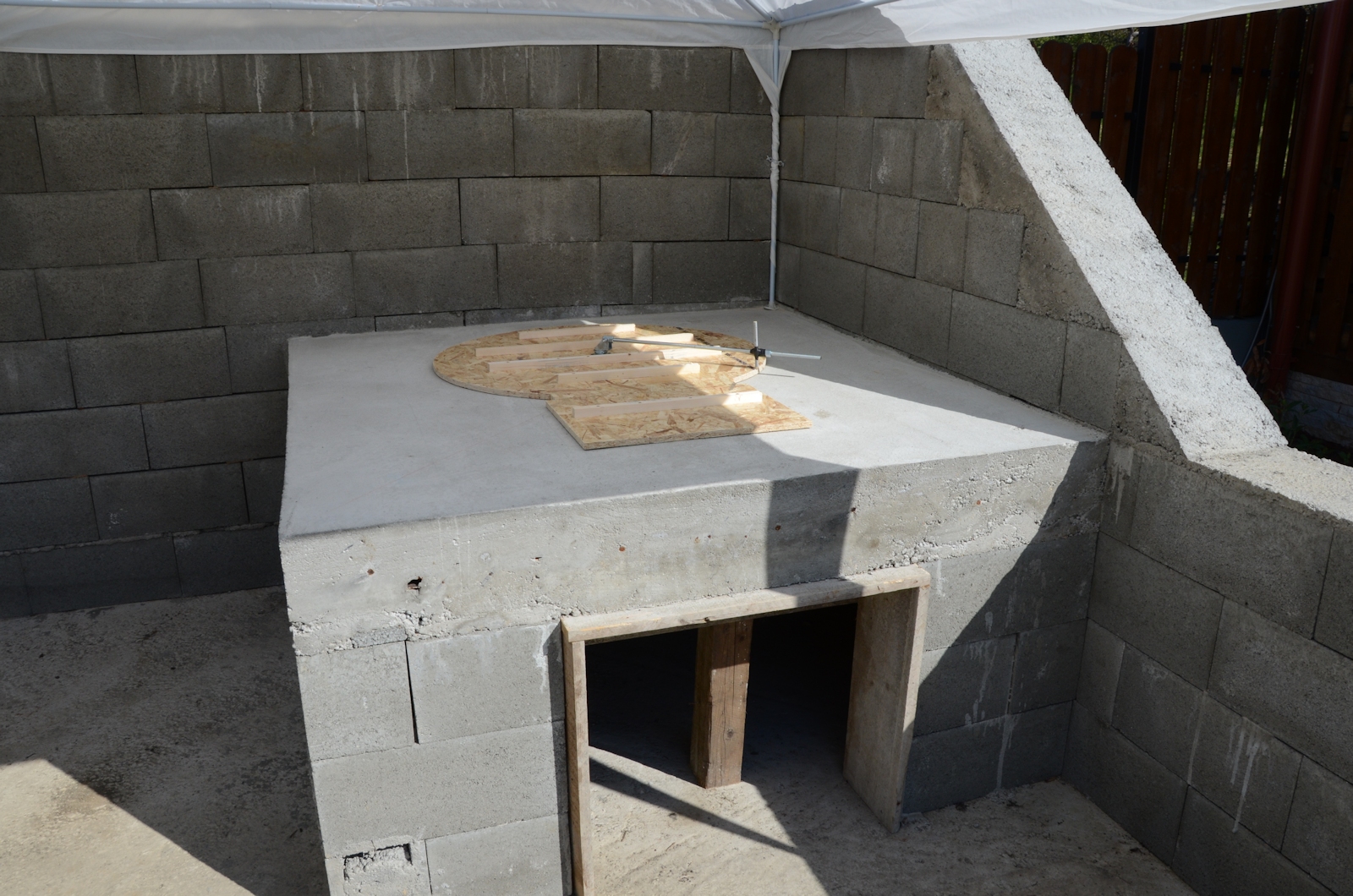

    Base is 190 x 180 cm (75 x 71 '').

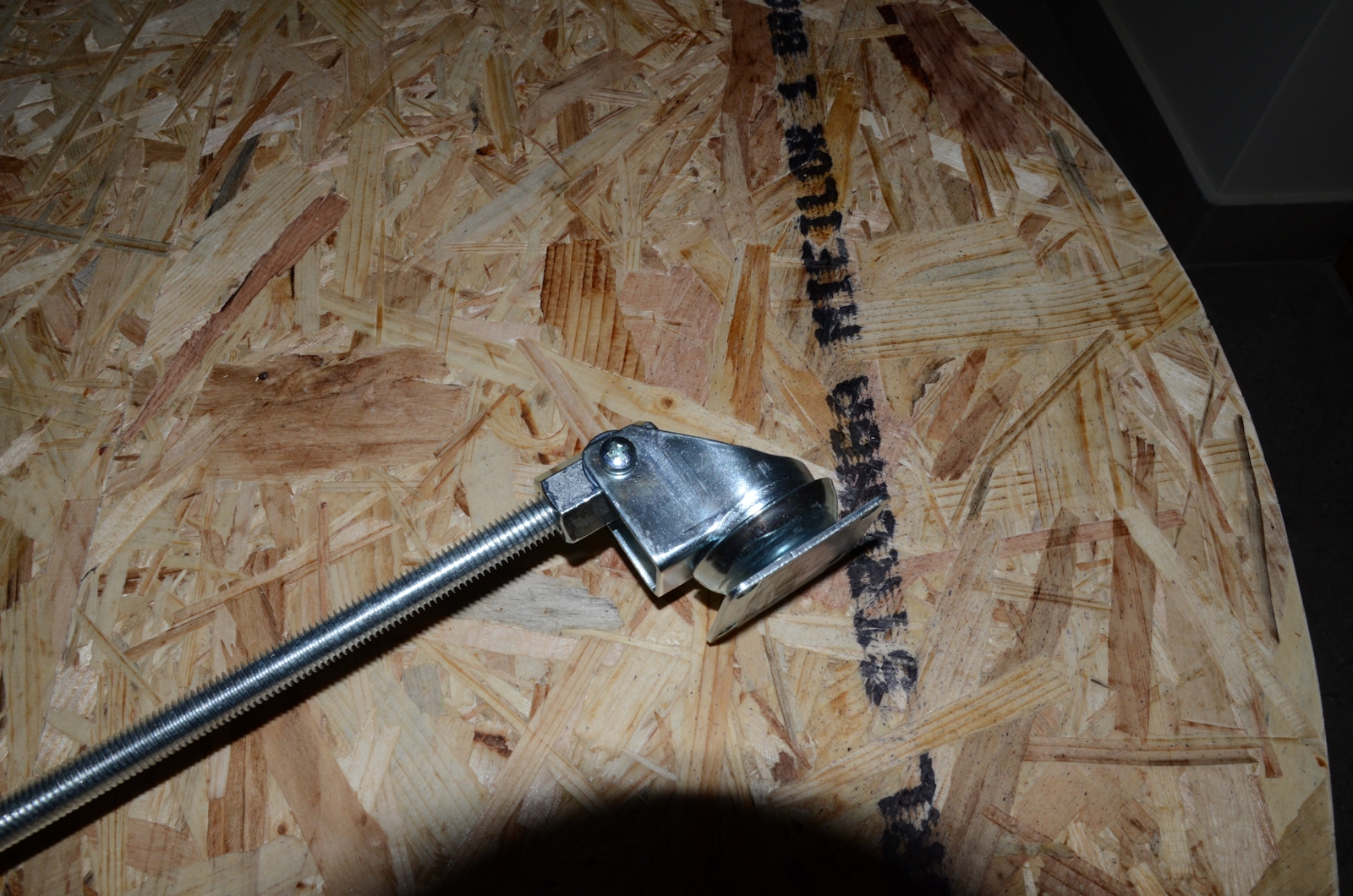

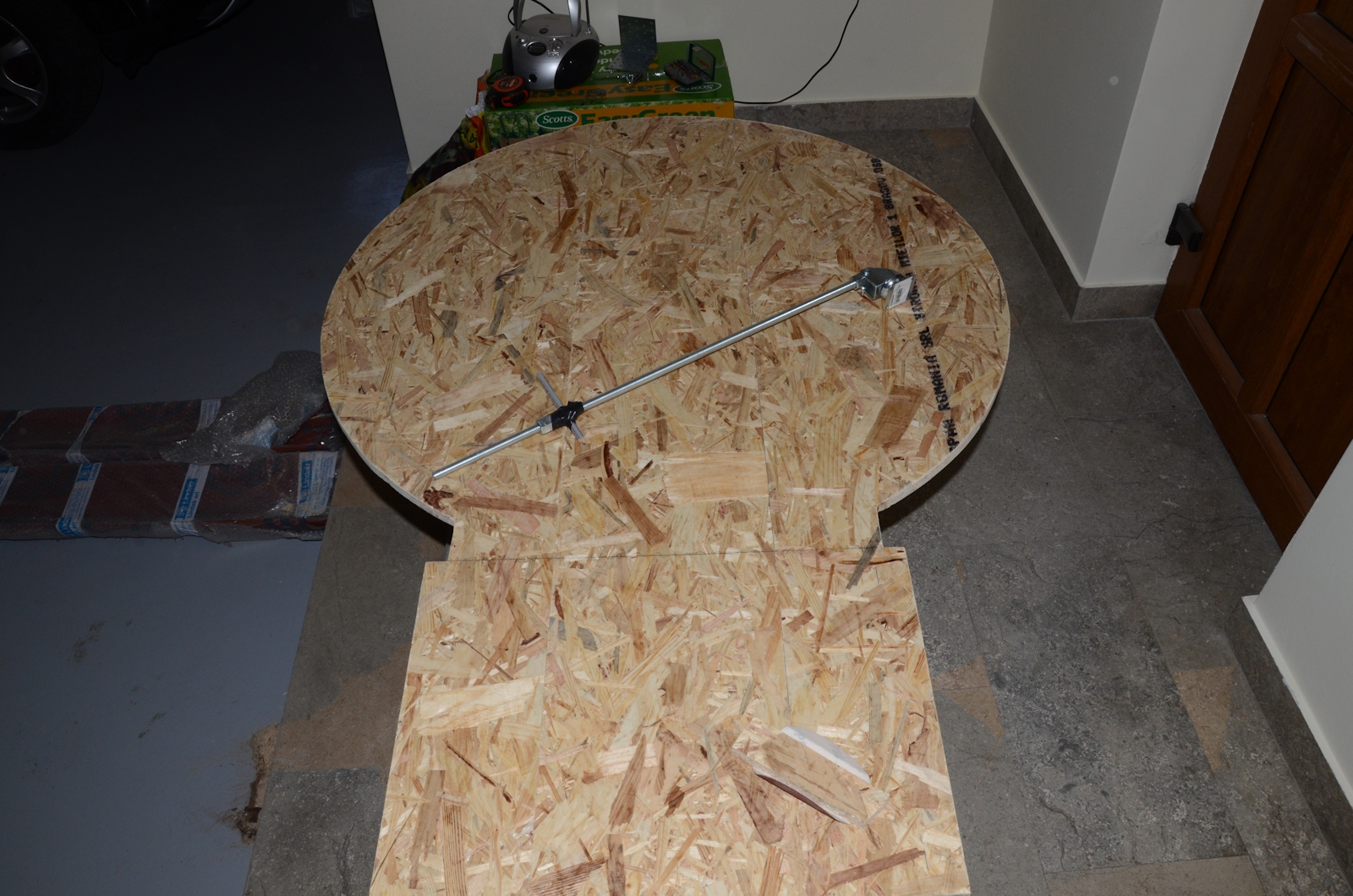

    Made my IT tool from a furniture wheel with barring inside, removed the wheel, inserted a threaded rod with a long nut (so I could drill them both together) and then connected them together. On the other end, another long nut connected to the L shape piece via metal glue (I really lasted until the end, no welding required)

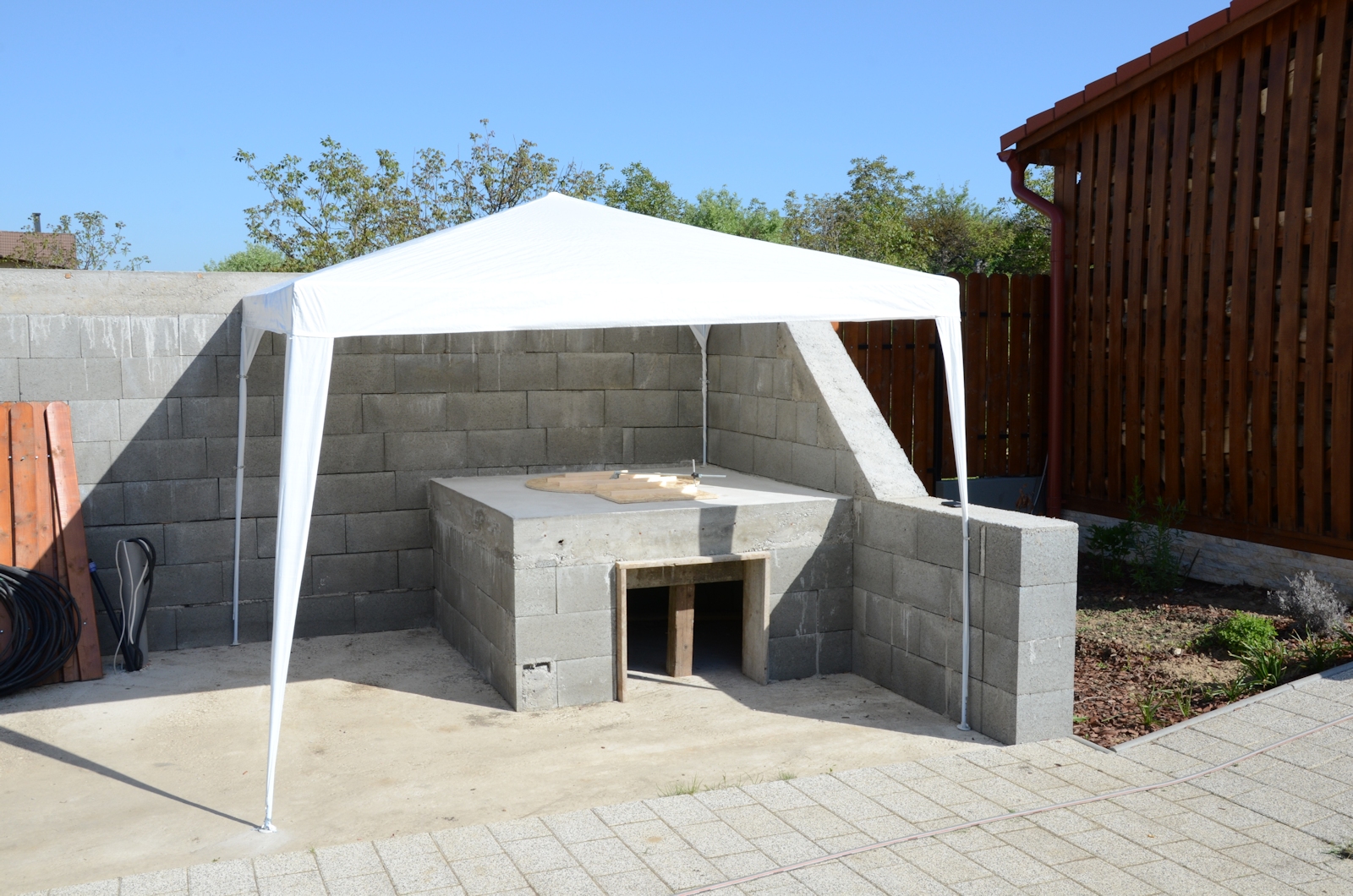

    Then I made my template and left the little dog to guard it

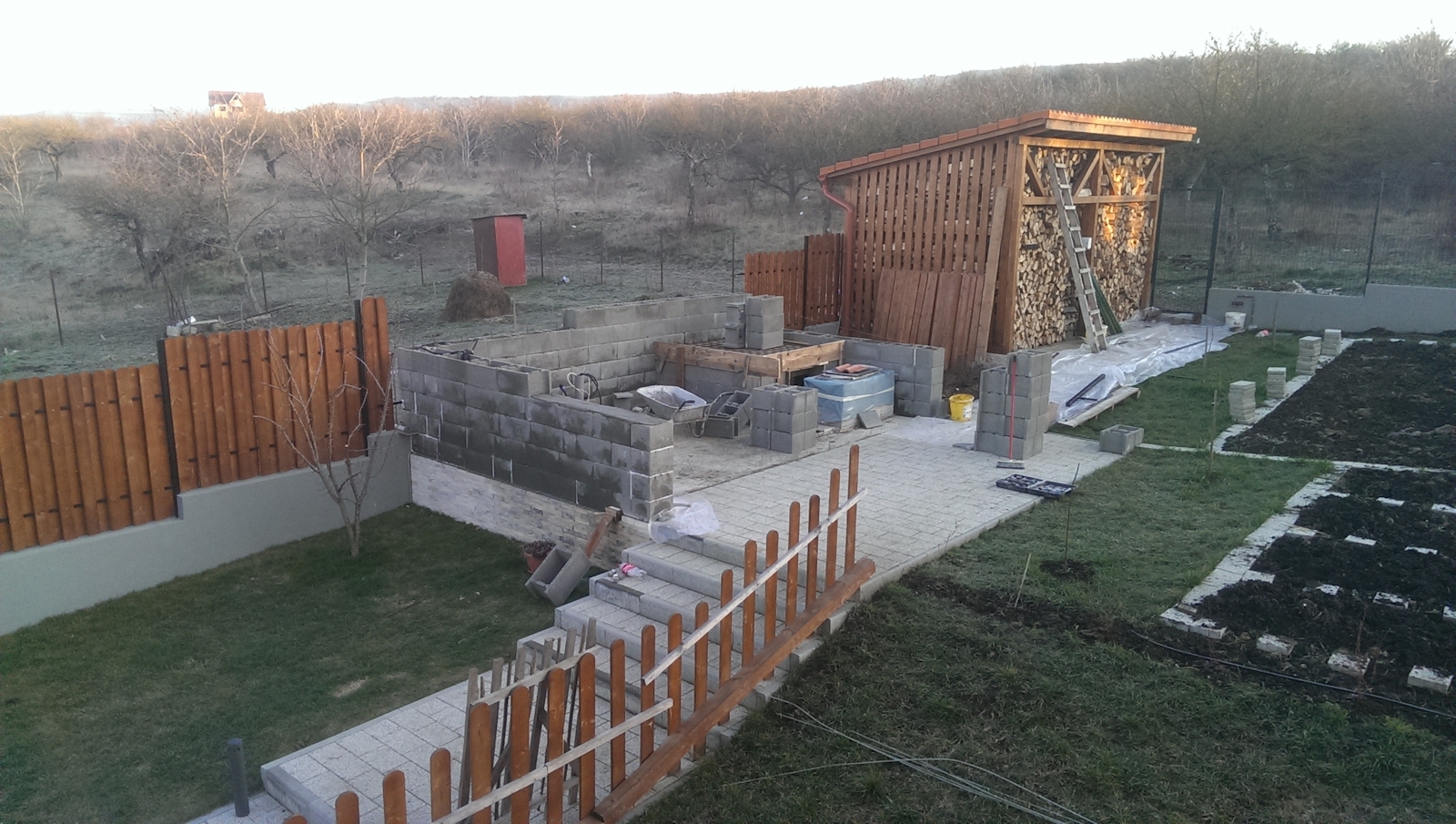

    Click image for larger version

Name:	03.jpg
Views:	1
Size:	1.18 MB
ID:	308645Click image for larger version

Name:	04.jpg
Views:	1
Size:	1.05 MB
ID:	308646Click image for larger version

Name:	05.jpg
Views:	1
Size:	1,013.8 KB
ID:	308647Click image for larger version

Name:	06.jpg
Views:	1
Size:	1.12 MB
ID:	308648Click image for larger version

Name:	07.jpg
Views:	1
Size:	990.8 KB
ID:	308649

    Click image for larger version

Name:	08.jpg
Views:	1
Size:	612.7 KB
ID:	308650
    Alex

    Comment


    • #3
      Re: IT guy building a 39'' oven

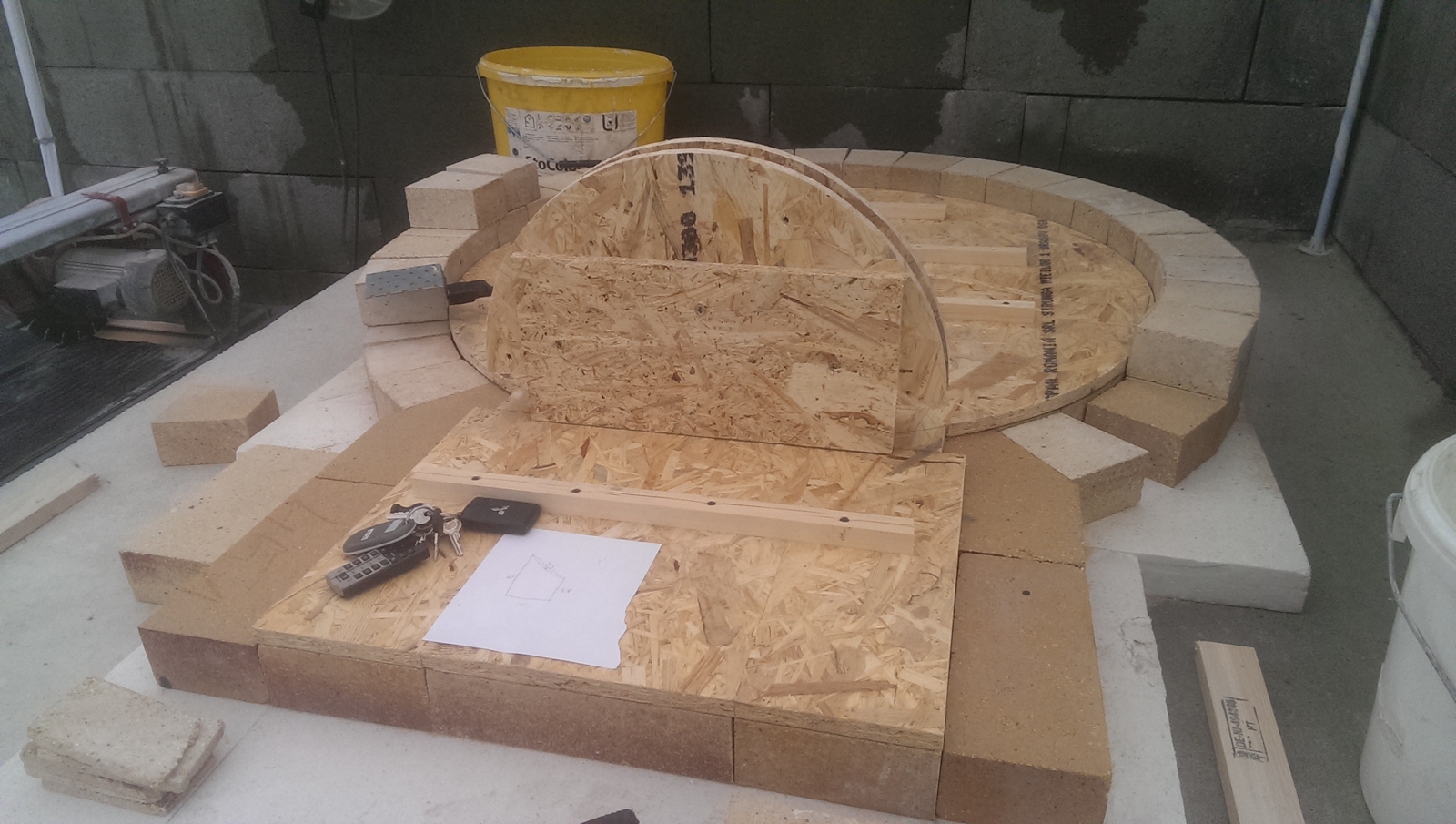

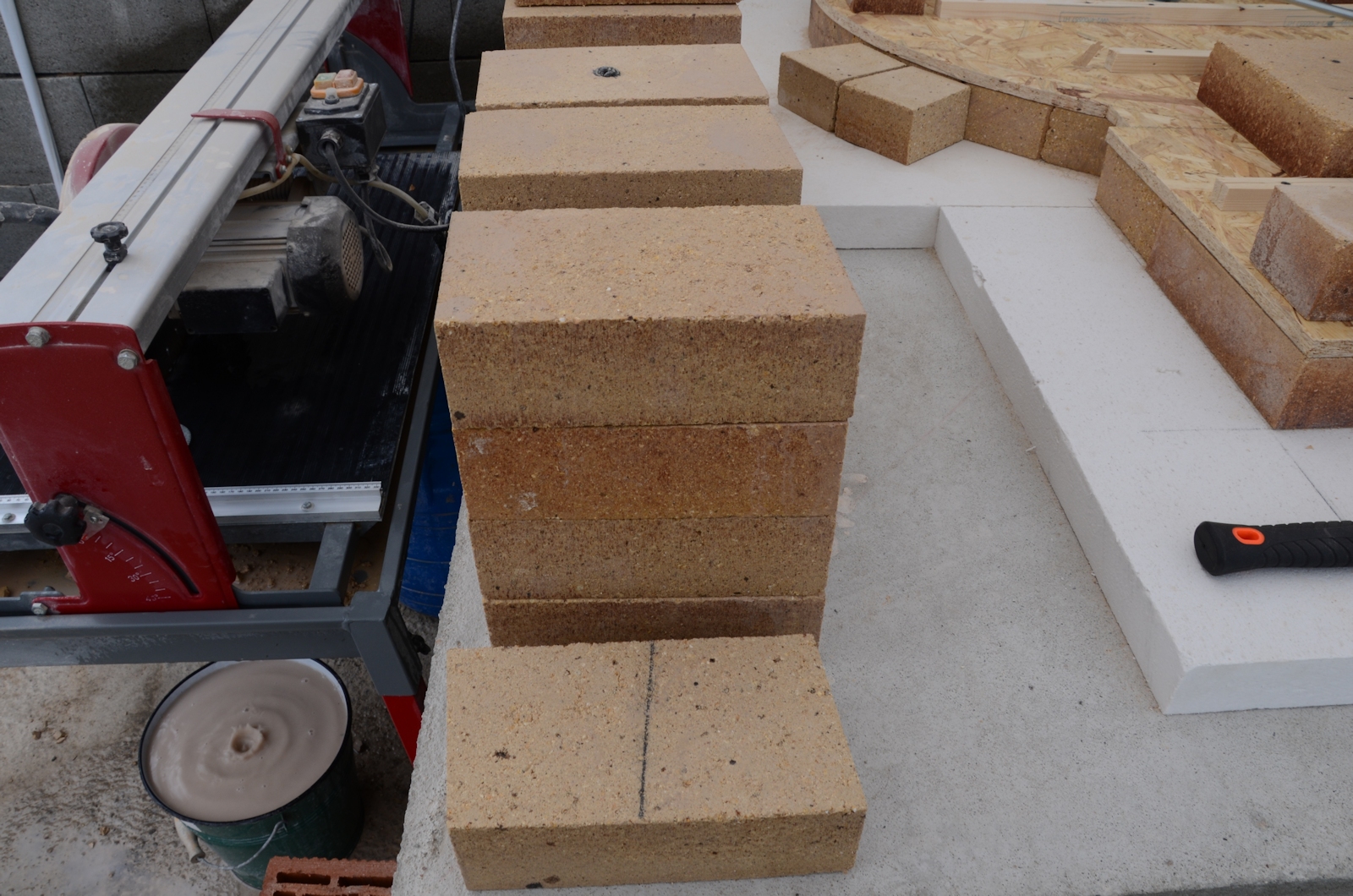

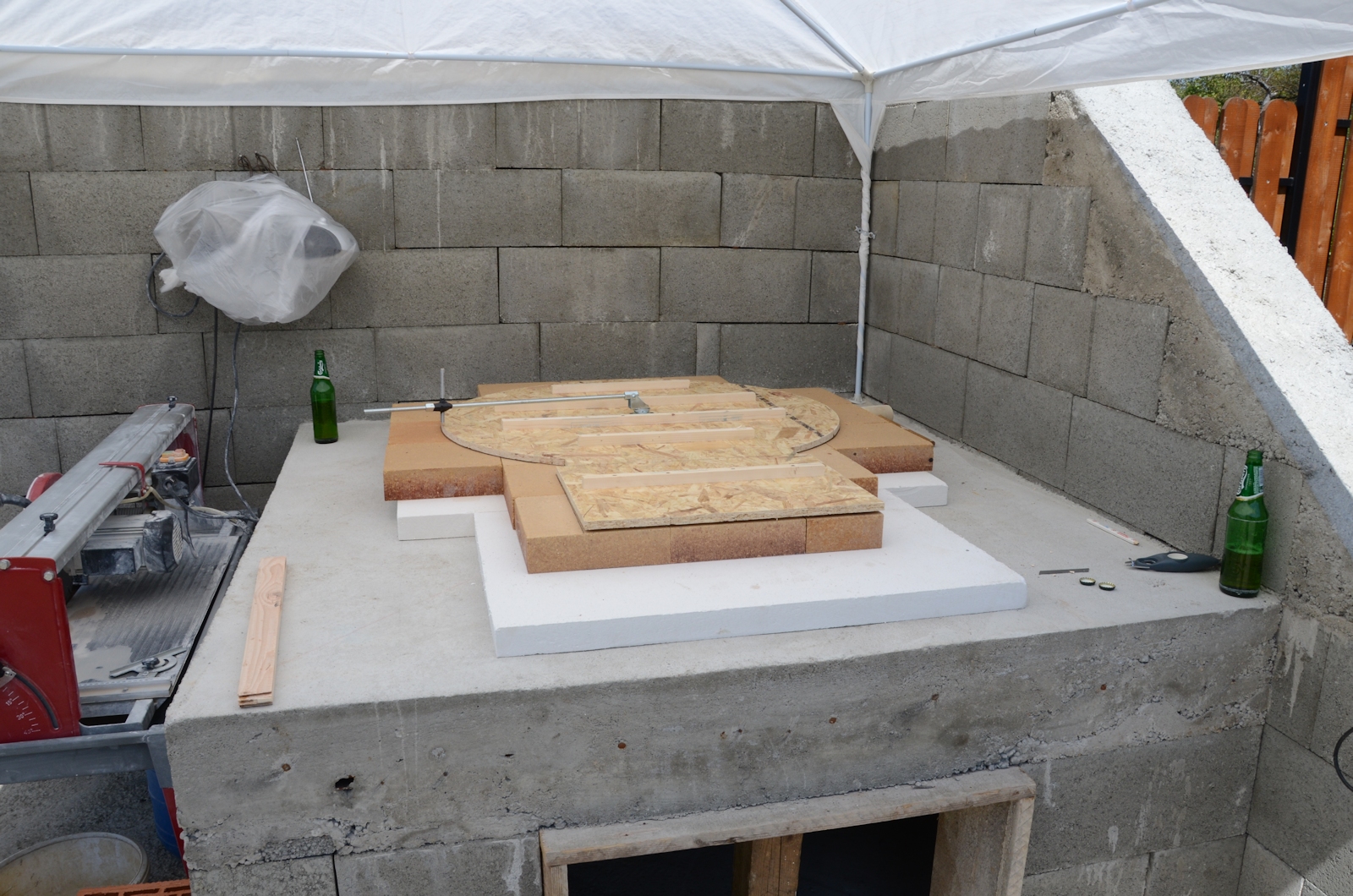

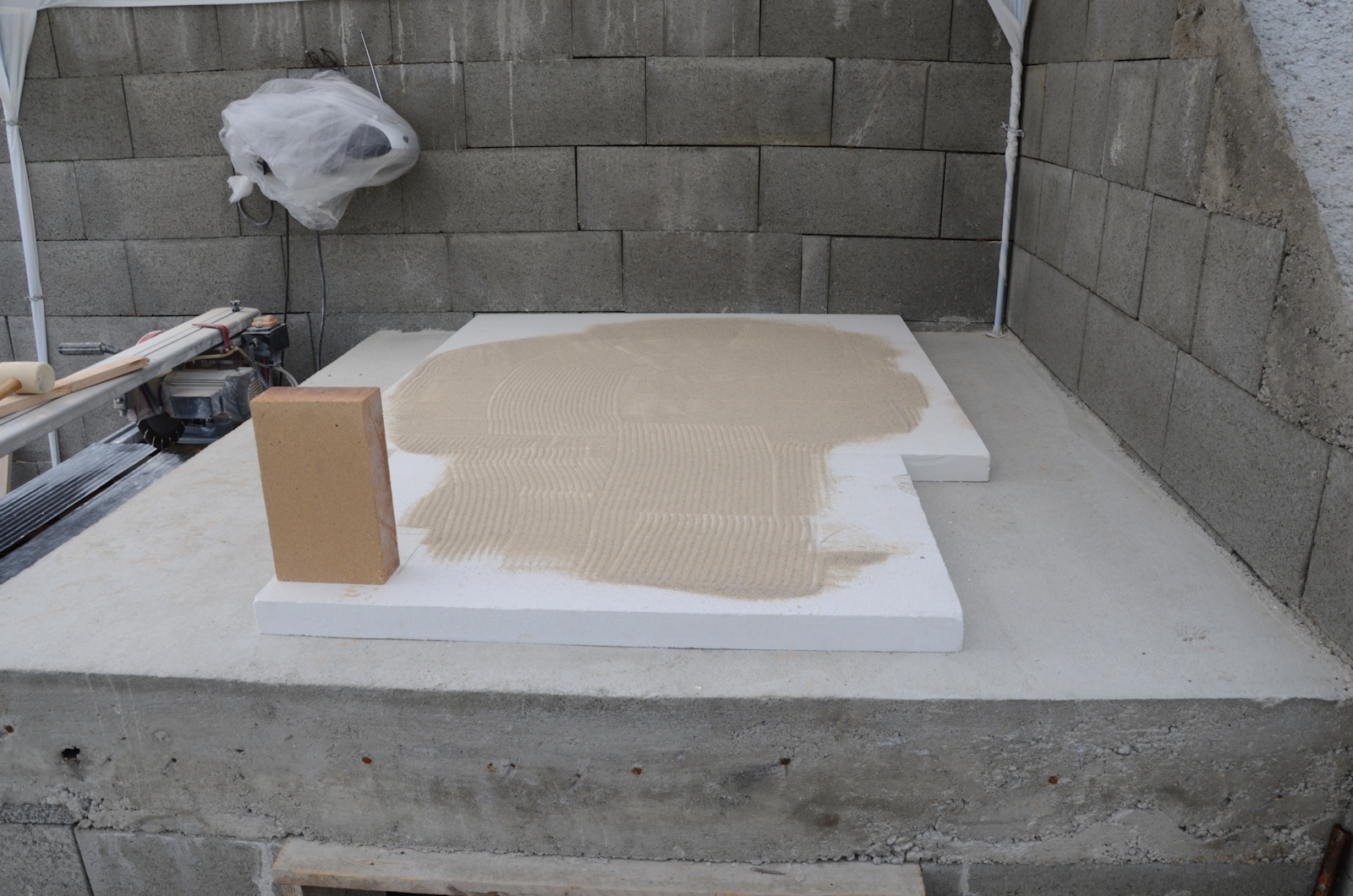

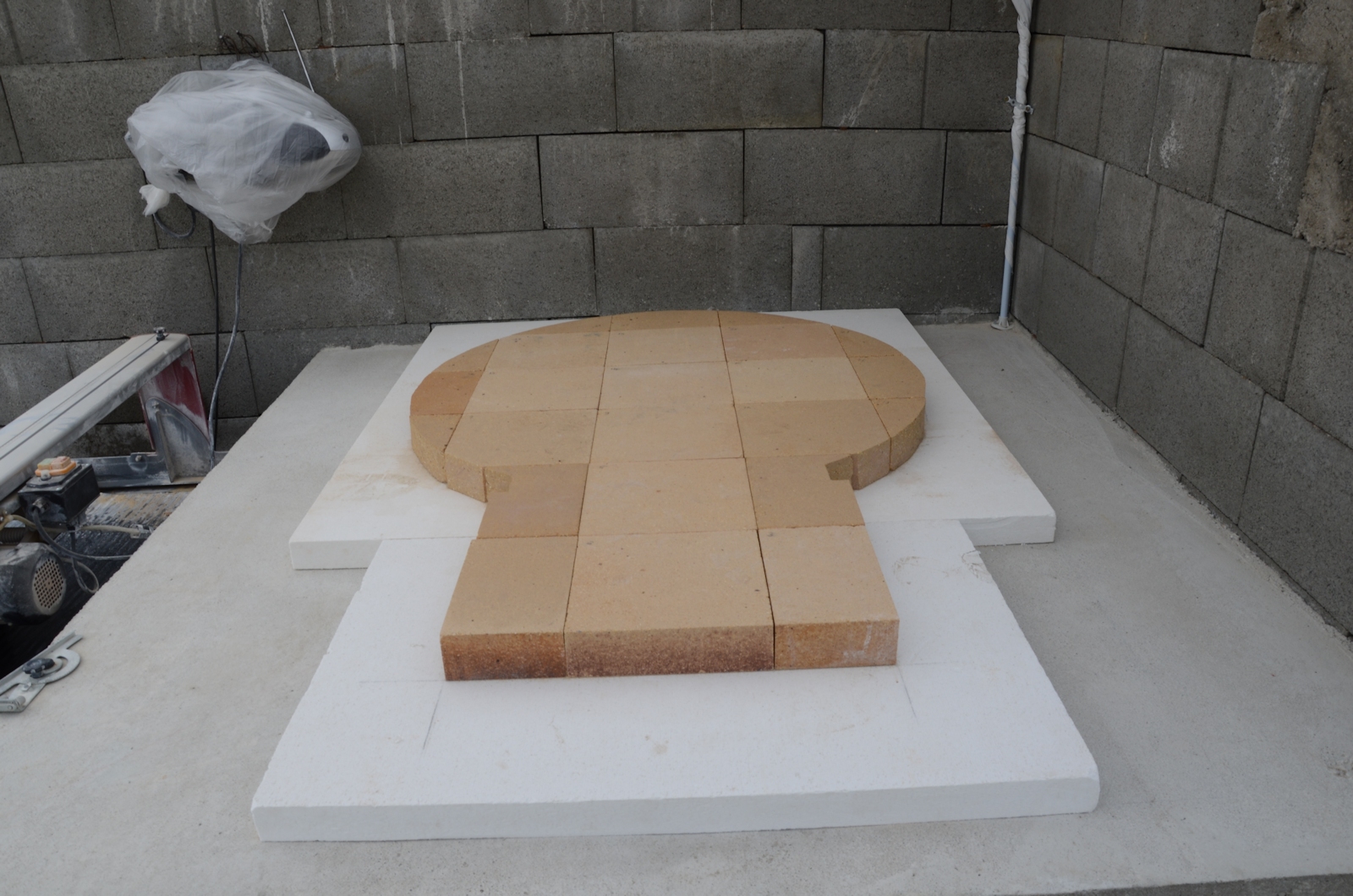

      Next, the insulation and floor were cut and placed into position. For the floor I used 25x25 cm bricks (9.8'').

      Click image for larger version

Name:	09.jpg
Views:	1
Size:	1,011.8 KB
ID:	308651Click image for larger version

Name:	12.jpg
Views:	1
Size:	1.02 MB
ID:	308652Click image for larger version

Name:	13.jpg
Views:	1
Size:	1.03 MB
ID:	308653Click image for larger version

Name:	14.jpg
Views:	1
Size:	995.4 KB
ID:	308654Click image for larger version

Name:	15.jpg
Views:	1
Size:	832.0 KB
ID:	308655
      Alex

      Comment


      • #4
        Re: IT guy building a 39'' oven

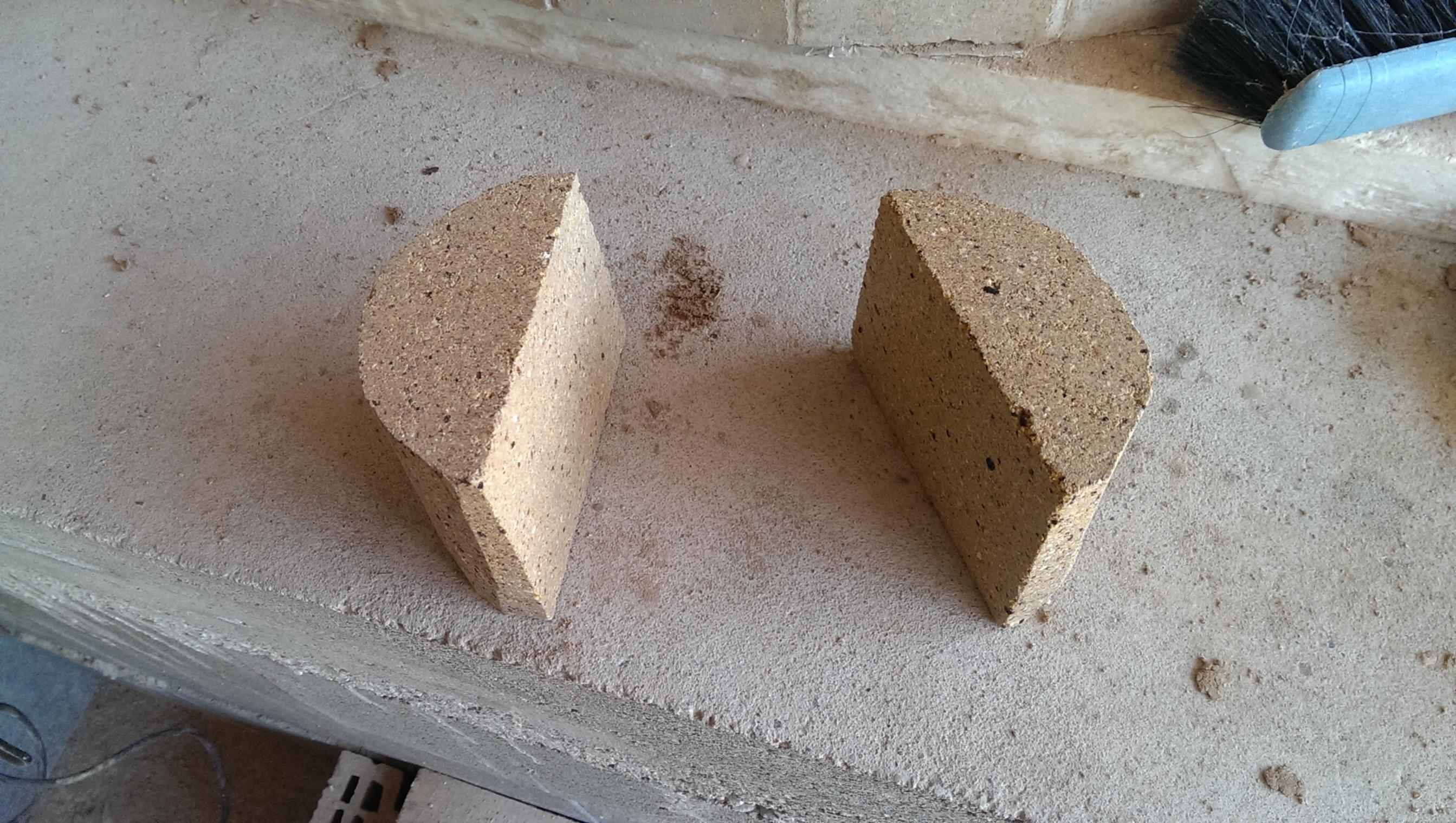

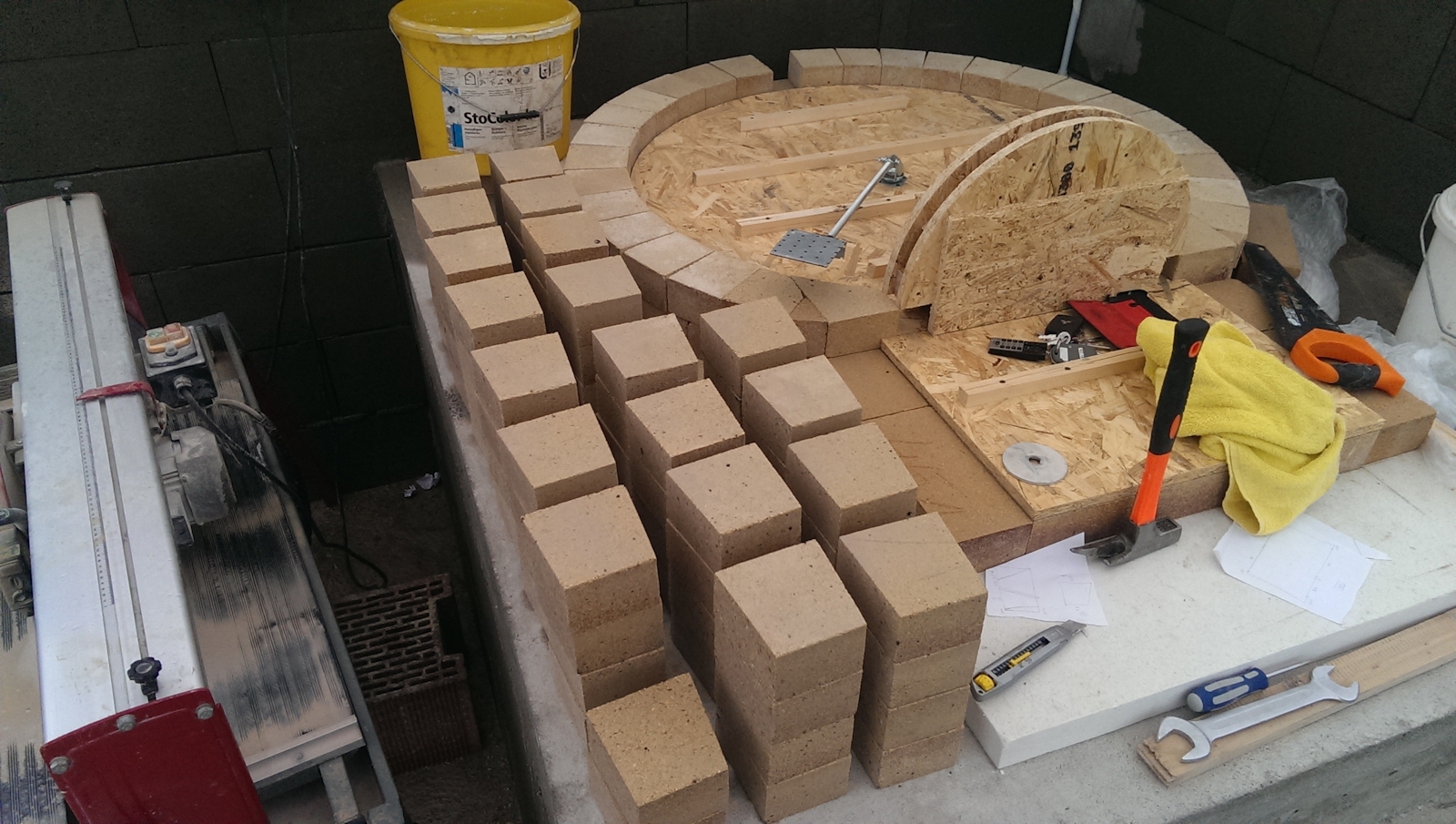

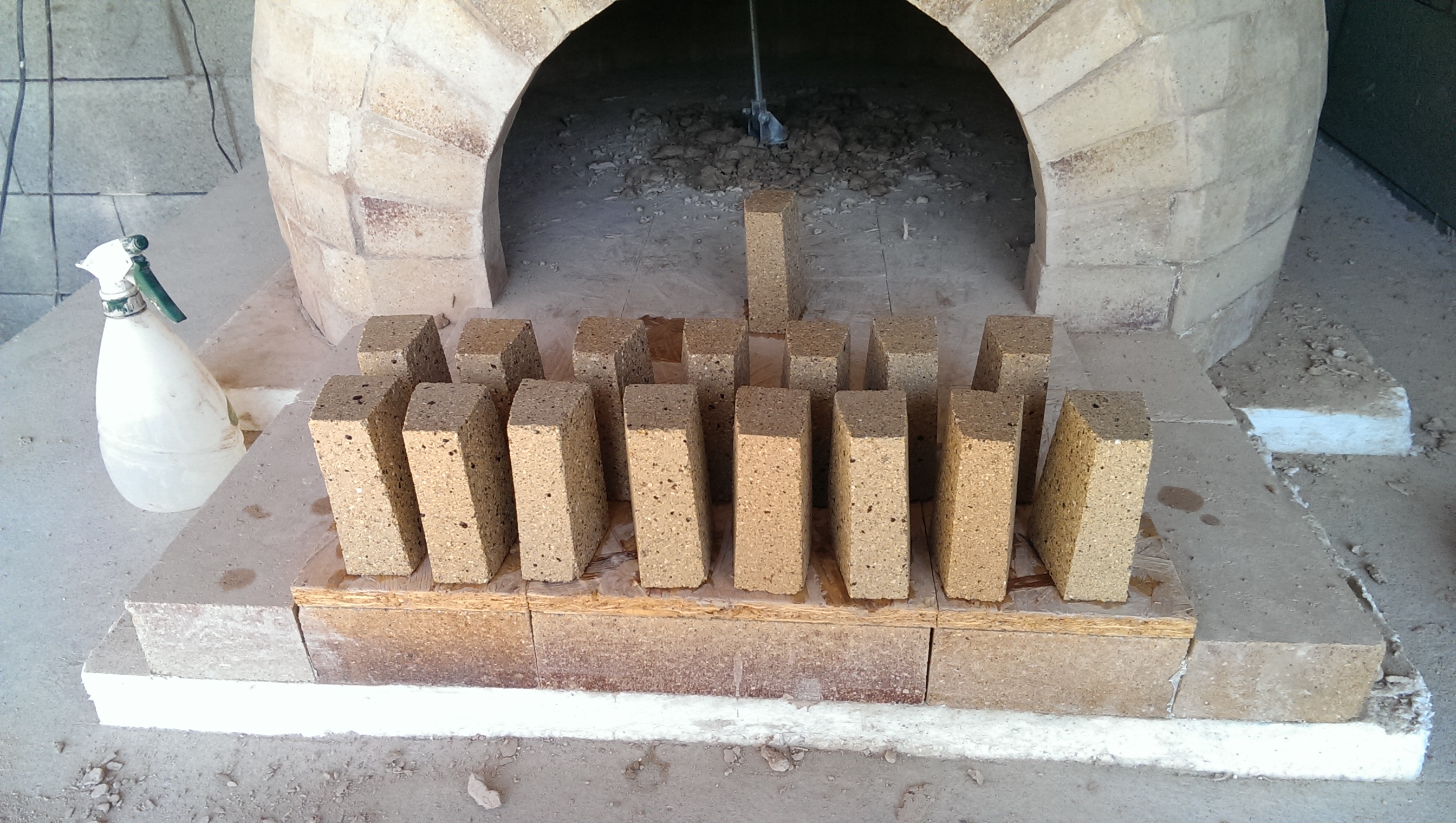

        Cutting the bricks now, no soldiers course. Also, a good wash before mortar.

        Click image for larger version

Name:	16.jpg
Views:	1
Size:	994.8 KB
ID:	308656Click image for larger version

Name:	17.jpg
Views:	1
Size:	701.9 KB
ID:	308657Click image for larger version

Name:	19.jpg
Views:	1
Size:	768.2 KB
ID:	308658Click image for larger version

Name:	20.jpg
Views:	1
Size:	774.7 KB
ID:	308659Click image for larger version

Name:	21.jpg
Views:	1
Size:	845.6 KB
ID:	308660Click image for larger version

Name:	23.jpg
Views:	1
Size:	871.4 KB
ID:	308661
        Alex

        Comment


        • #5
          Re: IT guy building a 39'' oven

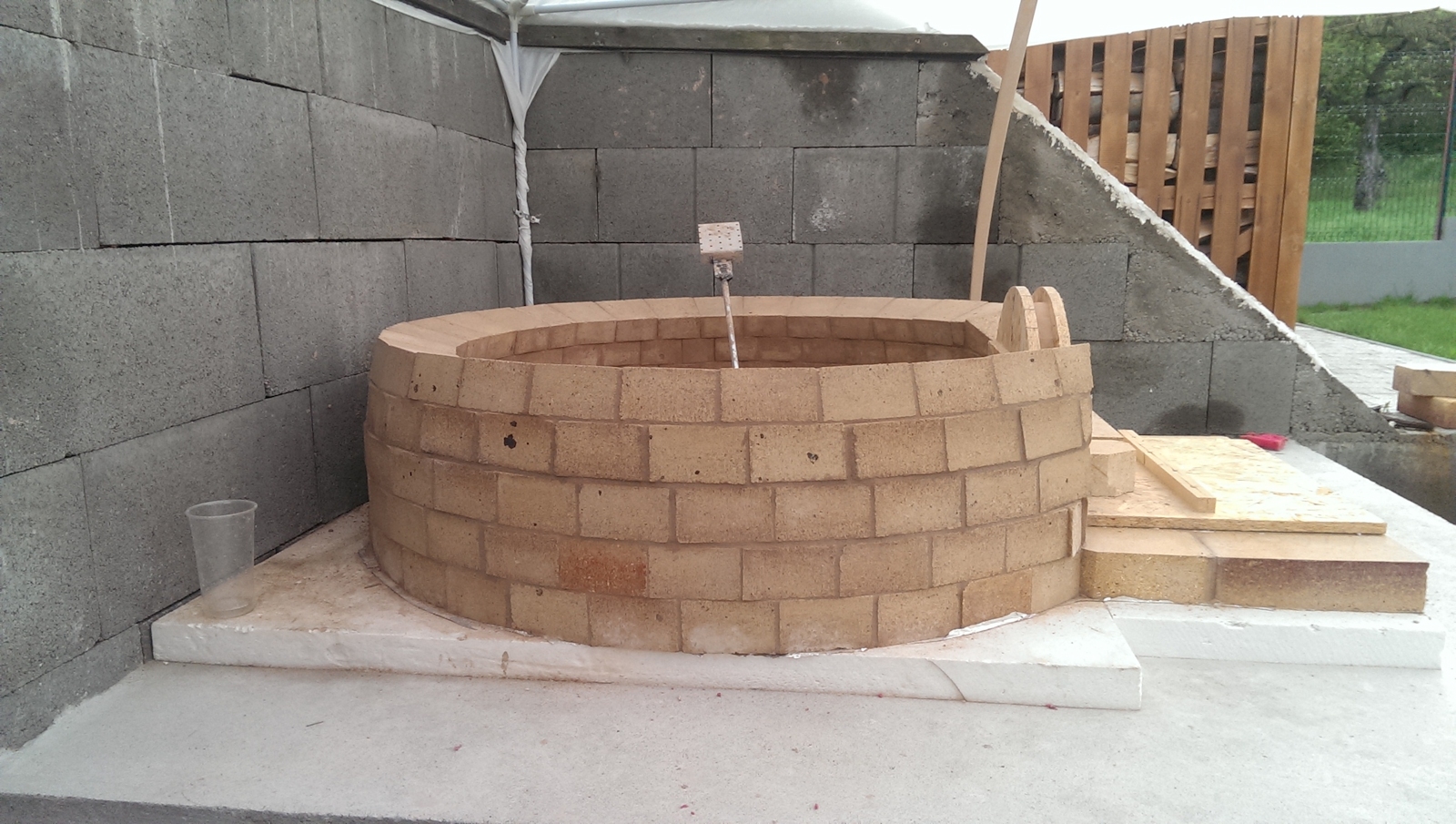

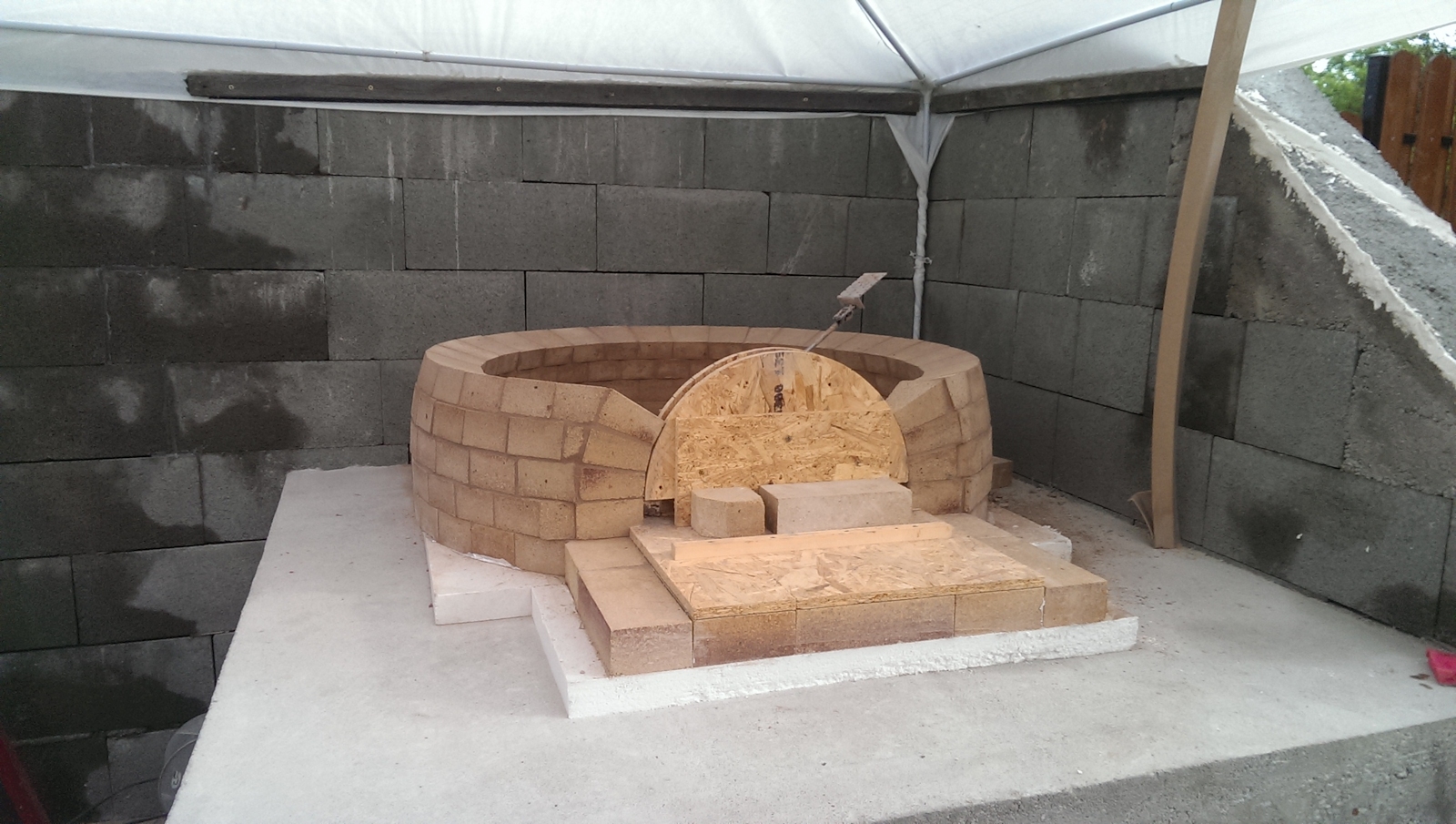

          First 4 rows went in and the arch started to form.

          Click image for larger version

Name:	28.jpg
Views:	1
Size:	772.1 KB
ID:	308662

          Next 3 rows. Here I made a mistake that will be visible later, I allowed the bricks that connected to the arch drop a little towards the arch and that made the next row connection a little difficult. But all was OK after a lot of cutting

          Click image for larger version

Name:	29.jpg
Views:	1
Size:	860.4 KB
ID:	308663Click image for larger version

Name:	30.jpg
Views:	1
Size:	849.2 KB
ID:	308664Click image for larger version

Name:	31.jpg
Views:	1
Size:	789.7 KB
ID:	308665

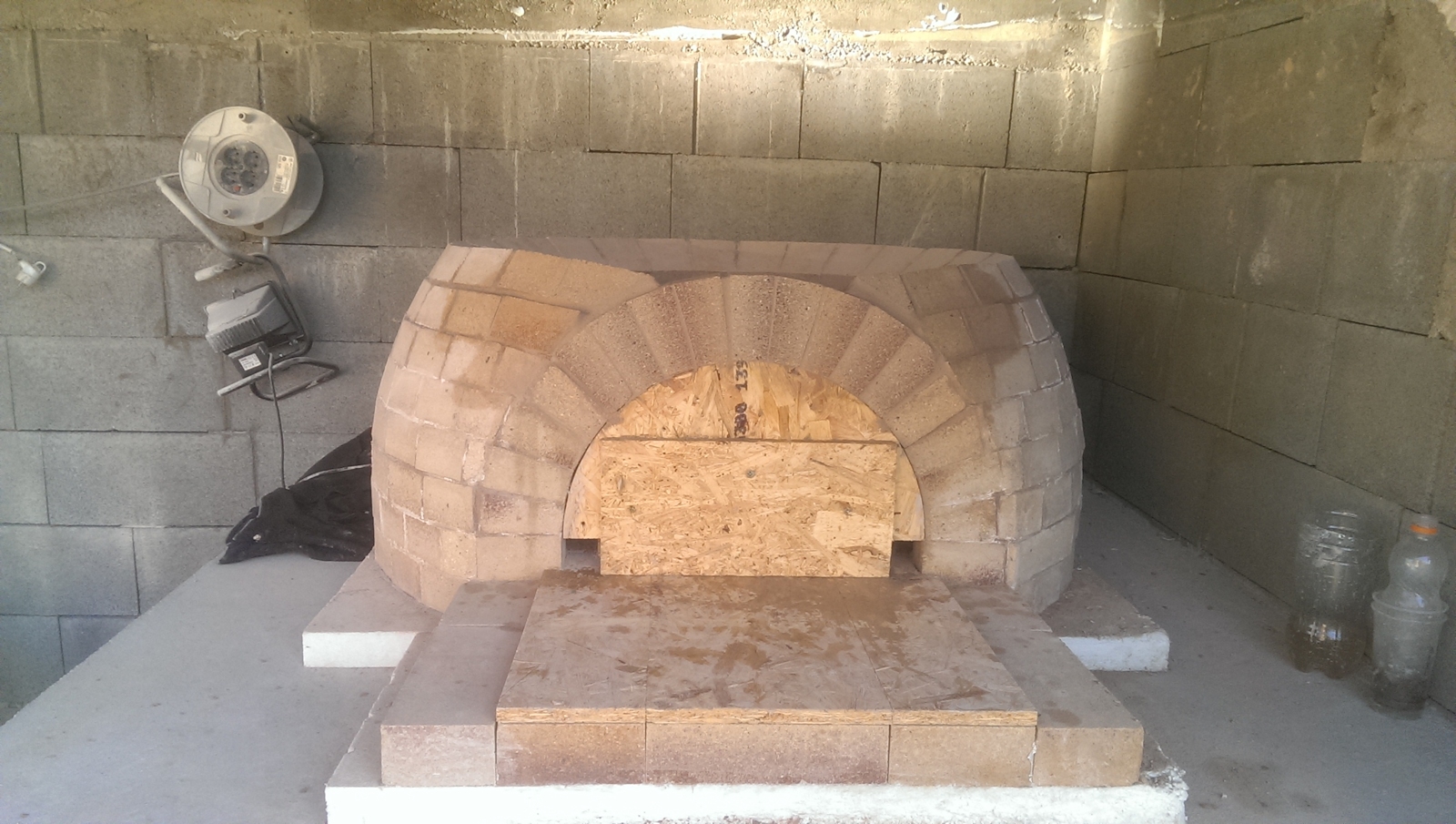

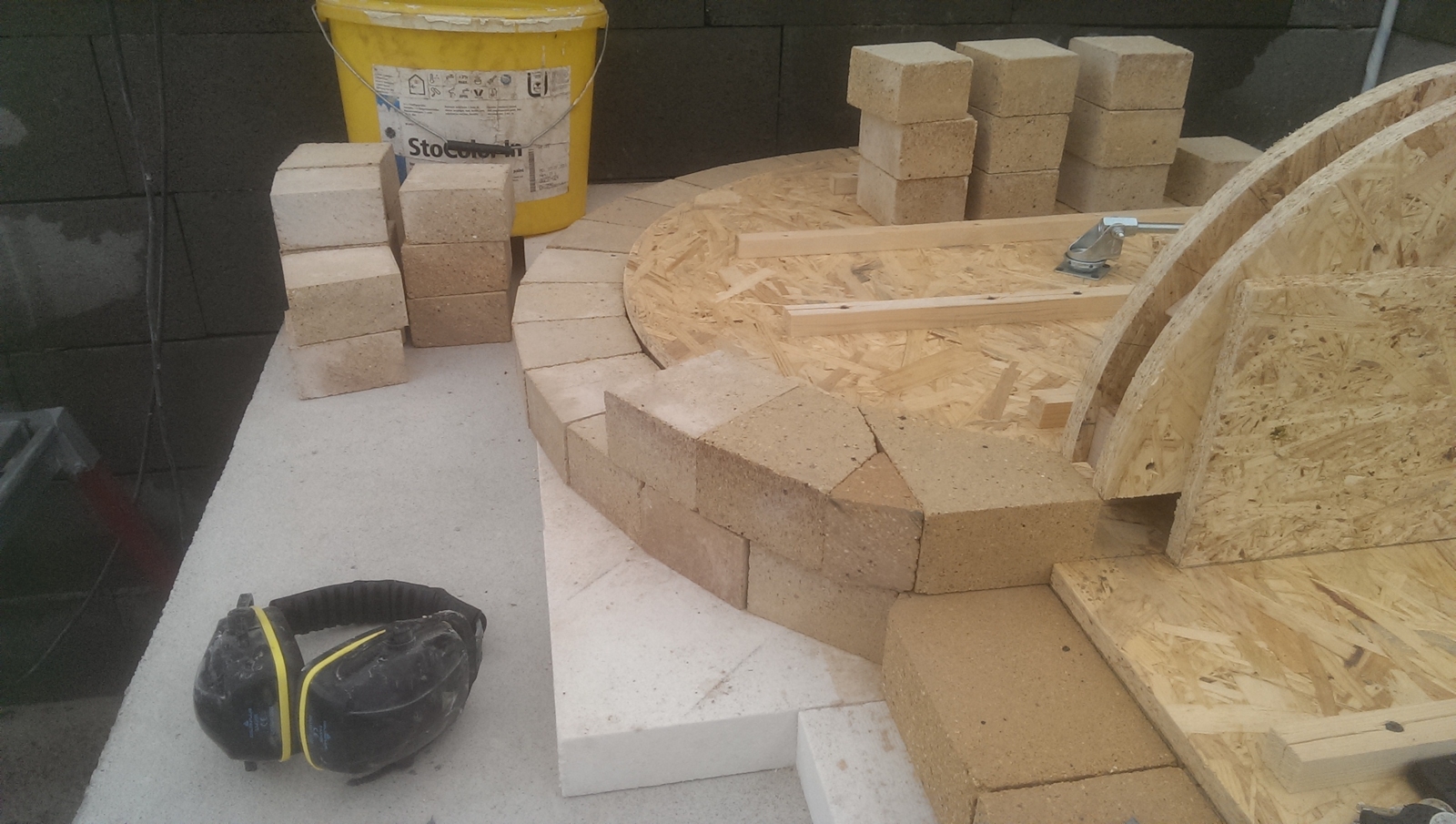

          Here you can see how my arch bricks were cut. The arch key needed to be cut in such an angle that the next row will sit right on top of it. The bricks to the left and right to this one were cut in almost the same angle, they needed to make the transition as smooth as possible.

          Click image for larger version

Name:	32.jpg
Views:	1
Size:	918.8 KB
ID:	308666Click image for larger version

Name:	33.jpg
Views:	1
Size:	984.9 KB
ID:	308667
          Alex

          Comment


          • #6
            Re: IT guy building a 39'' oven

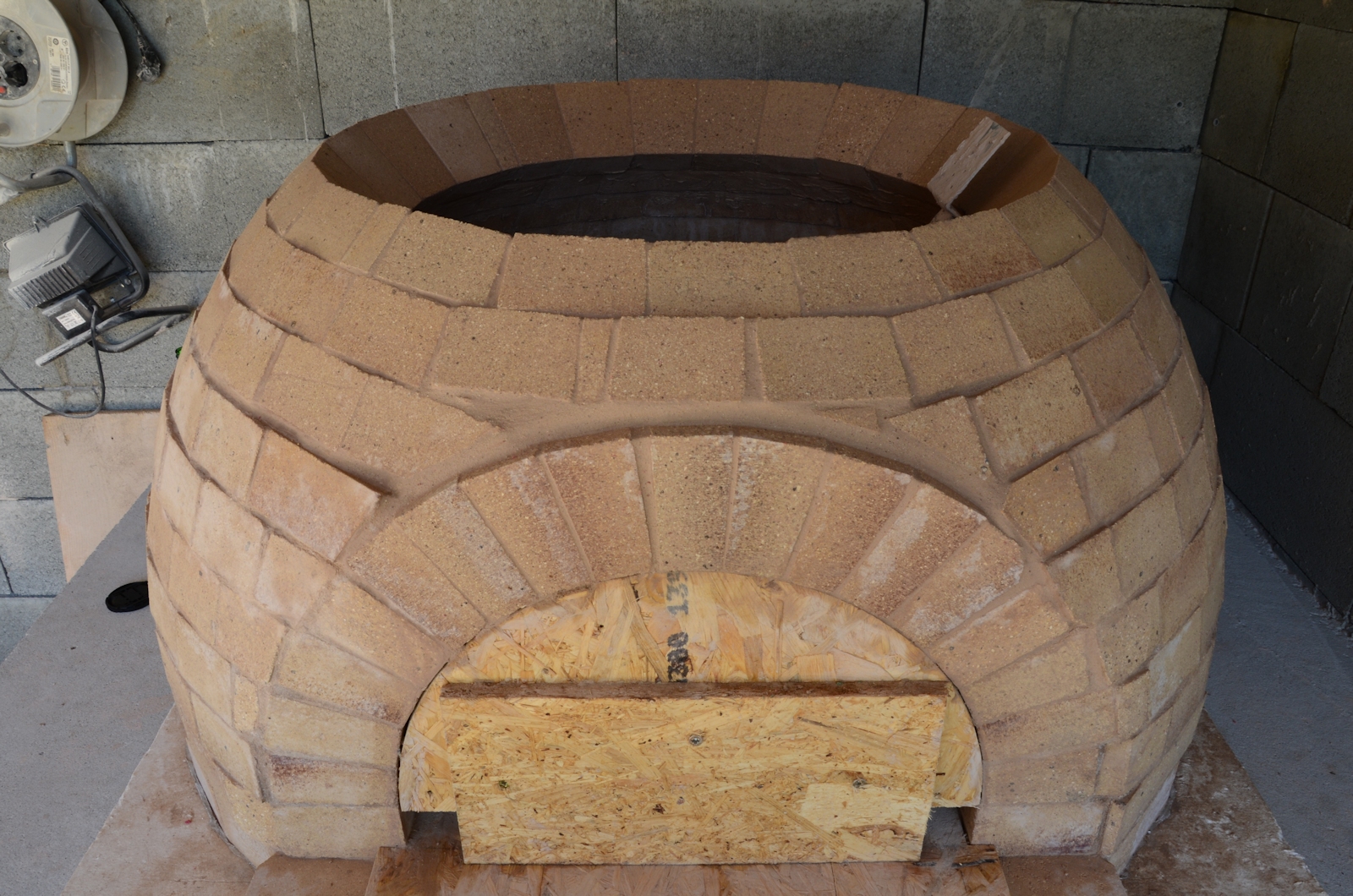

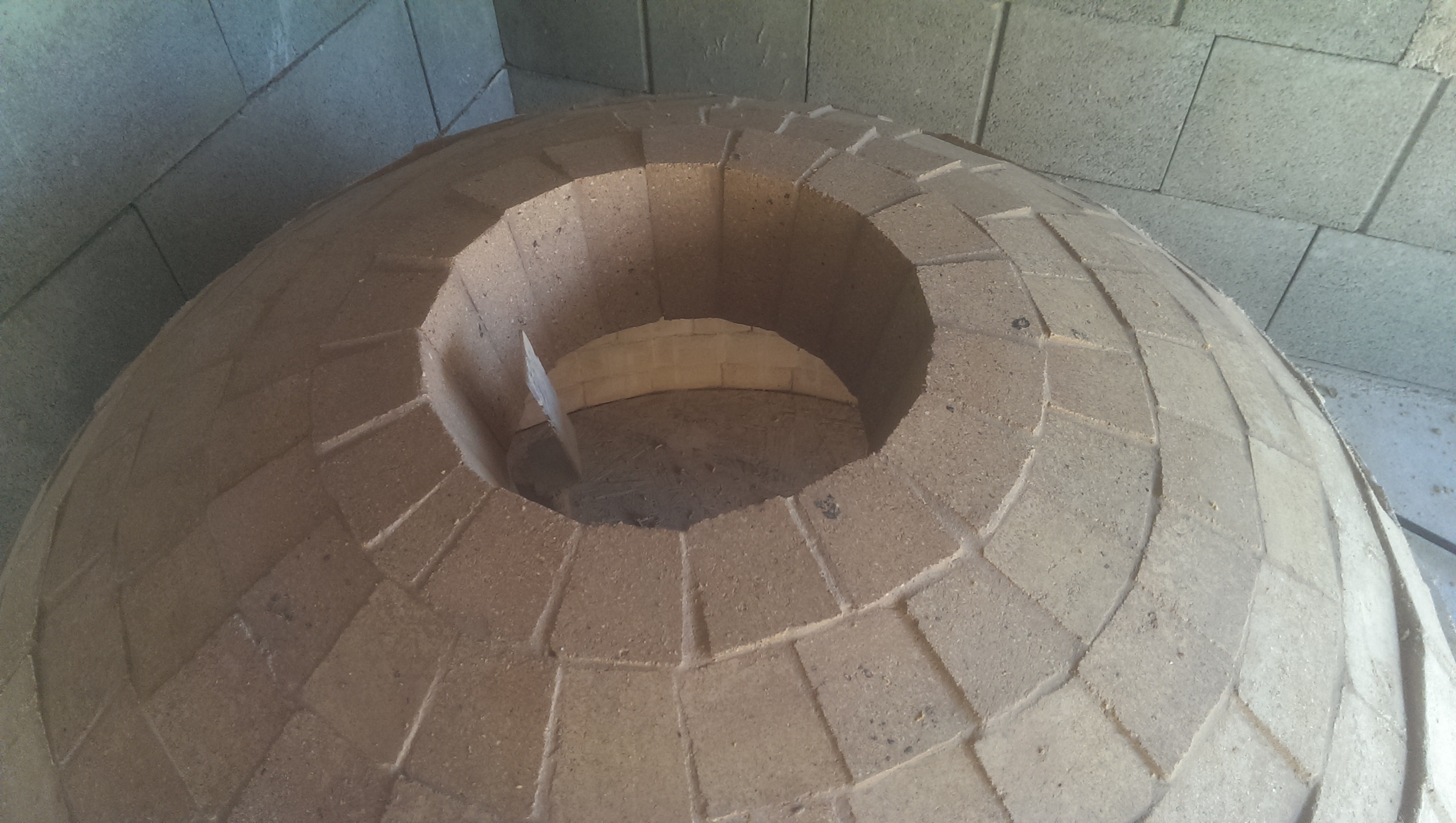

            Transition from above and front. You can see the last row dropping a little towards the arch.

            Click image for larger version

Name:	34.jpg
Views:	1
Size:	781.1 KB
ID:	308668Click image for larger version

Name:	35.jpg
Views:	1
Size:	801.4 KB
ID:	308669Click image for larger version

Name:	37.jpg
Views:	1
Size:	773.4 KB
ID:	308670Click image for larger version

Name:	38.jpg
Views:	1
Size:	739.3 KB
ID:	308671Click image for larger version

Name:	41.jpg
Views:	1
Size:	775.4 KB
ID:	308672

            Lots of rain during the last week, so I built a bigger temporary roof so that my insulation would not get wet (it did before, but it dried out OK)

            Click image for larger version

Name:	42.jpg
Views:	1
Size:	802.1 KB
ID:	308673
            Alex

            Comment


            • #7
              Re: IT guy building a 39'' oven

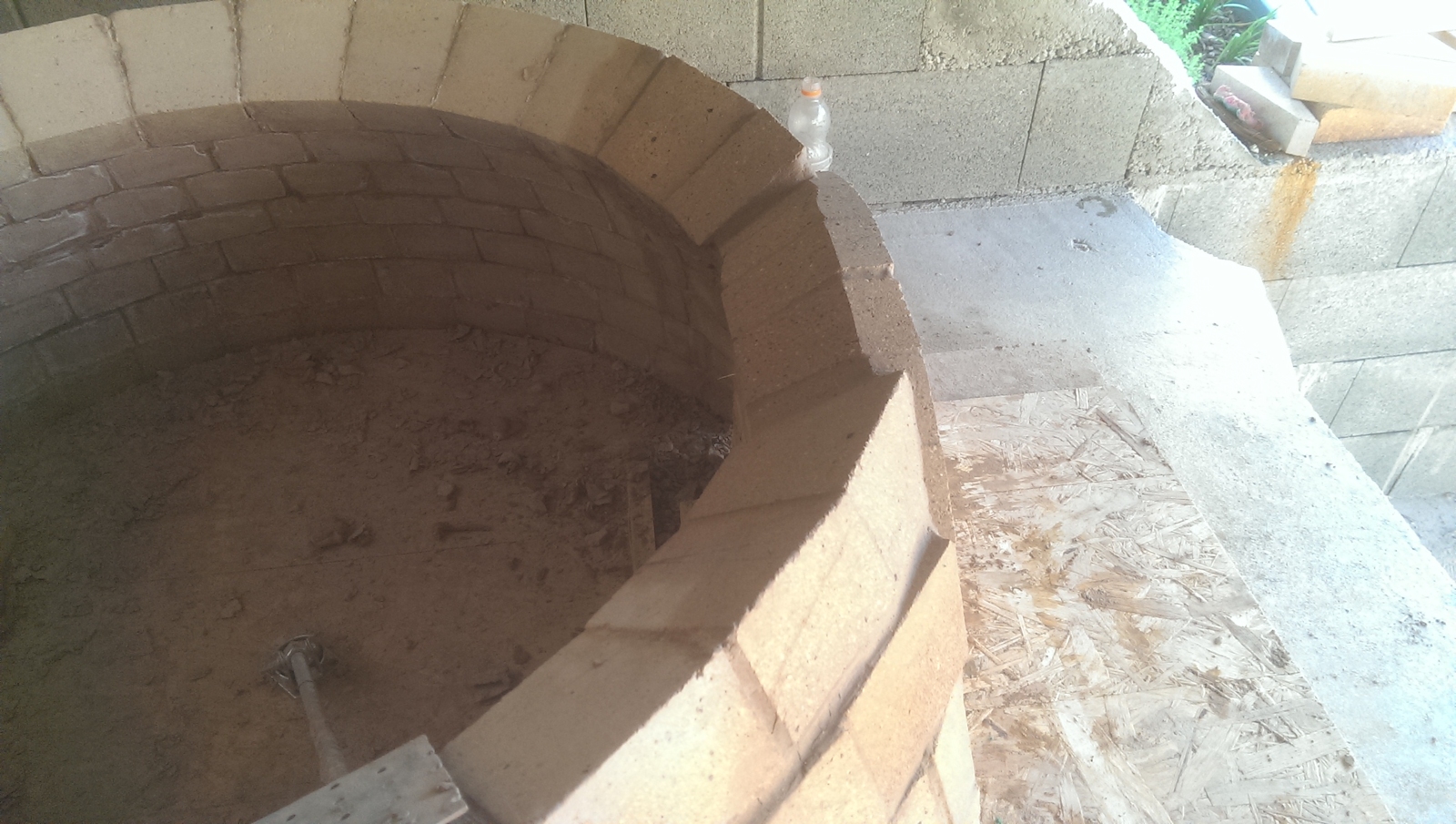

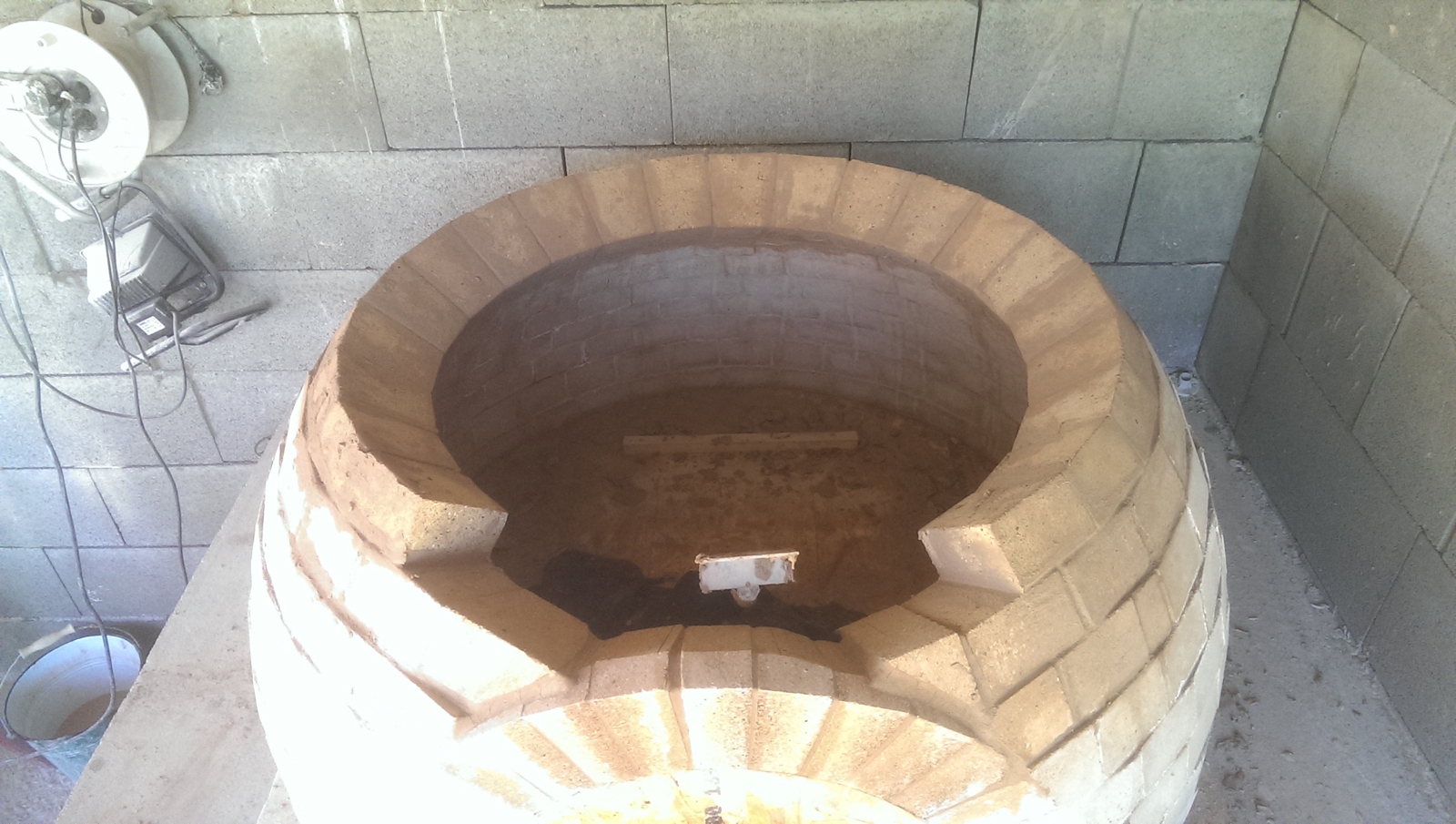

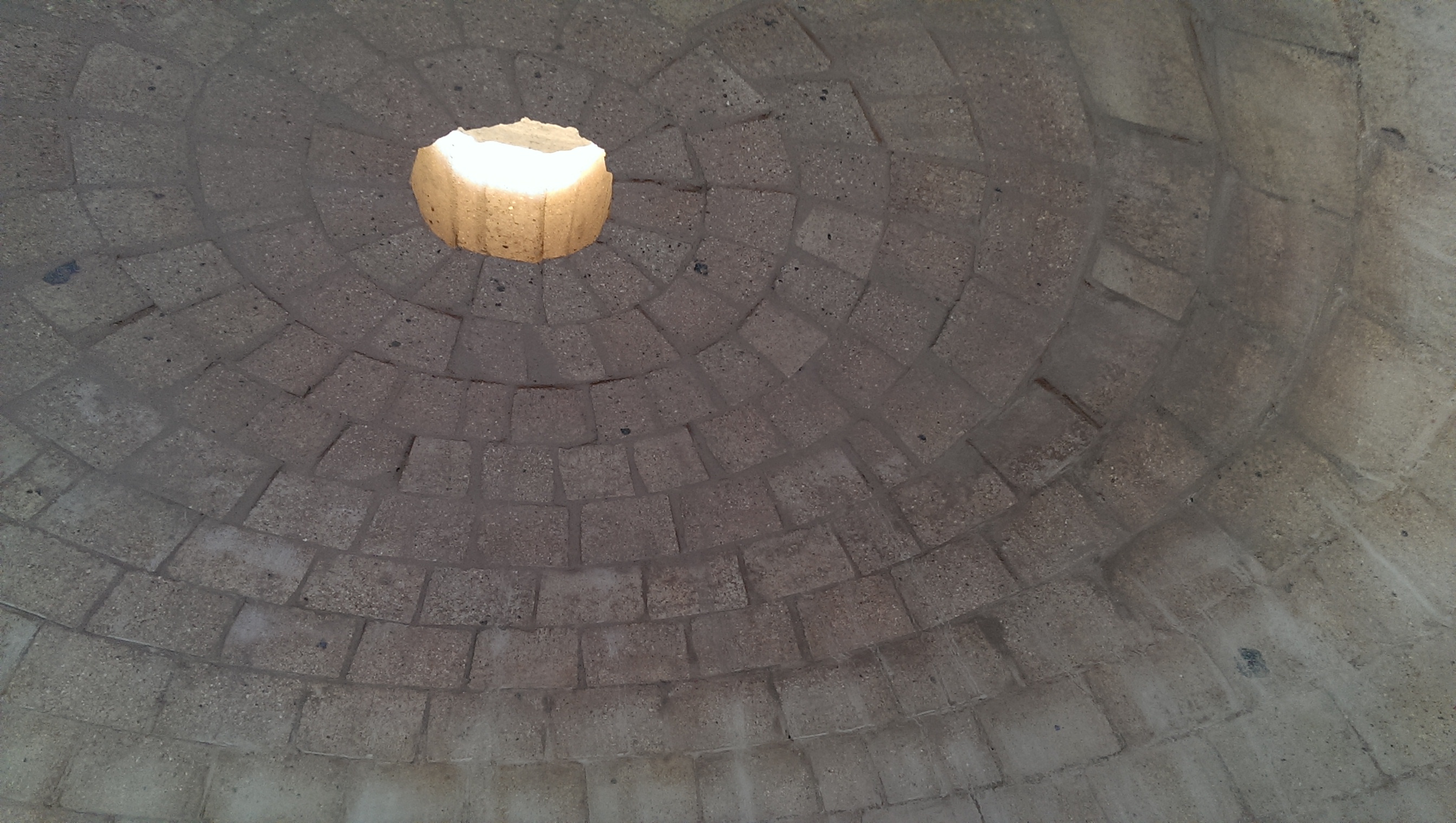

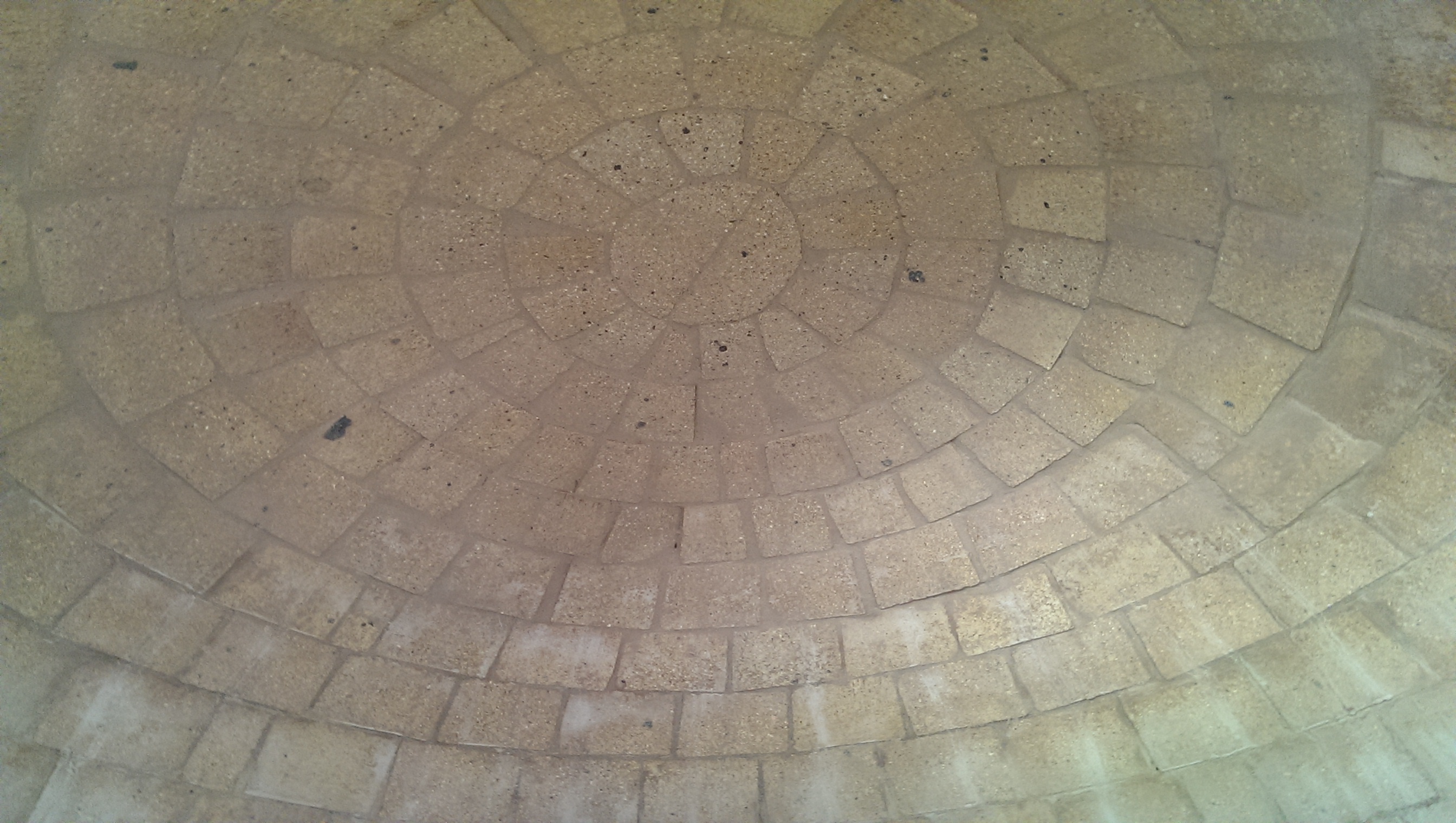

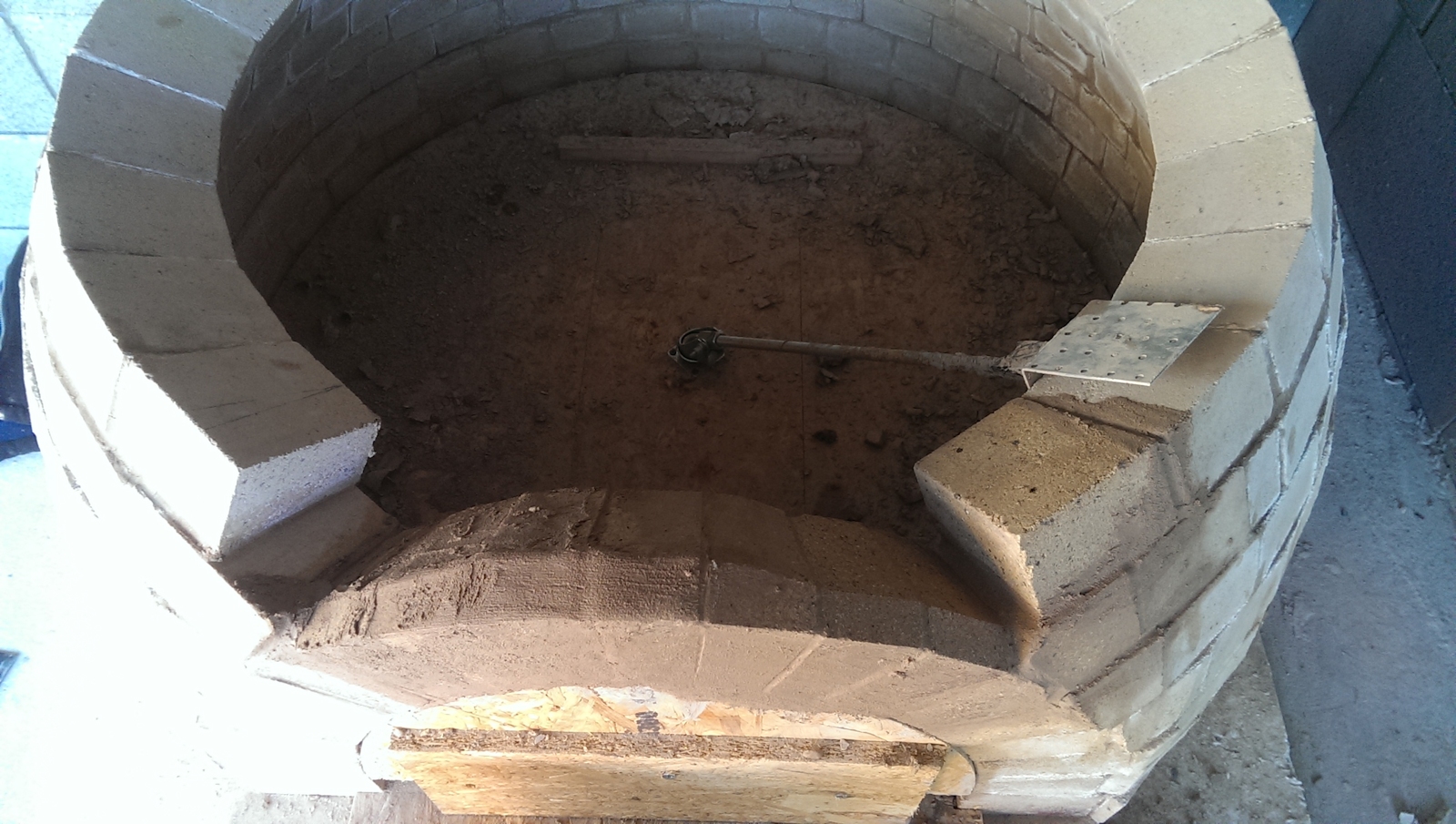

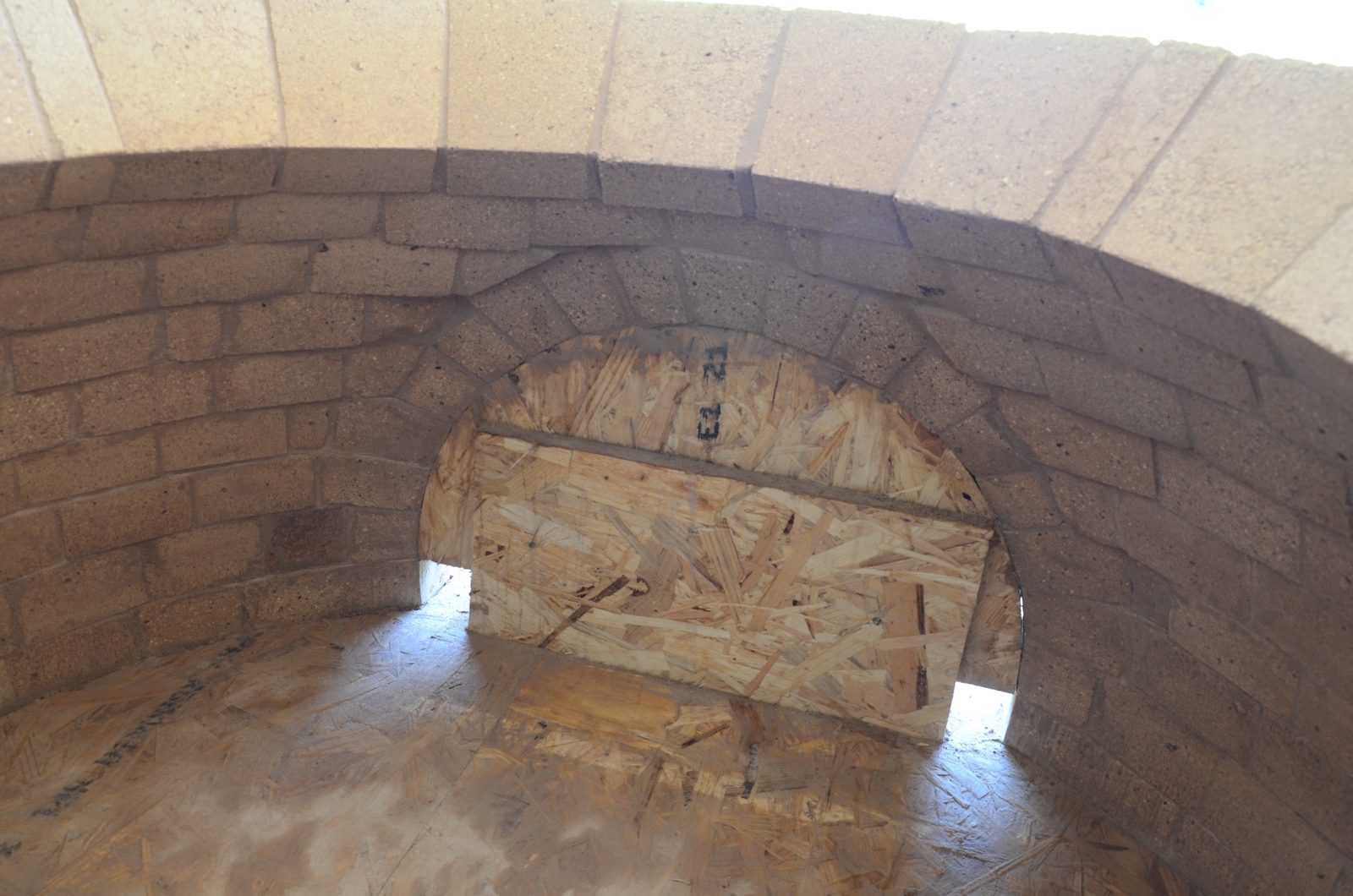

              Transition from inside... few rough corners but close to what I was aiming for. I agree I should have taken more time to do my cuts perfectly

              Click image for larger version

Name:	46.jpg
Views:	1
Size:	926.9 KB
ID:	308674Click image for larger version

Name:	43.jpg
Views:	1
Size:	1.10 MB
ID:	308675
              Alex

              Comment


              • #8
                Re: IT guy building a 39'' oven

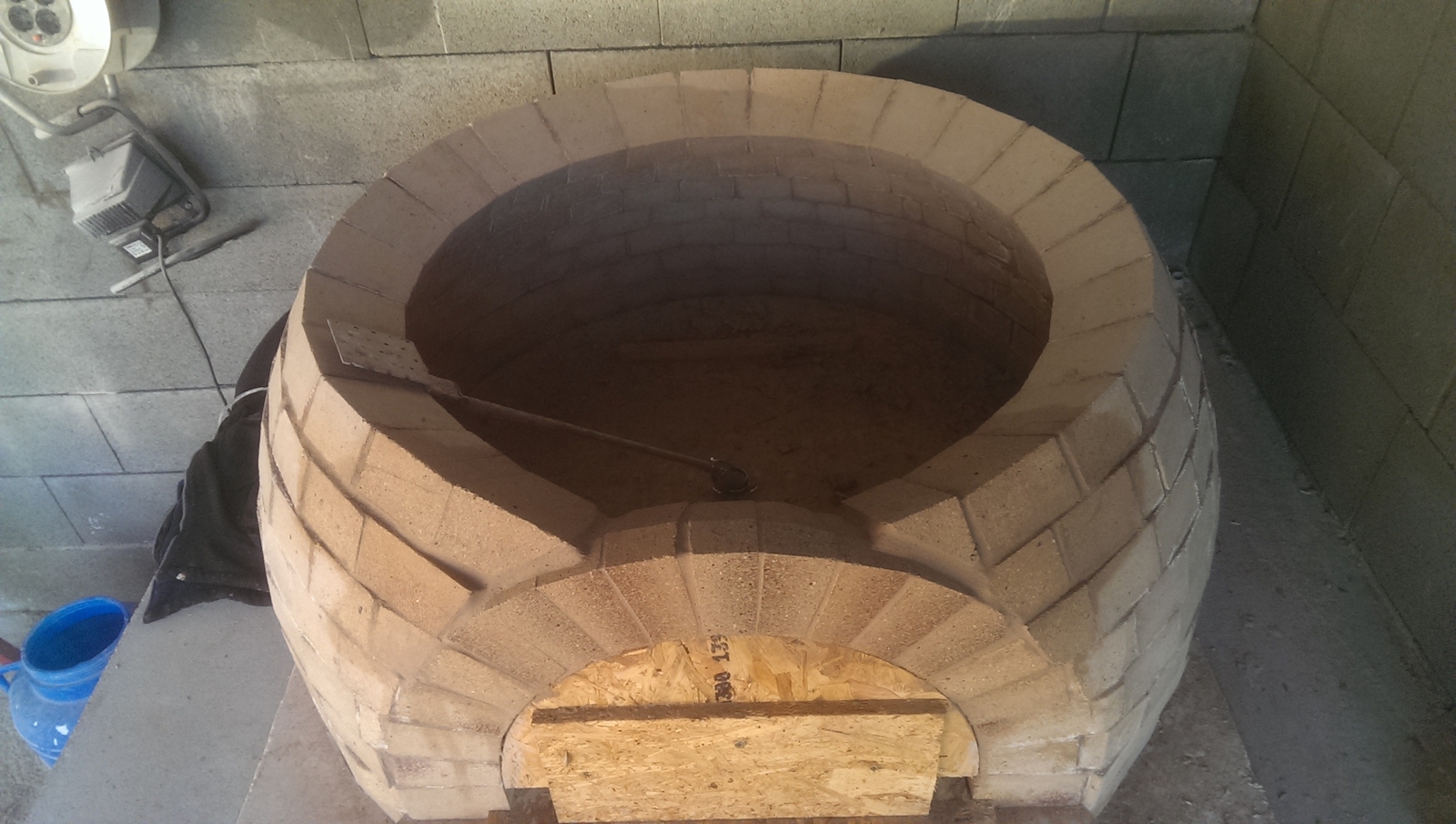

                And dome is complete !!!

                Click image for larger version

Name:	47.jpg
Views:	1
Size:	1.01 MB
ID:	308676Click image for larger version

Name:	48.jpg
Views:	1
Size:	1.28 MB
ID:	308677Click image for larger version

Name:	50.jpg
Views:	1
Size:	1.13 MB
ID:	308678Click image for larger version

Name:	51.jpg
Views:	1
Size:	619.8 KB
ID:	308679Click image for larger version

Name:	52.jpg
Views:	1
Size:	1.06 MB
ID:	308680Click image for larger version

Name:	53.jpg
Views:	1
Size:	1.18 MB
ID:	308681
                Alex

                Comment


                • #9
                  Re: IT guy building a 39'' oven

                  Looks like a nice plan and a great location. You can do it. I have a 11 month old and I just finished my dome. It can be hard but is worth the effort.

                  Randy

                  Comment


                  • #10
                    Re: IT guy building a 39'' oven

                    I will eagerly watch your build - I can already tell it is going to be great. Fellow IT guy to another.
                    Darin I often cook with wine, sometimes I even add it to the food... WC Fields Link to my build http://www.fornobravo.com/forum/f8/4...-ca-20497.html My Picasa Pics https://picasaweb.google.com/1121076...eat=directlink

                    Comment


                    • #11
                      Re: IT guy building a 39'' oven

                      It must be nice to have a wood bin that can store that much wood. You have a great vision of what you want it to look like. I eagerly await your progress.
                      Chip

                      Comment


                      • #12
                        Re: IT guy building a 39'' oven

                        Nice looking plan...Looks like you have plenty of wood ready to go.

                        Comment


                        • #13
                          Re: IT guy building a 39'' oven

                          Guys, thanks for the warm welcome and encouraging words.

                          Indeed the wood bin is large but I use a wood burning boiler so that is enough for 3 winters. Also behind my yard there is an abandoned apple orchard so I have also apple wood from branches that needed to be cut anyway. From past experience I can say that apple burns really really well.

                          About the build, the dome is closed now but I am still waiting for my posts to be approved so you can see and comment my work

                          Next work is to do the entry arch and the smoke flue, I am aiming for the following weekend, the guys that will build the wooden framework for the outside kitchen will arrive this week and they will step on my toes
                          Alex

                          Comment


                          • #14
                            Re: IT guy building a 39'' oven

                            Plan looks good. It will be interesting to watch your progress. It doesn't matter how long it takes if there is some steady progress. The record for the longest build is quite significant and will take some catching.
                            Cheers ......... Steve

                            Build Thread http://www.fornobravo.com/forum/f3/n...erg-19151.html

                            Build Pics http://www.facebook.com/media/set/?s...1&l=1626b3f4f4

                            Forno Food Pics https://www.facebook.com/media/set/?...1&l=1d5ce2a275

                            Comment


                            • #15
                              Re: IT guy building a 39'' oven

                              What is the record for the longest build? I would guess 4 years.
