    G’day Colin
    you might want to check out “the other oven types section” v12spirit has made a welcome appearance and made mention of yourself
    regards Dave

    Leave a comment:


  • oasiscdm
    replied
    Have been a bit scarce but ver busy. Have my Verandah frame completed and approved now.

    I will post some photos shortly.

    Leave a comment:


  • oasiscdm
    replied
    And the Verandah and Deck continues
    .Click image for larger version  Name:	IMG_20201213_191932.jpg Views:	0 Size:	675.2 KB ID:	434904 Click image for larger version  Name:	IMG_20201213_191854.jpg Views:	0 Size:	706.3 KB ID:	434905 Click image for larger version  Name:	IMG_20210114_095540.jpg Views:	0 Size:	37.4 KB ID:	434906 Click image for larger version  Name:	IMG_20210114_095553.jpg Views:	0 Size:	114.7 KB ID:	434907 Click image for larger version  Name:	IMG_20210114_095559.jpg Views:	0 Size:	105.3 KB ID:	434908
    Last edited by oasiscdm; 01-17-2021, 04:43 AM.

    Leave a comment:


  • oasiscdm
    replied
    and some more. had to stop oven and begin verandah deck construction

    Click image for larger version

Name:	IMG_20201128_182026.jpg
Views:	100
Size:	690.4 KB
ID:	434901 Click image for larger version

Name:	IMG_20201129_171954.jpg
Views:	100
Size:	629.7 KB
ID:	434902 Click image for larger version

Name:	IMG_20200912_204903.jpg
Views:	136
Size:	281.6 KB
ID:	434897 Click image for larger version

Name:	IMG_20200912_204821.jpg
Views:	97
Size:	246.6 KB
ID:	434898 Click image for larger version

Name:	IMG_20200831_145405.jpg
Views:	102
Size:	410.4 KB
ID:	434899 Click image for larger version

Name:	IMG_20200914_143112.jpg
Views:	99
Size:	365.0 KB
ID:	434900

    Leave a comment:


  • oasiscdm
    replied
    Click image for larger version

Name:	image_93774.jpg
Views:	148
Size:	620.2 KB
ID:	434890 Click image for larger version

Name:	image_93775.jpg
Views:	102
Size:	462.1 KB
ID:	434891 Click image for larger version

Name:	image_93776.jpg
Views:	96
Size:	529.4 KB
ID:	434892 Click image for larger version

Name:	image_93777.jpg
Views:	97
Size:	623.3 KB
ID:	434893 Click image for larger version

Name:	image_93778.jpg
Views:	100
Size:	493.3 KB
ID:	434894 Click image for larger version

Name:	image_93779.jpg
Views:	102
Size:	522.6 KB
ID:	434895 here are some photos of progress

    Leave a comment:


  • oasiscdm
    replied
    Hi All

    Just checking in.

    Oven is pretty much on hold as I have had to begin construction on our Verandah and Deck. As my partner son's landscaping team have completed all the holes for the verandah posts and deck stumps. I have managed to get these concreted and all jbearers and oists installed for the deck. This weekend managed to get 6 posts installed with 2 left to install.

    Oven base completed and I'm up to the hearth but alas I have no room to set up the brick saw.

    Will post photos soon.


    Last edited by oasiscdm; 01-17-2021, 02:23 AM.

    Leave a comment:


  • oasiscdm
    replied
    And some more. The flue is double skinned and insulated.

    I researched this to death and found a place in South Australia called Timeless Classic wood Stoves https://www.timelessclassicwoodstoves.com/

    The flue is 8" internal diameter made up of 1 metre, 250mm, tree cowl and a step down double to single for the anti down draft cowl. I will weld a 300 x 300 stainless plate to the bottom of the 250mm flue to act as the mount base with a hole cut out. Flue bits $500 + $59 delivery. Possibly overkill but flue I previously used on the first build l paid the same amount for shipped from the US. That one is now well over $1200. So being able to source in Australia was a bonus.

    The flue will be longer than the last one by about 300 so should aid drawing more.


    Click image for larger version  Name:	image_91920.jpg Views:	3 Size:	281.1 KB ID:	428958 Click image for larger version  Name:	IMG_20200824_102233.jpg Views:	0 Size:	281.8 KB ID:	428960 Click image for larger version  Name:	IMG_20200822_130445.jpg Views:	0 Size:	395.2 KB ID:	428961 Click image for larger version  Name:	IMG_20200827_162942.jpg Views:	0 Size:	274.9 KB ID:	428962 Click image for larger version  Name:	IMG_20200827_163009.jpg Views:	0 Size:	346.7 KB ID:	428963 IMG_20200818_091326.jpg
    Attached Files
    Last edited by oasiscdm; 08-28-2020, 02:43 AM.

    Leave a comment:


  • oasiscdm
    replied

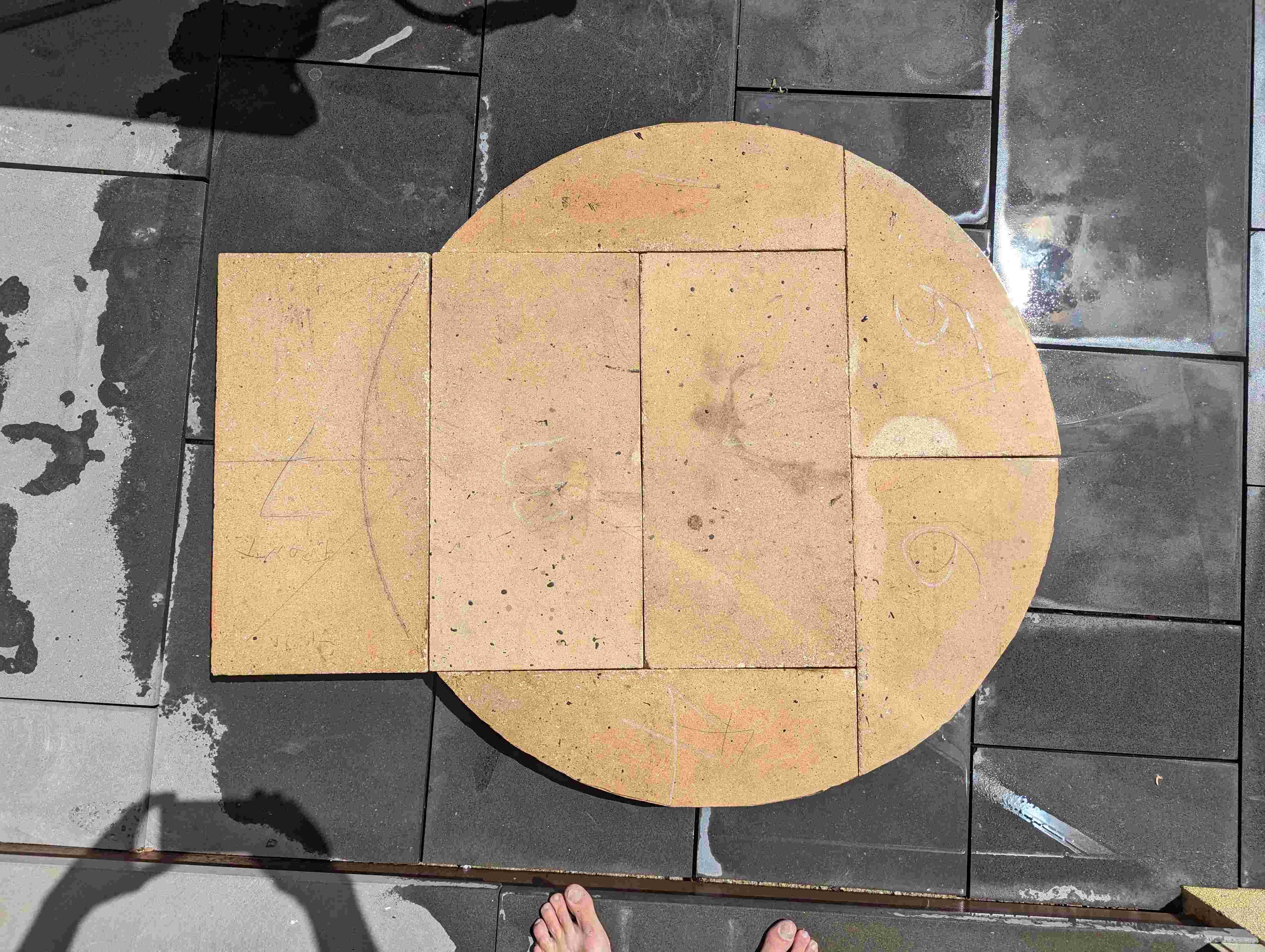

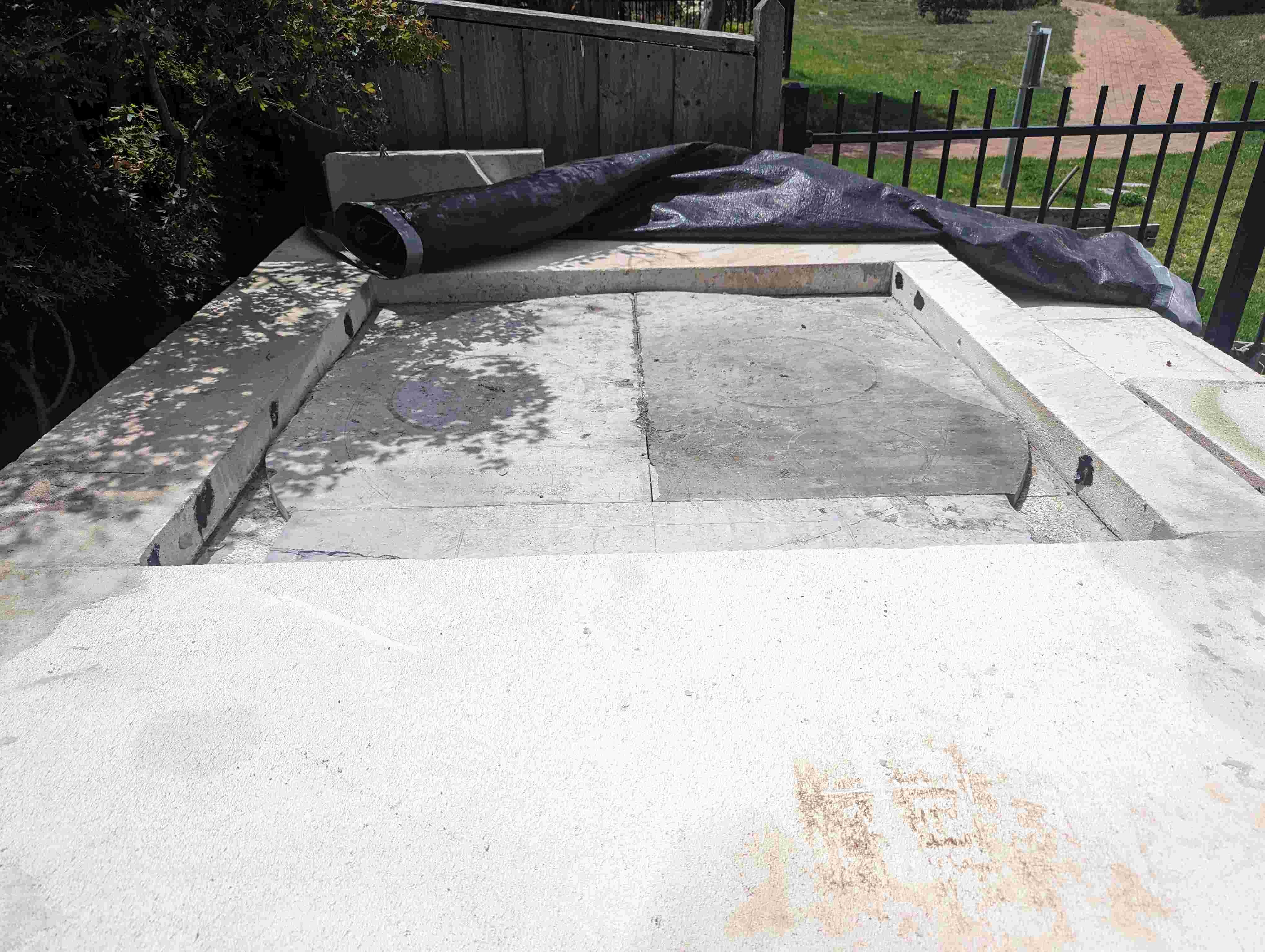

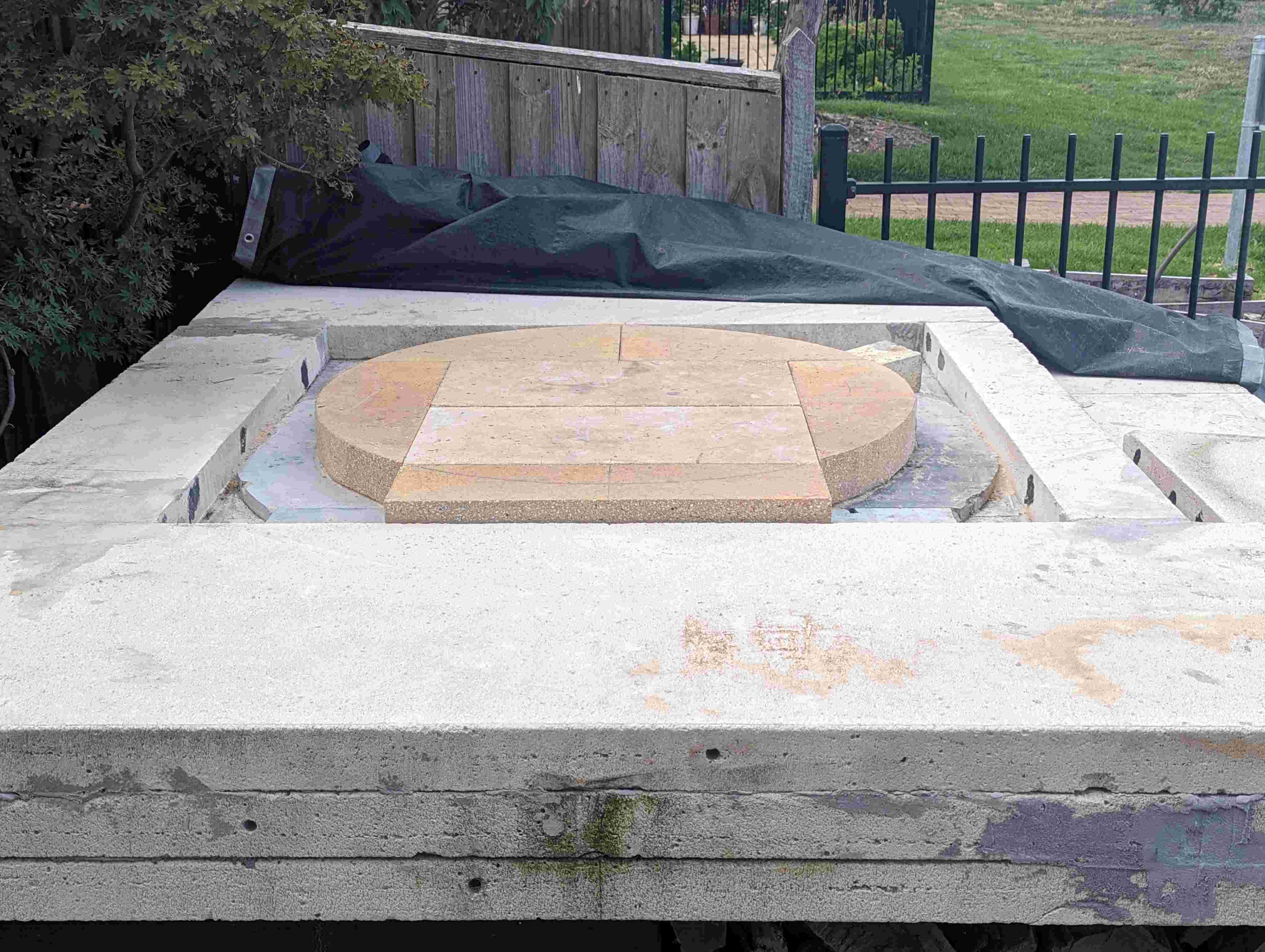

    Managed to get various bits happening, base finished, templates done and flue arrived. The insulation tiles are 230 x 600 x 75mm. The firebrick tiles 610 x 305 x 75 and are bloody heavy.

    Click image for larger version  Name:	image_91913.jpg Views:	3 Size:	568.2 KB ID:	428951 Click image for larger version  Name:	image_91914.jpg Views:	2 Size:	436.1 KB ID:	428952 Click image for larger version  Name:	image_91915.jpg Views:	2 Size:	715.4 KB ID:	428953 Click image for larger version  Name:	image_91917.jpg Views:	2 Size:	361.6 KB ID:	428954 Click image for larger version  Name:	image_91918.jpg Views:	2 Size:	338.0 KB ID:	428955 Click image for larger version  Name:	image_91919.jpg Views:	2 Size:	379.7 KB ID:	428956
    Last edited by oasiscdm; 08-28-2020, 02:45 AM.

    Leave a comment:


  • Paul W
    replied
    Hi Colin,
    Thanks for all the information and tips, will no doubt help with my build and I will check out the links, did you order an anchor plate from there aswell, I don't know much about them or where to get them here? thanks again,
    Last edited by Paul W; 08-23-2020, 05:41 AM.

    Leave a comment:


  • oasiscdm
    replied
    Hi Paul

    The top is 2200x2400 on a 2200x2200 base. As for the front I purchased extra bricks when i built the first oven so the front will be the same. The flue I used was imported from the US however they are now nearly $500 more. I sourced my flue in Australia this time and actually I purchased it last week and waiting for delivery. It is double insulated - checkout Timeless Classic Wood Stoves - they are in SA and only charged $65 delivery.

    The first oven held up really well virtually no smoke coming out the front staining the brickwork. It drew very well so tapering the flue gallery really helps there
    no i like for this one as I knew i would be moving. The only thing i will do differently is the pentagram feature

    What I would change is the base had no work area and I like the look of a seamless height eg hearth and external table at same height. If your look hard at the first oven I did not like the bottom of the red brick arch it looked crooked this time. Plus I needed to have a wood storage space as there is no where else to store wood, it will hold about 2sqm of wood.

    Your chimney idea sounds aesthetic just ensure it is at least 200mm internal dimension and try to bevel the internal from 250-300 to the 200 at the gallery entry point to flue so it is a smooth transition. You will see this at https://community.fornobravo.com/for...201#post232201 check out pages either side.
    Last edited by oasiscdm; 08-15-2020, 05:20 PM.

    Leave a comment:


  • Paul W
    replied
    Hi Colin,
    Massive full on foundations, looking forward to seeing this oven get built,I plan on building my oven similar to your first with the red brick front, Is there much you would do differently with the red brick front and chimney? did it hold up well? I was planning to build chimney up about 1mtr above oven then transition to 8" stainless flue.

    Leave a comment:


  • oasiscdm
    replied
    And some more

    Click image for larger version

Name:	IMG_20200810_150029.jpg
Views:	137
Size:	528.5 KB
ID:	428055 Click image for larger version

Name:	IMG_20200812_121003.jpg
Views:	122
Size:	523.4 KB
ID:	428056 Click image for larger version

Name:	IMG_20200811_160009.jpg
Views:	110
Size:	591.4 KB
ID:	428057 Click image for larger version

Name:	IMG_20200815_160857.jpg
Views:	127
Size:	516.9 KB
ID:	428058 Click image for larger version

Name:	IMG_20200815_141844.jpg
Views:	125
Size:	622.6 KB
ID:	428059

    Leave a comment:


  • oasiscdm
    replied
    Hi All

    I have managed to get a bit more done to base. Even thought we are in lock down due to CoVid i still am able to put in a full week 40 hour week with work.
    Click image for larger version

Name:	IMG_20200809_164333.jpg
Views:	116
Size:	400.2 KB
ID:	428049 Click image for larger version

Name:	IMG_20200802_163207.jpg
Views:	110
Size:	633.2 KB
ID:	428050 Click image for larger version

Name:	IMG_20200810_150017.jpg
Views:	111
Size:	498.6 KB
ID:	428051 Click image for larger version

Name:	IMG_20200809_164349.jpg
Views:	116
Size:	461.0 KB
ID:	428052 Click image for larger version

Name:	IMG_20200802_141831.jpg
Views:	107
Size:	617.0 KB
ID:	428053 Click image for larger version

Name:	IMG_20200809_164322.jpg
Views:	133
Size:	450.8 KB
ID:	428048

    Leave a comment:


  • oasiscdm
    replied
    HI
    I have manged to get a little further 1st sealing coat done. 2nd tomorrow, after a little tidy up in certain spots.

    Click image for larger version

Name:	IMG_20200725_145732.jpg
Views:	156
Size:	714.7 KB
ID:	426559 Click image for larger version

Name:	IMG_20200725_145713.jpg
Views:	133
Size:	717.7 KB
ID:	426560 Click image for larger version

Name:	IMG_20200725_145707.jpg
Views:	134
Size:	675.6 KB
ID:	426561 Click image for larger version

Name:	IMG_20200725_145648.jpg
Views:	149
Size:	596.4 KB
ID:	426557 Click image for larger version

Name:	IMG_20200725_164315.jpg
Views:	138
Size:	674.5 KB
ID:	426558

    Leave a comment:


  • oasiscdm
    replied
    Hi Russell

    I am in process of cleaning garage as we moved all our bullshit items from inside the house to garage, old stereo system etc as i am moving towards everything being wireless no wires.

    Once i have room in garage i am looking at developing an idea i have had to create an adjustable metal ring that fits each course allowing the each ring of fire bricks to sit against this ring so a whole chain can be layed with no mortar, the last brick locks everything into place.

    Just an idea, i am playing with to use spring force to hold the courses in place.

    But alas i need to get final colour on base, table top on and then get the insulation layers and hearth bricks in place.

    No we are locked down hopefully can get more done not having anywhere to go.

    Leave a comment:
