    I ordered the concrete for Tuesday. I'll may play around with cutting a few bricks. But, other than that nothing happening until that point.
    What comes easy won't last long, and what lasts long won't be easy.

    Comment

    • Chris inPA
      Apprentice
      • Jul 2020
      • 104

      #47

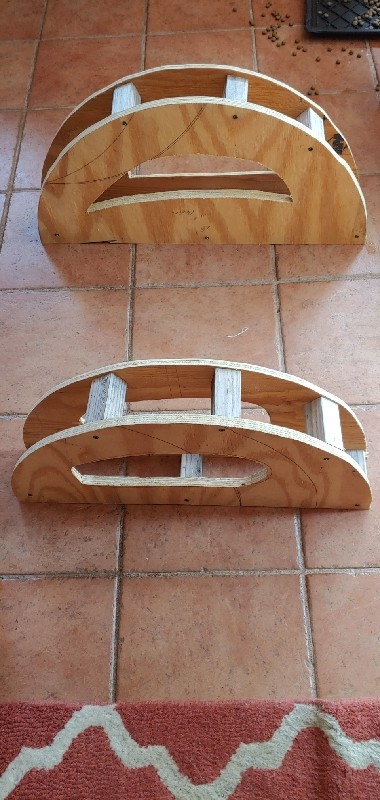

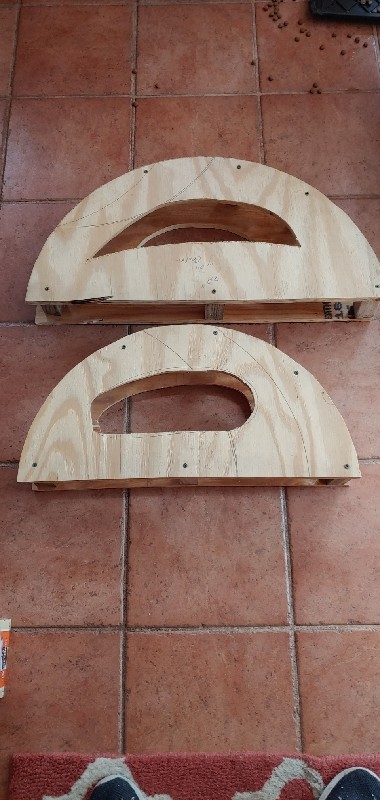

      Inner and outet arch forms complete.
      Attached Files
      What comes easy won't last long, and what lasts long won't be easy.

      Comment

      • Chris inPA
        Apprentice
        • Jul 2020
        • 104

        #48

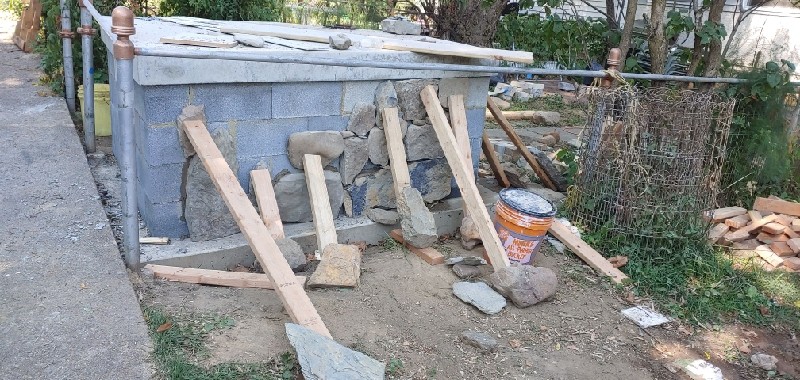

        Another view.
        Attached Files
        What comes easy won't last long, and what lasts long won't be easy.

        Comment

        • Chris inPA
          Apprentice
          • Jul 2020
          • 104

          #49
          Again.
          Let's try this picture.
          Attached Files
          What comes easy won't last long, and what lasts long won't be easy.

          Comment

          • Chris inPA
            Apprentice
            • Jul 2020
            • 104

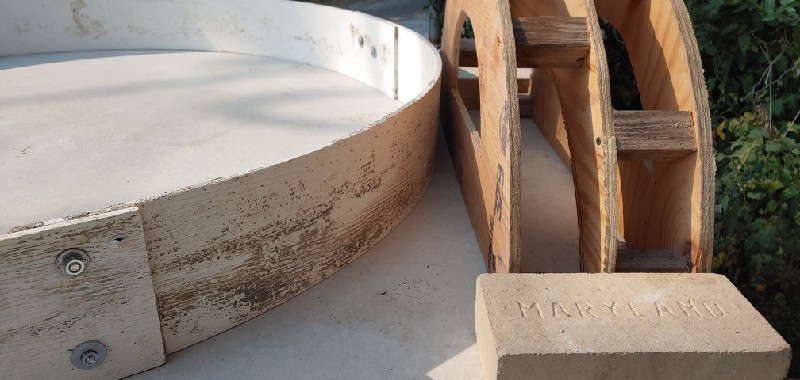

            #50
            Outside arch is 28"
            Inner arch is 24".

            Both are cut a quarter inch short with the intention of shimming to the proper height.
            What comes easy won't last long, and what lasts long won't be easy.

            Comment

            • Chris inPA
              Apprentice
              • Jul 2020
              • 104

              #51

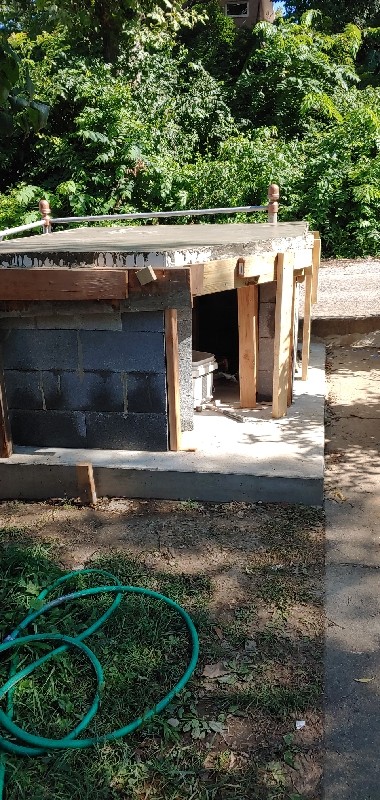

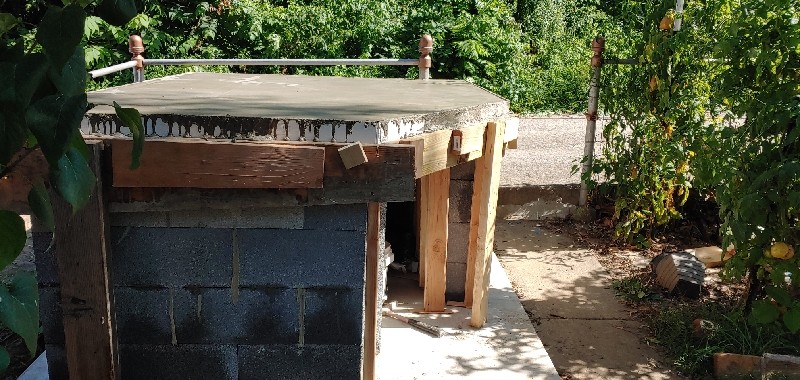

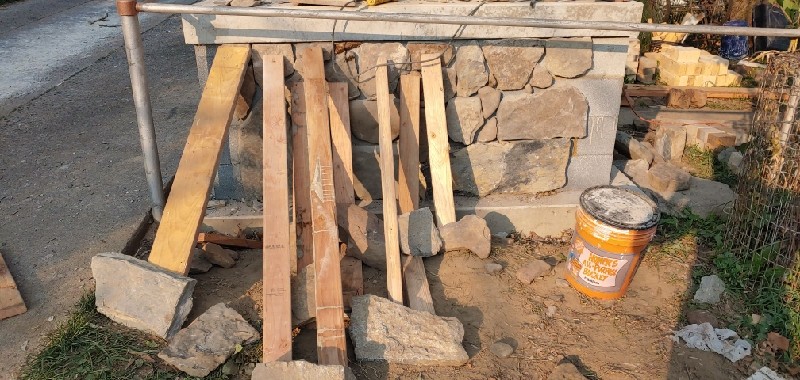

              Hearth poured today.

              Attached Files
              What comes easy won't last long, and what lasts long won't be easy.

              Comment

              • Chris inPA
                Apprentice
                • Jul 2020
                • 104

                #52

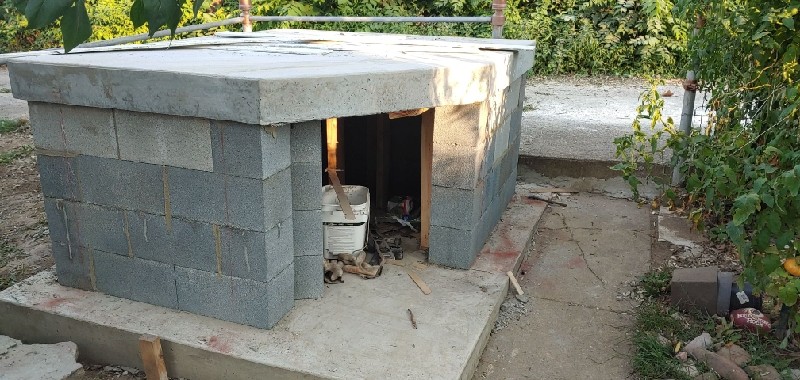

                I stripped off the forms from the hearth today.

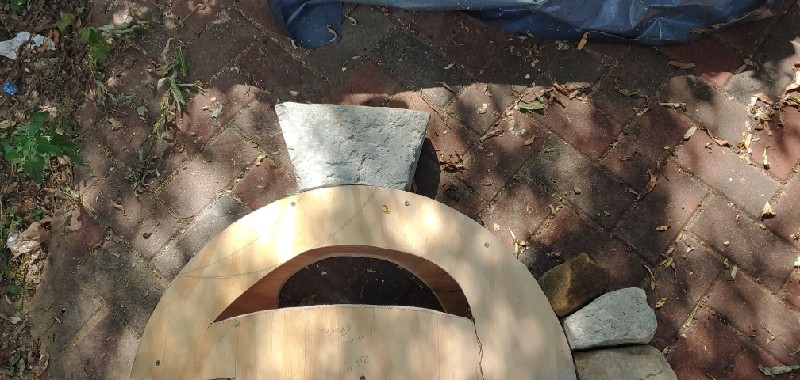

                I made a custom Keystone for the outer arch.
                Attached Files
                What comes easy won't last long, and what lasts long won't be easy.

                Comment

                • Chris inPA
                  Apprentice
                  • Jul 2020
                  • 104

                  #53
                  Angle grinder, diamond blade, sweat, and words I don't say in Church.
                  Attached Files
                  What comes easy won't last long, and what lasts long won't be easy.

                  Comment

                  • Chris inPA
                    Apprentice
                    • Jul 2020
                    • 104

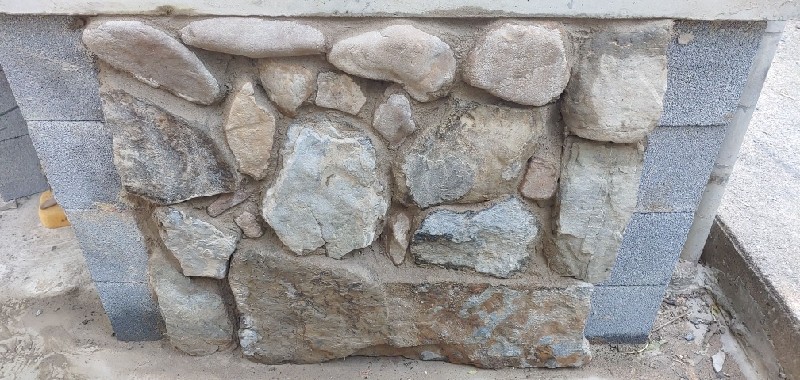

                    #54

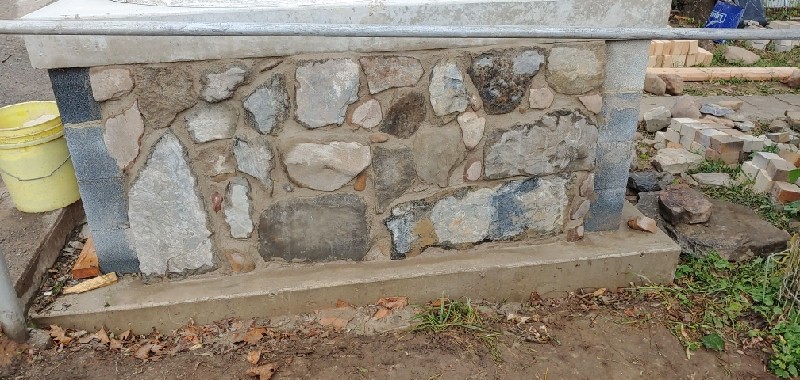

                    Waiting for my perlite to arrive. So, I started covering the blocks with a stone vernier. mongota Thank you again for that idea. I'll pour columns on the ends afterwards. Perhaps I should have poured the columns 1st.
                    Attached Files
                    What comes easy won't last long, and what lasts long won't be easy.

                    Comment

                    • Chris inPA
                      Apprentice
                      • Jul 2020
                      • 104

                      #55
                      UtahBeehiver , looking at the pictures of your build, it looks like the bricks comprising your inner arch aren't the full 9" in depth. They look to be 6" in length. Am I correct in that assumption?

                      Chach My original build thread.
                      What comes easy won't last long, and what lasts long won't be easy.

                      Comment

                      • UtahBeehiver
                        Member Moderator
                        • May 2012
                        • 5262

                        #56
                        With a tapered inner arch you need to start with a full length brick (9") not 1/2 bricks as a basis. However, they are cut based on the IT for the inside and outside of the dome. The longest brick is the top dead center of the arch since the dome moves away the farthest from the inner arch. On tapered inner arches each brick is slightly different so you cannot cut them all the same. This is one of the most difficult concept for builders to mentally visualize but you get a "ah hah" moment as the arch takes shape. It is best to pre-lay the full arch out rather than cut as you go.
                        Russell
                        https://photos.google.com/album/AF1Q...L9lr_UnUgJbF3Z

                        Comment

                        • Chris inPA
                          Apprentice
                          • Jul 2020
                          • 104

                          #57
                          UtahBeehiver What I meant was in the pictures of your build, there's one picture in particular that looks like a 6" brick aside of the taper cut brick aside of your template. It's definitely not a 1/2 brick, but it doesn't look like a full 9" either.
                          What comes easy won't last long, and what lasts long won't be easy.

                          Comment

                          • Chris inPA
                            Apprentice
                            • Jul 2020
                            • 104

                            #58

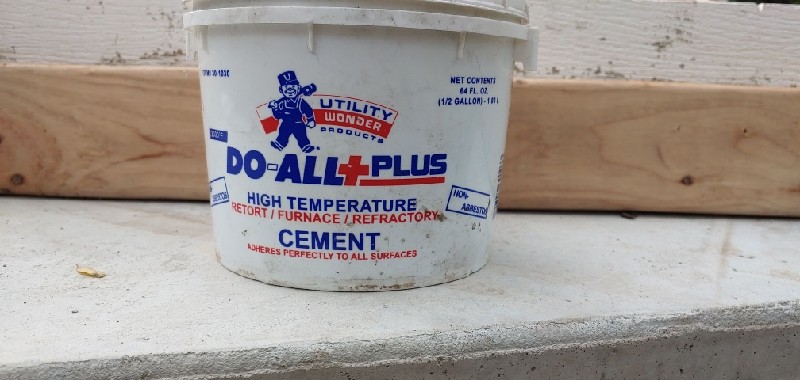

                            I found some refractory cement in Marketplace. I got 6 of the 1/2 gallon tubs for $20.00.
                            Attached Files
                            What comes easy won't last long, and what lasts long won't be easy.

                            Comment

                            • Chris inPA
                              Apprentice
                              • Jul 2020
                              • 104

                              #59
                              What the wall looks like pointed.
                              Attached Files
                              What comes easy won't last long, and what lasts long won't be easy.

                              Comment

                              • UtahBeehiver
                                Member Moderator
                                • May 2012
                                • 5262

                                #60

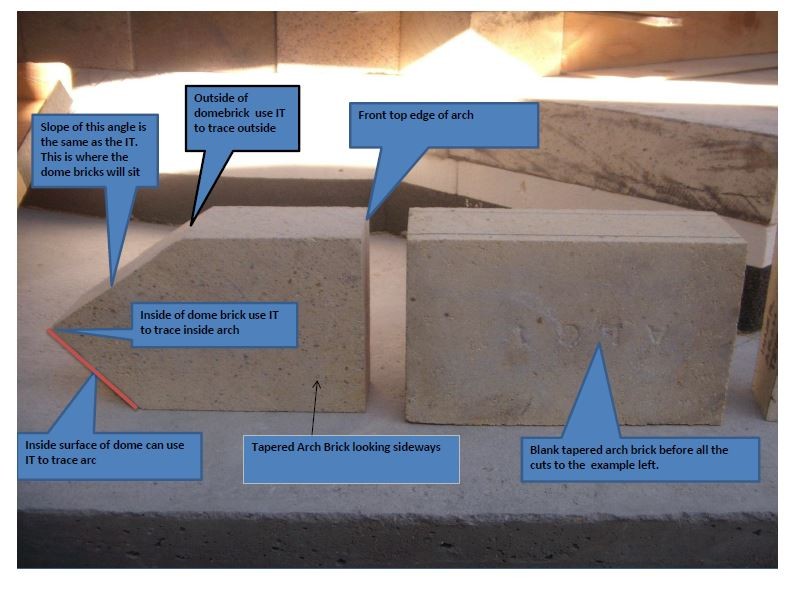

                                You are probably talking about the length of the bricks for a tapered inner arch. Attached is a detail of how each brick is cut from a full length brick. As I mentioned the top dead center brick is the longest length brick. I suggest you do a search for tapered inner arch, JR did a good job, there was an Aussie builder recently as well but forgot name.
