  • 2024 Neapolitan oven build

    Hi All,

    Long been on my bucket list to build and planning to start this year in spring.

    I want to cook primarily Neapolitan style pizza. I also want to make use of the retained heat to cook meat, and bake bread in days following a pizza bake.
    To this end, I’m weighing up the balance between size of fire, of wood and time required to heat the oven, and the best insulation and floor thickness to cook with and retain heat.

    Neapolitan Style Oven Planned specs.
    • Base insulation: 75mm ceramic fibre board. (Unsure if its worth adding 100mm vermicrete under the ceramic fibre board)
    • Oven floor: 50mm thick firebrick plates. (leaning to 500 x 500 x 50mm, although 500 x 500 x 64mm also available)
    • Dome:
      • ID: 1020mm
      • OD: 1248mm
      • Inner height: 426mm
      • Outer height: 540mm
    • Dome Insulation: 75mm ceramic fibre blanket, covered with 100-150mm vermicrete (ratio 1:8)
    • Opening:
      • Width 500mm
      • Height 280mm

    Question1: Floor insulation

    Is 75mm (3”) ceramic fibre board sufficient to retain floor heat, or would it be worth adding additional 100mm vermicrete insulation under the ceramic fibre? That would by my reckoning give it the equivalent of 125mm ceramic fibre insulation. Overkill?

    Question 2: Oven floor brick thickness

    I want to make use of the retained heat in the days following a pizza bake. General consensus is that 2.5”/ 64mm is best, but I noted that the Forno Bravo Premio100 Home Pizza Oven Kit uses 75mm ceramic fibre with 50mm floor on top. Clive, the Wood Fired Oven Chef who has a brilliant Youtube channel built his oven using the Premio100 and he says the retained heat is really good. Is it worth going for 64mm thick floor, or is the 50mm sufficient?

    Appreciate any feedback or info.

    Looking forward to posting as the build commences.

  • #2
    Some people say you can't have too much insulation, but as the insulation is expensive and also is subject to the rule of diminishing returns, extra insulation will cost you more for a very small benefit.

    Q1. 3" of insulating board is quite sufficient IMO
    Q2. The floor thickness should match the dome dome thickness. Some builders, typically those who want to bake lots of bread like a really thick floor an turn their floor bricks on edge to get a 4" thick floor. But remember the thicker the floor and dome are, the longer it takes to saturate it with heat. If you have really thick walls and floor, you won't be keen to fire up the oven on a Friday night to cook 3 pizzas. And you better have access to a lot of free wood.
    Last edited by david s; 01-20-2024, 01:50 PM.
    Kindled with zeal and fired with passion.

    Comment


    • #3
      Thanks David,

      I had read something along the lines you wrote that the thicker the floor the more wood and time required to heat it. My walls will be 114mm thick, with ample insulation on top. I was looking at the Premio100 with 50mm floor, and seeing how Clive from Wood Fired Oven Chef uses his. His oven takes 48 hours to cool down and he uses it to bake all sorts.
      We will have pizza nights, and we have lots of family and friends, so on those nights it will get well used. I was originally planning on 64mm floor, then changed my plan to 50mm, to save on wood and cut the heating time. Question is if it will be enough to retain the heat. I’m thinking with the insulation I plan it should.

      Many thanks for your feedback.

      Comment


      • #4
        Most cast manufactured ovens have walls of 2", some larger ones 3". With a brick build you are stuck with 4" thick walls. Anything thinner compromises the structural integrity because of the mortar joins. Note that in all brick wall constructions the bricks are never laid on edge to make the wall only 3" thick. So a brick build with 4"thick walls will always have more thermal mass than a cast oven with thinner walls, but will also take longer to heat and consume more fuel.
        Kindled with zeal and fired with passion.

        Comment


        • #5
          That’s really helpful, I clicked with your reference to the difference in thermal mass and time taken to heat pre cast ovens vs brick ovens.

          in my case with the thicker brick walls it would make more sense to go with 64mm floor as it will take longer to heat anyway. They should still be well heated by the time the walls are, and will retain the heat longer.

          understanding this is a big thing, many thanks.

          Comment


          • #6
            david s I understand you said in your opinion its not necessary to have additional vermiculite insulation on the hearth under 100mm ceramic fibre insulation floor.

            In my case, here in Germany we have schalungssteine, which are quite a different format to cinder blocks. I‘m using L500xH250xW175mm (Illustration below.) Aiming for my final height of 1150mm for the floor, it requires cutting the fourth course of blocks down to 136mm. I‘m considering the possibility of eliminating the fourth course altogether, which leave me with 86mm to fill, which I could with a layer of vermiculite/perlite insulation. In the plan below, the hearth is 150mm (100mm above the wall, 50mm inside the wall), so I would need to change that to 150mm above the 750mm wall. It would reduce the height of the space below the hearth from 886mm to 750mm, but would save me on blocks for the fourth course, and the cutting of the blocks.

            Above the hearth, it would then be 86mm Vermiculite/perlite insulation, 100mm Ceramic fibre insulation, 64mm firebrick floor, total of 250mm. My floor will be inside the dome first course with the come first course on the ceramic fibre board. (Image below right)

            Question: Would also do away with the need to put mosaic tiles? I‘m a bit unclear about the order and structure with this. I see the advantage of putting drainage holes in the hearth, which is straight forward and planned. If I do the vermiculite/perlite layer, is there a way to lay the mosaics under it, perhaps covered with a layer of plastic with holes and then the vermicrete? Or not necessary then at all?

            Question: Vermicrete/Perlite mix. For this layer of insulation under the ceramic fibre, what ratio would you recommend so that it is strong enough to support the ceramic fibre and then oven? I considered laying an extra layer of concrete around the vermicrete on top of the hearth to enclose it on the sides. I could do this, or leave it, depending on whether it would be better for support of the vermicrete layer.

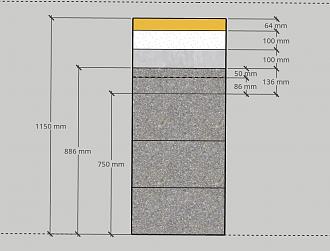

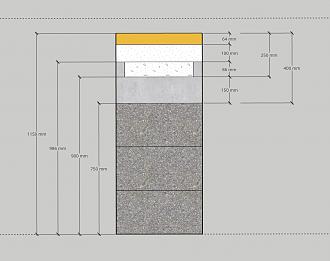

            Click image for larger version  Name:	IMG_0331.jpeg Views:	0 Size:	190.7 KB ID:	457056 Click image for larger version  Name:	IMG_0328.jpeg Views:	0 Size:	129.9 KB ID:	457057 Click image for larger version

Name:	IMG_0332.jpeg
Views:	1092
Size:	236.9 KB
ID:	457058
            Last edited by daidensacha; 01-26-2024, 01:41 AM.

            Comment


            • #7
              One of several builds I have watched on Youtube that I found really helpful is Wood-Fired Pizza Oven step-by-step in Romania. In it he encloses a vermicrete insulation layer in the hearth, and at 5.22 it shows he puts glass mosaic tiles on the vermicrete before adding the ceramic fibre board. The bottom of his hearth under the vermicrete is very thin although reinforced and with supporting wall under it in the centre of the base. This would be contrary to my question in the previous post re: placing the mosaic layer under the vermicrete.

              I would build a thicker base, as I want to include rebar that comes out of the hearth and supports a landing in front of the oven.

              Comment


              • #8
                Originally posted by daidensacha View Post
                david s I understand you said in your opinion its not necessary to have additional vermiculite insulation on the hearth under 100mm ceramic fibre insulation floor.

                In my case, here in Germany we have schalungssteine, which are quite a different format to cinder blocks. I‘m using L500xH250xW175mm (Illustration below.) Aiming for my final height of 1150mm for the floor, it requires cutting the fourth course of blocks down to 136mm. I‘m considering the possibility of eliminating the fourth course altogether, which leave me with 86mm to fill, which I could with a layer of vermiculite/perlite insulation. In the plan below, the hearth is 150mm (100mm above the wall, 50mm inside the wall), so I would need to change that to 150mm above the 750mm wall. It would reduce the height of the space below the hearth from 886mm to 750mm, but would save me on blocks for the fourth course, and the cutting of the blocks.

                Above the hearth, it would then be 86mm Vermiculite/perlite insulation, 100mm Ceramic fibre insulation, 64mm firebrick floor, total of 250mm. My floor will be inside the dome first course with the come first course on the ceramic fibre board. (Image below right)

                Question: Would also do away with the need to put mosaic tiles? I‘m a bit unclear about the order and structure with this. I see the advantage of putting drainage holes in the hearth, which is straight forward and planned. If I do the vermiculite/perlite layer, is there a way to lay the mosaics under it, perhaps covered with a layer of plastic with holes and then the vermicrete? Or not necessary then at all?

                Question: Vermicrete/Perlite mix. For this layer of insulation under the ceramic fibre, what ratio would you recommend so that it is strong enough to support the ceramic fibre and then oven? I considered laying an extra layer of concrete around the vermicrete on top of the hearth to enclose it on the sides. I could do this, or leave it, depending on whether it would be better for support of the vermicrete layer.

                Click image for larger version Name:	IMG_0331.jpeg Views:	0 Size:	190.7 KB ID:	457056 Click image for larger version Name:	IMG_0328.jpeg Views:	0 Size:	129.9 KB ID:	457057 Click image for larger version

Name:	IMG_0332.jpeg
Views:	1092
Size:	236.9 KB
ID:	457058
                Delve a little deeper into your block suppliers catalogue. You should find half height blocks, they are commonly used in block work.

                Regarding the layer of vermicrete under a 100mm calcium silicate board I don't believe you'll achieve much because 100mm is already way more than most oven builders would use. The thicker the insulation is the more it suffers from the law of diminishing returns. Additionally the large amount of free water a vermicrete layer contains needs to be removed prior to building over it because moist insulation of any kind does not work very well. We've had reports of oven performance getting better months after completion because that underfloor moisture is difficult to remove. A 100mm cal sit is already dry so this problem is largely removed. However should water get in a space under the insulation created by a layer of tiles with wide spaces and some holes in the supporting slab, do a fine job of allowing moisture to escape. If you have your heart set on doing a vermicrete slab it should be a 5:1 ratio for sufficient strength. The vermicrete over the dome does not support a lot of weight so a !0:1 there is better. (see attached table for strength to insulation relationship). Some weed matting placed over the tiles is enough to prevent the vermicrete from blocking the pathway between the tiles, but enough to let the moisture pass. Also attached is an experiment I did for drying a vermicrete slab that helps explain what's going on.

                Click image for larger version

Name:	image_83170.jpg
Views:	1172
Size:	146.2 KB
ID:	457061 Vermicrete insulating slab copy.doc.zip
                Kindled with zeal and fired with passion.

                Comment


                • #9
                  Originally posted by daidensacha View Post
                  One of several builds I have watched on Youtube that I found really helpful is Wood-Fired Pizza Oven step-by-step in Romania. In it he encloses a vermicrete insulation layer in the hearth, and at 5.22 it shows he puts glass mosaic tiles on the vermicrete before adding the ceramic fibre board. The bottom of his hearth under the vermicrete is very thin although reinforced and with supporting wall under it in the centre of the base. This would be contrary to my question in the previous post re: placing the mosaic layer under the vermicrete.

                  I would build a thicker base, as I want to include rebar that comes out of the hearth and supports a landing in front of the oven.
                  Yes this build has that all wrong. Because a basin has been created it is asking for water to accumulate there and there are no drain holes. The tiles should have been placed in the bottom of the basin with the insulation on top..
                  Last edited by david s; 01-26-2024, 07:28 PM.
                  Kindled with zeal and fired with passion.

                  Comment


                  • #10
                    attached is an experiment I did for drying a vermicrete slab that helps explain what's going on.
                    Gone is my ignorance as an excuse. While I have it clear now the order of how to lay the vermiculite if I do decide to do it, I’m not sure I will. Last summer here was an anomaly, lots of sun, usually it is overcast with dark clouds, and really humid. It would take forever to dry the vermiculite layer. even with holes in the hearth and without the dome preventing evaporation. Once the dome is on and the vermiculite covered, I’m not sure how it actually would dry. 1) Vermiculite and Perlite hold the water, water wicks upward, and with the exit 150mm holes in the bottom of the hearth, it kind of goes against the natural flow for the water to get out that way.

                    Thanks for the info David, looks like I’ll be sticking with the original plan and using just the 100mm Ceramic fibre board. I’ll stick wth the 100mm because the price difference between 75mm and 100mm is minimal.

                    Delve a little deeper into your block suppliers catalogue. You should find half height blocks, they are commonly used in block work.
                    I’ll visit my local “Baywa” who supply builders and tradies as I have an account with them and they 1) love Australia, and 2) are super friendly and helpful. Last resort is I can knock up a cutting jig to guide my 125mm angle grinder with diamond blade, a few hours of dirty work wearing a mask.

                    Comment


                    • #11
                      I should have mentioned that a 125 angle grinder with a diamond blade is totally inadequate for the job as well as being quite dangerous. While the blade is 125mm the depth of cut is far less, only around 20 mm at best. This means the brick needs to be cut on both sides then broken and the rough bit in the middle chamfered off. This is ok and can be done, we’ve all done it for a few, but not if you have hundreds.
                      The other issue is the danger. Dry cutting of bricks creates very dangerous particles that if inhaled can cause very serious lung disease. This is so problematic that engineered stone, widely used for kitchen benchtops, has been banned in Australia. I certainly don’t want to be responsible for recommending such a dangerous practice via this forum.Unfortunately YouTubers don’t share a similar concern.
                      A wet saw is mandatory to prevent this dust. Soaking a brick in water then using an angle grinder only stops about half of this dust. It is a danger to you, your family and those in your immediate neighbourhood.
                      The solution is a wet saw that has a water feed which eliminates all dust and it also gives you a deep and accurate cut. Buying or borrowing one is the best solution because you’ll need it for an extended period. You’d be going backwards and forwards constantly if hiring one.
                      Many builders bite the bullet, buy one then sell it at the completion of their build. You may be lucky enough to pick up one second hand.
                      Last edited by david s; 01-27-2024, 12:36 PM.
                      Kindled with zeal and fired with passion.

                      Comment


                      • #12
                        david s I plan to hire a wet saw to do my fire brick cuts, have worked out majority of my cuts, 216 in total, halving bricks, and cutting the arch bricks. It cost me 45 Euro for one day, and should take me 2-3 hours as I’ll make up jigs before hand to make cutting easier.
                        I need to wait for sprring and the temperature to warm up before I can get to laying my foundation and then hearth, then I can get into the dome. I’m keeping an eye on the German equivalent of Gumtree for used wet saws in the mean time, never know, one might be up for sale at the right price.

                        Comment


                        • #13
                          Good luck, but remember that as the dome rises the angles to be cut get bigger, so working out the angle for each course becomes really difficult,. It is far easier to just adjust the cuts required as you go.
                          Kindled with zeal and fired with passion.

                          Comment


                          • #14
                            david s I never used a set saw, but seen one used and it seems to cut through the firebricks like butter. All my cuts will be through the 64mm height. Funnily, after replying last night I checked “Kleinanzeigen” and a business not for from where I live has 3 they are selling, look almost new, like they bought them for a job and are now selling them.

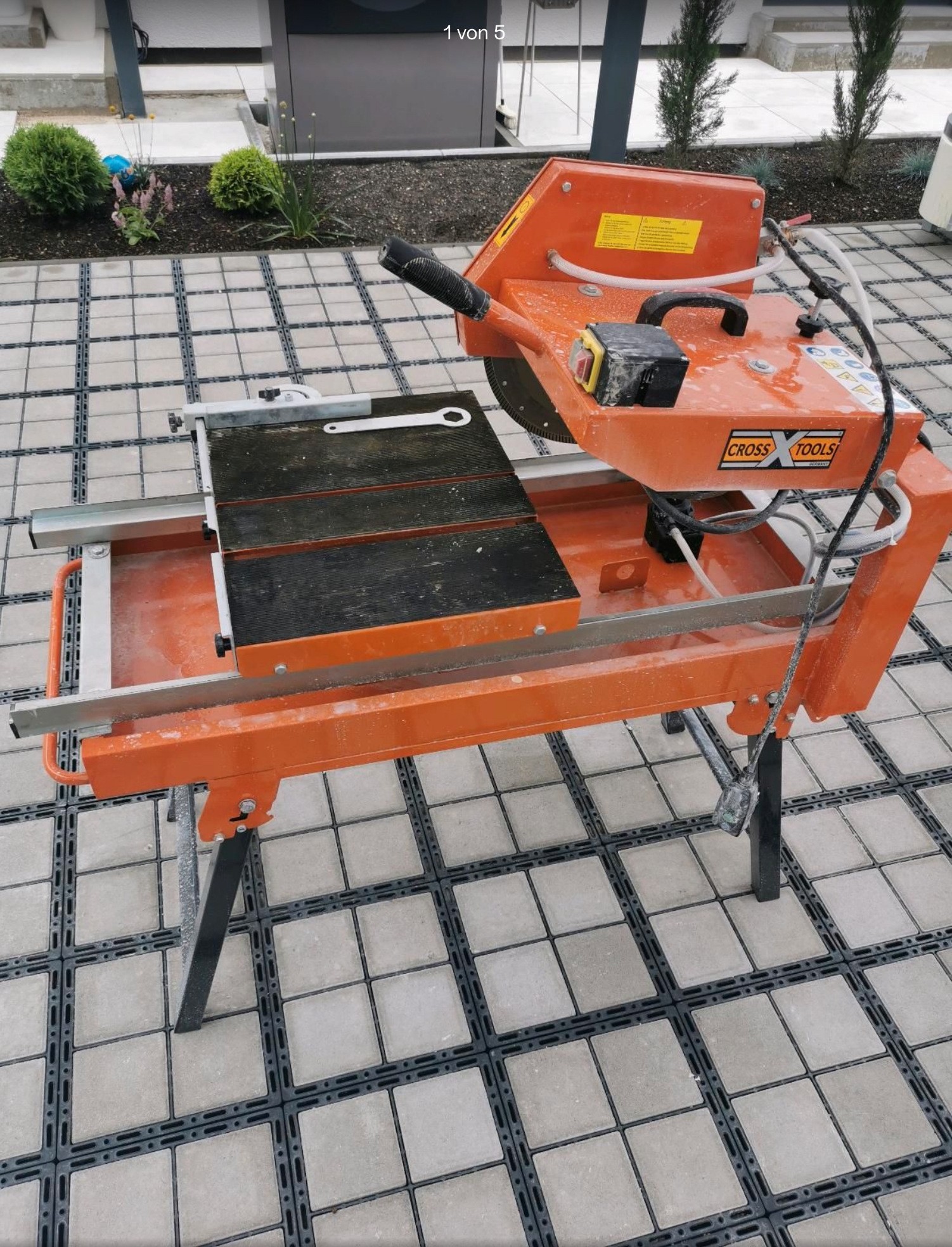

                            Click image for larger version

Name:	IMG_0361.jpeg
Views:	1101
Size:	734.7 KB
ID:	457078
                            Comes with 2 x 350mm diamond blades, max cutting depth at 90 degrees: 100mm. I’m going for it, will be handy sitting there when I need it, and I can sell it when I’m finished.

                            Comment


                            • #15
                              I picked up the wet saw yesterday, and gave it a clean and service. Looking forward to using it, will make the cutting so much easier.

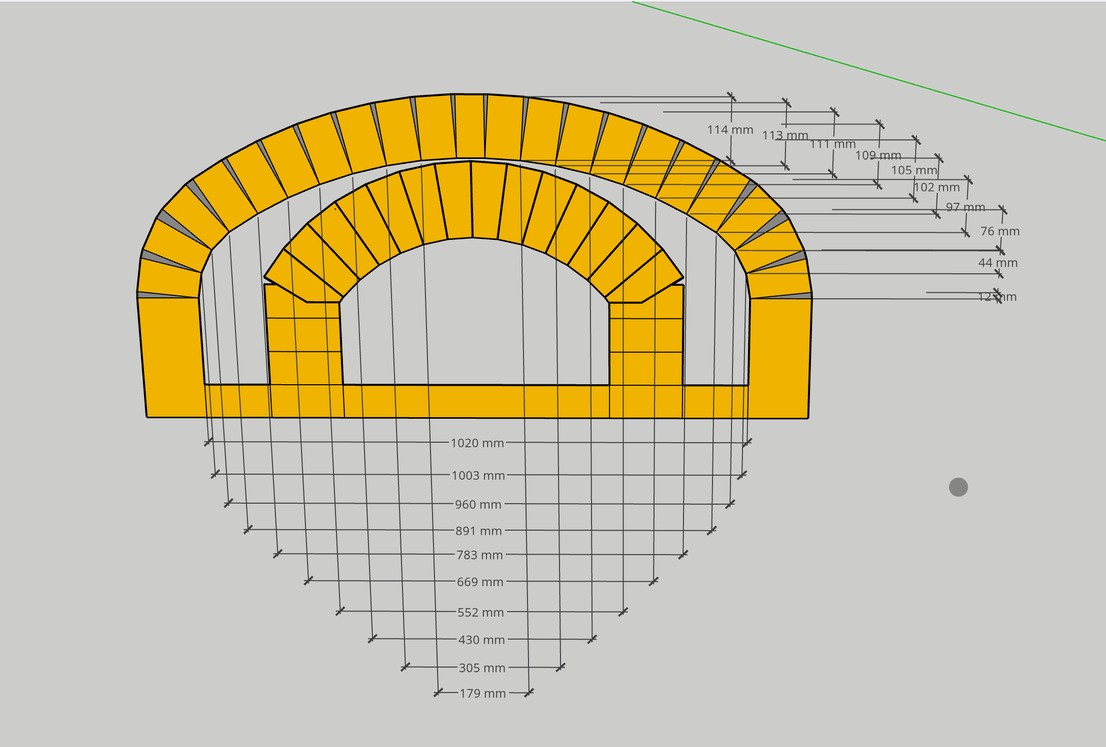

                              A few days ago I searched in the forum for “compound cuts”, just to see what I could find by what others share with their experience of cutting the dome firebrick compound cuts for each course. I was planning on attacking it when I came to it, but found a really cool thread My brick cutting tool.

                              In it Chris shares the jig he made for making the compound cuts of the dome bricks. It is brilliant, and I’m working on building a jig for the wet saw that will clamp the bricks, holding them at the correct course angle, and cut them according the to correct angle for the course radius. I only needs two measurements, the radius, and the angle of the top of the brick, or alternatively the elevation of the rear of the brick. My plans in sketch up gave me all these measurements. Getting the plan worked out now and started getting materials together to make the jig.

                              Click image for larger version

Name:	IMG_0392.jpeg
Views:	1132
Size:	110.2 KB
ID:	457115

                              Comment
