2024 Neapolitan oven build

[Toiletman]

So racing against time to do what I while the weather allows.

Fully recognize the feeling

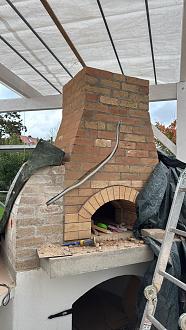

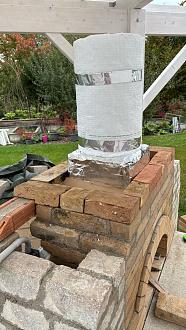

This last week the project at hand is working on the chimney. Monday I insulated the vent and flue as it wouldn‘t be possible when I brick it up. Got a deal on some ceramic fibre blanket which I got specifically to fill the chimney around the vent and the flue. Yesterday I finished the last course at the top of the chimney.

I used hand made recycled bricks for the main chimney. Lots of cuts to form the curves I wanted, and a little complicated given the variance in sizes. The wet cutting saw was really handy to straighten some bricks when needed. Still was really difficult to keep my walls straight with some bricks bulging, twisting or curving, thicker one end than the other, or one side than the other. This morning I hit the brickwork with a concrete grinder disk to take out the bulges, and whilst super dusty, it came up really nice.

I‘m adding a light to the front of the oven, so I cut a slit in the brickwork, installing cable conduit and a switch box in the brickwork. Backfilled with cement to fix the conduit inside the wall. Then clean up with the messy work done. So much dust.

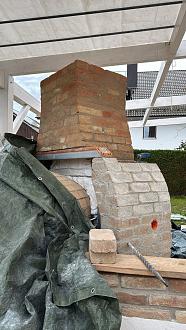

Lastly today, started bricking up the sides to finish the general curves in the side walls that I want. Ran out of cement with 2.2 bricks to fix in place to finish, so that will be first up tomorrow. Then I‘ll fill the empty space in the chimney with perlite, and move on to the back of the oven. One row of tapered bricks to add around the oven, along with some dome seep holes before starting on insulating the dome.

Wonderful brickwork again man. Really jealous of the curves and angles, great job!

The electricity conduit is kind of an eyesore, but I assume you will plaster/stucco across everything anyway? Too bad that you're hiding that beautiful masonry then, but it will match the bottom of course.

[Toiletman]

Hey, thanks. Am I right then that dry Perlite at 0.03 is has a higher resistance than ceramic fibre blanket (0.06)? If i’m correct then I would use it to fill the empty space around the flu in the chimney.

Find a quick exploratory calculation attached. The difference between air and perlite is not very much --> around 5W of heat loss saved on a 1m2 area, assuming thicknesses as in my exploratory calculation. On the outside wall that amounts to a 1 degree difference in temperature (hotter for air). For comparison: a 4 m/s wind will decrease the outside wall temperature by 4 degrees, so it's all kind of in the margin.
If my thickness estimations are completely off it might change a little bit, but as you can see the R-values of perlite or air don't differ that much, and they're the main contributor to the total resistance. Anyway, if you have the perlite laying around, might as well dunk it in the chimney .

Edit: just noticed I compared perlite against air instead of blanket --> added another picture to add that case, and also assumed that the insulation thickness is much smaller (ie. 50mm) instead of the 150mm I was considering previously. It's great that you have cheap blanket, but it's probably not that much to cover the whole chimney with 150mm thickness.

It changes the conclusion as well: definitely go with perlite or just air instead of stuffing blanket into the gap.

[daidensacha]

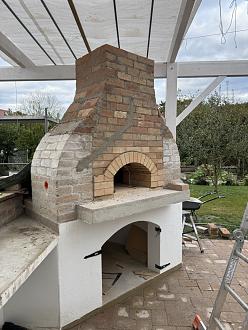

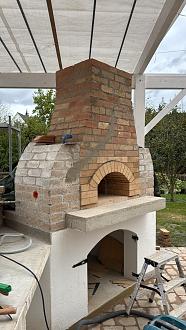

Chimney insulated and brickwork almost finished.

So racing against time to do what I while the weather allows.

This last week the project at hand is working on the chimney. Monday I insulated the vent and flue as it wouldn‘t be possible when I brick it up. Got a deal on some ceramic fibre blanket which I got specifically to fill the chimney around the vent and the flue. Yesterday I finished the last course at the top of the chimney.

I used hand made recycled bricks for the main chimney. Lots of cuts to form the curves I wanted, and a little complicated given the variance in sizes. The wet cutting saw was really handy to straighten some bricks when needed. Still was really difficult to keep my walls straight with some bricks bulging, twisting or curving, thicker one end than the other, or one side than the other. This morning I hit the brickwork with a concrete grinder disk to take out the bulges, and whilst super dusty, it came up really nice.

I‘m adding a light to the front of the oven, so I cut a slit in the brickwork, installing cable conduit and a switch box in the brickwork. Backfilled with cement to fix the conduit inside the wall. Then clean up with the messy work done. So much dust.

Lastly today, started bricking up the sides to finish the general curves in the side walls that I want. Ran out of cement with 2.2 bricks to fix in place to finish, so that will be first up tomorrow. Then I‘ll fill the empty space in the chimney with perlite, and move on to the back of the oven. One row of tapered bricks to add around the oven, along with some dome seep holes before starting on insulating the dome.

Interesting, tonight I stuck my head in the front of the arch and said a few words. There is an echo now, which I can only put down to the chimney with insulated vent. I liked it

[daidensacha]

If you google on 'Thermal conductance and resistance' you'll get a wikipedia article that gives examples of how to do a thermal resistance calculation of a composite wall. I've used that method to estimate the insulation thickness and cooldown time for my oven. Once I'm done building my oven I'll turn it into a proper google sheet that can be used by everyone. I could send it to you already 'as is' if you like (at least you're also using metric ).

Basically a lower k-value gives a higher 'thermal resistance'. Typically these thermal resistances are in series (ie. brick/cast - blanket - vermicrete - plaster) and in such a configuration the heat flow is mainly determined by the higher resistances in this series.

Hey, thanks. Am I right then that dry Perlite at 0.03 is has a higher resistance than ceramic fibre blanket (0.06)? If i’m correct then I would use it to fill the empty space around the flu in the chimney.

I finished bricking up my chimney today. Yesterday I insulated the vent and flue with ceramic fibre blanket. The entire top of the arch in side the chimney is covered with ceramic fibre blanket, up to the top of the vent. Then 35mm of ceramic fibre blanket wrapped around the flu. Between the flue and the chimney wall from the vent up it is empty space, Which I guess is also good, but filling it with perlite or vermiculite would stop the walls of the chimney heating up. Your spreadsheet sounds intersting. I think i’ll understand it more when I finished this process of building my first oven.

[Toiletman]

Can you explain in brief what the “K“ values mean? Perlite (0.03), Vermiculite (0.065), Ceramic Blanket (0.06). Excuse my ignorance, what is high and what is low. I saw in one build (in a cold climate) on Youtube where the builder used dry vermiculite totally covering the dome to insulate. He used a lot of it. It’s not for me now where I’m at, but I would like to understand.

If you google on 'Thermal conductance and resistance' you'll get a wikipedia article that gives examples of how to do a thermal resistance calculation of a composite wall. I've used that method to estimate the insulation thickness and cooldown time for my oven. Once I'm done building my oven I'll turn it into a proper google sheet that can be used by everyone. I could send it to you already 'as is' if you like (at least you're also using metric ).

Basically a lower k-value gives a higher 'thermal resistance'. Typically these thermal resistances are in series (ie. brick/cast - blanket - vermicrete - plaster) and in such a configuration the heat flow is mainly determined by the higher resistances in this series.

[daidensacha]

To relieve pressure build up the position of the vent can be placed anywher. However, this pressure build up can also be utilized to help assist the removal of moisture.
I'm convinced that efficient venting of dome insulation moisture (and under floor insulation moisture for that matter) is more efficient with the vents placed at the bottom of the oven for the following reasons.

1. Heat rises by convection, so the fire in the chamber heats the crown of the inner dome faster than any other part of the inner chamber.
2. Moisture travels away from any heat source.
3. Gravity makes water fall.

Pressure build up from steam or just expanding hot air forces moisture present to the outside of the insulation, away from the heat source, as well as down. Some of that moisture will condense against the inside of the cooler outer shell where it will run down or make its way to the base,
Having observed this process firing a new empty kiln, as recommended by the ,amufacturere, I was surprised to see water dripping from the front corner when the kiln's internal temperature reached around 400C ( 750F), which is way above the temperature water turns to steam.

I think the drawing explains the process. While a vent at the apex may seem the most logical, it is the build up of moisture lower down that is more problematic in creating a huge temperature differential and thereby thermal expansion issues. This problem is also evidenced by owners discovering the effidiency of venting the underfloor insulation.

That’s interesting and useful info David. I do have mosaic tile sheets turned upside down under the 10cm thick calcium silicate insulation which is under the oven dome and floor. That extends 10cm further than the diameter of the dome, with a min gap of then 30mm followed by a row of bricks. Any water that flows per your sketch should then flow back out under the floor insulation and through the hearth drainage holes.

Addition: After contemplating your drawing, and theory about the steam condensation and flow of water inside outer render, I decided to add an additional course of bricks around the outside of the calcium silicate insulation. The additional course will have tapered tops so and condensation will flow down the bricks to to the floor, where I could add dome insulation weep holes per your sketch, or allow the water to flow under the insulation before draining through the existing floor insulation weep holes.

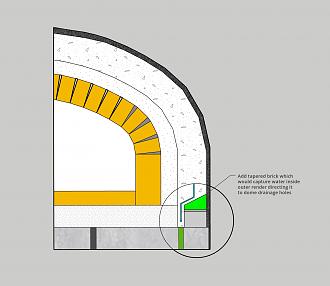

A sketchup illustration integrating your knowledge.

[daidensacha]

Are you going to fully enclose your oven with brick? If so you could consider dry filling the space between the dome and the outer brick wall with dry perlite or vermiculite (if you have not already bought your ceramic blanket). Both perlite (0.03) and vermiculite (0.065) K values are pretty good when comparing to ceramic blanket (0.06) and probably less expensive.

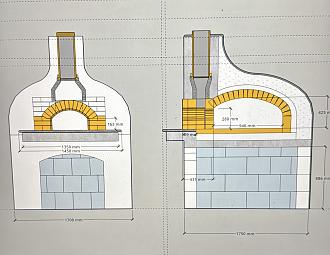

I’m only bricking up the front 600mm to enclose and insulate the vent and schamott flue. Here is a plan I drew up and am working to replicate. I do already have the ceramic fibre blanket, plus vermiculite, perlite, cement and dry clay powder. I will fill the empty space in the front bricked up part with dry vermiculite or perlite, or mixture of both.

Can you explain in brief what the “K“ values mean? Perlite (0.03), Vermiculite (0.065), Ceramic Blanket (0.06). Excuse my ignorance, what is high and what is low. I saw in one build (in a cold climate) on Youtube where the builder used dry vermiculite totally covering the dome to insulate. He used a lot of it. It’s not for me now where I’m at, but I would like to understand.

[david s]

To relieve pressure build up the position of the vent can be placed anywher. However, this pressure build up can also be utilized to help assist the removal of moisture.
I'm convinced that efficient venting of dome insulation moisture (and under floor insulation moisture for that matter) is more efficient with the vents placed at the bottom of the oven for the following reasons.

1. Heat rises by convection, so the fire in the chamber heats the crown of the inner dome faster than any other part of the inner chamber.
2. Moisture travels away from any heat source.
3. Gravity makes water fall.

Pressure build up from steam or just expanding hot air forces moisture present to the outside of the insulation, away from the heat source, as well as down. Some of that moisture will condense against the inside of the cooler outer shell where it will run down or make its way to the base,
Having observed this process firing a new empty kiln, as recommended by the ,amufacturere, I was surprised to see water dripping from the front corner when the kiln's internal temperature reached around 400C ( 750F), which is way above the temperature water turns to steam.

I think the drawing explains the process. While a vent at the apex may seem the most logical, it is the build up of moisture lower down that is more problematic in creating a huge temperature differential and thereby thermal expansion issues. This problem is also evidenced by owners discovering the effidiency of venting the underfloor insulation.

[UtahBeehiver]

Are you going to fully enclose your oven with brick? If so you could consider dry filling the space between the dome and the outer brick wall with dry perlite or vermiculite (if you have not already bought your ceramic blanket). Both perlite (0.03) and vermiculite (0.065) K values are pretty good when comparing to ceramic blanket (0.06) and probably less expensive.

[daidensacha]

As long as you feel comfortable that there is an egress point for water vapor to escape you should be good. Liquid water when it sublimates to gas increases volume by about 1500 times hence a need to have some type of mechanism to reduce pressure building up under the finish coat of the oven.

Thanks Russel. Being my first oven, its all new to me, and I‘m working through things like this as best I can.

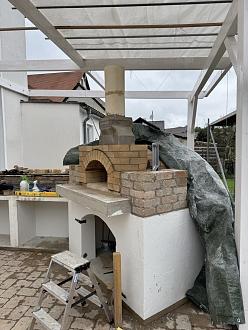

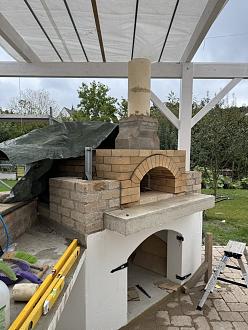

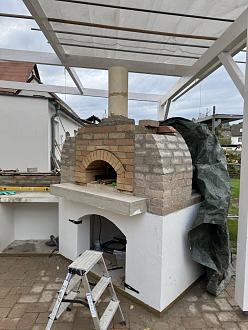

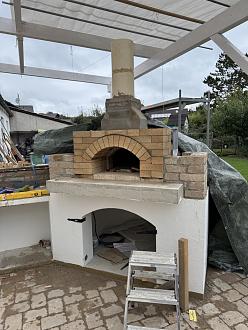

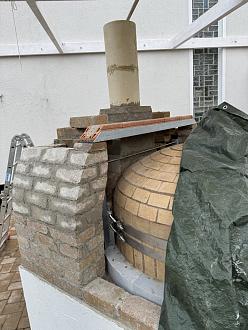

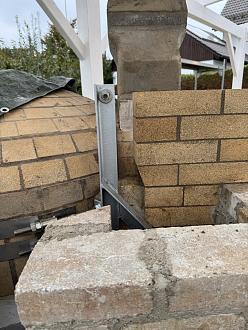

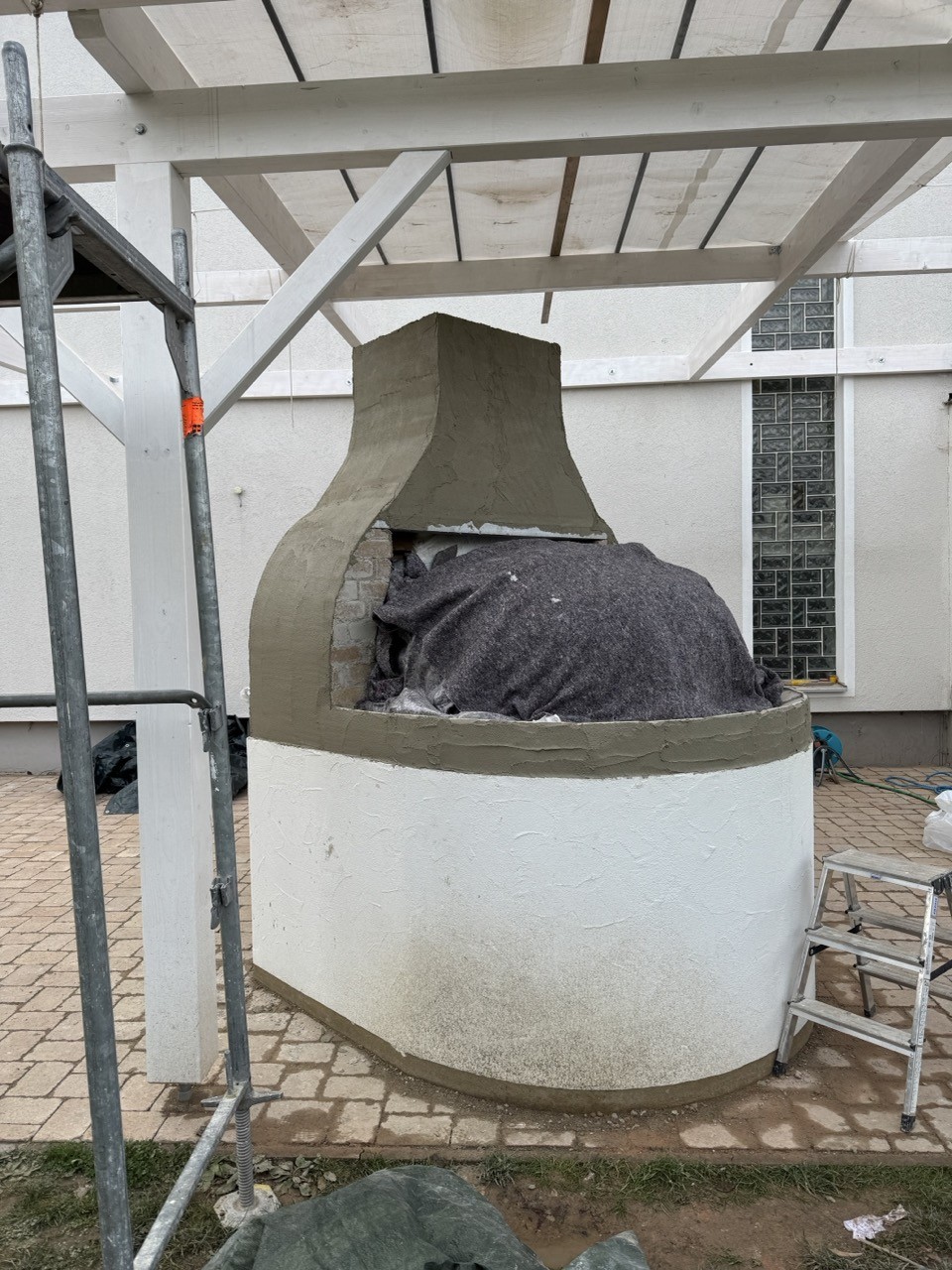

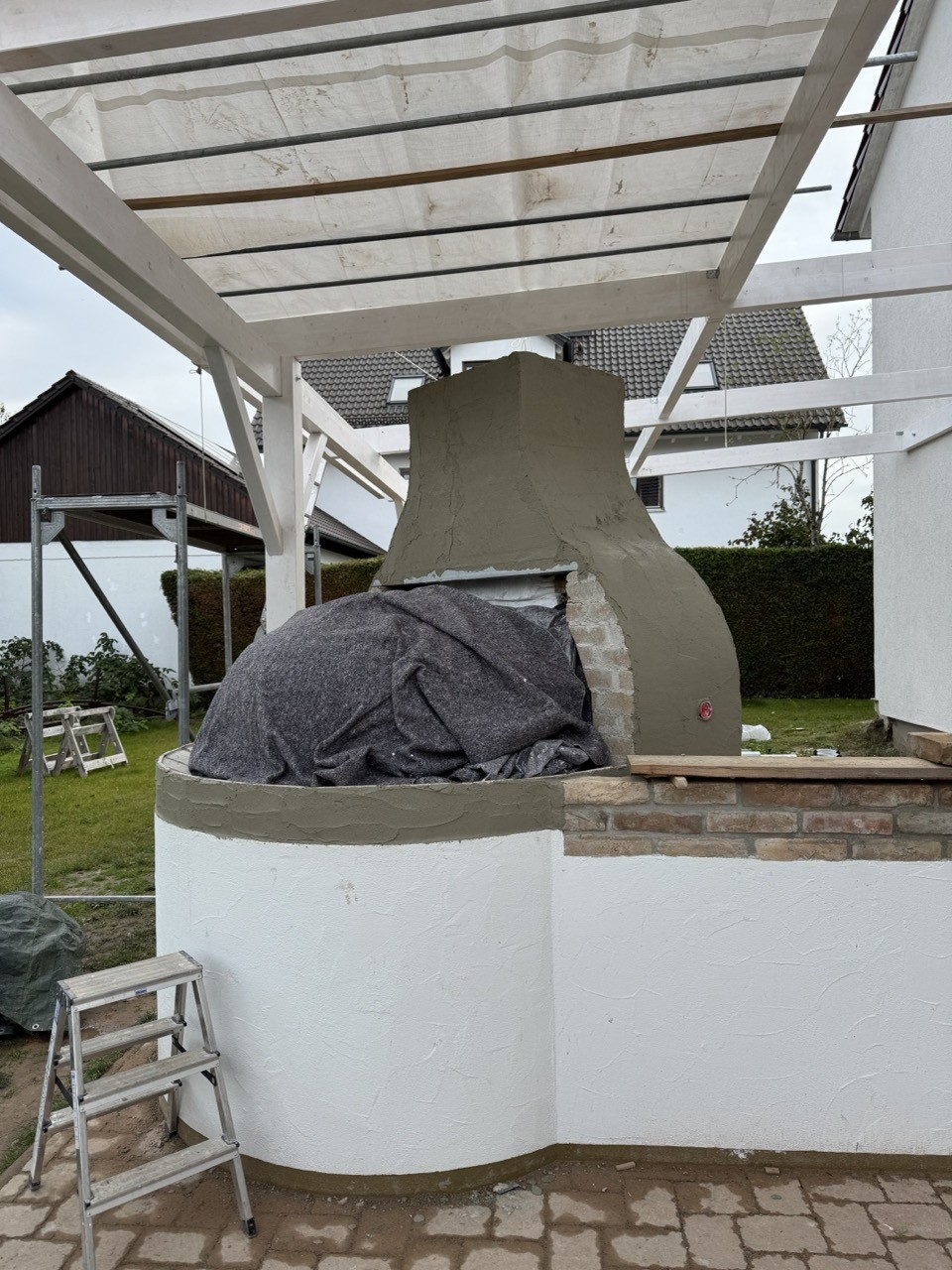

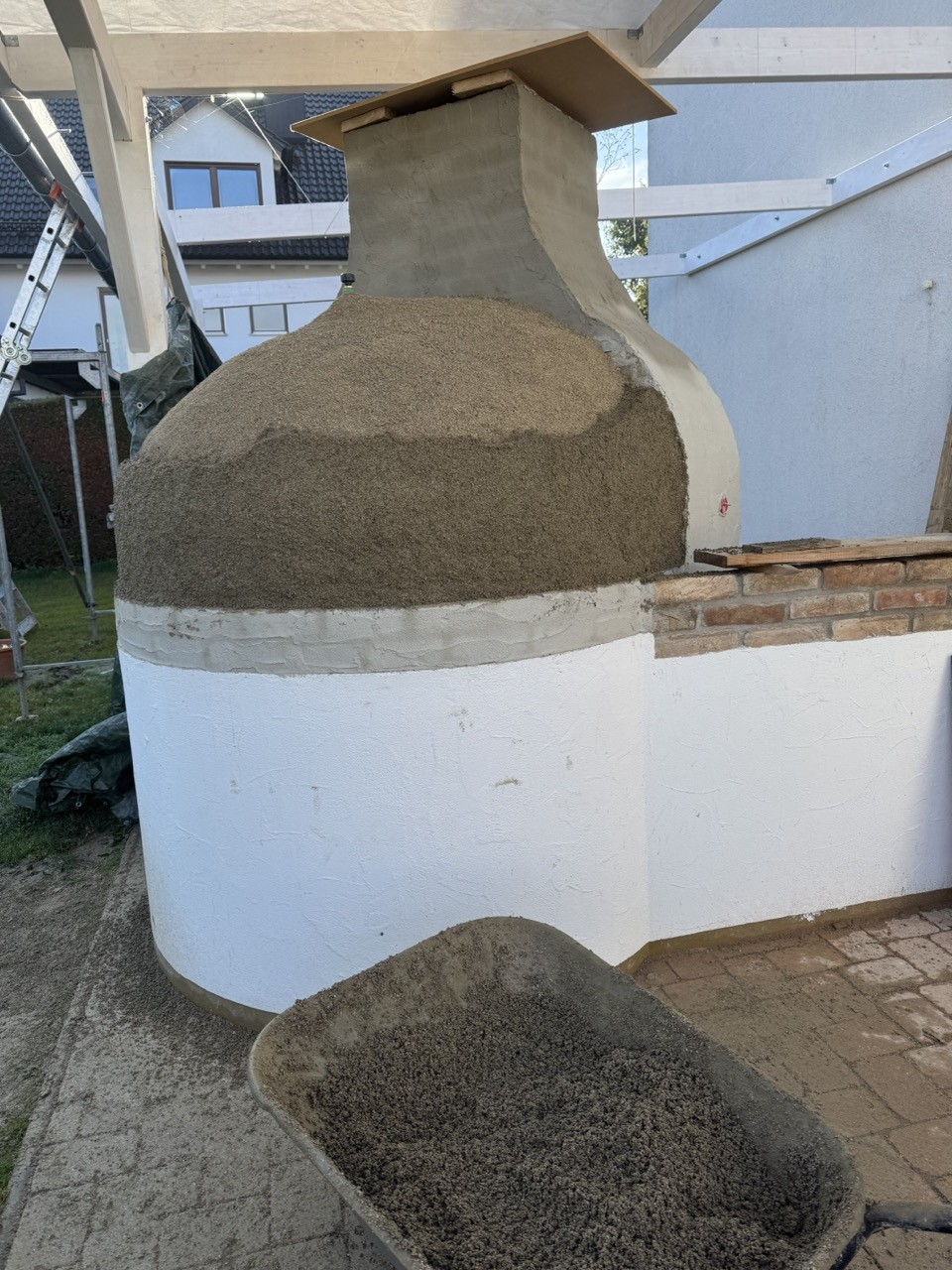

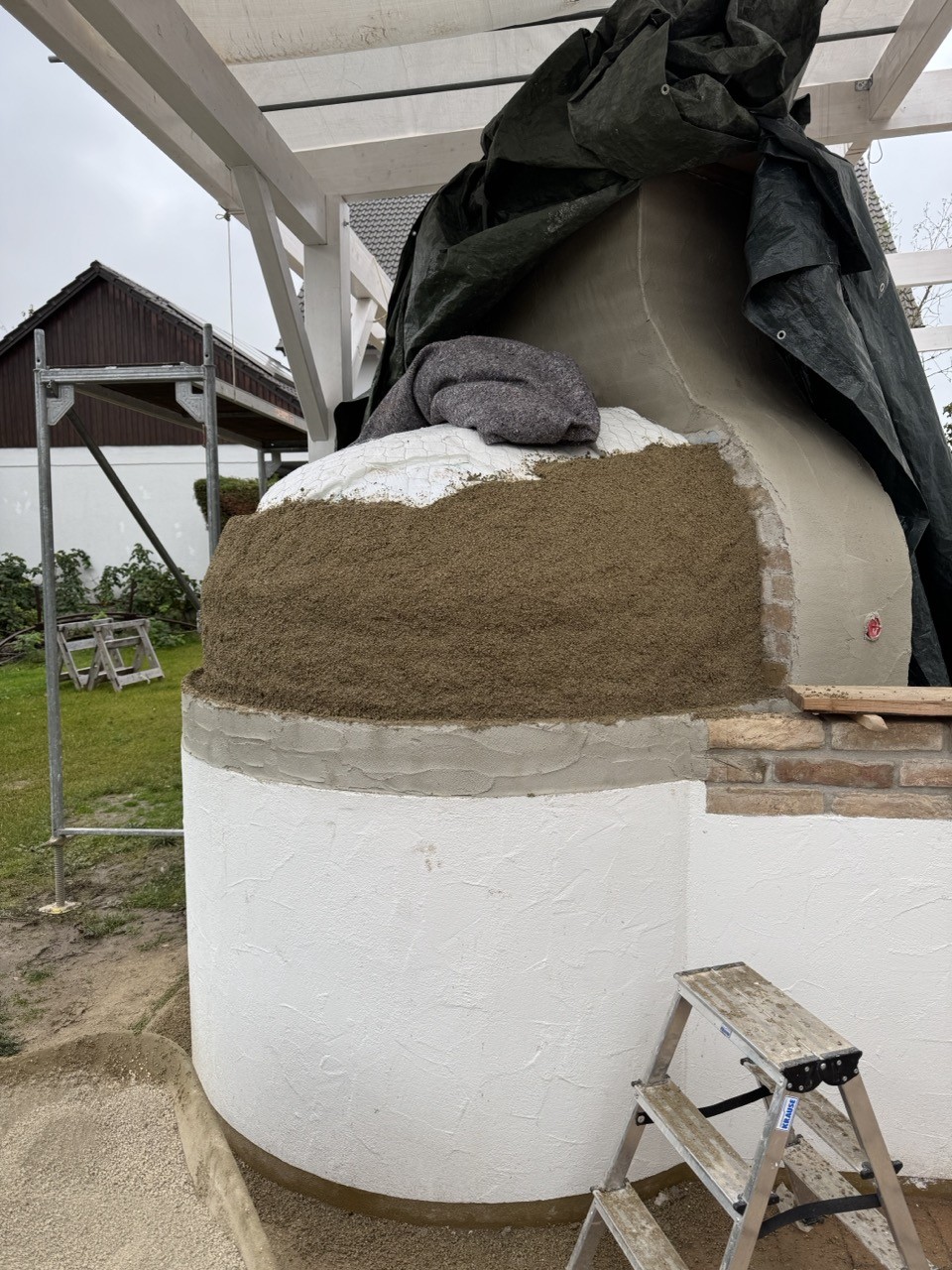

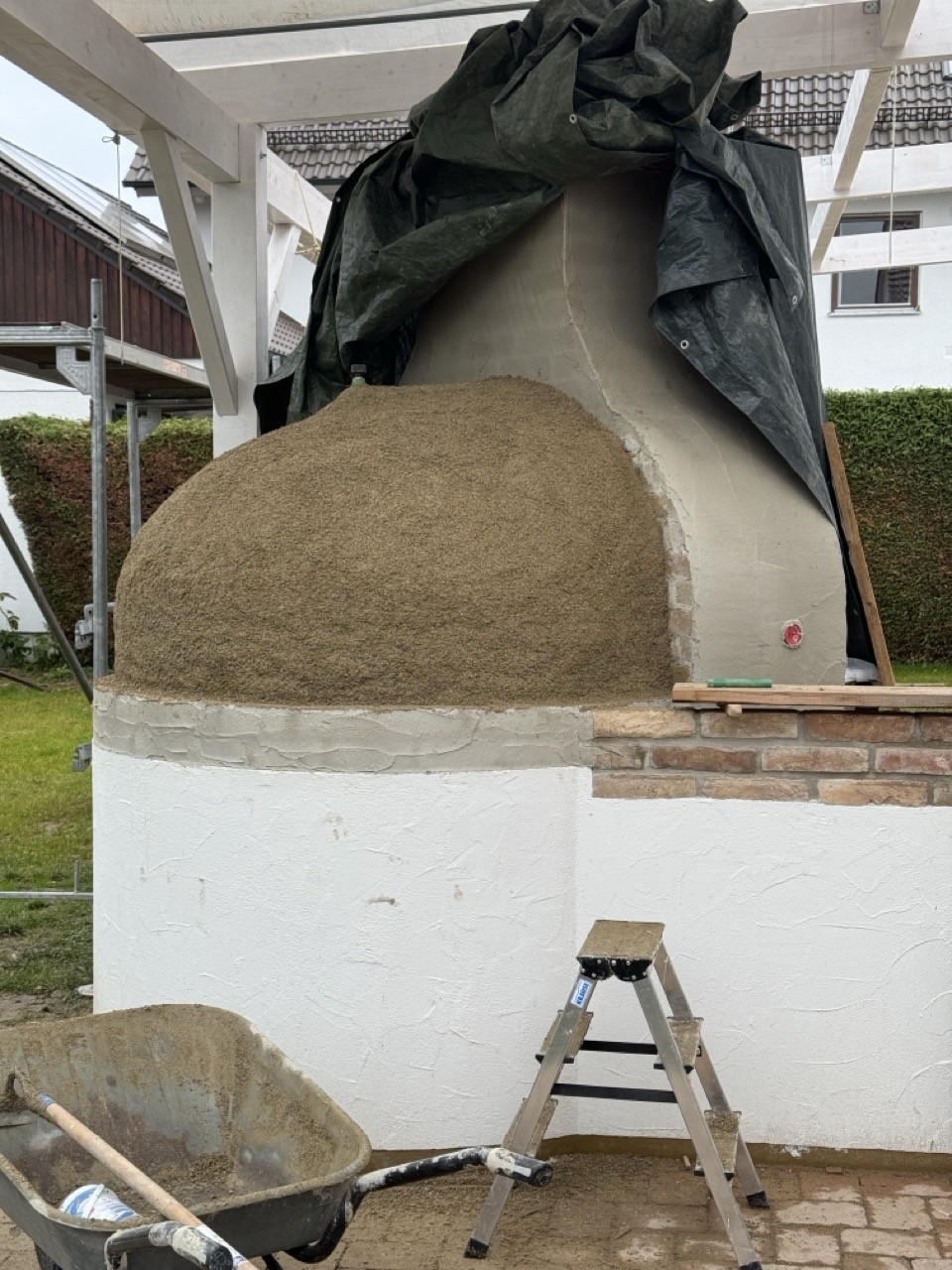

Attached are some images I took after finishing my work on the oven today. I did my first course around the chimney, and set the lintel in place to support the bricks at the rear of the chimney wall. You can see under the lintel is where I will place the ceramic fibre blanket insulation down to the back of the vent. The vent and flue will also be covered with ceramic fibre blanket. I was going to fill the empty space around the flue in the chimney with vermiculite. The V-P-crete will cover the ceramic fibre on the dome up to the back of the chimney wall. It will create a seal, but as it is open under the lintel to the space between the chimney wall and flue, I guess I could add a copper pipe in there that would go from the ceramic fibre to the top of the chimney.

[UtahBeehiver]

As long as you feel comfortable that there is an egress point for water vapor to escape you should be good. Liquid water when it sublimates to gas increases volume by about 1500 times hence a need to have some type of mechanism to reduce pressure building up under the finish coat of the oven.

[daidensacha]

Pressure/ Steam release valve unplanned alternative should work.

Times coming where I really need to have a solution sorted, and I have a couple of possibilities. 1. a Hydraulic release valve, and 2. Aeration cap. But…. I‘m wondering if I will actually need one, as I possibly can vent any steam or pressure build up through the chimney.

Let me explain.

To avoid adding extra thermal mass, the sides and front of the chimney are entirely bering built arch which is forward of the heat break. The goal is to reduce any heat loss via conduction. I have a Lintel that will run from side to side of the oven over the top of the dome and the rear wall of the chimney will be built on it. 100mm of Ceramic fibre blanket will go over the dome, and under the rear wall of the chimney. The vent with the Schamott flue that sit on the arch will be insulated in the space between them and the outer chimney wall.

Hope that paints a clear picture. Point is, any pressure or steam that is captured between the dome and the outer render will automatically release up the chimney and out the top. Is there any reason this would not work?

I read that david s has incorporated a custom vent release that uses the chimney, albeit he has planned for that. Mine was not planned, but I am wondering if it is worth adding a release valve in the top of the dome now?

[daidensacha]

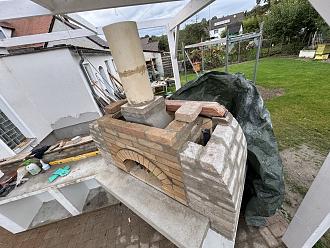

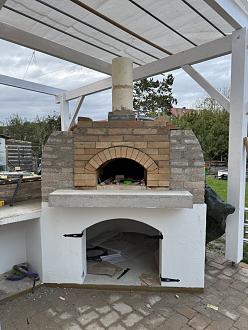

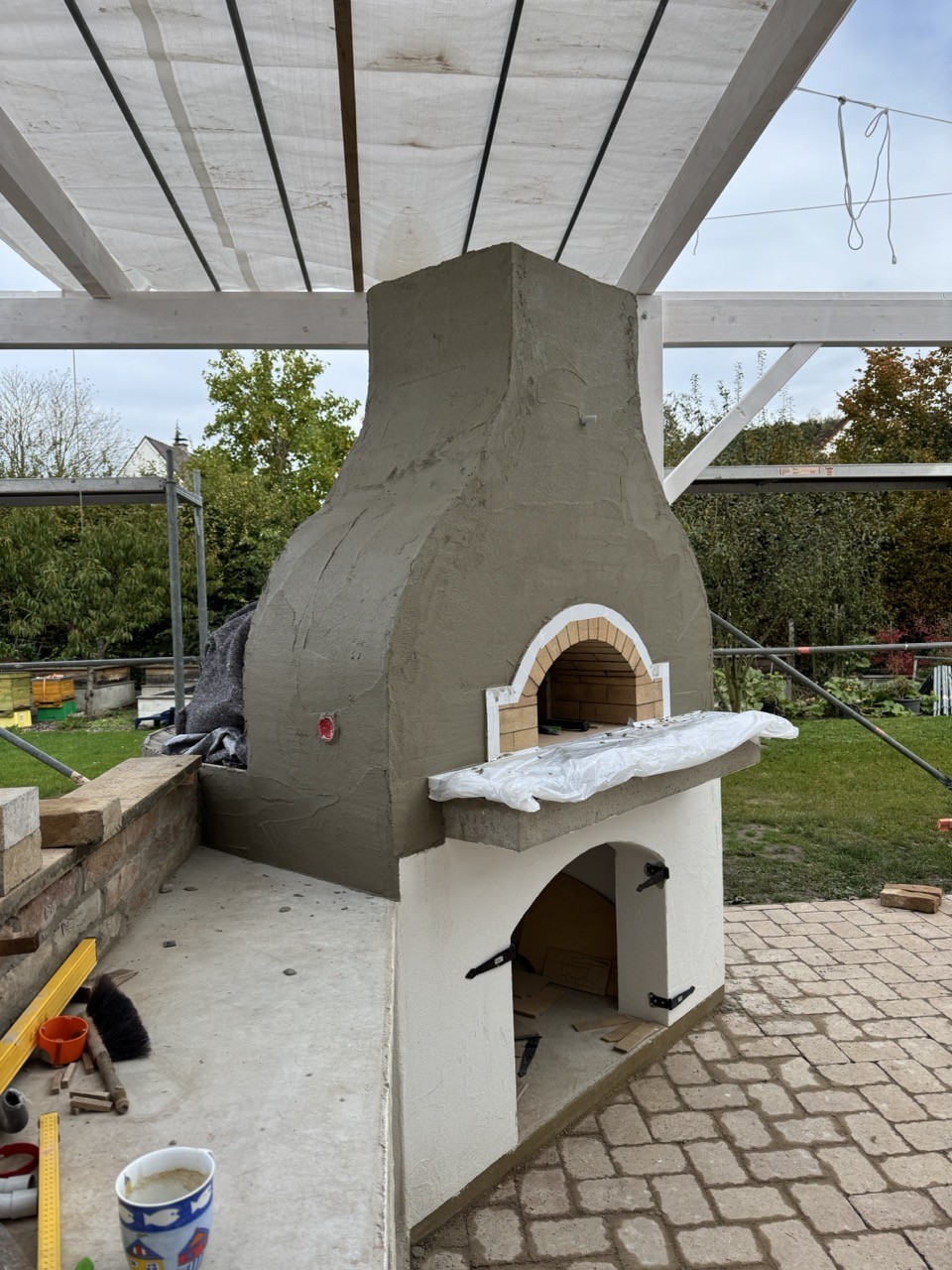

Brickwork of Chimney and front of oven.

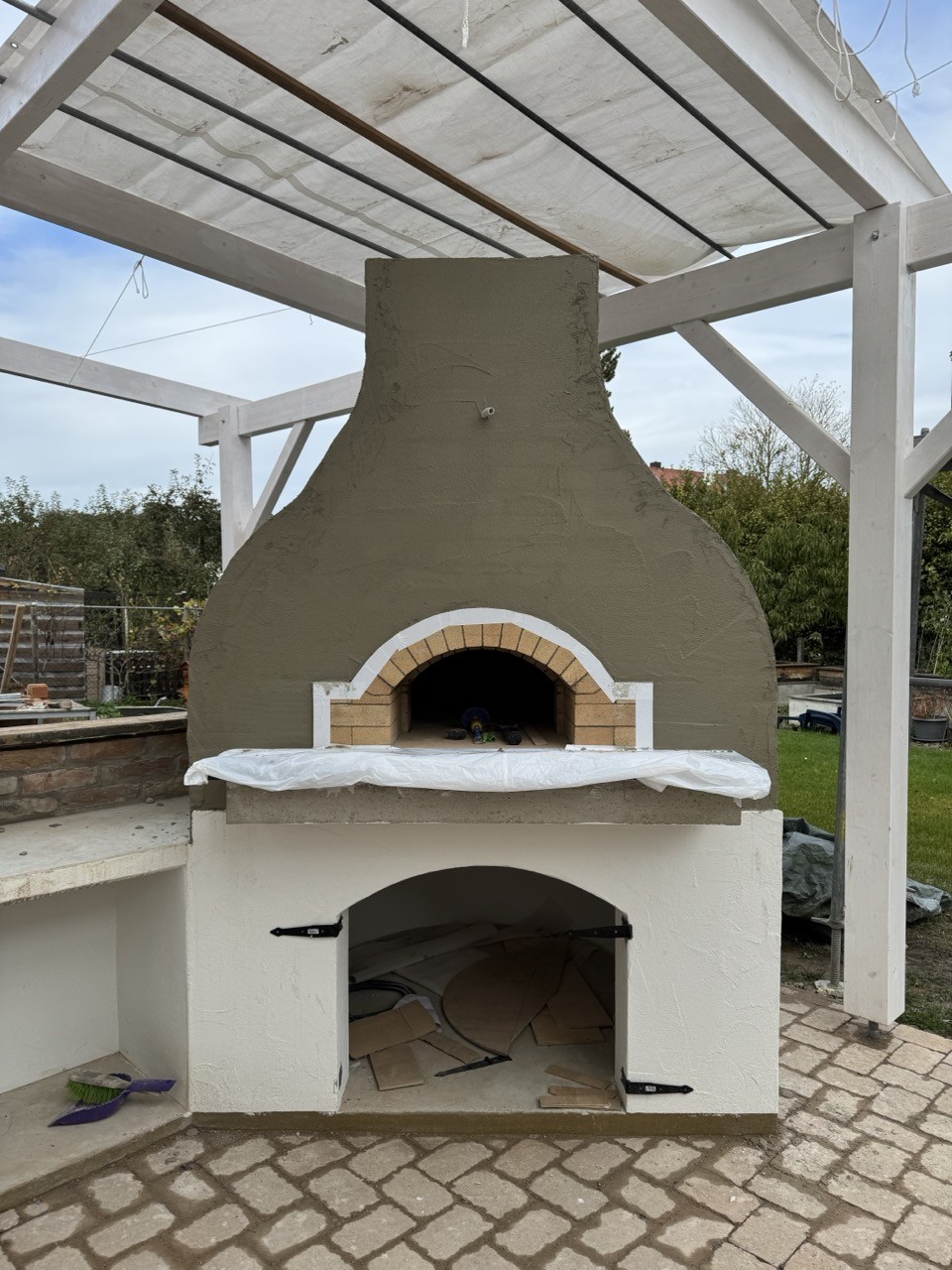

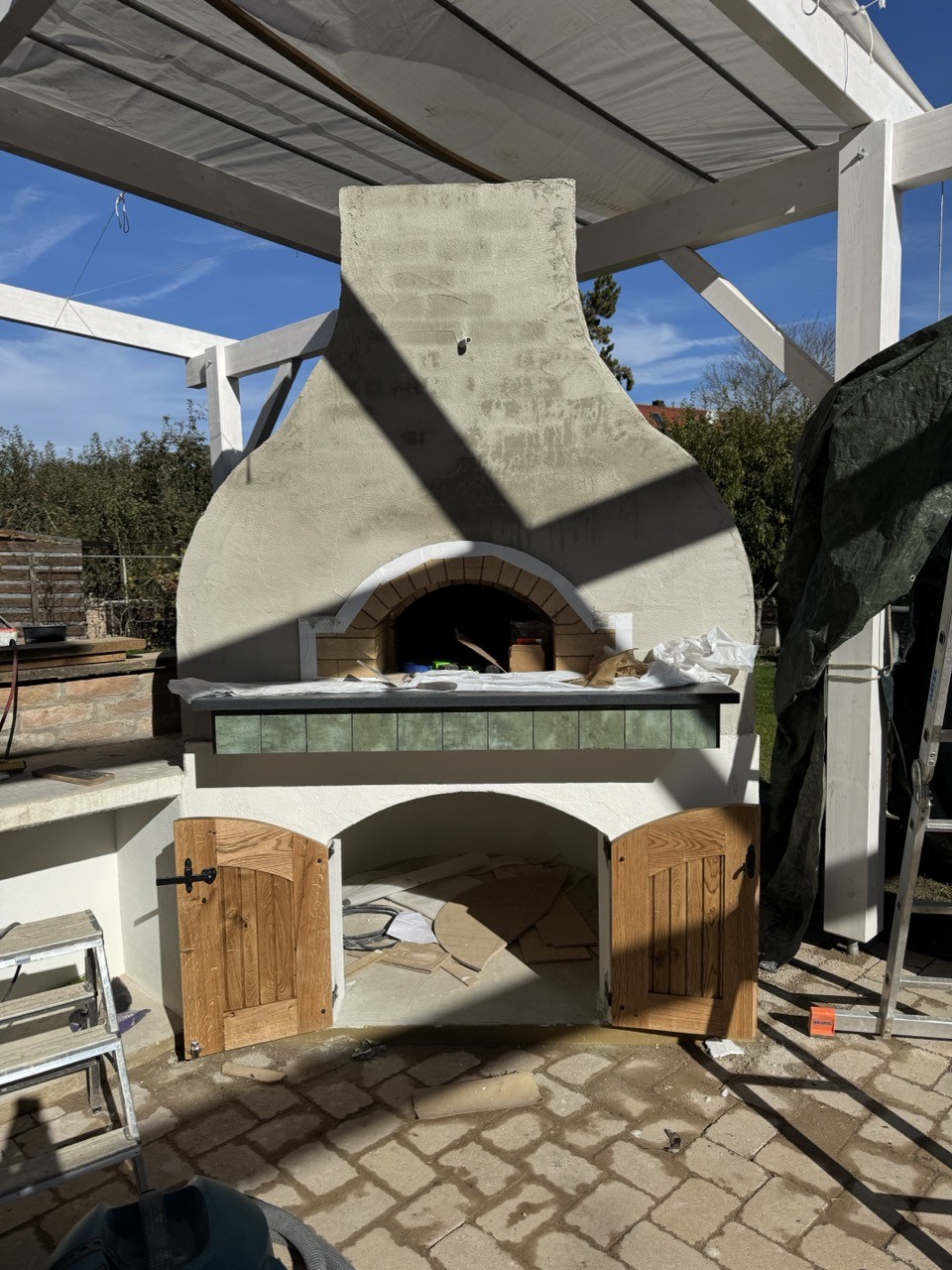

I started work on the brickwork of the chimney, and the front of the oven this week. I‘m doing it in stages, using left oven cement paver/ wall bricks for the sides. I used the last of my schamott bricks to build up over the arch today. I don‘t want to build the rear wall on the back of the chimney directly on the dome, so I have 2 options to use either a steel lintel, or reinforced concrete lintel supported by the sides and crossing over the dome. I will leave space under it to properly insulate the dome. I‘m specifically trying to avoid loss of heat through conduction from the main thermal mass to the brickwork around the chimney. I‘ll be posting more photo‘s as I progress. The brickwork will be rendered, leaving only the main arch visible around the opening as a feature on the front of the oven.

[UtahBeehiver]

Nobody is going to look inside the top of the oven when it is 700F, they will be amazed how quickly and tasty the pizzas that come out are. Plus the dome is going to soot up every time you fire until it clears off (about 700F plus and there is also a unique smell when the carbon starts to burn off, kind of like an ozone smell).

[daidensacha]

I found vinegar and a wire brush moderately helpful for small amounts of relatively fresh mortar and very helpful for efflorescence. Mind you, I was using the homebrew Portland cement-based mortar, not the calcium aluminate-based stuff you have, so your mileage may vary there.

I was pretty disciplined when doing the dome, after each row I washed down and cleaned the bricks because I found out early the cement set like stone. What I have is some dirty water stains. I tested today with 50/50 vinegar water mix and it does the job, makes it easy to remove it with a wet rag. But to be honest, the inside of the dome is clean enough for me. The photos I posted the last days were deceiving, because the dark part inside the dome is where it was wet from me cleaning it. Today it had dried out more and the dark patch is not there.

As if its not already cramped fitting through the arch into the low dome, I sprayed some vinegar in there today and if I was going to do it I would need to wear a mask. I‘m not doing that.
