  • Hi David

    Yes, onto it. I have 4 power panels sitting on my front porch. picked up for $40 each bargain. The whole base will be rendered and sealed. Cant seal the tops of blocks, as the adhesive has to bond to the panels and blocks to create a solid monolithic structure. I did lay a damp course between concrete and the first course of Hebel. Pretty much same as first oven just bigger.
    Last edited by oasiscdm; 07-09-2020, 02:34 AM.
    Cheers Colin

    My Build - Index to Major Build Stages

    Comment


    • ​​Hi

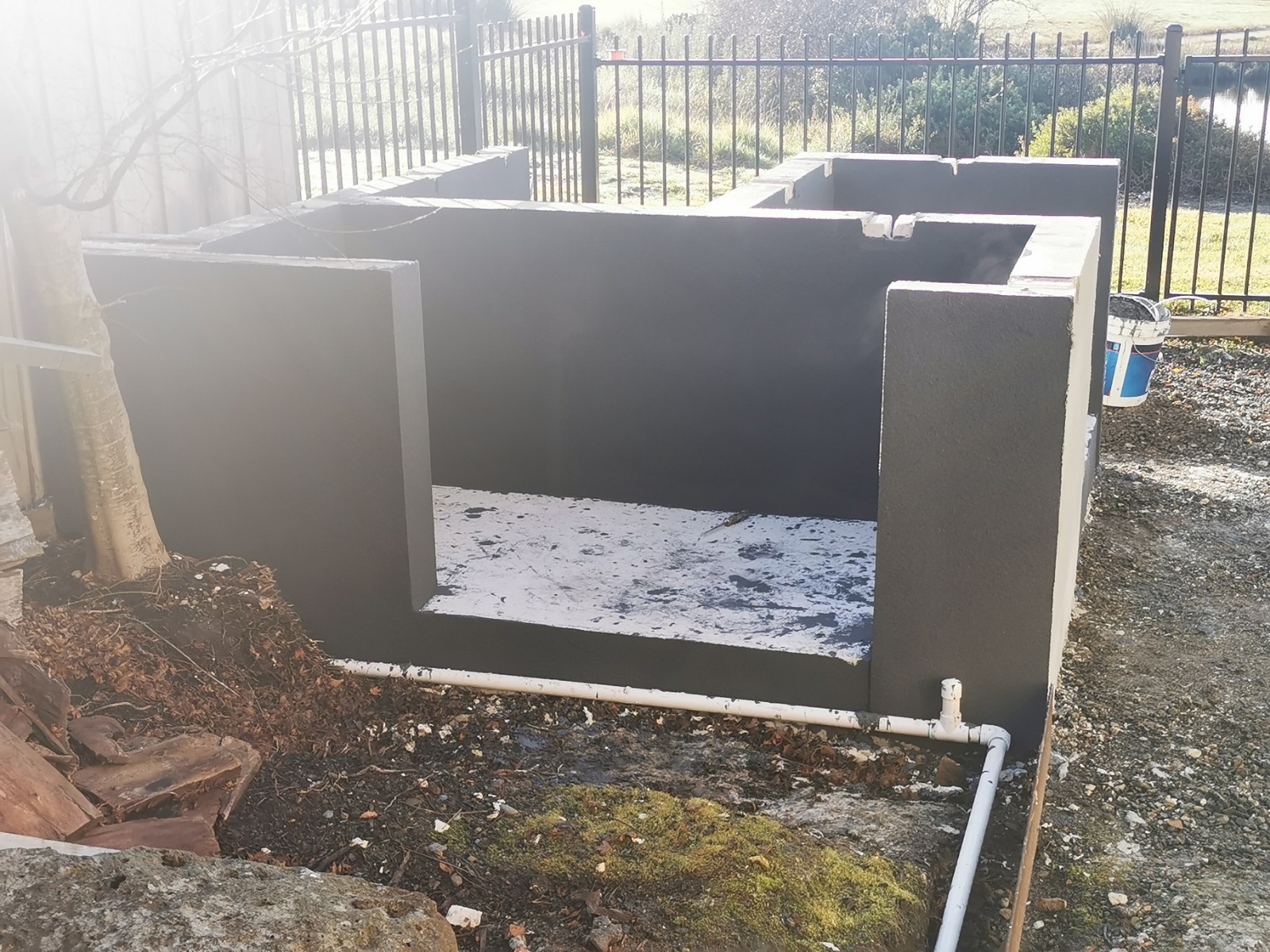

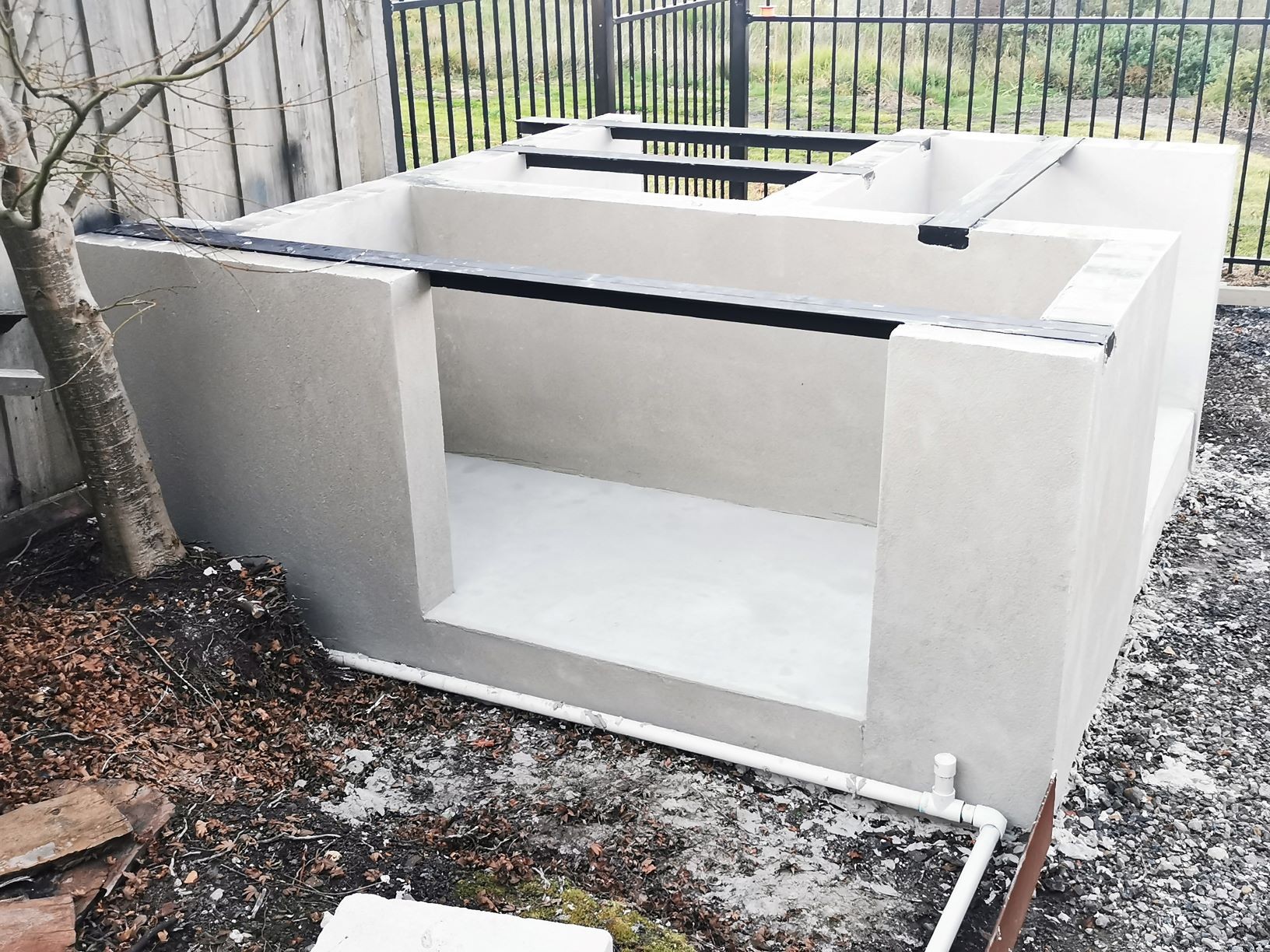

      So it has been a while, but with all things re CoVid lockdown, crappy weather, Parents illness, work, Ii have managed to finally get the first couple of coats of leveling coat of render done.

      Texture coat hopefully next week, then the final Acrashield colour coat a couple weeks after that.

      Then get the top of base on and I can then get serious from there.

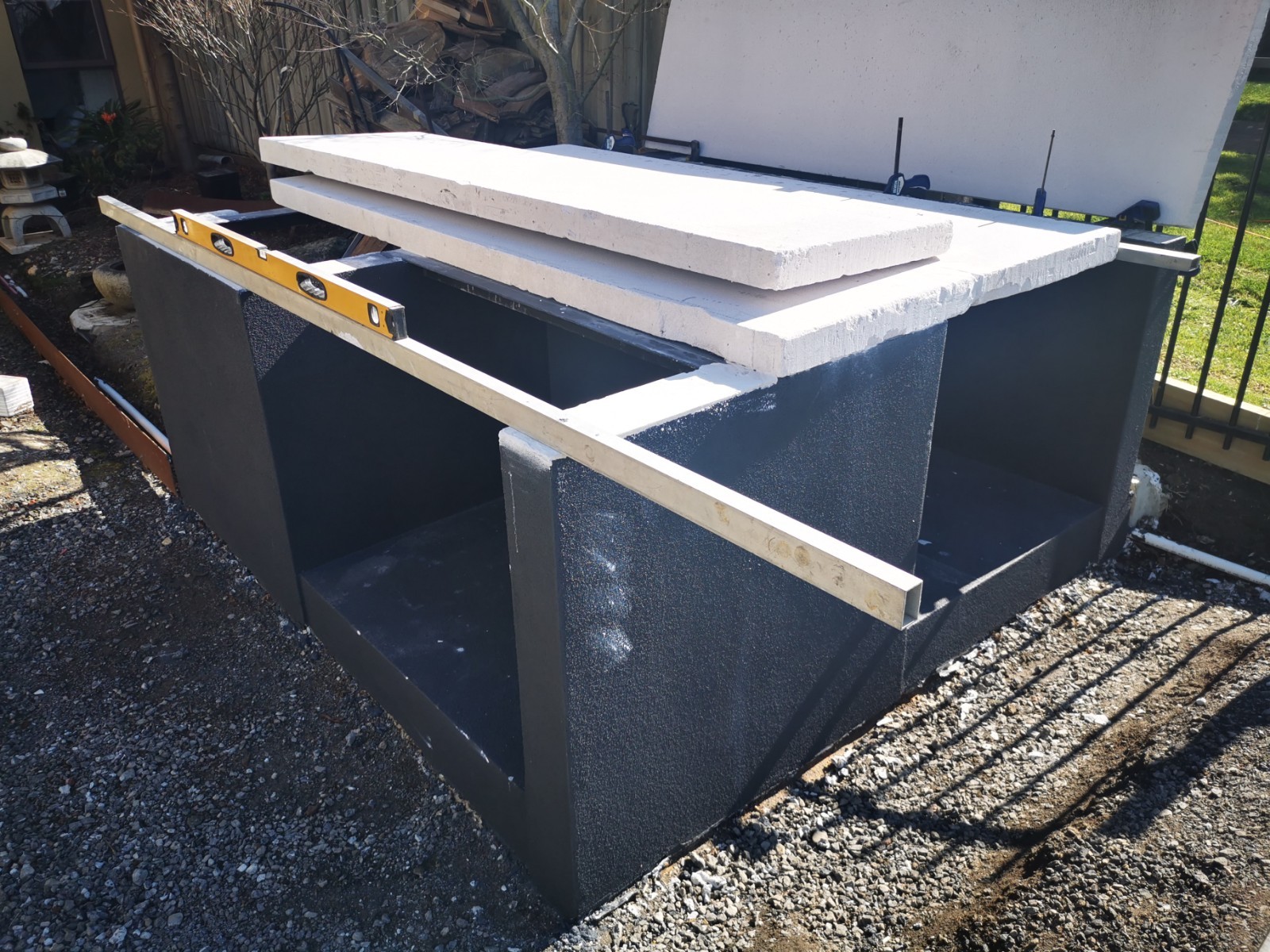

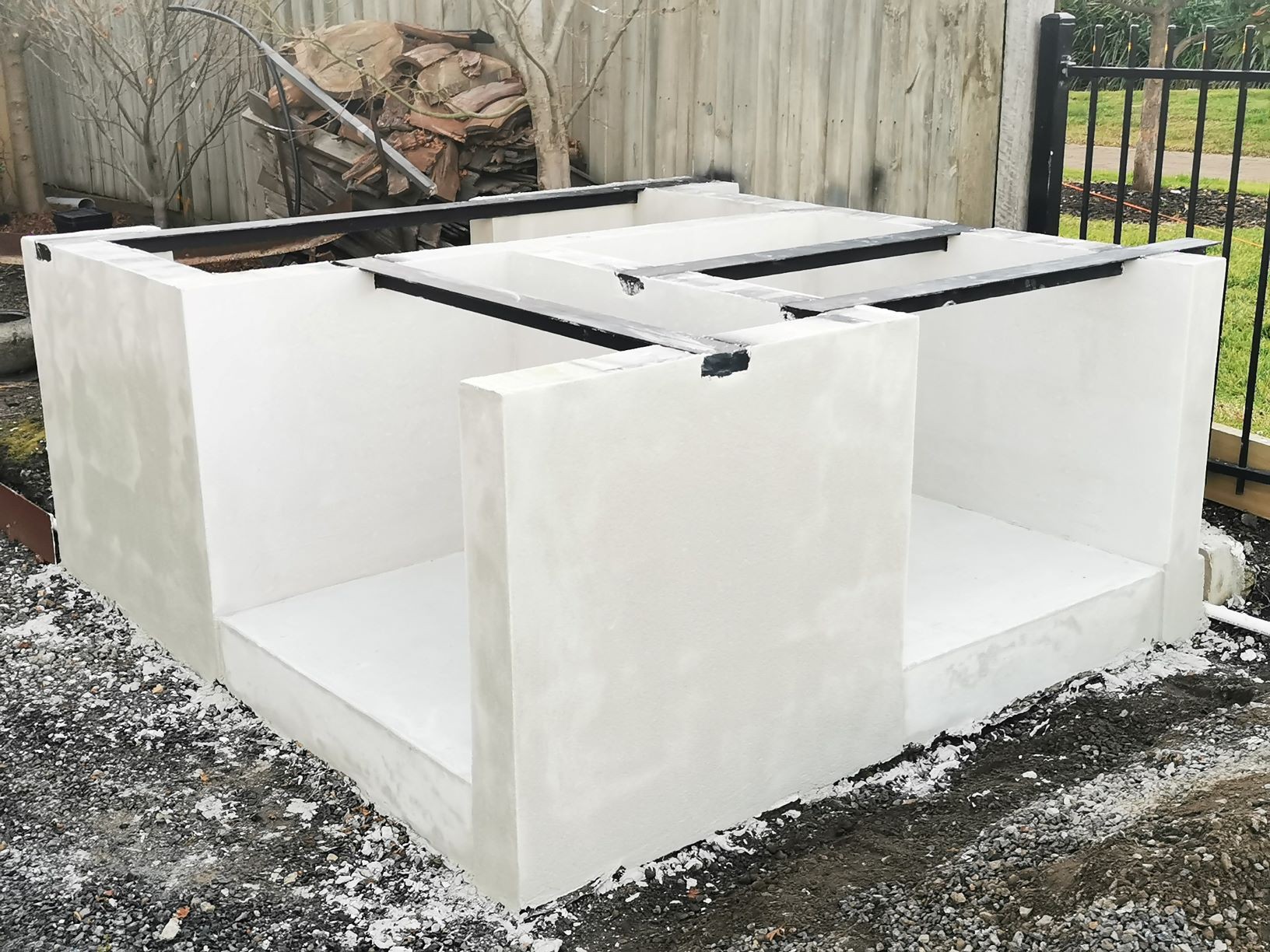

      Click image for larger version  Name:	IMG_20200708_172009.jpg Views:	0 Size:	548.1 KB ID:	425619 Click image for larger version  Name:	IMG_20200708_172032.jpg Views:	0 Size:	414.0 KB ID:	425620 Click image for larger version  Name:	IMG_20200709_171418.jpg Views:	0 Size:	565.1 KB ID:	425621
      Click image for larger version  Name:	IMG_20200709_171433.jpg Views:	0 Size:	481.5 KB ID:	425625 Click image for larger version  Name:	IMG_20200709_171455.jpg Views:	0 Size:	606.0 KB ID:	425626 Click image for larger version  Name:	IMG_20200709_171535.jpg Views:	0 Size:	390.7 KB ID:	425627
      Last edited by oasiscdm; 07-09-2020, 03:25 AM.
      Cheers Colin

      My Build - Index to Major Build Stages

      Comment


      • G’day Colin
        good the see you’ve got another oven on the go
        regards Dave
        Measure twice
        Cut once
        Fit in position with largest hammer

        My Build
        http://www.fornobravo.com/forum/f51/...ild-14444.html
        My Door
        http://www.fornobravo.com/forum/f28/...ock-17190.html

        Comment


        • Hi Dave. Yep another one. As you get older you slow down. Although with work I seem to be working harder with covid.

          Great to hear from you. Hopefully will be getting more completed more often but have a lot of projects concurrently running.

          Pergola down side way
          Verandah and deck out back
          Garden to complete
          Wfo oven
          ​​​​​​Paving

          Anyway no rest for perfectionists



          Last edited by oasiscdm; 07-09-2020, 05:33 AM.
          Cheers Colin

          My Build - Index to Major Build Stages

          Comment

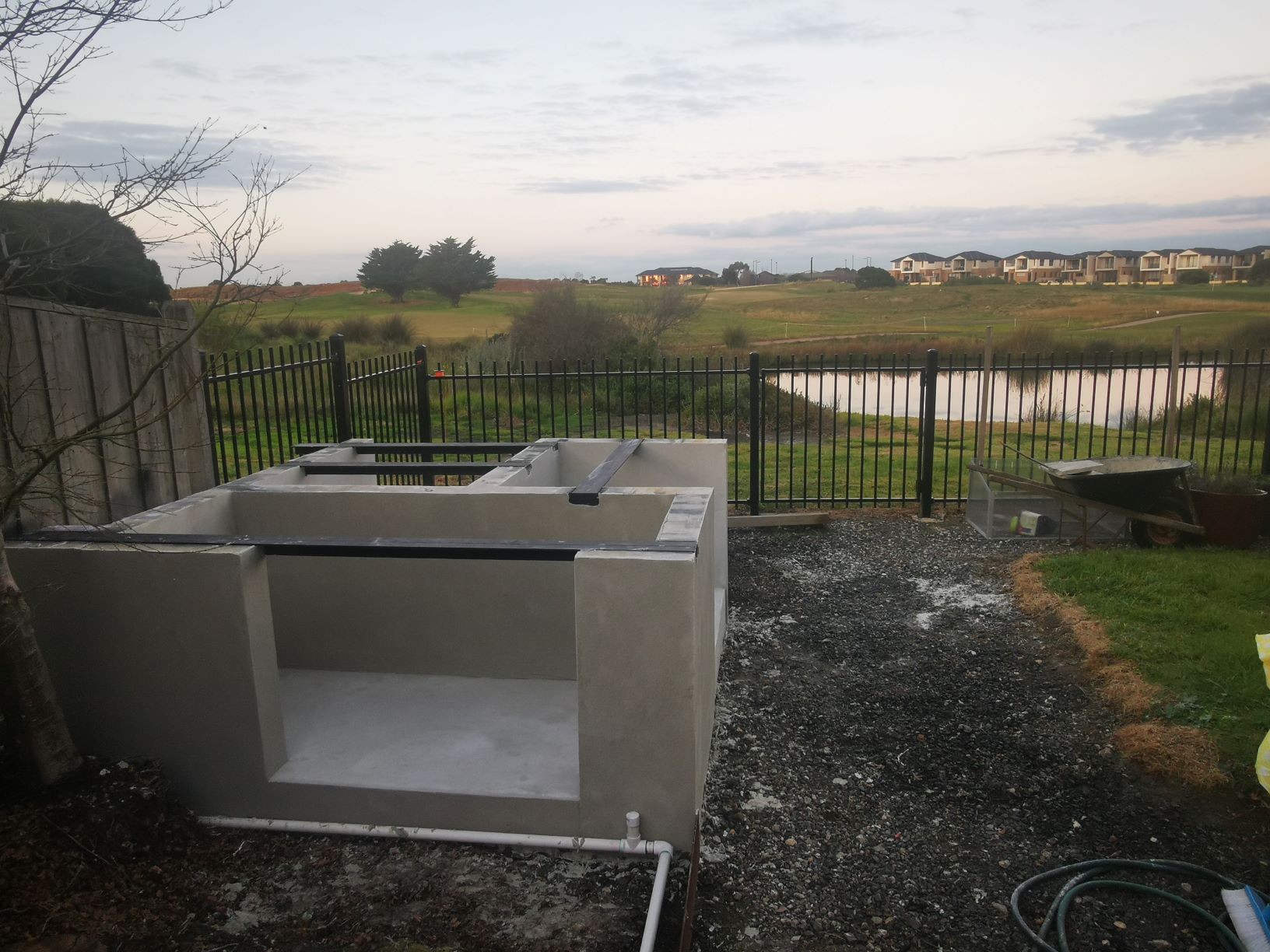

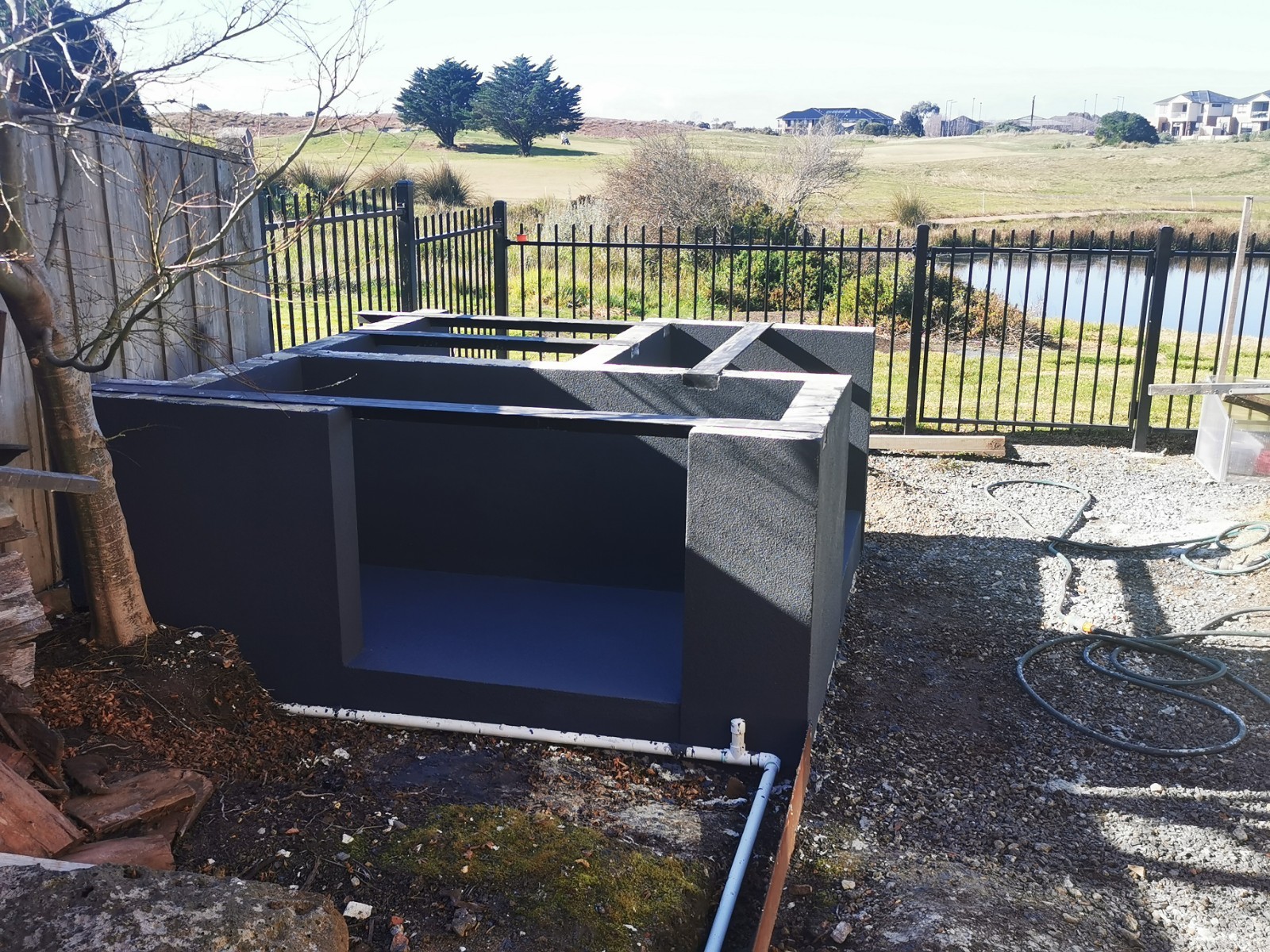

          • Hi All

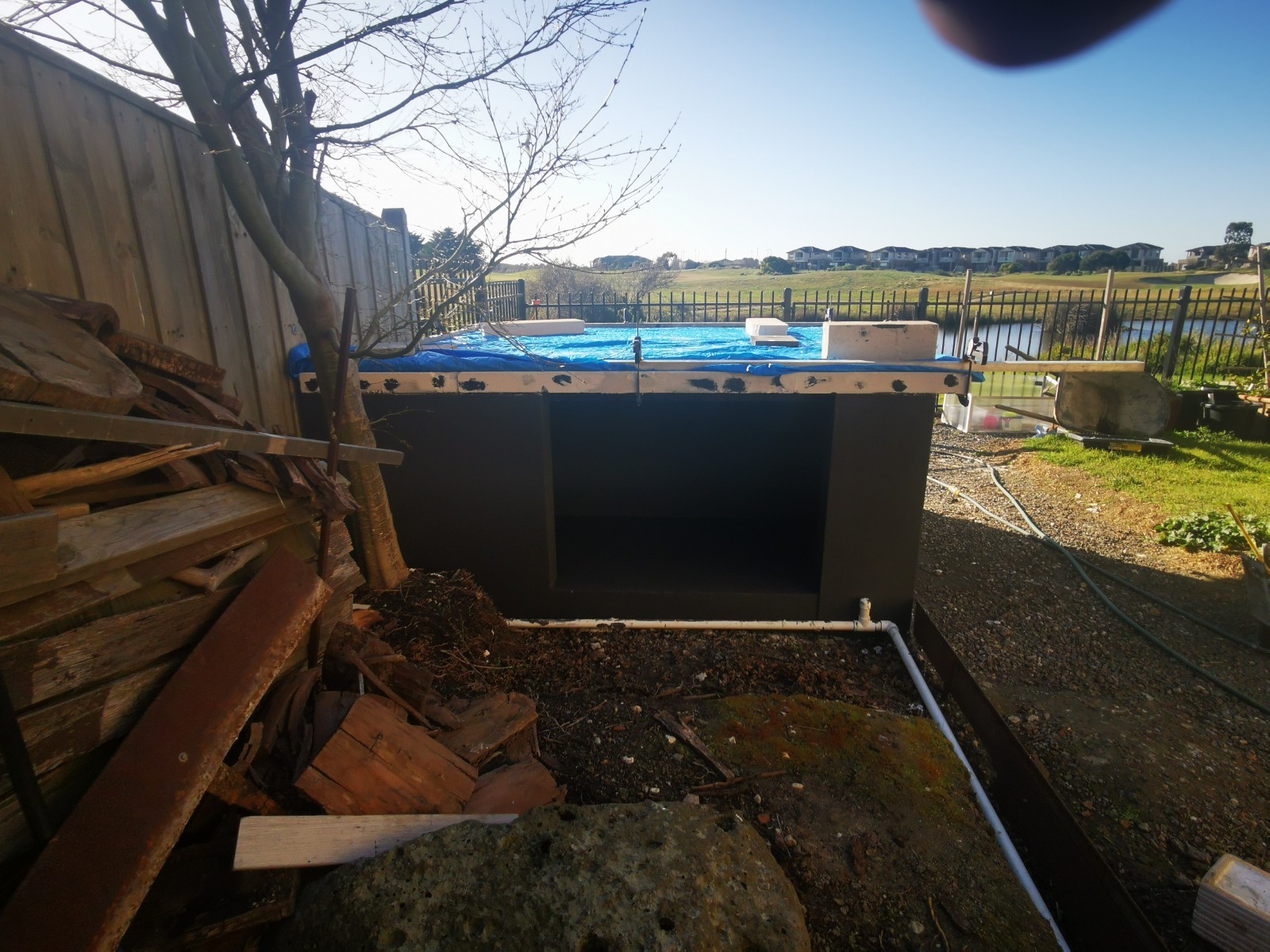

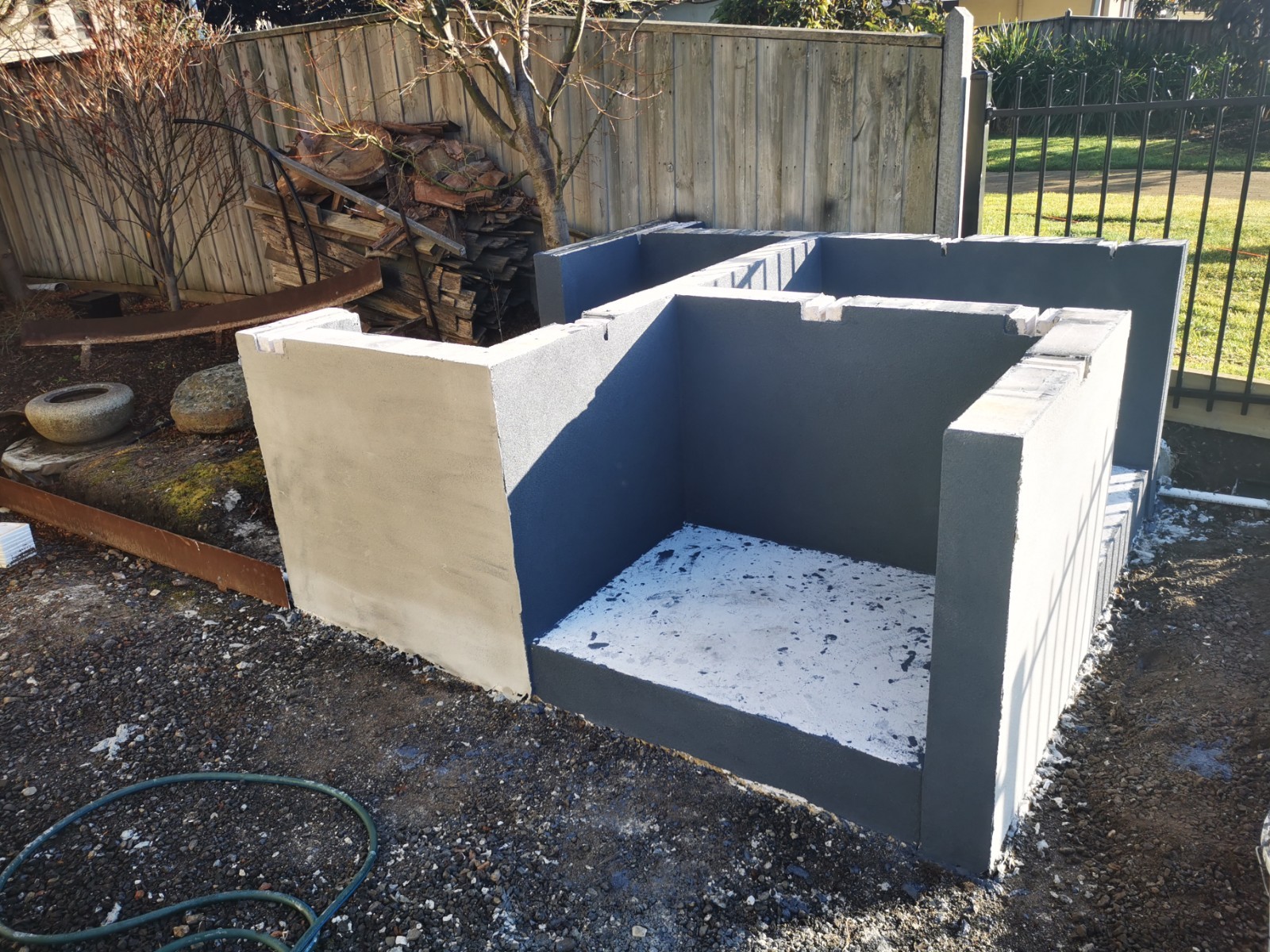

            Well, I finally have the base rendered with the texture coat, need to seal surface which will be the final colour. Final colour will be Colourbond Monument which will be much darker than the colour in photos.

            Click image for larger version

Name:	IMG_20200716_091800.jpg
Views:	453
Size:	436.3 KB
ID:	426099 Click image for larger version

Name:	IMG_20200716_091753.jpg
Views:	438
Size:	578.7 KB
ID:	426100 Click image for larger version

Name:	IMG_20200716_091815.jpg
Views:	412
Size:	516.9 KB
ID:	426101 Click image for larger version

Name:	IMG_20200716_125954.jpg
Views:	432
Size:	301.5 KB
ID:	426102 Click image for larger version

Name:	IMG_20200716_130009.jpg
Views:	448
Size:	507.0 KB
ID:	426103 Click image for larger version

Name:	IMG_20200716_130027.jpg
Views:	418
Size:	667.1 KB
ID:	426104
            Cheers Colin

            My Build - Index to Major Build Stages

            Comment


            • Hey Colin,

              Looking good on the base. I am sure the oven end of the business will be precision as well.
              Russell
              Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]

              Comment


              • Hi Russell

                I am in process of cleaning garage as we moved all our bullshit items from inside the house to garage, old stereo system etc as i am moving towards everything being wireless no wires.

                Once i have room in garage i am looking at developing an idea i have had to create an adjustable metal ring that fits each course allowing the each ring of fire bricks to sit against this ring so a whole chain can be layed with no mortar, the last brick locks everything into place.

                Just an idea, i am playing with to use spring force to hold the courses in place.

                But alas i need to get final colour on base, table top on and then get the insulation layers and hearth bricks in place.

                No we are locked down hopefully can get more done not having anywhere to go.
                Cheers Colin

                My Build - Index to Major Build Stages

                Comment


                • HI

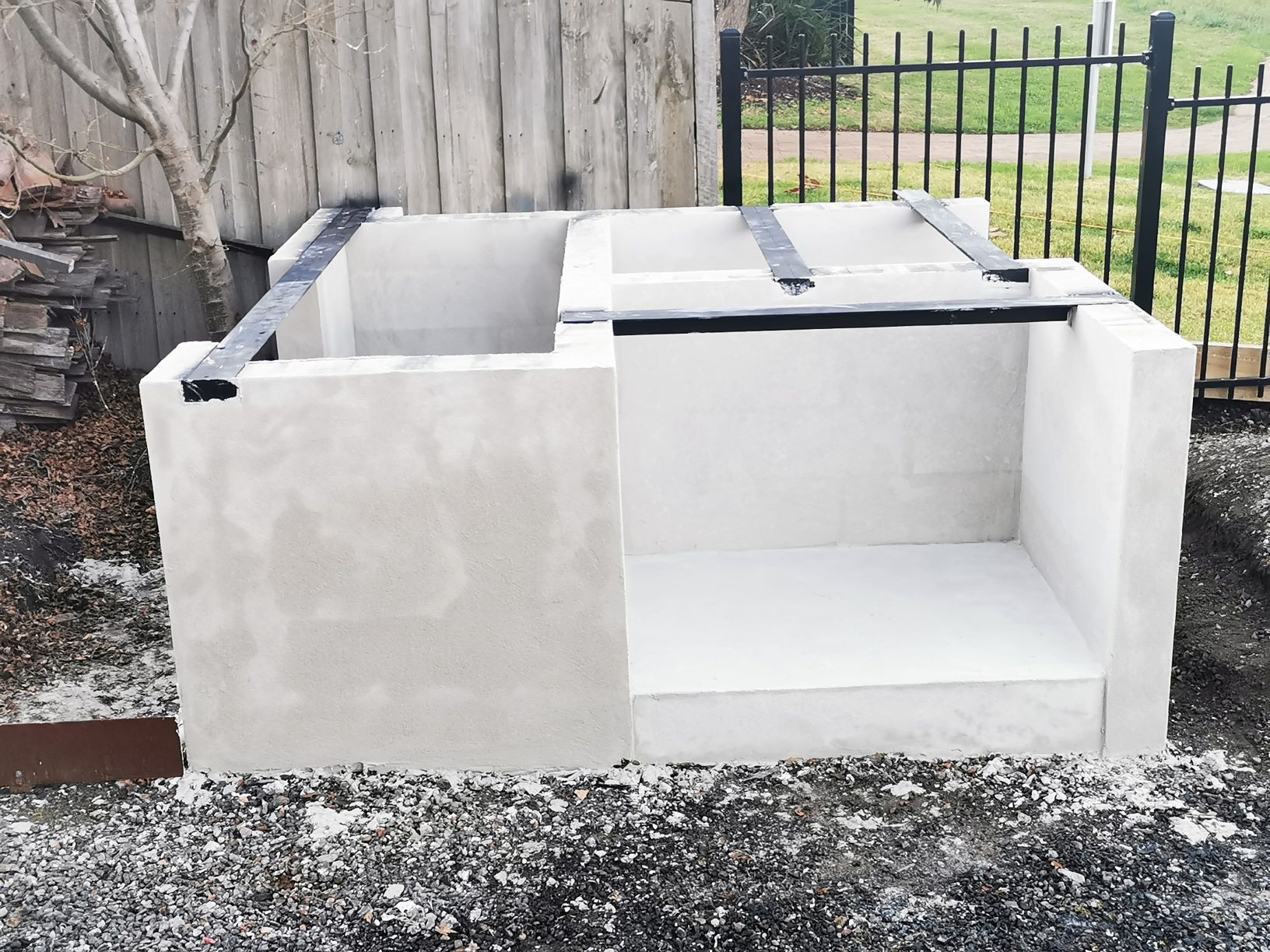

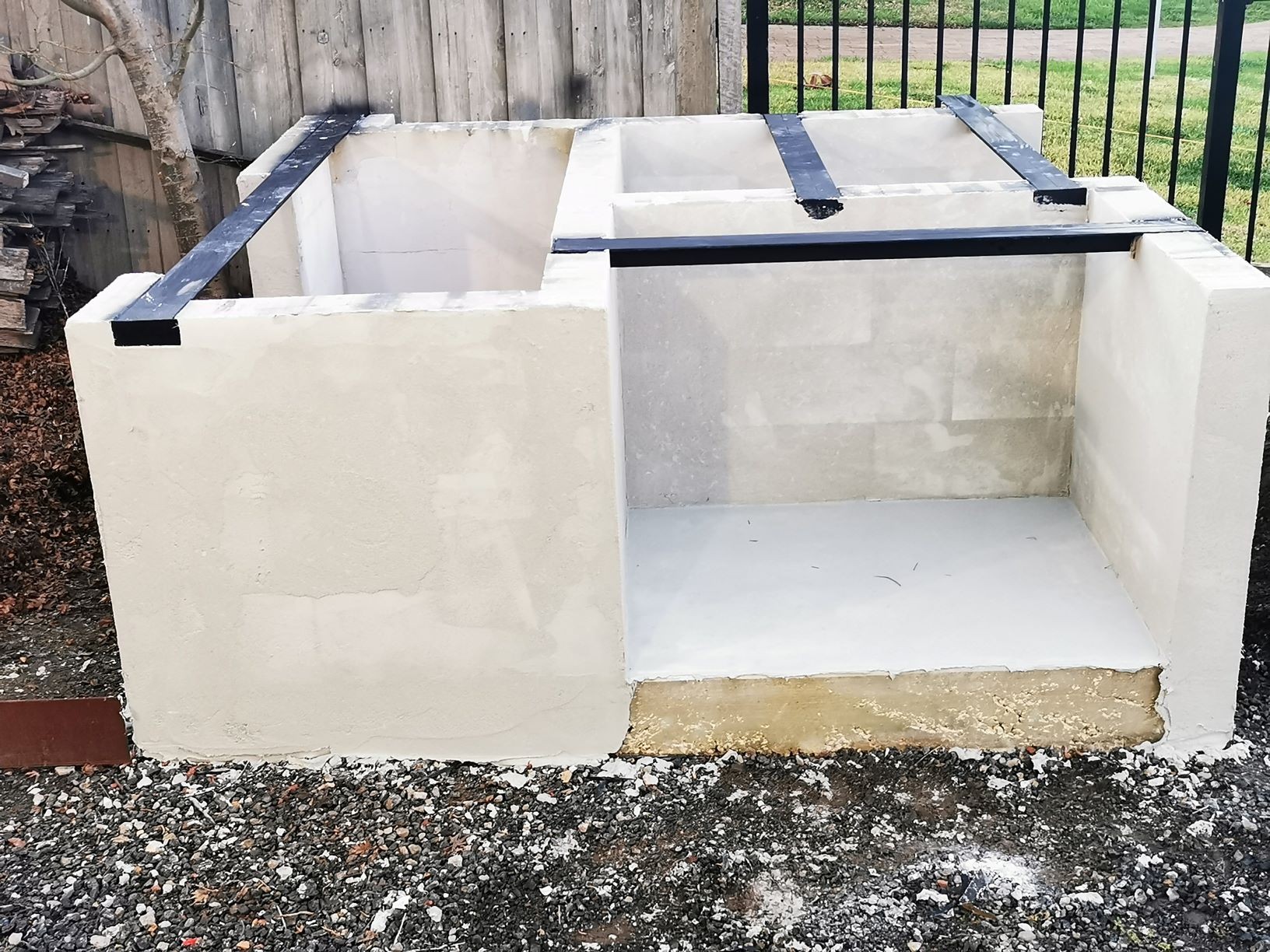

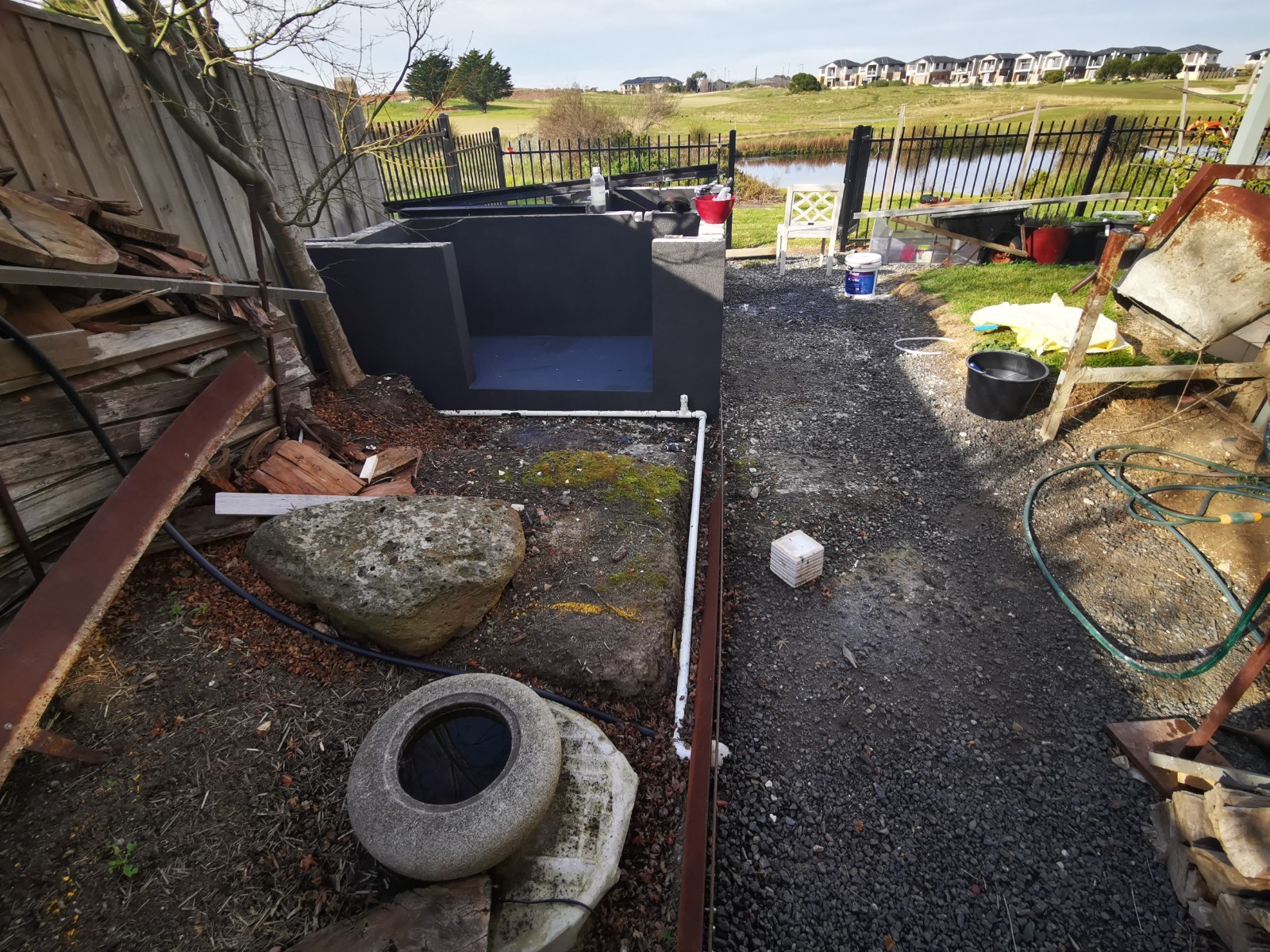

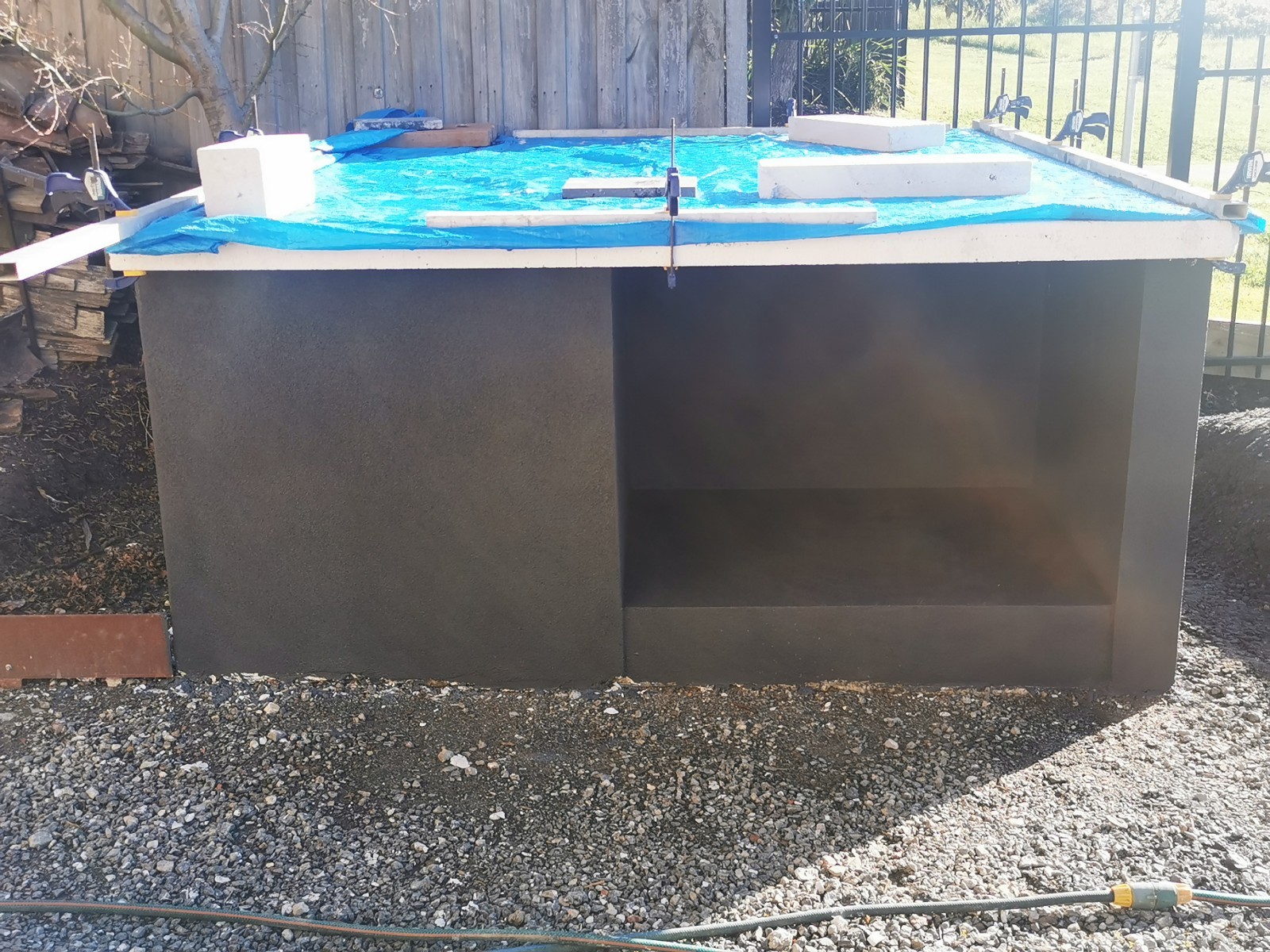

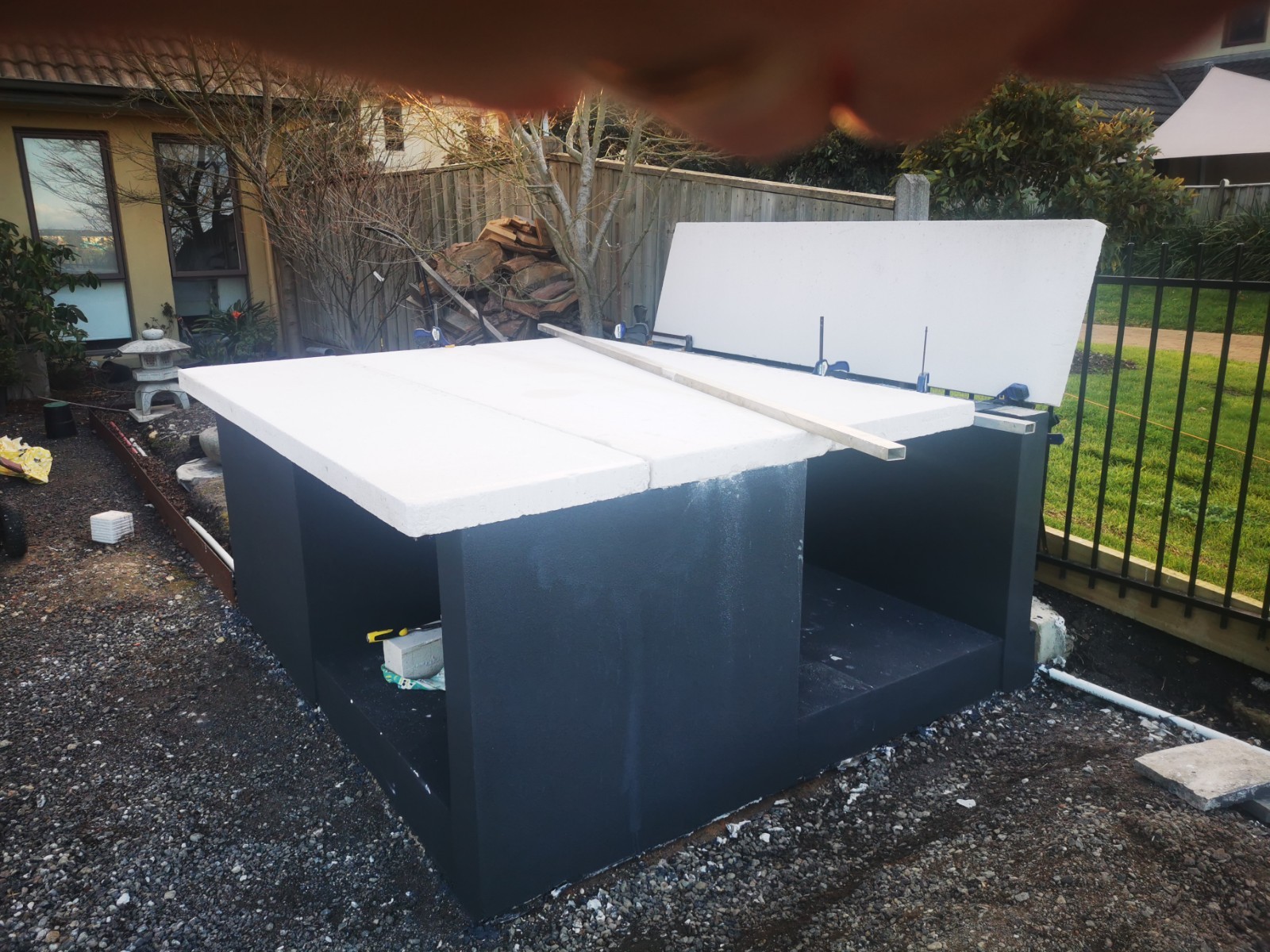

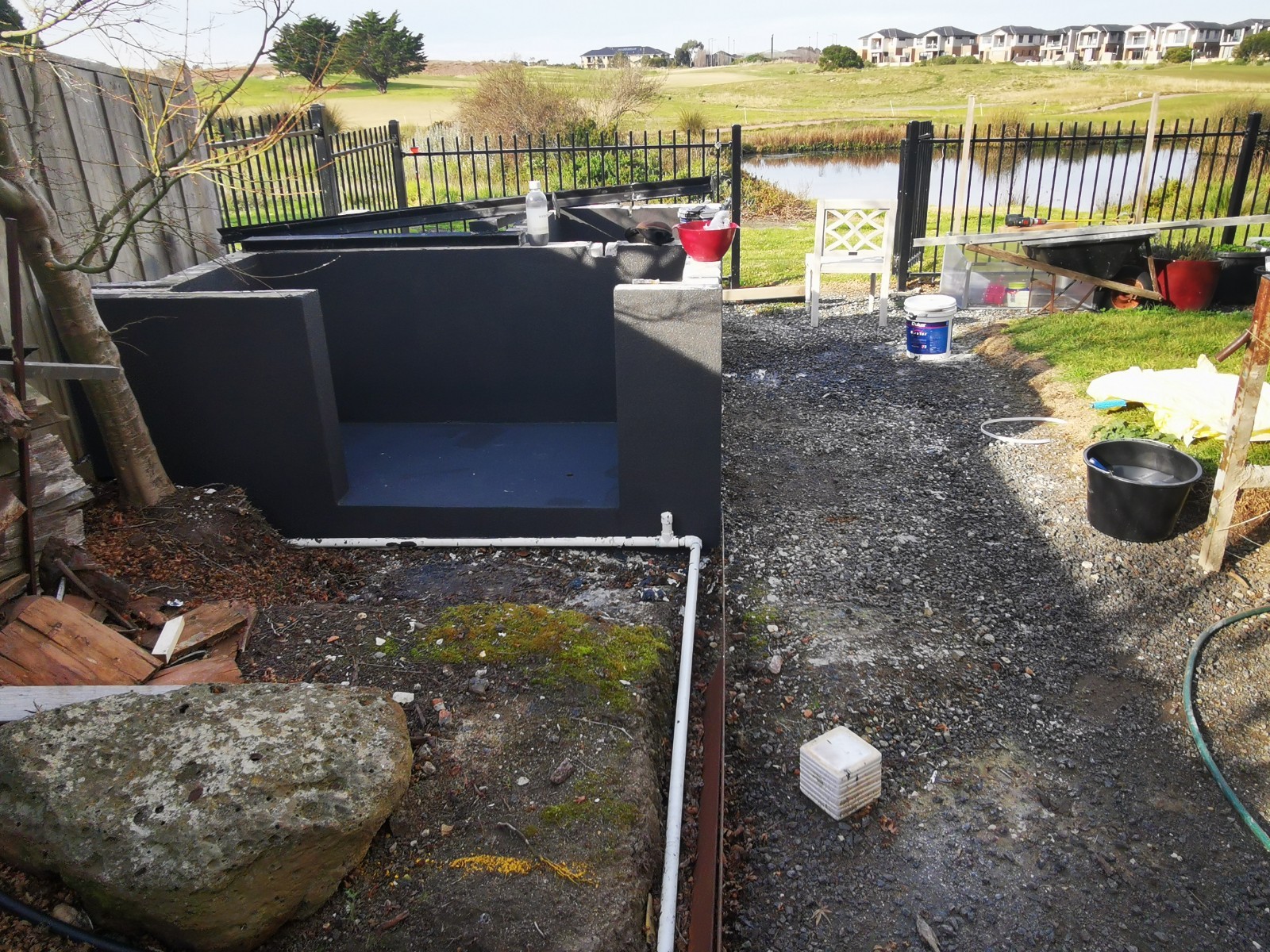

                  I have manged to get a little further 1st sealing coat done. 2nd tomorrow, after a little tidy up in certain spots.

                  Click image for larger version

Name:	IMG_20200725_145732.jpg
Views:	428
Size:	714.7 KB
ID:	426559 Click image for larger version

Name:	IMG_20200725_145713.jpg
Views:	415
Size:	717.7 KB
ID:	426560 Click image for larger version

Name:	IMG_20200725_145707.jpg
Views:	414
Size:	675.6 KB
ID:	426561 Click image for larger version

Name:	IMG_20200725_145648.jpg
Views:	424
Size:	596.4 KB
ID:	426557 Click image for larger version

Name:	IMG_20200725_164315.jpg
Views:	402
Size:	674.5 KB
ID:	426558
                  Cheers Colin

                  My Build - Index to Major Build Stages

                  Comment

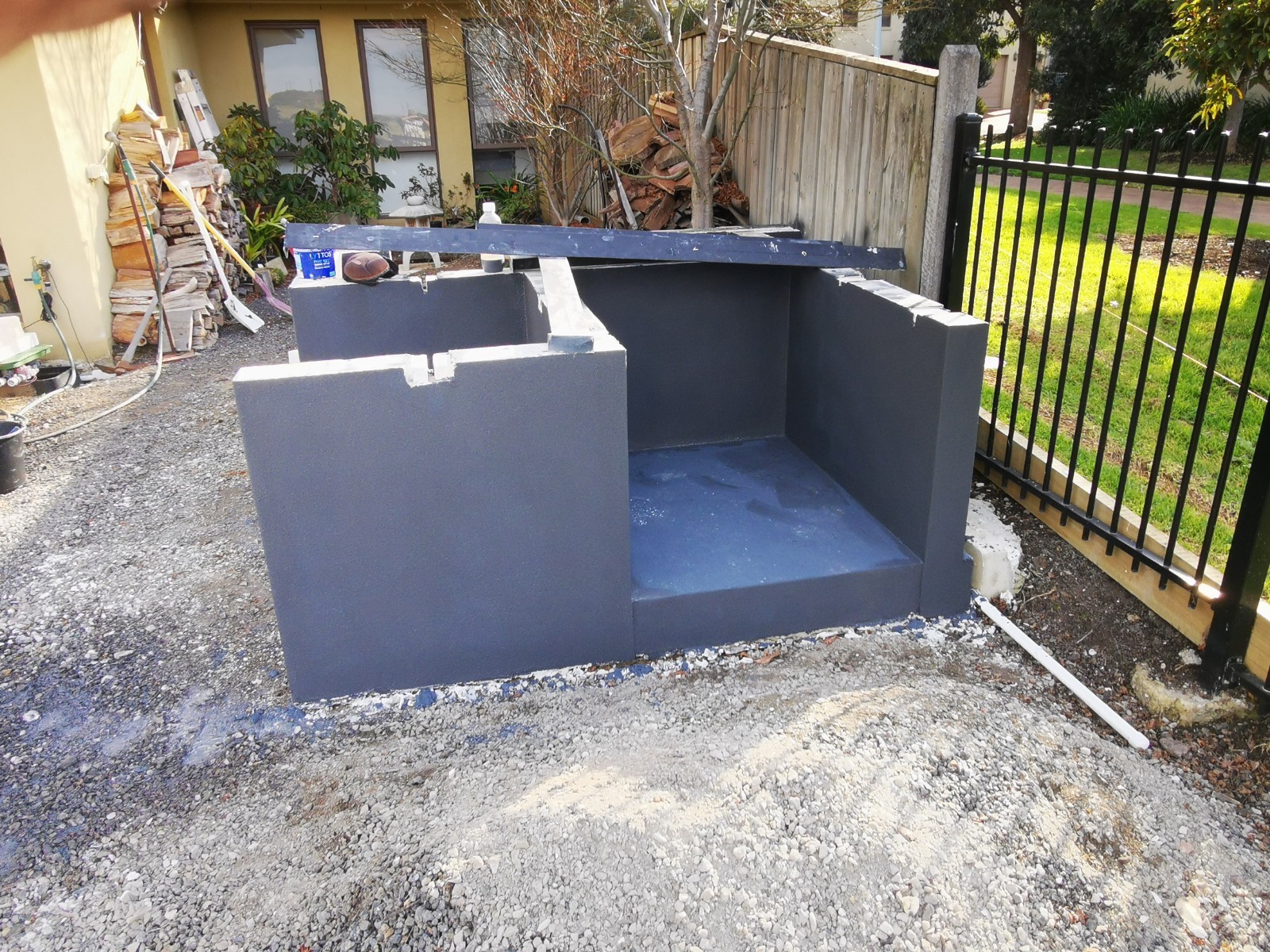

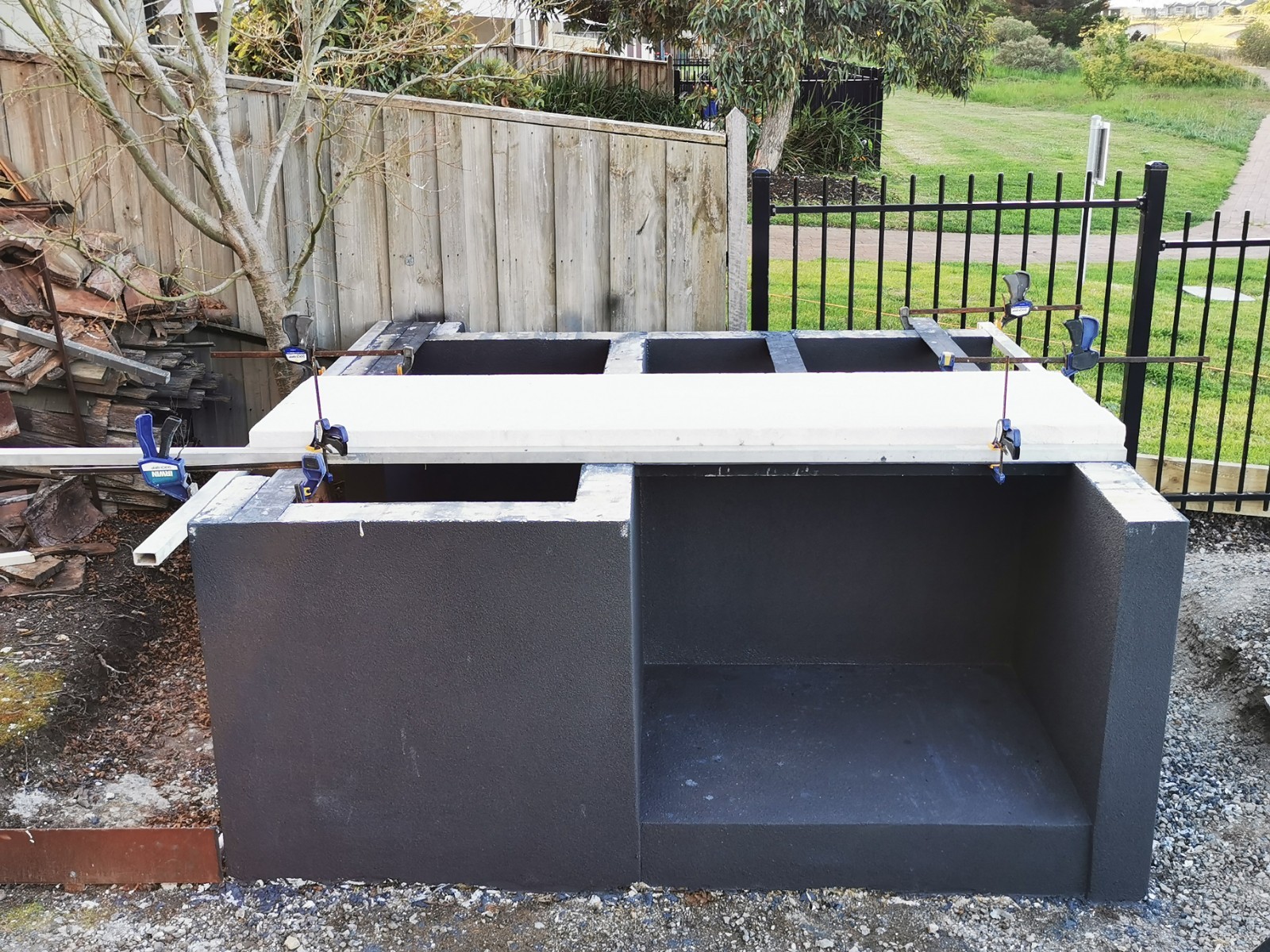

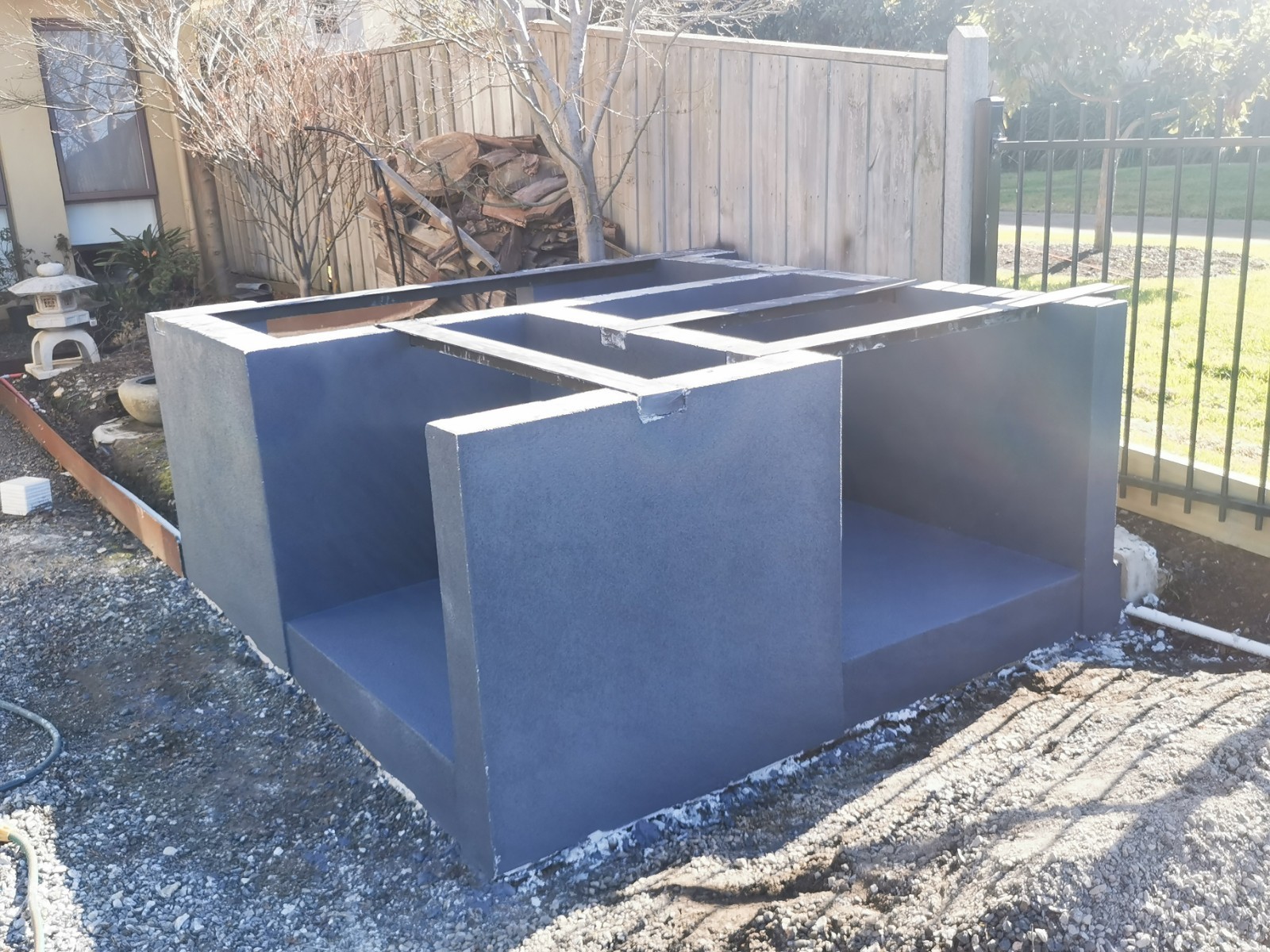

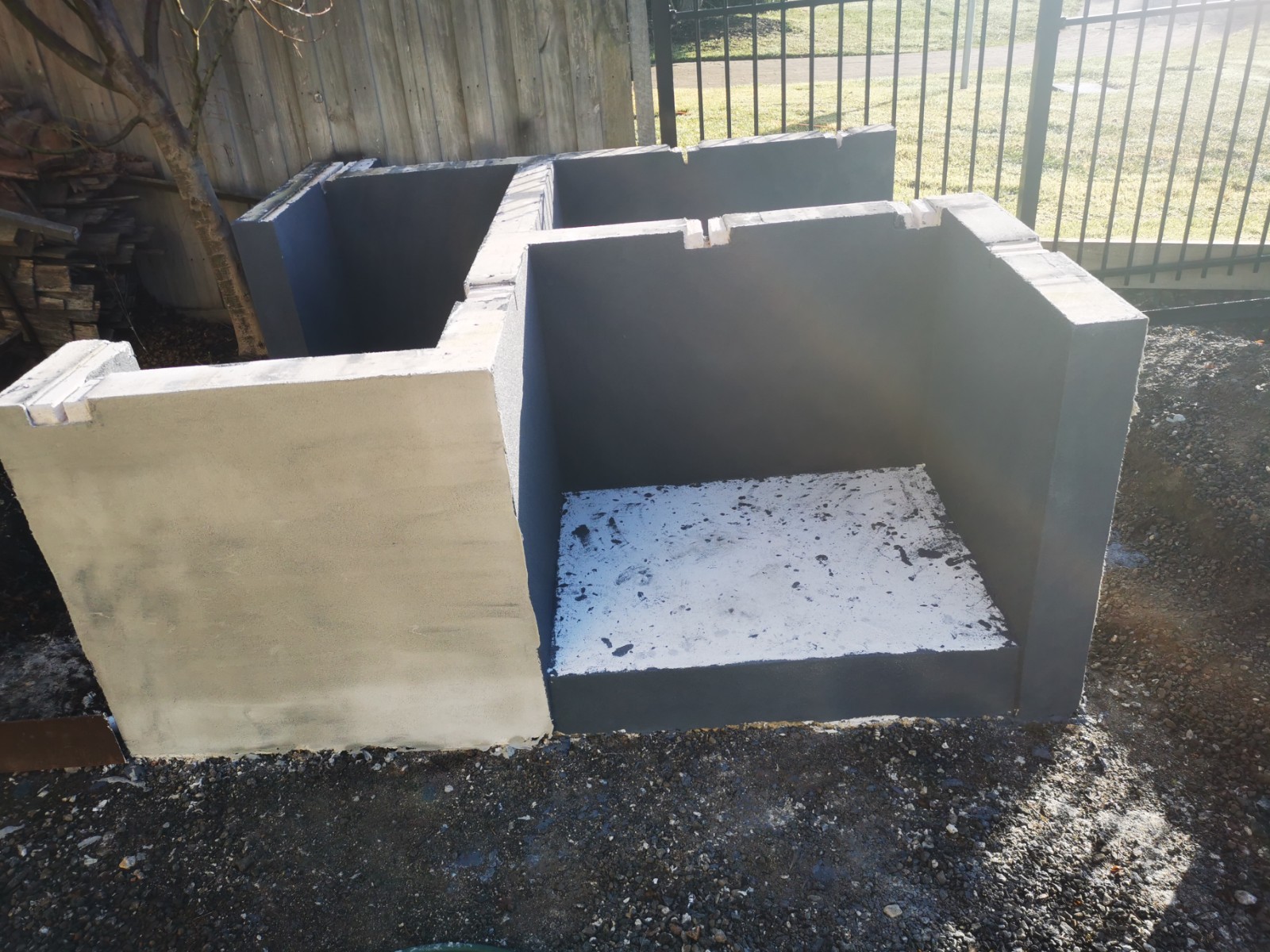

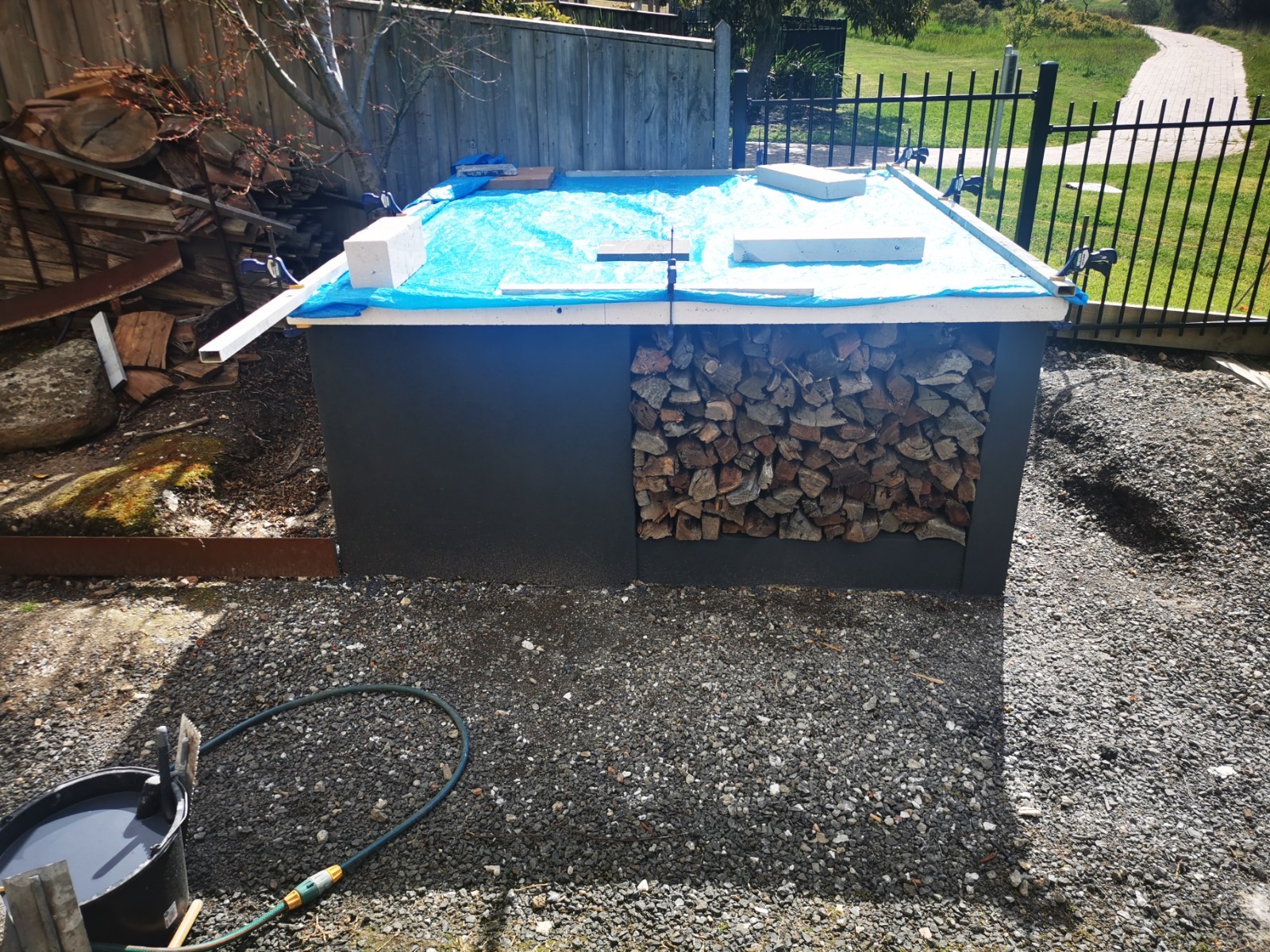

                  • Hi All

                    I have managed to get a bit more done to base. Even thought we are in lock down due to CoVid i still am able to put in a full week 40 hour week with work.
                    Click image for larger version

Name:	IMG_20200809_164333.jpg
Views:	393
Size:	400.2 KB
ID:	428049 Click image for larger version

Name:	IMG_20200802_163207.jpg
Views:	393
Size:	633.2 KB
ID:	428050 Click image for larger version

Name:	IMG_20200810_150017.jpg
Views:	395
Size:	498.6 KB
ID:	428051 Click image for larger version

Name:	IMG_20200809_164349.jpg
Views:	395
Size:	461.0 KB
ID:	428052 Click image for larger version

Name:	IMG_20200802_141831.jpg
Views:	389
Size:	617.0 KB
ID:	428053 Click image for larger version

Name:	IMG_20200809_164322.jpg
Views:	435
Size:	450.8 KB
ID:	428048
                    Cheers Colin

                    My Build - Index to Major Build Stages

                    Comment

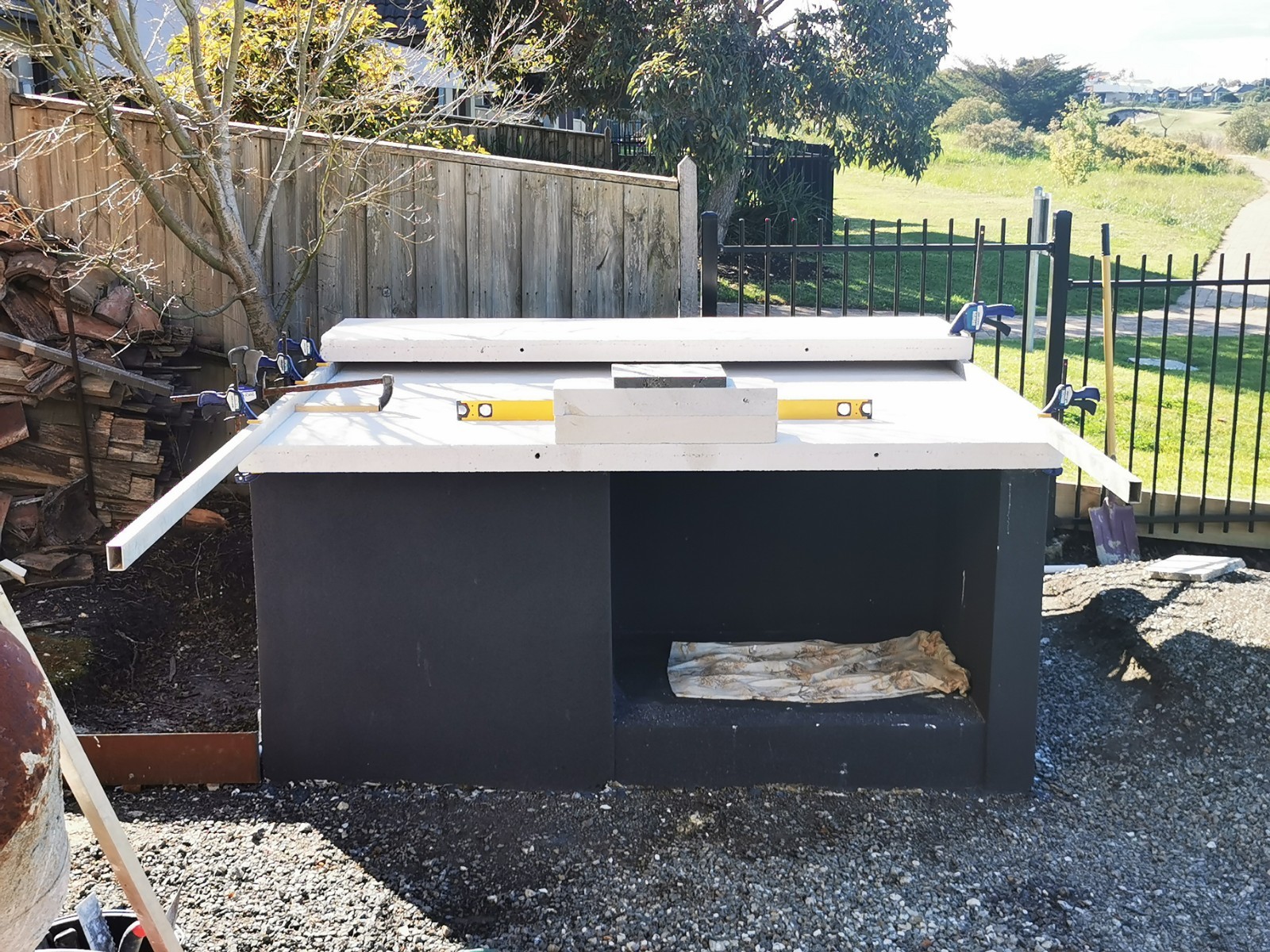

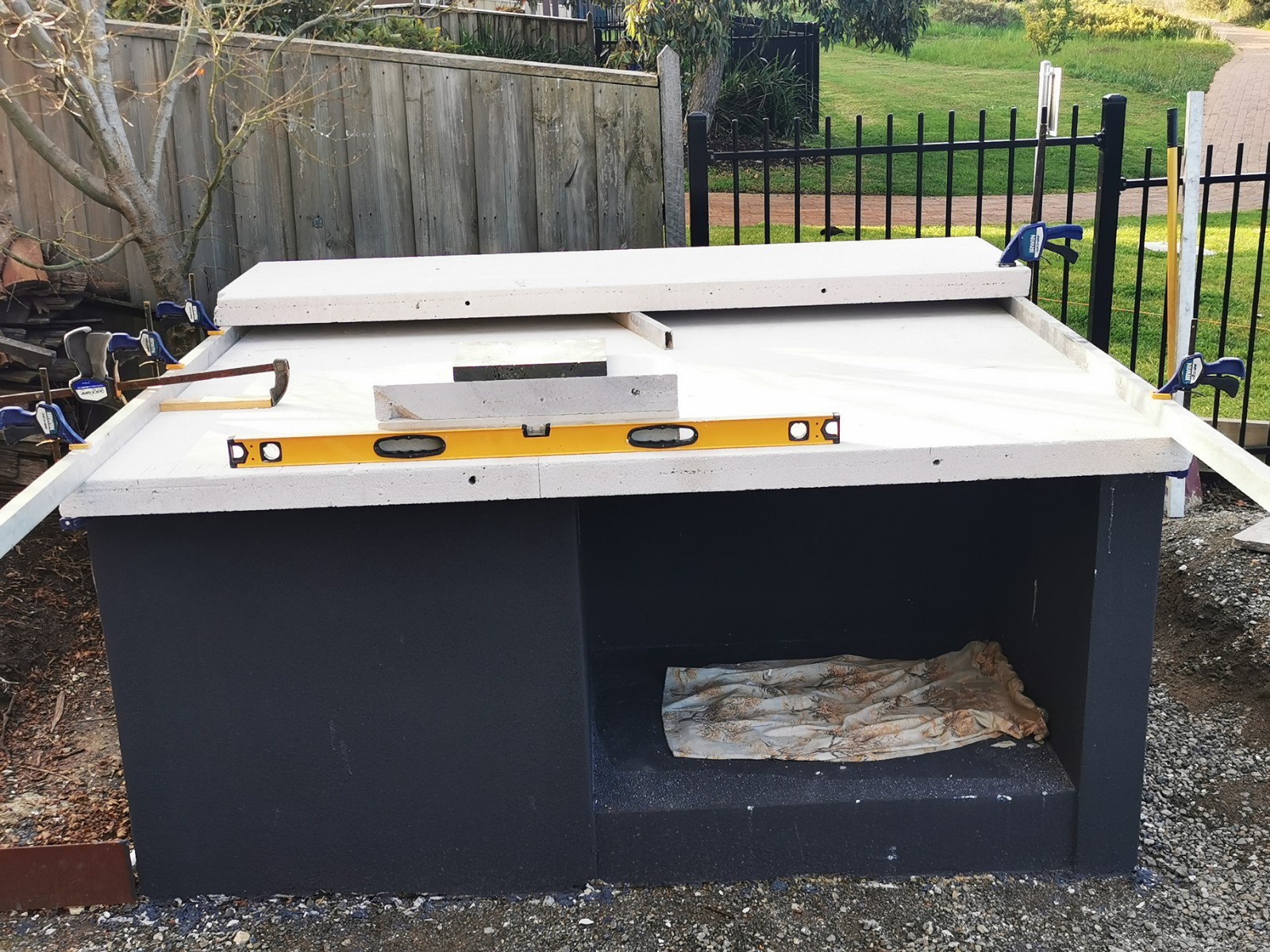

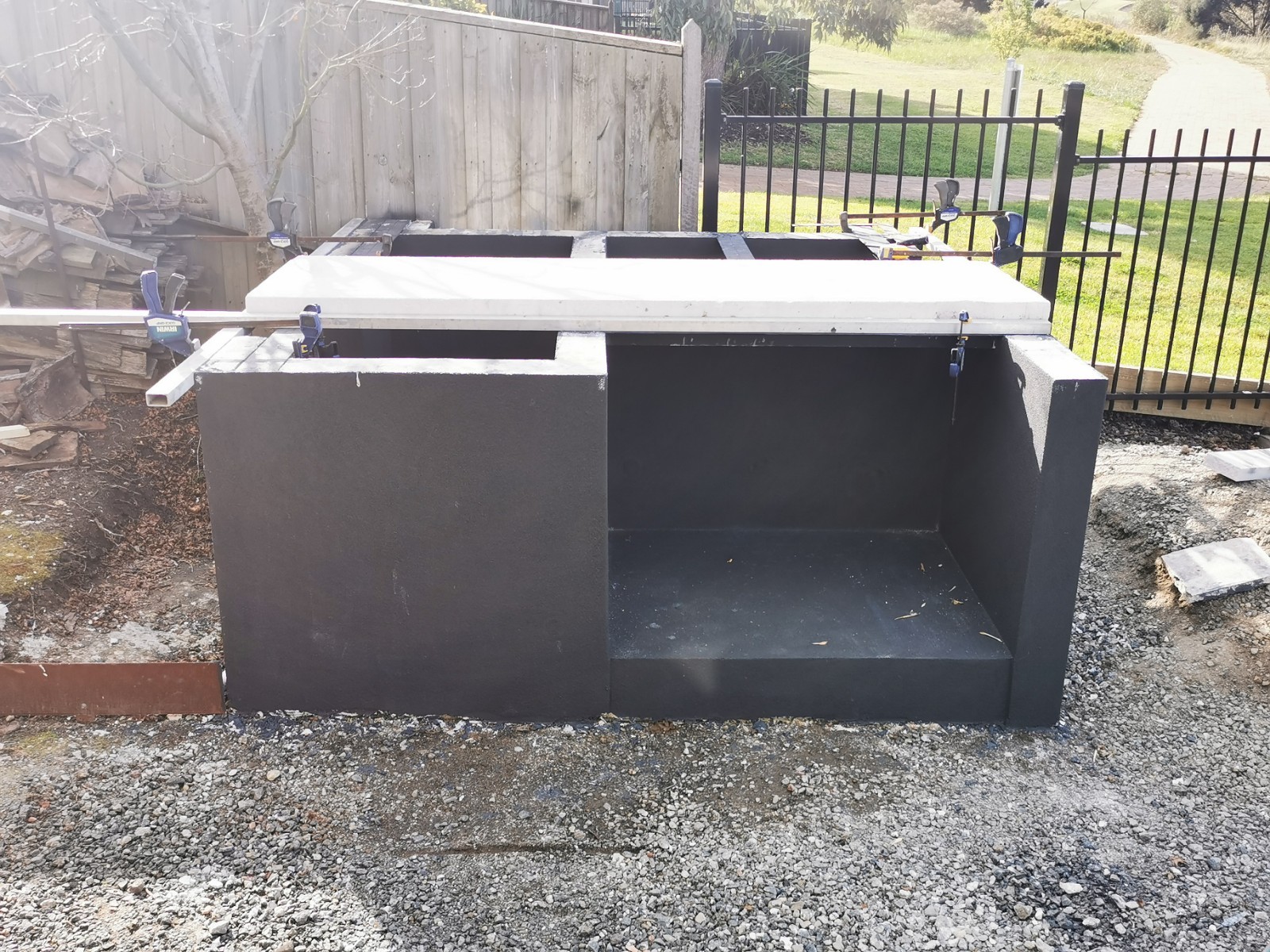

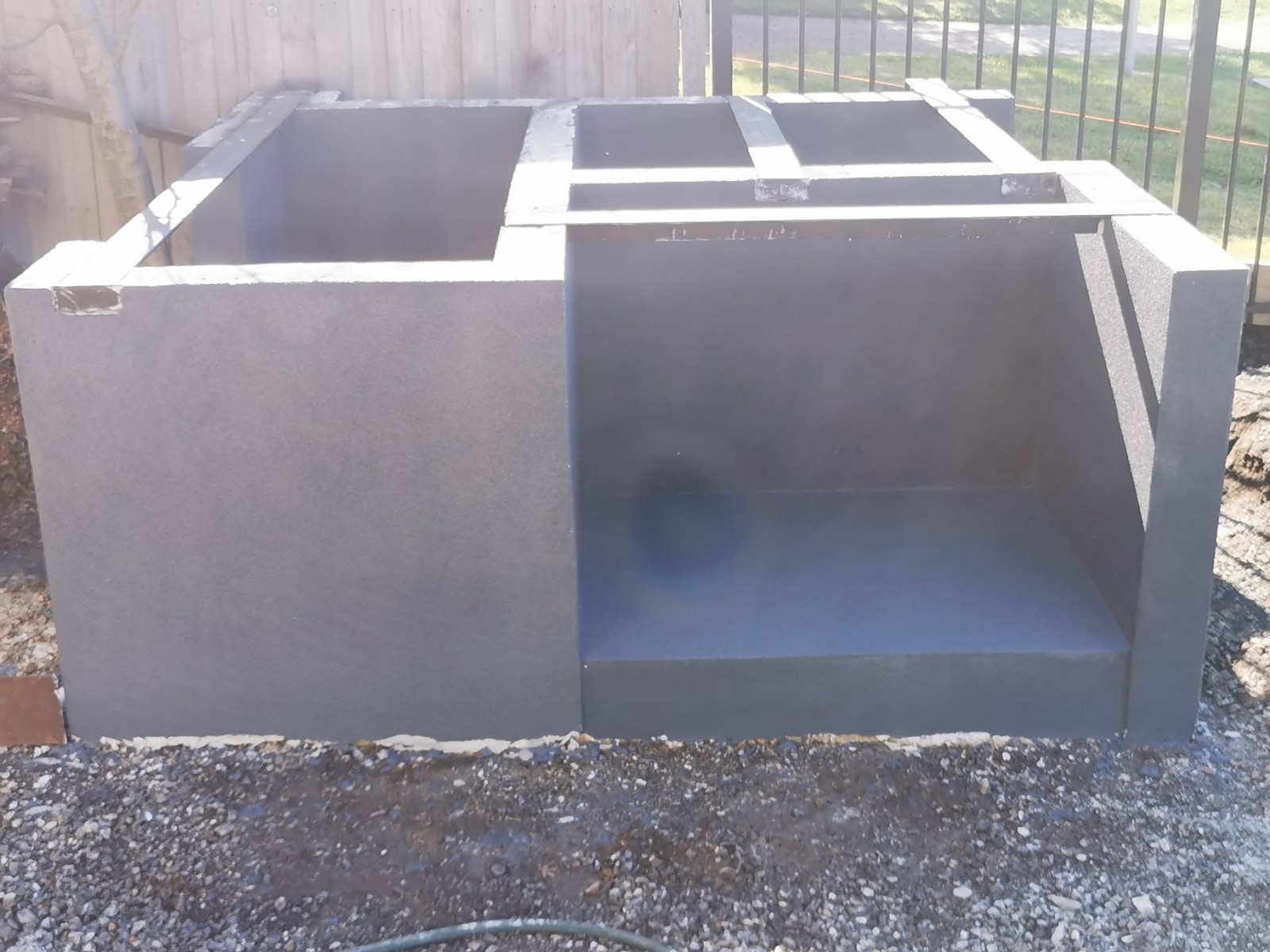

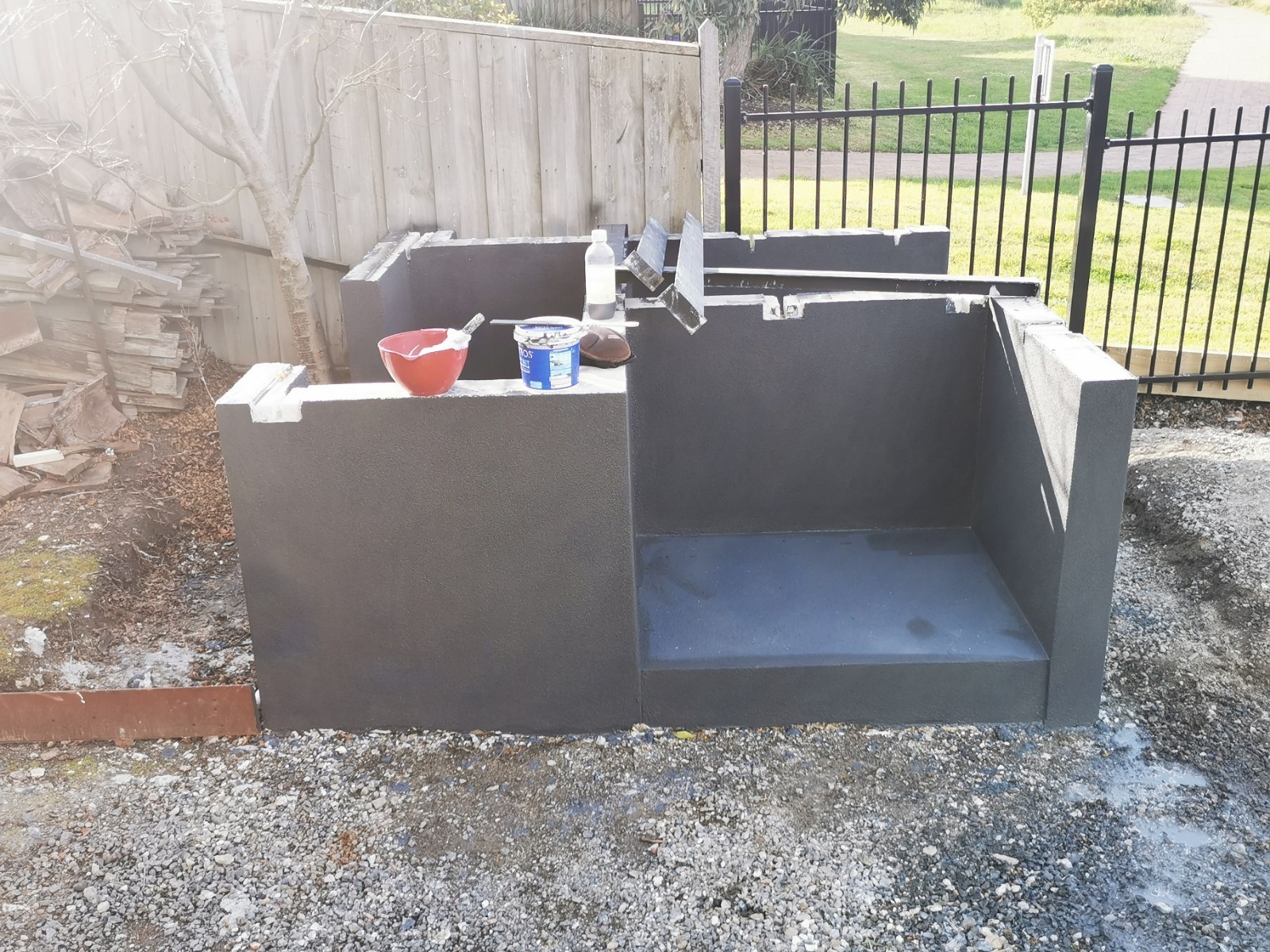

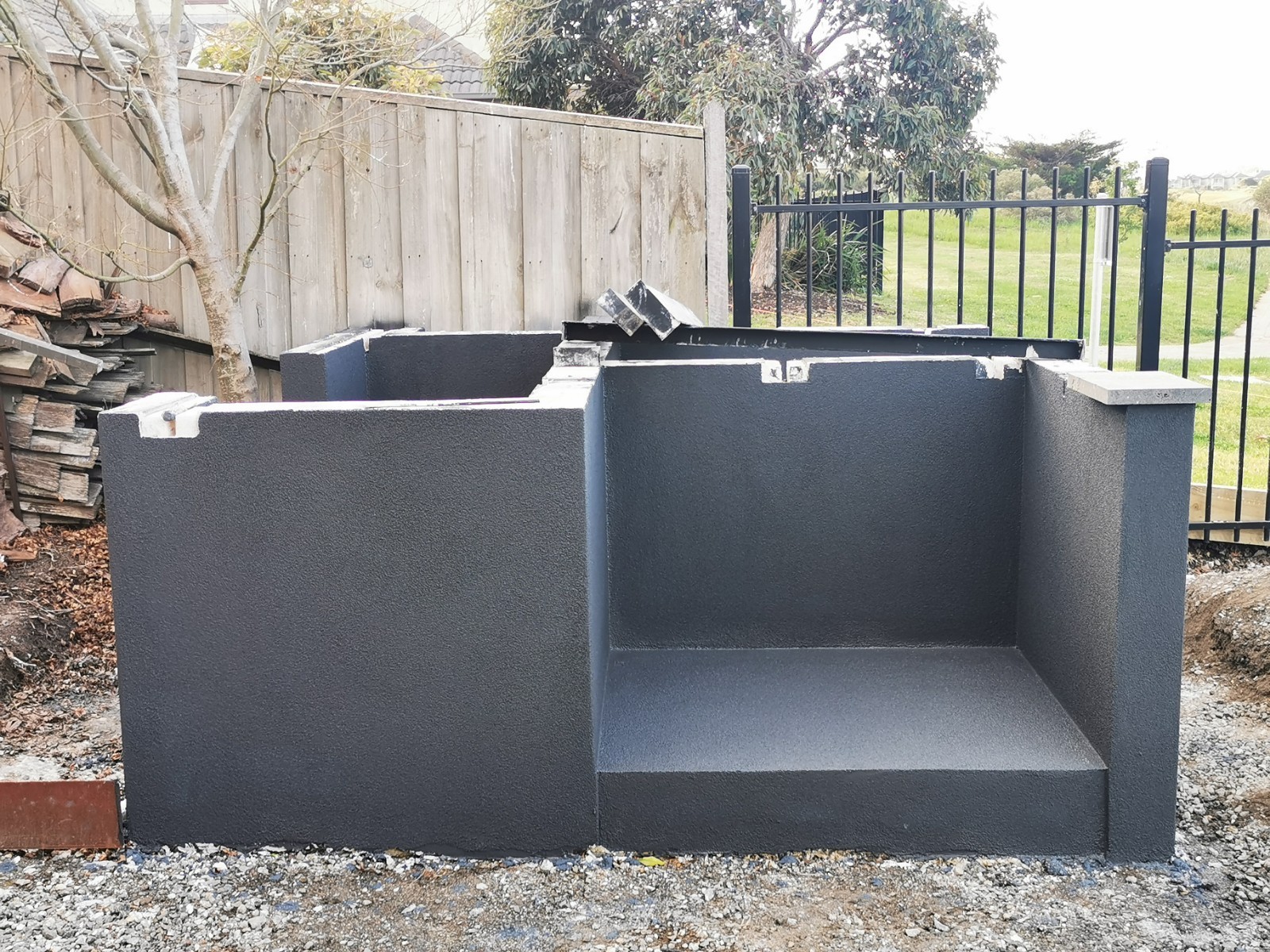

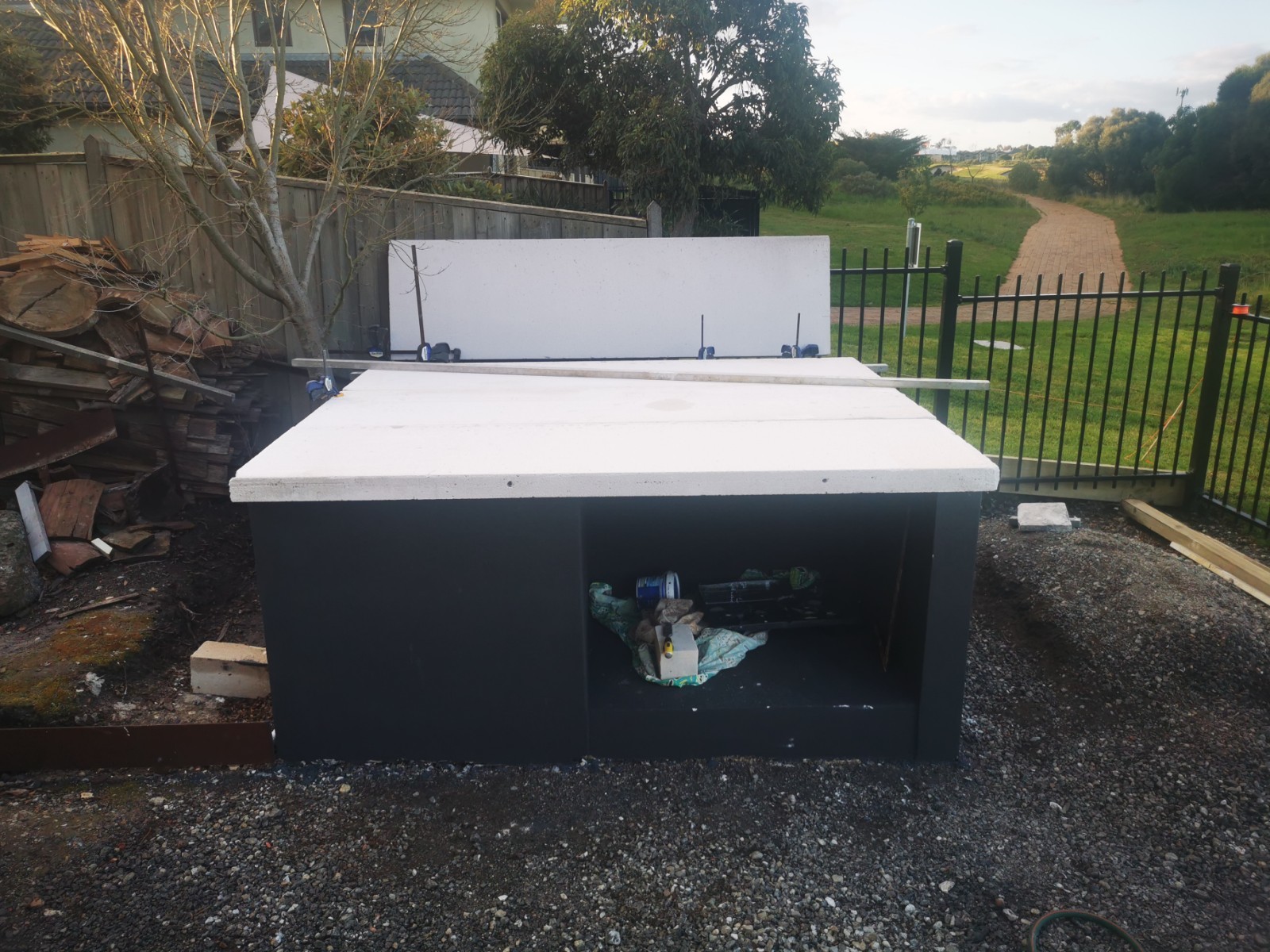

                    • And some more

                      Click image for larger version

Name:	IMG_20200810_150029.jpg
Views:	424
Size:	528.5 KB
ID:	428055 Click image for larger version

Name:	IMG_20200812_121003.jpg
Views:	417
Size:	523.4 KB
ID:	428056 Click image for larger version

Name:	IMG_20200811_160009.jpg
Views:	373
Size:	591.4 KB
ID:	428057 Click image for larger version

Name:	IMG_20200815_160857.jpg
Views:	428
Size:	516.9 KB
ID:	428058 Click image for larger version

Name:	IMG_20200815_141844.jpg
Views:	398
Size:	622.6 KB
ID:	428059
                      Cheers Colin

                      My Build - Index to Major Build Stages

                      Comment


                      • Hi Colin,
                        Massive full on foundations, looking forward to seeing this oven get built,I plan on building my oven similar to your first with the red brick front, Is there much you would do differently with the red brick front and chimney? did it hold up well? I was planning to build chimney up about 1mtr above oven then transition to 8" stainless flue.
                        Paul,
                        My 42" Pompeii build - Carrum Downs, Vic, Australia
                        https://community.fornobravo.com/for...s-my-1st-build

                        Comment


                        • Hi Paul

                          The top is 2200x2400 on a 2200x2200 base. As for the front I purchased extra bricks when i built the first oven so the front will be the same. The flue I used was imported from the US however they are now nearly $500 more. I sourced my flue in Australia this time and actually I purchased it last week and waiting for delivery. It is double insulated - checkout Timeless Classic Wood Stoves - they are in SA and only charged $65 delivery.

                          The first oven held up really well virtually no smoke coming out the front staining the brickwork. It drew very well so tapering the flue gallery really helps there
                          no i like for this one as I knew i would be moving. The only thing i will do differently is the pentagram feature

                          What I would change is the base had no work area and I like the look of a seamless height eg hearth and external table at same height. If your look hard at the first oven I did not like the bottom of the red brick arch it looked crooked this time. Plus I needed to have a wood storage space as there is no where else to store wood, it will hold about 2sqm of wood.

                          Your chimney idea sounds aesthetic just ensure it is at least 200mm internal dimension and try to bevel the internal from 250-300 to the 200 at the gallery entry point to flue so it is a smooth transition. You will see this at https://community.fornobravo.com/for...201#post232201 check out pages either side.
                          Last edited by oasiscdm; 08-15-2020, 05:20 PM.
                          Cheers Colin

                          My Build - Index to Major Build Stages

                          Comment


                          • Hi Colin,
                            Thanks for all the information and tips, will no doubt help with my build and I will check out the links, did you order an anchor plate from there aswell, I don't know much about them or where to get them here? thanks again,
                            Last edited by Paul W; 08-23-2020, 05:41 AM.
                            Paul,
                            My 42" Pompeii build - Carrum Downs, Vic, Australia
                            https://community.fornobravo.com/for...s-my-1st-build

                            Comment

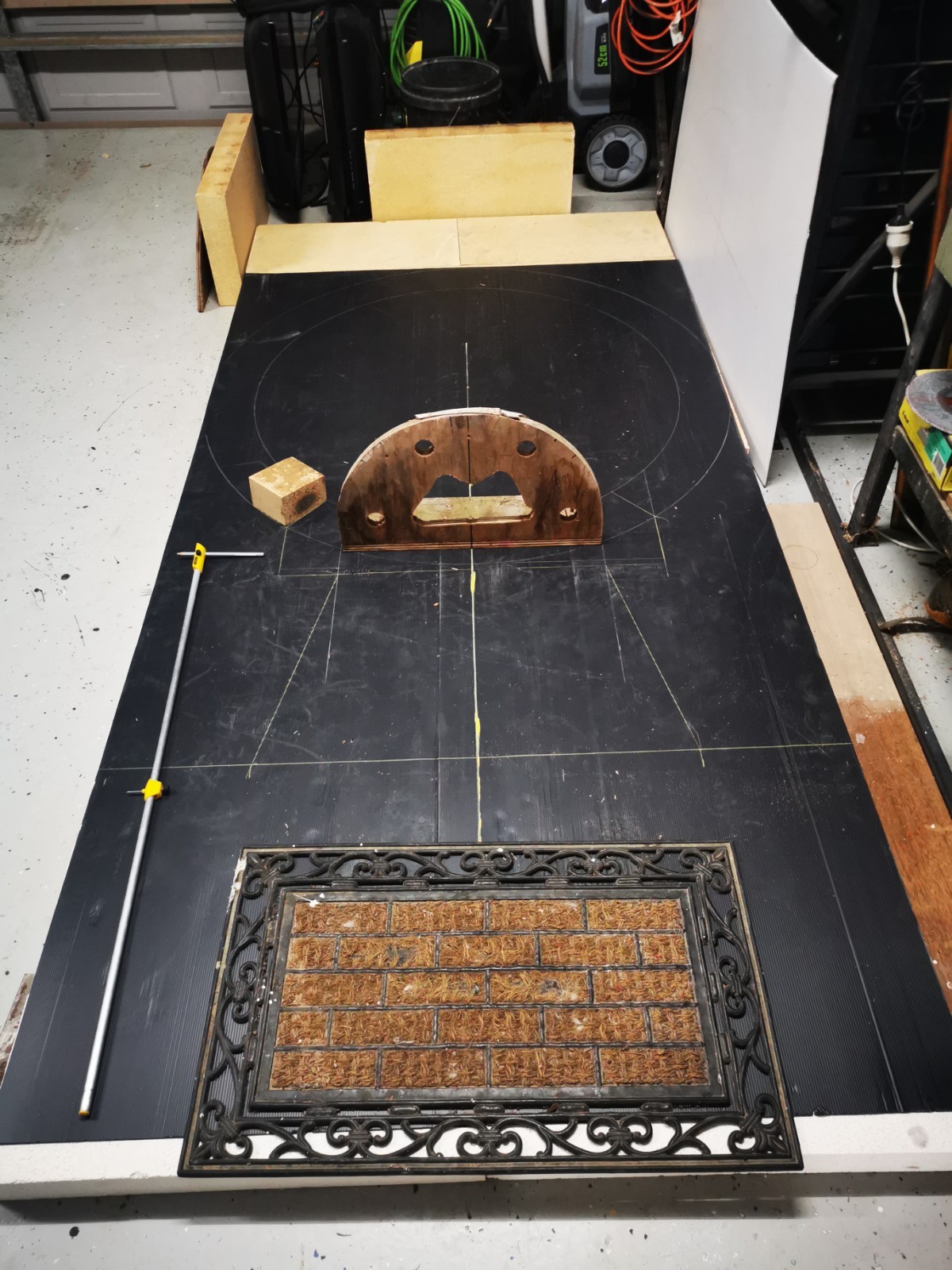

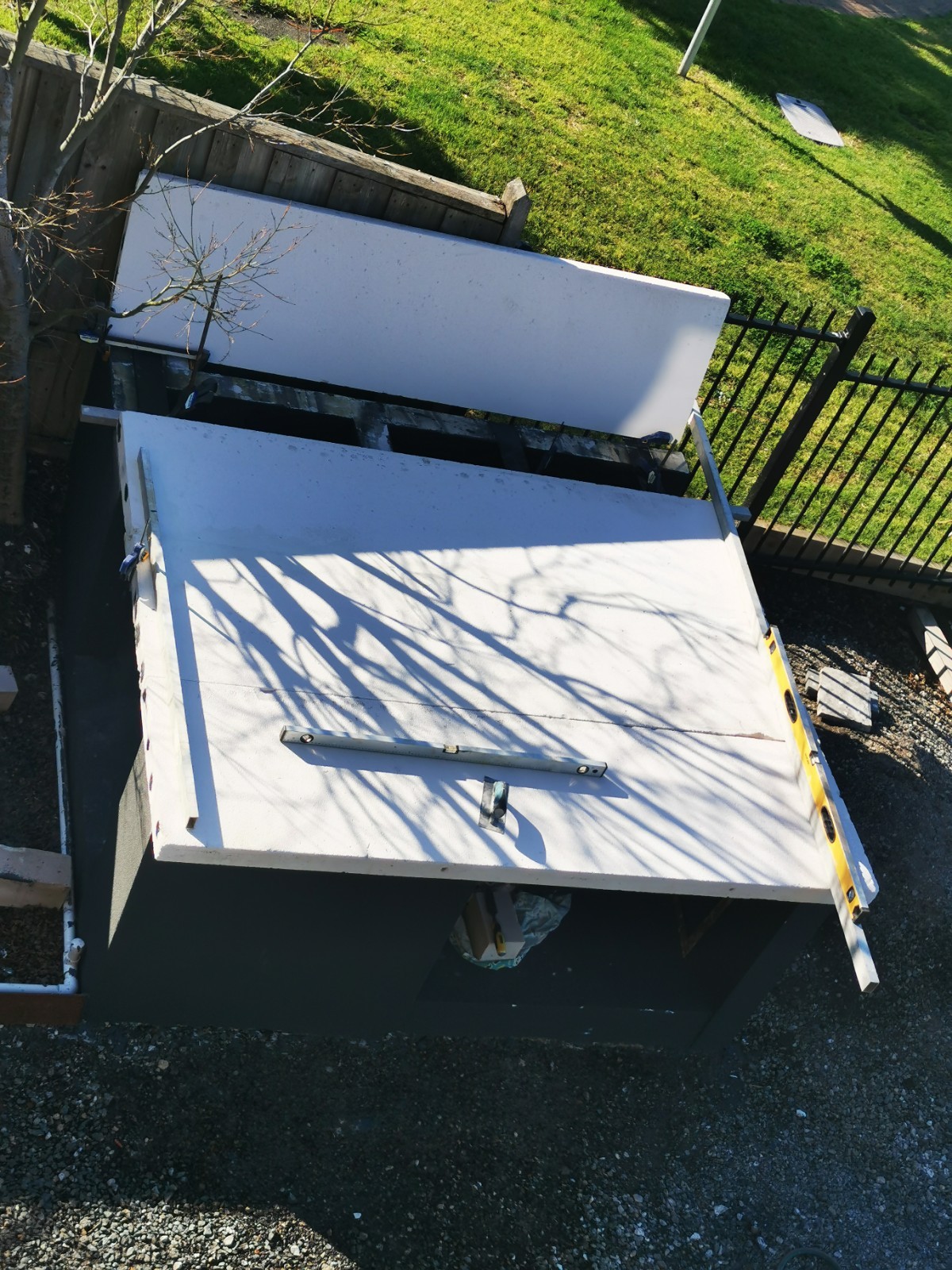

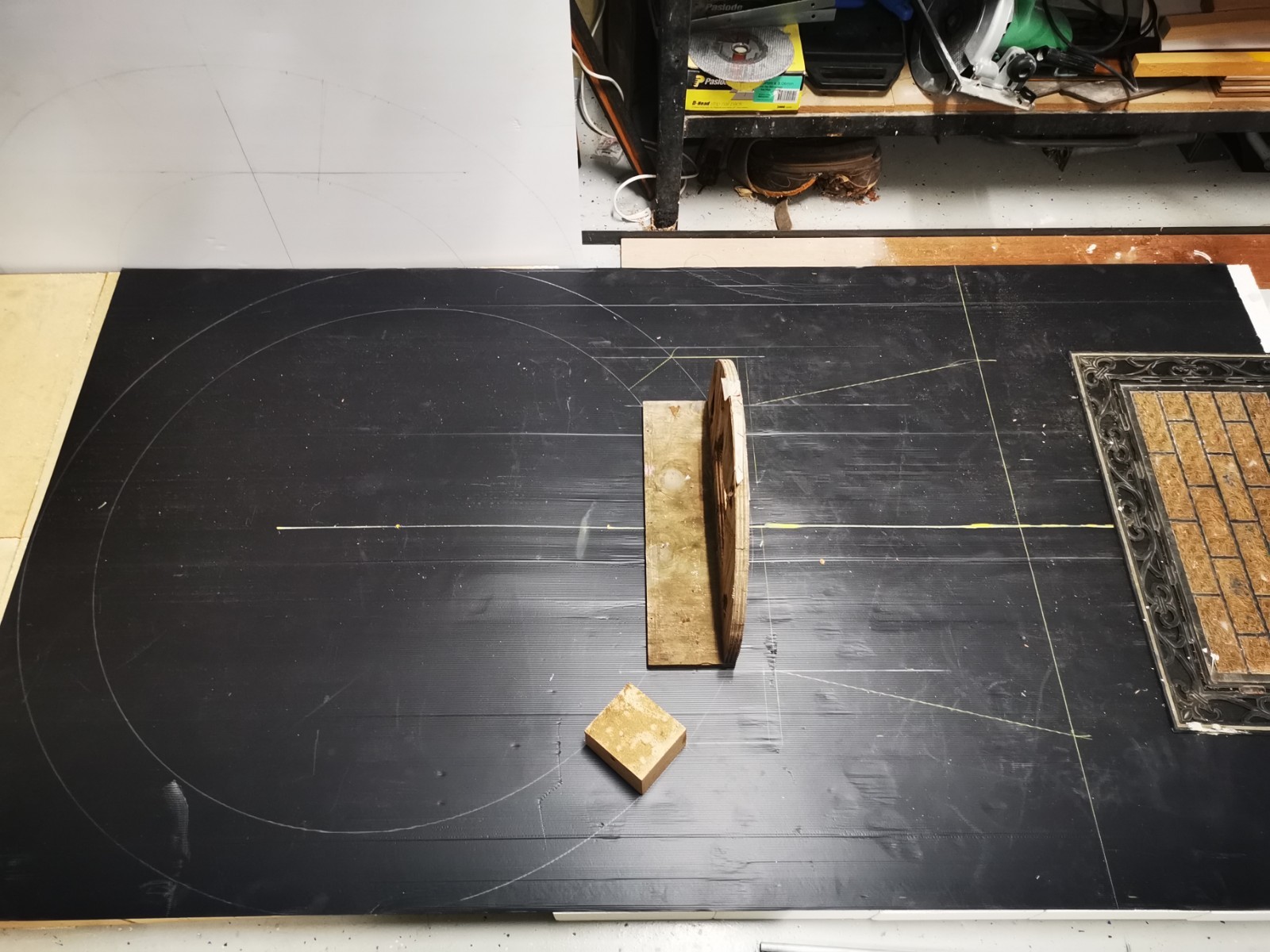

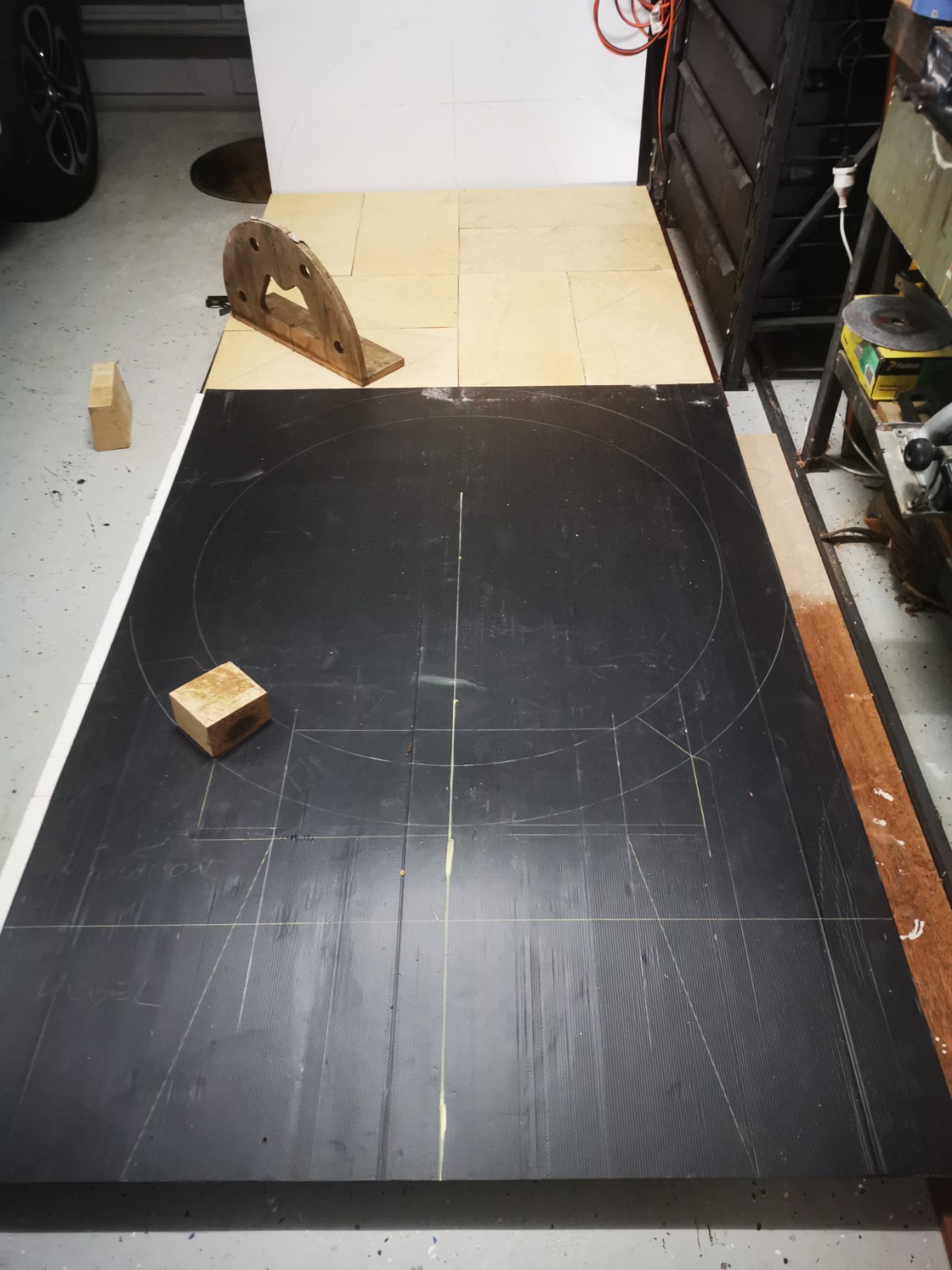

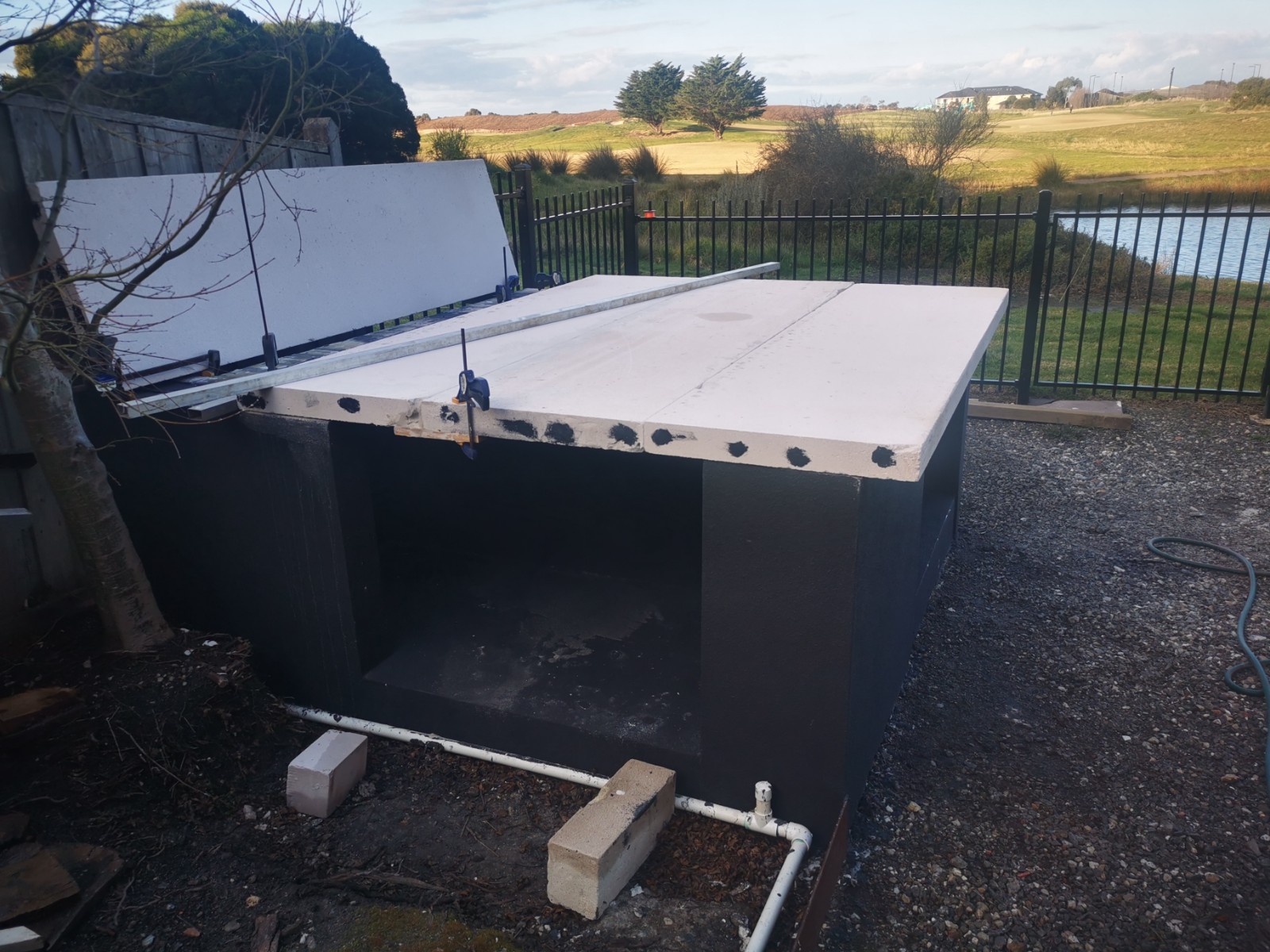

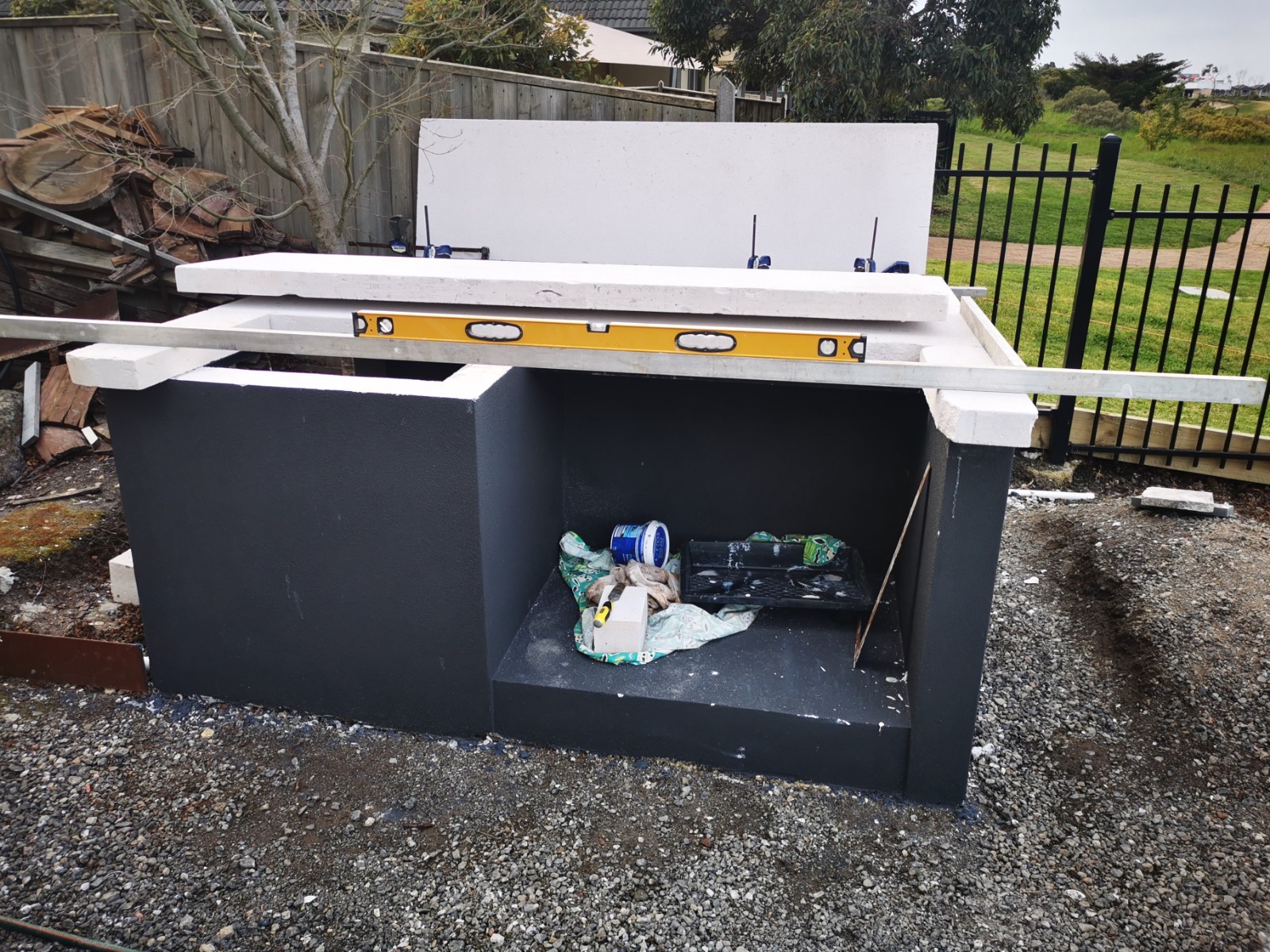

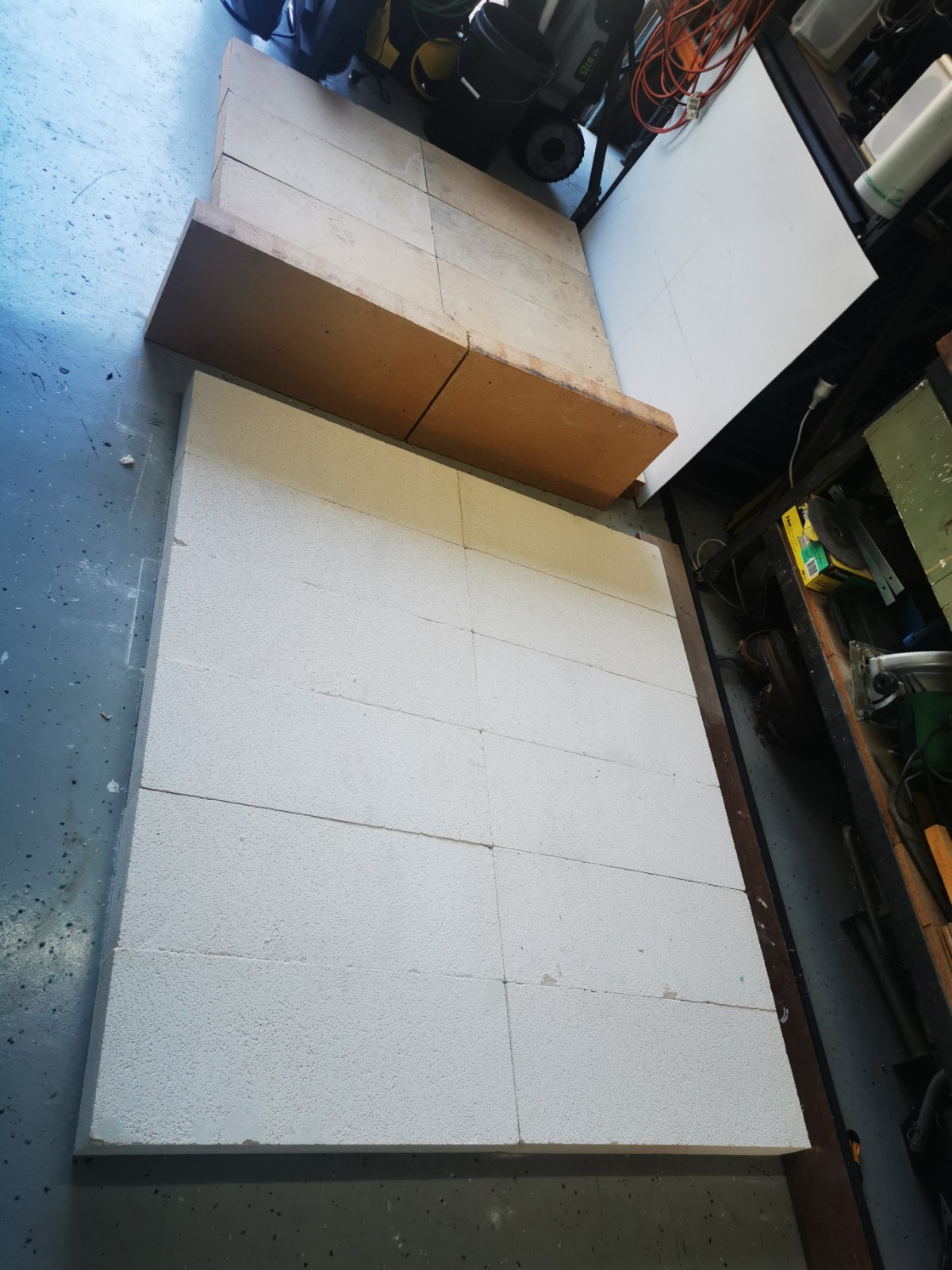

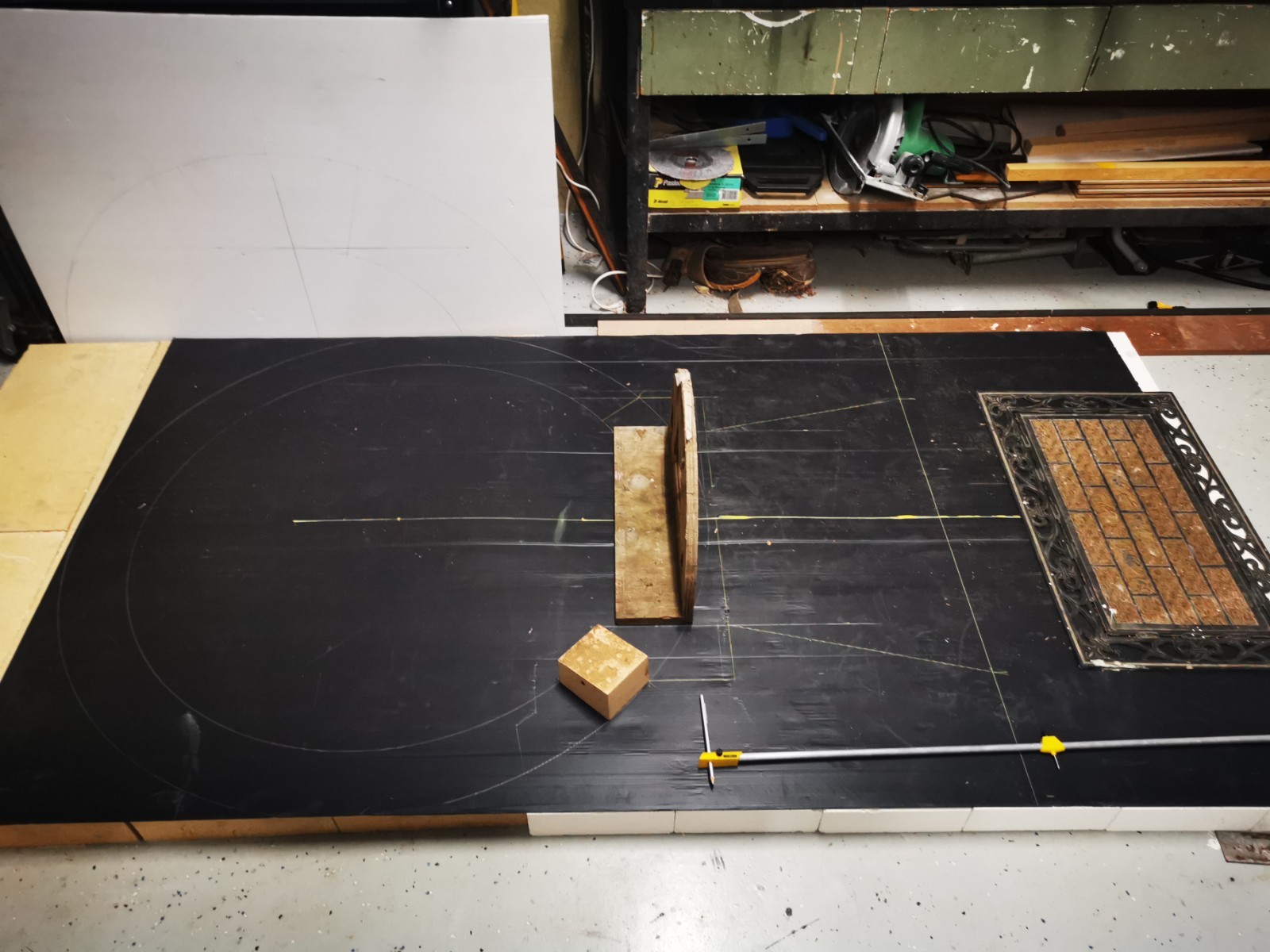

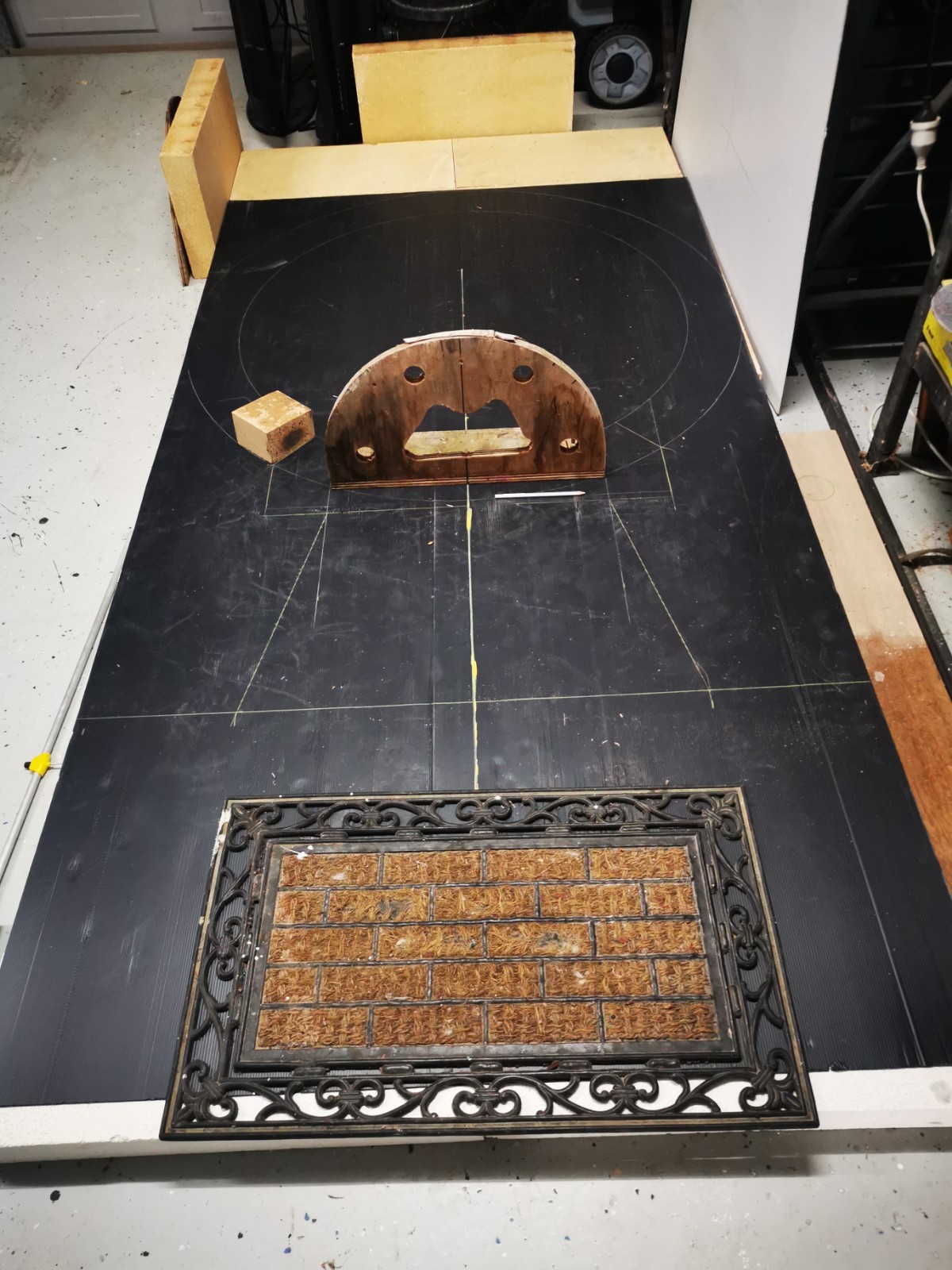

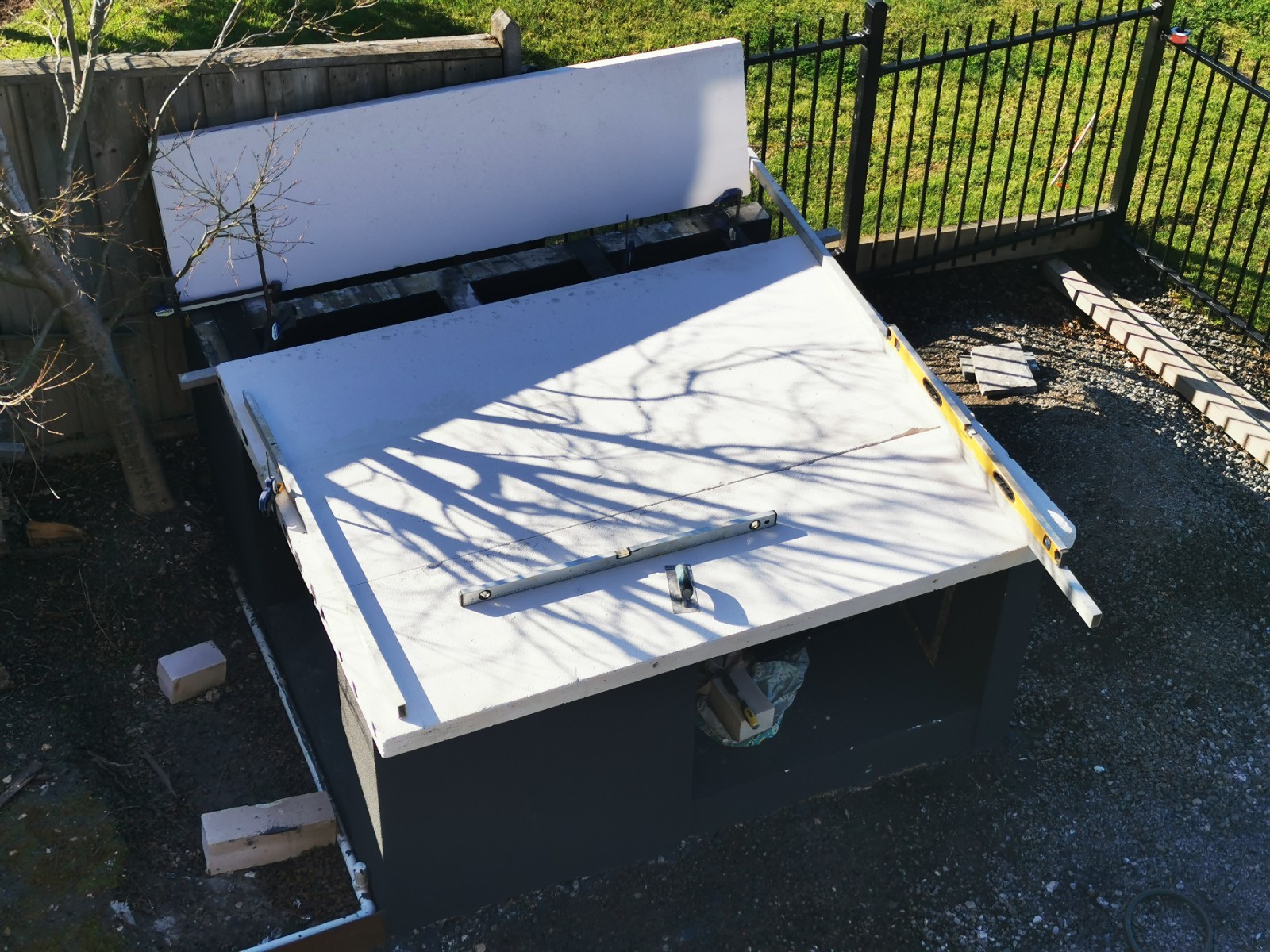

                            • Managed to get various bits happening, base finished, templates done and flue arrived. The insulation tiles are 230 x 600 x 75mm. The firebrick tiles 610 x 305 x 75 and are bloody heavy.

                              Click image for larger version  Name:	image_91913.jpg Views:	3 Size:	568.2 KB ID:	428951 Click image for larger version  Name:	image_91914.jpg Views:	2 Size:	436.1 KB ID:	428952 Click image for larger version  Name:	image_91915.jpg Views:	2 Size:	715.4 KB ID:	428953 Click image for larger version  Name:	image_91917.jpg Views:	2 Size:	361.6 KB ID:	428954 Click image for larger version  Name:	image_91918.jpg Views:	2 Size:	338.0 KB ID:	428955 Click image for larger version  Name:	image_91919.jpg Views:	2 Size:	379.7 KB ID:	428956
                              Last edited by oasiscdm; 08-28-2020, 02:45 AM.
                              Cheers Colin

                              My Build - Index to Major Build Stages

                              Comment

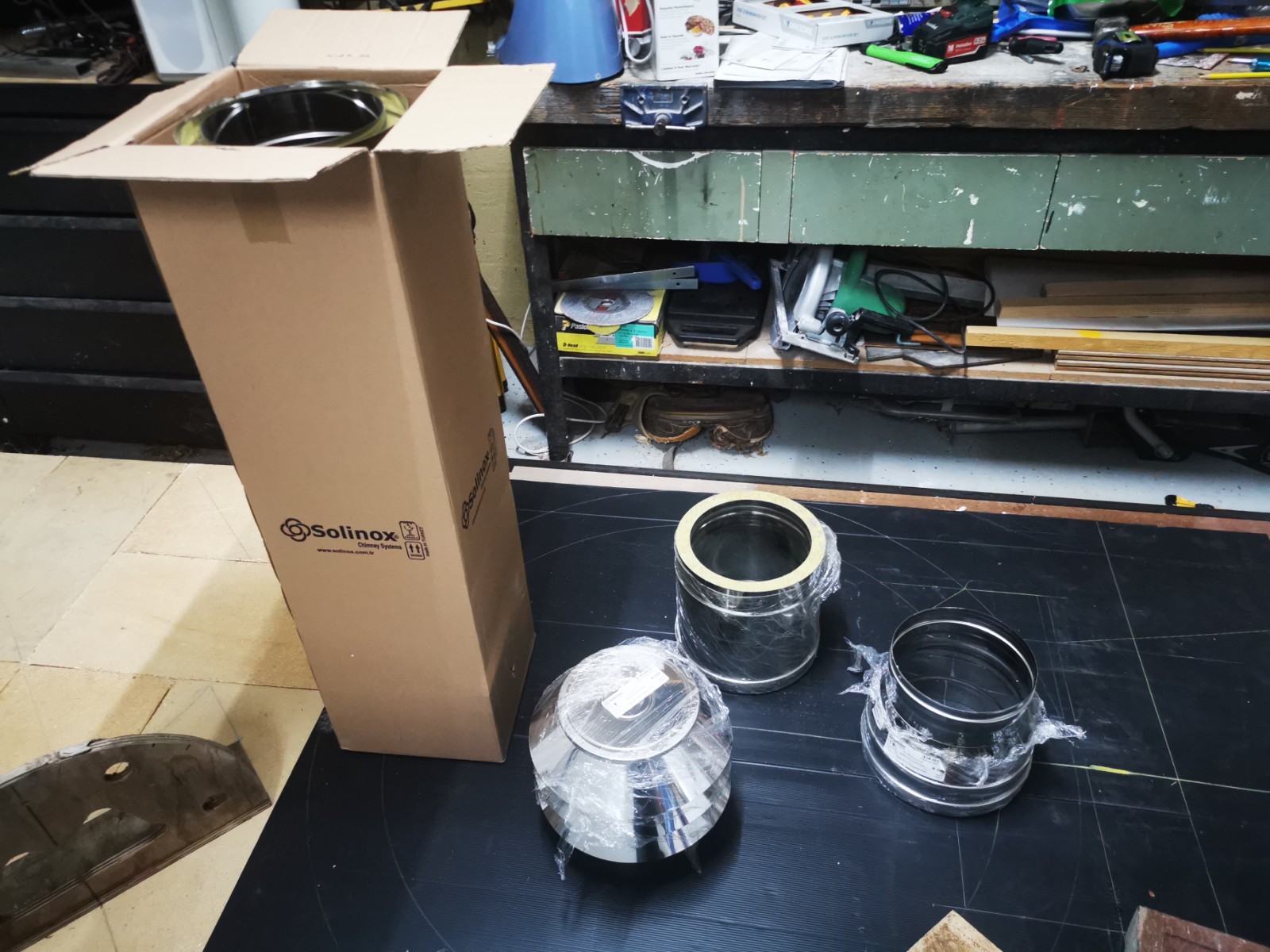

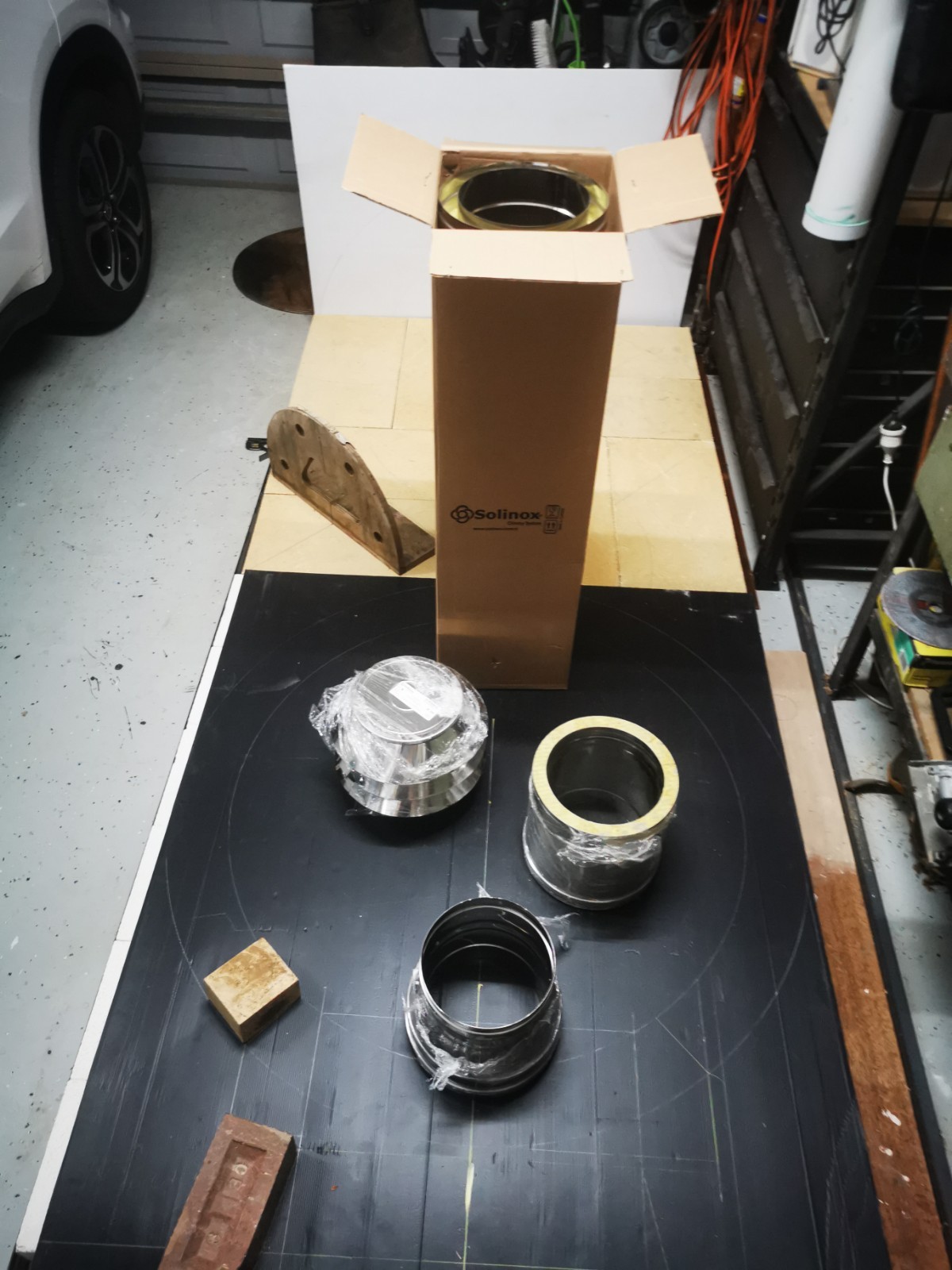

                              • And some more. The flue is double skinned and insulated.

                                I researched this to death and found a place in South Australia called Timeless Classic wood Stoves https://www.timelessclassicwoodstoves.com/

                                The flue is 8" internal diameter made up of 1 metre, 250mm, tree cowl and a step down double to single for the anti down draft cowl. I will weld a 300 x 300 stainless plate to the bottom of the 250mm flue to act as the mount base with a hole cut out. Flue bits $500 + $59 delivery. Possibly overkill but flue I previously used on the first build l paid the same amount for shipped from the US. That one is now well over $1200. So being able to source in Australia was a bonus.

                                The flue will be longer than the last one by about 300 so should aid drawing more.


                                Click image for larger version  Name:	image_91920.jpg Views:	3 Size:	281.1 KB ID:	428958 Click image for larger version  Name:	IMG_20200824_102233.jpg Views:	0 Size:	281.8 KB ID:	428960 Click image for larger version  Name:	IMG_20200822_130445.jpg Views:	0 Size:	395.2 KB ID:	428961 Click image for larger version  Name:	IMG_20200827_162942.jpg Views:	0 Size:	274.9 KB ID:	428962 Click image for larger version  Name:	IMG_20200827_163009.jpg Views:	0 Size:	346.7 KB ID:	428963 IMG_20200818_091326.jpg
                                Attached Files
                                Last edited by oasiscdm; 08-28-2020, 02:43 AM.
                                Cheers Colin

                                My Build - Index to Major Build Stages

                                Comment
