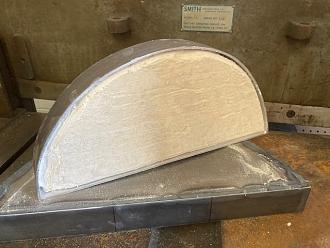

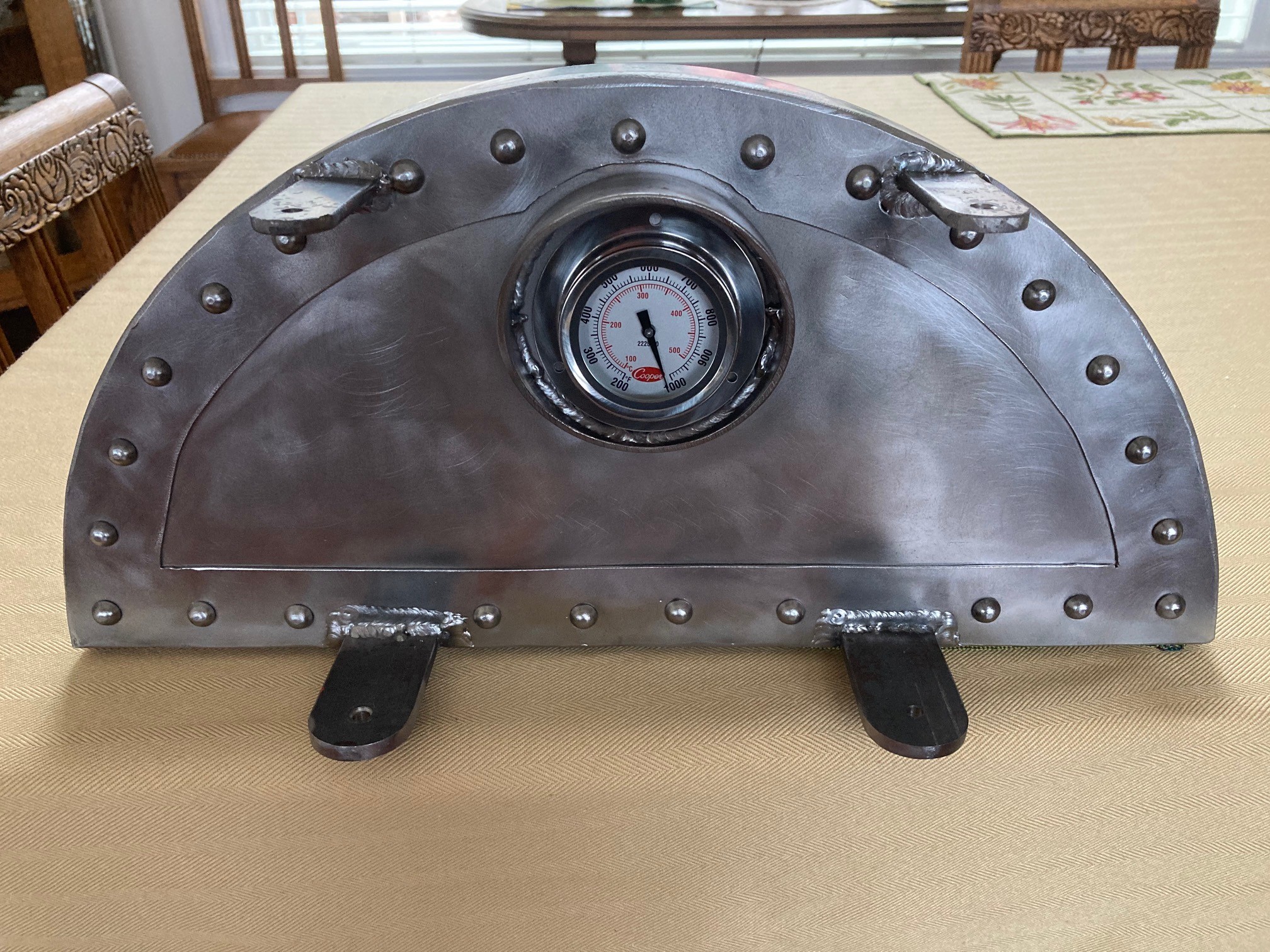

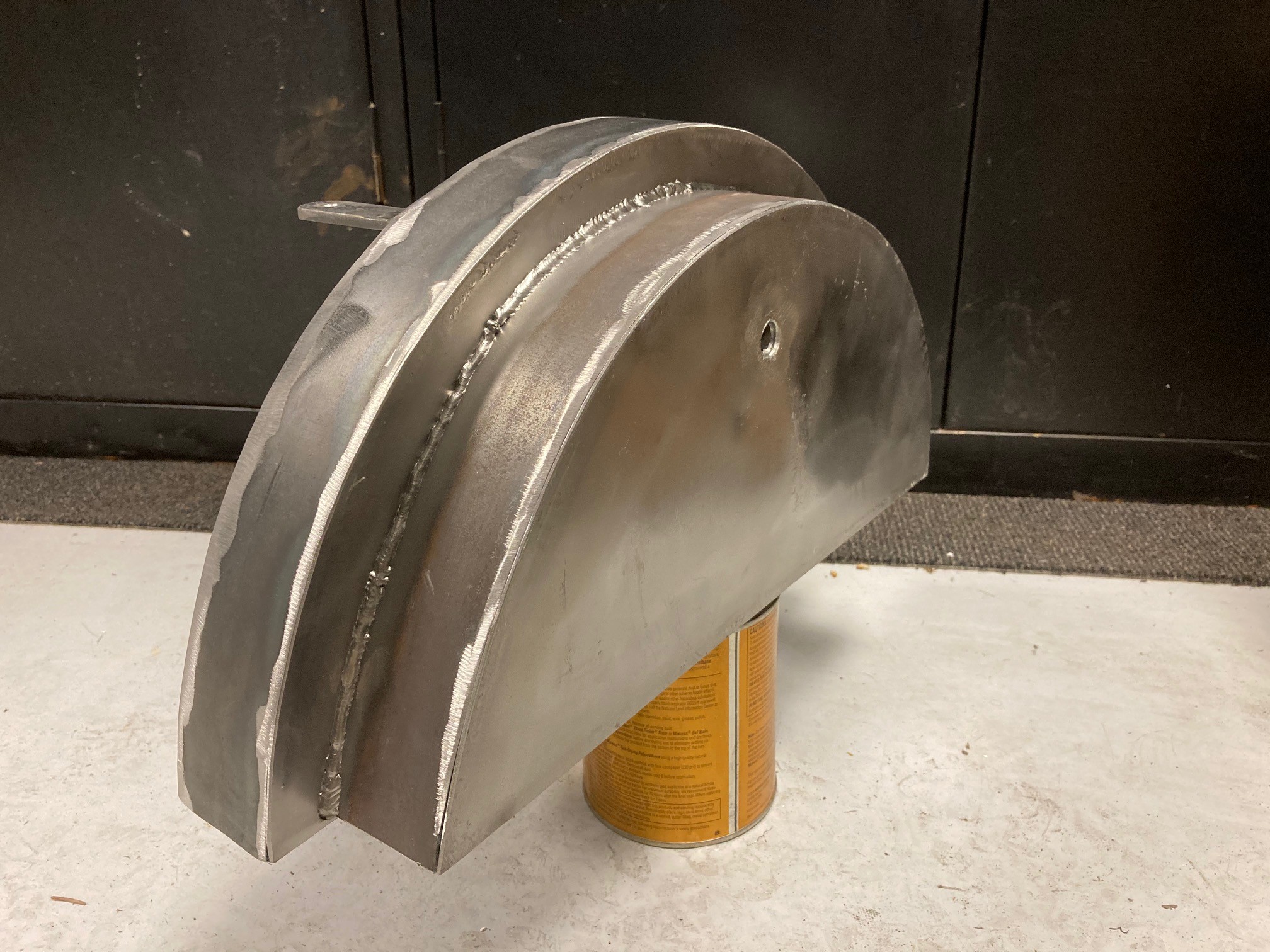

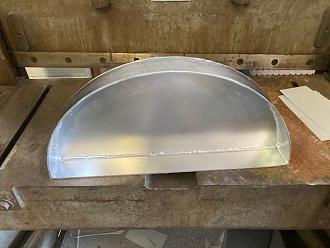

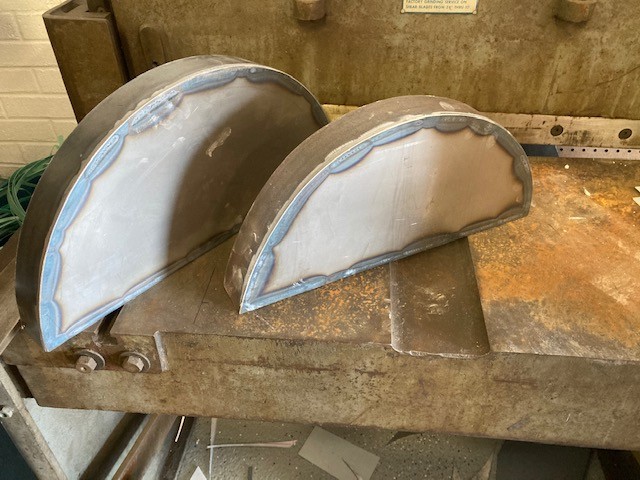

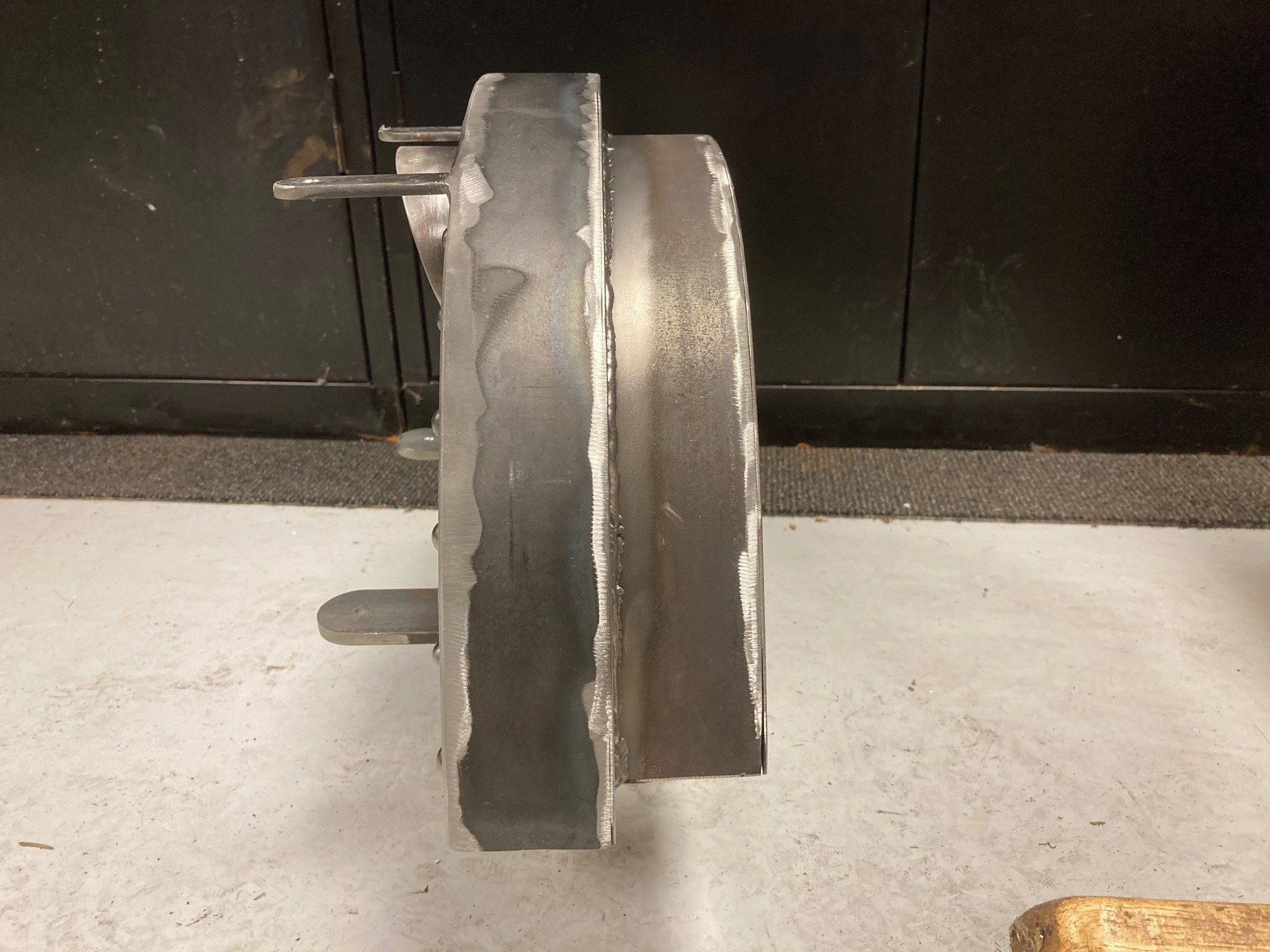

  • Just finished the fab work on my door and now have to decide how to finish it. It’s 4” thick with 2 layers of 2” CaSi board inside 2 welded steel arches. Each one fits inside the respective opening. Should hold heat inside pretty well since it fits with only 1/4” of side to side movement. A piece of rope insulation will take care of that once it’s coated.

    Click image for larger version

Name:	055FEB69-2DB9-4E0F-AA6A-22C6B6CFCD18.jpeg
Views:	1139
Size:	77.9 KB
ID:	437067 Click image for larger version

Name:	A3B176B0-1DD7-49DC-B9B1-974DEB42F967.jpeg
Views:	1126
Size:	94.6 KB
ID:	437063 Click image for larger version

Name:	8DDC49D2-80FC-4898-BAC0-C5181740BAFD.jpeg
Views:	1161
Size:	83.1 KB
ID:	437062 Click image for larger version

Name:	A2416203-0627-433C-AD1D-2624609040F7.jpeg
Views:	1038
Size:	674.9 KB
ID:	437064 Click image for larger version

Name:	1B129E14-B482-4918-AAFD-797AE4F1F559.jpeg
Views:	1068
Size:	642.5 KB
ID:	437066 Click image for larger version

Name:	B26F7A2C-0CBE-47EA-9A57-4A830DE21CD6.jpeg
Views:	1050
Size:	630.0 KB
ID:	437065
    My newbie build thread: https://community.fornobravo.com/for...ie-ready-to-go

    Comment

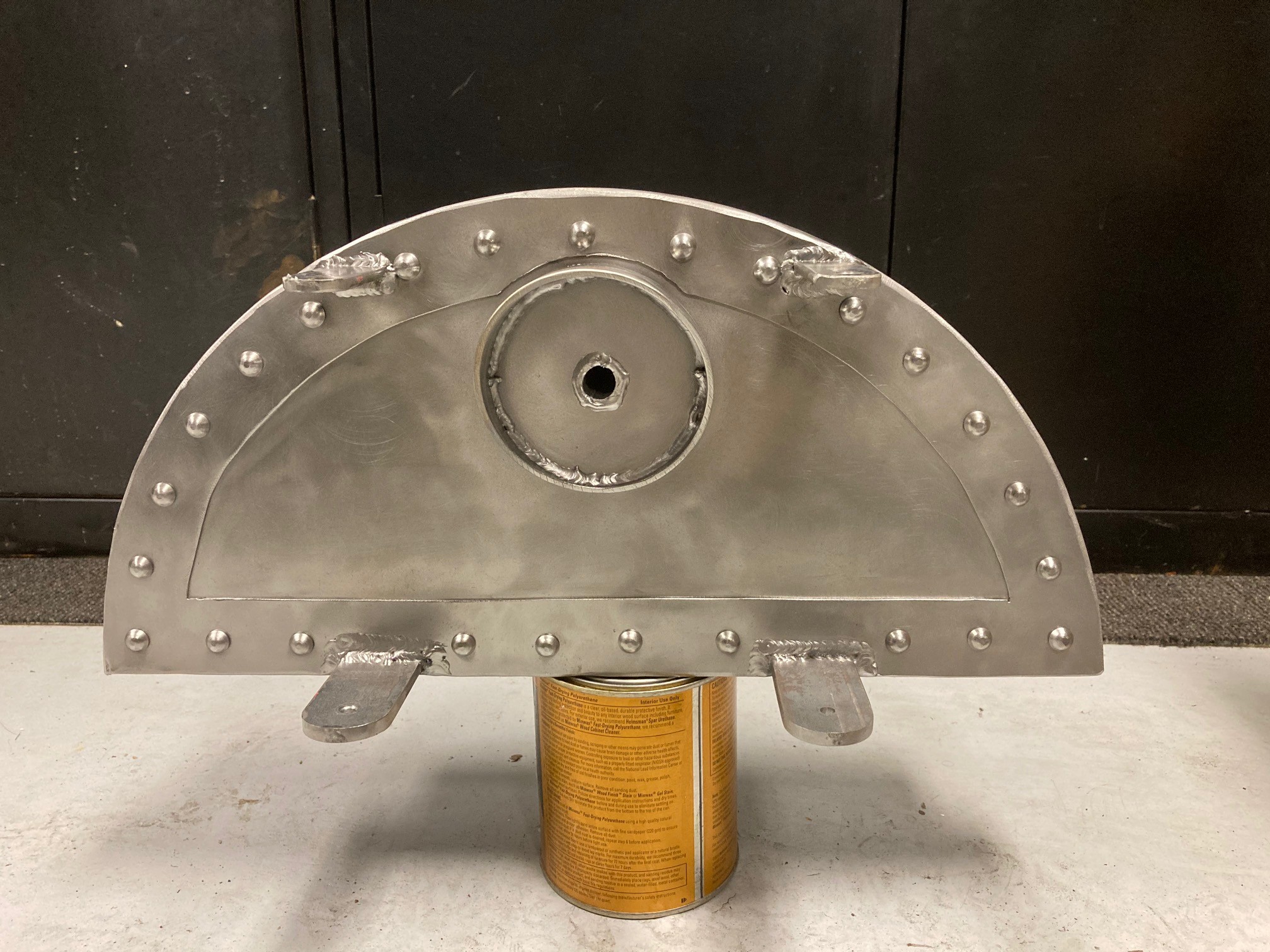

    • The front of the door with “hot rivet” accents holding an overly. Not really, they are just decorative but welded on the back side. Click image for larger version

Name:	E1015DBB-84E4-4DD0-8774-6BA5B2297078.jpeg
Views:	890
Size:	898.5 KB
ID:	437069 Click image for larger version

Name:	FE1309CF-89F6-407F-AE82-17F7D686D117.jpeg
Views:	877
Size:	673.7 KB
ID:	437070
      My newbie build thread: https://community.fornobravo.com/for...ie-ready-to-go

      Comment

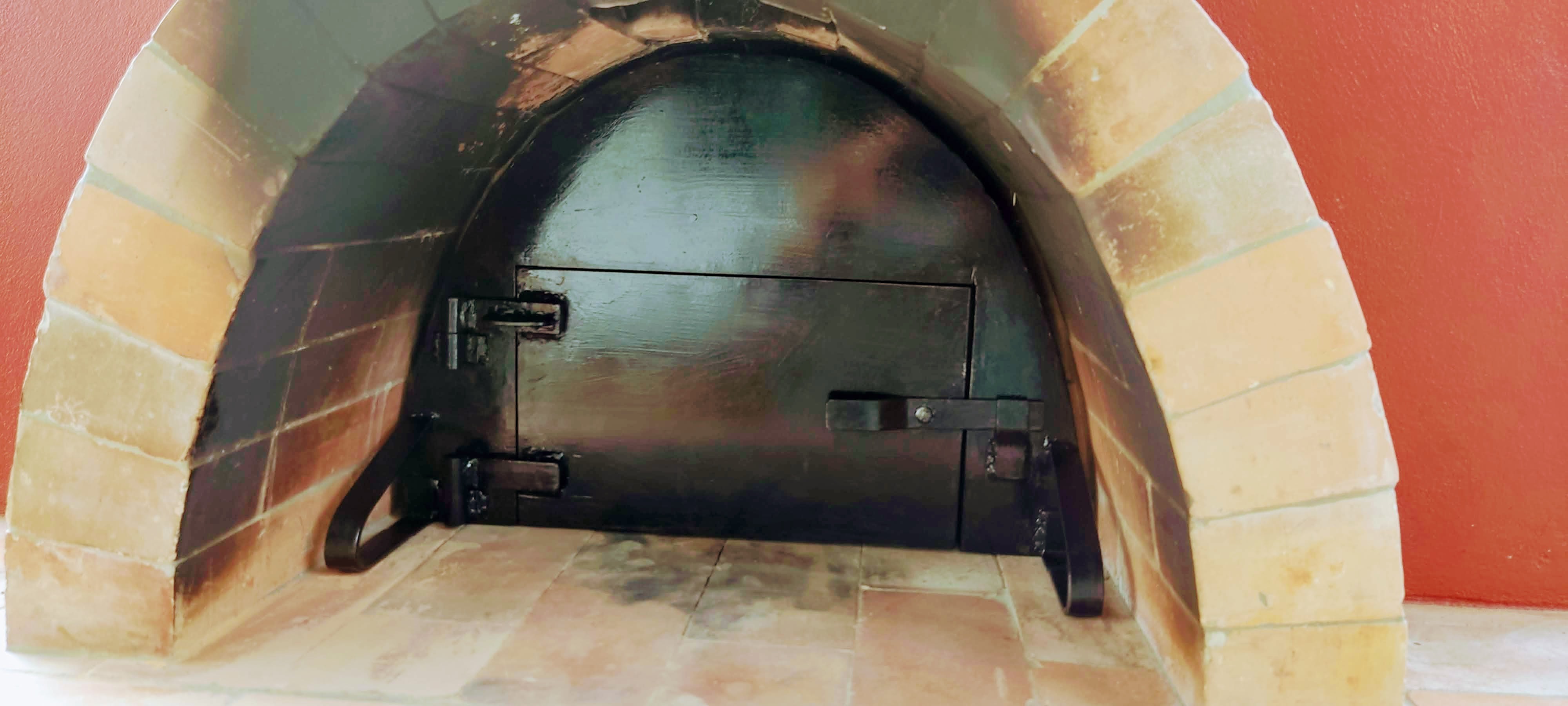

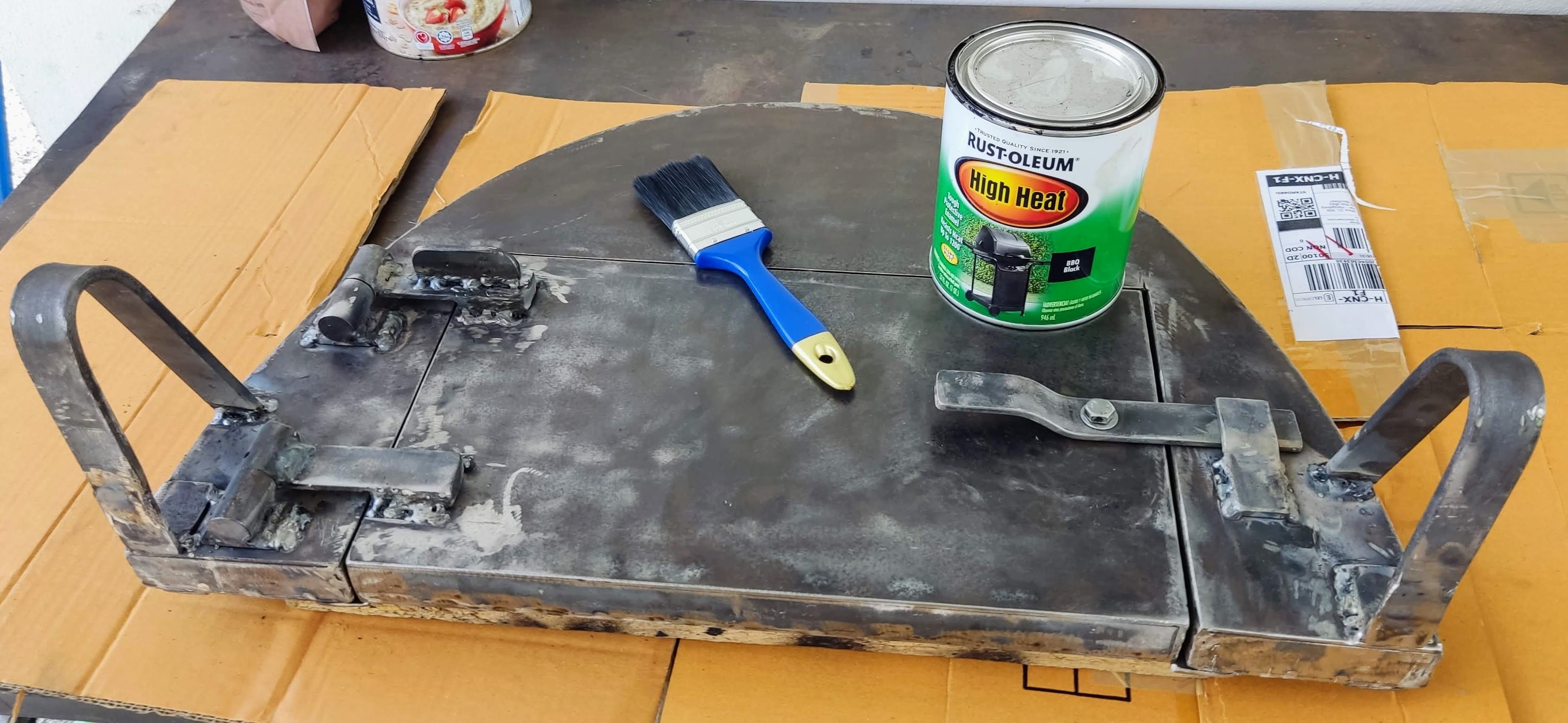

      • Door number 3 for my pizza oven... This one is for when baking the day after making pizza. It's made from 3mm steel sheet and is an inch thick, stuffed full of ceramic insulation.
        It's not as insulating as my "overnight door" due to so much steel connecting the front and back, BUT has a 36cm wide opening and is ideal for baking during the day with lots of opening and closing - avoiding lifting the 14kg insulating door in and out.
        I'm far from a professional welder, but it is amazing what can be done with an angle grinder and a stick welder. Very happy!
        Only painted on the outside, away from flames (with very high heat paint). Oiled (vegetable) on the inside only.

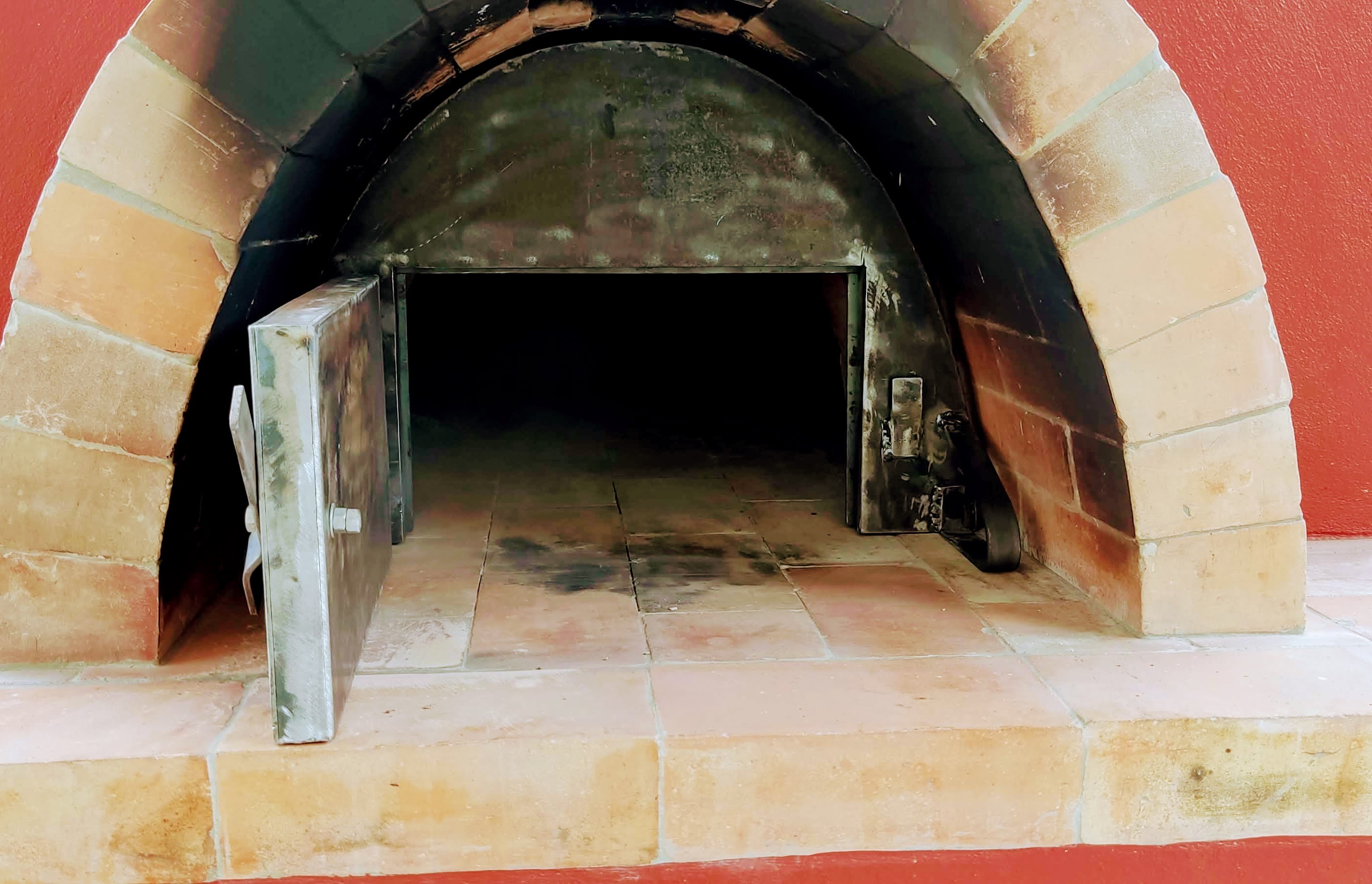

        Doors 1 and 2
        The first two doors are of my "overnight door" - a highly insulating beast to keep all of the heat in overnight after making pizza (#148 in this thread), and my single skin door for during the burn, with a removable baffle at the bottom to control how much air enters; mostly used with baffle fully removed to allow air to sweep in at the bottom (#149 in this thread).
        That's me done for doors!!! :-)
        Attached Files

        Comment


        • JimShortz , I like your door within a door - clever design!
          My build thread
          https://community.fornobravo.com/for...h-corner-build

          Comment


          • Originally posted by JRPizza View Post
            JimShortz , I like your door within a door - clever design!
            Thank you; very kind. It's far from an original thought, but the design features that make this one work well are an inner lip that the small door seals against, hinges set well back so that with the door open the full 36cm is available for my biggest tray to fit in (35cm!), and support legs designed such that they are strong but can be modified with a big hammer to ensure the perfect angle for the outer door to seal! :-)

            Comment


            • Here's a few photos of my stainless steel door. I can't take credit for the fabrication, but it is my design.

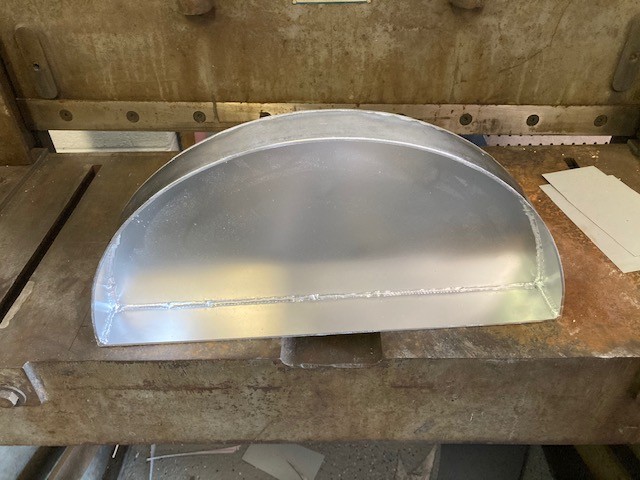

              4" of ceramic fiber remnants. 430 stainless sheet metal with heavier 304 for the main back.

              It has an insulated plug that I can remove for viewing or leave in to hold heat. I have been using a propane gas burner for curing my oven and I use this port for the gas pipe to pass through.

              There is another 7" glass pot lid that can be put into the the door to act as a window for baking.

              I will be gluing in a flat fiber gasket to seal against the inner arch. Also, there's a bit of tweaking to be done with the tabs that hold the window in. Otherwise, so far, so good - but I'm just in low temperature curing at this point.

              Rob

              Comment


              • Haven't seen the pot lid in the door for several years. One of the WFO bakers had us all hunting for old pyrex after he made his door with one. I seem to remember that the old ones were make of borosilicate and could handle quite high temps. I still have one if any builders want it.
                Russell
                Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]

                Comment


                • Originally posted by Jubilado View Post
                  Here's a few photos of my stainless steel door. I can't take credit for the fabrication, but it is my design.

                  4" of ceramic fiber remnants. 430 stainless sheet metal with heavier 304 for the main back.

                  It has an insulated plug that I can remove for viewing or leave in to hold heat. I have been using a propane gas burner for curing my oven and I use this port for the gas pipe to pass through.

                  There is another 7" glass pot lid that can be put into the the door to act as a window for baking.

                  I will be gluing in a flat fiber gasket to seal against the inner arch. Also, there's a bit of tweaking to be done with the tabs that hold the window in. Otherwise, so far, so good - but I'm just in low temperature curing at this point.

                  Rob
                  Ooooh, that's very pretty! Nicely done.
                  My 42" build: https://community.fornobravo.com/for...ld-new-zealand
                  My oven drawings: My oven drawings - Forno Bravo Forum: The Wood-Fired Oven Community

                  Comment


                  • Thanks for the comments.

                    The fabricator gets the credit for the appearance. They do work for hospitals and food service - and it shows in how they surface the metal. This kind of work is affordable here in Mexico, especially if you can scrounge material laying around in their shop. The price would be crazy to hire out in the US.

                    I can't image that my pot lid is borosilicate glass, as it cost all of $7. It's use would be limited to lower oven temperatures. We'll see how that goes.

                    Rob

                    Comment


                    • Originally posted by Jubilado View Post
                      Thanks for the comments.

                      The fabricator gets the credit for the appearance. They do work for hospitals and food service - and it shows in how they surface the metal. This kind of work is affordable here in Mexico, especially if you can scrounge material laying around in their shop. The price would be crazy to hire out in the US.

                      I can't image that my pot lid is borosilicate glass, as it cost all of $7. It's use would be limited to lower oven temperatures. We'll see how that goes.

                      Rob
                      Interesting on the lid. I was curious if one can purchase a borosilicate glass disc. Looks like you can get a 6" disc for about $50 at that AtoZ company
                      My build progress
                      My WFO Journal on Facebook
                      My dome spreadsheet calculator

                      Comment


                      • Vintage Pyrex lids (prior to 1998) were made from borosilicate, this is when the Bordon company took over Pyrex and started making glass lids with soda lime instead of borosilicate.. I found a vintage pyrex lid at a thrift shop for a few bucks.

                        I just remember who made the window door, it was Mr. Chipster from about 2012.

                        https://community.fornobravo.com/for...-for-oven-door
                        Last edited by UtahBeehiver; 11-01-2021, 04:42 PM.
                        Russell
                        Google Photo Album [https://photos.google.com/share/AF1Q...JneXVXc3hVNHd3/]

                        Comment


                        • No welding skills, so I tried to keep my insulated door simple:

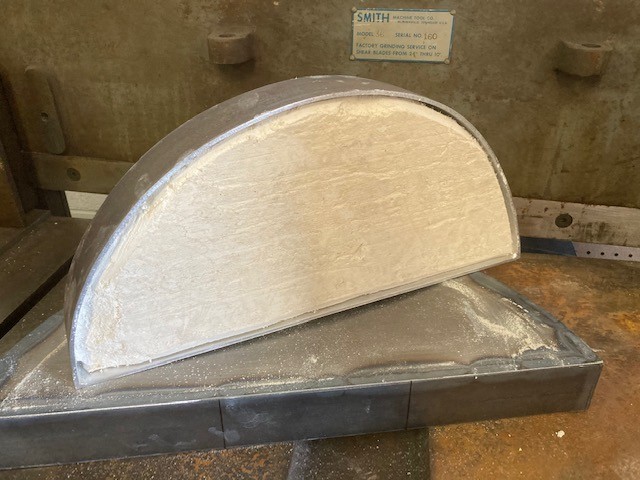

                          I already had the cut-to-order stainless steel front (4mm). I didn't want to add too much weight to it. For insulation, I used a 5" CalSil piece, left over from my oven floor. It's really easy to cut, drill and mill and surprisingly strong, actually. Sure it's brittle, but it requires quite some abuse before it breaks).

                          Obviously, I don't want these white fibers near my food, so I wrapped the CalSil in a very thick aluminium foil that I cut from three large disposable serving platters. It can be cut and worked by hand, yet is hopefully a lot more durable than eg. regular tinfoil. Time will tell.

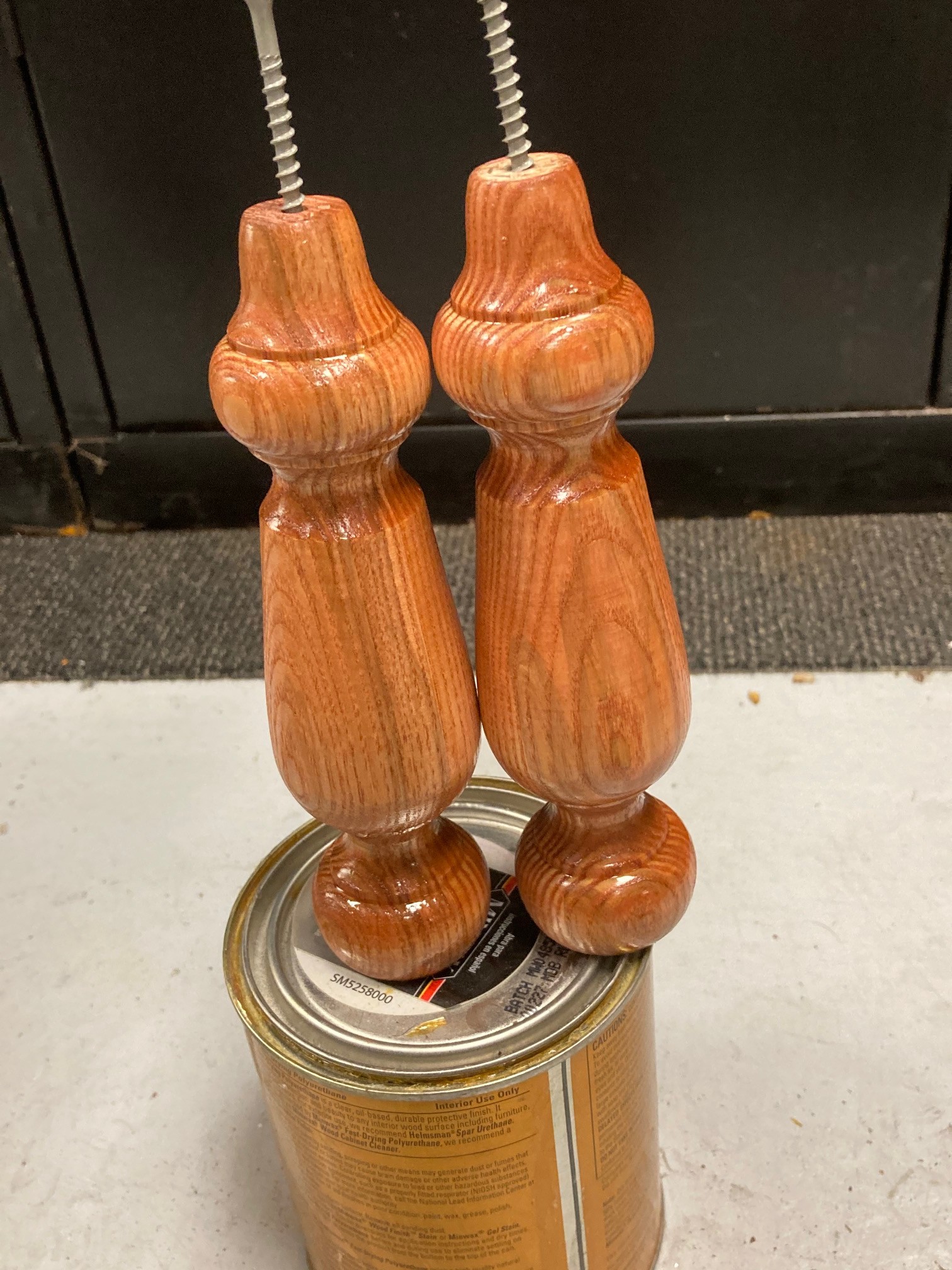

                          Everything is held together with 4 stainless steel M10 bolts, which also hold the basic hardwood handles.
                          The bolts don't get too hot, and I believe the oven's cool down curve has improved significantly (more data needed to confirm).

                          More information in the pictures.
                          Last edited by Kvanbael; 11-20-2021, 09:36 AM.

                          Comment


                          • Nice simple no weld door! If your board material under the bolt heads starts to deform you could always put a thin face sheet on the inside.
                            My build thread
                            https://community.fornobravo.com/for...h-corner-build

                            Comment


                            • Never posted my door. I have a stainless door that is 4" thick which houses 4" of calsil board I had left over from the build. The stainless that surrounds the board is 16 gauge all welded and the face is made from 1/8" thick stainless to prevent warping. The stainless handles was formed from round stock and welded to the face only not through bolted. I was worried about the handles getting hot but they stay cool. I guess the calsil board is doing its job so no gloves are necessary to remove the door. I was thinking of doing wooden handles using stainless L brackets and oak dowles but I am very happy the way it turned out and it functions very well.


                              Ricky
                              Last edited by Chach; 03-26-2022, 05:54 PM.
                              My Build Pictures
                              https://onedrive.live.com/?authkey=%...18BD00F374765D

                              Comment


                              • Originally posted by Chach View Post
                                Never posted my door. I have a stainless door that is 4" thick which houses 4" of calsil board I had left over from the build. The stainless that surrounds the board is 16 gauge all welded and the face is made from 1/8" thick stainless to prevent warping. The stainless handles was formed from round stock and welded to the face only not through bolted. I was worried about the handles getting hot but they stay cool. I guess the calsil board is doing its job so no gloves are necessary to remove the door. I was thinking of doing wooden handles using stainless L brackets and oak dowles but I am very happy the way it turned out and it functions very well.


                                Ricky
                                Very nice, Ricky!
                                My Build:
                                http://www.fornobravo.com/forum/f8/s...ina-20363.html

                                "Believe that you can and you're halfway there".

                                Comment
